PROCESS SYSTEMS

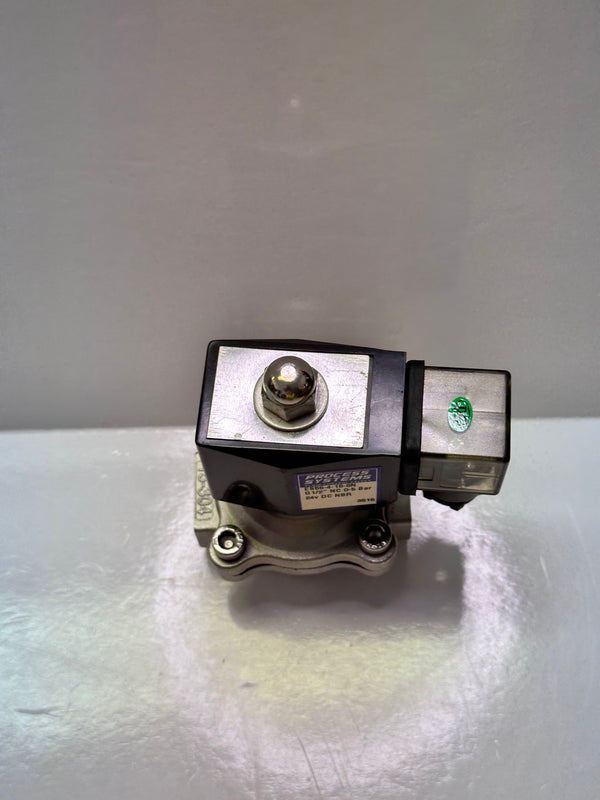

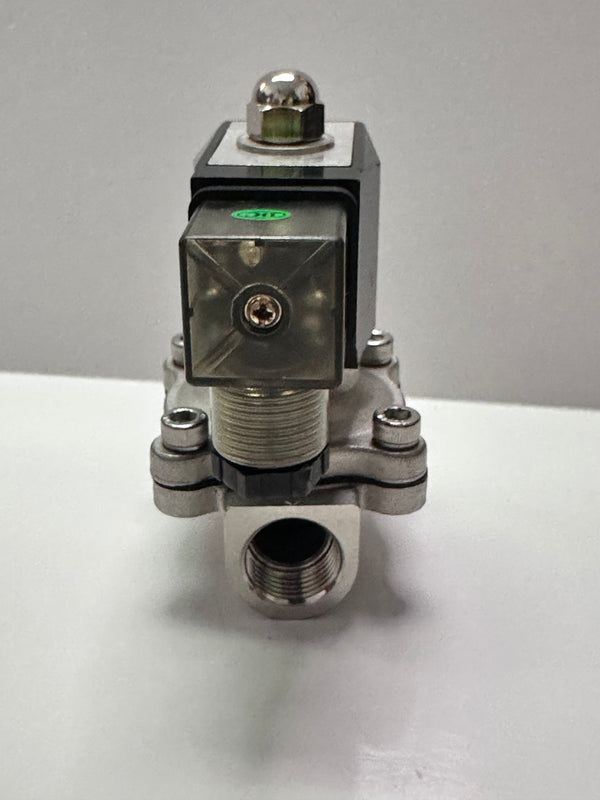

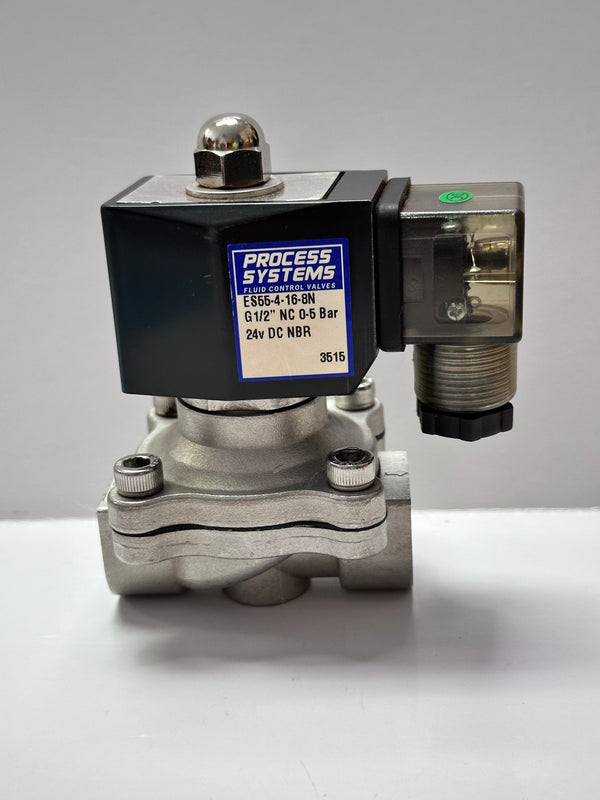

Process Systems ES55-4-16-SN Solenoid Valve, 24V DC, G1/2
- SKU
- P-LS-M-1612
$75.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | PROCESS SYSTEMS |
|---|---|
| Product type | VALVES |
| SKU | P-LS-M-1612 |
| Weight | 1.0 kg |
Description
304 SS General Purpose Zero Differential Normally Closed Solenoid Valve
24 Volt DC NBR
G1/2" NC
0-5 bar
| Model | Port Size (BSP) | Orifice ømm | CV | Pressure Air | Pressure Liquid | Media Temperature | Repair Kit | Coil Specifications |
|---|---|---|---|---|---|---|---|---|
| ES55-3-16-*N | 3/8 | 16 | 2.4 | 0 to 5 Bar | 0 to 5 Bar | -10°C to 80°C | RK-ES55-5-N |
SC-E16 26 Volt Amps 18 Watts Class F insulation |
| ES55-4-16-*N | 1/2 | 16 | 4.5 | 0 to 5 Bar | 0 to 5 Bar | -10°C to 80°C | RK-ES55-5-N | |
| ES55-5-20-*N | 3/4 | 20 | 9.3 | 0 to 5 Bar | 0 to 5 Bar | -10°C to 80°C | RK-ES55-5-N | |
| ES55-6-25-*N | 1 | 25 | 13.2 | 0 to 5 Bar | 0 to 5 Bar | -10°C to 80°C | RK-ES55-6 |
