LINCOLN INDUSTRIAL
Lincoln SSVD Lubrication Metering Device, 10 Port
- SKU
- P-LI-L-7726
- Weight
- 5.0 kg
Specifications
| Manufacturer | LINCOLN INDUSTRIAL |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-LI-L-7726 |
| Weight | 5.0 kg |
Description
Lincoln SSVD lubrication metering device, listed as 10 port. Additional catalogue references: 649-29487-1 and MC11492.

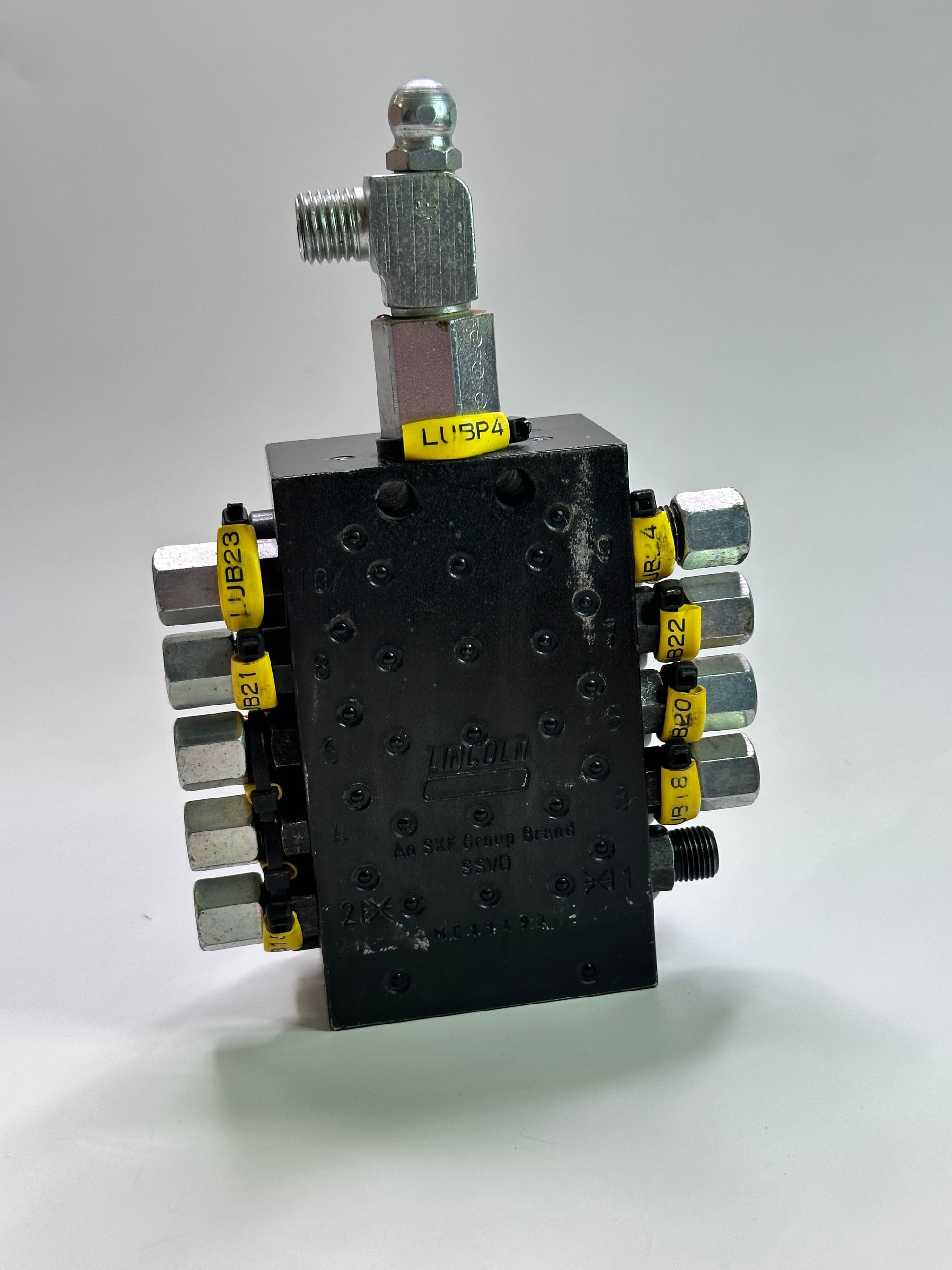

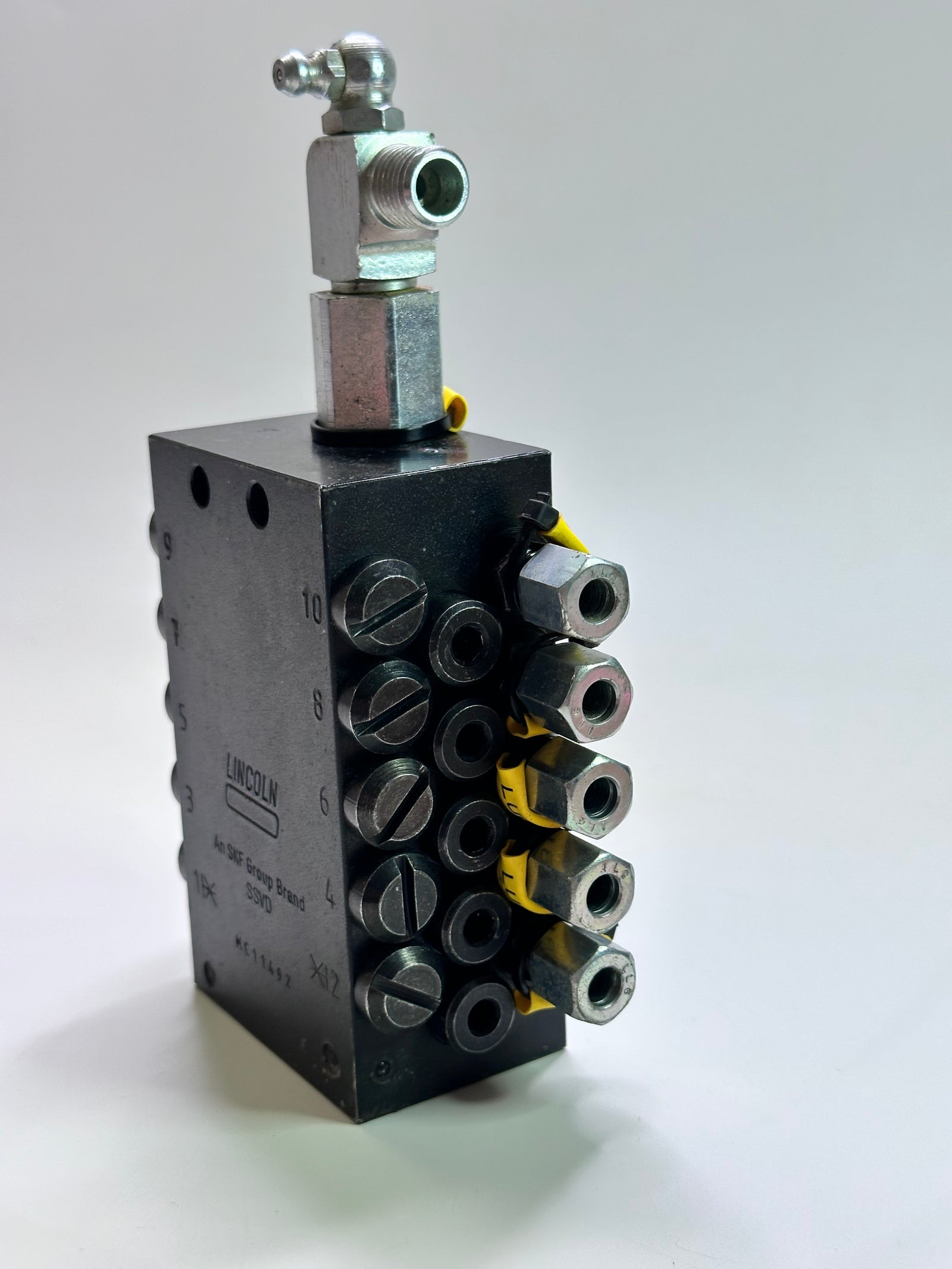

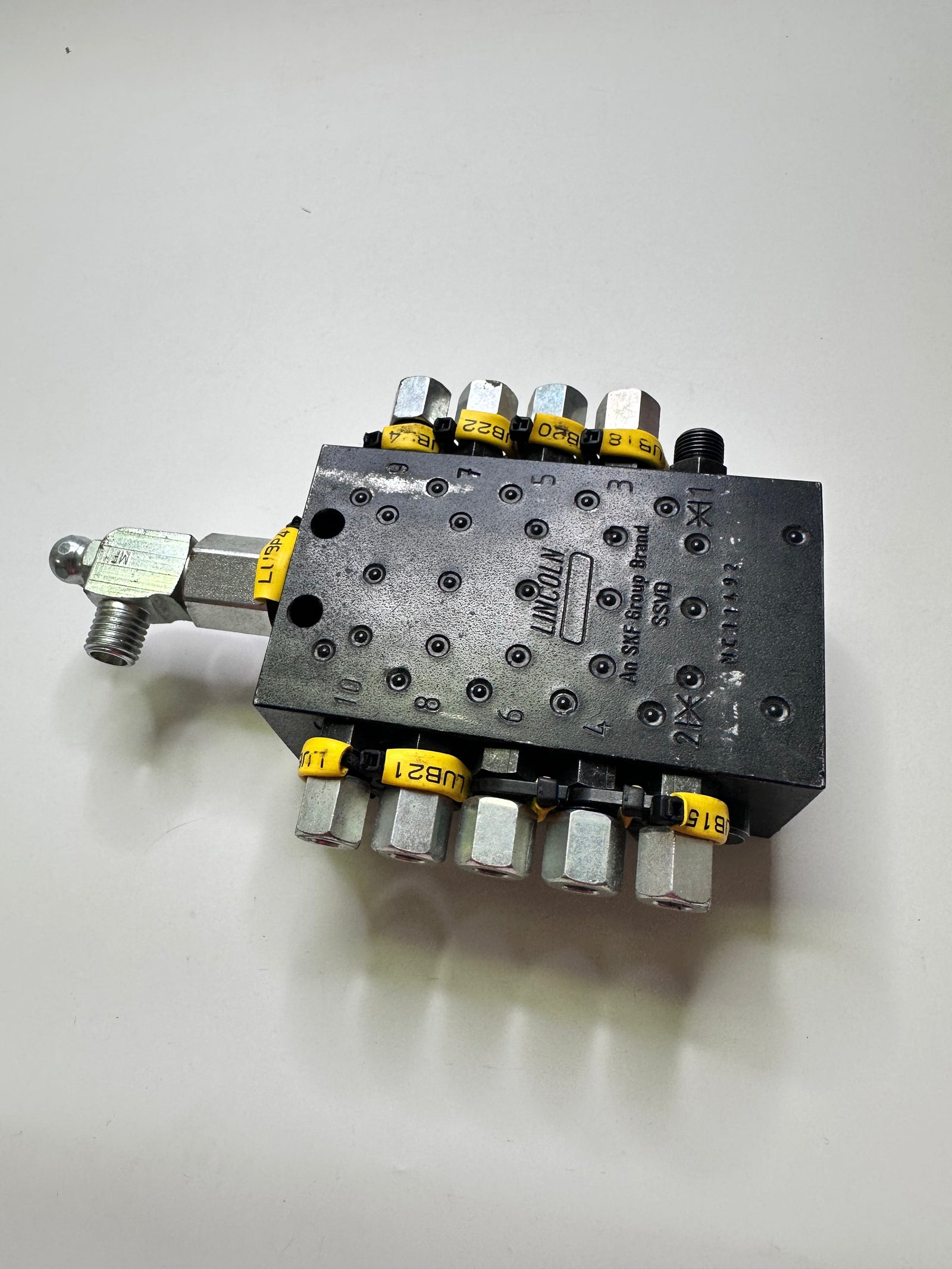

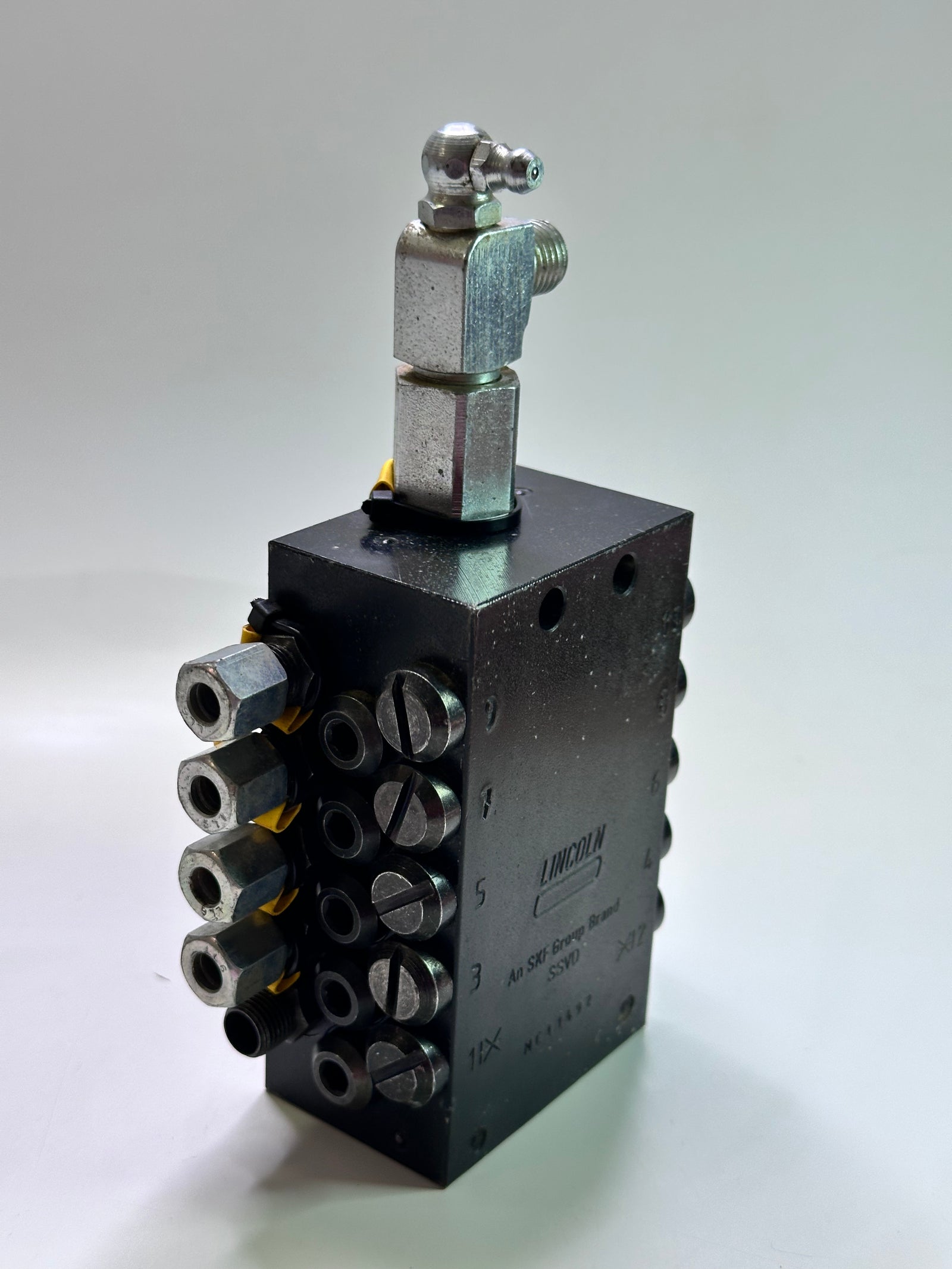

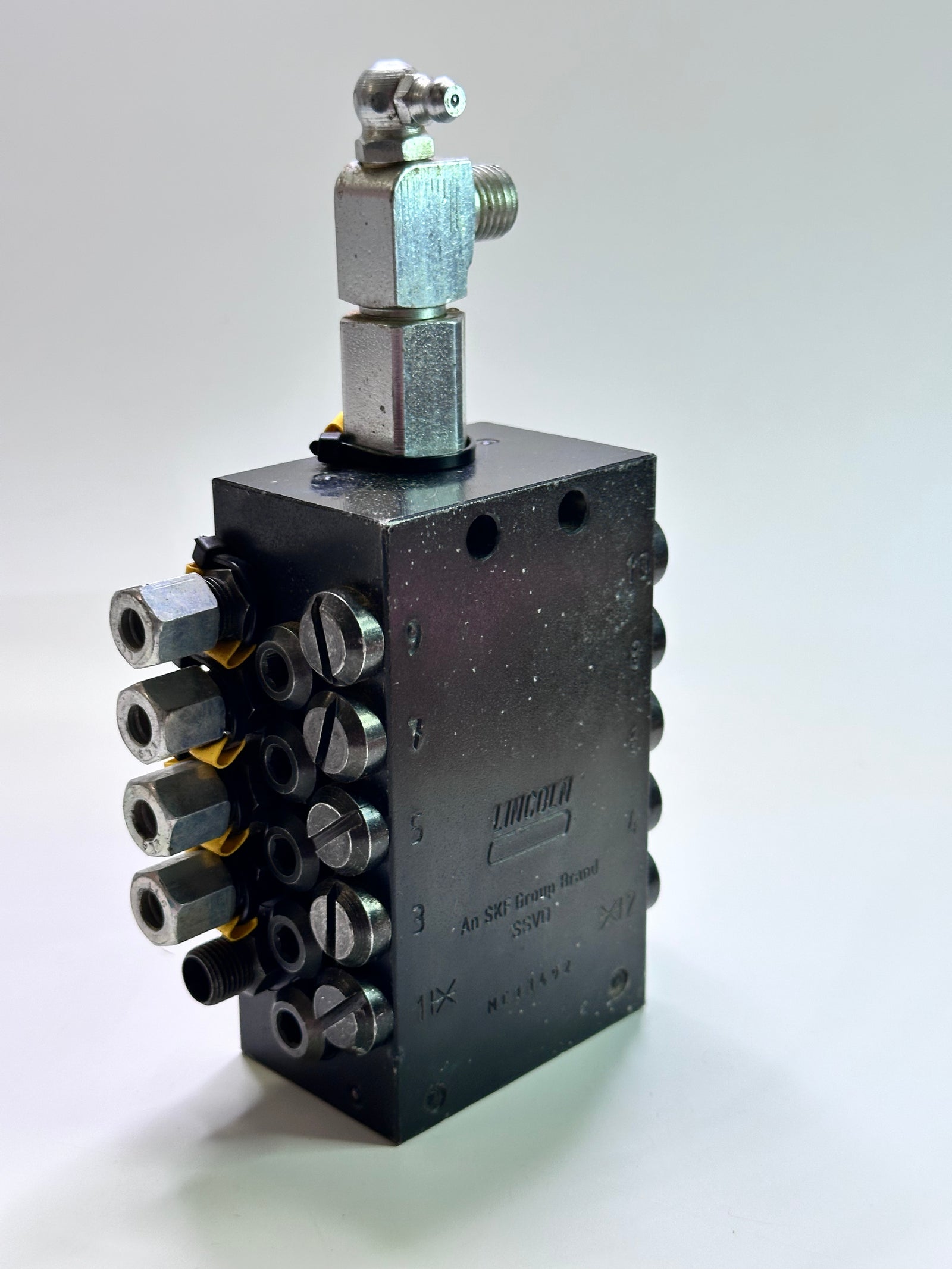

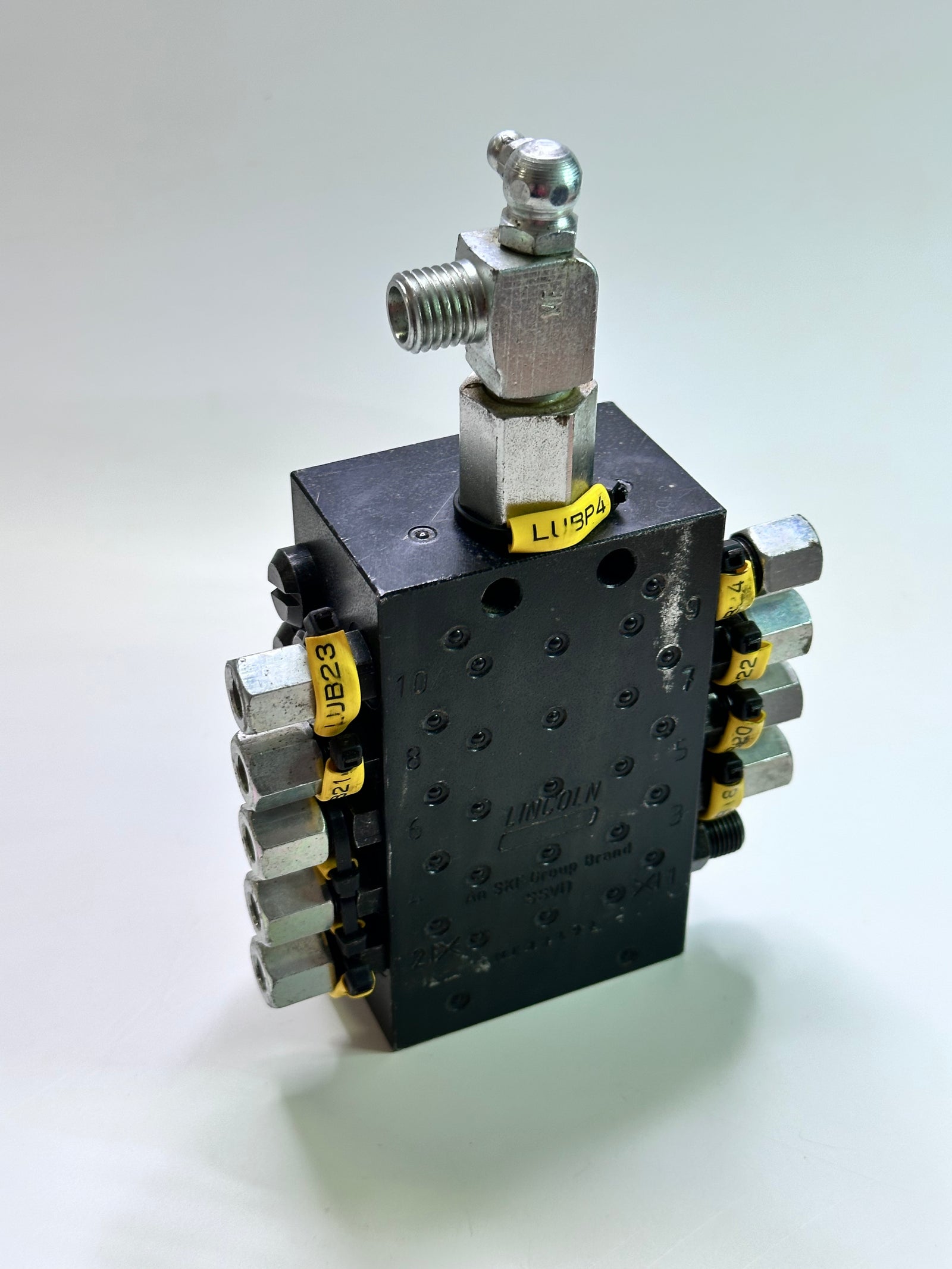

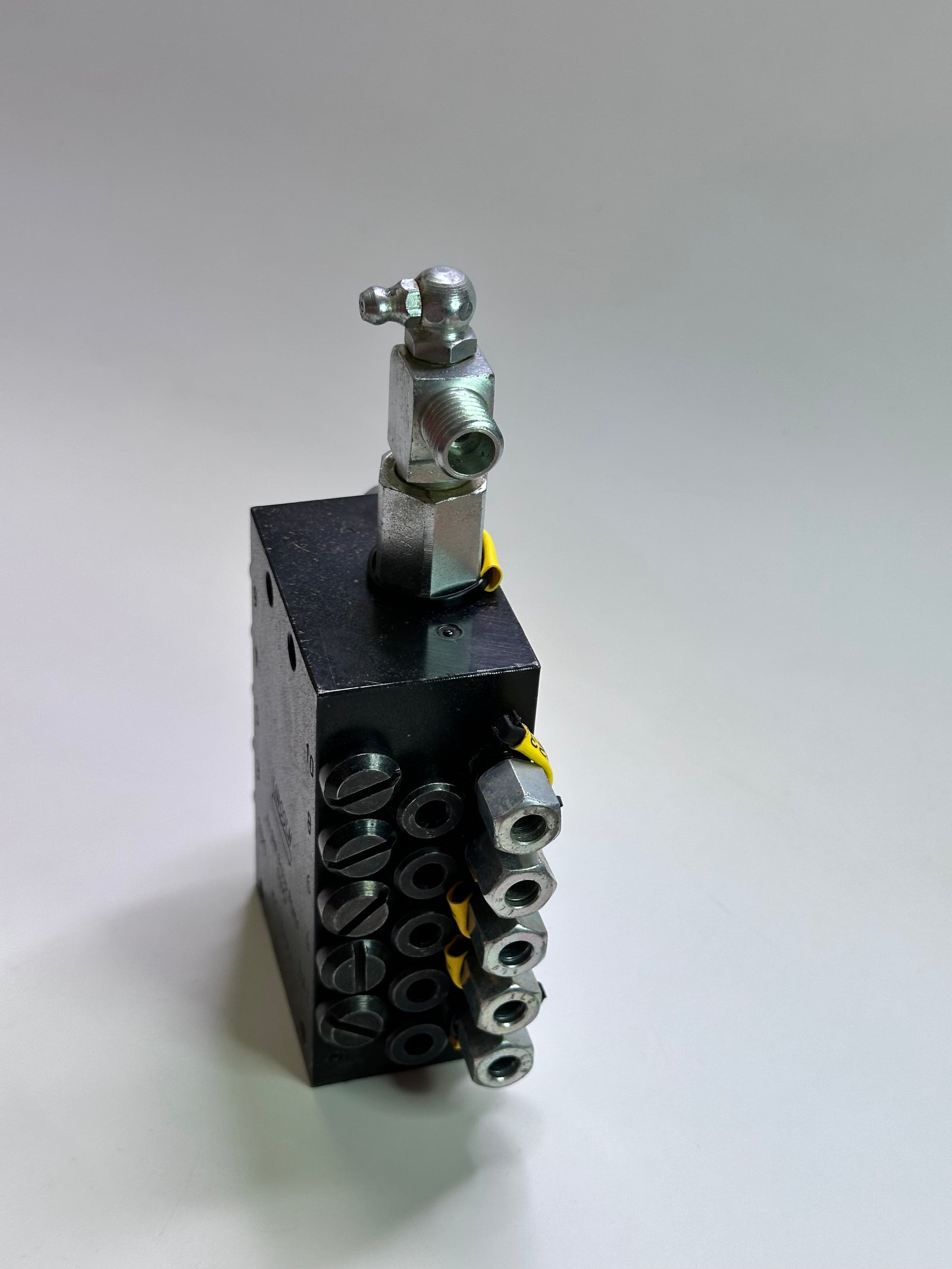

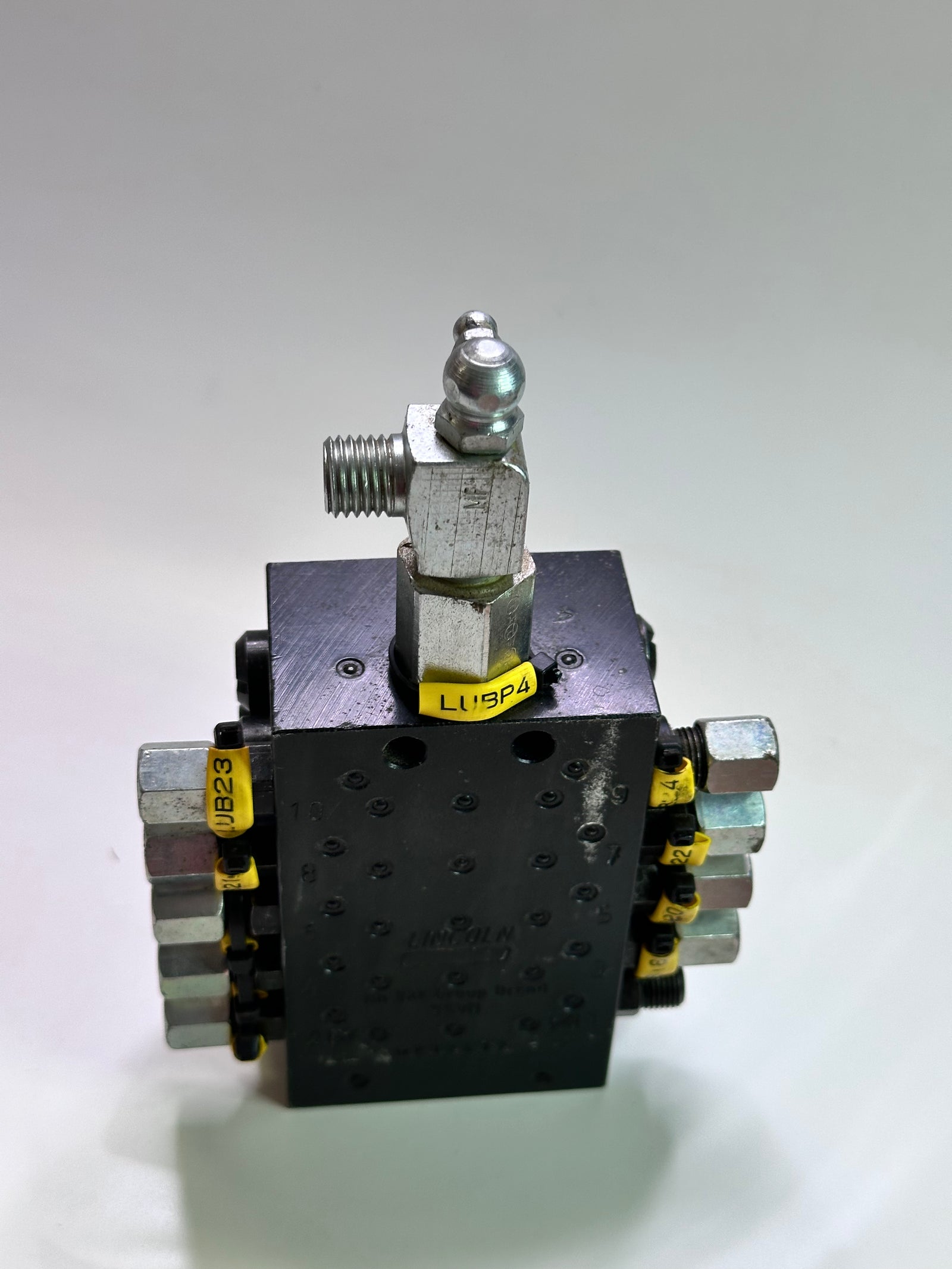

Condition/inclusions: parts are not in the original box and are sold as shown in the photos.
Source family technical data
The following table contains a 6–22-outlet range, alternative inlet threads and minimum/maximum dimensions; it is family information, not confirmed measurements of this 10-port item.
| Function principle | block metering devices | |
| Outlets1) | 6-22 | |
| Lubricant | Grease up to NLGI 2 oil at least 40 mm²/s |
|
| Metering quantity2) per cycle and outlet | min 0,08 cm3 max 1,80 cm3 |
0.0042 in3 0.11 in³ |
| Operating temperature | –25 to +70 °C | –13 to +158 °F |
| Operating pressure | max. 350 bar | 5075 psi |
| Materials | black galvanized steel | |
| Connection inlet | G 1/8 or 1/8 NPTF | |
| Connection outlet3) | M 10 × 1 | |
| Dimensions | ||
| min | 70 × 60 × 40 mm | 2.75 × 2.36 × 1.57 in |
| max | 190 × 60 × 40 mm | 7.48 × 2.36 × 1.57 in |
| Mounting position | any | |
The minimum metering entries 0,08 cm³ and 0.0042 in³ are not equivalent conversions. Confirm the actual metering quantity and configuration before use; neither value has been corrected by assumption. Source footnotes 1), 2) and 3) are referenced but their explanatory text is not supplied.
Atlas Copco, Epiroc and SKF appear in the original tags and do not establish specific equipment fitment. Confirm connections, lubricant suitability and required components before ordering.
