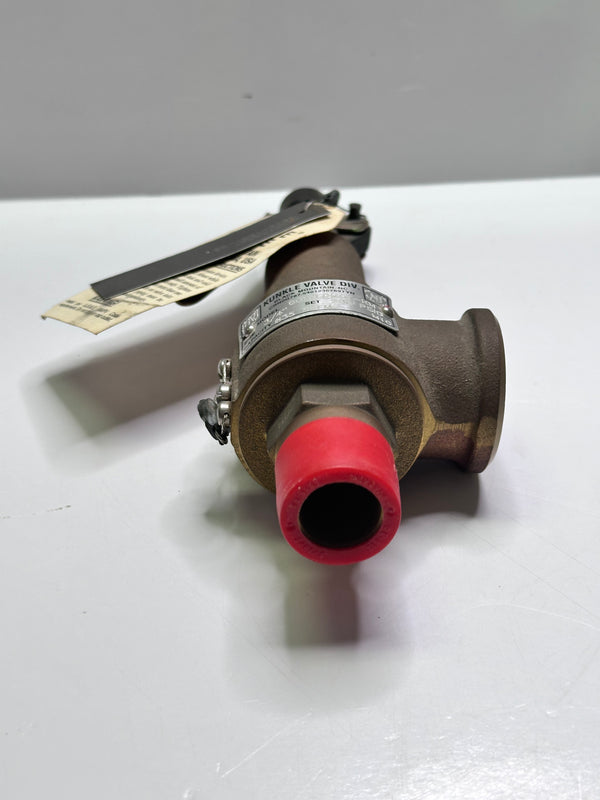

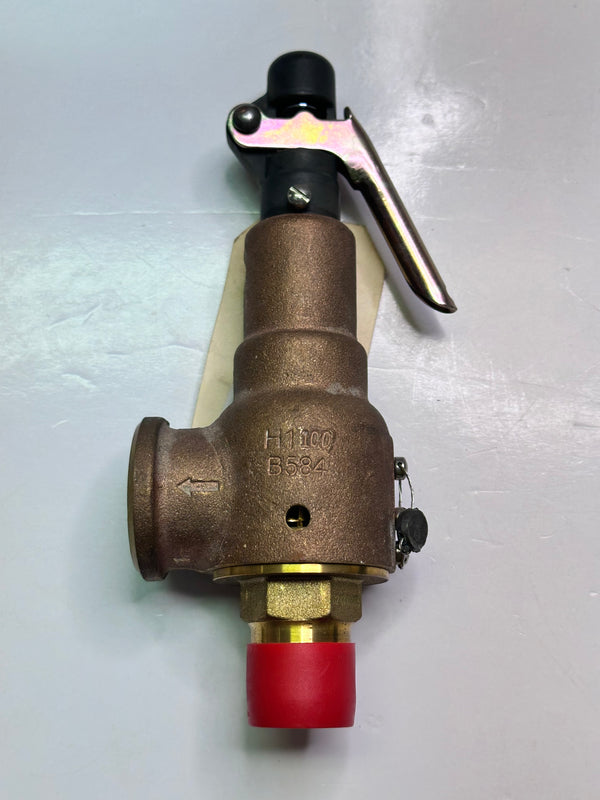

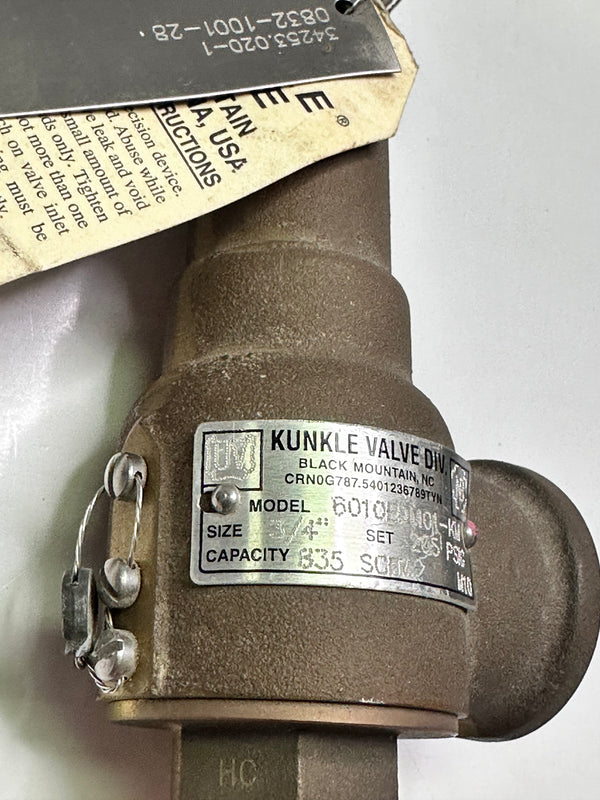

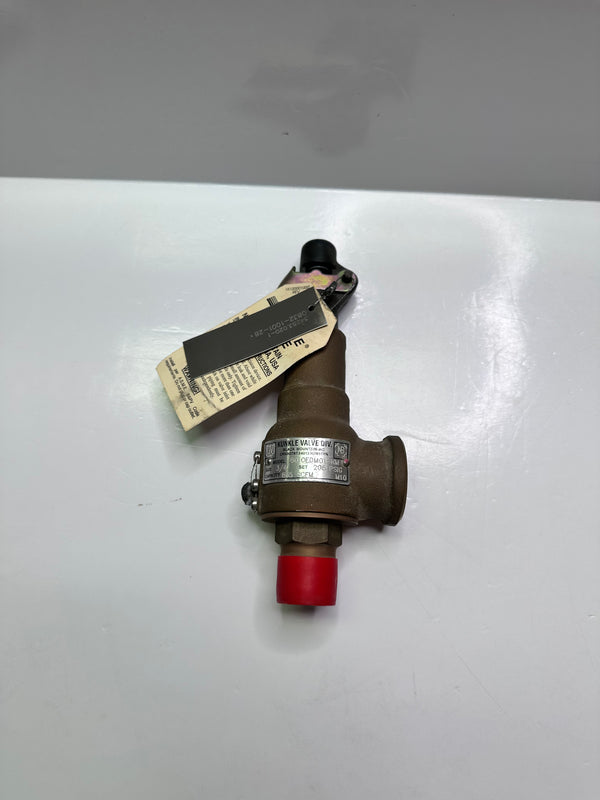

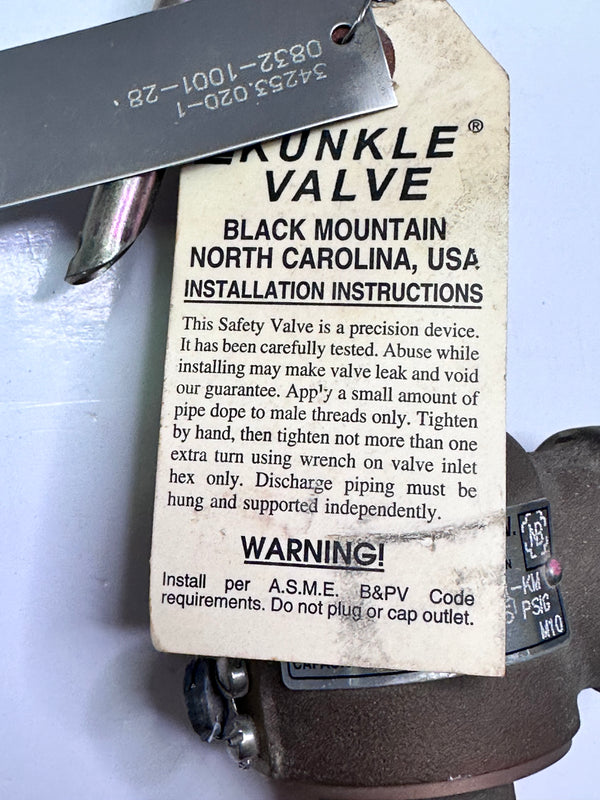

Safety relief valve for air, gas and vapors. It is used on compressors, receivers, burners, dryers and other piping systems. Figure 6010 safety relief valves are rated up to 300 psi and 406°F and meet ASME code, Section VIII.
| Item | Safety Relief Valve |

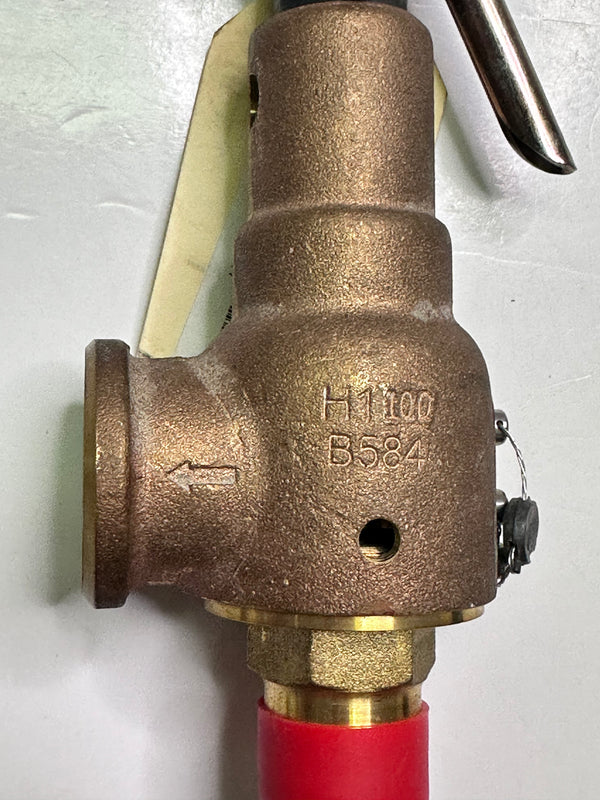

| Body Material | Bronze |
| Compliance | Section VIII Air/Gas |
| Disc Material | Bronze |
| Factory Set Pressure | 200 psi |
| Inlet Size | 3/4" |
| Inlet Type | MNPT |

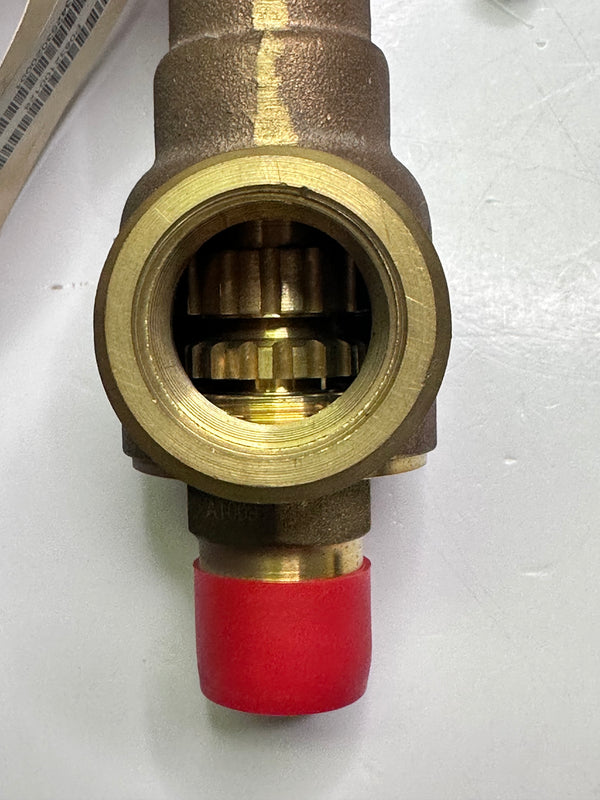

| Outlet Size | 1" |
| Outlet Type | FNPT |
| Overall Height | 6.5" |
| Overall Length | 1.625" |
| Pressure Range | 3 to 300 psi |
| Seat Material | Metal |
| Spring Material | ASTM A-313 TY 631 |
| Temp. Range | -60 Degrees to 406 Degrees F |

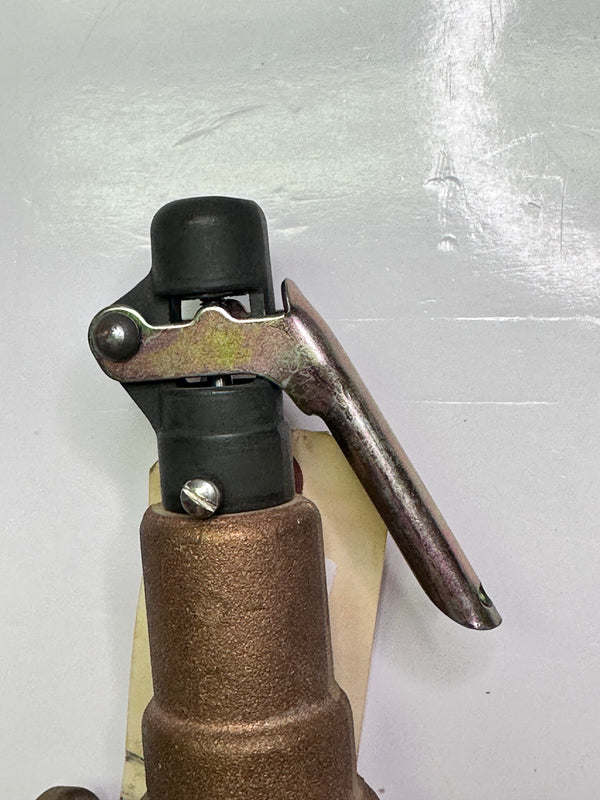

| Test Lever | Yes |
