KROHNE XF71030300 DN40 Repair Kit for DW181-184 Flow Switch
- SKU
- P-KR-K-5039
- Weight
- 0.3 kg
Specifications
| Manufacturer | KROHNE |
|---|---|
| Product type | INDUSTRIAL SUPPLIES |
| SKU | P-KR-K-5039 |
| Weight | 0.3 kg |
Description
KROHNE repair kit identified in the title as XF71030300, DN40, for DW181-184 flow switch.
Source spare-parts text
5.3 Spare parts
Measuring spring DW 181 / 182 "C" or DWC43 (DN40) C043

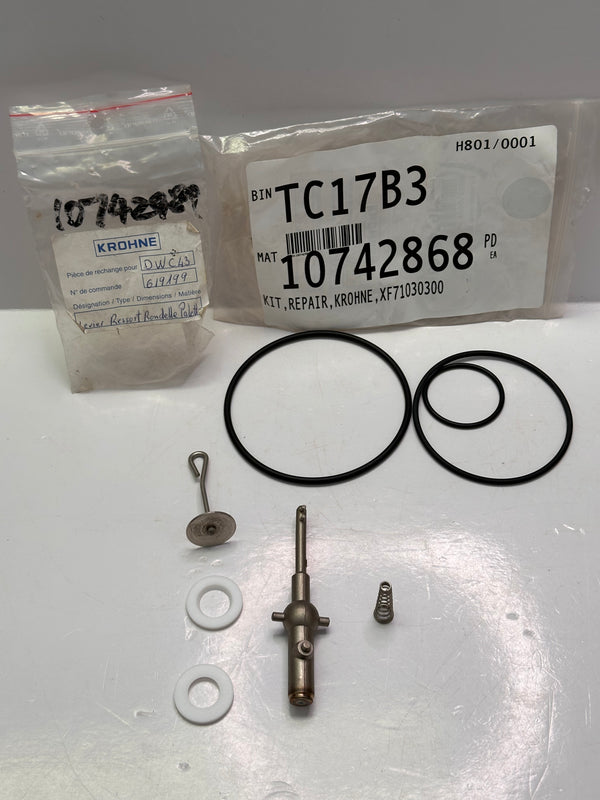

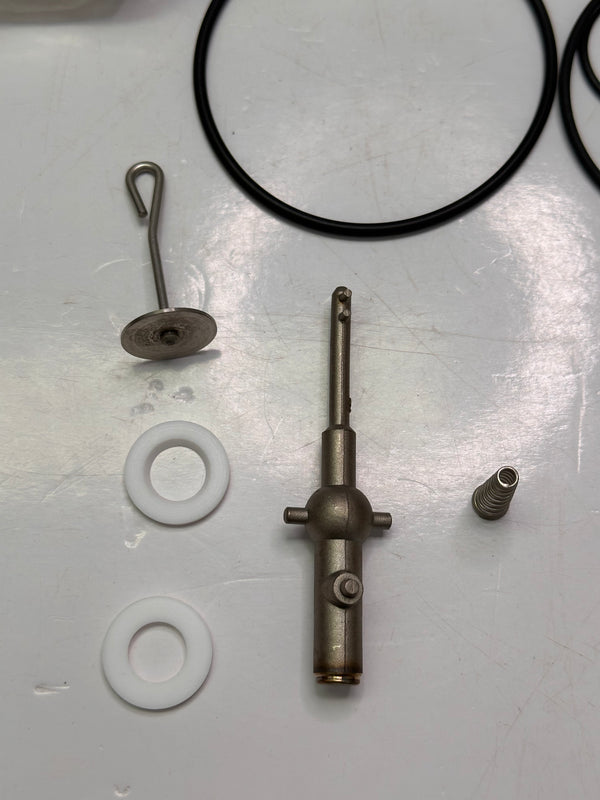

Magnet lever (Tag 11)/ PTFE Ring (Tag 13)/ Measuring spring (Tag 12)/ Measuring disc (Tag 14)
+
Kit gasket DW 181 / 182
Tag Description Silicon code FPM/FKM code NBR code

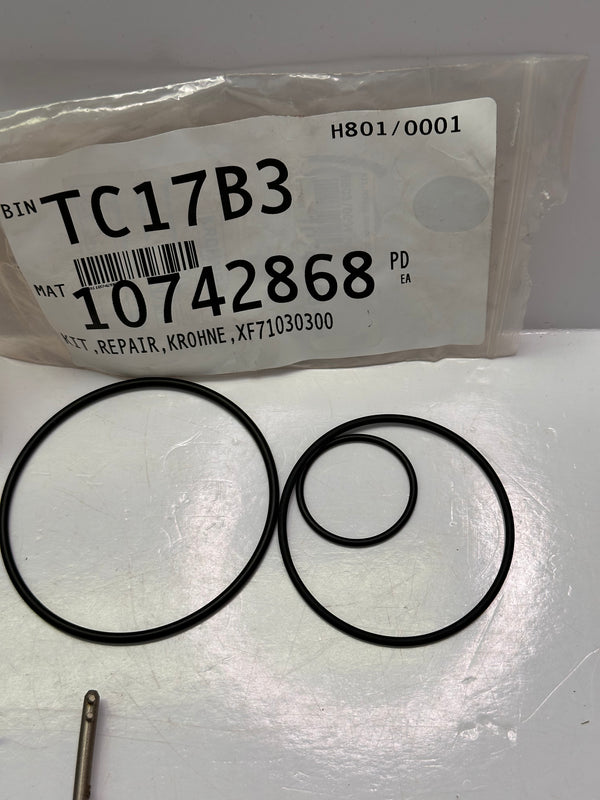

2 O-ring D 88,49 X 3,53
8 O-ring 74 X 3 X 80 XF71030100 XF71030200 XF71030300
10 O-ring D 36,17 X 2,62
13 PTFE ring
The description names DW 181 / 182 "C", DWC43 and C043, whereas the title says DW181-184. Its compressed gasket list includes Silicon, FPM/FKM and NBR headings with XF71030100, XF71030200 and XF71030300, but does not clearly map each code and included item.
Confirm the exact kit label, material variant, included parts and switch model before ordering. The original dimensions and tag numbers are retained without rearranging their meaning. This is a repair-kit listing, not a complete flow switch or control valve.
