KORENIX

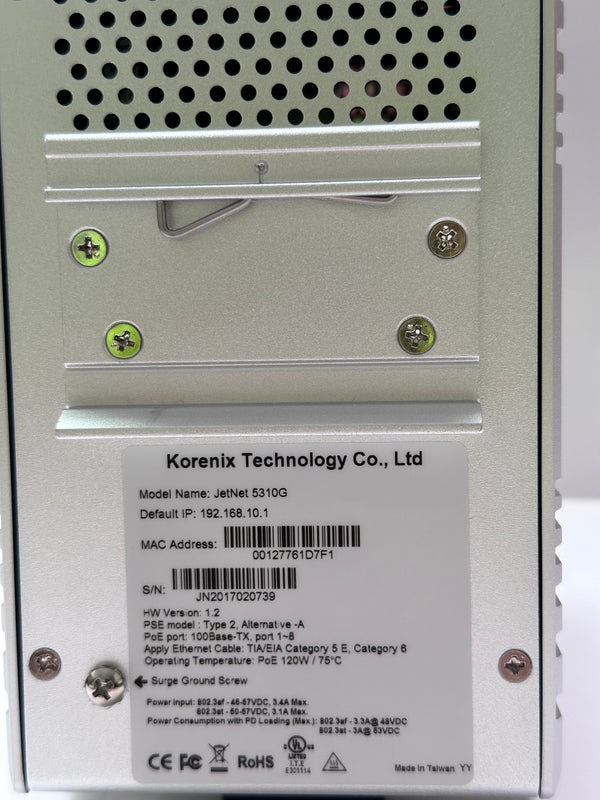

Korenix JetNet 5310G Industrial Managed PoE Switch — 8 Fast Ethernet + 2 Gigabit Combo
- SKU
- P-KO-K-0836
$350.00
Price includes GST.
Low stock: 4 left
Warehouse pickup available
- Weight
- 1.8 kg
Specifications
| Manufacturer | KORENIX |
|---|---|
| Product type | DATA & COMMUNICATION |
| SKU | P-KO-K-0836 |
| Weight | 1.8 kg |
Description
Korenix JetNet 5310G industrial DIN-rail managed PoE Ethernet switch.
- Eight 10/100Base-TX ports plus two Gigabit RJ/SFP combo ports. Combo interfaces are not additional independent ports.
- Source PoE ratings: IEEE 802.3af 15.4W and IEEE 802.3at 30W; total stated power budget 240W.
- SFP support: 100/1000Mbps with Digital Diagnostic Monitoring (DDM).
- Operating temperature recorded: -40 to +75°C; ingress protection IP30.
The original detailed feature list below retains ring redundancy, management, security, event notification and isolation features. The advertised 5ms recovery time is a source specification, not a tested result for this unit or every network topology. Optional Korenix NMS software is not established as included.
Confirm the power-supply requirements, PoE load and network configuration before purchase. Power supply, SFP modules and additional accessories are not specified as included. The feature list does not verify current firmware, support status or security configuration.
Original feature reference
5310G 8 + 2G Combo High Power IEEE802.3at Industrial PoE DIN-Rail Managed Switch
- 8 10/100 Base TX ports and 2 Gigabit RJ/SFP combo ports
- Industrial PoE DIN-Rail Managed Switch
- IEEE 802.3af 15.4W / IEEE 802.3at 30W High Power
- 240W total power budget for High-power camera
- SFP ports support 100/1000 Mbps with Digital Diagnostic Monitoring (DDM) to monitor long distance fiber quality
- All ports support Korenix patented RSR with 5ms recovery time, and MSR for up to 4 x 100M Rings and 2 Gigabit Uplink Rings
- Advanced management LACP/VLAN/ Private VLAN / QinQ / GVRP/ QoS/ IGMP Snooping/Rate Control/ Online Mirroring/DHCP
- Advanced Security system Port Security, Access IP list, SSH and HTTPS Login
- Event Notification through E-mail, SNMP trap and
- IEEE 802.1AB LLDP and optional Korenix NMS software for auto-topology and group management
- Cisco-Like CLI, Web, SNMP/RMON for network management
- Multiple event relay output for enhanced device alarm control
- Hi-Pot Isolation Protection for ports and power
- Industrial heat dispersing design, -40~75°C wide operating temperature
- IP30 ingress protection
