KEM KL-12D24G LED Indicator Lamp — STX Engine Application
- SKU
- P-KL-K-7525
$10.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | KEM Co. |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-KL-K-7525 |
| Weight | 1.0 kg |
Description

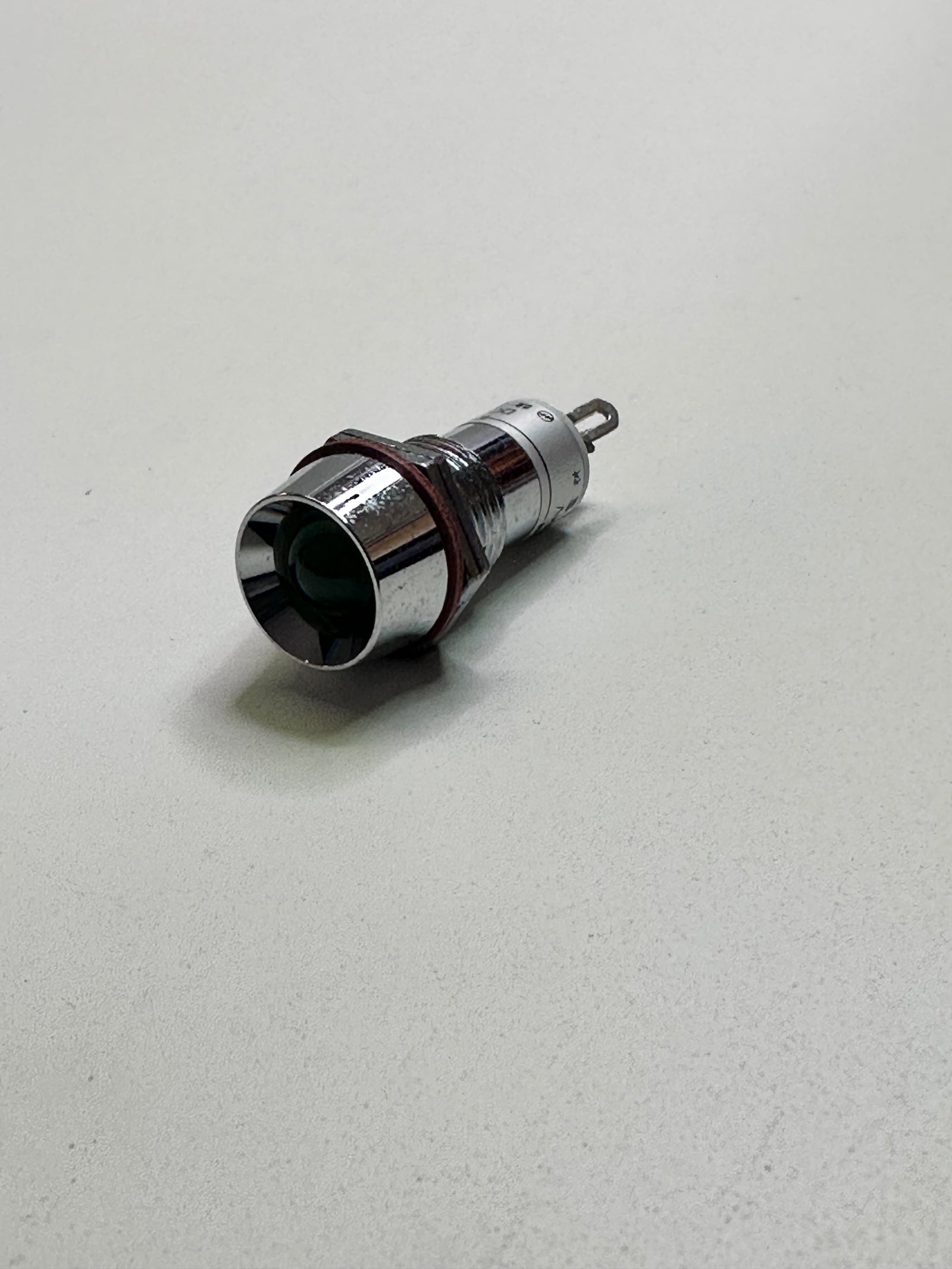

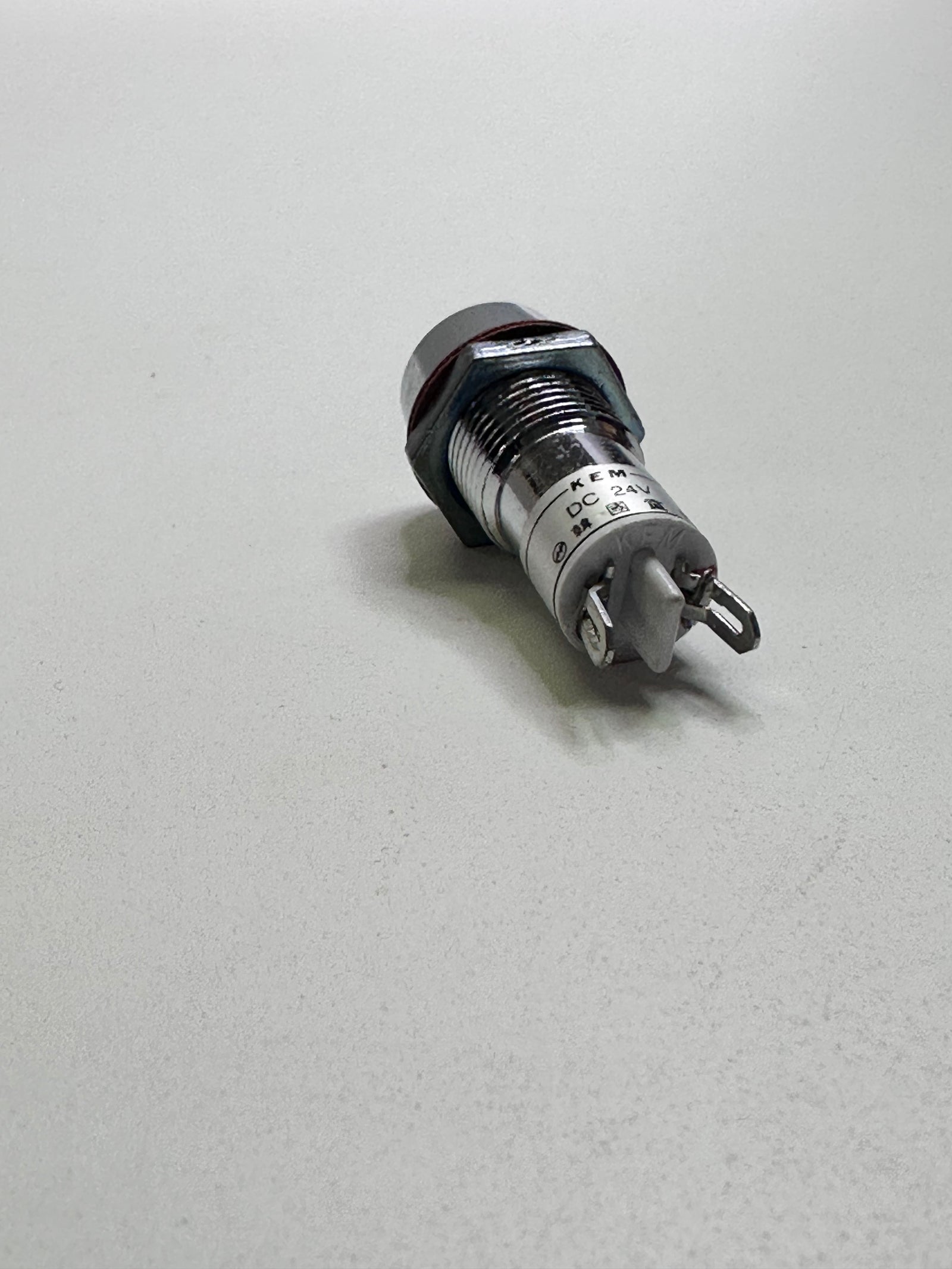

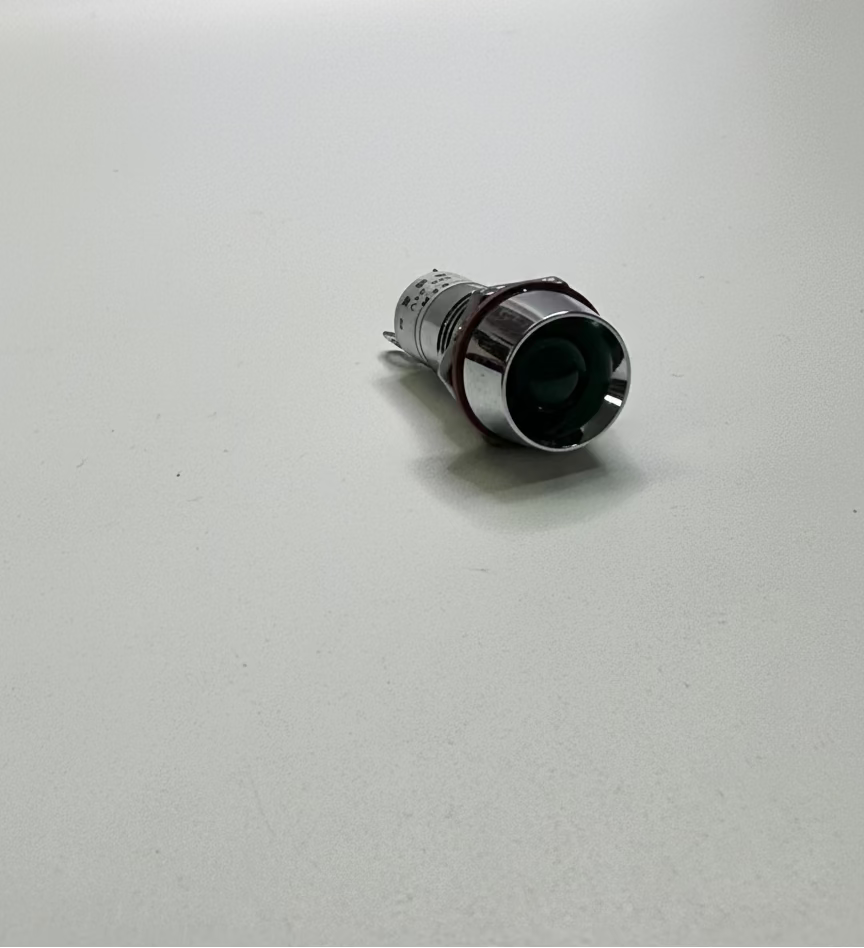

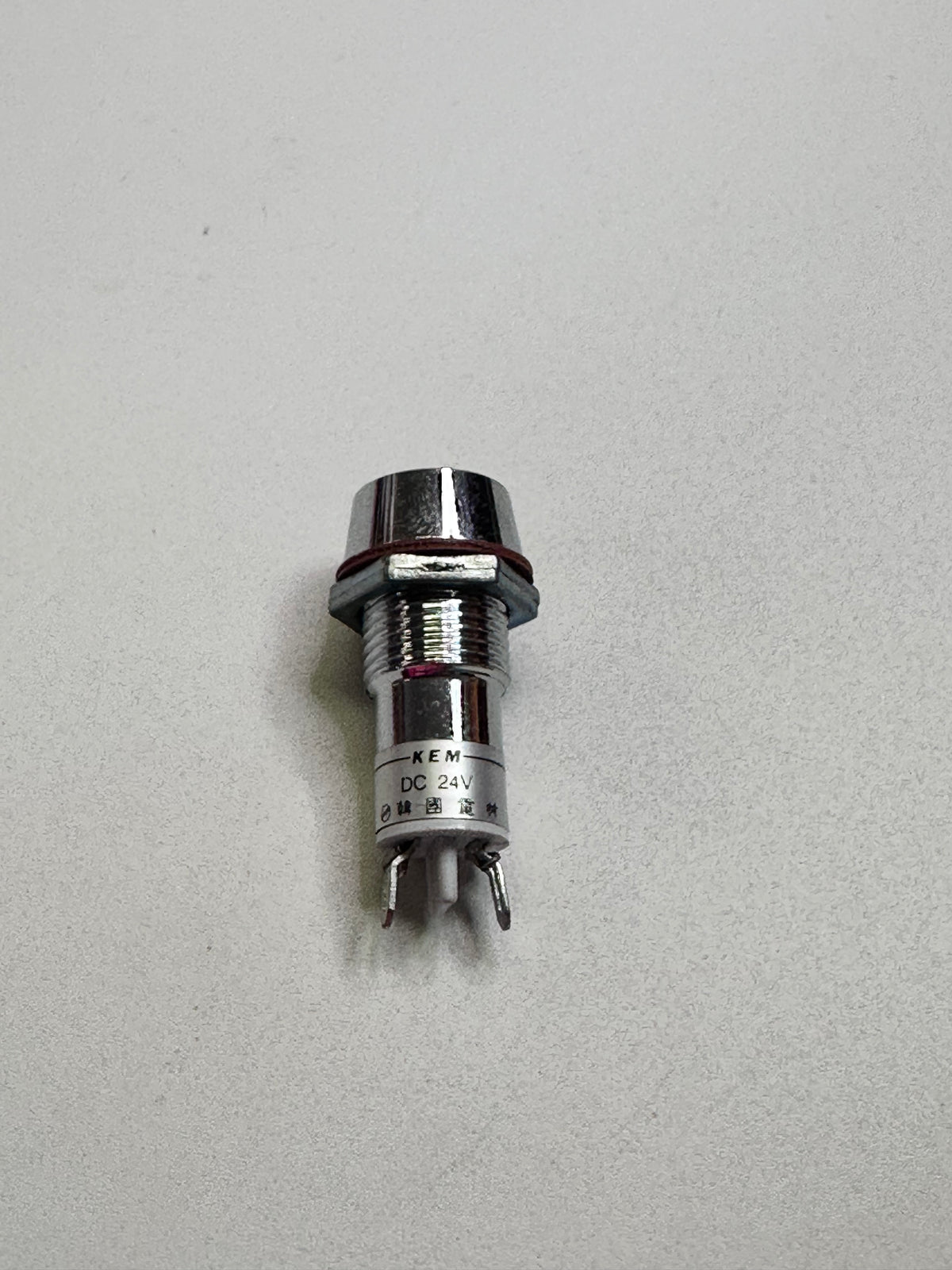

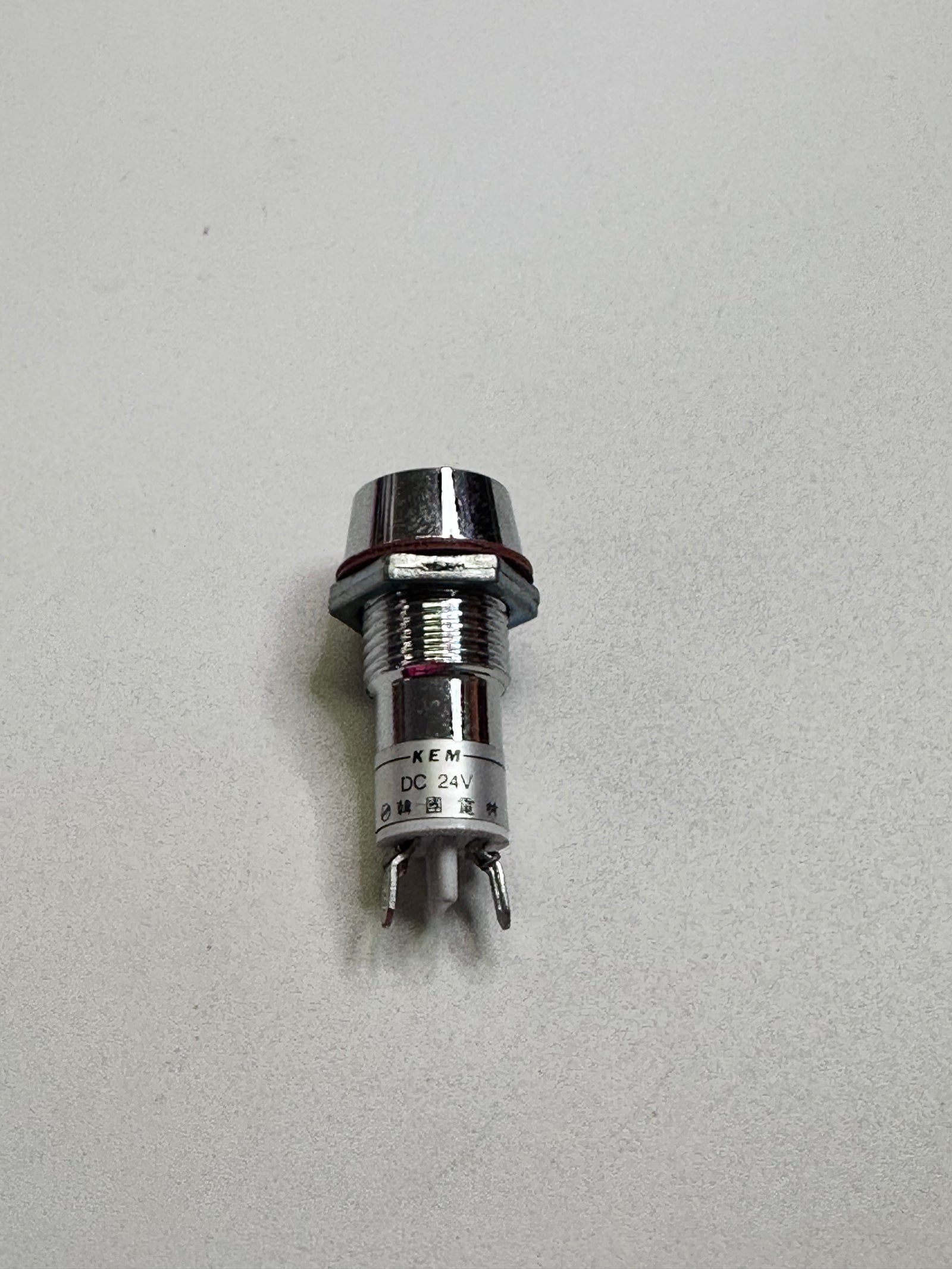

KEM Co. KL-12D24G LED indicator lamp, listed for STX diesel-engine applications. Catalogue tags record green and 24 V DC, plus KL-12G; confirm the exact marking before ordering.
Source notes this part is discontinued. Current manufacturer availability has not been independently checked.
The original table below describes multiple family colour and electrical options, not all features of this one lamp:
This part has been discontinued.
-
Moderate Color Red Green Yellow White Lighting color Red Green Yellow Red High Brightness Color Transparent (KLU only) Red Green Yellow White Blue Lighting color Red Green Yellow White Blue Operating Current (mA) 10~20 mA or less (based on DC 24V) For AC, less than 10mA Attention Temperature (°C) -25 ~ +60 ℃ Withstand Voltage (V) AC 500V 50/60HZ 60 sec Insulation Resistance IR (MΩ) DC 500V 100 (MΩ) MIN Material · plating Brass, chrome plated, black chrome
Confirm actual colour, supply, dimensions and mounting. The 500 V withstand/insulation-test values are not operating-voltage ratings; the table's AC current entry does not establish AC suitability of this unit.
