OVARRO

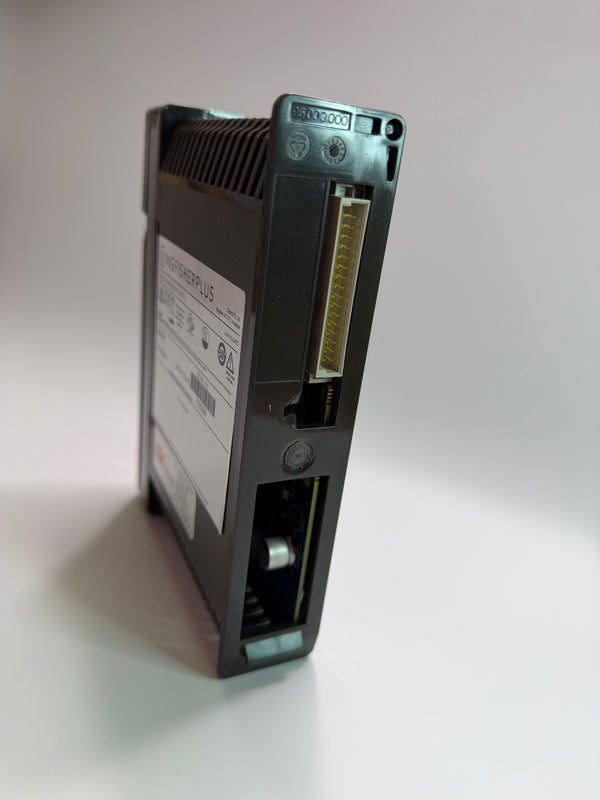

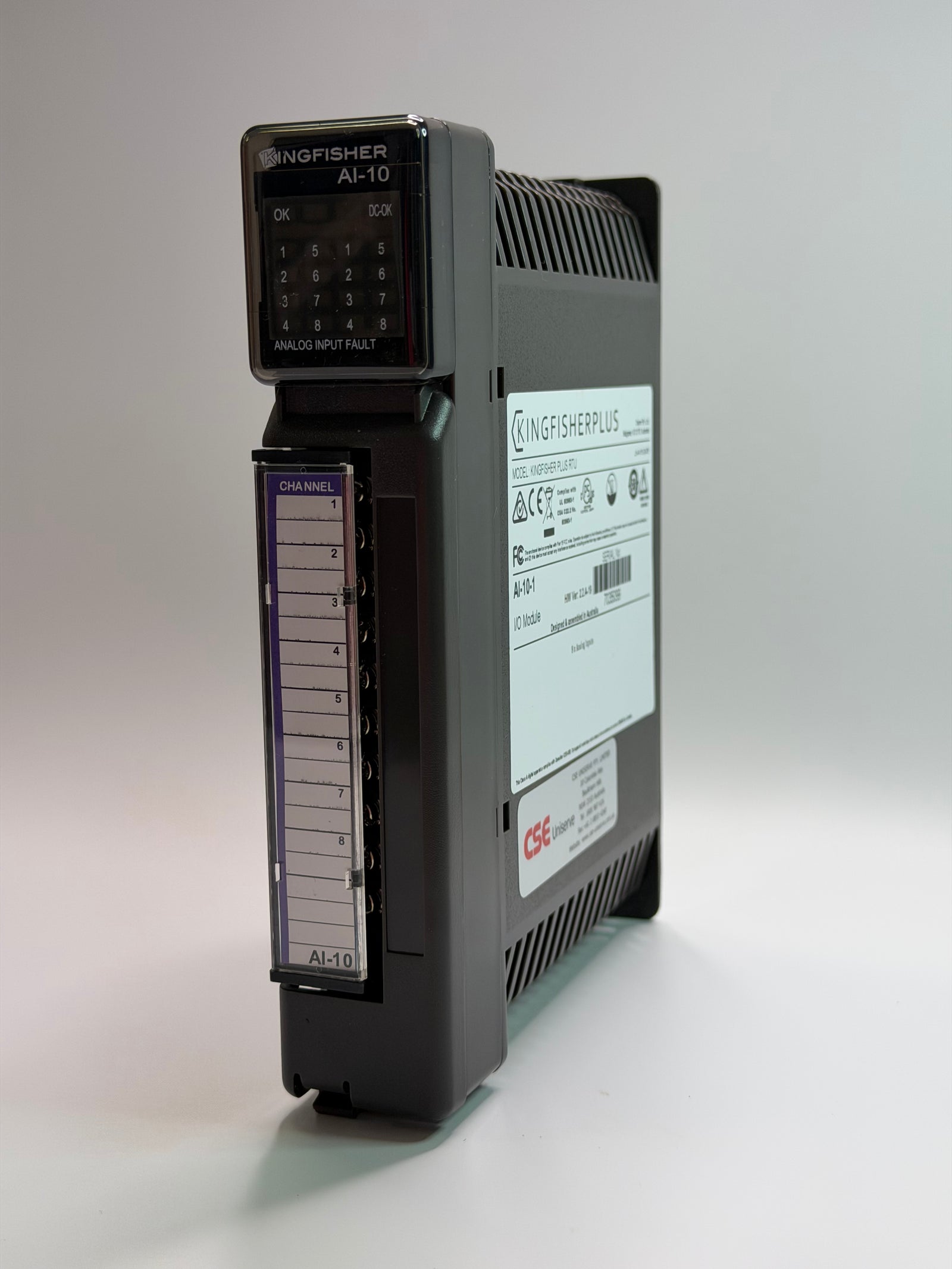

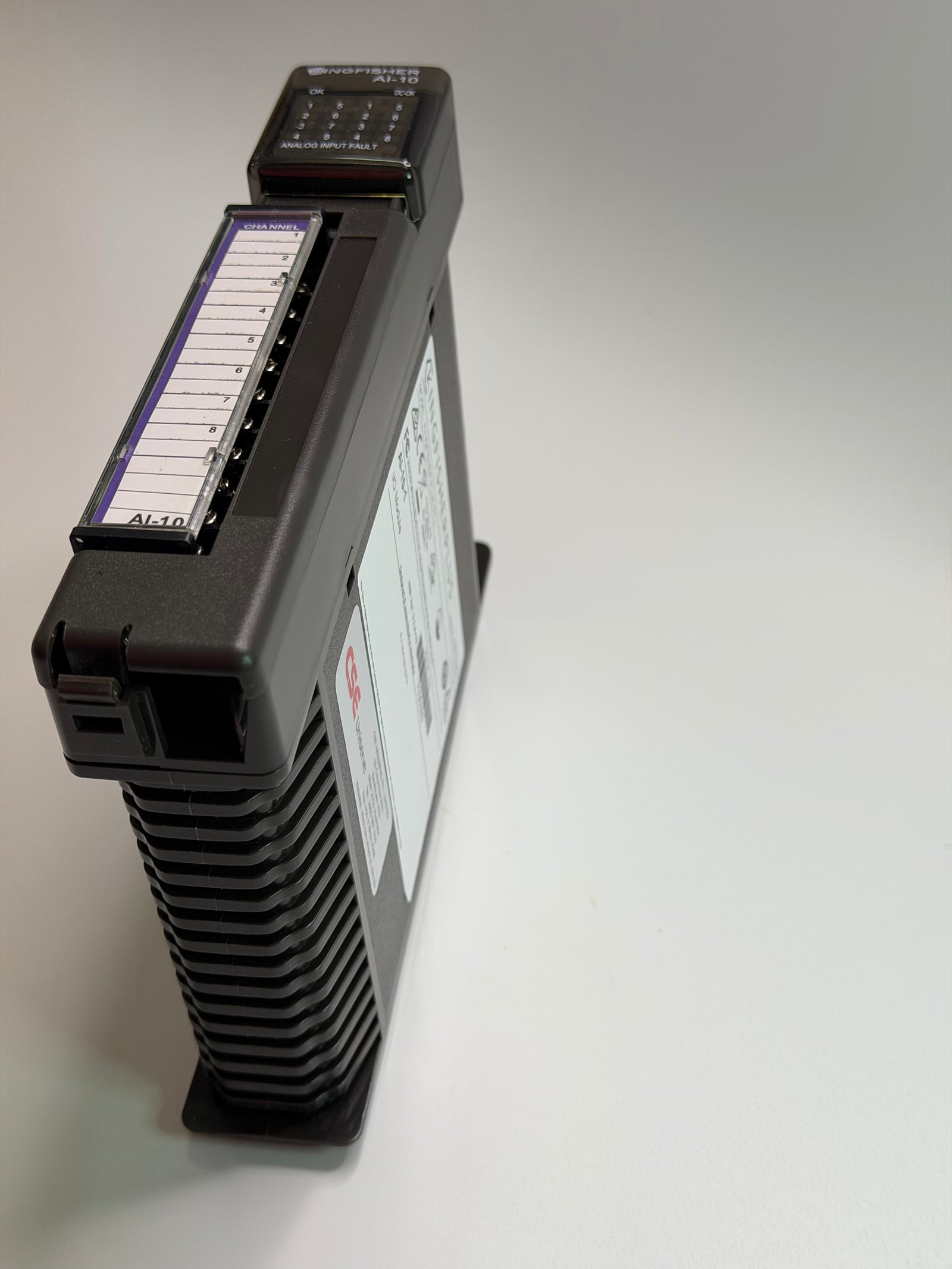

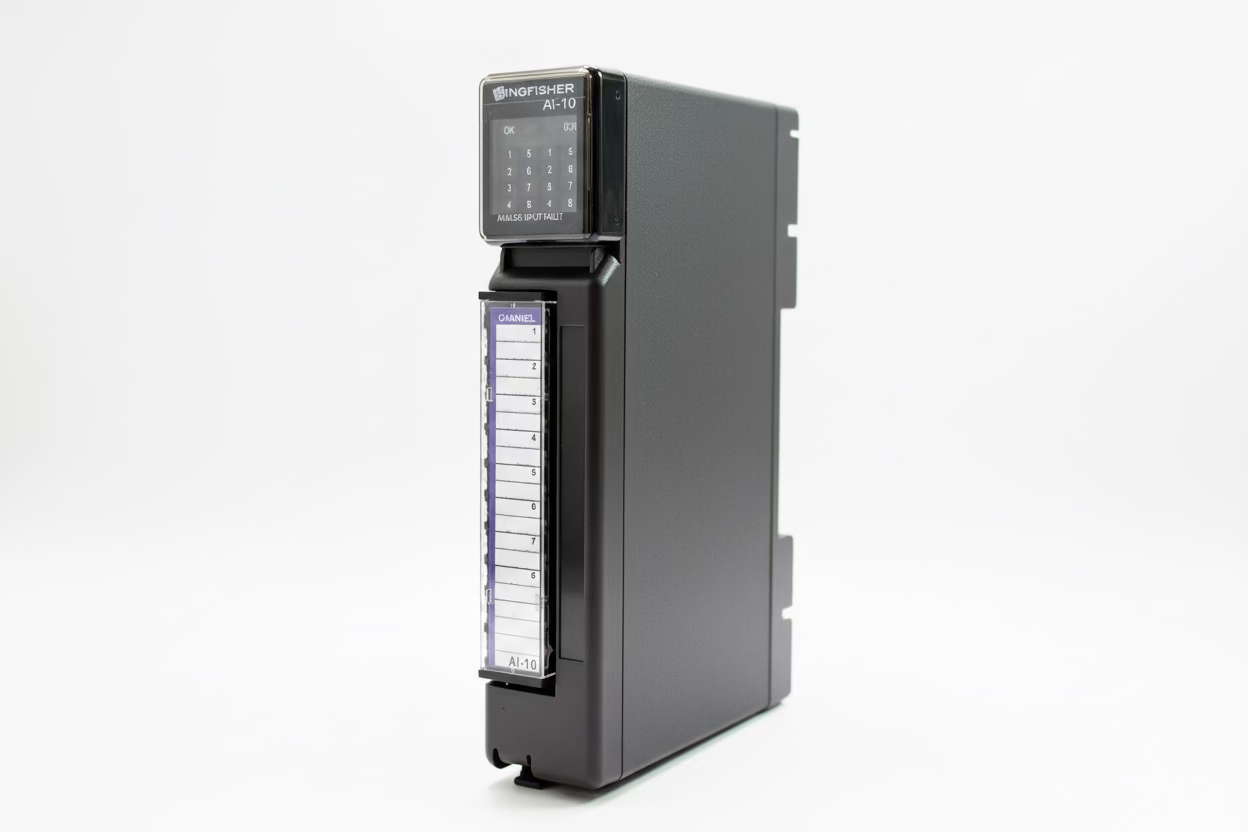

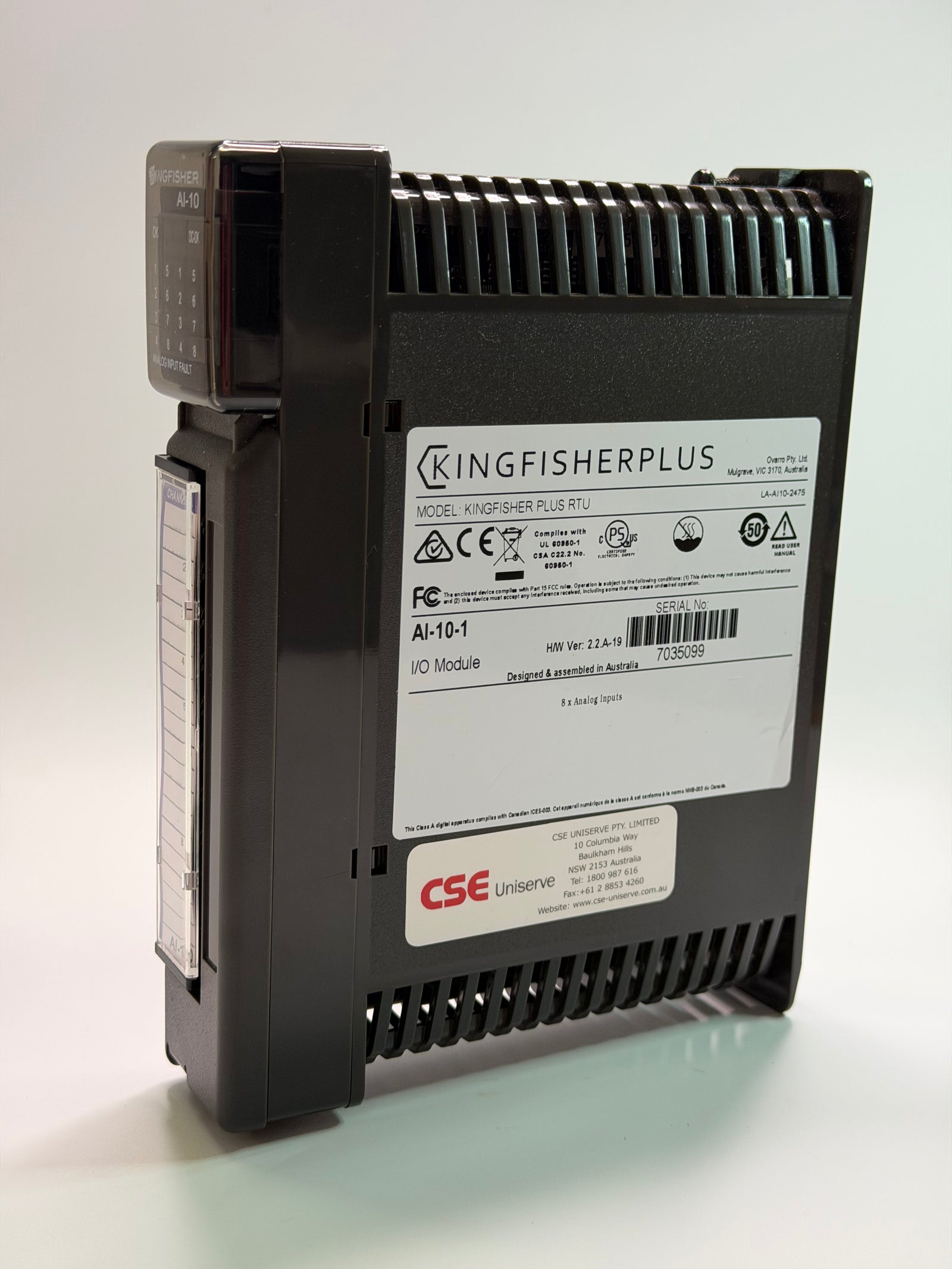

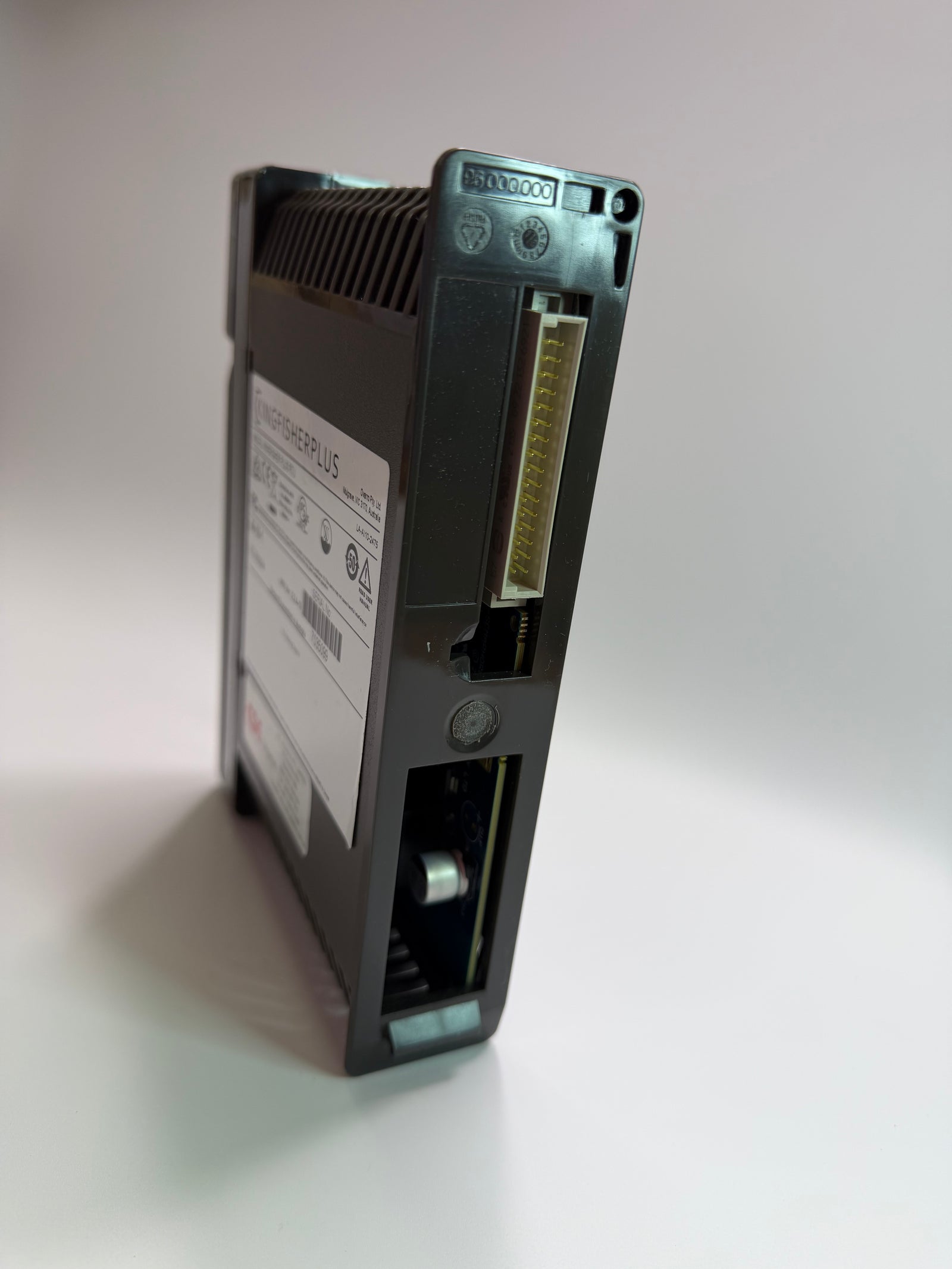

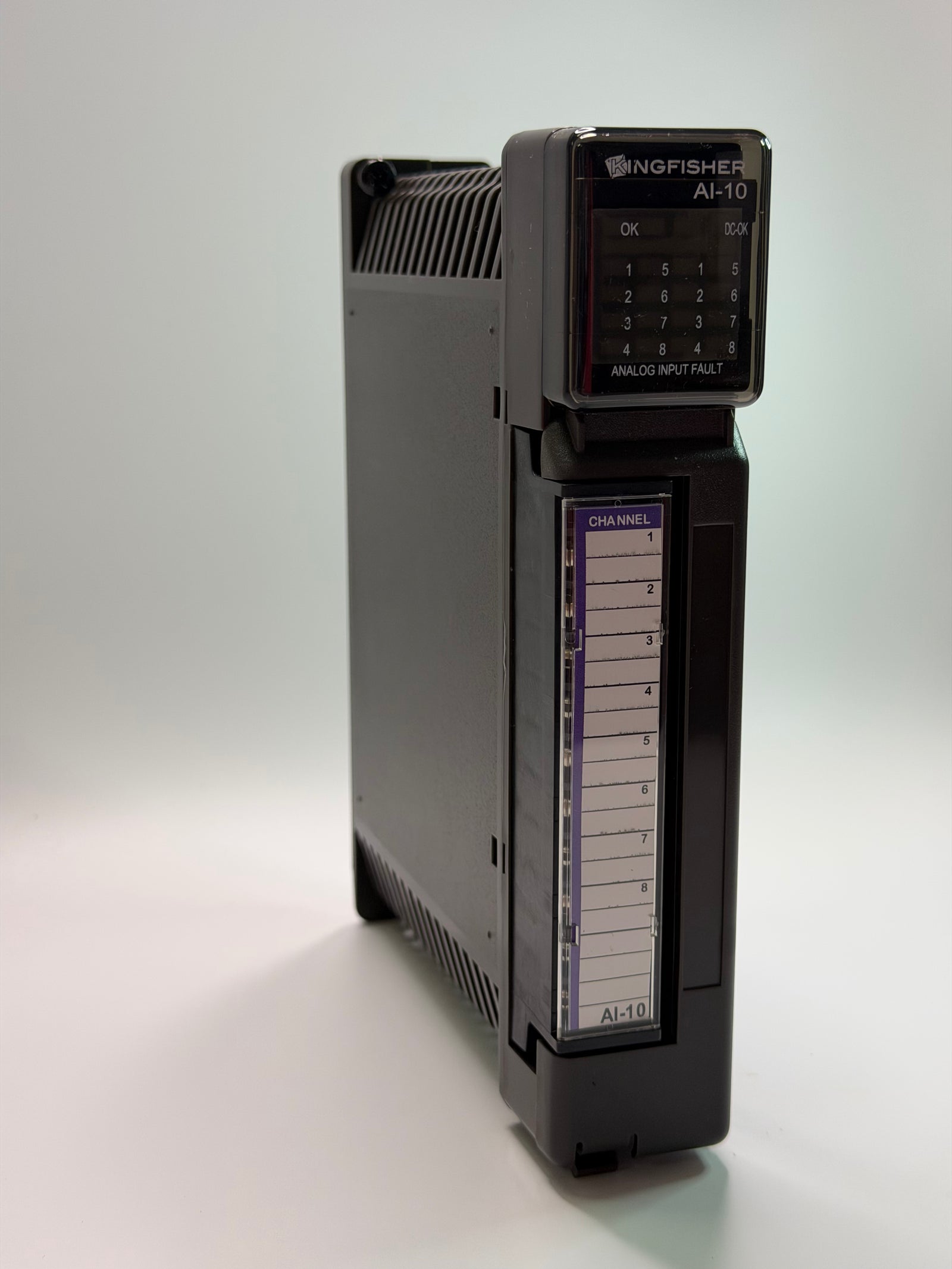

Kingfisher Plus+ AI-10-1 Analog Input Module — 8 Channel, 16 Bit
- SKU
- P-KI-O-7980
- Weight
- 2.0 kg
Specifications
| Manufacturer | OVARRO |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-KI-O-7980 |
| Weight | 2.0 kg |
Description
Kingfisher Plus+ analog input module, source references AI-10 and AI-10-1, recorded under OVARRO. This is an I/O module, not a complete RTU.
Recorded module specifications
- 8 channels; 16-bit resolution.
- Signal ranges: 0–20 mA / 4–20 mA.
- Field-to-logic isolation: 3 kV, not a supply voltage.
- Scan rate: 10 ms.
- 24 V isolated output to power field sensors / transducers.
- Operating temperature: -30 to +80°C.

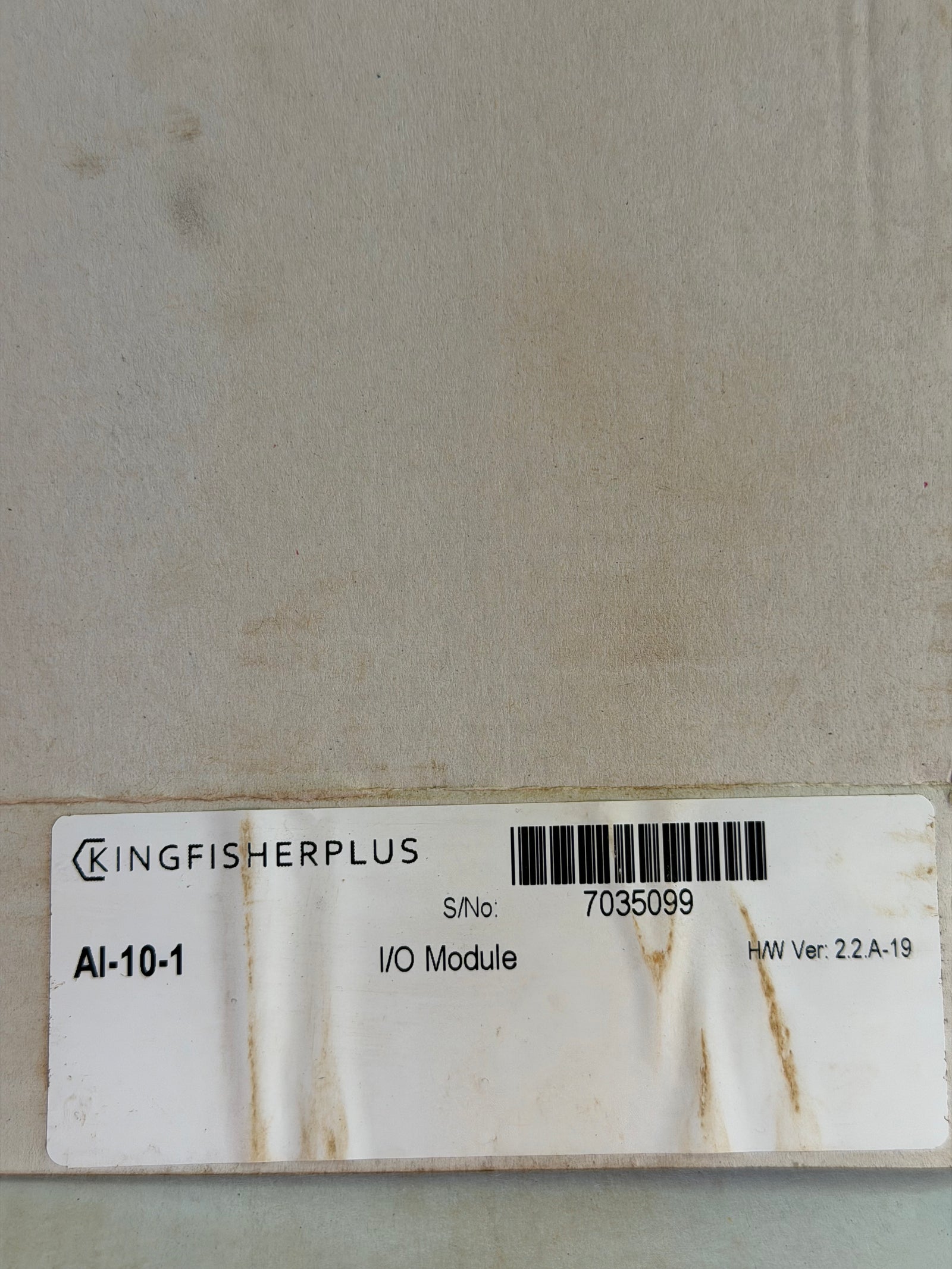

Input description conflict: the source says both “High Impedance” and “Current / Low Impedance Input”. Confirm the actual input specification. The original tag A1-10-1 also differs from AI-10-1 and is retained without changing the 1/I character.
Broader I/O range description
The source additionally lists counting up to 10kHz, quadrature counting, sequence-of-events monitoring at a 1mS interval, GPS time-synchronisation support and configurable fail-safe outputs. These are presented as wider I/O module capabilities, not confirmed features of this analog-input unit.
Original CSE and SEMAPHORE references are retained. IP Connectivity is an original tag, not confirmation of an Ethernet interface on this module. Confirm the exact label and required RTU configuration before ordering.
