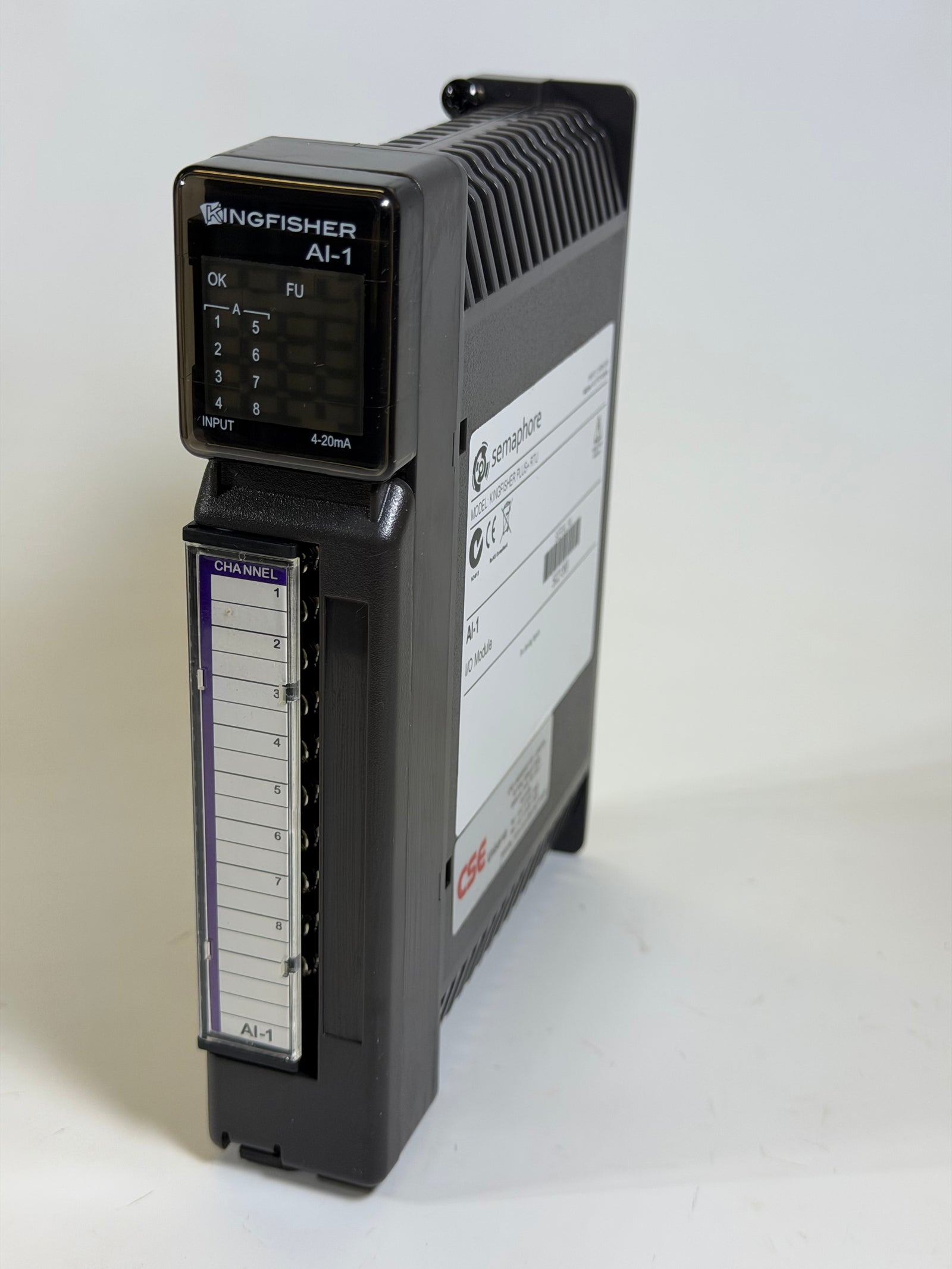

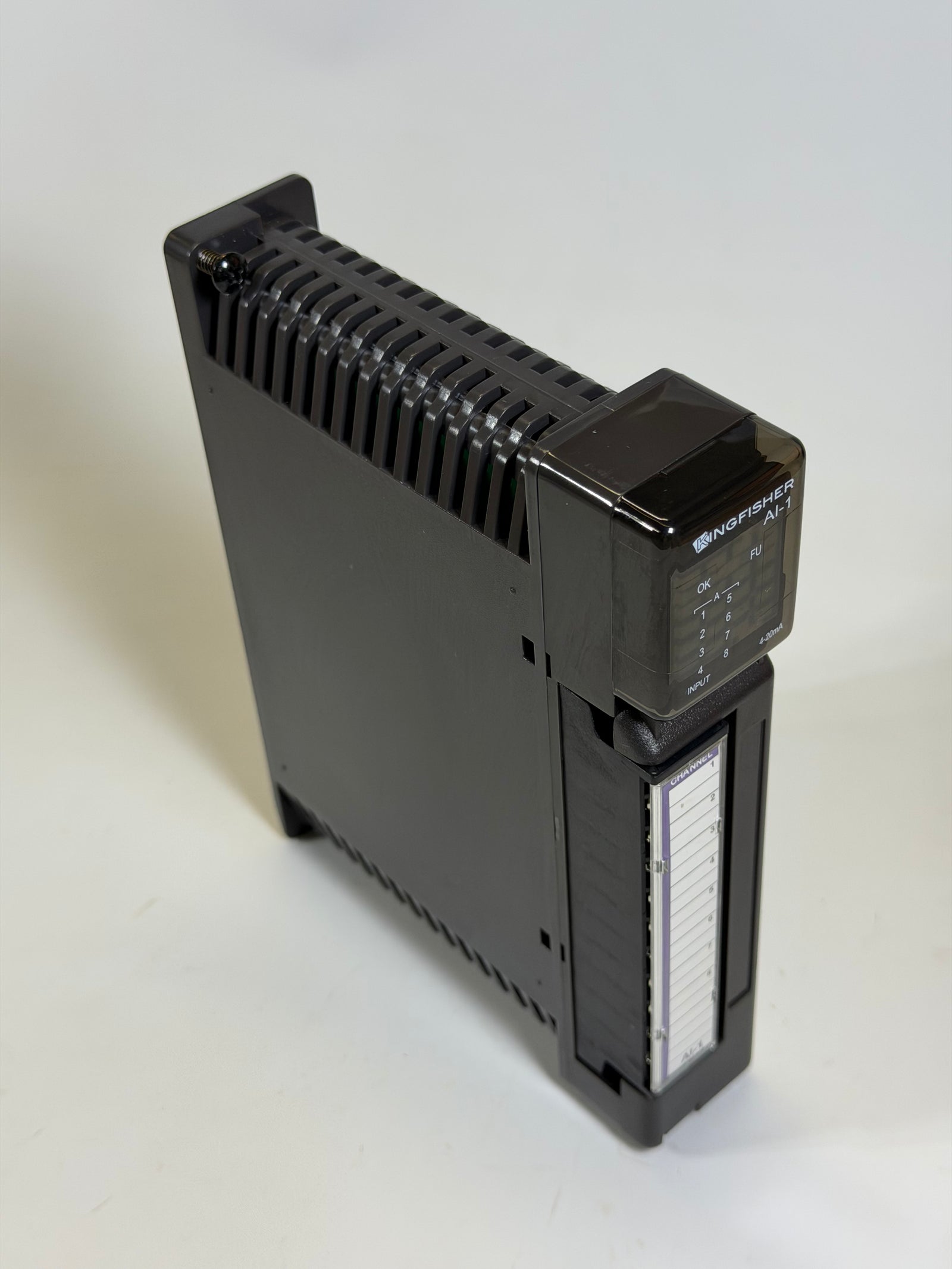

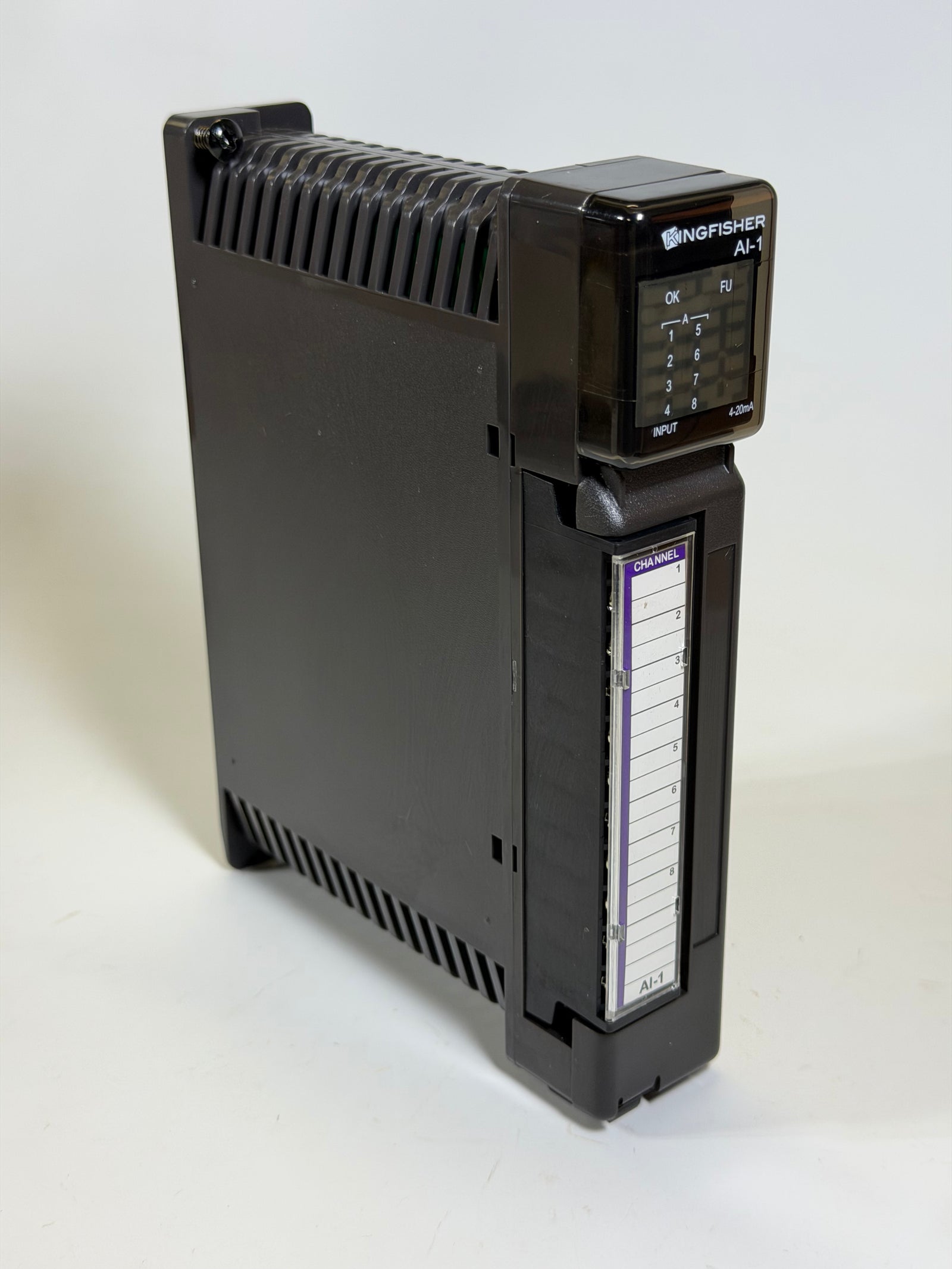

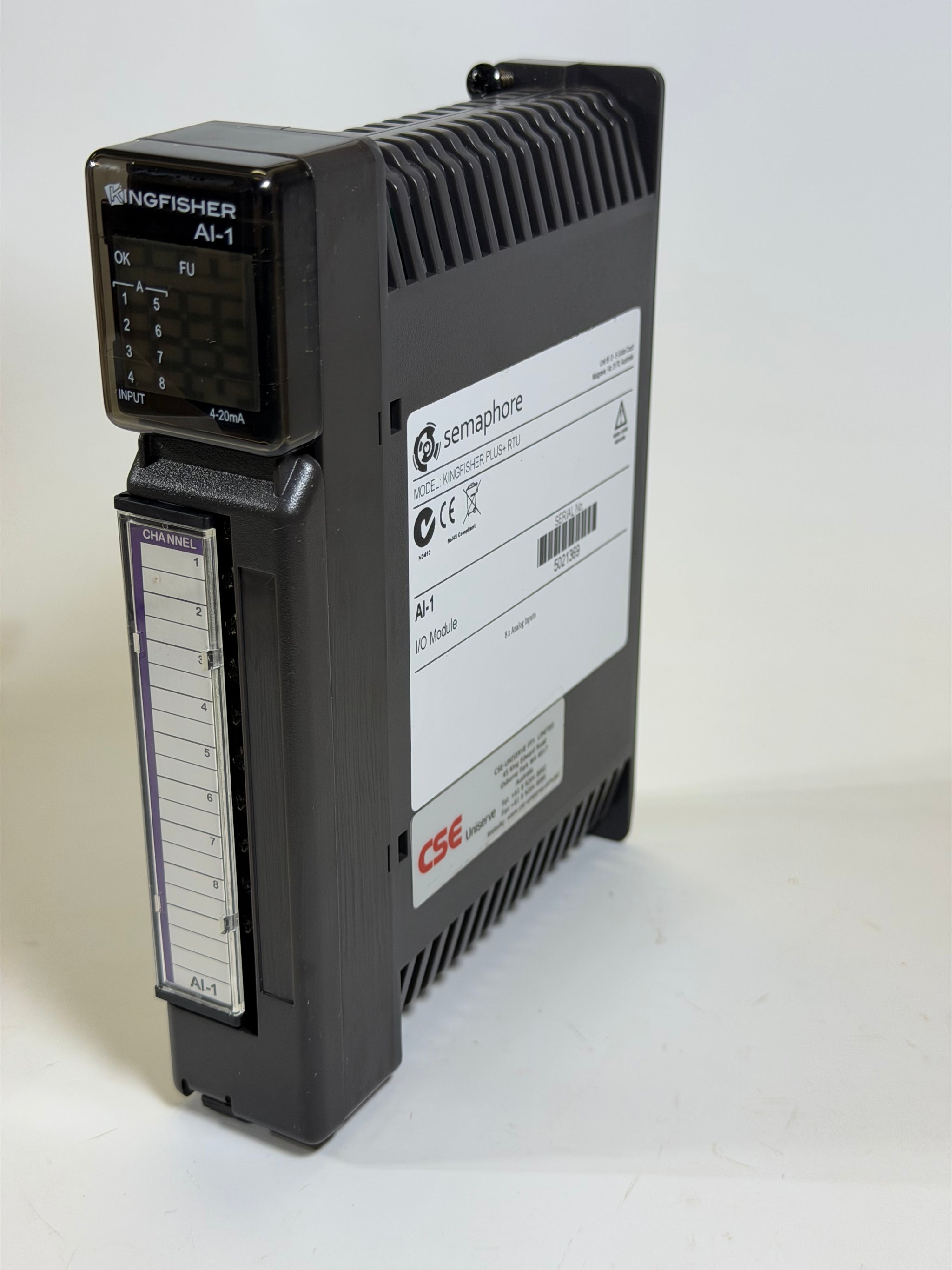

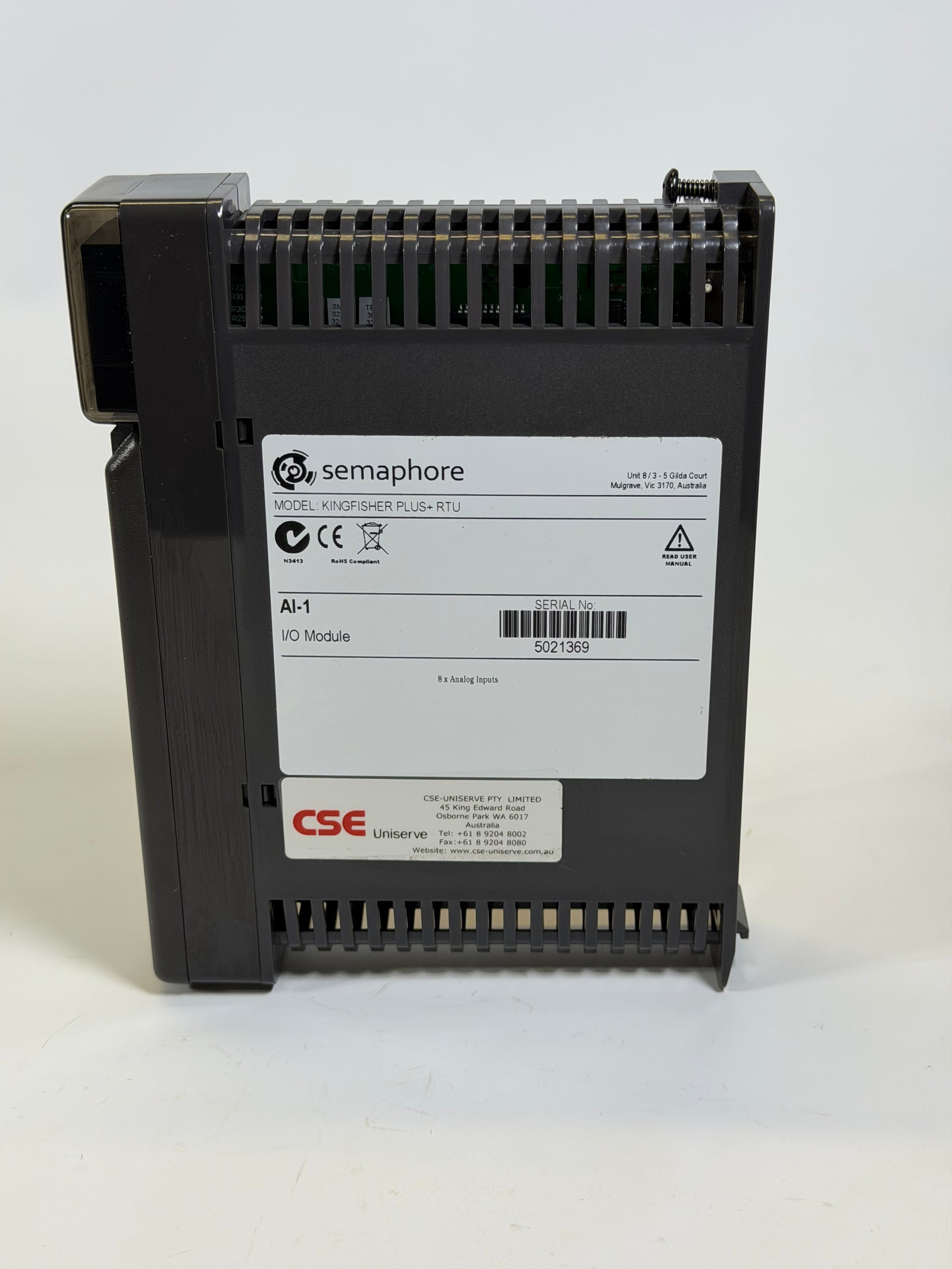

KINGFISHER PLUS+RTU AI-1 I/O Module

RTU Features

• Two-, four-, six- and twelve-slot backplanes.

• Backplanes can be linked together vertically or horizontally providing up to 64 modules

per RTU.

• AC (100 to 240 V

• Battery backup and built-in battery charger.

• Powerful 32-bit Industrial CPUs.

• Up to 16 communication ports.

• Eight-channel analogue input modules.

• Four-channel analogue output modules.

• Eight and sixteen channel digital input/output modules.

• High speed scanning of I/O-signals.

• Electrical isolation of I/O and communication circuits.

• Designed and tested to comply with International Environmental (climatic) Standards

(IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-78).

• Full support for IEC 61131-3 via the ISaGRAF™ programming environment.

• Multiple pre-defined function blocks for communications and diagnostics.

• Support for multiple protocols including – Modbus, DNP3, Allen Bradley

User Defined.

• Event logging of data (time and date stamped).

• Redundant Power Supplies, Processors and Communications

• Self-configuring of I/O modules at start up.

• PC based configuration and diagnostic software – Toolbox PLUS+ software with

ISaGRAF™ Workbench.

• Local and remote configuration.

• Low power operation – suitable for low cost solar installation.
