KEM Co.
KEM Co. KL-12R / KL-12D12R Red Panel-Mount LED Indicator Lamp
- SKU
- P-KE-K-5016
- Weight
- 0.1 kg
Specifications
| Manufacturer | KEM Co. |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-KE-K-5016 |
| Weight | 0.1 kg |
Description

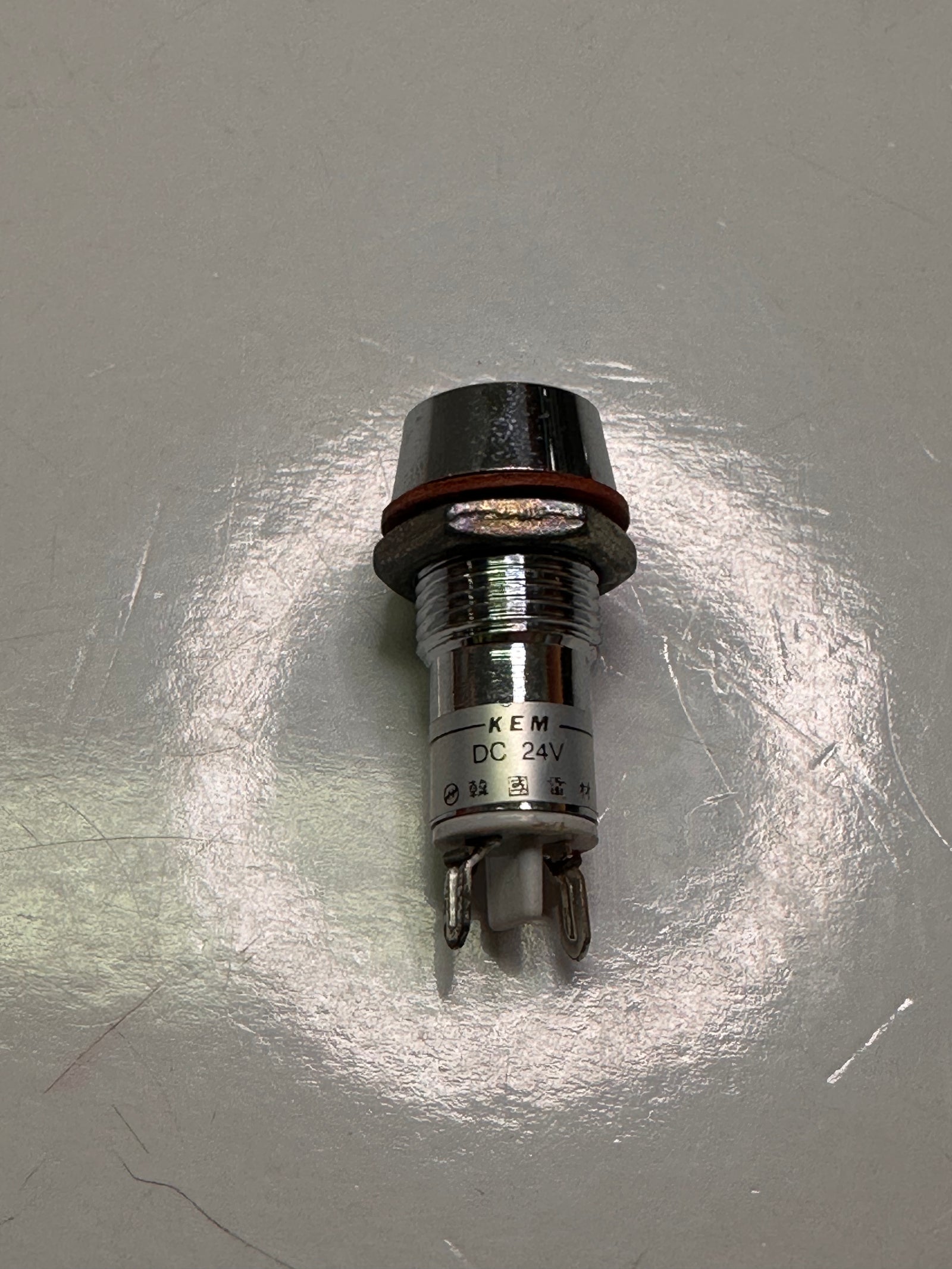

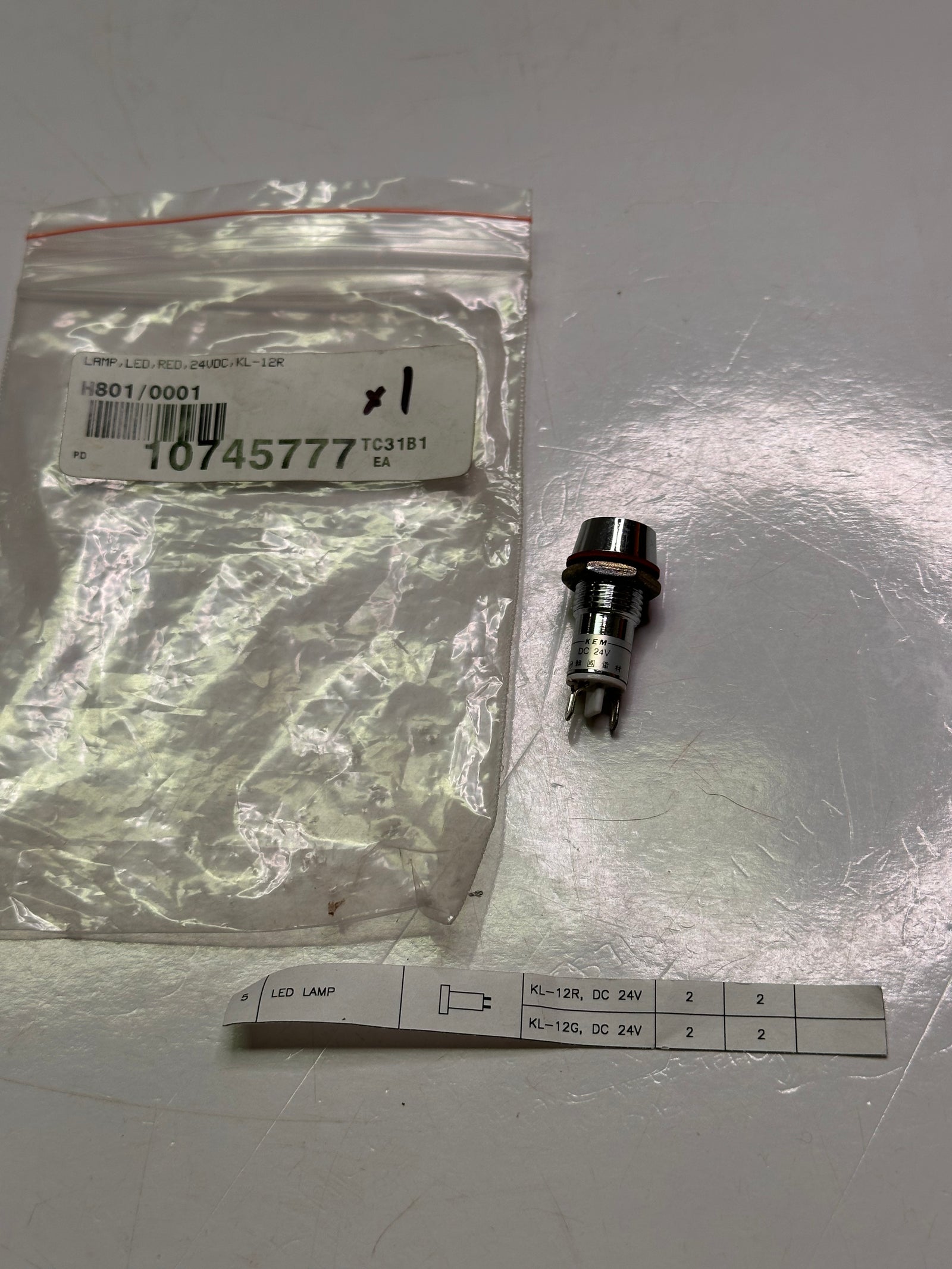

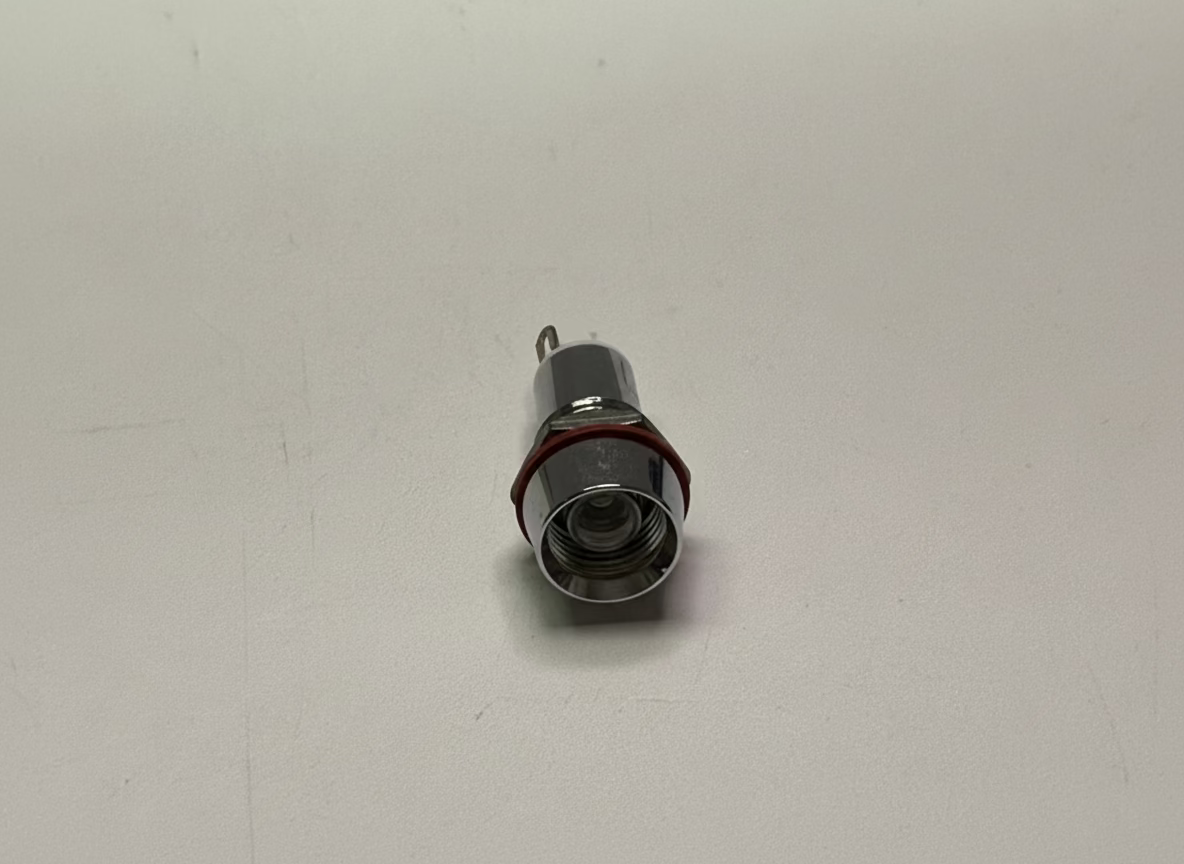

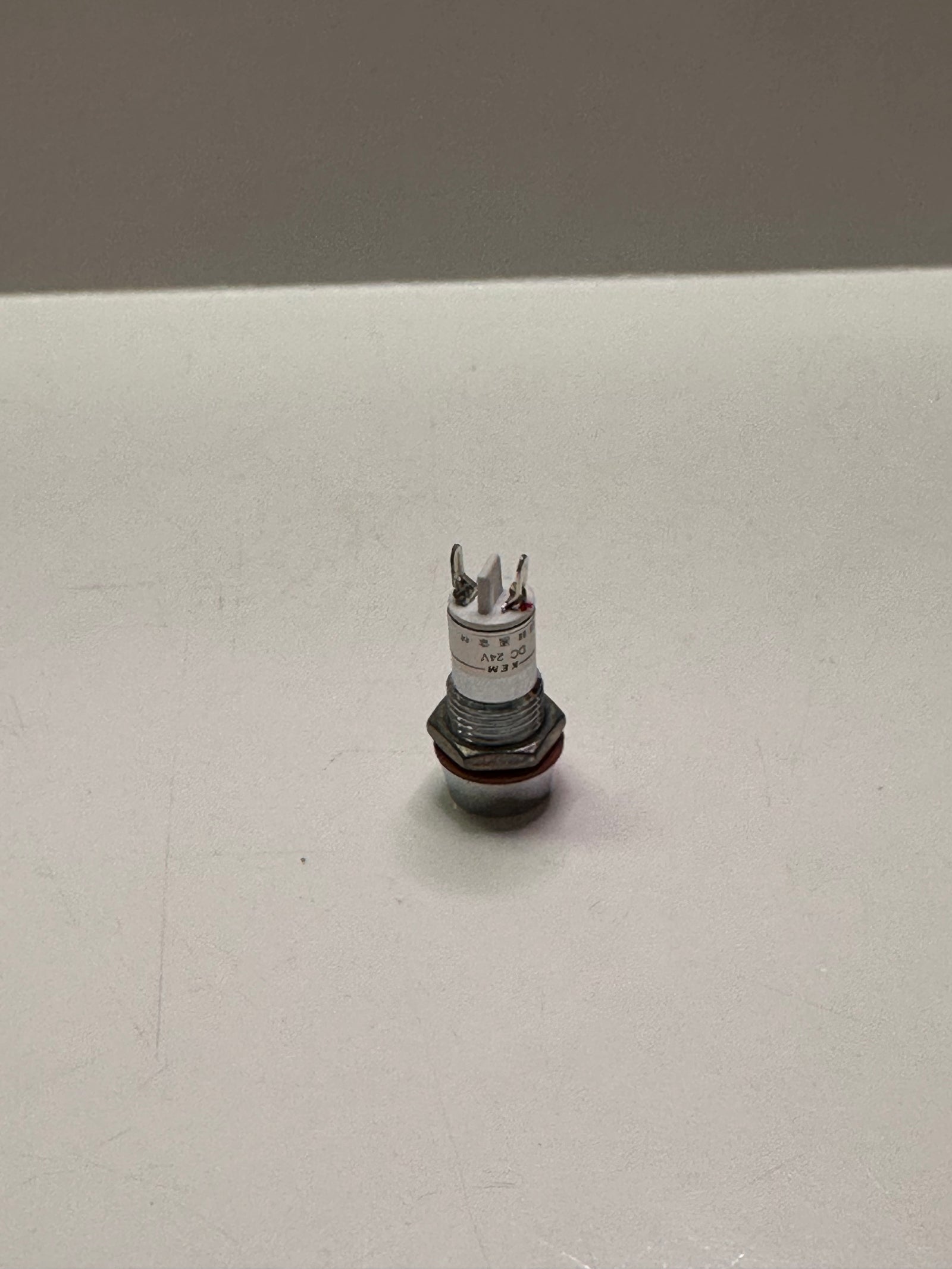

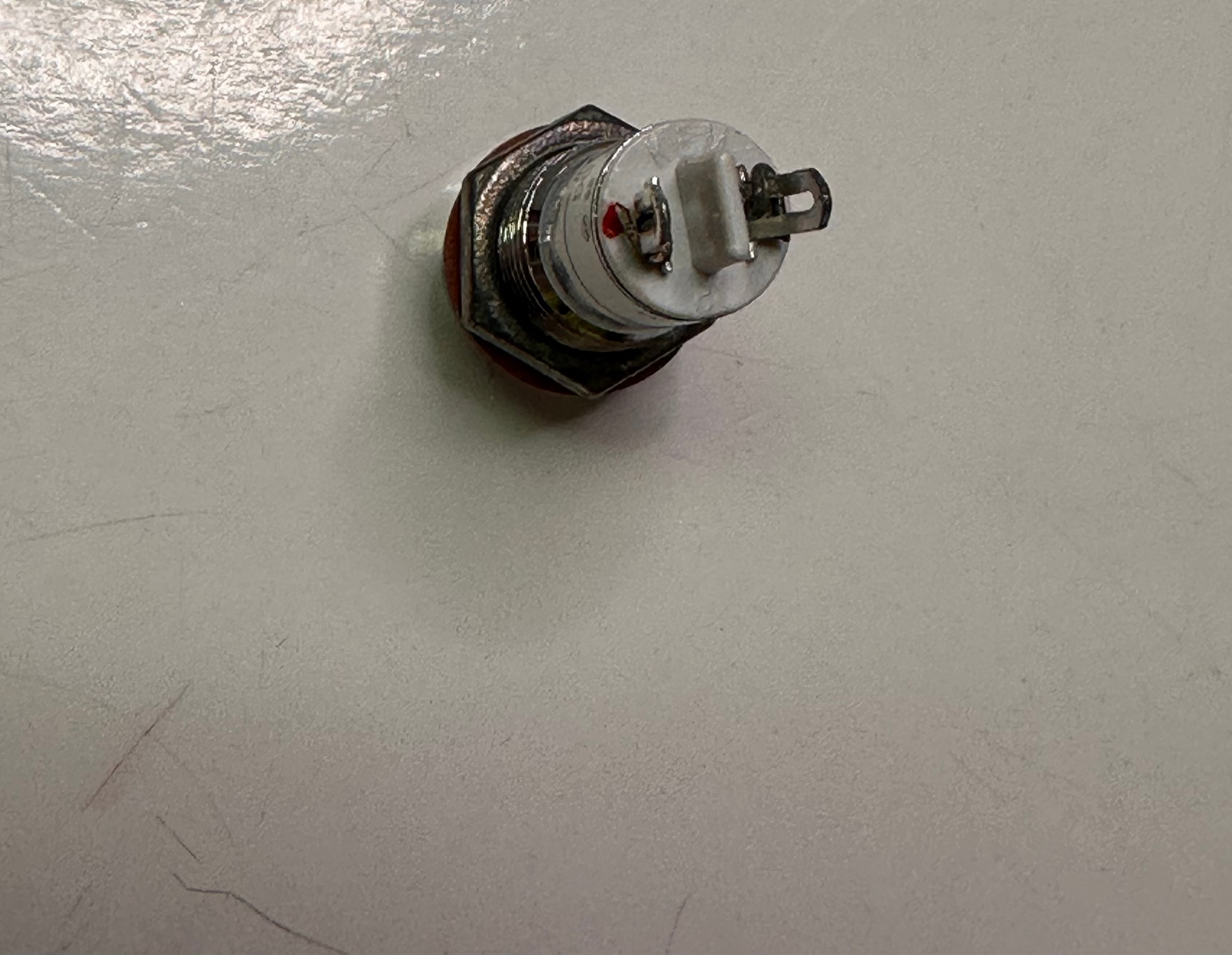

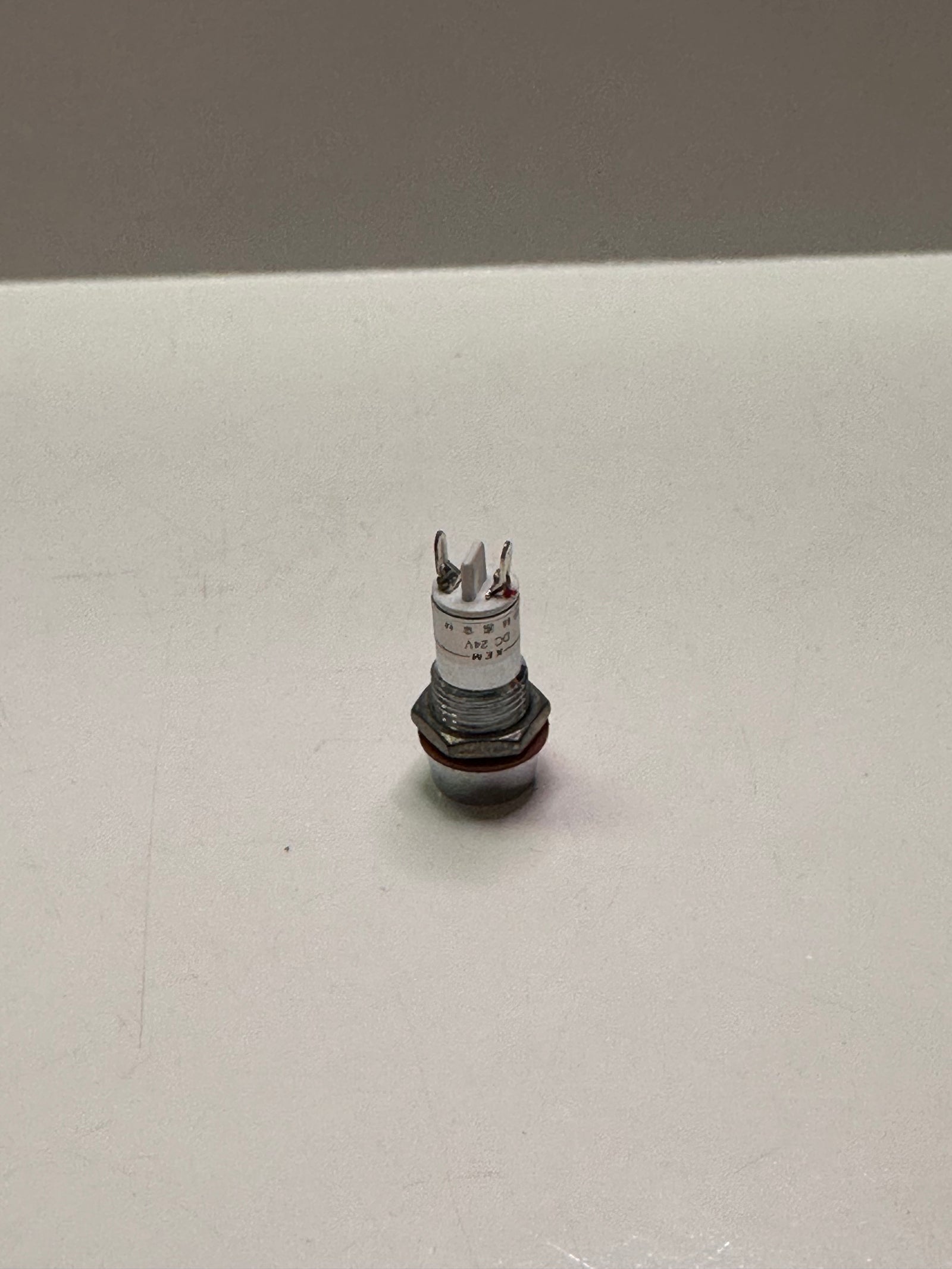

KEM Co. red panel-mount LED indicator lamp with metal body. Recorded references: KL-12R and KL-12D12R.
The original title states 24V and the tags state 24VDC. Confirm the exact model and voltage on the item label before connection; neither reference has been altered or decoded.

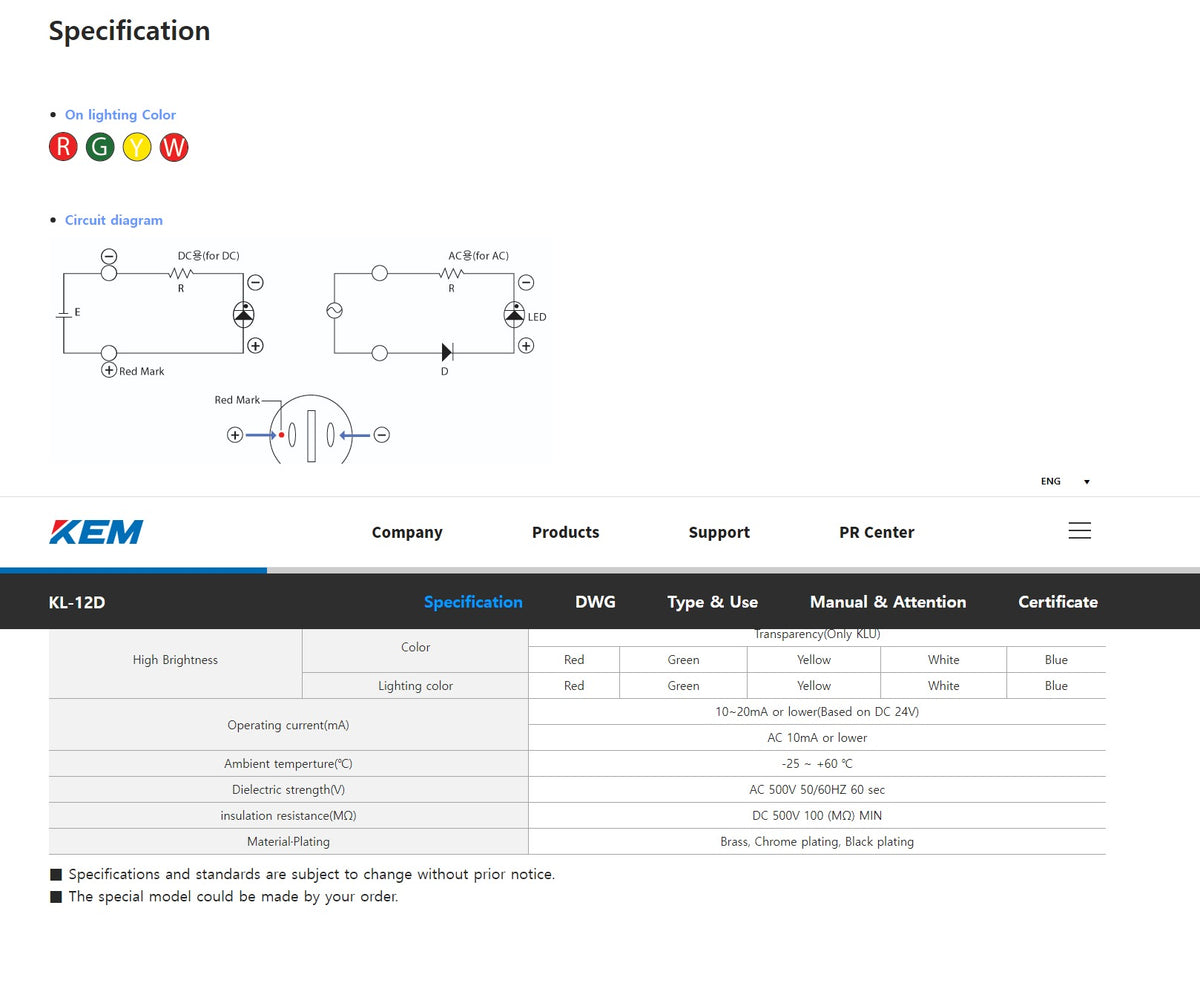

Original product-family reference data
The table below includes multiple colours, brightness variants, AC/DC entries and a KLU-only note. It is retained for reference, not as confirmation that every option or test value applies to this particular lamp.
| Moderate | Color | Red | Green | Yellow | White | |
| Lighting color | Red | Green | Yellow | Red | ||
| High Brightness | Color | Transparent (KLU only) | ||||
| Red | Green | Yellow | White | Blue | ||
| Lighting color | Red | Green | Yellow | White | Blue | |
| Operating Current (mA) | 10~20 mA or less (based on DC 24V) | |||||
| For AC, less than 10mA | ||||||
| Attention Temperature (°C) | -25 ~ +60 ℃ | |||||
| Withstand Voltage (V) | AC 500V 50/60HZ 60 sec | |||||
| Insulation Resistance IR (MΩ) | DC 500V 100 (MΩ) MIN | |||||
| Material · plating | Brass, chrome plated, black chrome | |||||
The source tags mention STX CORP, STX DIESEL ENGINE and STX PARTS without an exact engine model. Confirm panel cut-out, wiring, operating voltage and the actual finish with MIS. The withstand-voltage and insulation-test entries are not operating supply voltages. Broad appearance and lifespan claims have not been carried forward.
