KAB

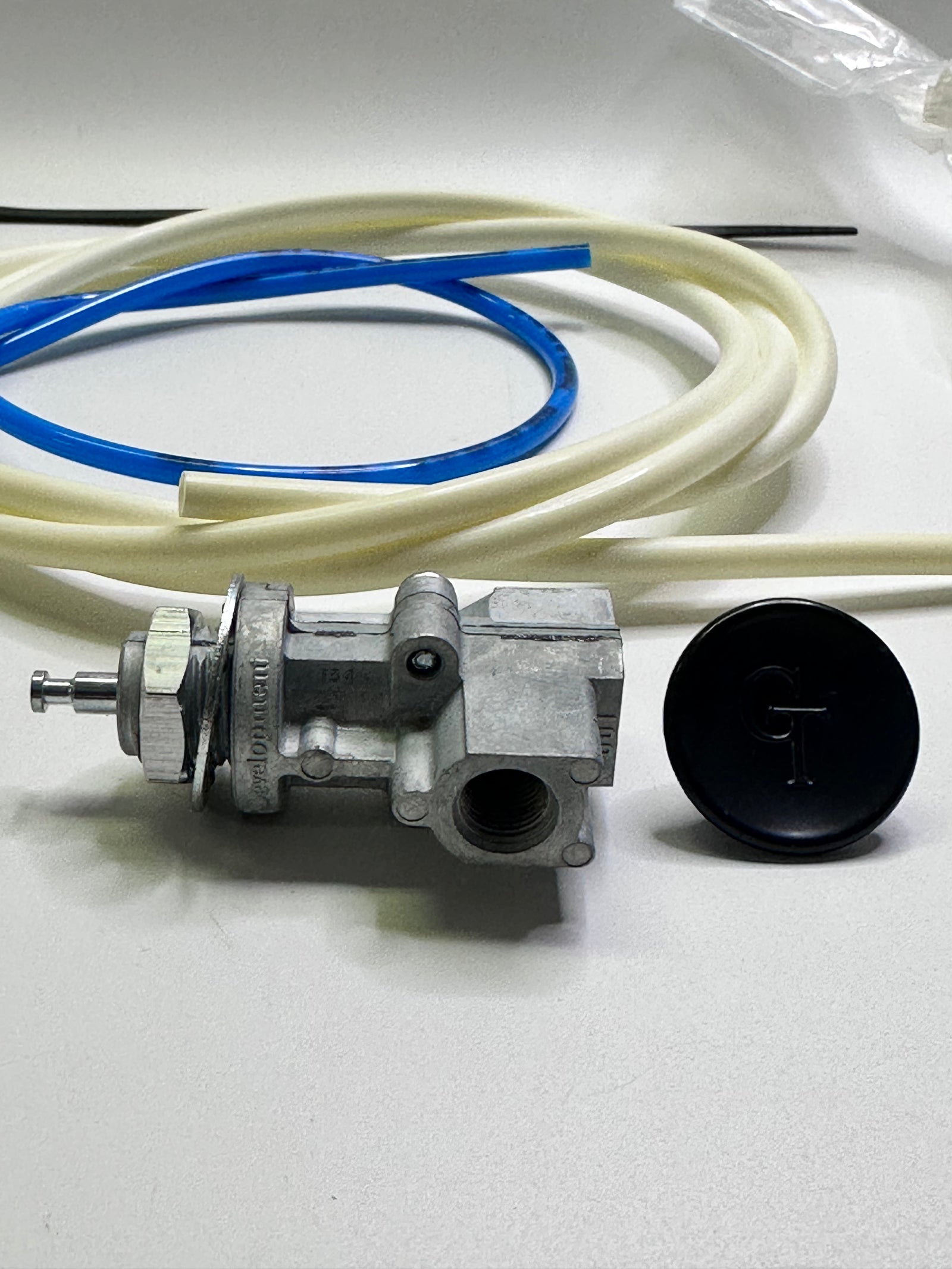

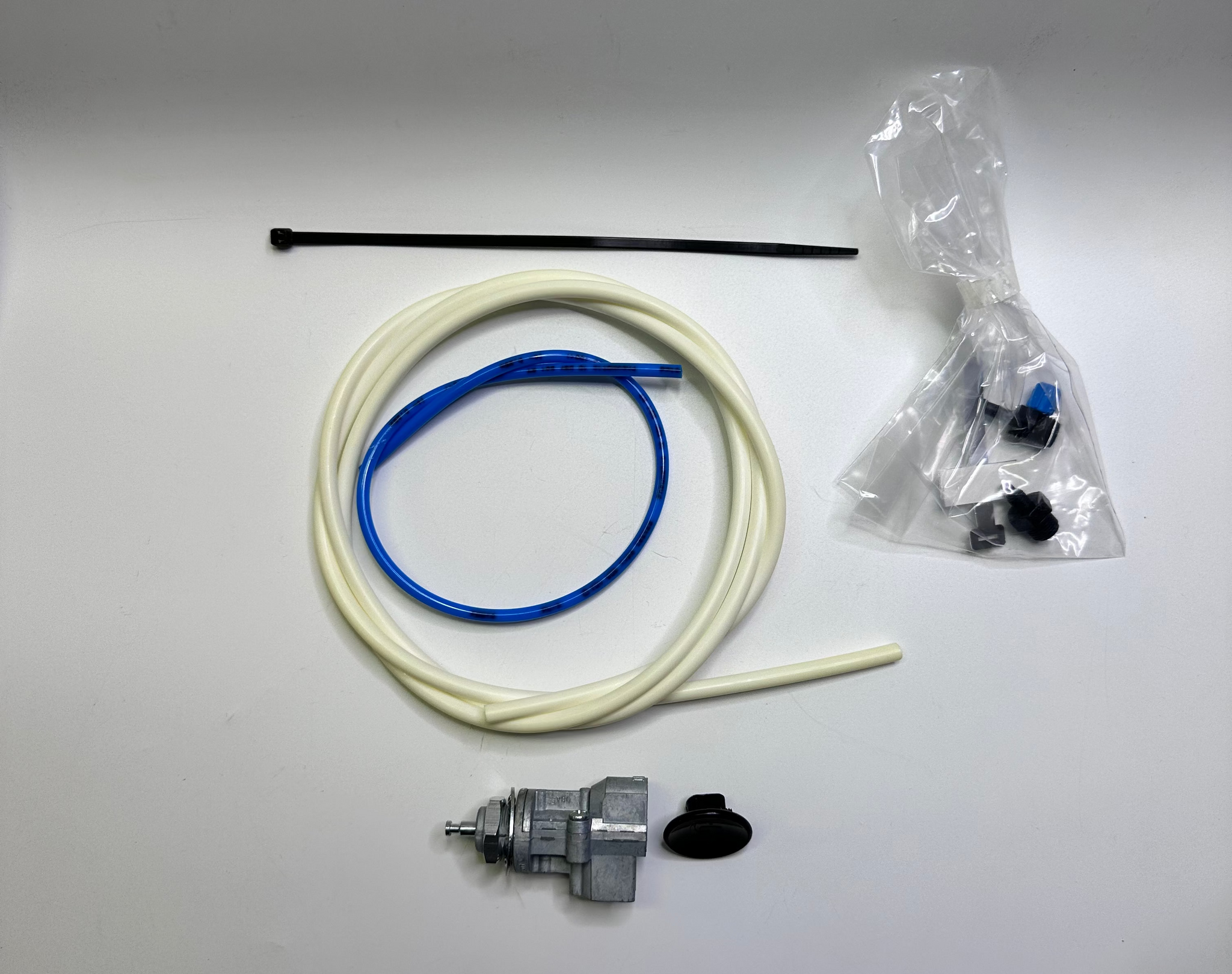

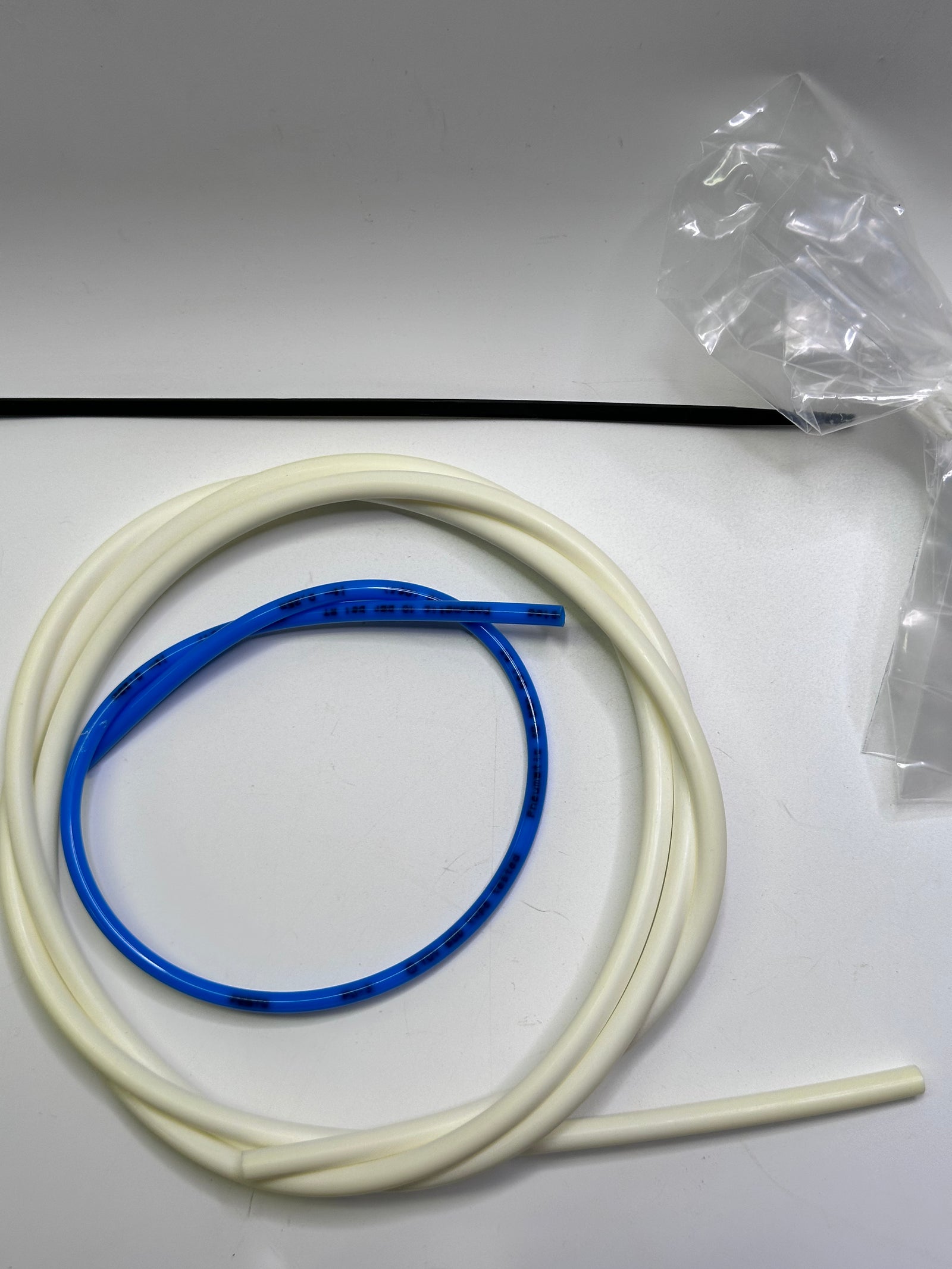

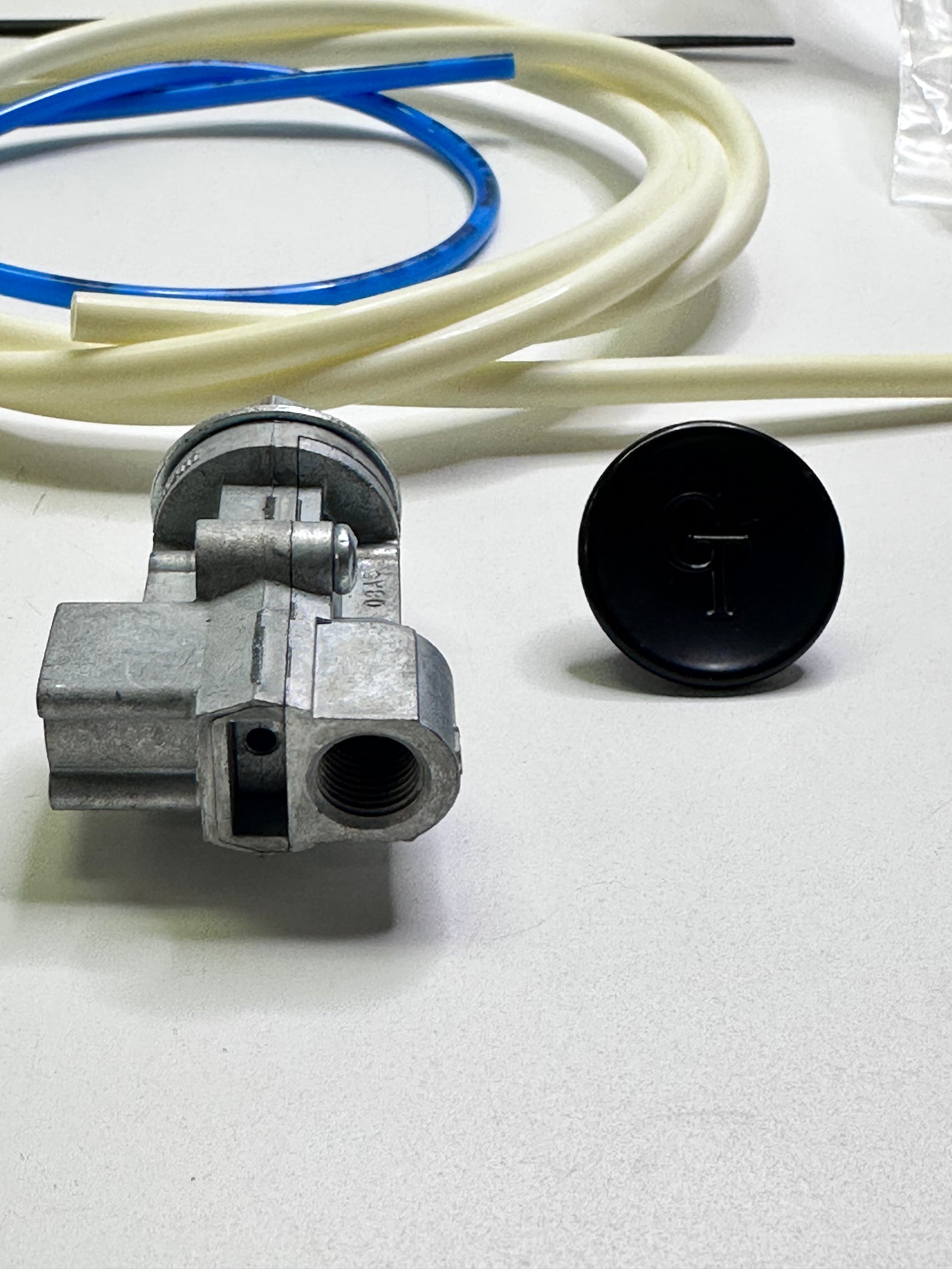

KAB 164191 55 Air Seat Control Valve & Hoses Kit — 134-4 Valve
- SKU
- P-KA-K-7512
$45.00
Price includes GST.
Sold out
Warehouse pickup available
This one has sold, but we regularly land similar stock and can often source an equivalent.
Request this part or an equivalent- Weight
- 2.6 kg
Specifications
| Manufacturer | KAB |
|---|---|
| Product type | PNEUMATICS |
| SKU | P-KA-K-7512 |
| Weight | 2.6 kg |
Description
Versatile: Universal design suitable for various applications.
Three-Way Functionality: Enables multiple operational modes.

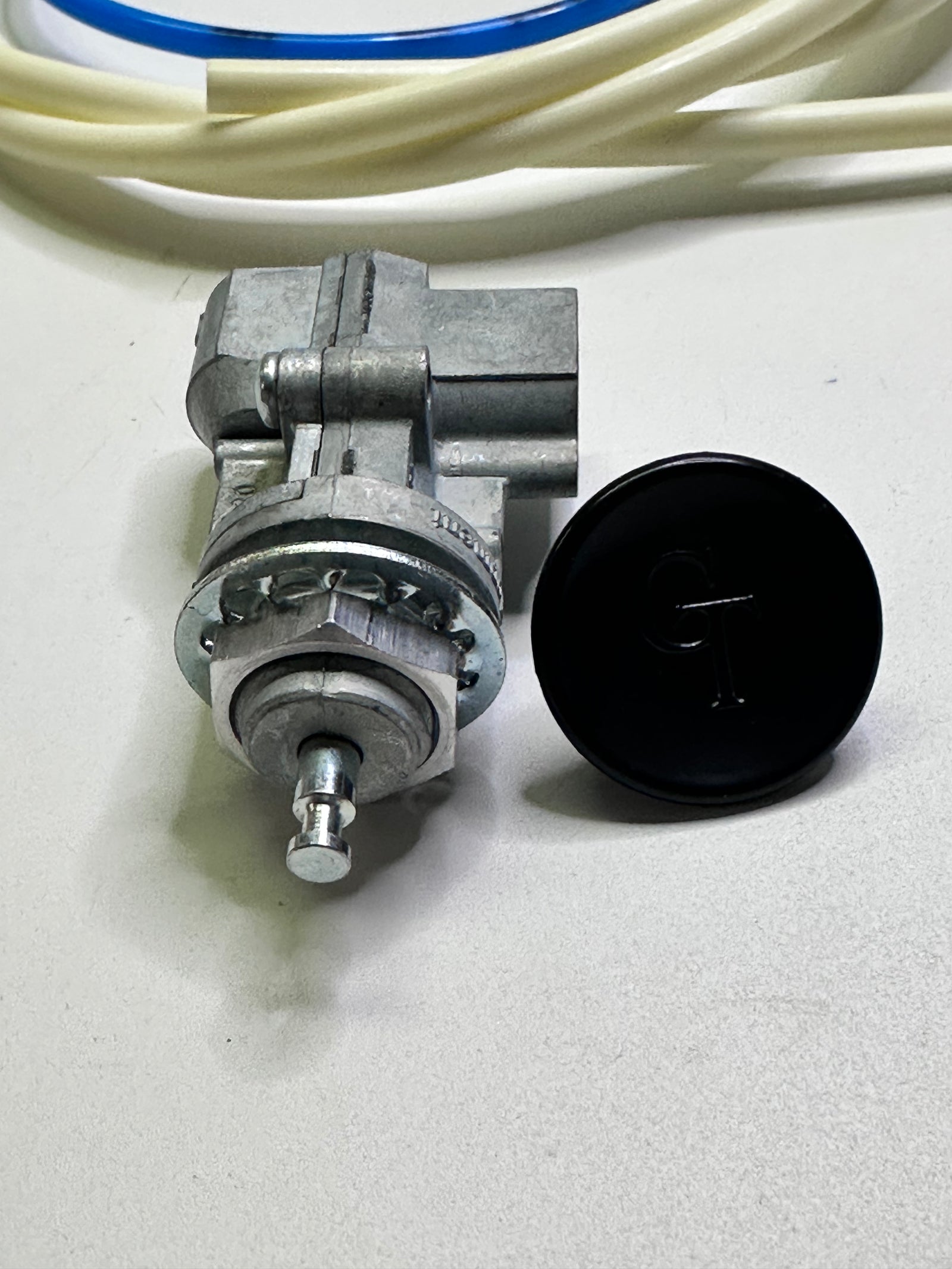

Removable Black Plastic Knob: For easy access and control.
Actuation: Push/Pull configuration:
Push: Supplies inlet pressure to the outlet port.
Pull: Vents the outlet port.
Leakage Prevention: No leakage from the output port when in the "OFF" position.
Pressure Rating: 200 PSI.
Porting: Exit port options are 1/8"-27 NPTF (female thread).
Installation Torque: Maximum of 15 ft. lbs.
Port Size: Two 1/8" FPT connections.
Valve Part No. 134-4
