SANDEN
K318-146 Sanden Air Conditioning Compressor - SD7 Series
- SKU
- P-K--S-8012
$550.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 8.0 kg
Specifications
| Manufacturer | SANDEN |
|---|---|
| Product type | AUTOMOTIVE & TRUCK PARTS |
| SKU | P-K--S-8012 |
| Weight | 8.0 kg |
Description

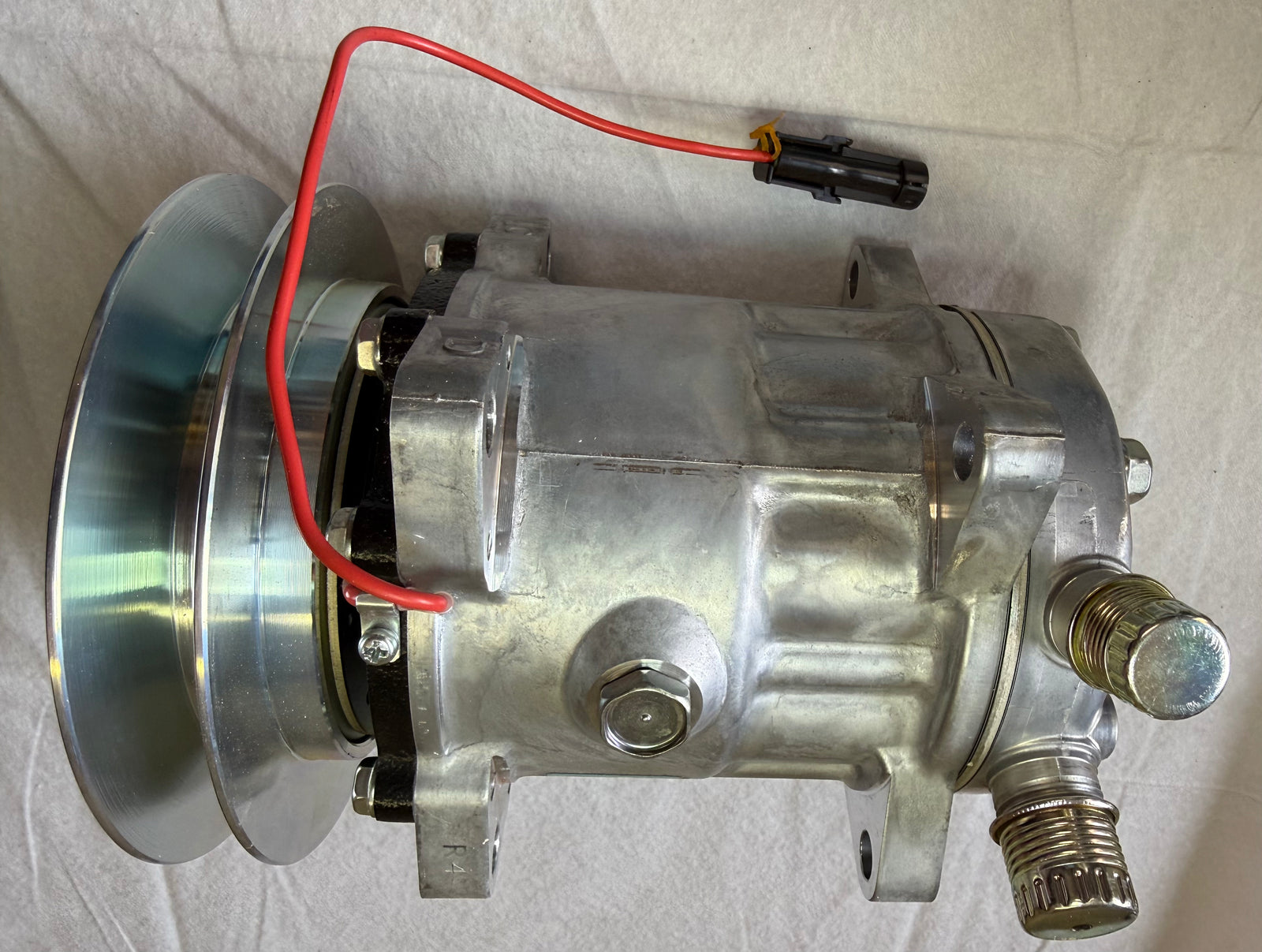

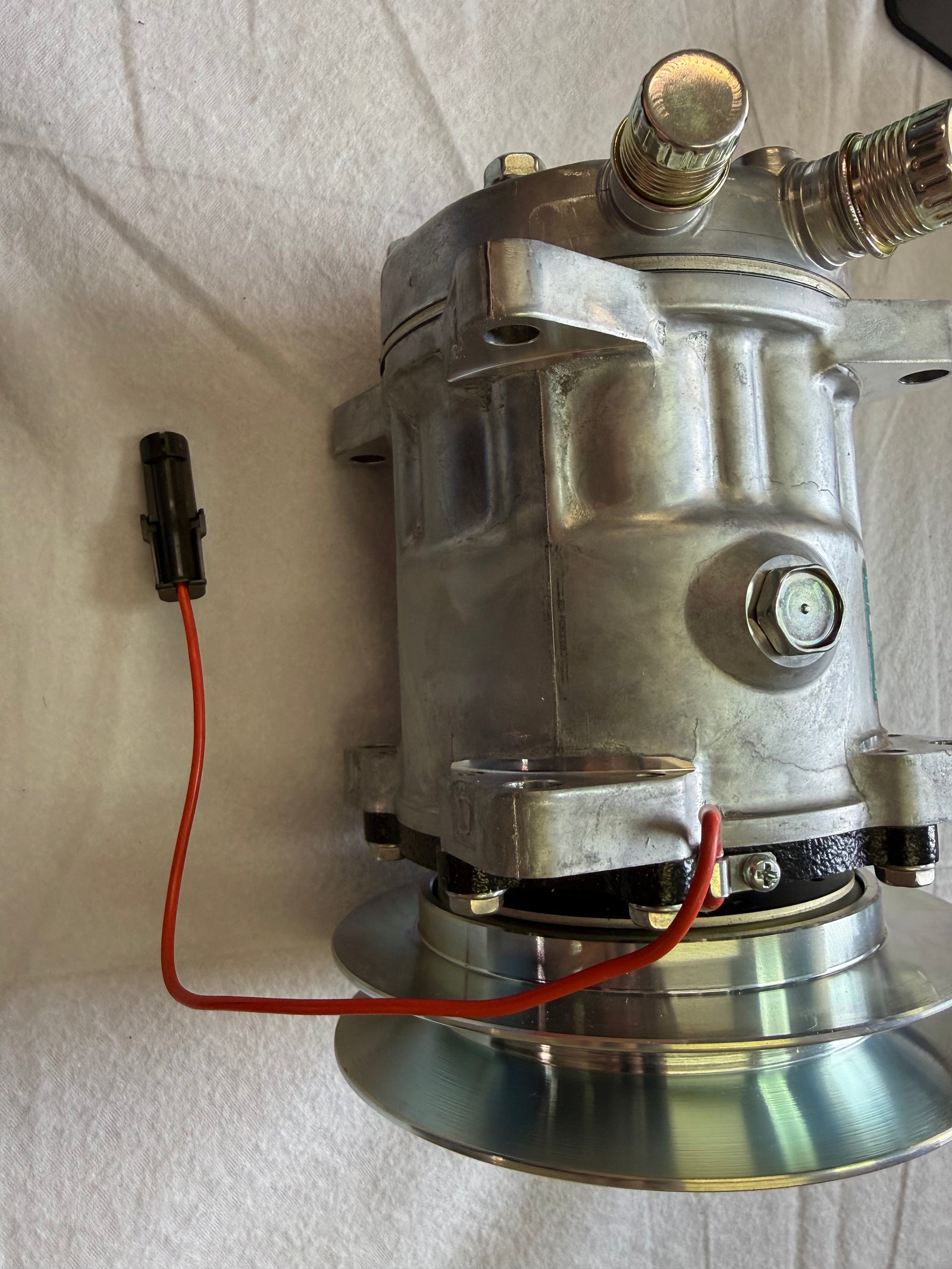

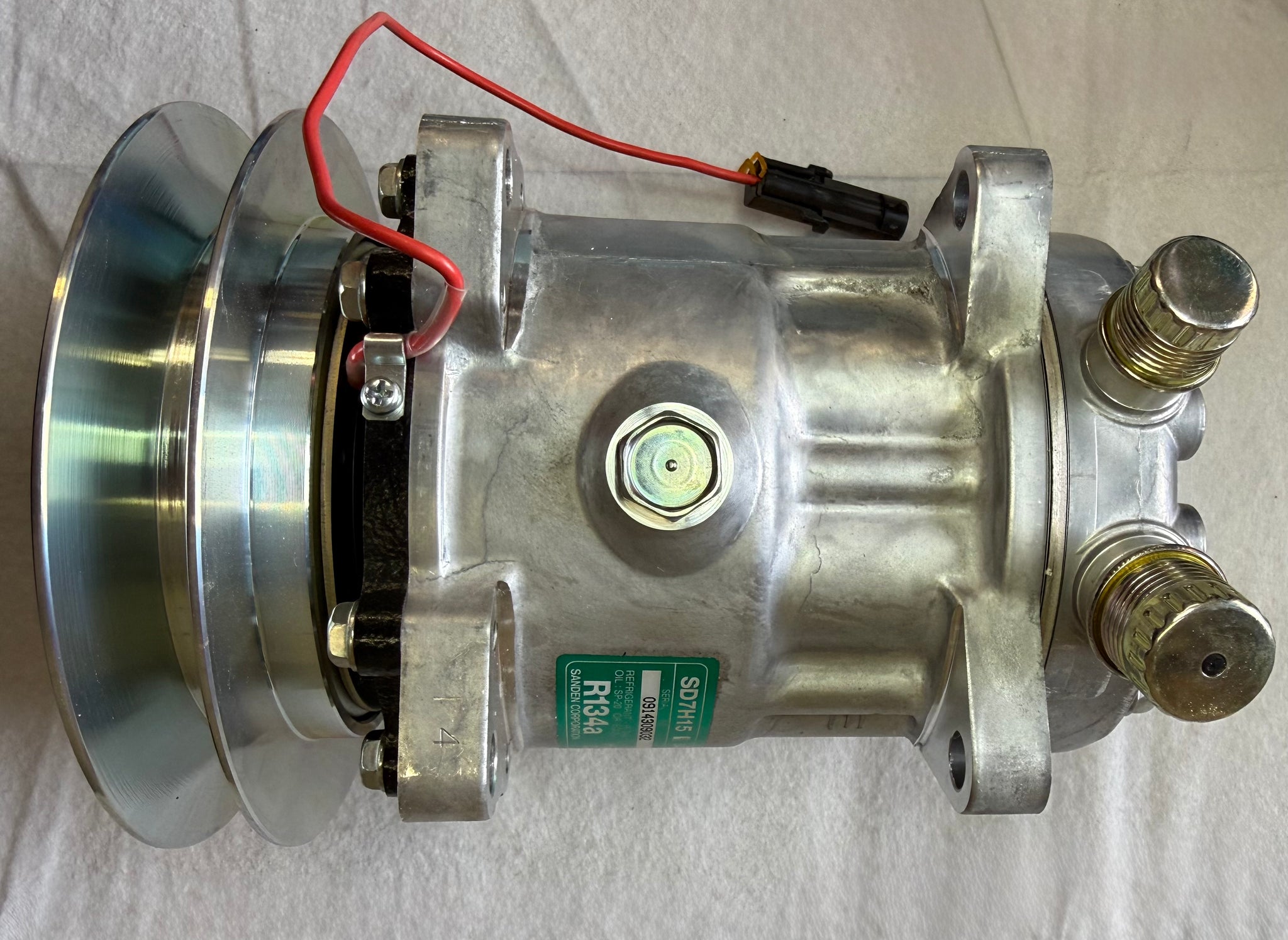

Sanden K318-146 SD7 Series automotive air-conditioning compressor, with a six-groove clutch configuration described in the source.
Listed specifications
- Pulley: 6 Groove.
- Voltage field: 12.

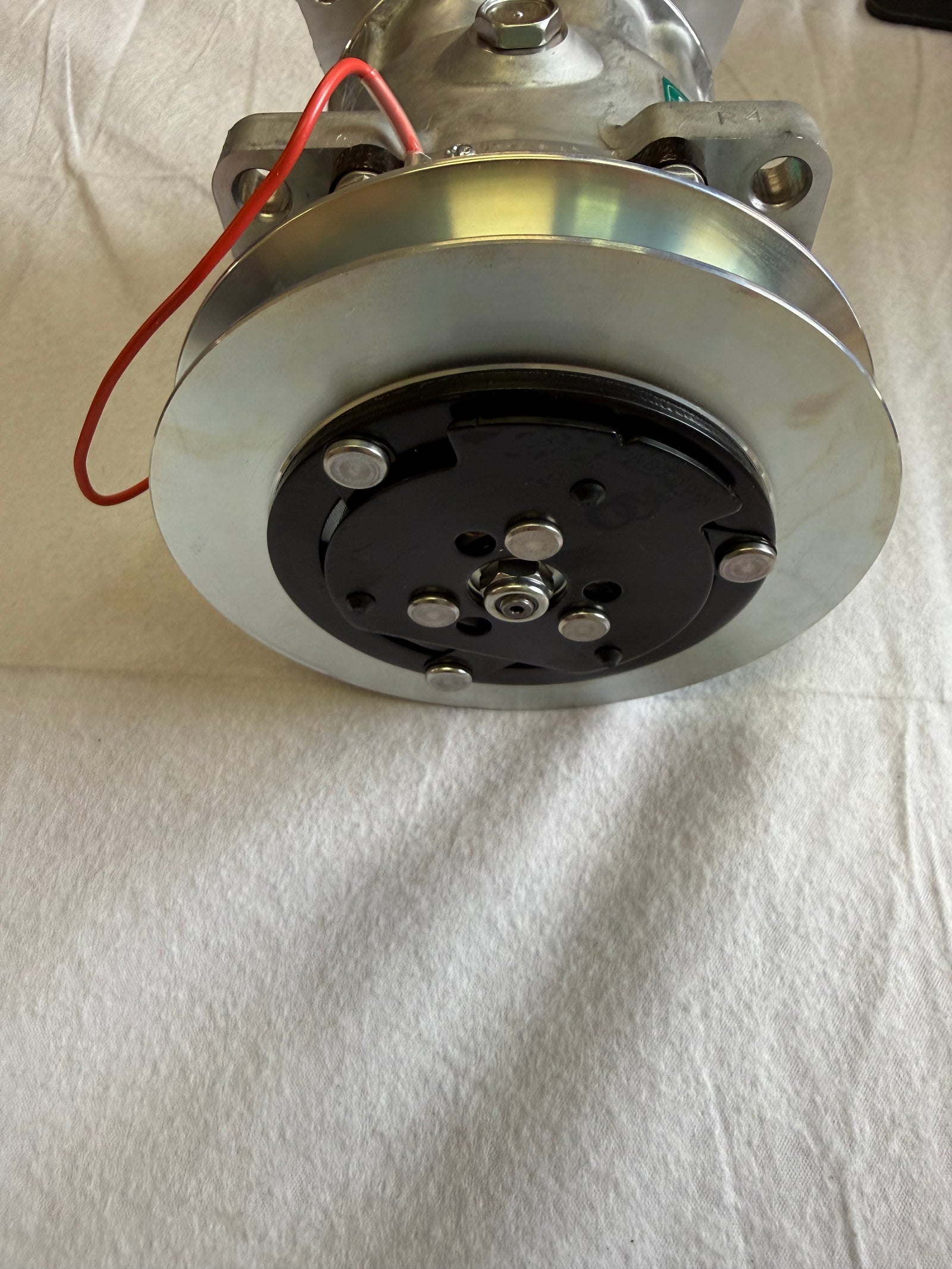

- Clutch diameter: 5.75" (146.05 mm).
- Groove width field: 0.014" — requires confirmation.
- Fitting size: 1"-14.
- Harness: 1 Wire Harness.
- Refrigerant type: R134A.

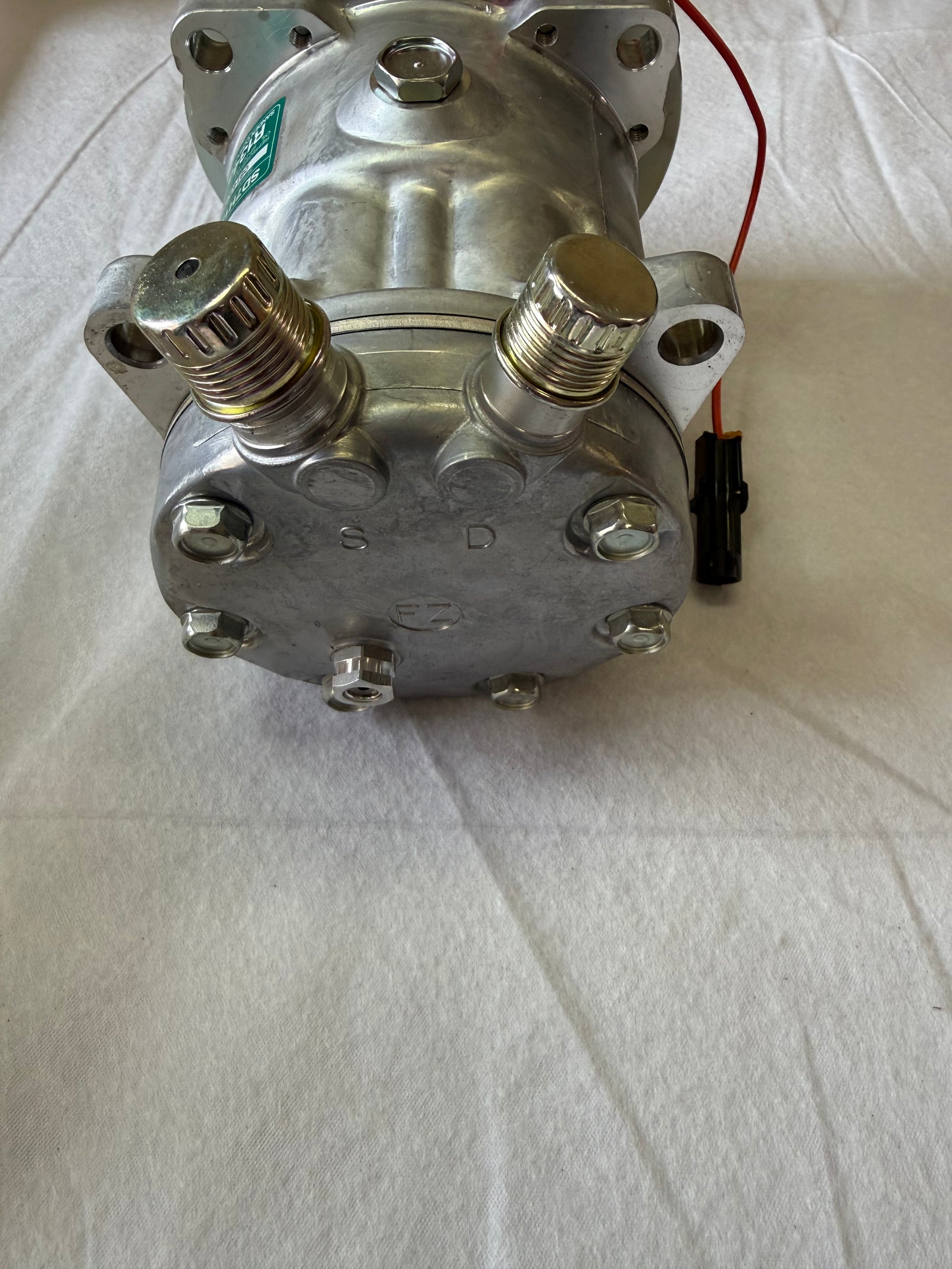

- Suction/connection wording: LH Suction, Tube O-Ring.
The unusually small groove-width entry is reproduced without correction. Confirm the actual pulley dimensions, electrical configuration and connection arrangement before ordering.
Application references

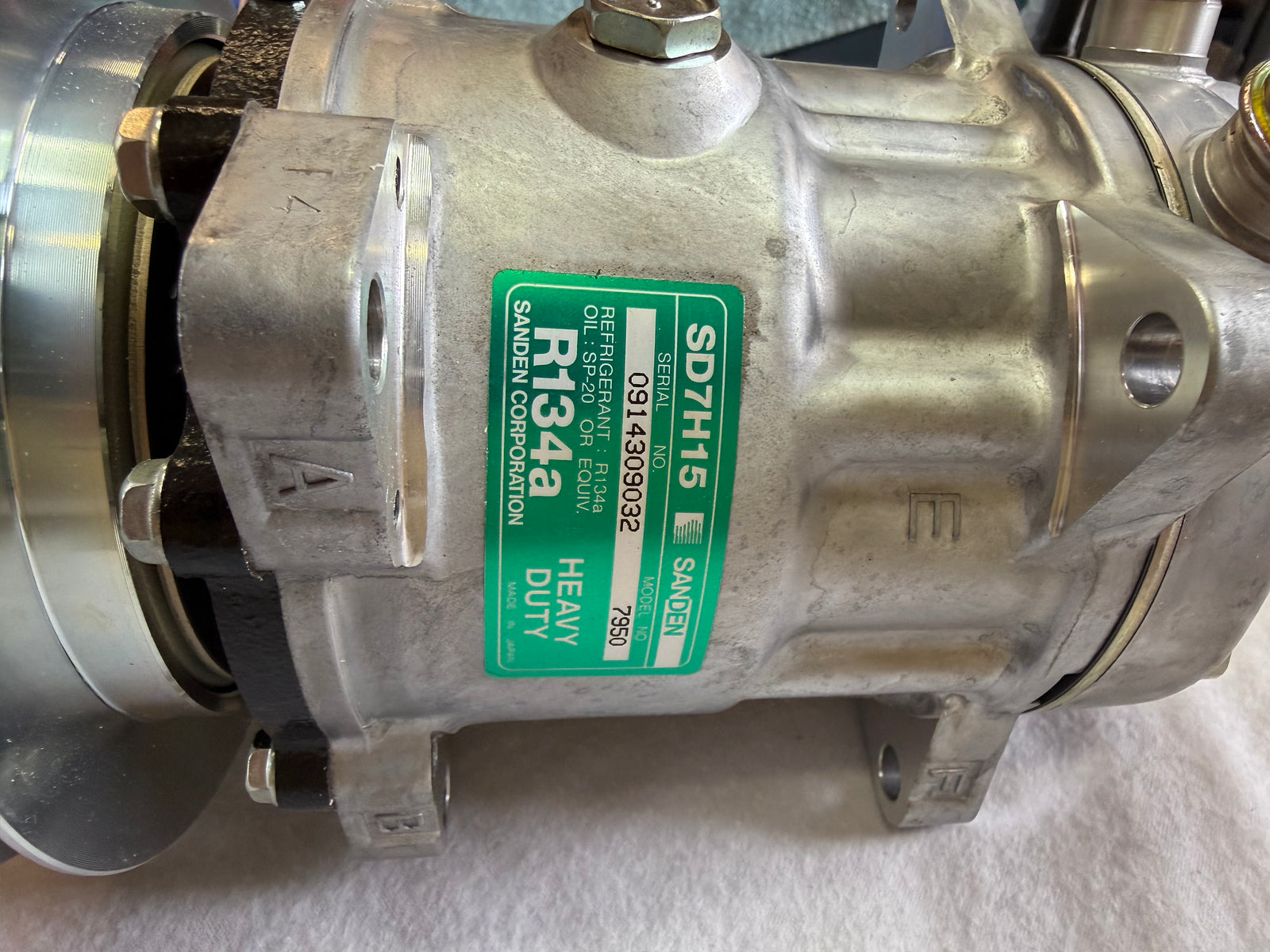

Original tags include SD7H15, kenworth and CJD. These do not establish a specific vehicle fitment or an exact SD7H15 configuration. This is an air-conditioning refrigerant compressor, not a general-purpose compressed-air supply compressor or a complete air conditioner.
