iPD SC20HWH Safeclip 20A Fuse-Holder Base – White
- SKU
- P-IP-M-0642
- Weight
- 0.2 kg
Specifications
| Manufacturer | iPD |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-IP-M-0642 |
| Weight | 0.2 kg |
Description

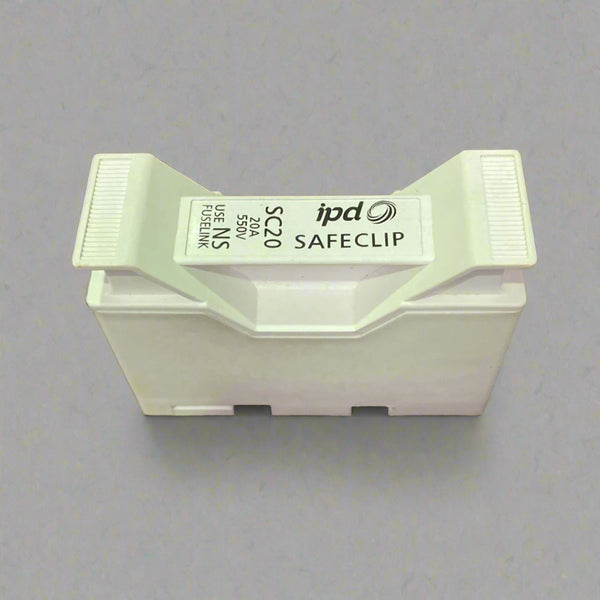

iPD SC20HWH Safeclip white front-wire fuse-holder base, recorded as 20A and suitable for an NS HRC fuse link. The source type is “Accessory - Base”; a fuse link is not stated as included.
Recorded specifications
- Body dimensions: 75.5 mm high × 26.5 mm wide × 54 mm deep.
- Connection: front wire.
- Mounting: DIN rail.
- Series references: SC_HWH, SC20 and SC20H; additional reference 402246.
The source describes the SC_HWH range as front-connected clip-in low-voltage fittings with self-cleaning/self-aligning base contacts, removable carrier and IP20 finger-safe design. Confirm the actual supplied base/carrier contents and complete assembly before relying on those features.
Source standards references: BS88-1 & 6, AS60269 and IEC269-2-1. A 550V tag is also recorded, without further rating conditions. Confirm the unit markings, compatible fuse, rating conditions and installation requirements before purchase; these source entries are not independent certification of the supplied unit. Confirm condition.
