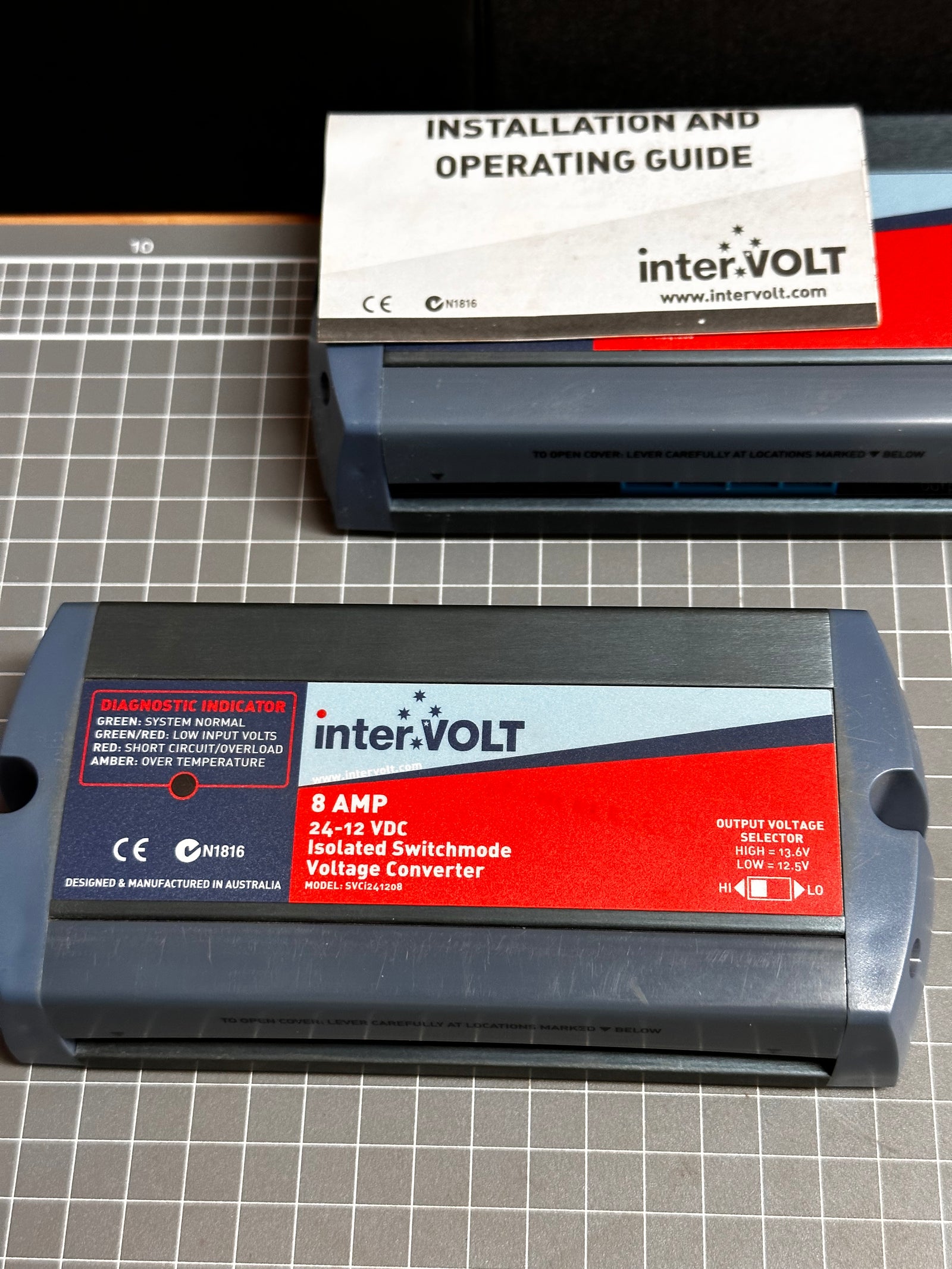

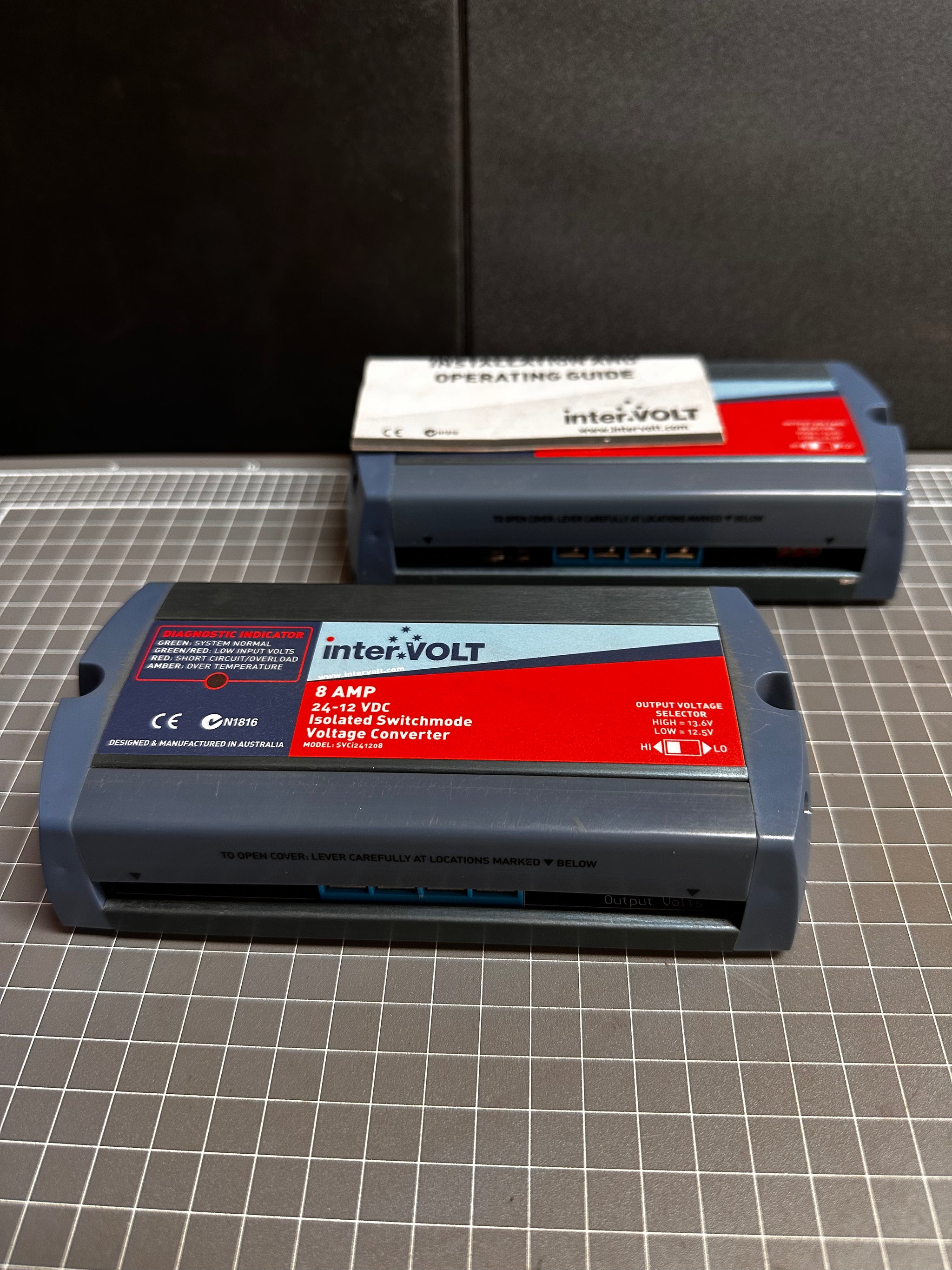

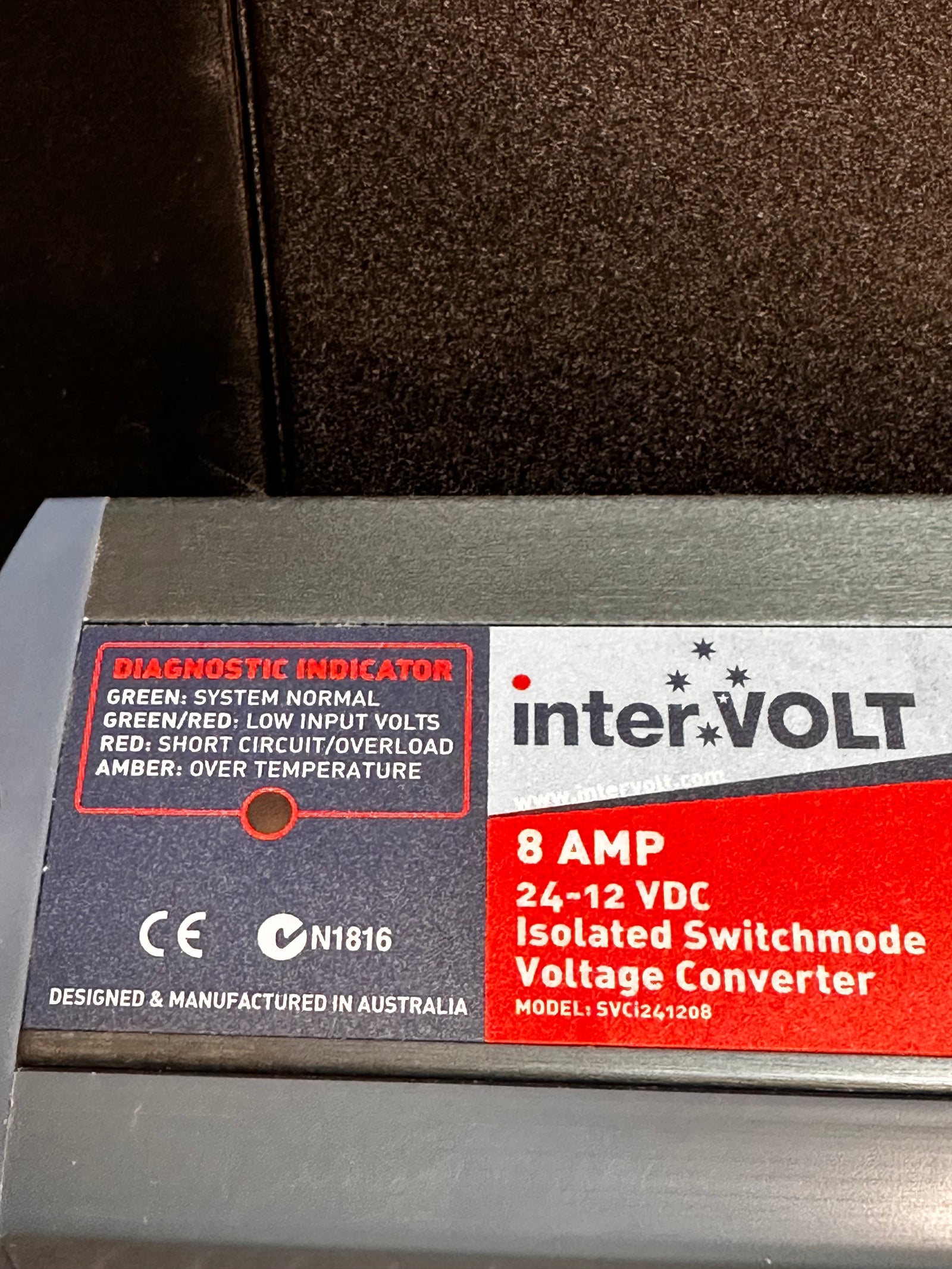

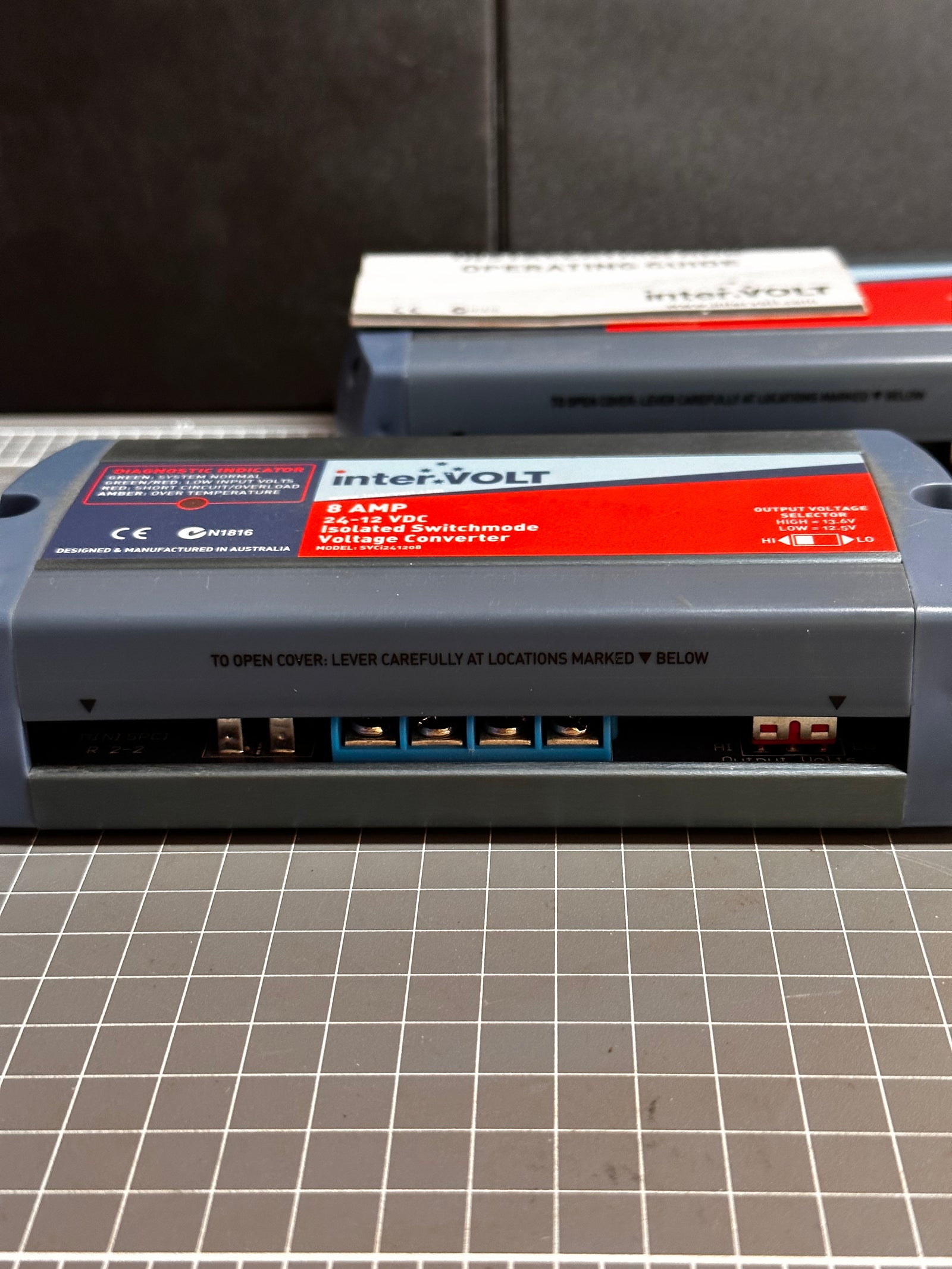

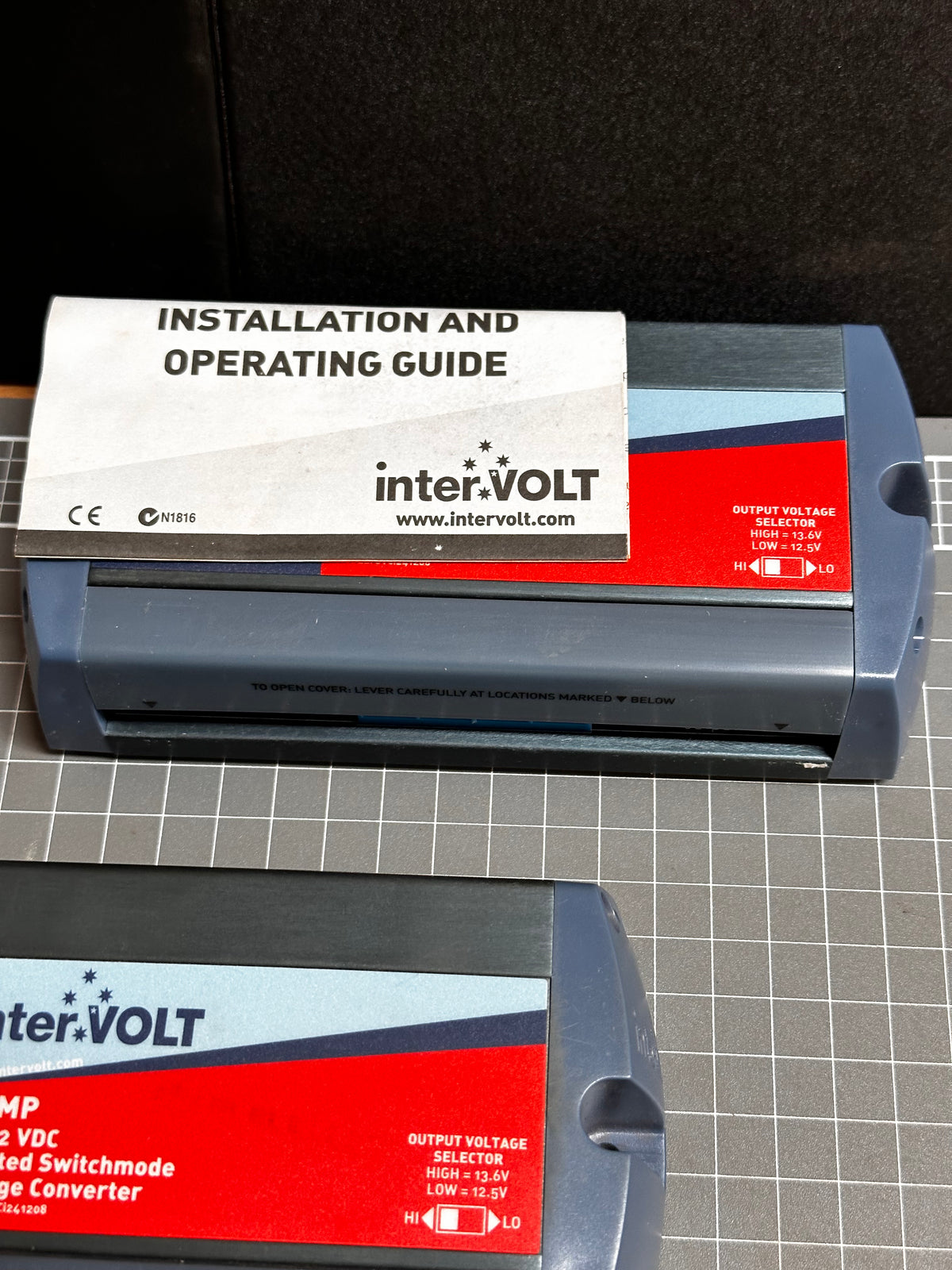

interVOLT SVCi241208 Isolated DC Voltage Converter 8 A
- SKU
- P-IN-I-1676
- Weight
- 1.0 kg
Specifications
| Manufacturer | interVOLT |
|---|---|
| Product type | AUTO ELECTRICAL |
| SKU | P-IN-I-1676 |
| Weight | 1.0 kg |
Description
interVOLT’s SVCi Voltage Converters Isolated Mini are the fully isolated version of our highly successful SVC range. SVCi Miniseries range was developed to fulfill the need for a small device to power low current electrical and electronic equipment in transport applications.
Galvanic isolation ensures total input to output isolation with no common connectivity between the 24VDC and 12VDC whatsoever. This means peace-of-mind when connecting sensitive and often expensive, high-end electronic equipment to the output.
The benefits of using an isolated converter are many including elimination of line interference, greater protection, better regulation and improved performance.

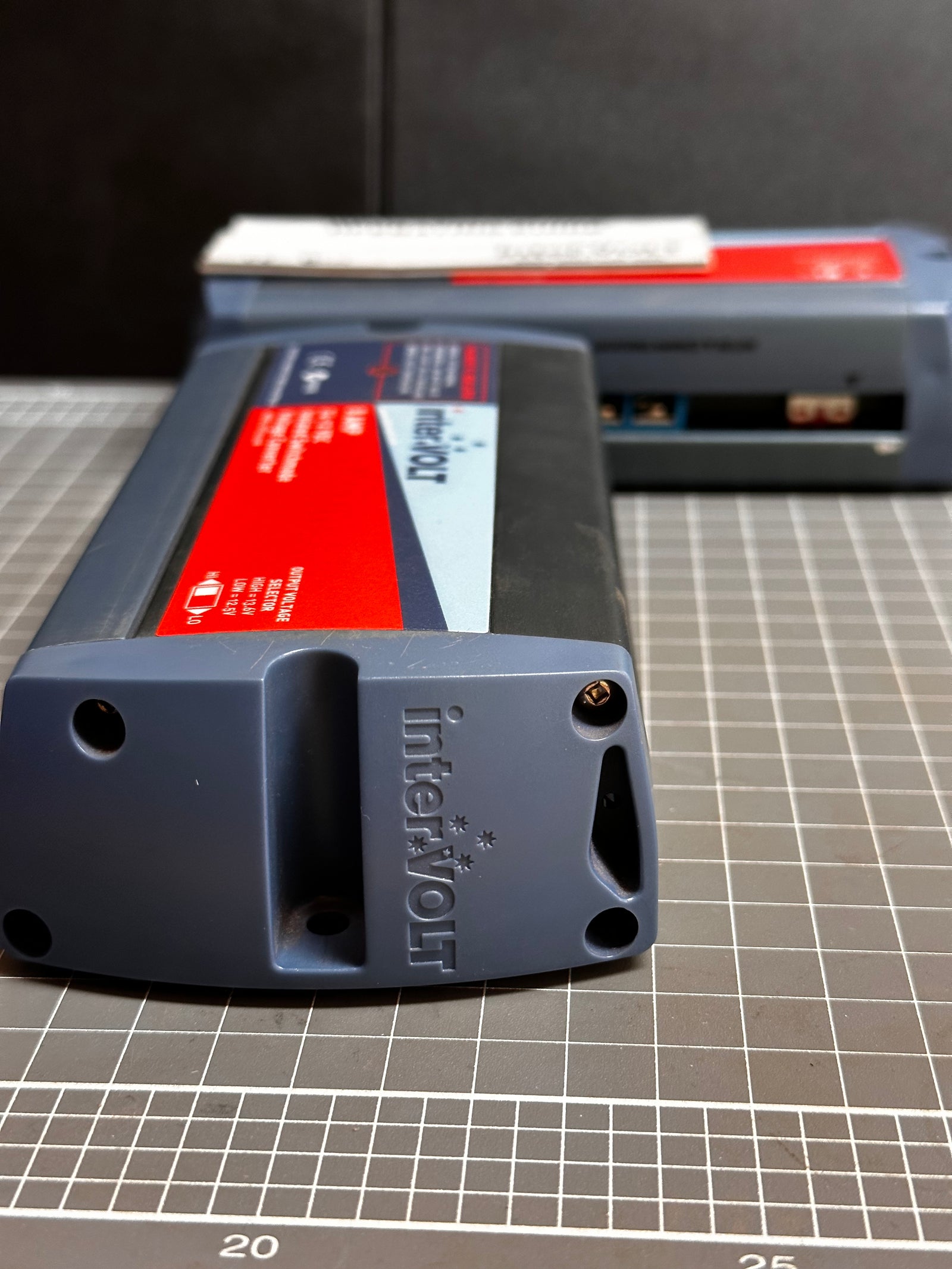

Utilizing the unique Miniseries housing design, these devices are not only stylish but compact, efficient and installer friendly.

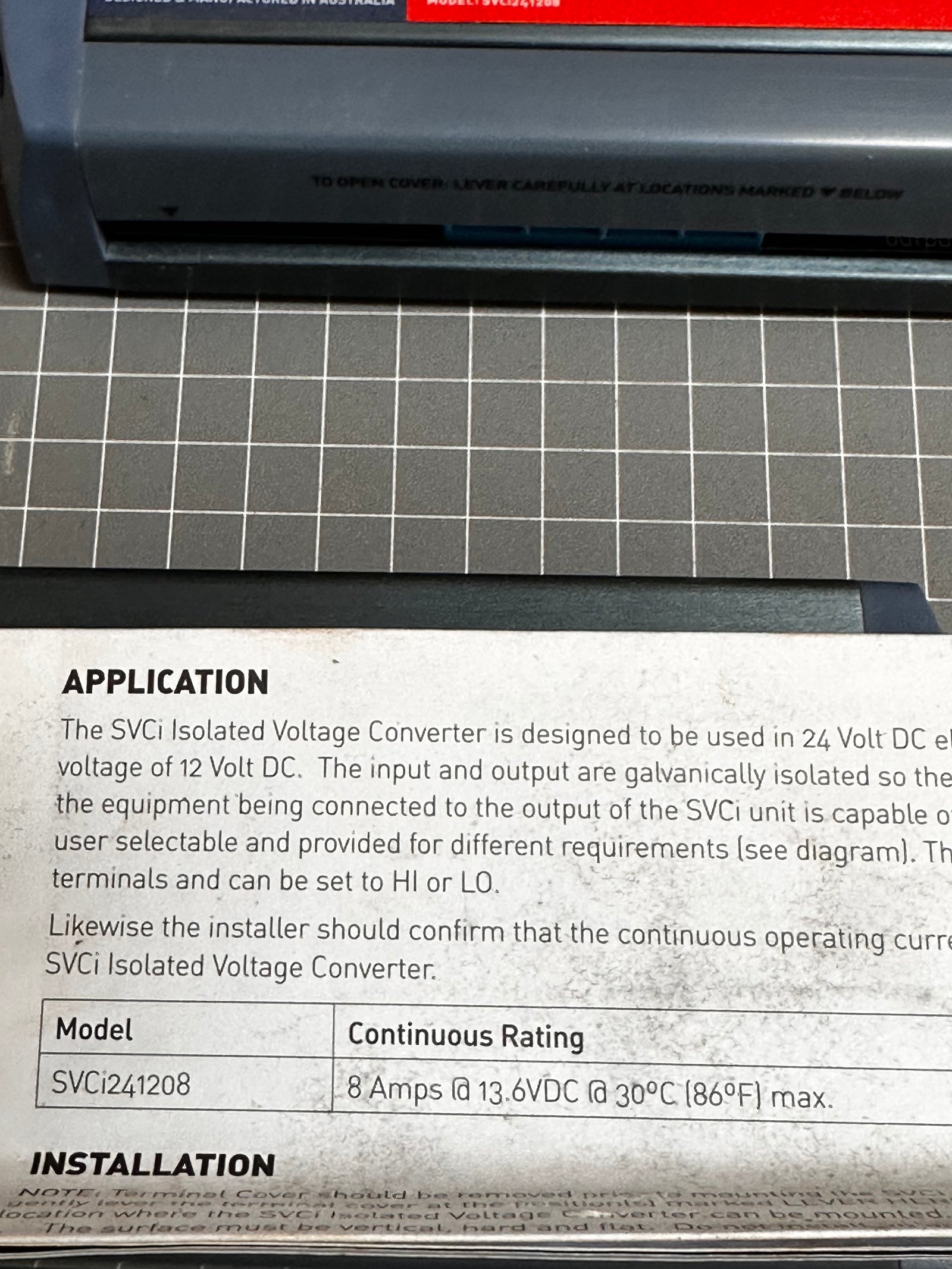

| Model | Isolated | Input Voltage | Output Voltage | Continuous Rating |
|---|---|---|---|---|

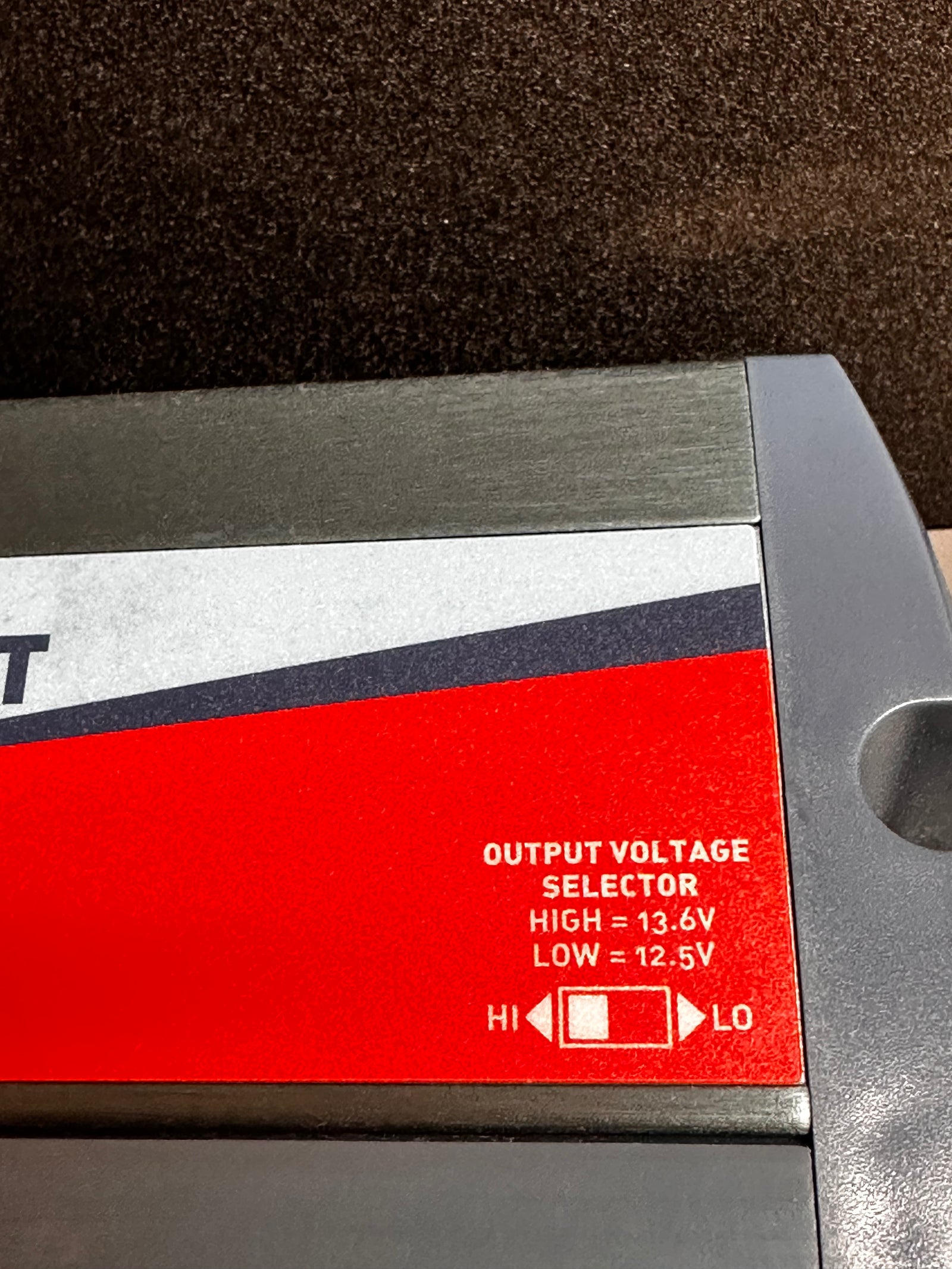

| SVCi241208 | Yes | 17 – 33VDC | 12.5/13.6VDC | 8 Amps @ 30°C |
