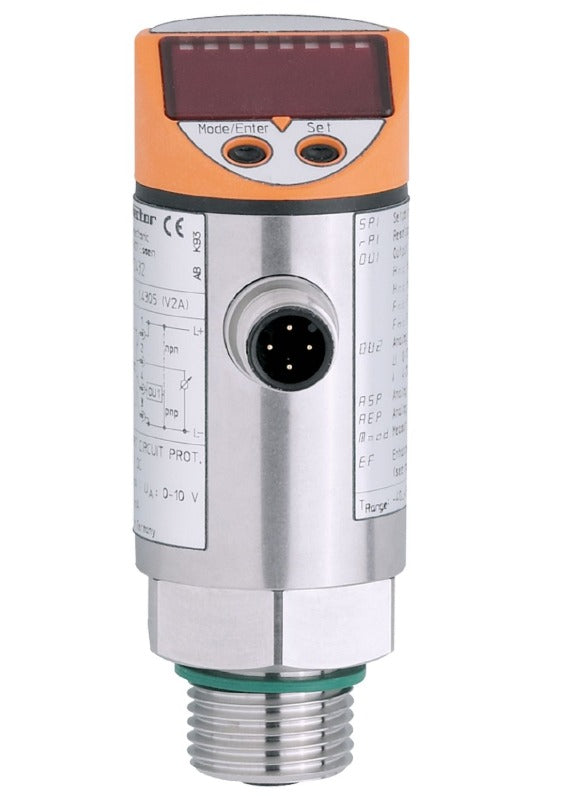

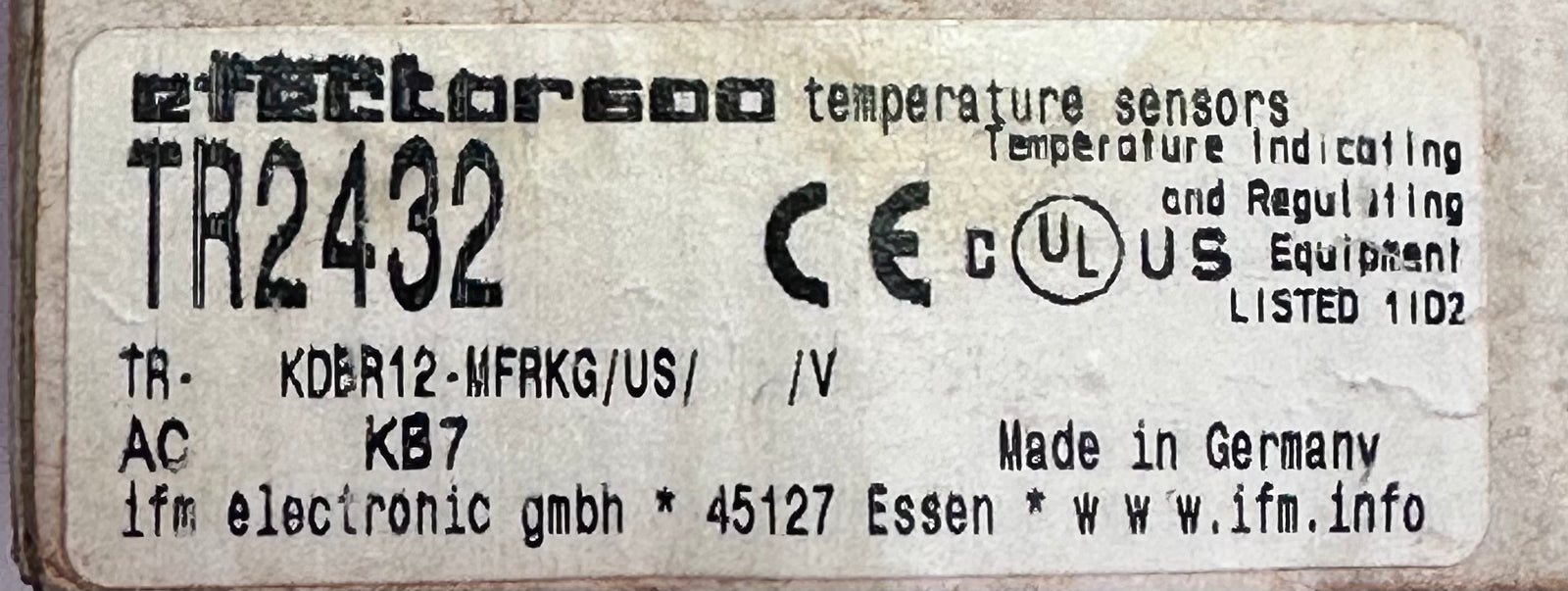

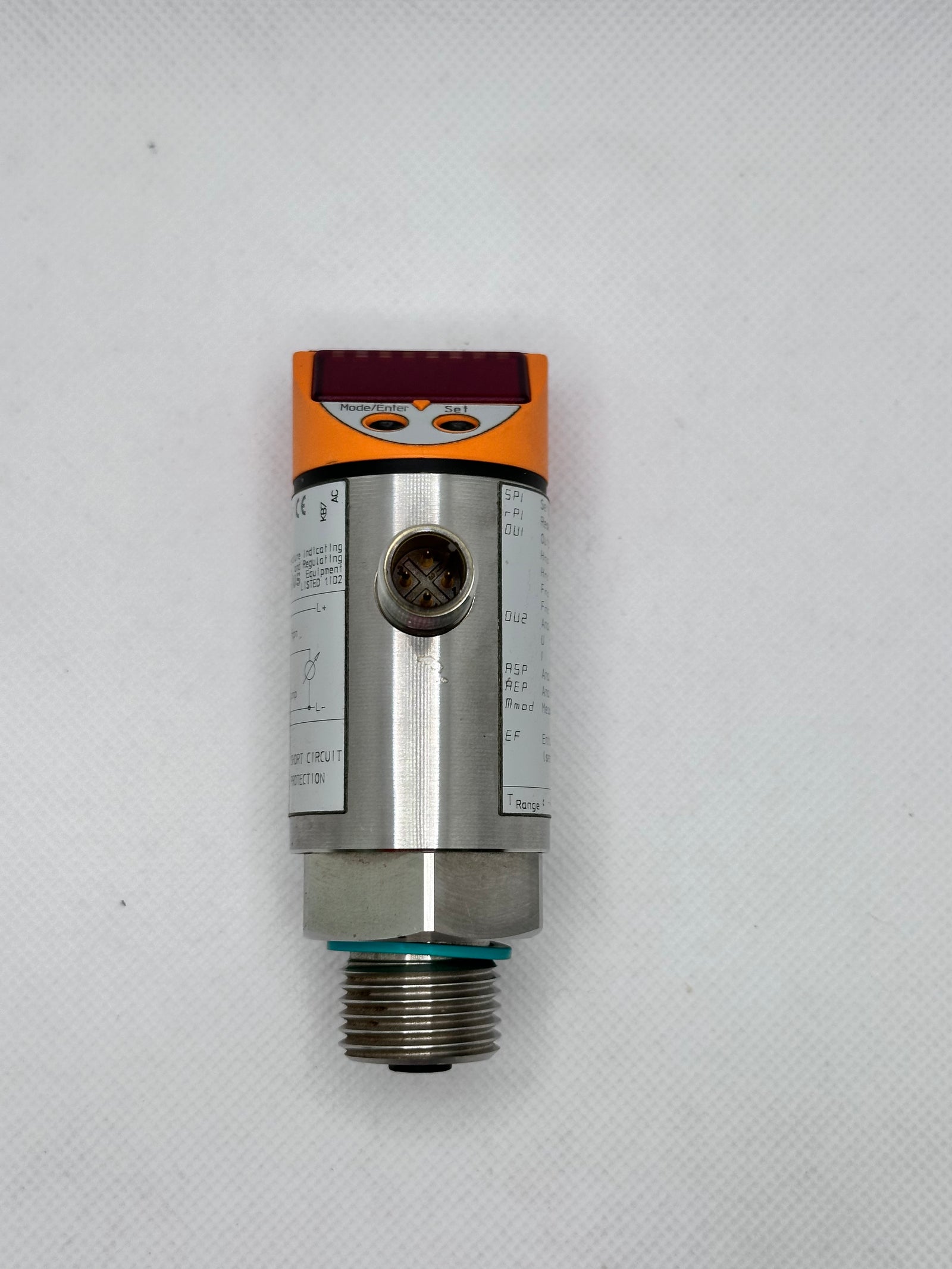

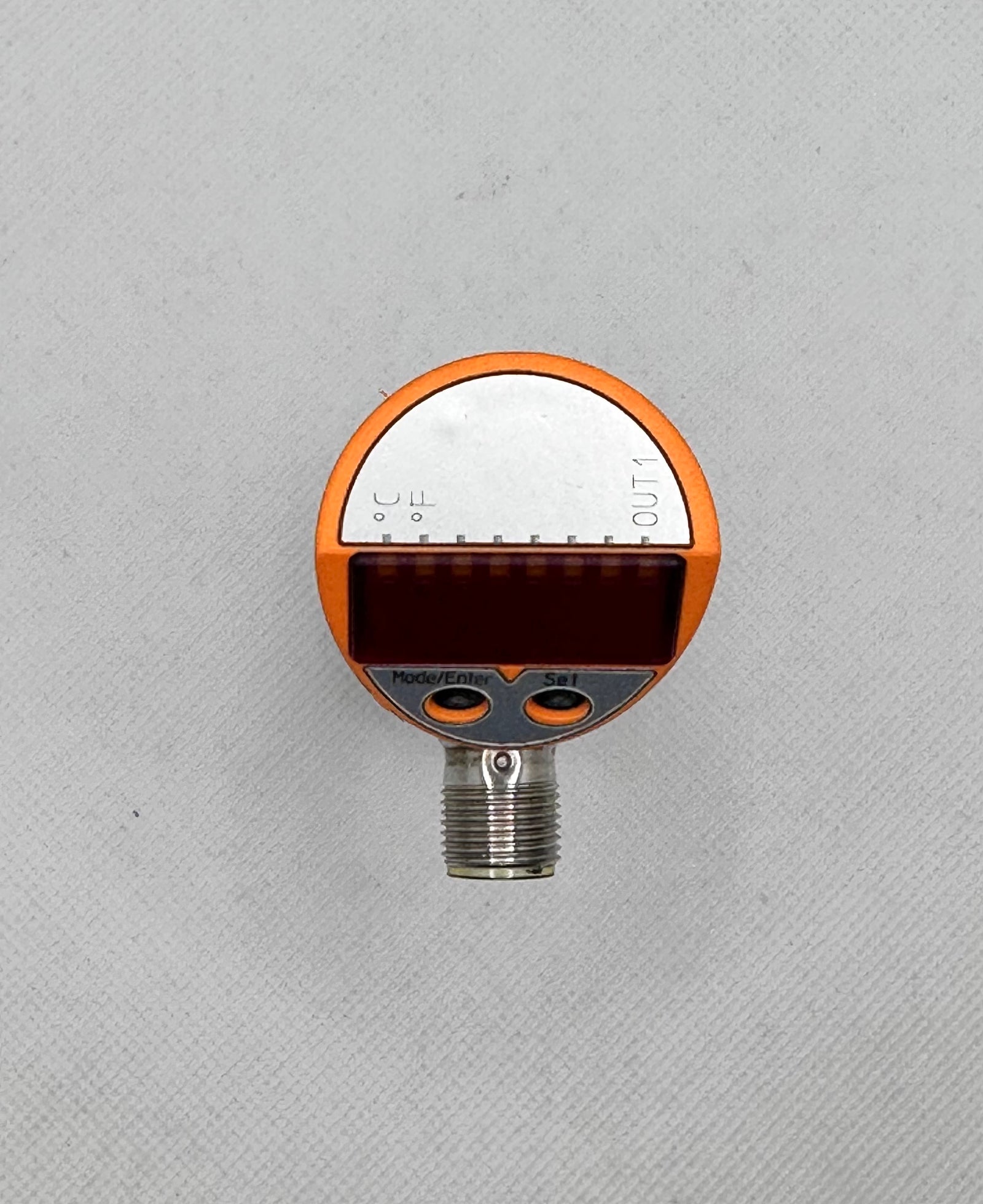

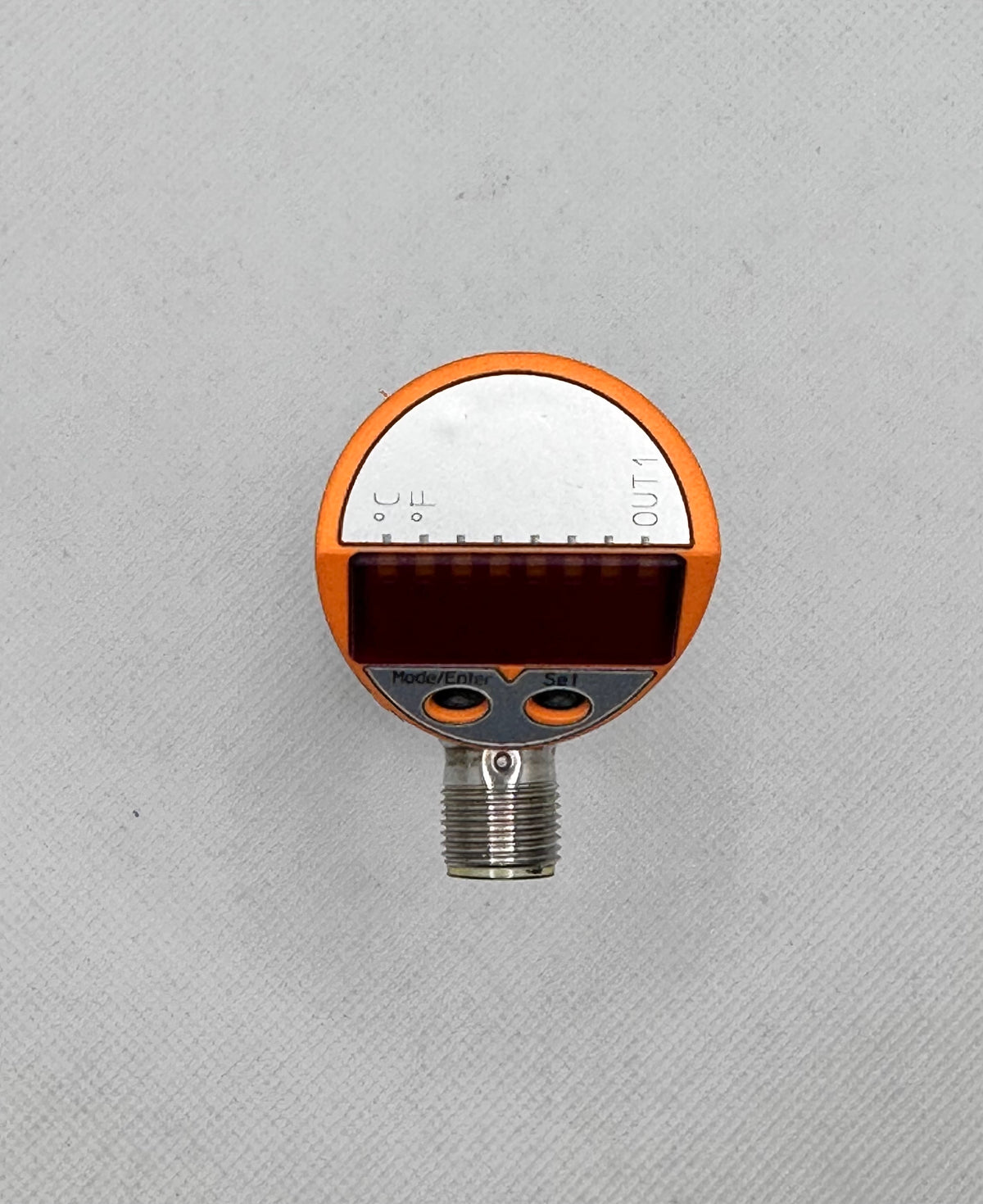

| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 | ||
| Measuring range |
|

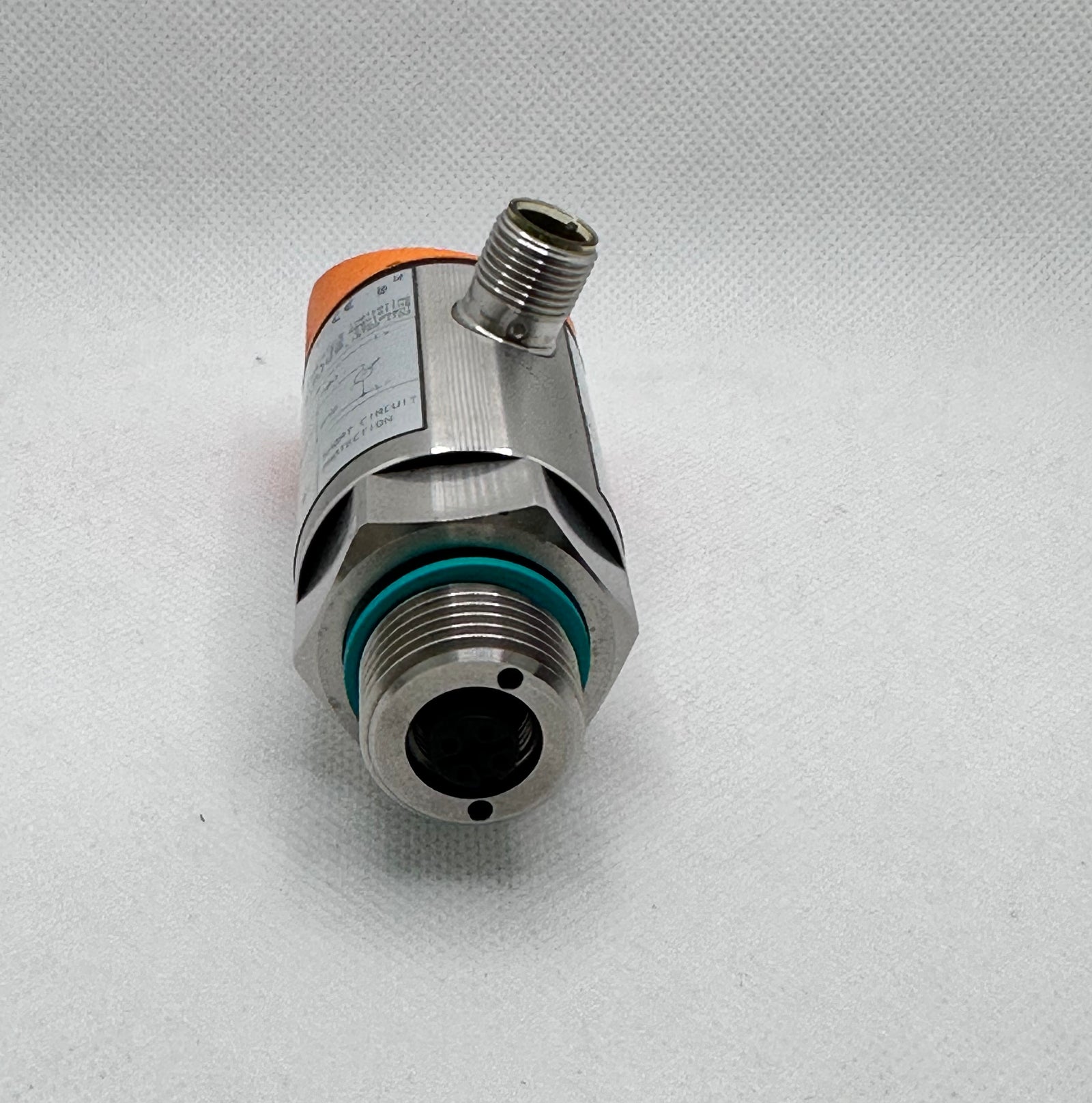

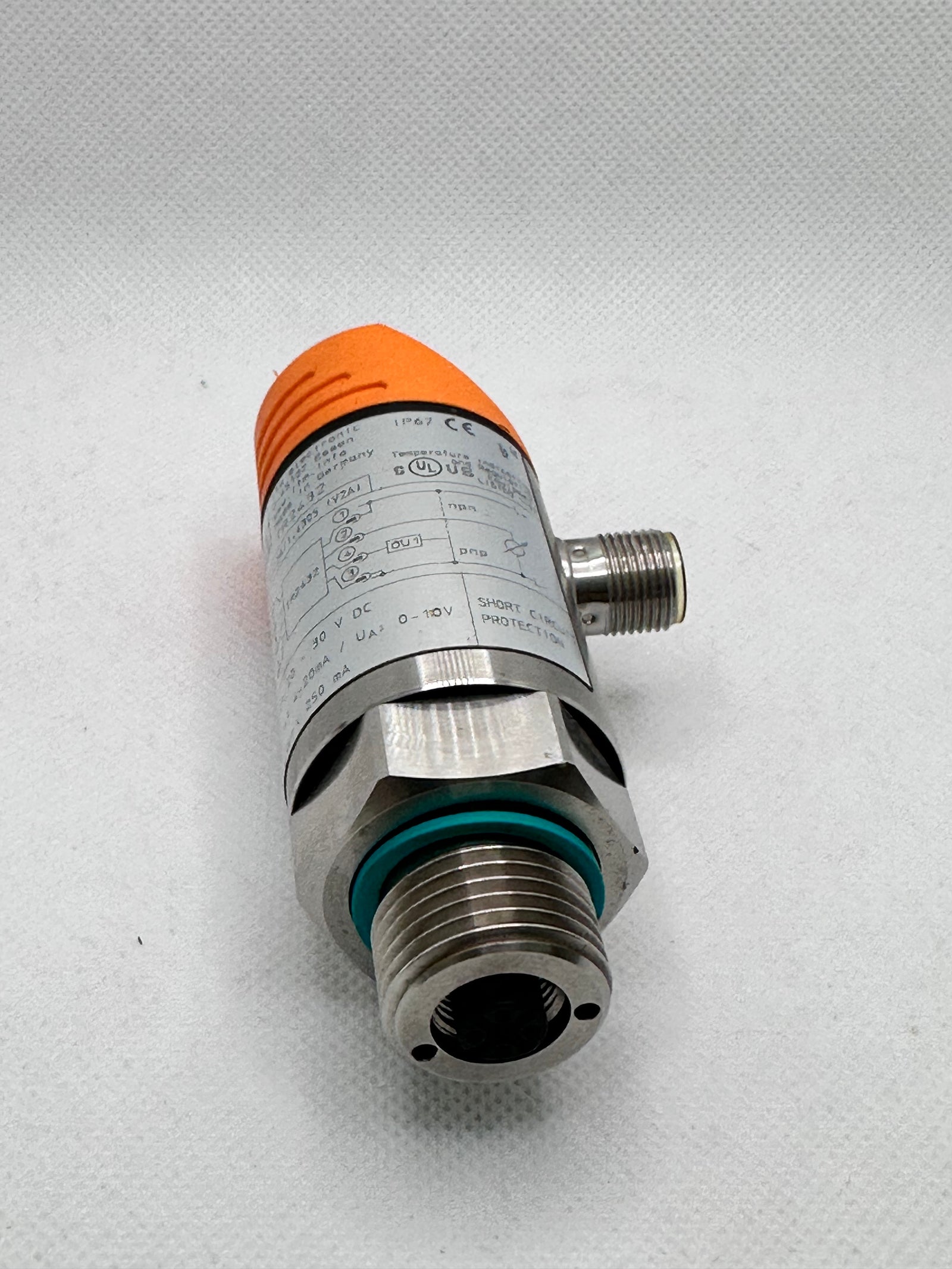

||
| Communication interface | IO-Link | ||
| Process connection | threaded connection G 1/2 external thread |
Application
| Special feature | Gold-plated contacts |
| Application | for Pt100 and Pt1000 measuring elements |

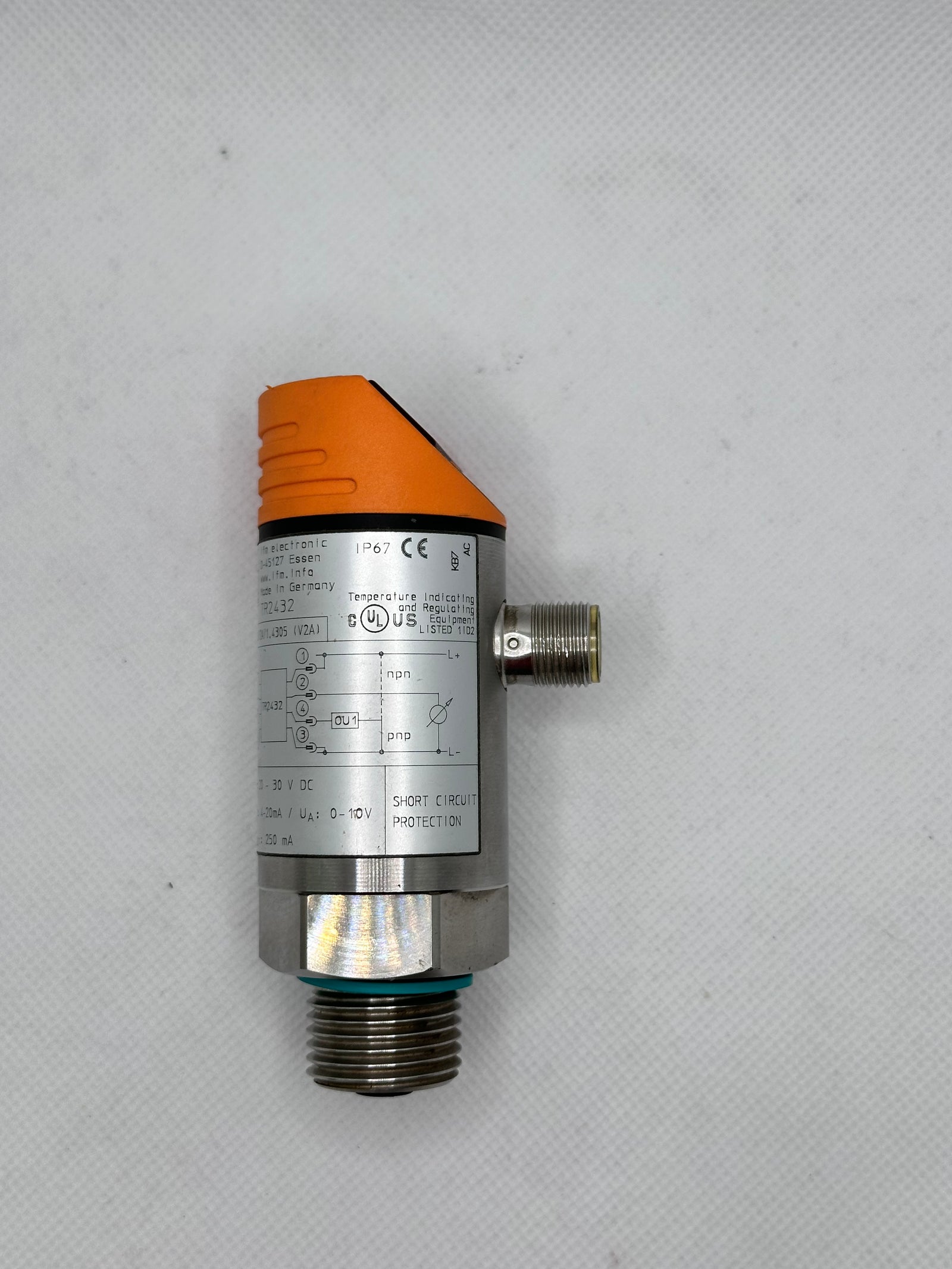

Electrical data
| Operating voltage[V] | 18...32 DC; ("supply class 2" to cULus) |
| Current consumption[mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 1 |
| Integrated watchdog | yes |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 1; Number of analogue outputs: 1 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; analogue signal; IO-Link; (configurable) |
| Electrical design | PNP/NPN |
| Number of digital outputs | 1 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] | 2 |
| Permanent current rating of switching output DC[mA] | 250 |
| Number of analogue outputs | 1 |
| Analogue current output[mA] | 4...20; (response time analogue output: 384 ms) |
| Max. load[Ω] | (Ub - 10 V) x 50 |
| Analogue voltage output[V] | 0...10; (response time analogue output: 384 ms) |
| Min. load resistance[Ω] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |

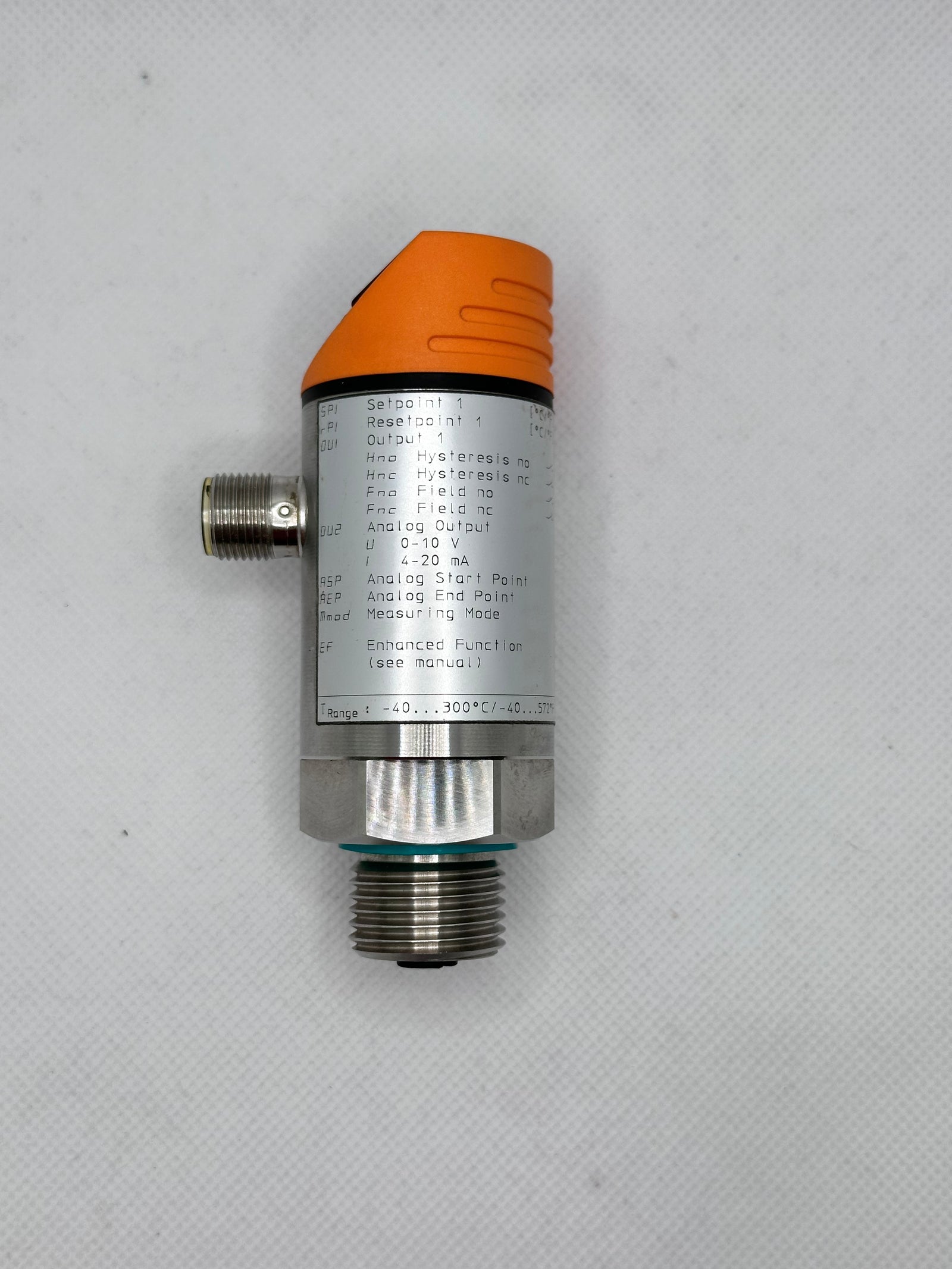

Measuring/setting range
| Measuring range |
|
||
| Set point SP |
|
||
| Reset point rP |
|
||
| Analogue start point |
|
||
| Analogue end point |
|
||
| In steps of |
|
| Resolution | |
|---|---|
| Resolution of switching output[K] | 0.1 |
| Resolution of analogue output[K] | 0.1 |
| Resolution of display[K] | 0.1 |
Accuracy / deviations
| Switch point accuracy[K] | ± 0,3 |
| Precision analogue output[K] | ± 0,3 |
| Display accuracy[K] | ± 0,3 |
| Temperature drift per 10 K[K] | 0.1 |
Response times
| Response time[ms] | 130 |
Interfaces
| Communication interface | IO-Link |
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.0 |
Operating conditions
| Ambient temperature[°C] | -25...70 |
| Storage temperature[°C] | -40...85 |
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||
| Shock resistance |
|
||||||||||
| Vibration resistance |
|
||||||||||
| MTTF[years] | 207 |
