IFM

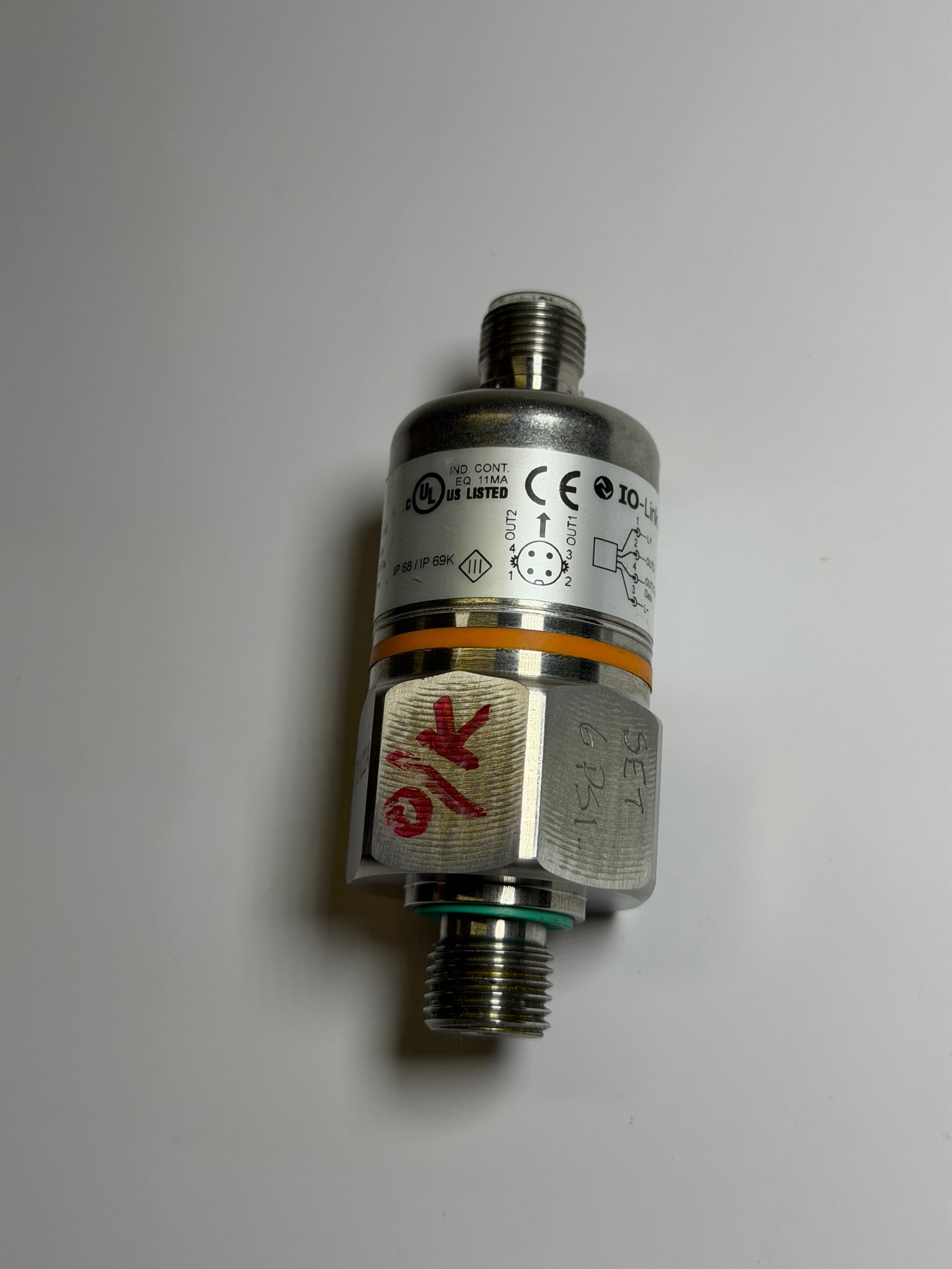

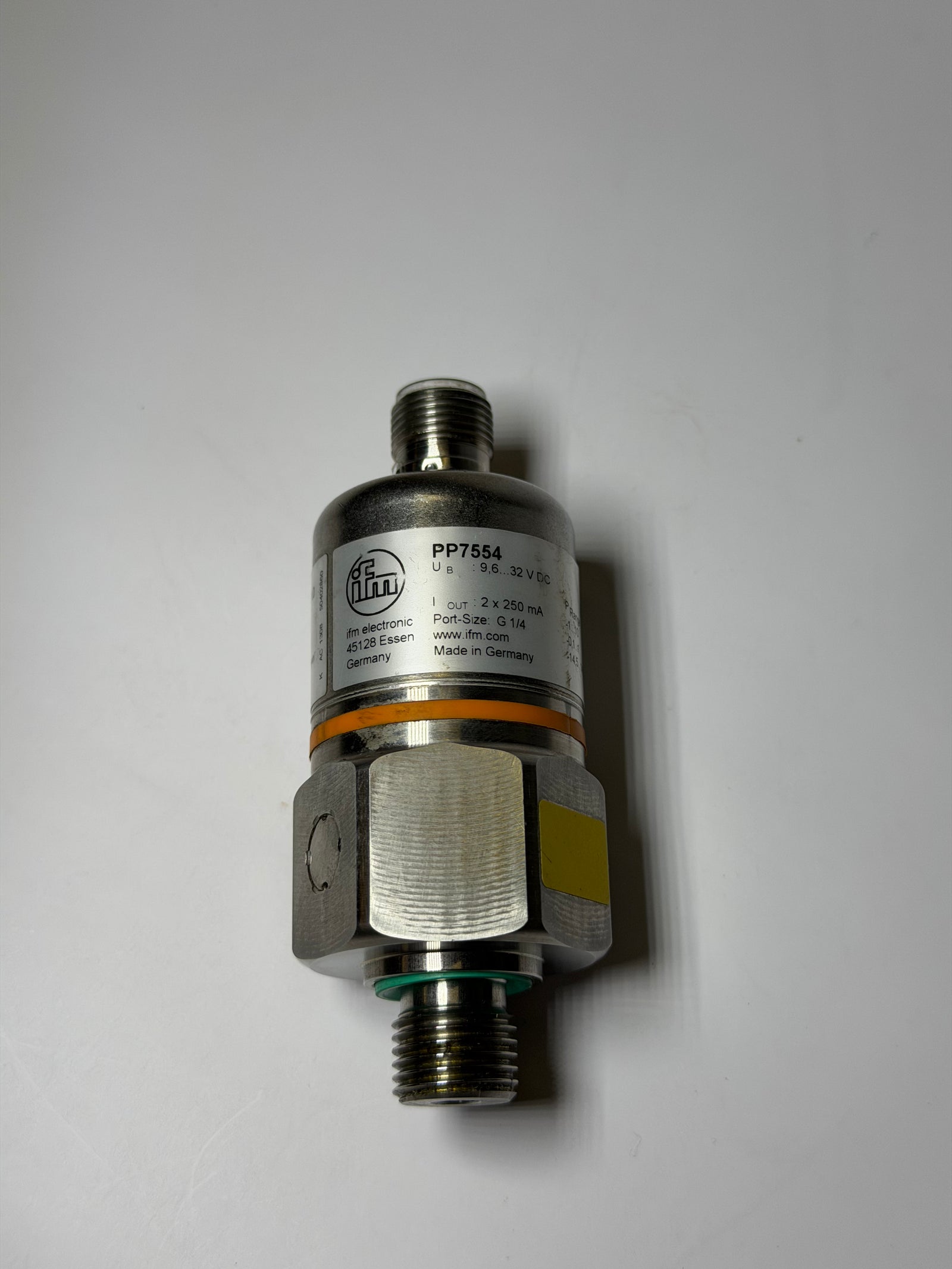

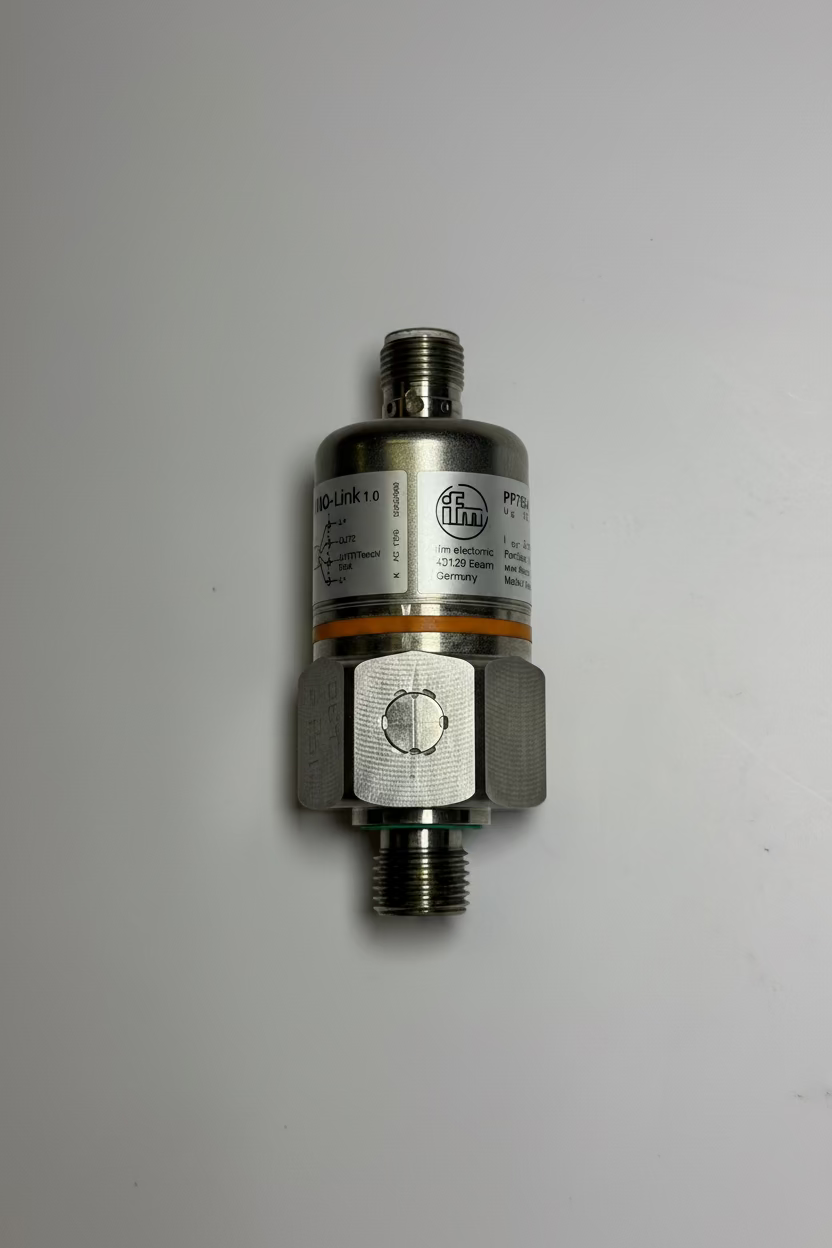

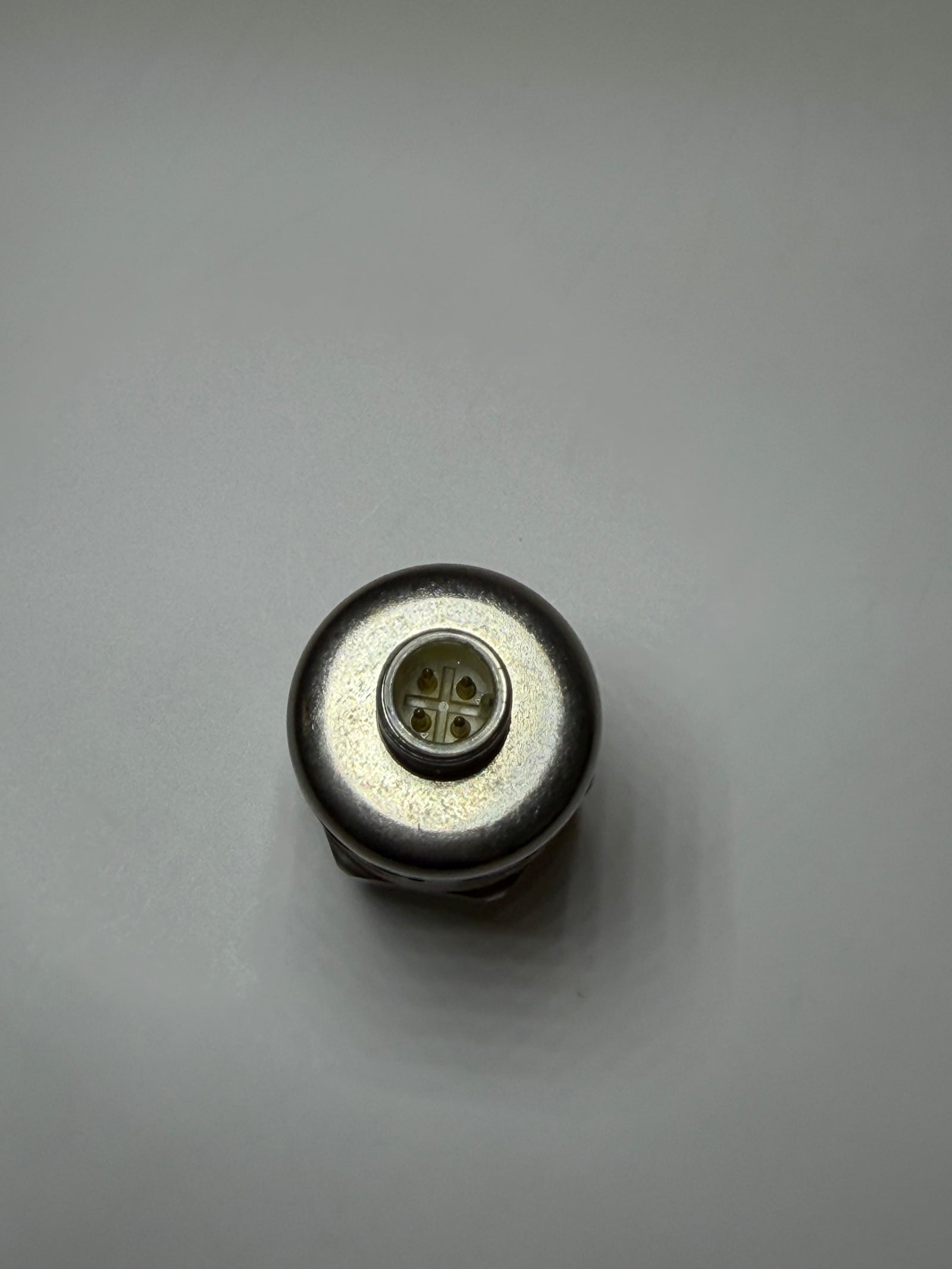

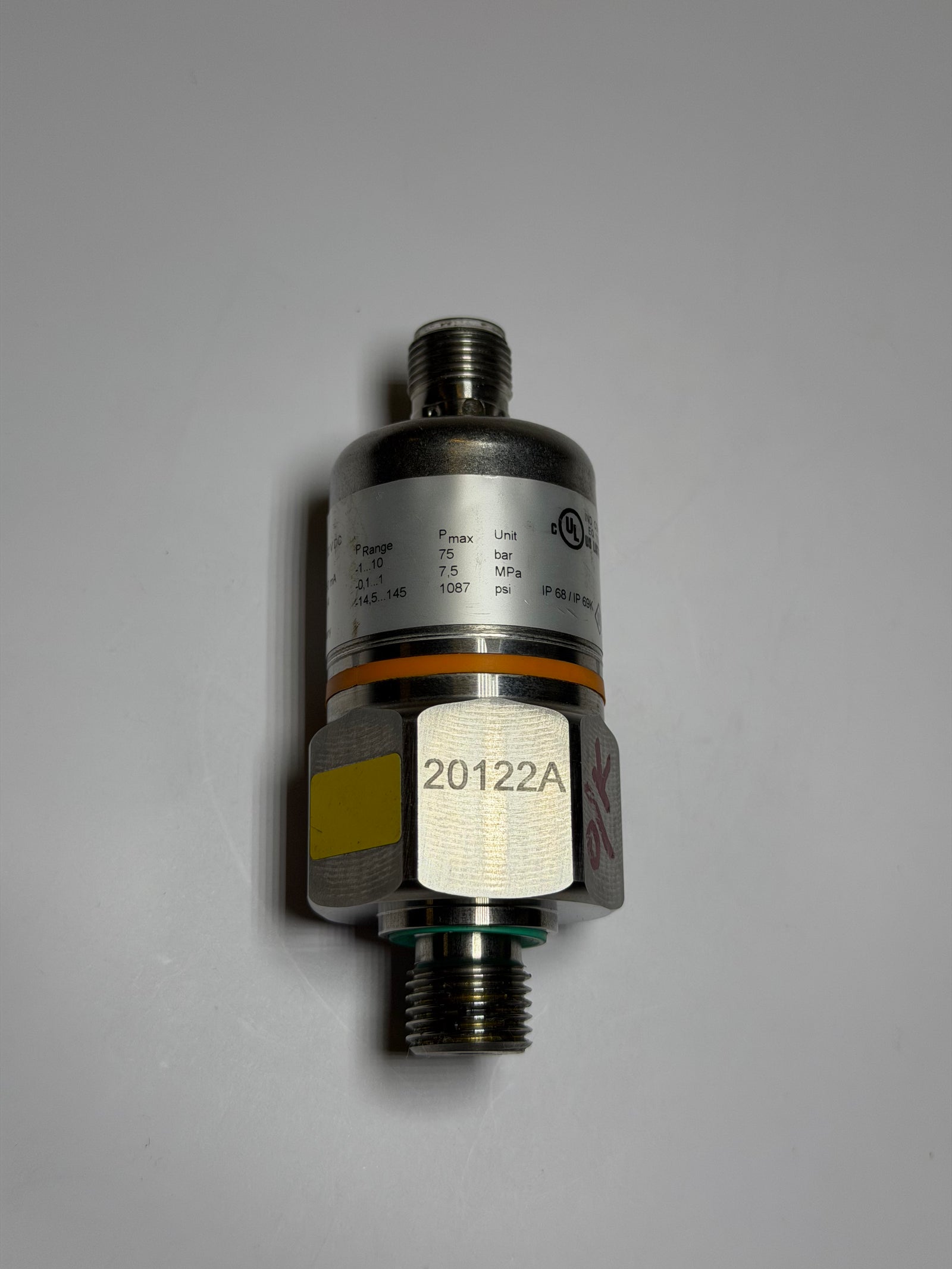

ifm PP7554 Pressure Switch, Preset to 6psi for Atlas Copco 3176004266
- SKU
- P-IF-I-8914
$165.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | IFM |
|---|---|
| Product type | SENSOR |
| SKU | P-IF-I-8914 |
| Weight | 2.0 kg |
Description
PP-010-RBG14-QFPKG/US/ /V
Preset to 6 psi
| Number of inputs and outputs | Number of digital outputs: 2 | ||||
| Measuring range |
|
||||
| Process connection | threaded connection G 1/4 external thread internal thread:M5 |
Application
| Application | for mobile applications; for industrial applications; for railway applications | |||
| Media | liquids and gases | |||
| Medium temperature[°C] | -25...90 | |||
| Min. burst pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure; vacuum |
Electrical data
| Operating voltage[V] | 9.6...36 DC; (communication mode: 18...32) |
| Current consumption[mA] | < 45 |
| Min. insulation resistance[MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time[s] | 0.3 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
Outputs
| Total number of outputs | 2 |
| Output signal | switching signal; IO-Link; (configurable) |
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (parameterisable) |
| Max. voltage drop switching output DC[V] | 2 |
| Permanent current rating of switching output DC[mA] | 250 |
| Switching frequency DC[Hz] | 170 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
