IFM

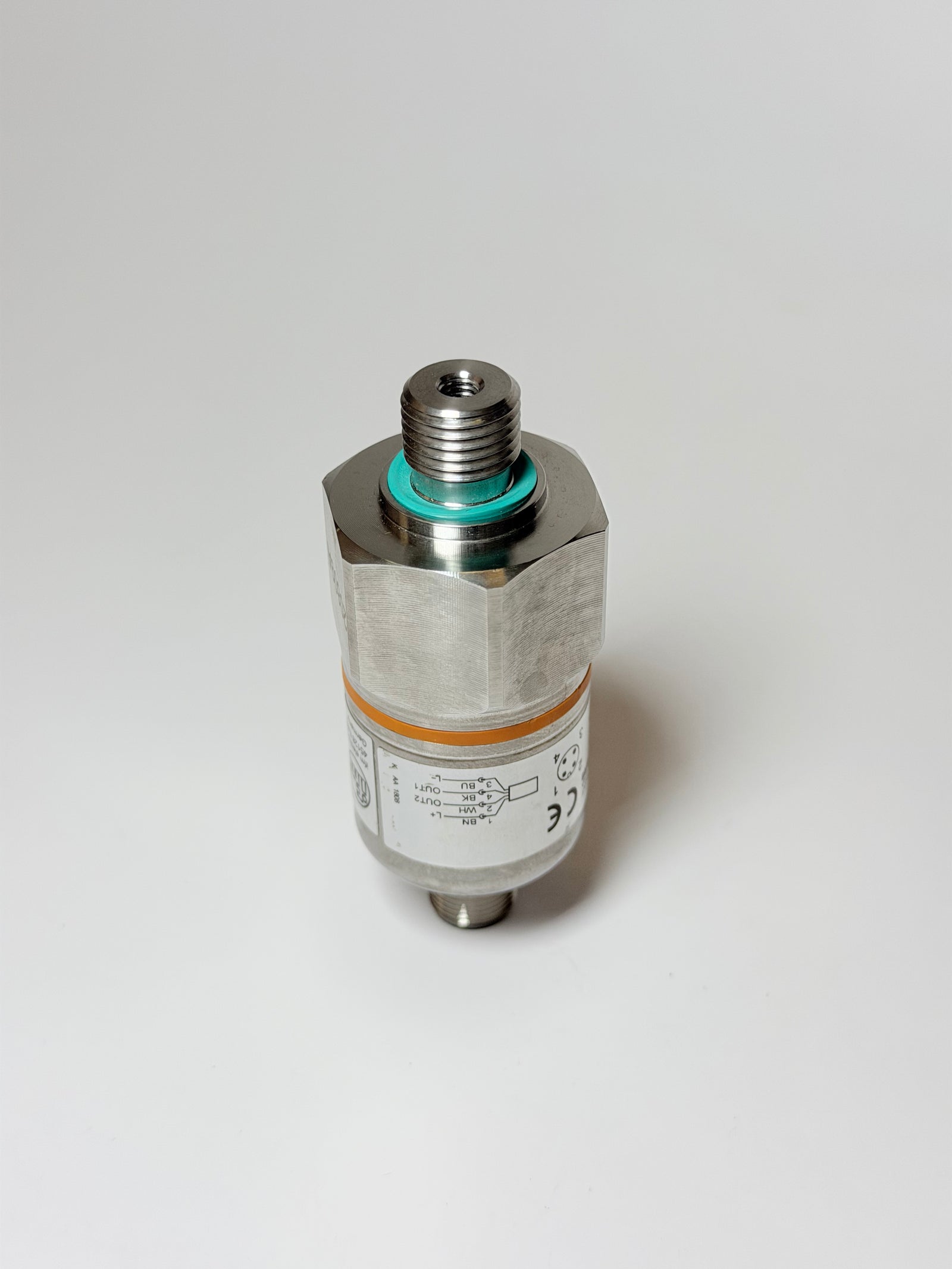

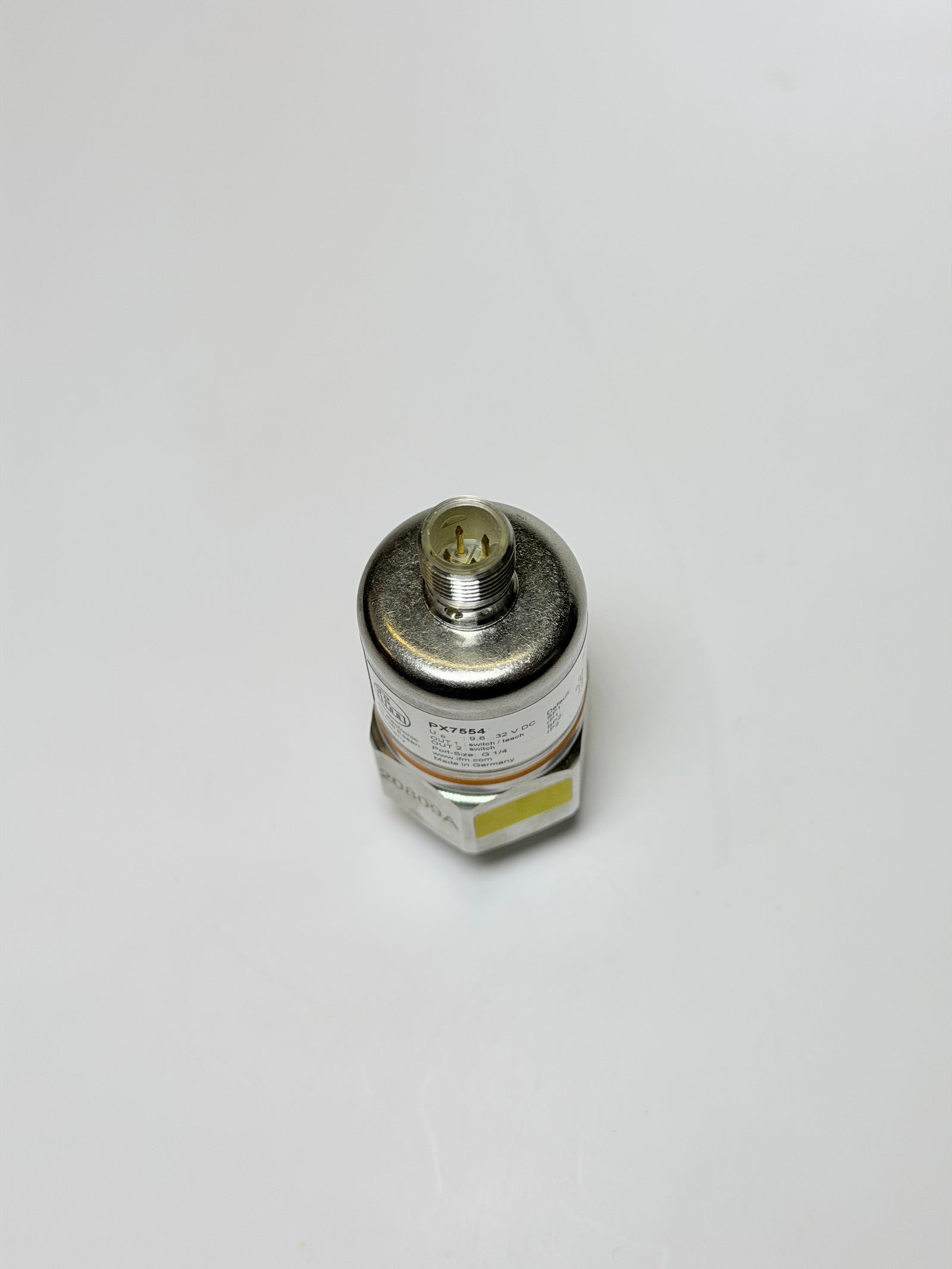

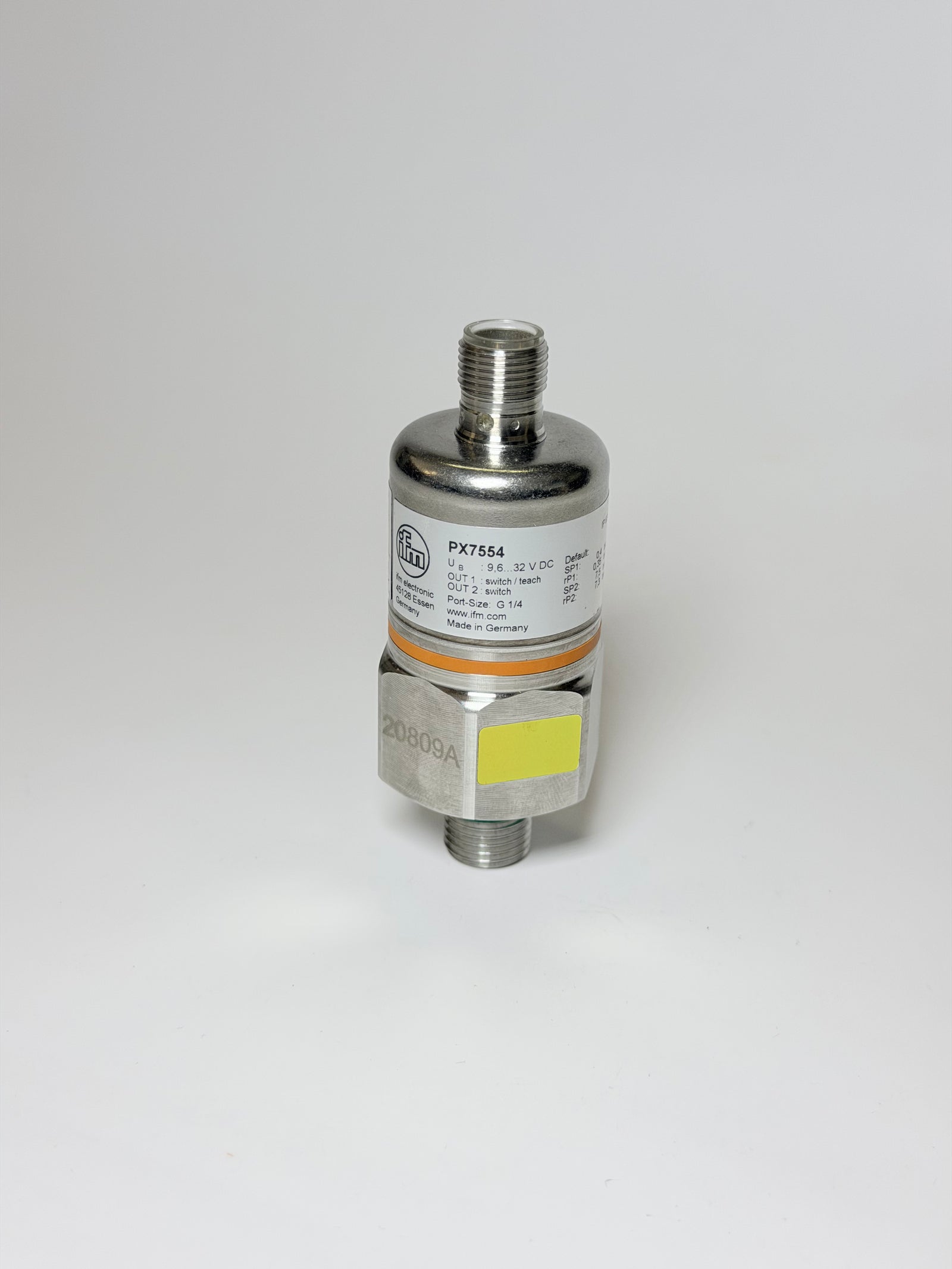

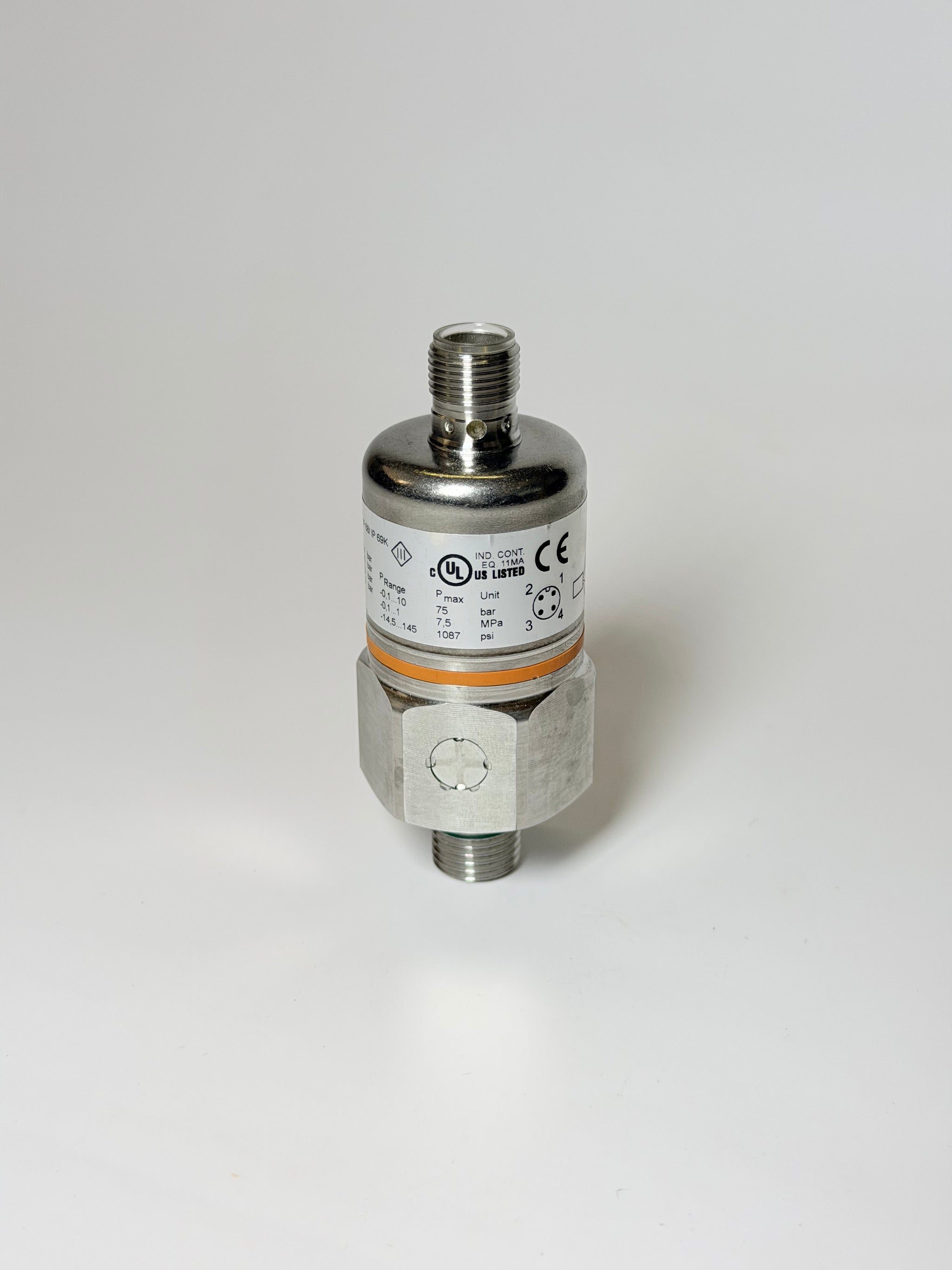

ifm PX7554 Pressure Sensor with Ceramic Measuring Cell - PP-010-RBG14-QFPKG/US/ /V
- SKU
- P-IF-I-8915
$230.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | IFM |
|---|---|
| Product type | SENSOR |
| SKU | P-IF-I-8915 |
| Weight | 2.0 kg |
Description
Primary brand
IFM
Main function
Switch (Pressure)
Functions
Pressure switch with ceramic measuring cell
Communication protocol
IO-Link
Degree of protection
IP68
Material
stainless steel (1.4301 / 304)
FKM
EPDM/X
PA
stainless steel (1.4305 / 303)
ceramics
FKM
EPDM/X
PA
stainless steel (1.4305 / 303)
ceramics
Ambient air temperature for operation
-25...+85 °C
Visual position indicator
green LED (power supply)
yellow LED (output active) x 2
yellow LED (output active) x 2
Mechanical durability (at no load)
100 000 000 operations
Supply voltage
(DC) 9.6-36 V
Pressure (psi)
-14.5...+145 psi
Pressure
-0.1...+1MPa
Pressure (bar)
-1...+10 bar
Technical compatibility with
liquids
gases
gases
Compliant with standard(s)
EN61000-6-2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
1995/54/EC / 04/104EG / 05/83/EG
ISO11452-2
EN50155 Klasse T3; C1; S1
DIN IEC 60068-2-27 / DIN IEC 60068-2-29d 1000 g
DIN EN61373d category 3
DIN IEC60068-2-6
DIN EN 60068-2-6
DIN EN 61373 category 2
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-4-5
EN61000-4-6
1995/54/EC / 04/104EG / 05/83/EG
ISO11452-2
EN50155 Klasse T3; C1; S1
DIN IEC 60068-2-27 / DIN IEC 60068-2-29d 1000 g
DIN EN61373d category 3
DIN IEC60068-2-6
DIN EN 60068-2-6
DIN EN 61373 category 2
Connection type
M12 connector
G 1/4 external threaded fluid / process connection
G 1/4 external threaded fluid / process connection
Digital outputs
PNP transistor output
Protection functions
Short-circuit (pulsed)
Overload
Reverse polarity
Overload
Reverse polarity
Operating mode
NO / NC (selectable)
