GE FAUNC

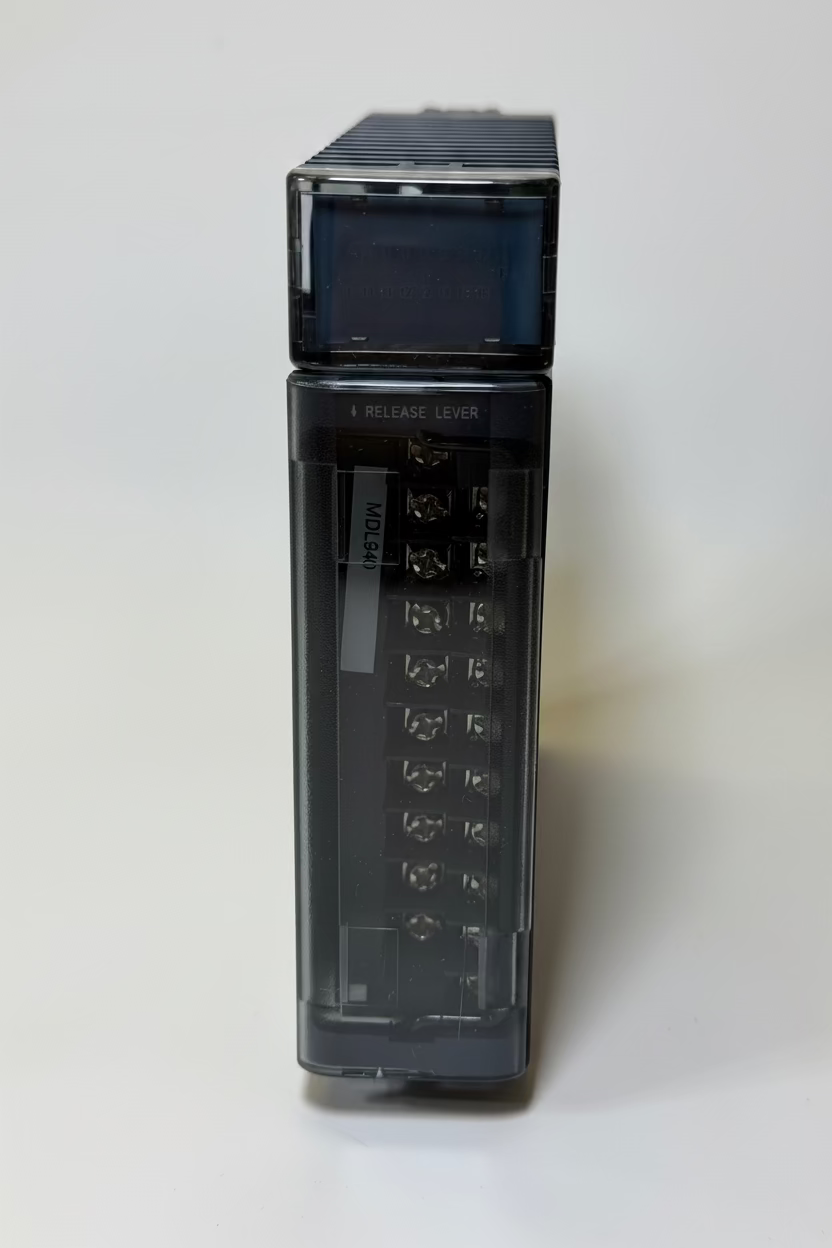

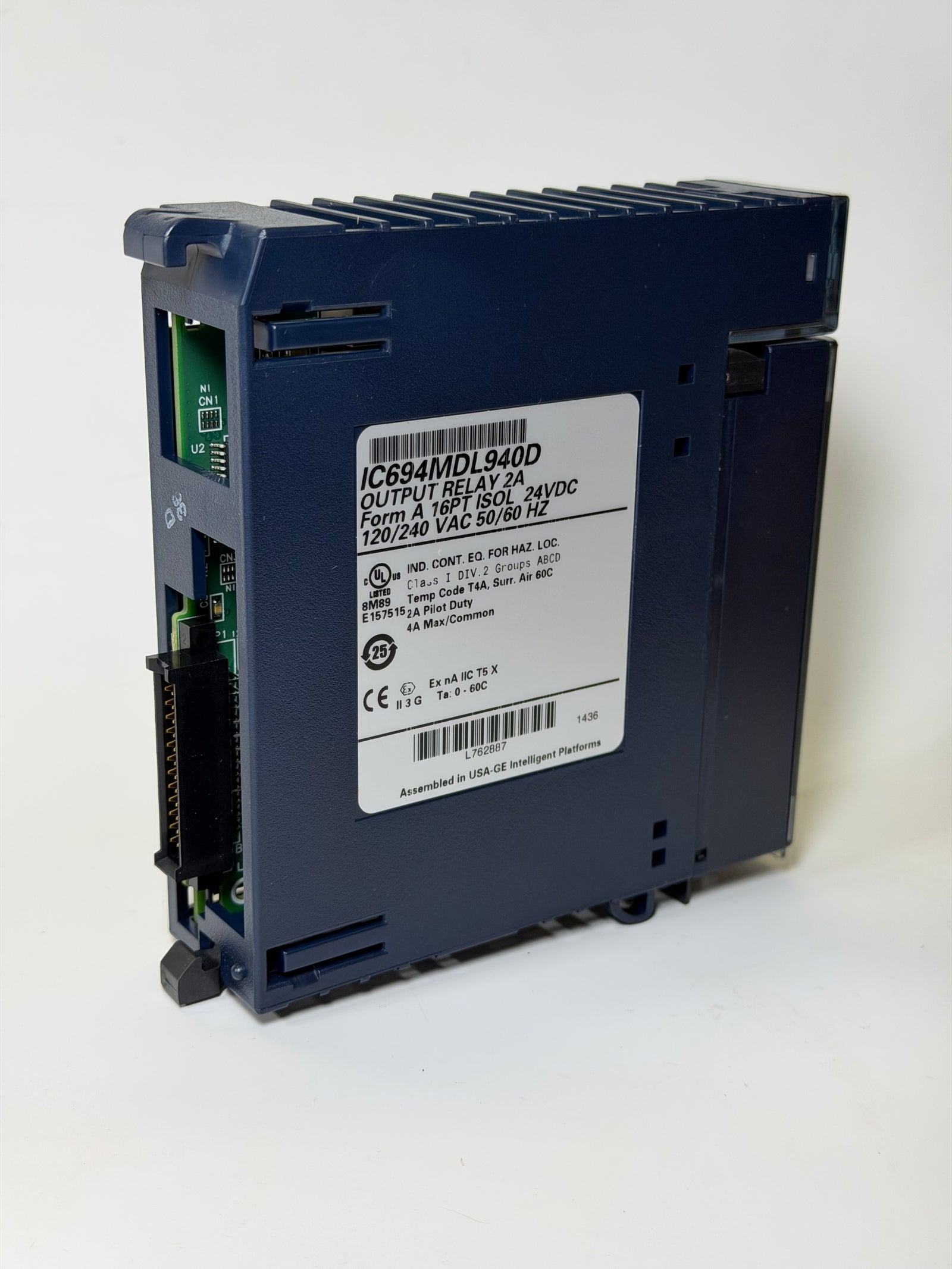

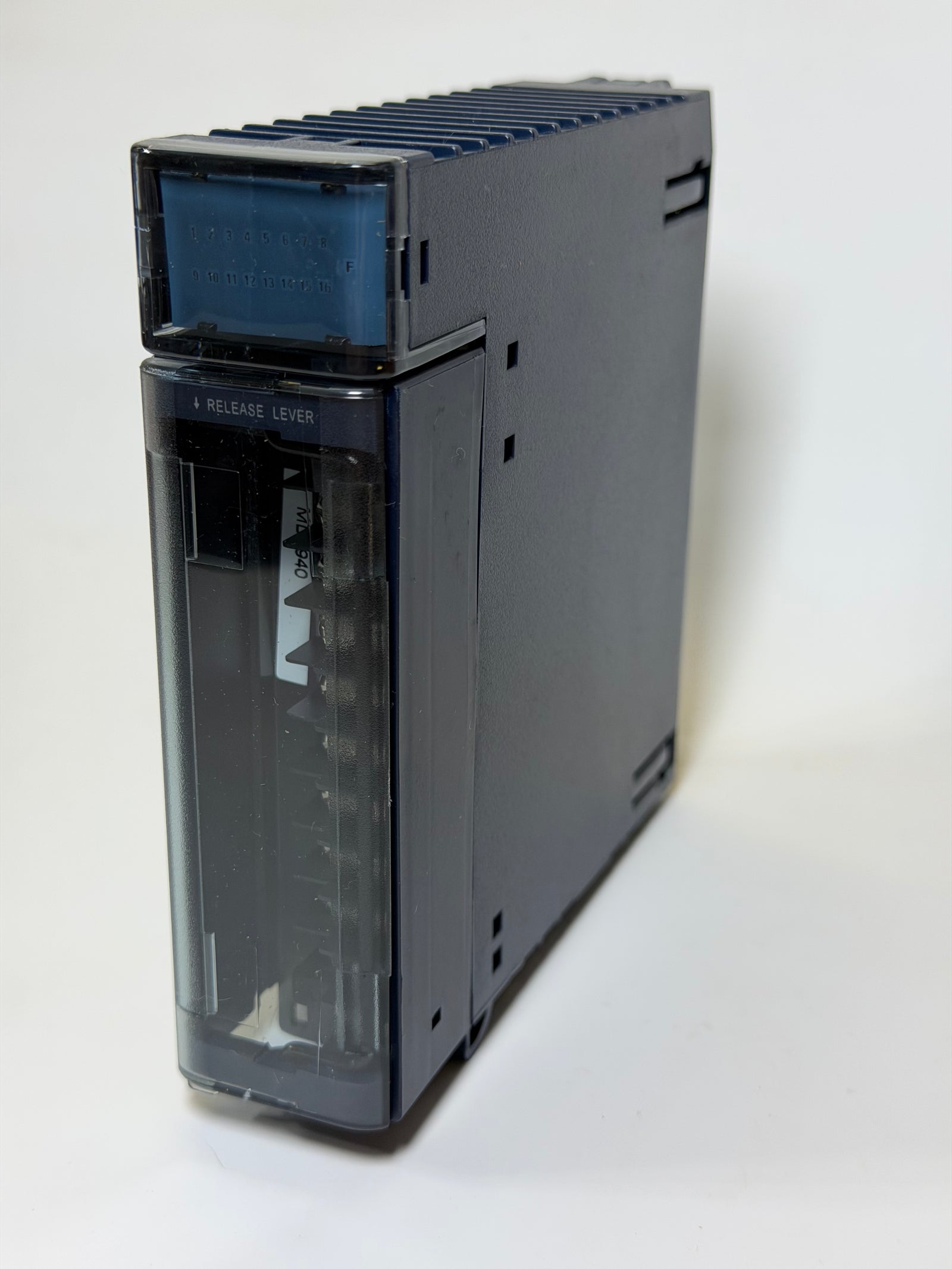

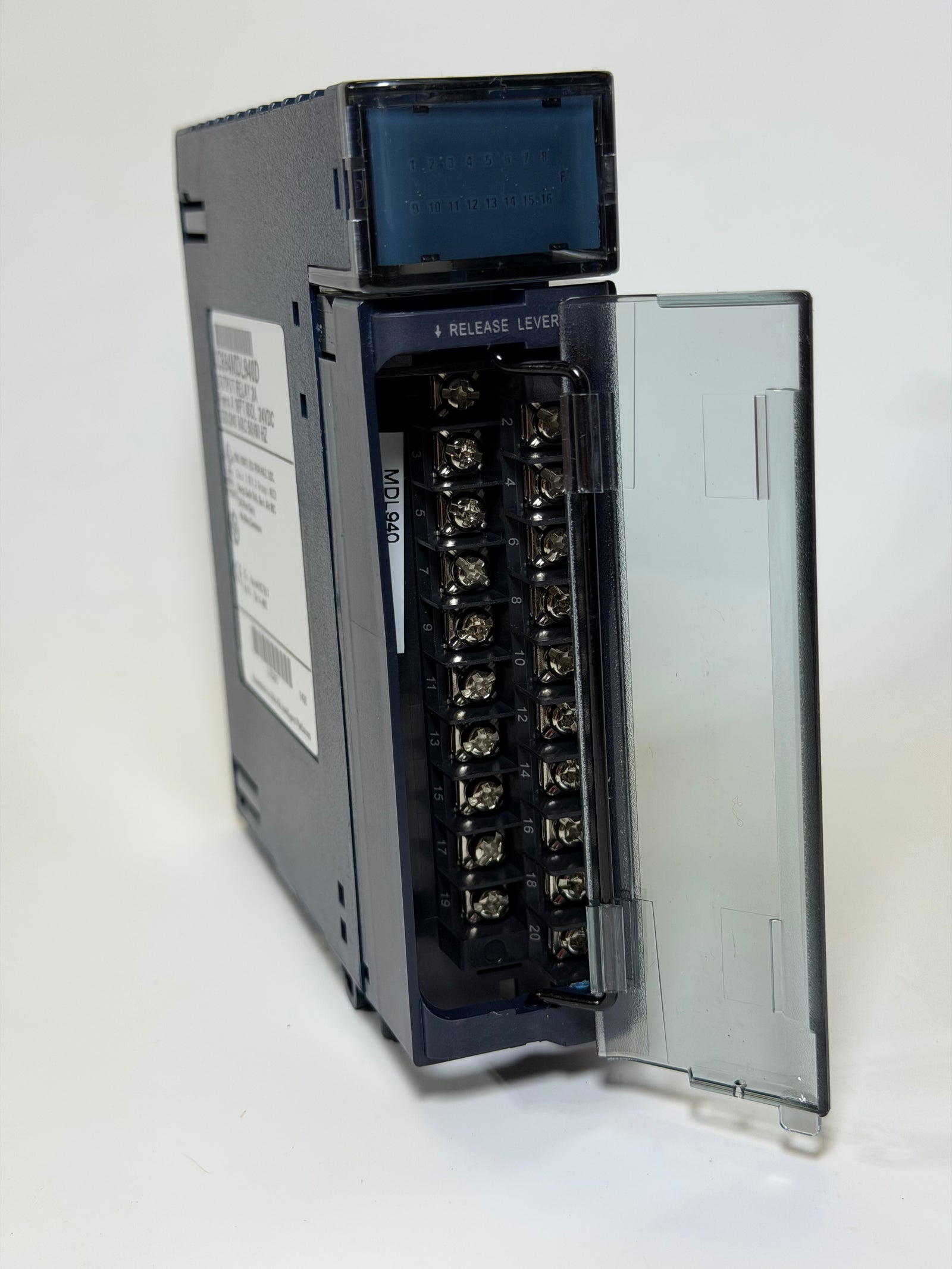

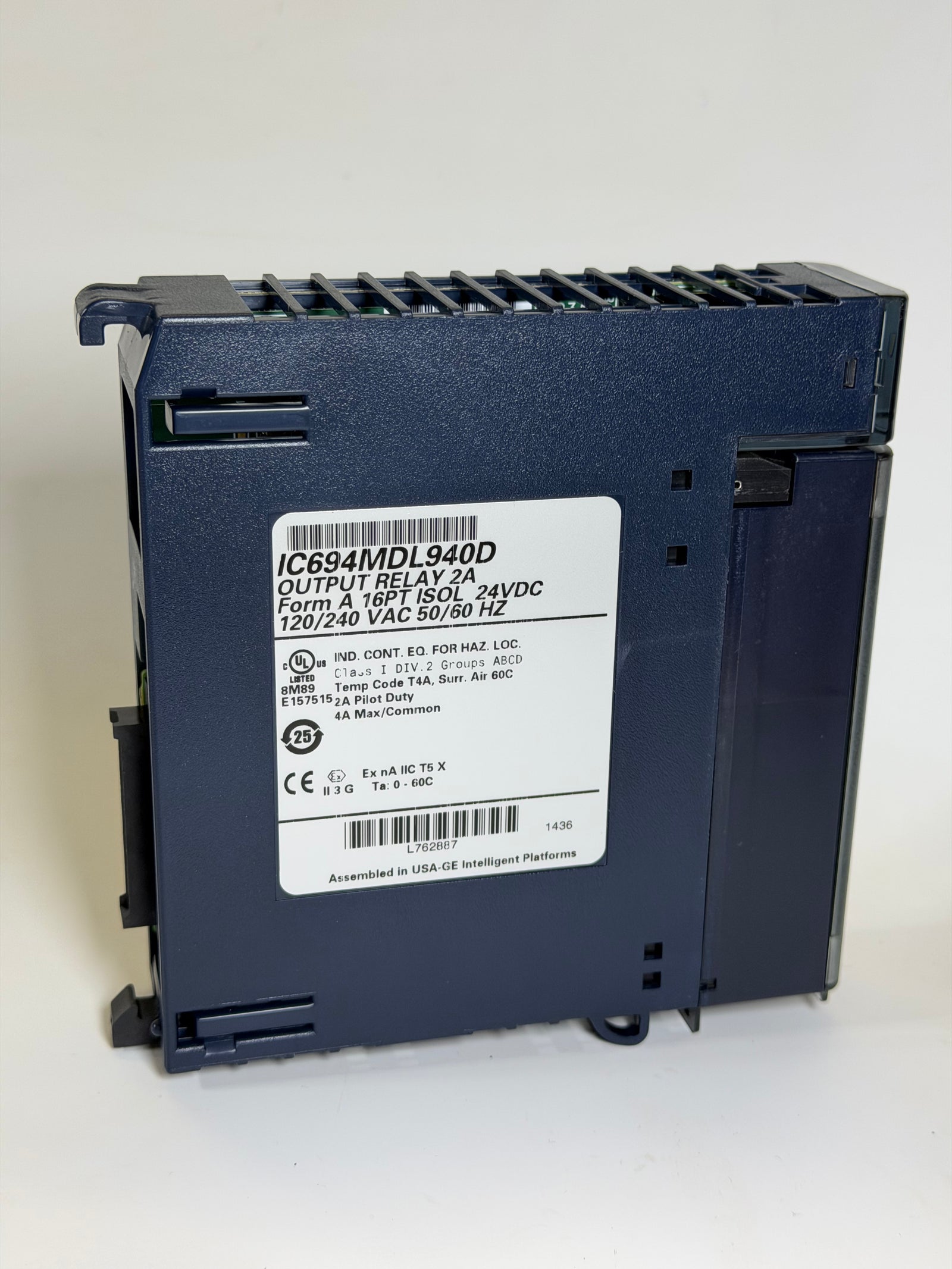

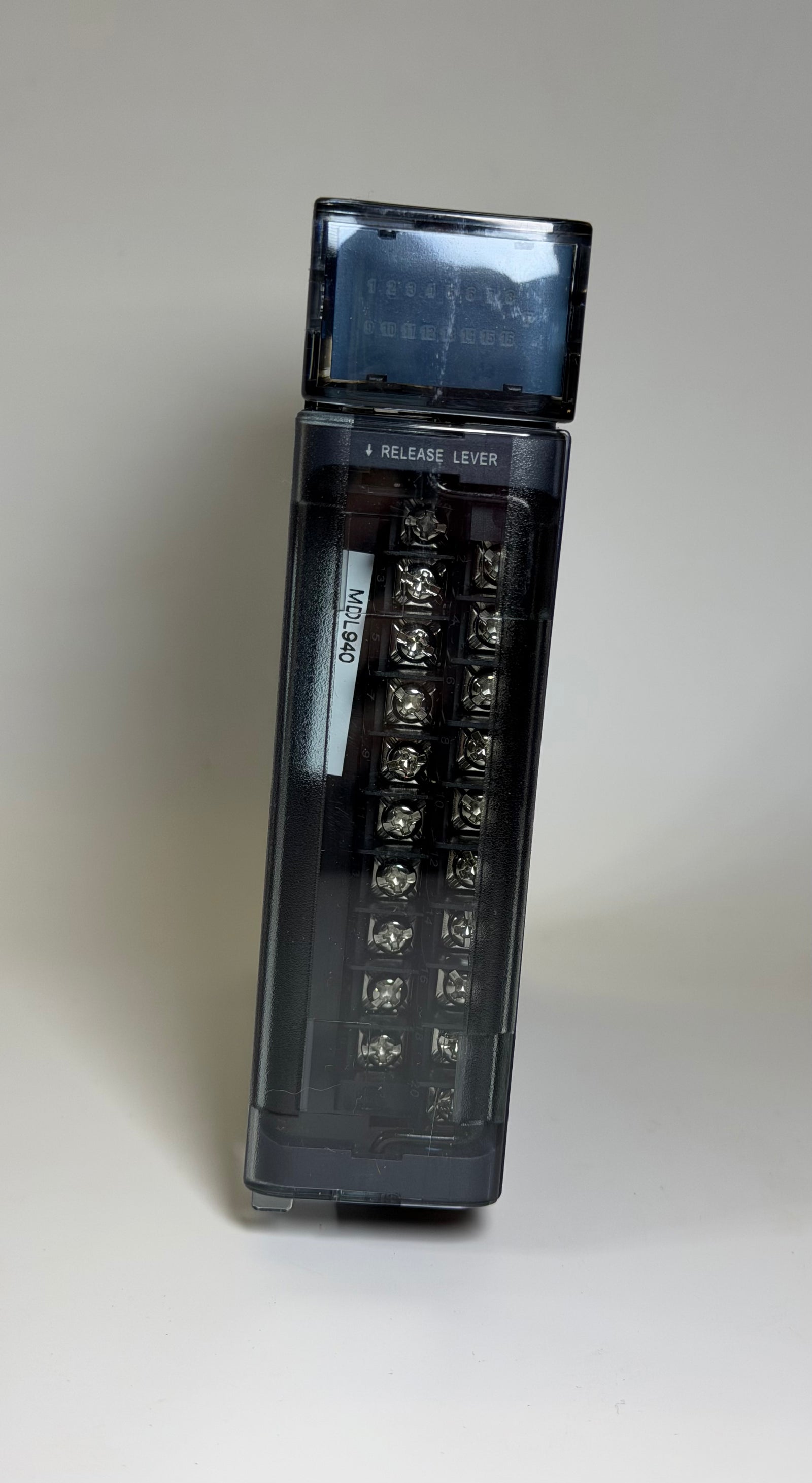

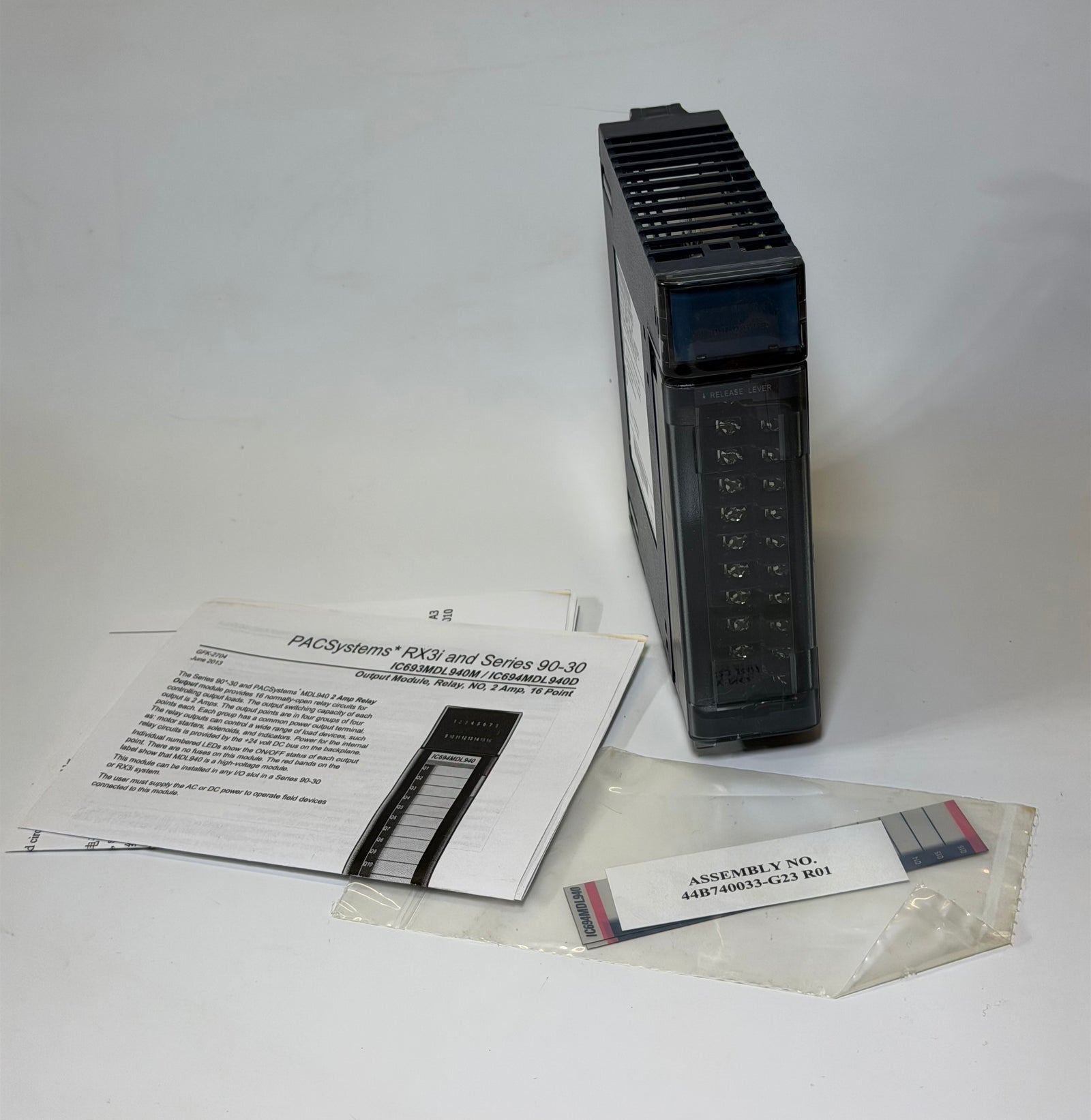

IC694MDL940D RX3i 16-Point Relay Output Module, 2 A
- SKU
- P-IC-G-8701
$850.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | GE FAUNC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-IC-G-8701 |
| Weight | 2.0 kg |
Description
Rated Voltage
24 volts DC, 120/240 volts AC (nominal - see
the following table for exceptions)
Operating Voltage
5 to 30 volts DC
5 to 250 volts AC, 50/60 Hz
Outputs per Module
Isolation:
16 (four groups of four outputs each)
Field to
Backplane and to
Frame Ground
250 VAC continuous;
1500 VAC for 1 minute
Point to Point
Maximum Load
250 VAC continuous; 1500 VAC for 1 minute
2 Amps pilot duty maximum per output
4 Amps maximum per common
Minimum Load
Maximum Inrush
10mA
5 Amps
On Response Time
Off Response Time
15ms maximum*
15ms maximum*
Power Consumption,
all outputs on
7mA from 5 volt bus on backplane
135mA from relay 24V bus on backplane
