COMAP

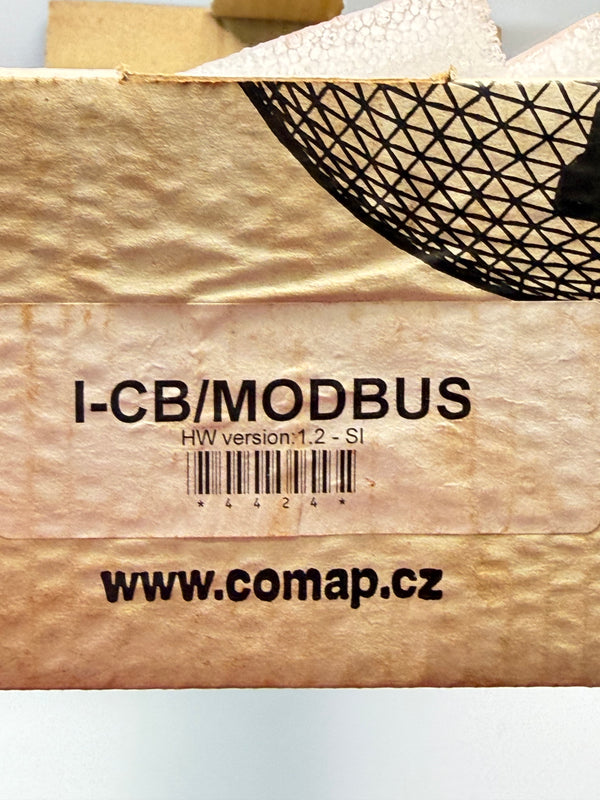

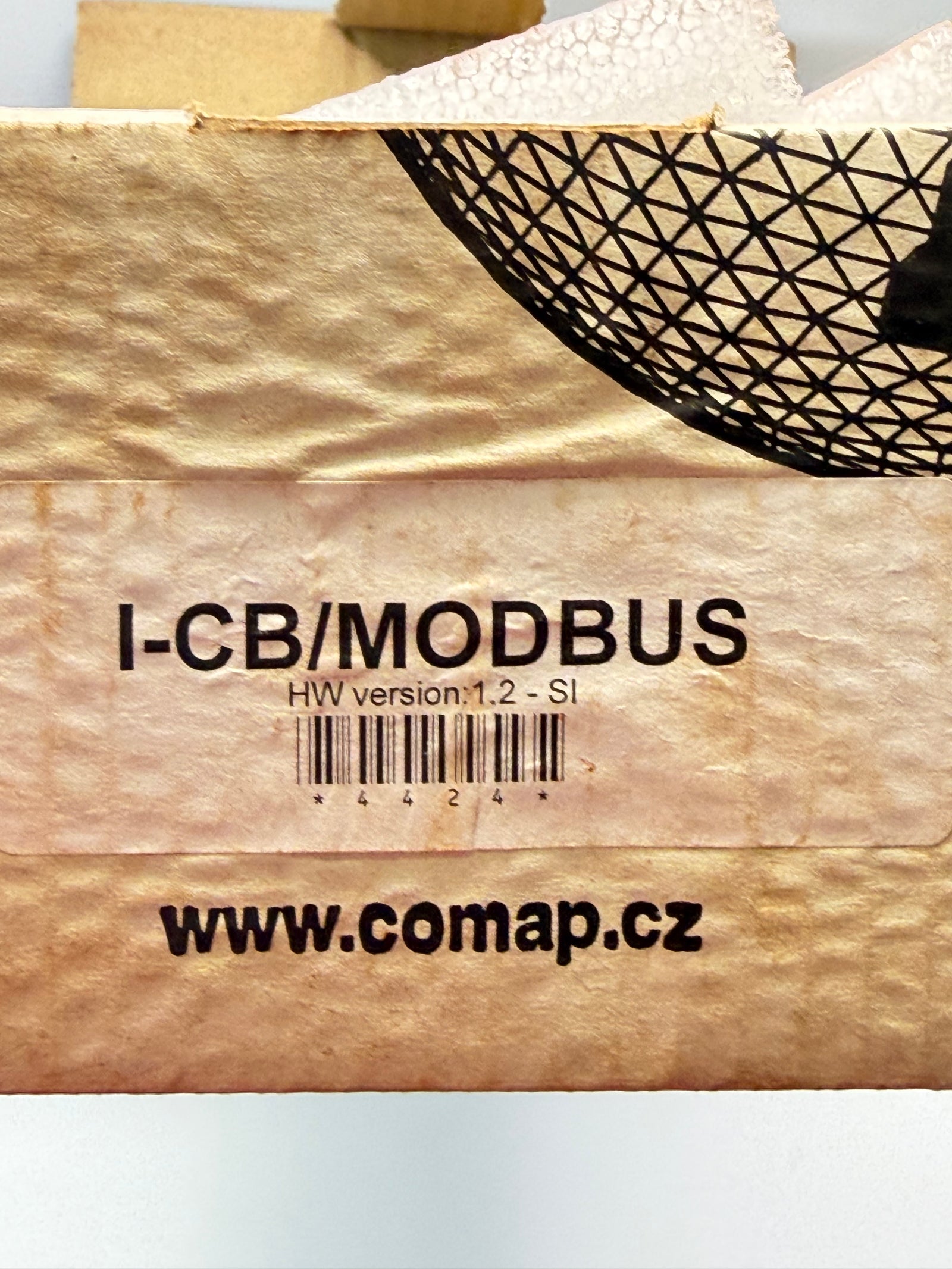

ComAp I-CB/MODBUS Programmable Communication Interface
- SKU
- P-I--C-8042
$1,800.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | COMAP |
|---|---|
| Product type | DATA & COMMUNICATION |
| SKU | P-I--C-8042 |
| Weight | 1.0 kg |
Description
ComAp I-CB/MODBUS programmable communication interface. The source description identifies an interface between InteliGen NT, InteliSys NT or InteliDrive controllers and Modbus RTU devices. Additional source reference spellings: I-CB MODBUS and ICB MODBUS.
Source-listed functions
- Predefined value databases for Cummins PCC, CAT EMCP, CAT PL1000 and other devices.
- Monitoring applications include Modbus RTU circuit breakers, flow meters and PLCs.

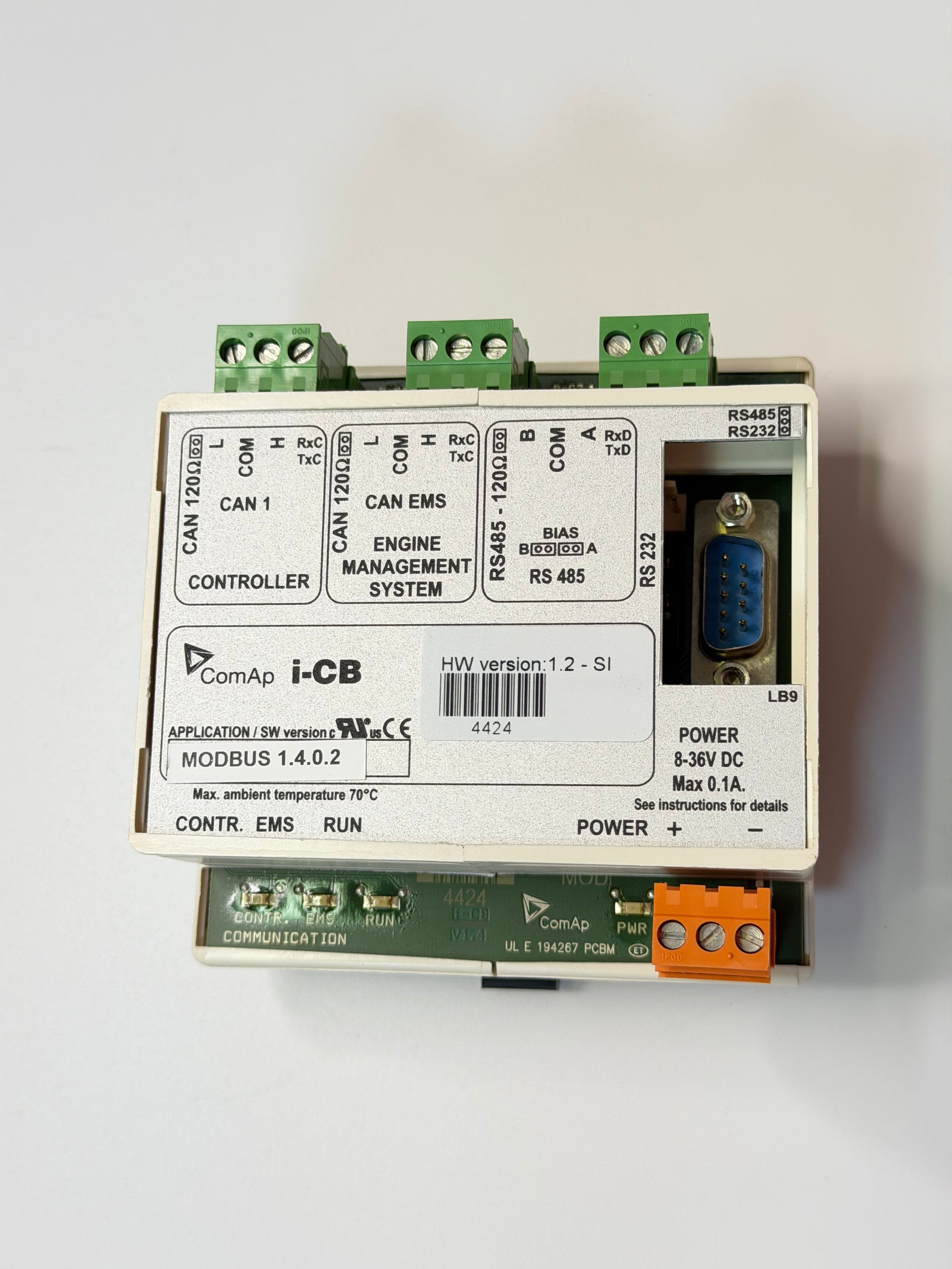

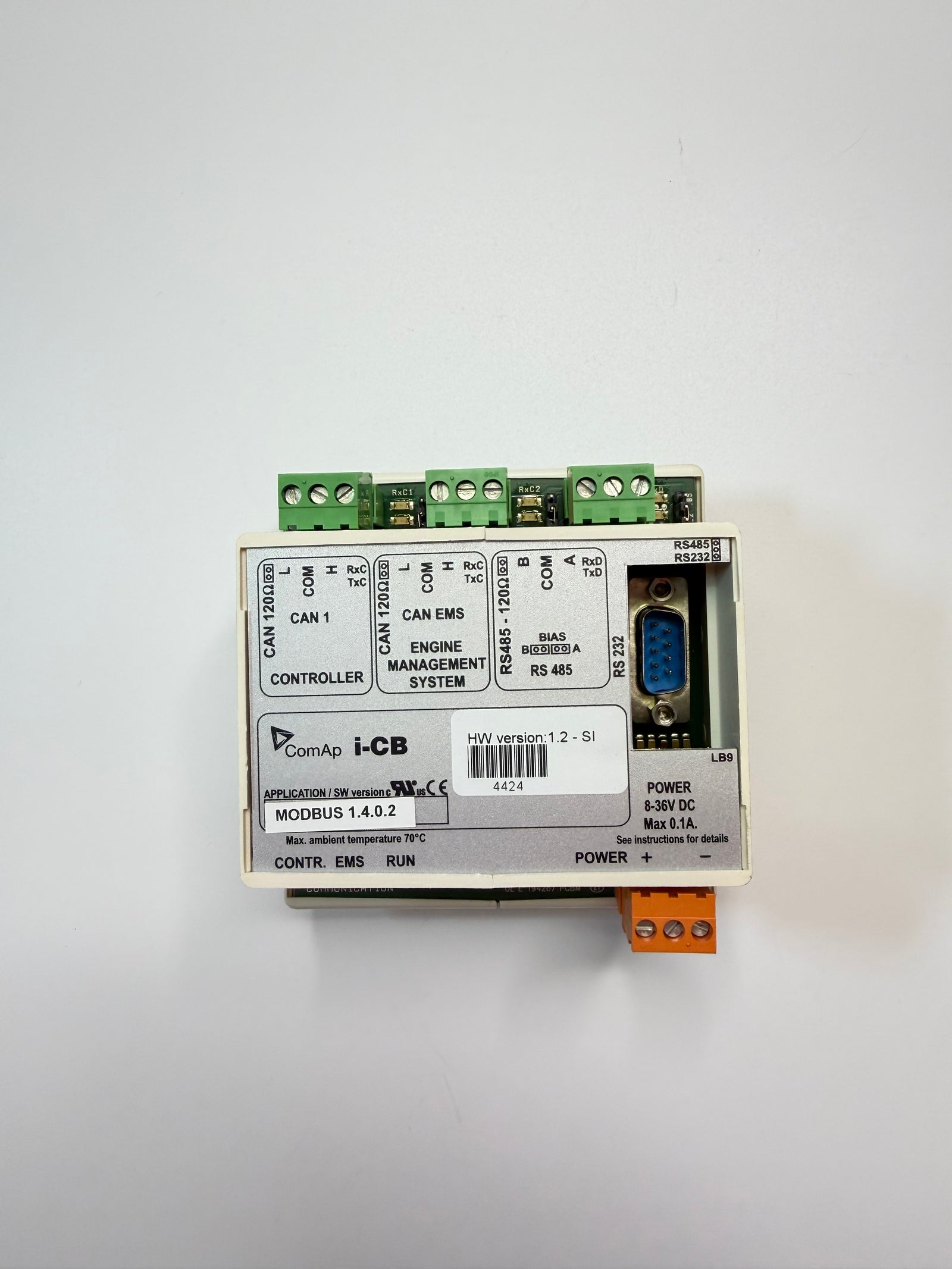

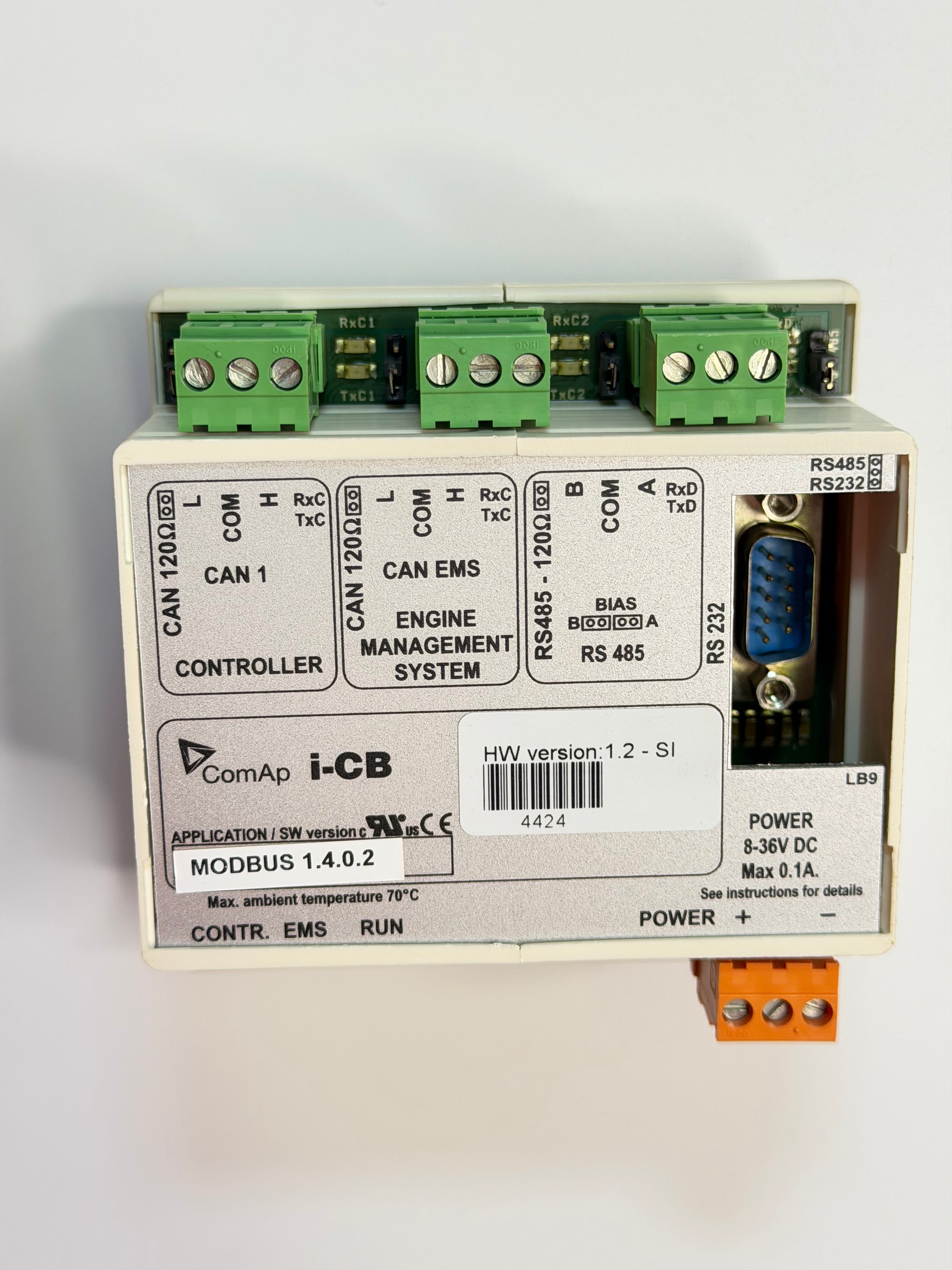

- RS485 and RS232 interfaces.
- The I-CB/Modbus and controller together act as a Modbus master.
Engine compatibility requires confirmation
The source title additionally claims MTU engines with ADEC and MDEC ECUs, but the description does not establish that compatibility for this exact interface/configuration. Confirm the model label, firmware/database and controller/ECU requirements with MIS.
The source describes UL certification; supplied-unit markings and documents have not been verified. No power-supply specification is provided.
