PLASSER & THEURER

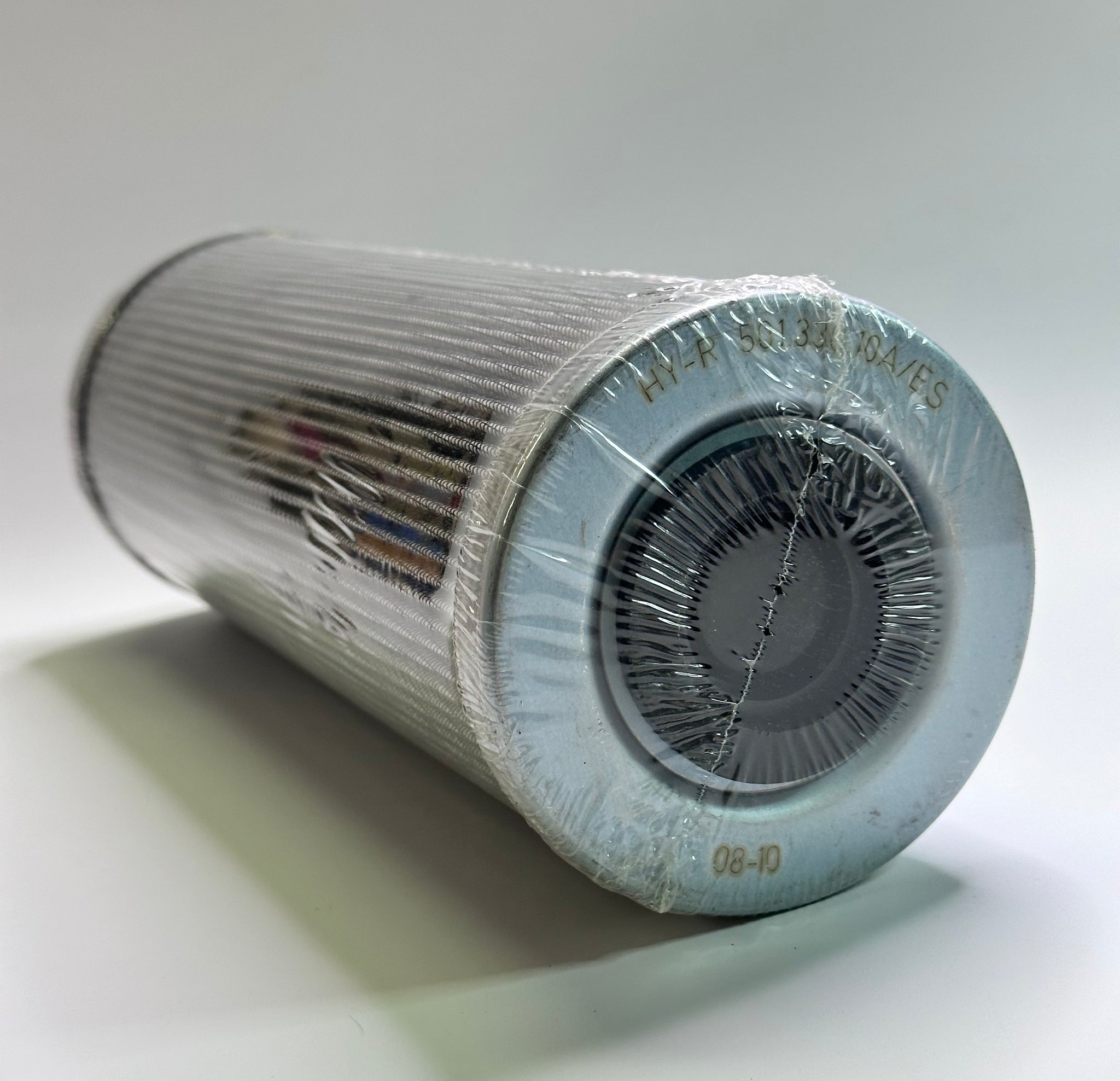

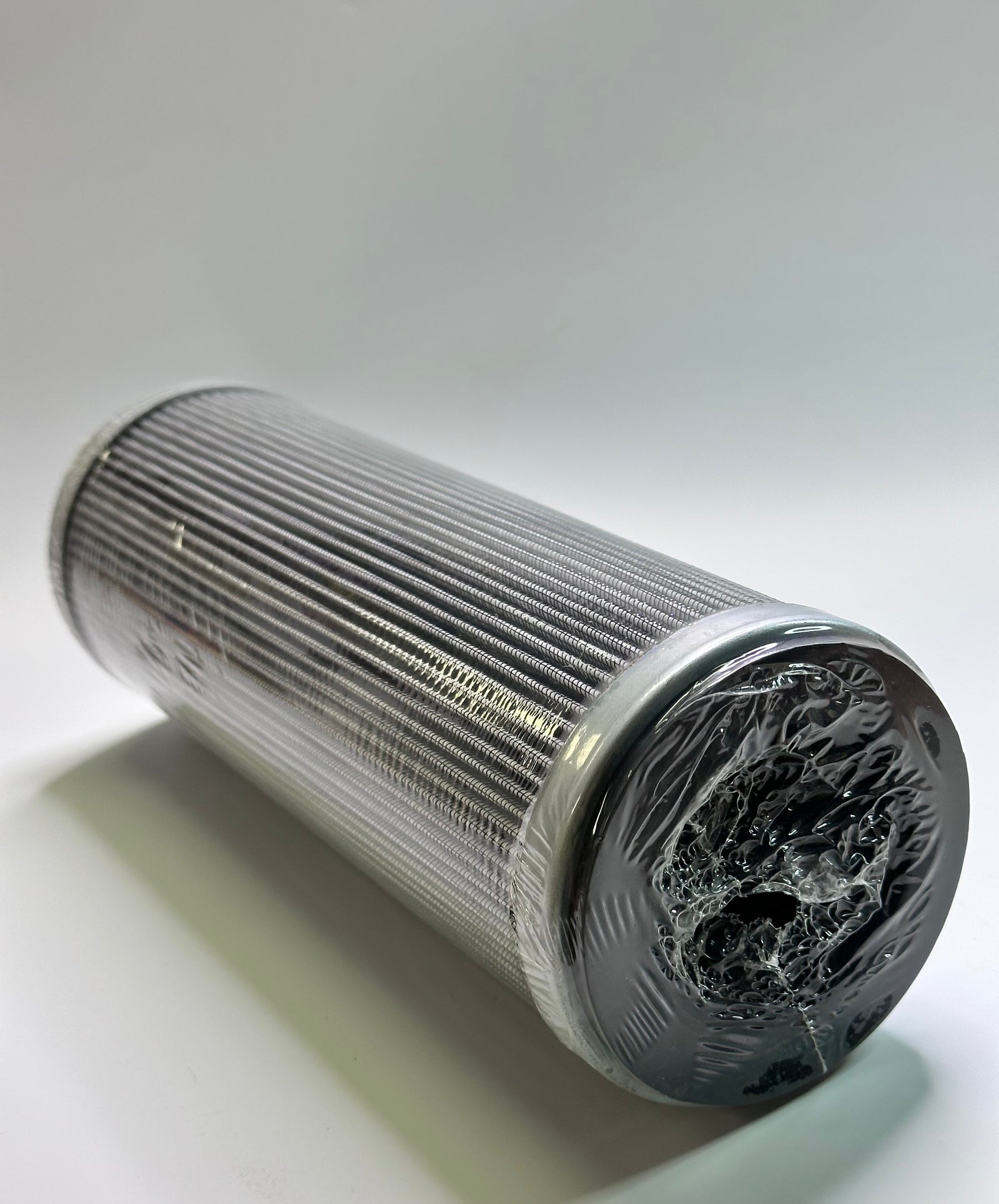

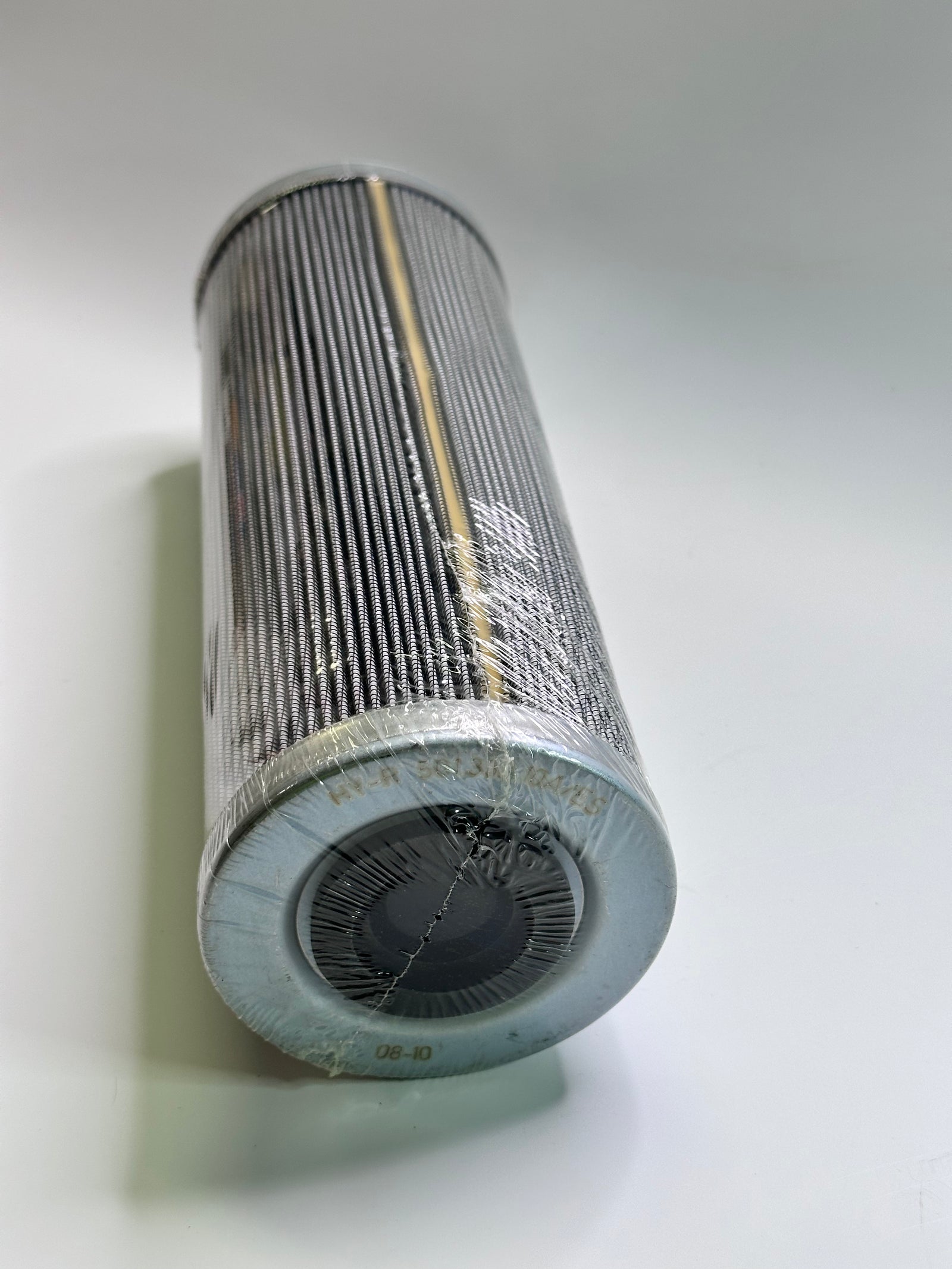

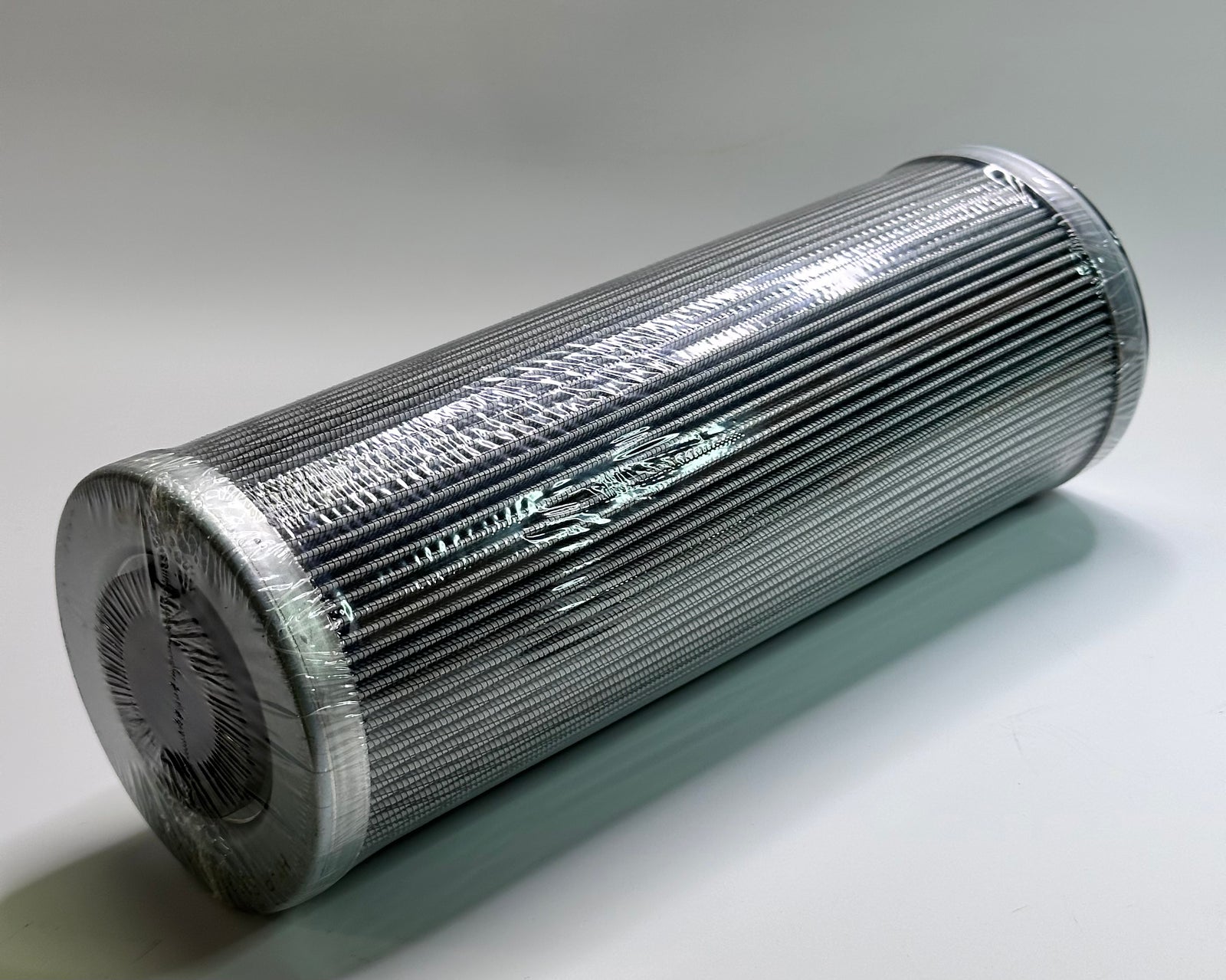

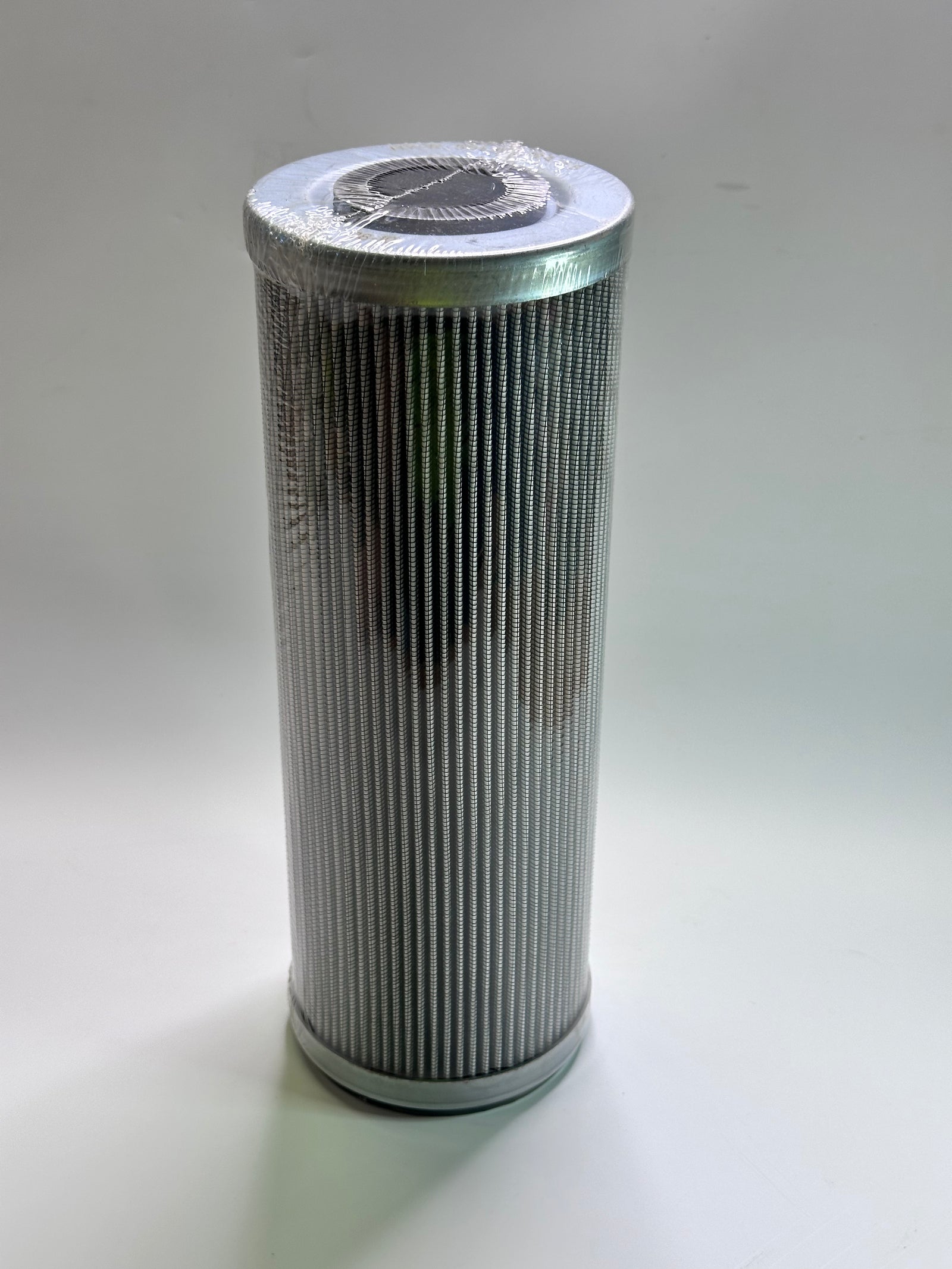

Plasser HYR50133010ES Hydraulic Filter
- SKU
- P-HY-P-7575
$80.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg
Specifications
| Manufacturer | PLASSER & THEURER |
|---|---|
| Product type | FILTERS |
| SKU | P-HY-P-7575 |
| Weight | 5.0 kg |
Description

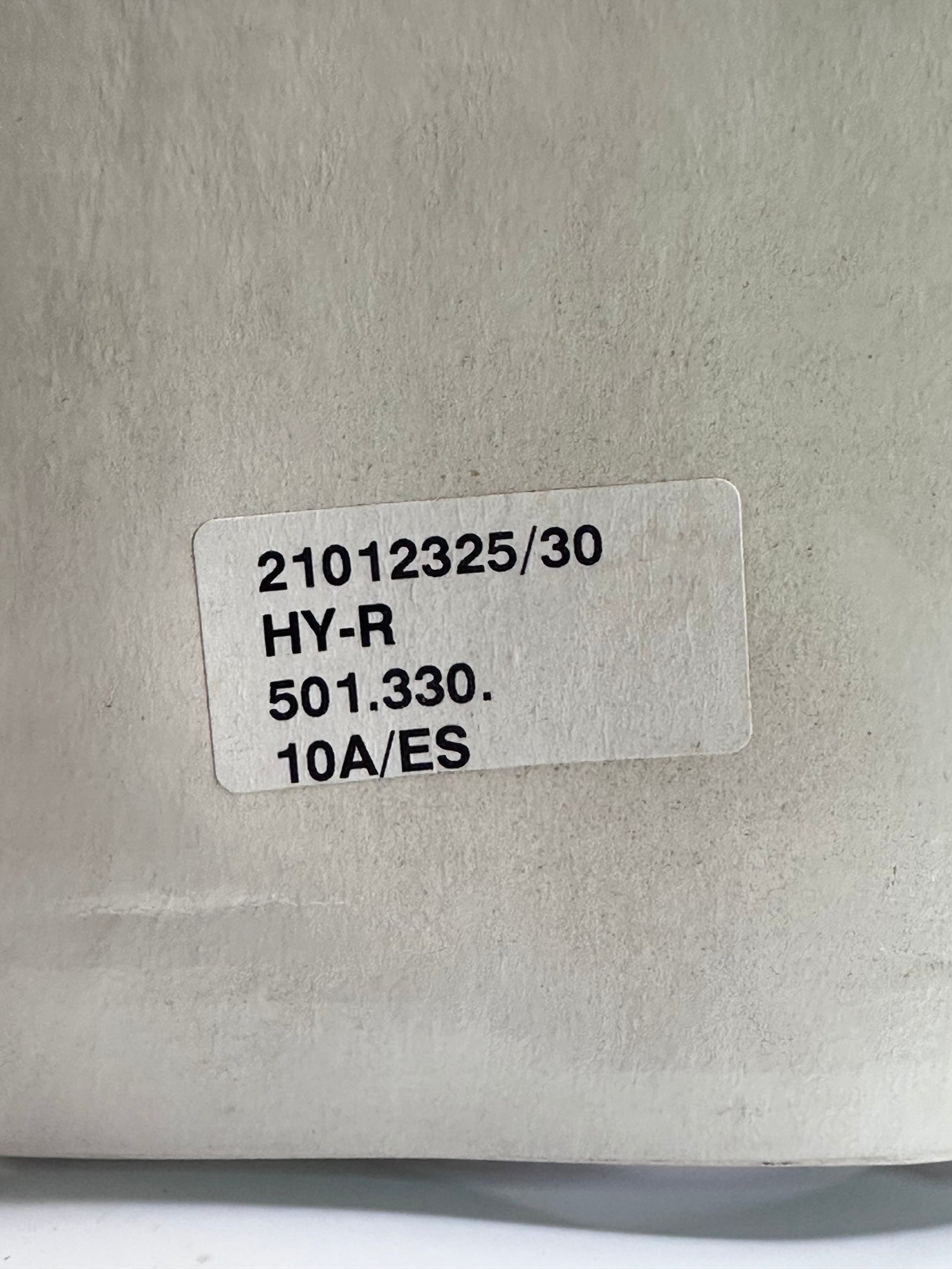

Hydraulic filter recorded under HYR50133010ES and HY-R501.330.10ES, with vendor PLASSER & THEURER. The source title uses the spelling “Plassar”.
- Recorded dimensions: 102.0 mm outside diameter, 62.0 mm inside diameter and 273.0 mm length.
- Cellulose media and nitrile seal; recorded temperature range -30 to +100°C.
- Additional catalogue references: MF0433714, SH67339 and WP490.
The recorded efficiency is 10µ @ β2, not an absolute 10-micron rating. Bypass pressure (2.0 BAR) and differential collapse pressure (20 bar) are distinct figures, not a stated system working-pressure rating. Confirm filter specification and application before treating listed references as interchangeable; transmission or engine-oil suitability has not been established.
Recorded specifications
| Style | Special Filter |
| Media | Cellulose |
| Efficiency 1 | 10µ @ β2 |
| Outer Diameter | 102.0 mm |
| Inner Diameter | 62.0 mm |
| Length | 273.0 mm |
| Bypass Pressure | 2.0 BAR |
| Δ Collapse Pressure | 20 bar |
| Seal Material | Nitrile |
| Temperature Range | -30 - +100°C |
