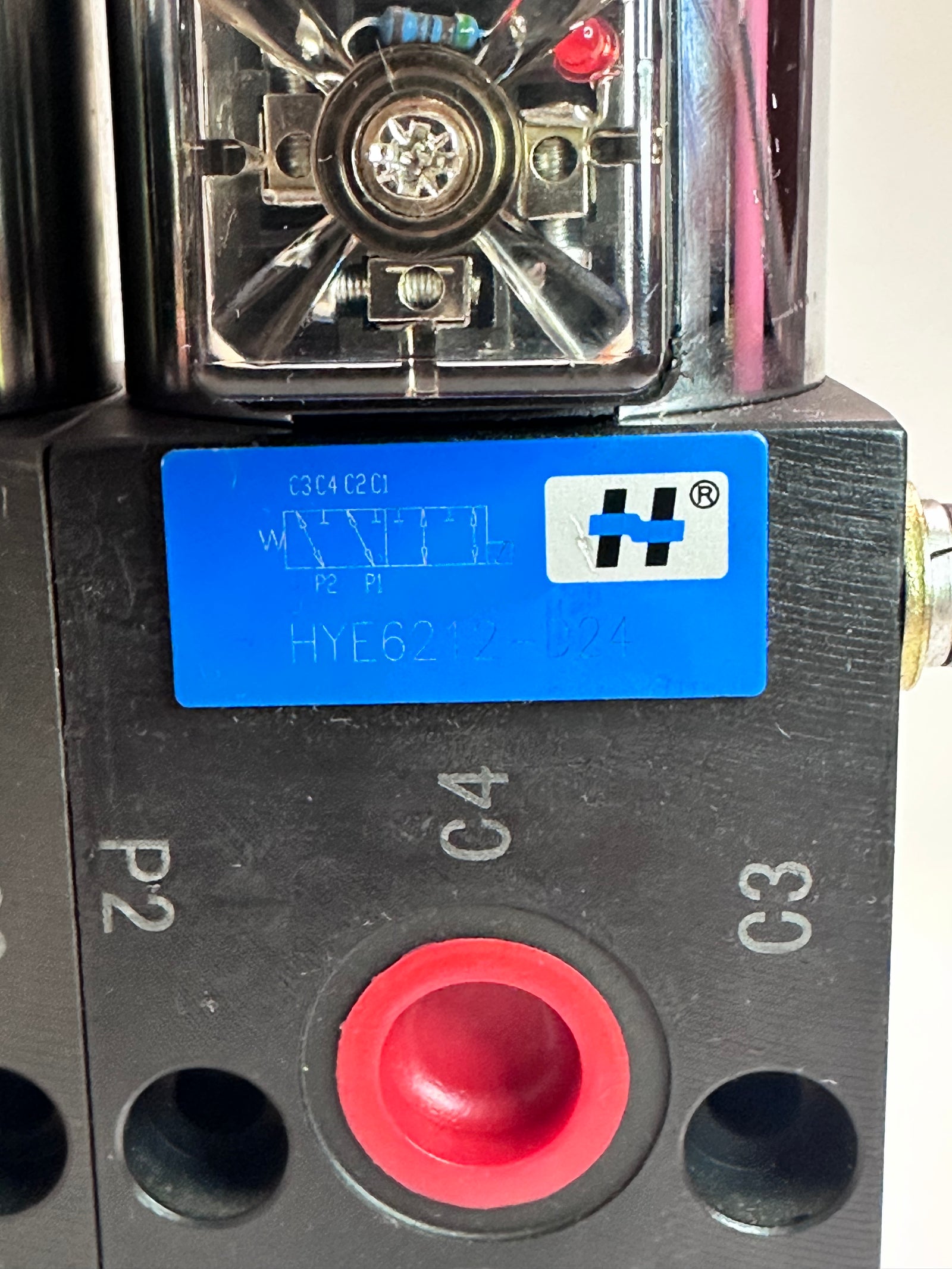

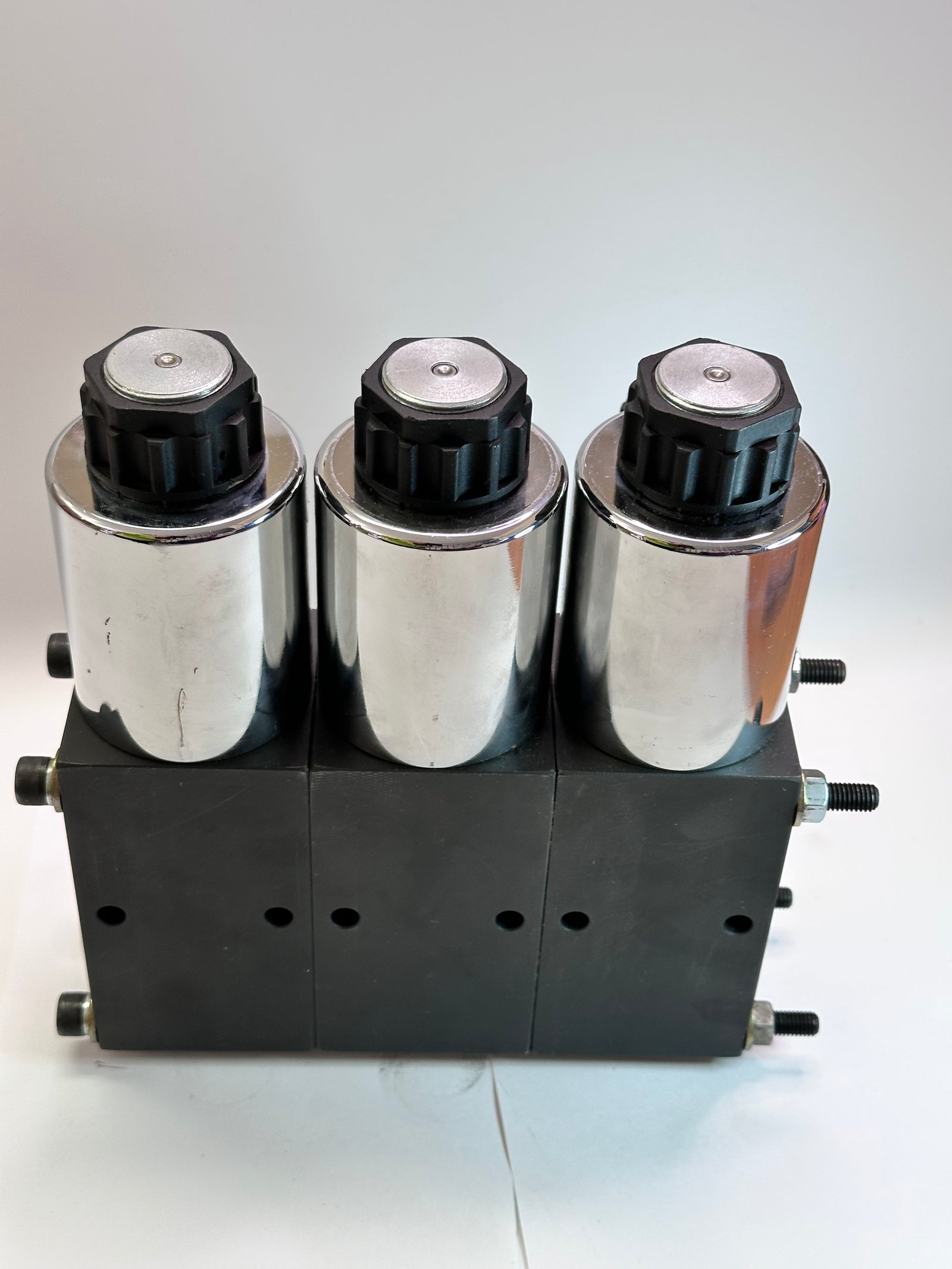

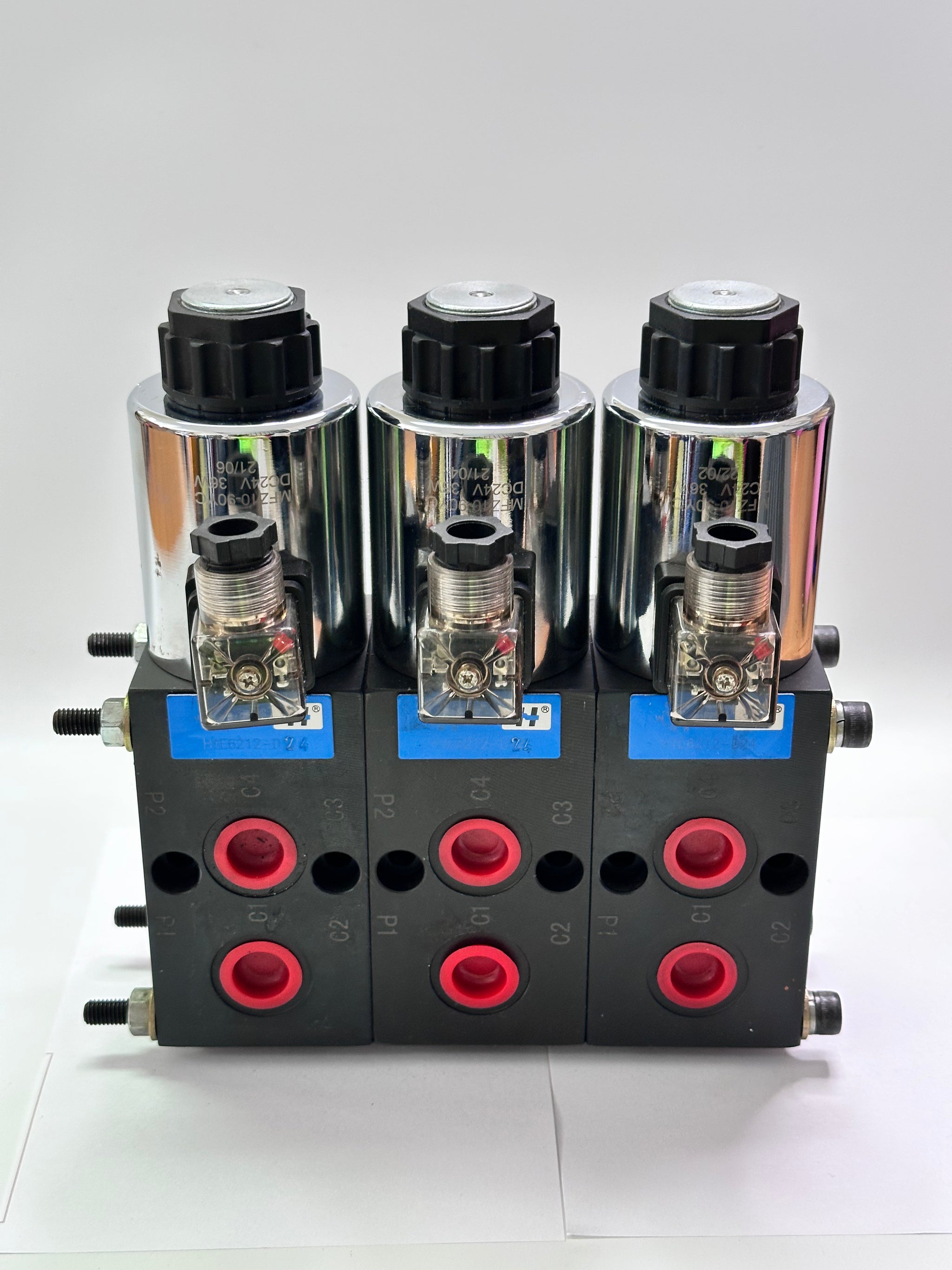

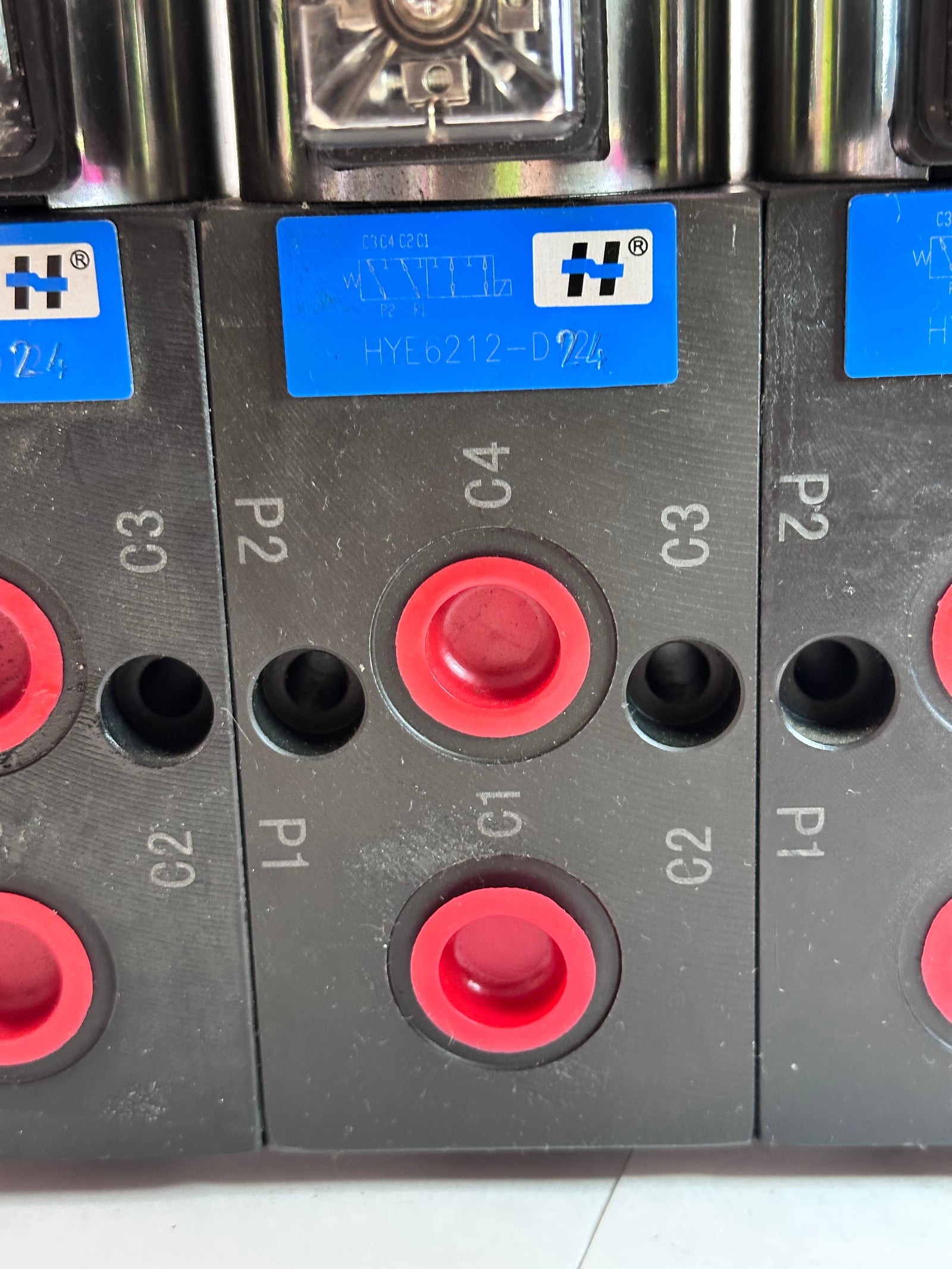

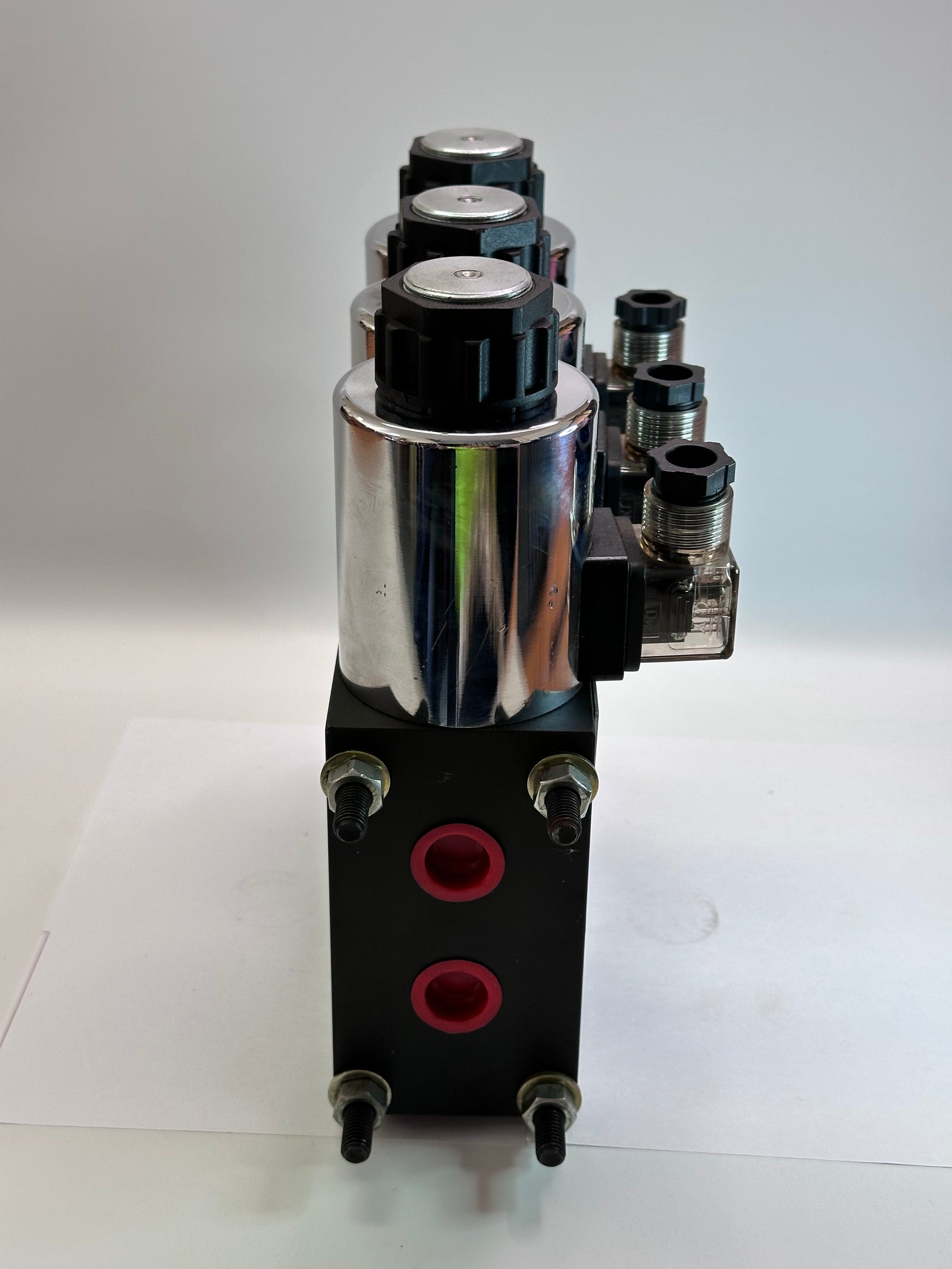

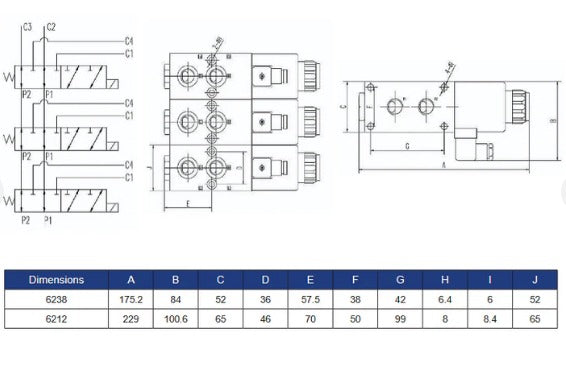

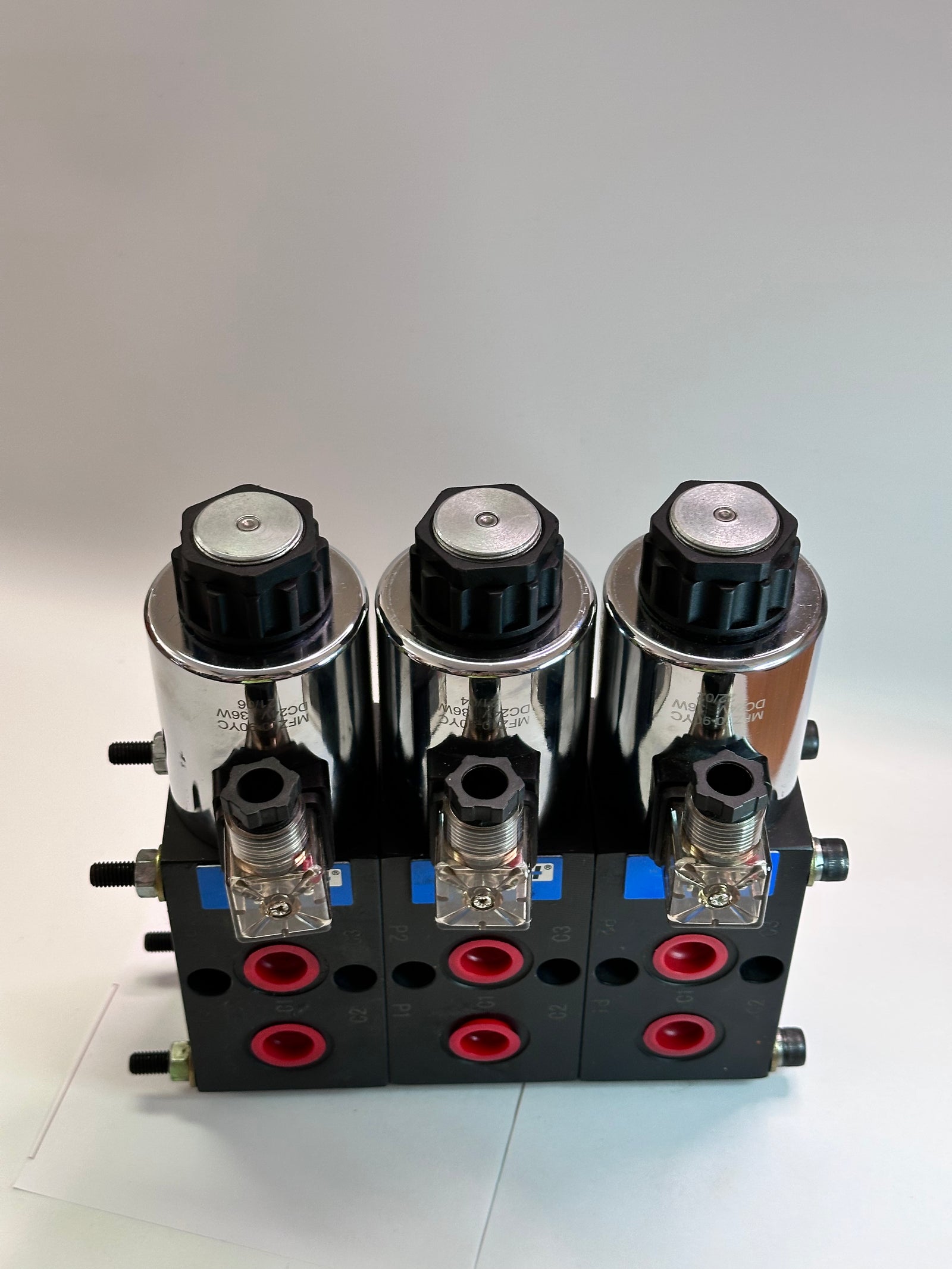

Hydpower HYE6212-D24 Stackable 1/2" BSPP 6 Port Selector Valve – Triple Stack
- SKU
- P-HY-H-7390
$530.00
Price includes GST.
Low stock: 3 left
Warehouse pickup available
- Weight
- 14.5 kg
Specifications
| Manufacturer | HYDPOWER |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-HY-H-7390 |
| Weight | 14.5 kg |
Description
Hydpower HYE6212-D24 stackable six-port diverter/selector valve arrangement. The original description states “Tripple Stacked”, reflected as Triple Stack in the staff-reconciled title.
Original recorded specifications
- 1/2" BSPP Ports
- 250 bar Maximum Pressure
- 60 LPM Maximum Flow
- Hydraulic fluid: mineral oil, phosphate ester
- Fluid temperature: -20~80C
- Recommended Viscosity: 10~400mm
Original electrical tags record 24V, 24VDC, DC 24 and 36W, with series reference HYE6. The source does not establish whether 36W applies per coil or to the complete arrangement.
Viscosity unit needs confirmation: “10~400mm” is retained exactly as recorded, not silently converted into a viscosity unit. Confirm the actual stack configuration, fluid/seal compatibility, electrical load and complete assembly limits before ordering. Source maximum pressure and flow are not a guarantee of suitability in every circuit.
