Hydpower HYE6212-D24 Stackable 1/2" BSPP 6 Port Selector Valve – Double Stack
- SKU
- P-HY-H-7389
$410.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 9.5 kg
Specifications
| Manufacturer | HYDPOWER |
|---|---|
| Product type | HYDRAULICS |
| SKU | P-HY-H-7389 |
| Weight | 9.5 kg |
Description

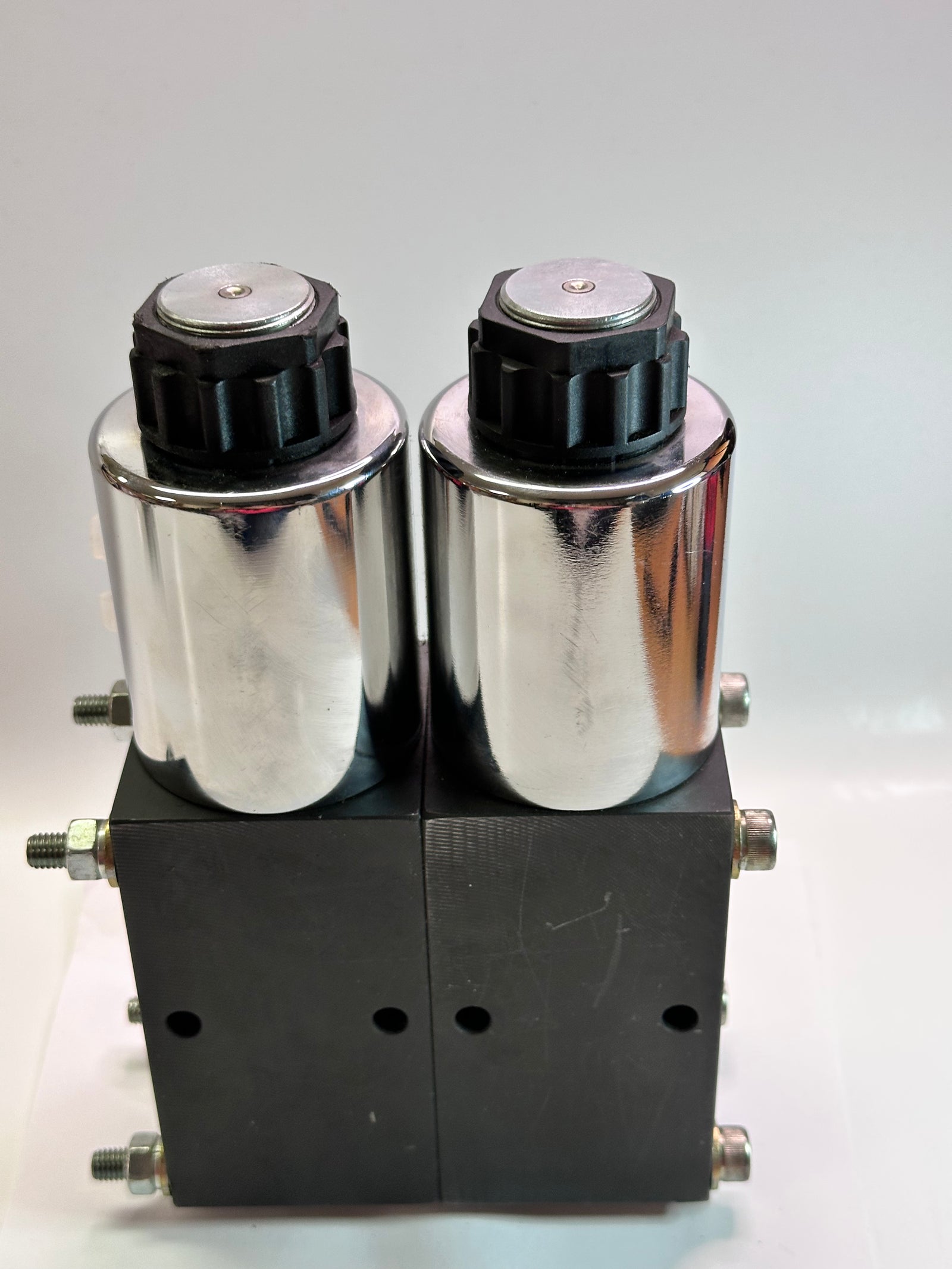

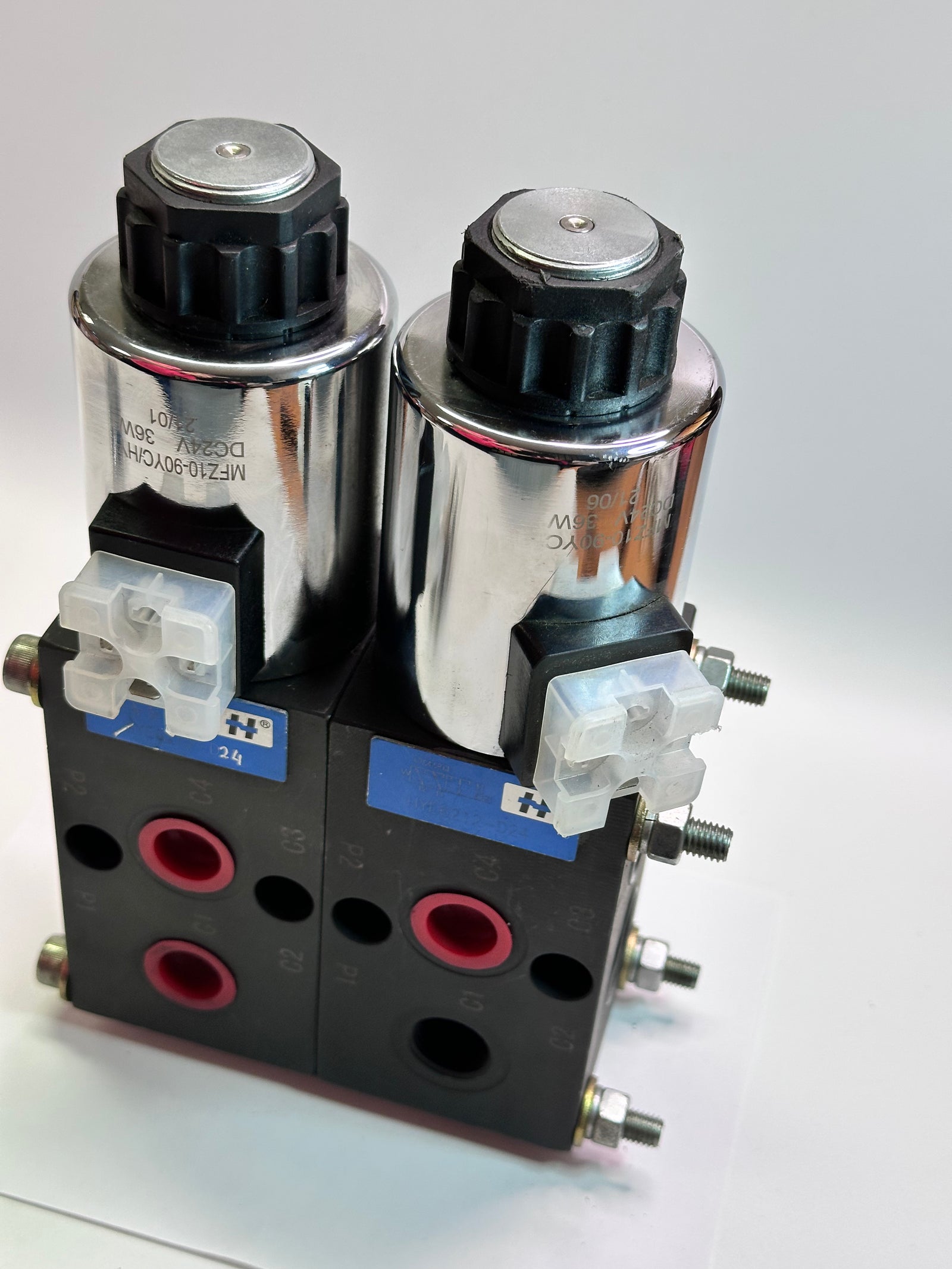

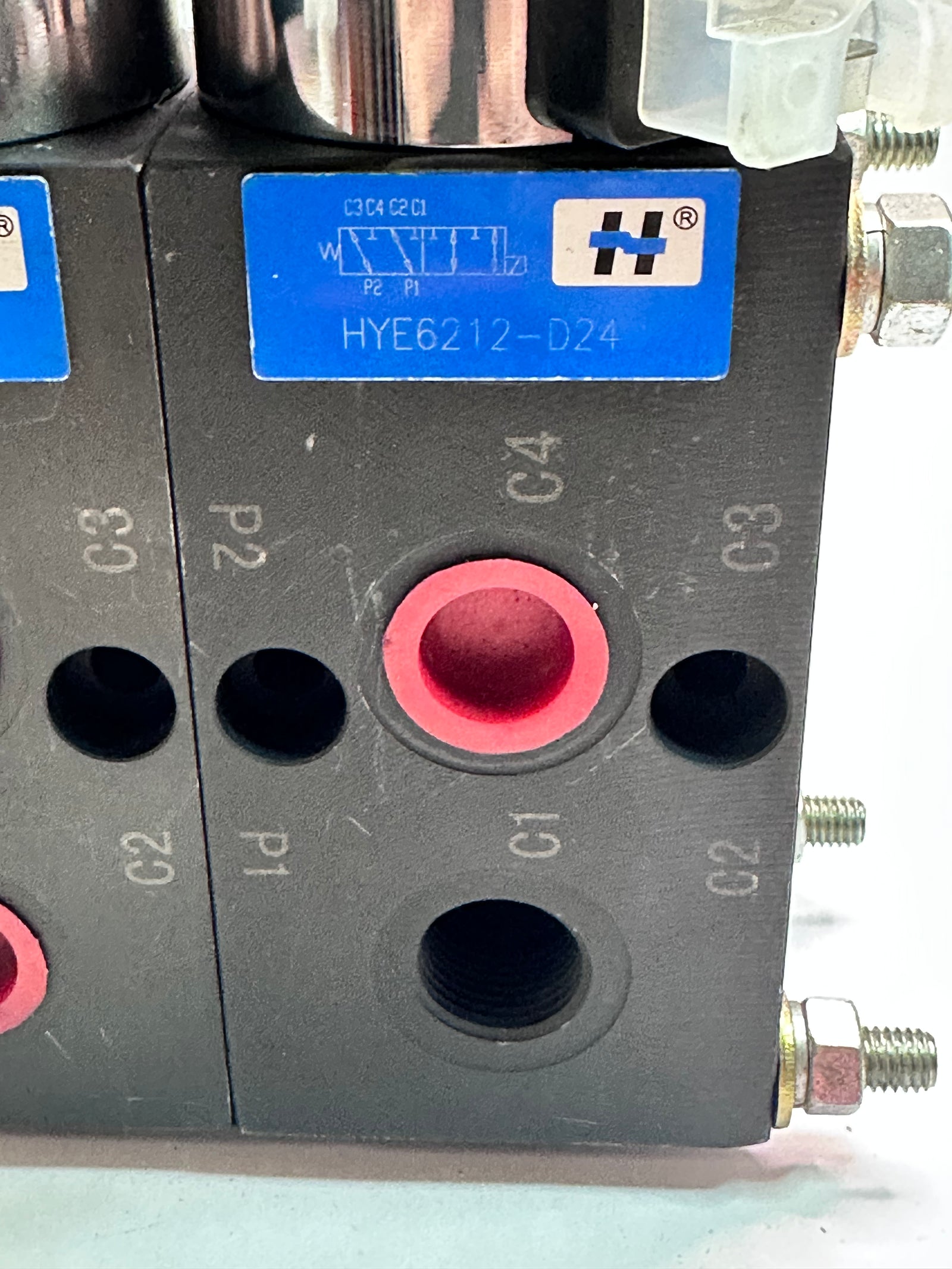

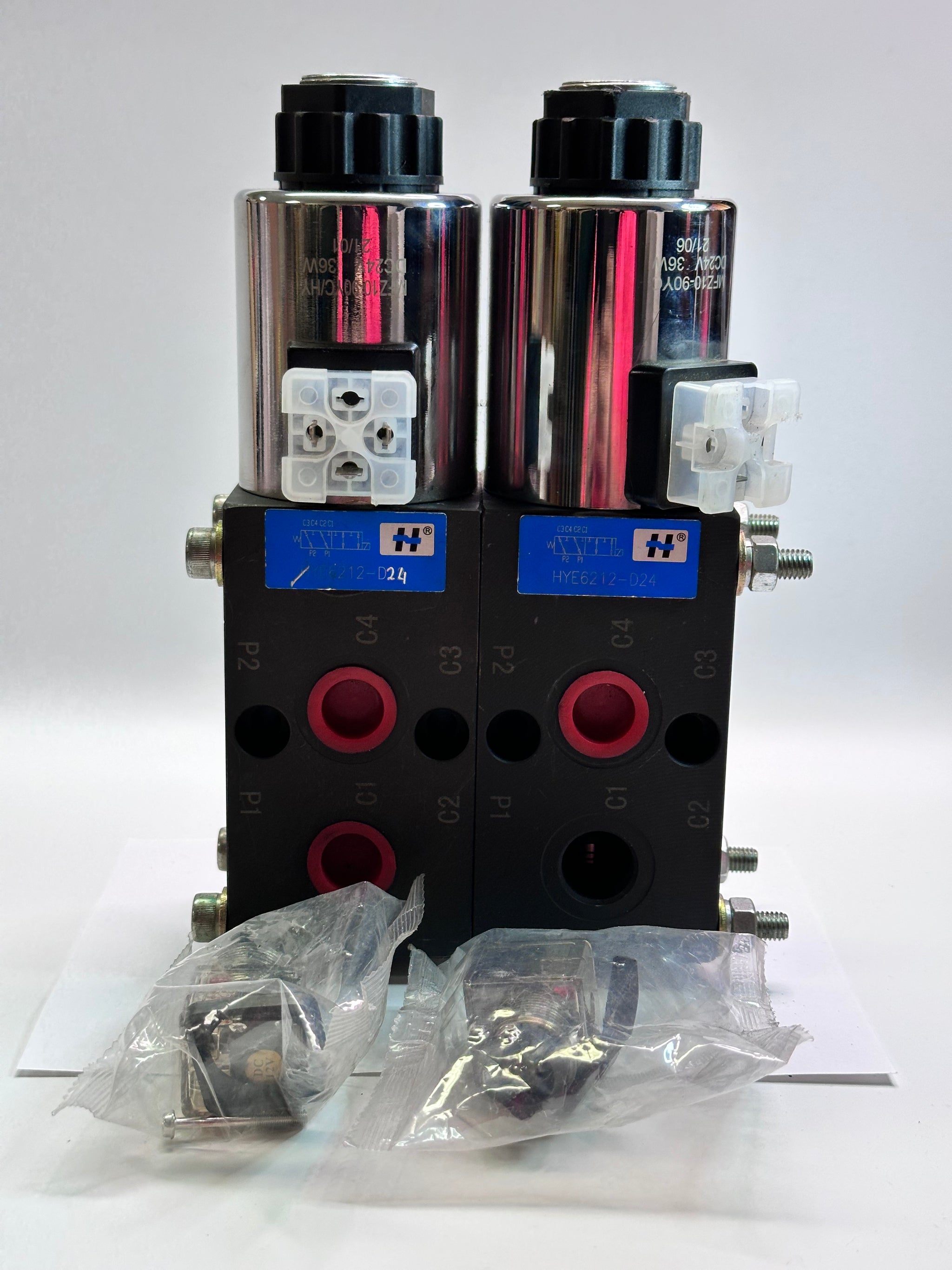

Hydpower HYE6212-D24 stackable 6-port diverter/selector valve assembly, recorded as double stacked.
Recorded specifications
- Ports: 1/2" BSPP
- Maximum pressure: 250 bar
- Maximum flow: 60 LPM
- Hydraulic fluid: mineral oil, phosphate ester
- Fluid temperature: -20~80C
- Recommended viscosity, exactly as recorded: 10~400mm — unit notation requires confirmation

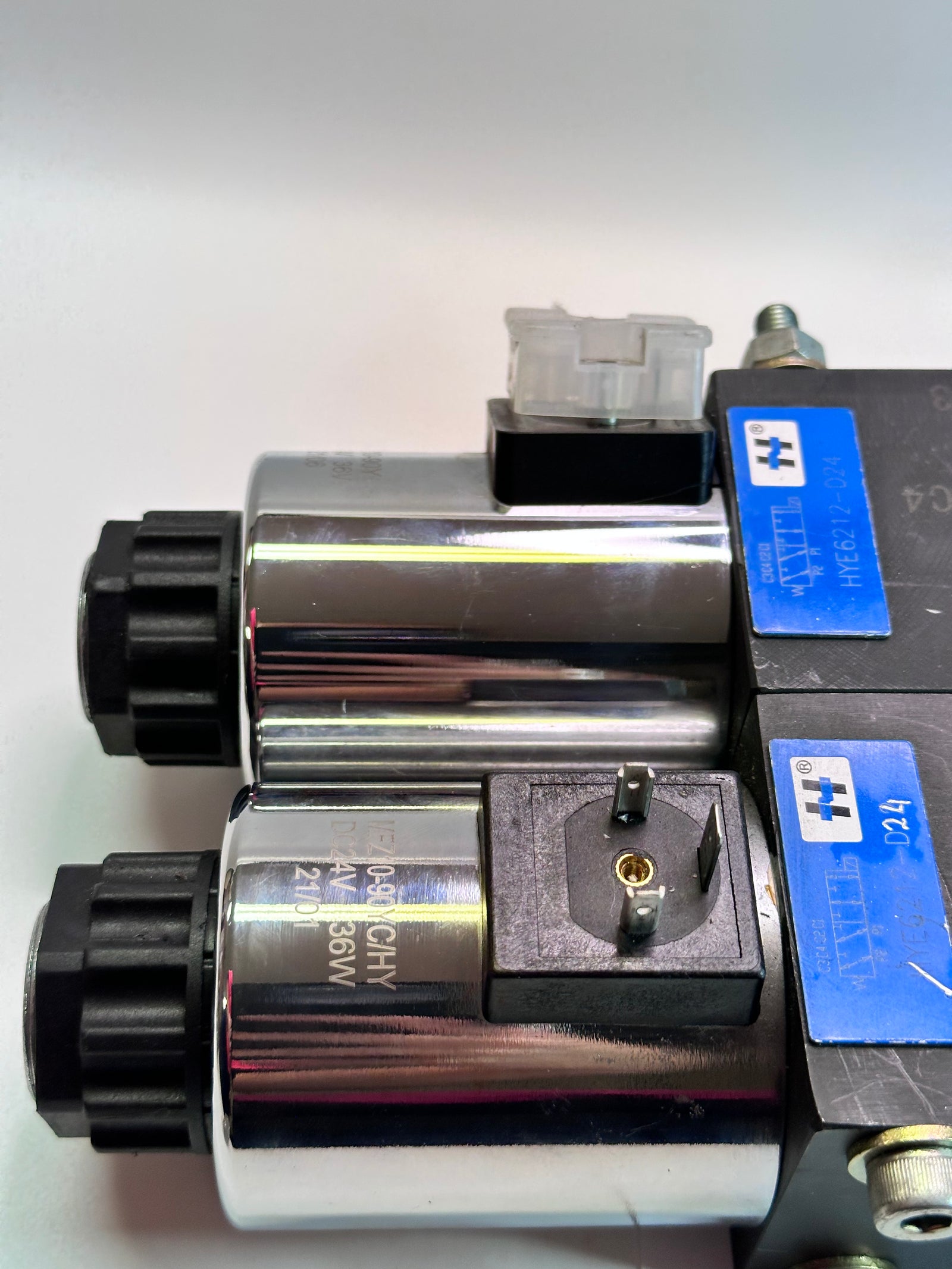

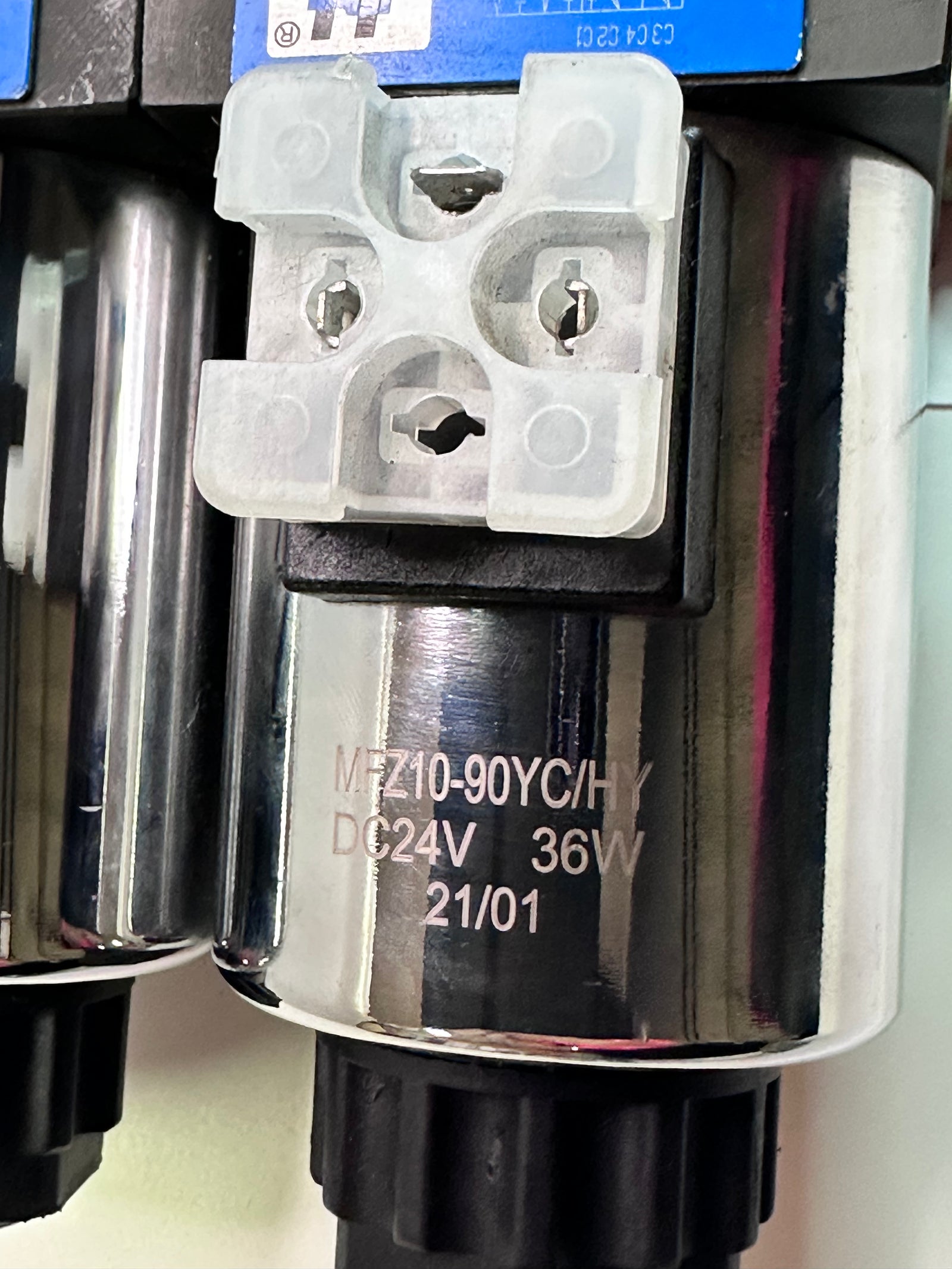

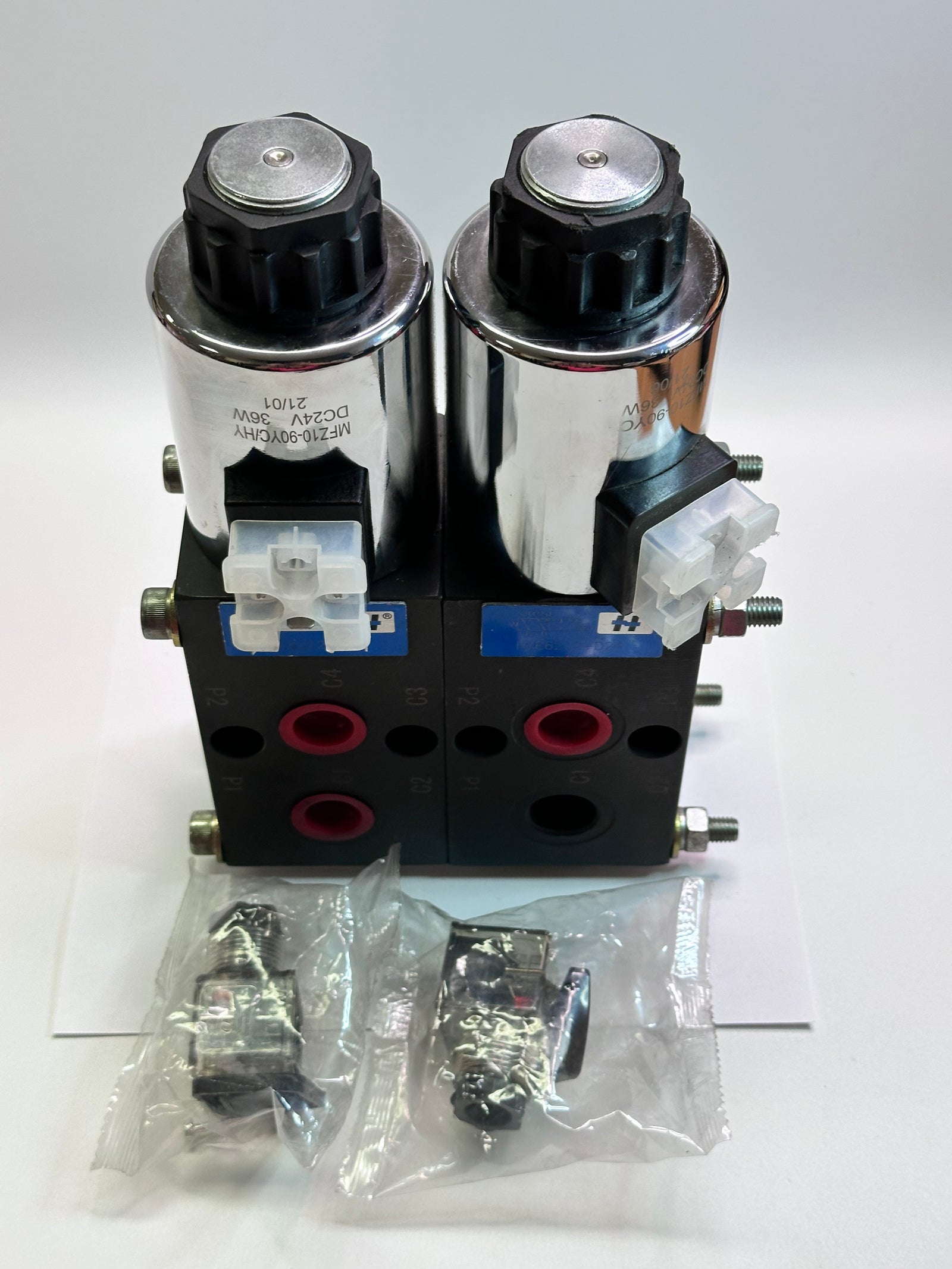

Additional catalogue markings: MFZ10-90YC/HY; DC 24; 24V; 36W; 21/01. The 24V and 36W entries are recorded coil-related details; confirm the coil label and whether the wattage applies per coil. The 21/01 marking is not interpreted as a date.
Confirm port layout, operating function, coil connections and compatibility with the intended fluid. The incomplete viscosity unit must be checked against the valve documentation before selecting operating conditions.
