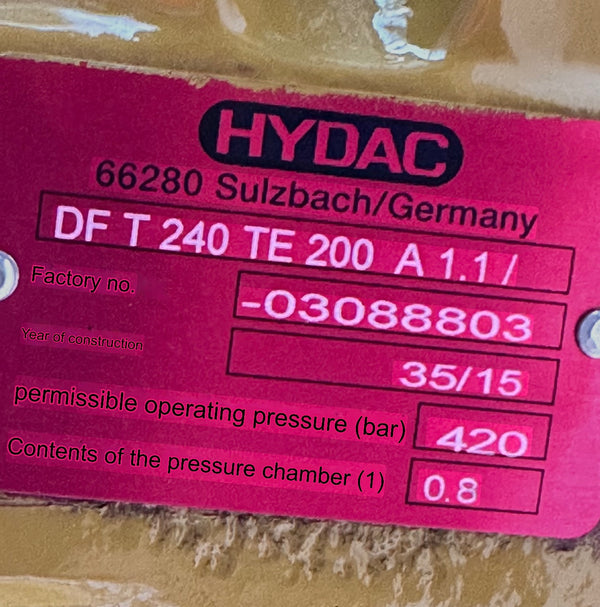

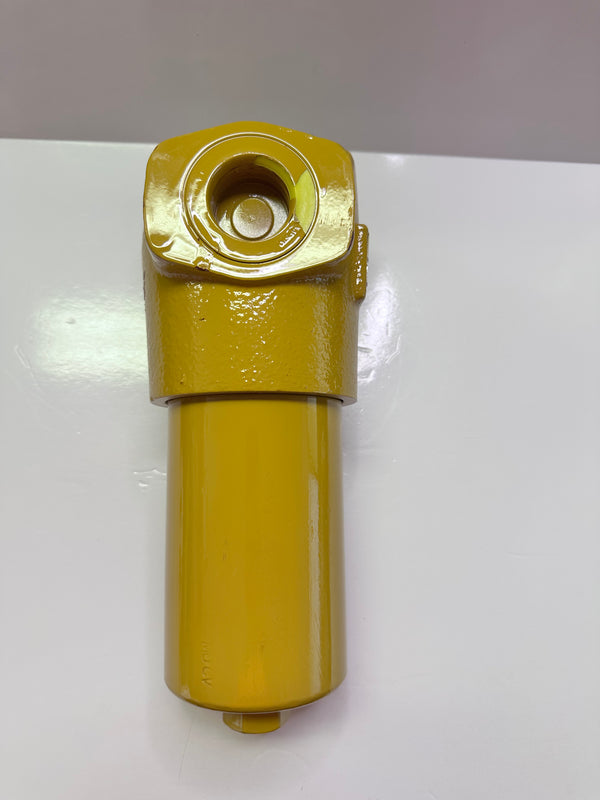

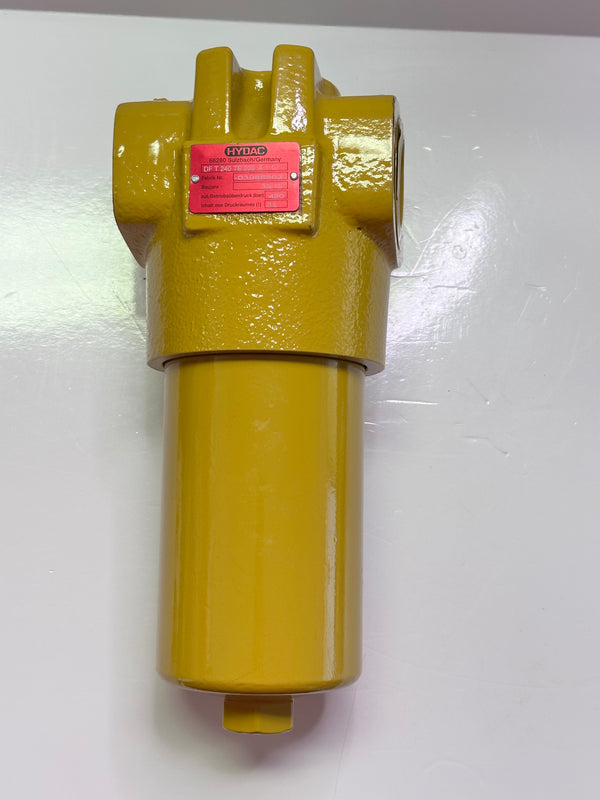

Hydac DF T 240 TE 200 A1.1 In-Line Filter 66280

Factory No. -03088803

Year of Construction - 35/15

Permissible Operating Pressure (bar) 420

Contents of the Pressure Chamber. (1) 0.8

Features
The HYDAC DF filter series is an inline filter
It has a flow capacity up to 1800 l/min and a pressure capacity up to 420 bar
The design of the filter housings is in accordance with international regulations

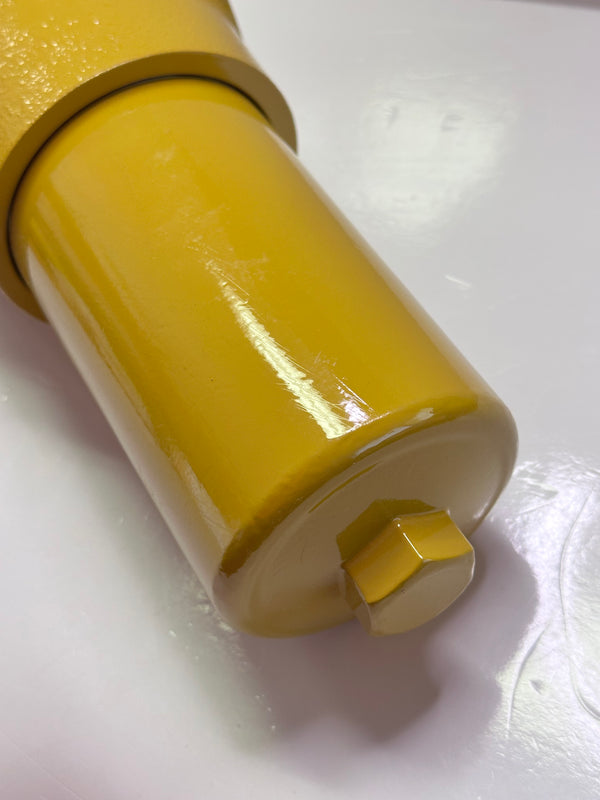

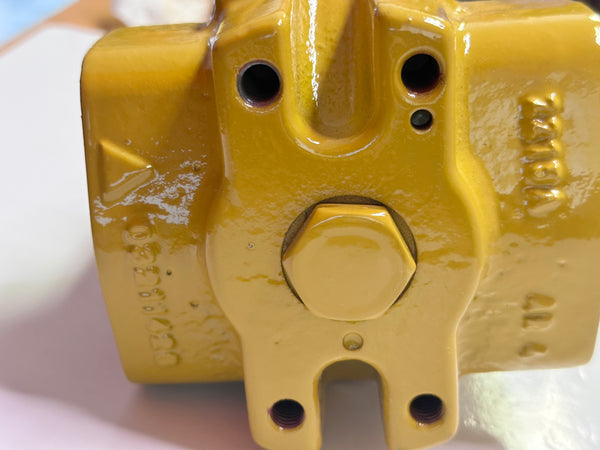

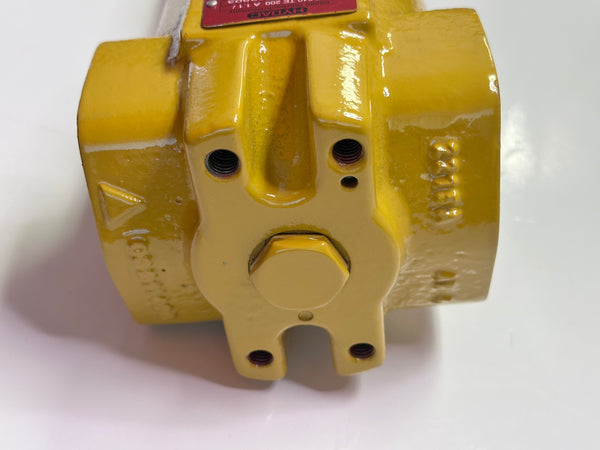

They consist of a filter head and a screw-in filter bowl
What's more, DFF filters are suitable for flow in both directions
The optimised filters DFFX are also suitable for flow in both directions and the filter ports are in L configuration
Standard equipment
The connection for a clogging indicator is in the filter head
Without bypass valve
Drain screw with pressure relief (for size DF/DFF/DFFX 330 and above)
1 or 2-piece filter bowl available as an option for DF/DFF 280-660, DFFX 330- 660 and DF 2000
2-piece filter bowl standard for size DF/DFF/DFFX 990 and above
