HONEYWELL

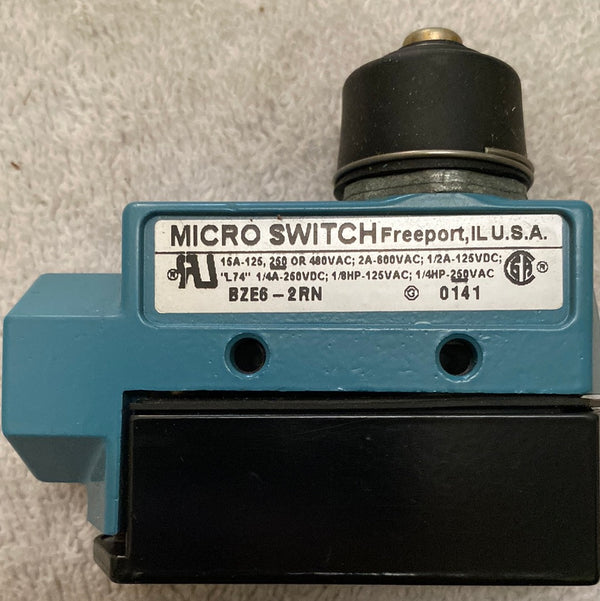

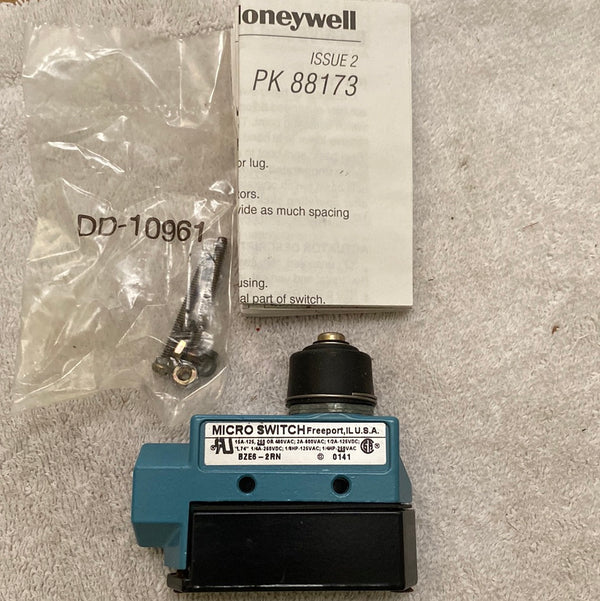

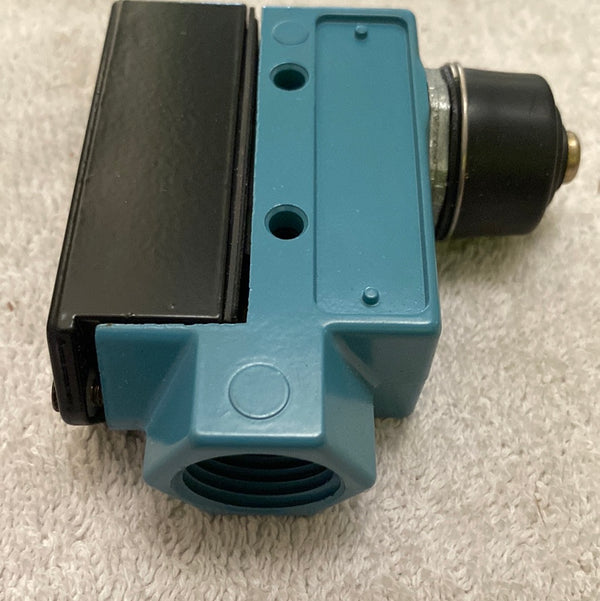

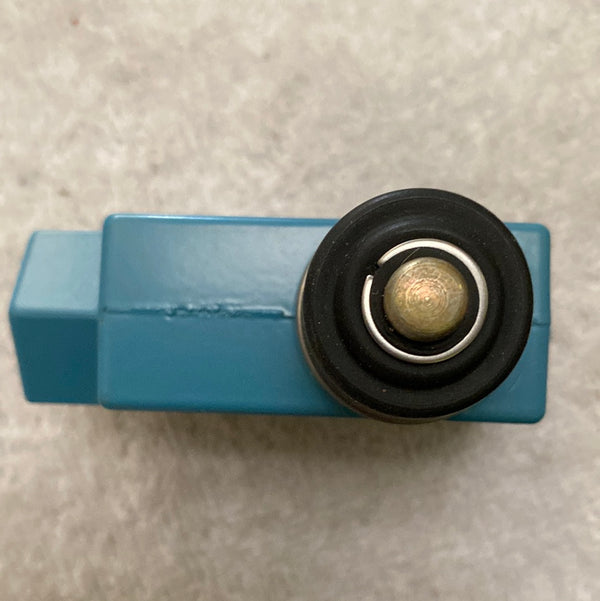

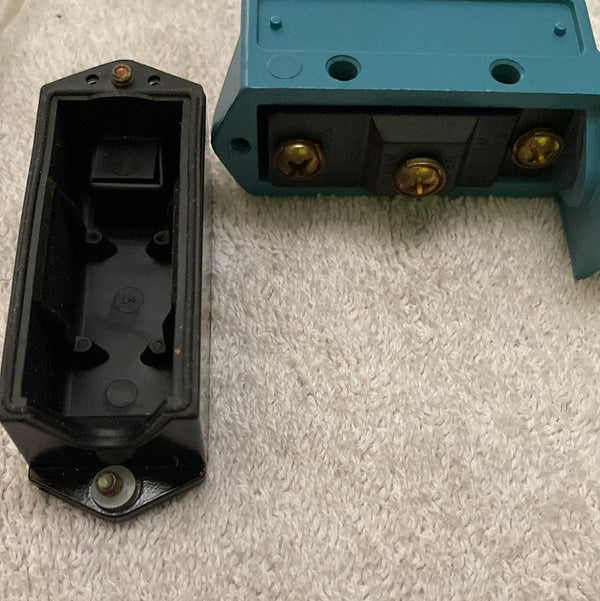

Honeywell BZE6 SERIES Plunger Limit Switch, NO/NC SPDT
- SKU
- P-HO-H-0462
$105.00
Price includes GST.
Low stock: 4 left
Warehouse pickup available
- Weight
- 0.5 kg
Specifications
| Manufacturer | HONEYWELL |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-HO-H-0462 |
| Weight | 0.5 kg |
Description
| Actuator Type | Plunger |
| Pole and Throw Configuration | SPDT |
| Normal State Configuration | NO/NC |
| IP Rating | IP66 |
| Maximum Current | 15A |
| Housing Material | Die Cast Zinc |
| Maximum AC Voltage | 600V |
| Maximum DC Voltage | 250V |
| Connection Type | 1/2 in NPT |
| Series | BZE6 |
| Action Type | Snap Action |
| Length | 25.4mm |
| Minimum Operating Temperature | -32°C |
| Maximum Operating Temperature | +71°C |
| Width | 44.4mm |
| Standards Met | CE Certified, CSA, UL |
| Depth | 77.2mm |
| Operating Force | 2.5 → 6.67 N |
| Mounting Orientation | Side |
