HONEYWELL

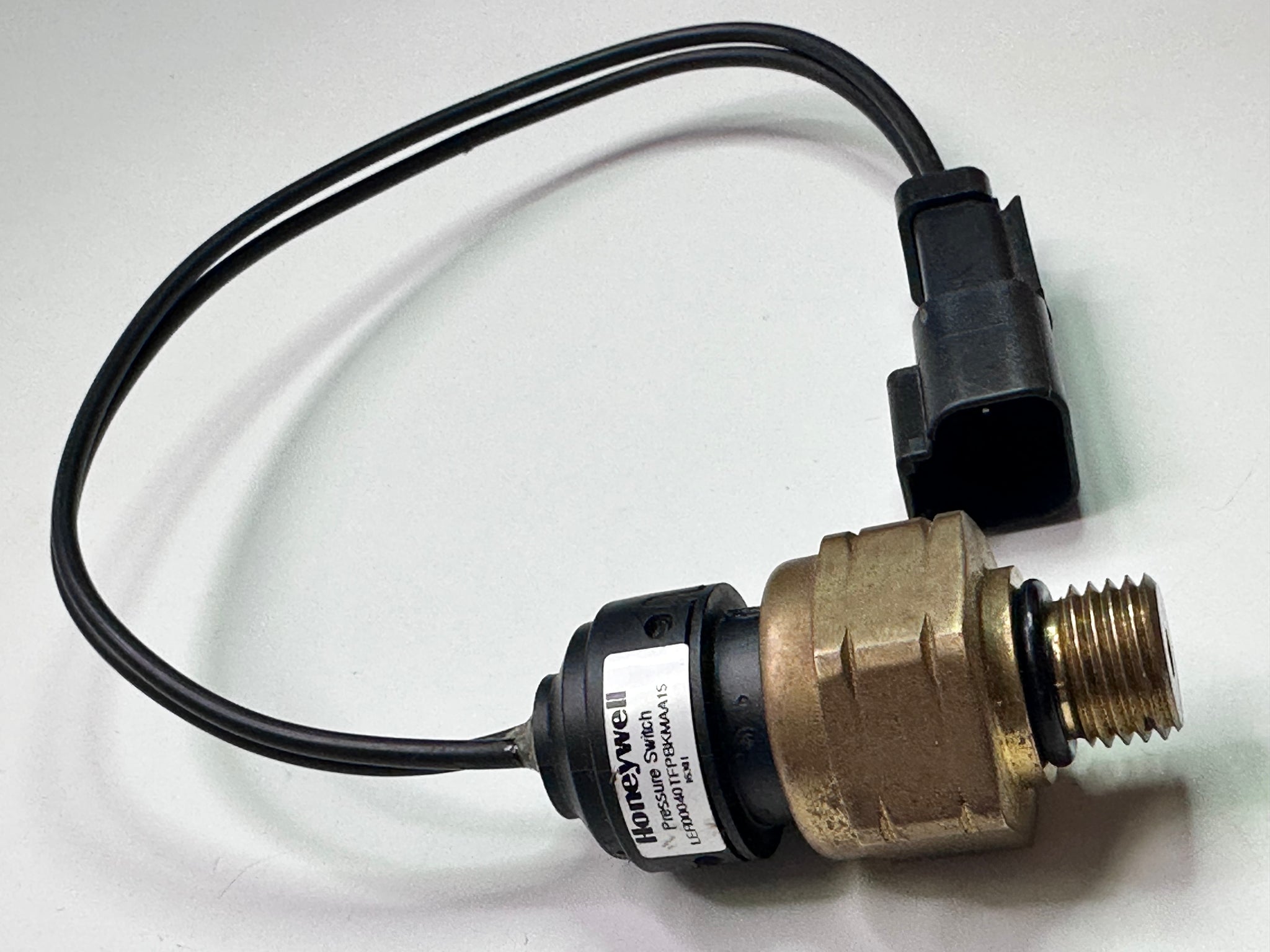

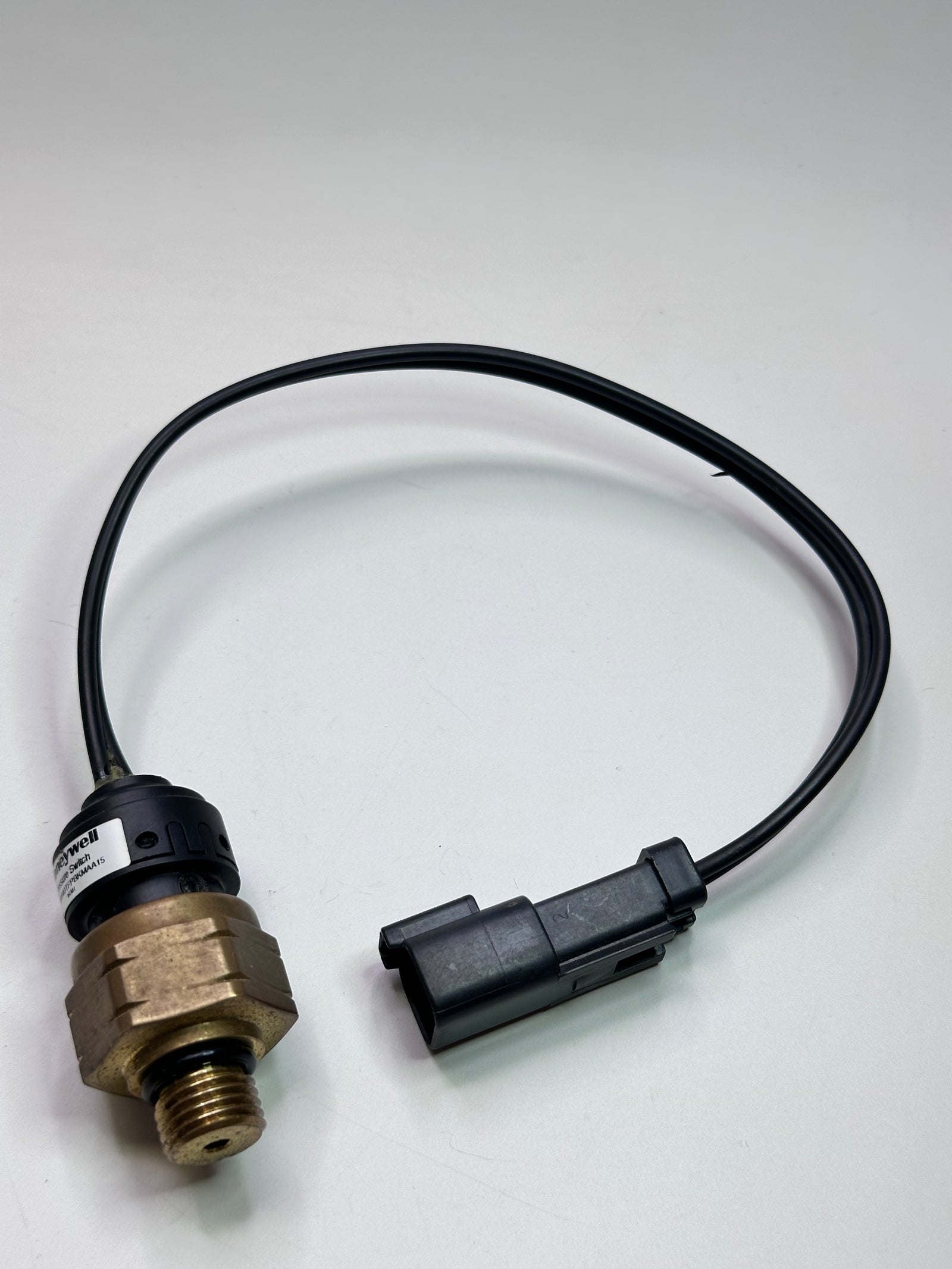

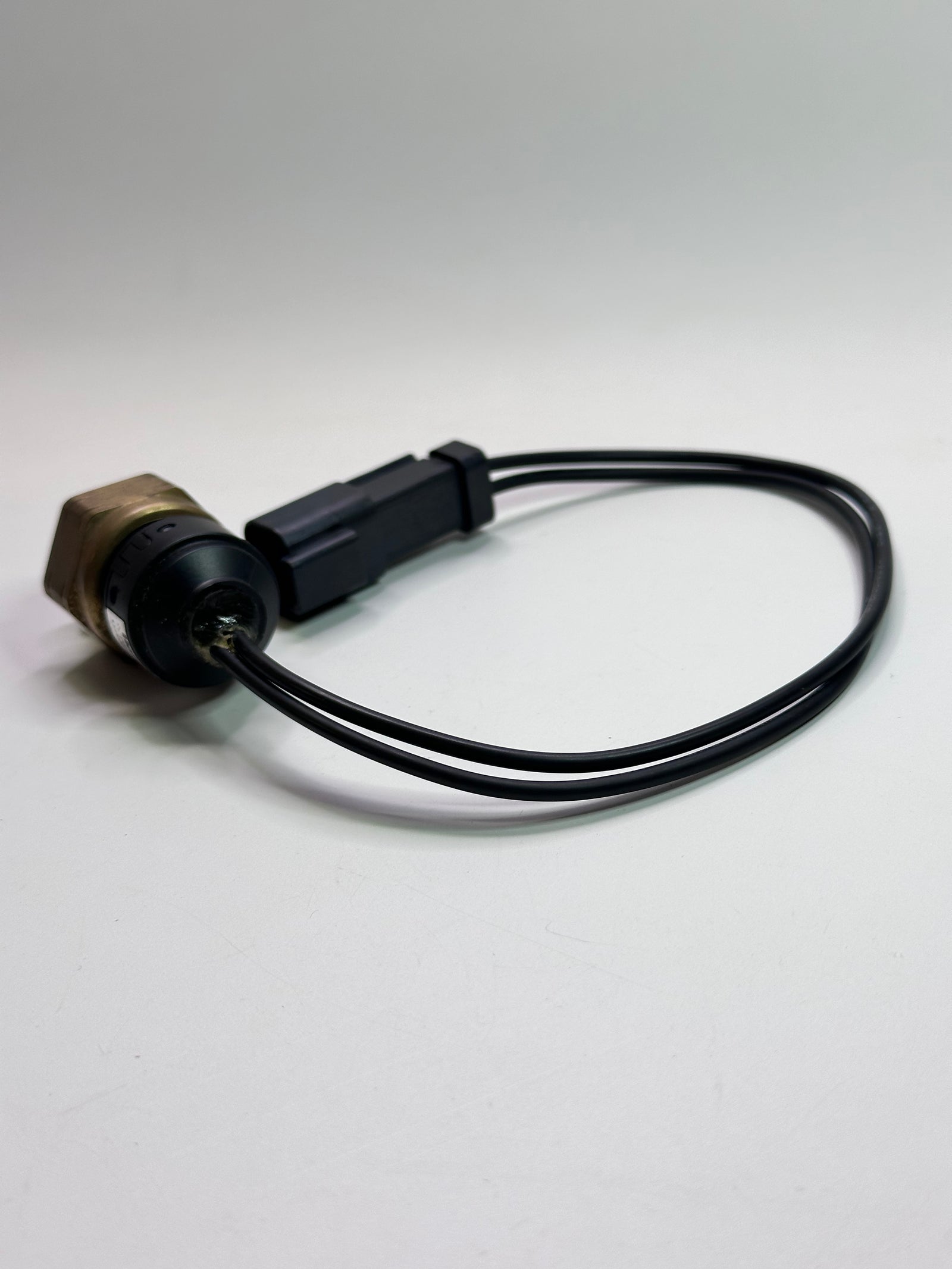

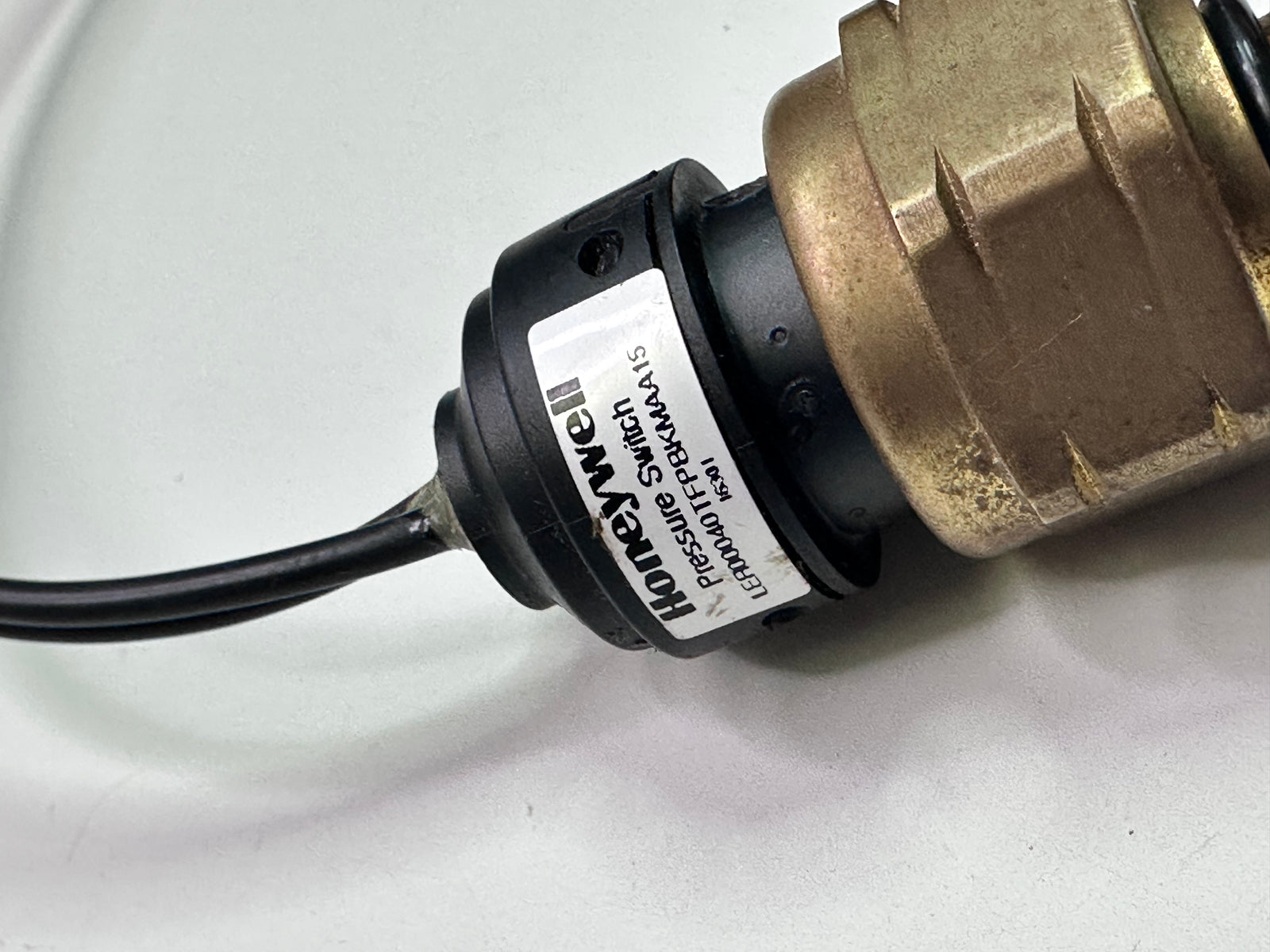

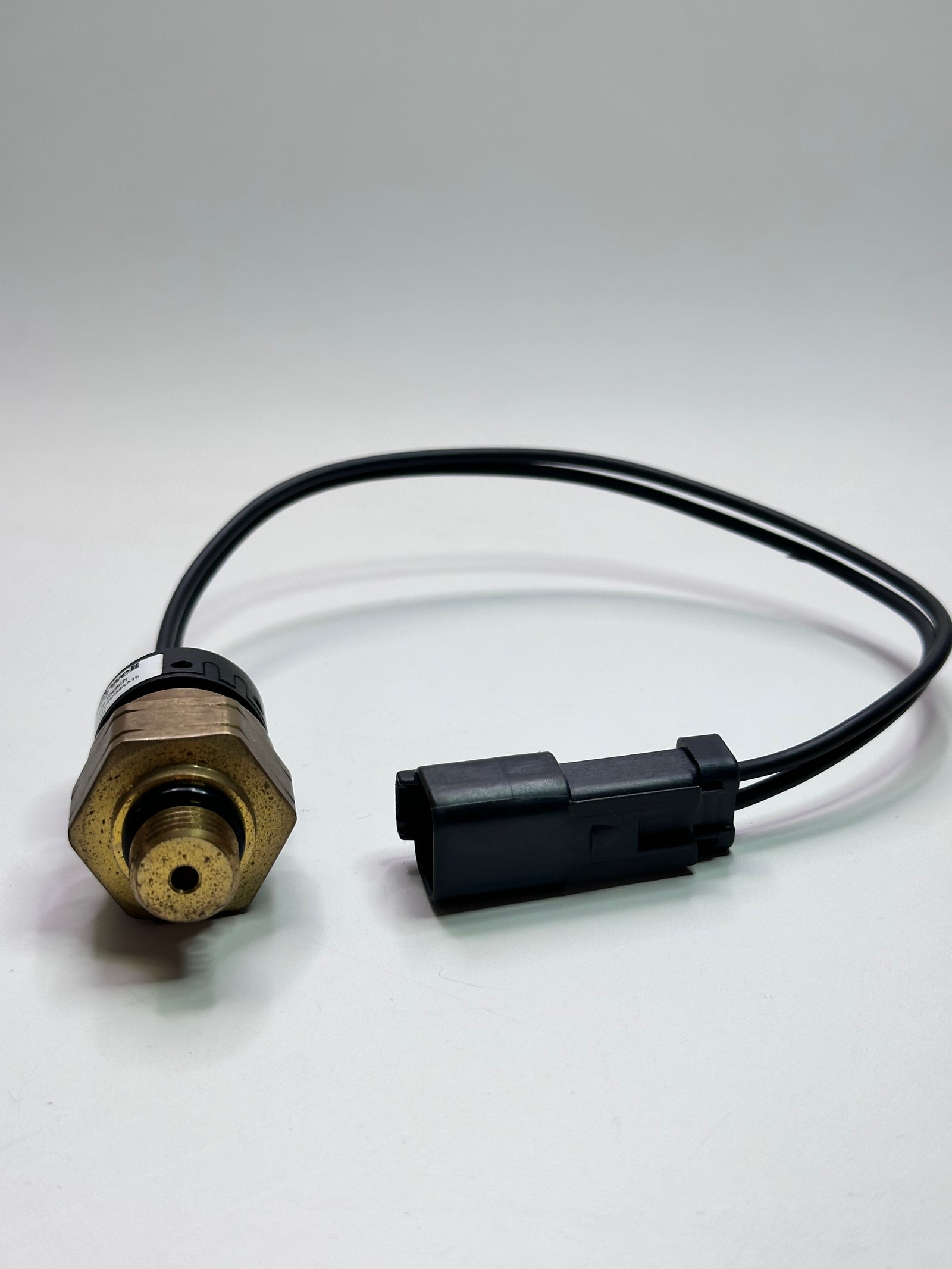

Honeywell LEA00040TFPBKMAA15 LE Series Low-Pressure Switch
- SKU
- P-HO-H-7724
$80.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 1.5 kg
Specifications
| Manufacturer | HONEYWELL |
|---|---|
| Product type | SENSOR |
| SKU | P-HO-H-7724 |
| Weight | 1.5 kg |
Description
Honeywell LEA00040TFPBKMAA15 LE Series low-pressure switch. The source describes SPST normally-open switching, not an analogue pressure transmitter.
Configuration notes recorded in the source
- LE: series, low-pressure switch
- A: Set Point
- 00040: Pressure Set Point
- T: psig, true gage
- F port: M14 × 1.5
- P output: SPST-NO, gold-plated contacts
- B base: brass
- K actuation/application: Kapton diaphragm (teflon coated), “Nitile o-ring” as written in the source
- MA connection: 10-inch cable, 18 AWG, with Deutsch DT04-2P-E005 two-pin connector
- A option: standard switch
The final 15 in the full reference is not explained in the source breakdown. Confirm the actual switching set point, complete configuration and seal material before purchase; “Nitile” has not been silently converted into a verified material specification.
Additional source tags are 16301, Atlas Copco, Epiroc and Sandvik. These do not establish machine fitment. Contact ratings, reset differential and pressure limits are not provided.
