Honeywell M6184D1001/U Series 61 Modutrol IV 3-Point Actuator
- SKU
- P-HO-H-0438
- Weight
- 5.0 kg
Specifications
| Manufacturer | HONEYWELL |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-HO-H-0438 |
| Weight | 5.0 kg |
Description

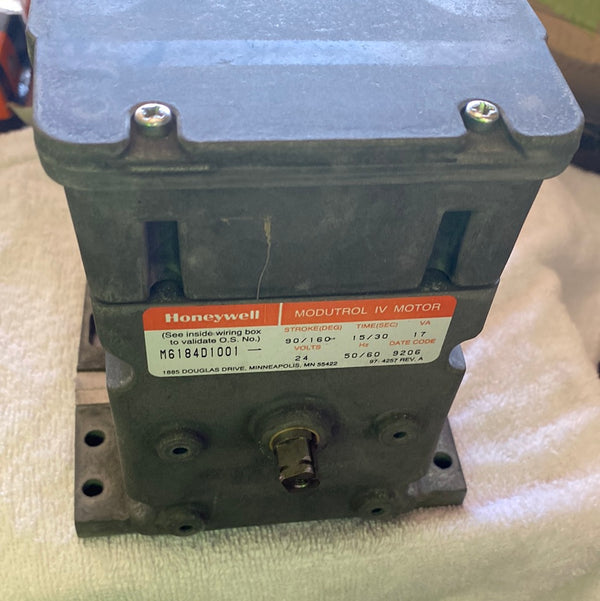

Honeywell M6184D1001/U Series 61 Modutrol IV motor/actuator with 3-point control, also referenced as M6184D1001.

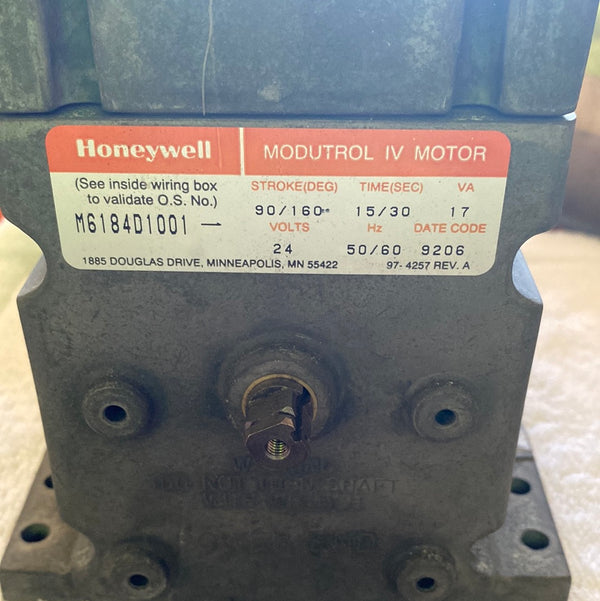

Rating clarification required: the source specification list states 15 VA driving consumption, while a tag states 17VA. Another tag says “torque 75lb” without a complete torque unit. Neither discrepancy has been silently resolved. The 24V entry is an original tag requiring nameplate confirmation.
Specifications recorded in the source
- Application Type: Electric
- Fail Safe Mode: Non-Spring Return
- Control Signal: Floating
- Feedback: no
- Motor Shaft: Dual ended Shaft
- Stroke: Adjustable; 90 to 160 degrees, Asymmetrical
- External Auxiliary Switches Available: Yes
- Frequency: 50 Hz, 60 Hz
- Power Consumption Driving (VA): 15 VA
- Electrical Connections: Quick Connect Terminals
- Shaft Dimensions (in.): .375 in
- Shaft Shape: Square
- Mounting: foot-mounted
- Dimensions: 6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
- Temperature Range: -40 to 150F
- Deadweight Load on Shaft (Either End) (lb): 200 lbs
- Deadweight Load on Shaft (Combined on both shafts) (lb): 300 lbs
- Shaft Rotation (upon control signal increase): Dependent on wiring (normally closed)
- Auxiliary Switch Ratings AFL - 120 Vac: 7.2A
- Auxiliary Switch Ratings AFL - 240 Vac: 3.6A
- Auxiliary Switch Ratings ALR- 120 Vac: 43.2A
- Auxiliary Switch Ratings ALR- 240 Vac: 21.6A
The “Fail Safe Mode” field explicitly says Non-Spring Return; it is not a promise of spring-driven fail-safe movement. External auxiliary switches are described as available, not confirmed included. Their AFL/ALR ratings are not the motor supply ratings, and shaft deadweight limits are not actuator torque.
Confirm the exact actuator, supply, driving VA, torque unit, stroke and supplied switch configuration before ordering. No new wiring or installation instructions are provided.
