HELLA

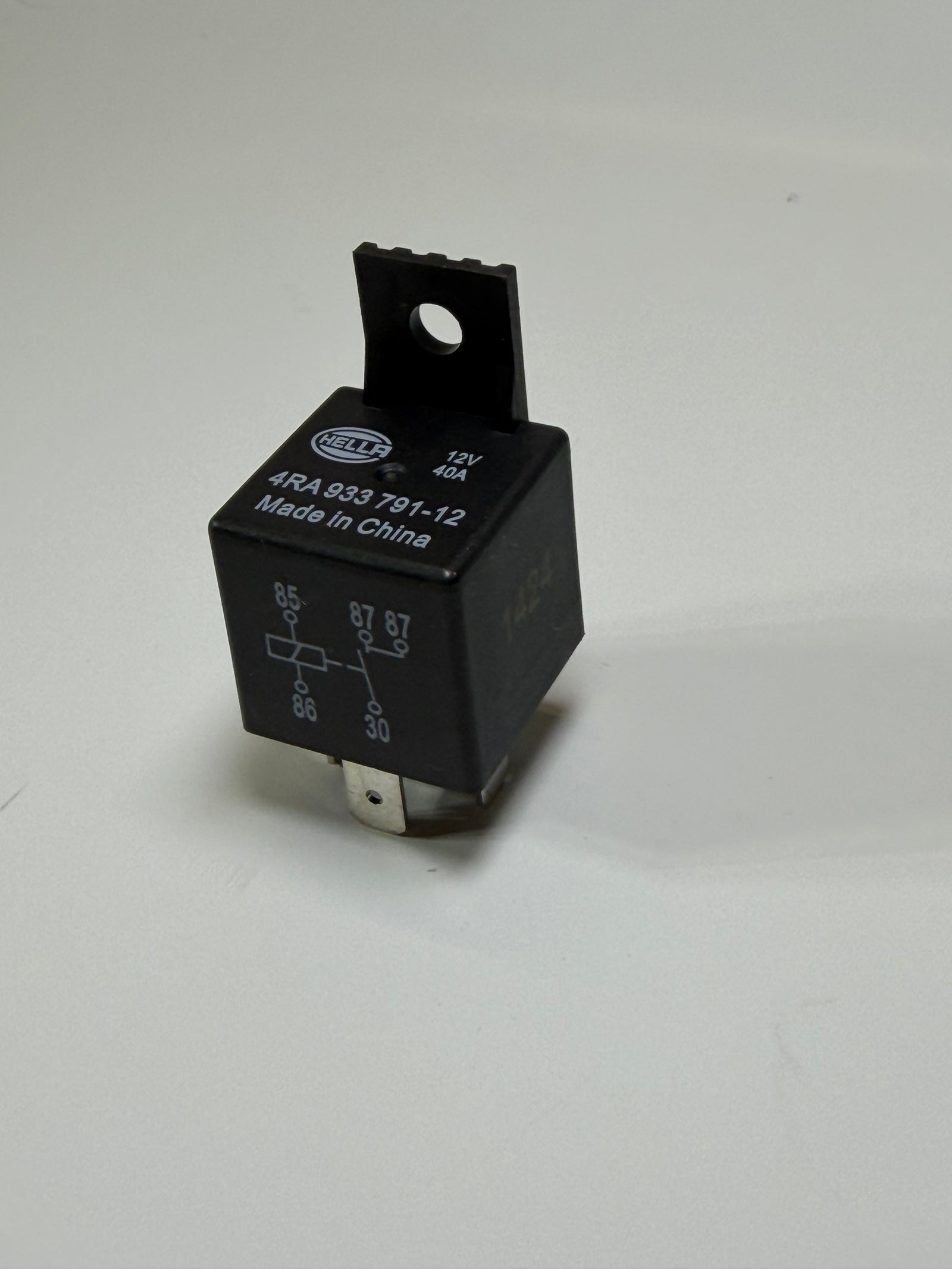

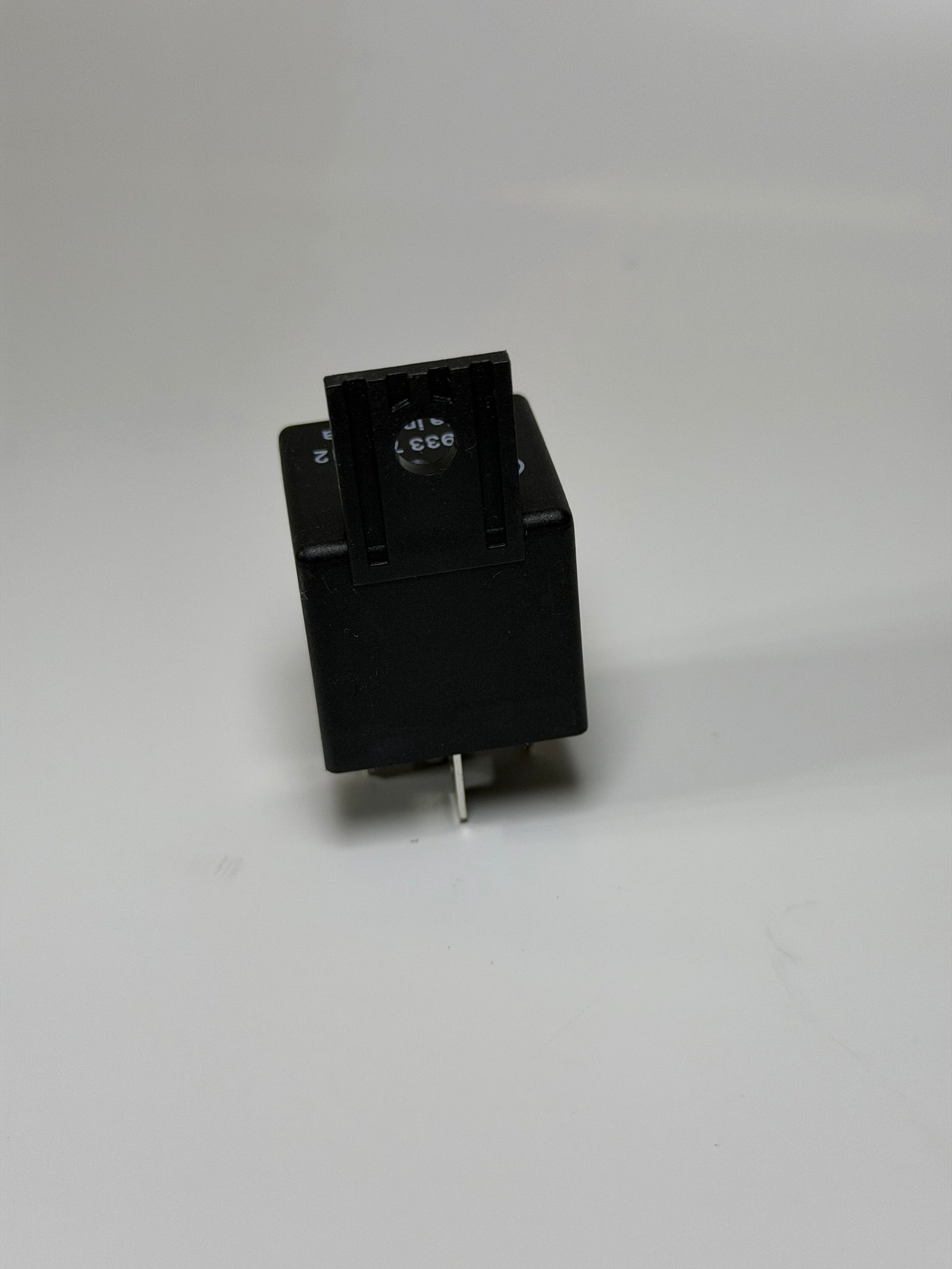

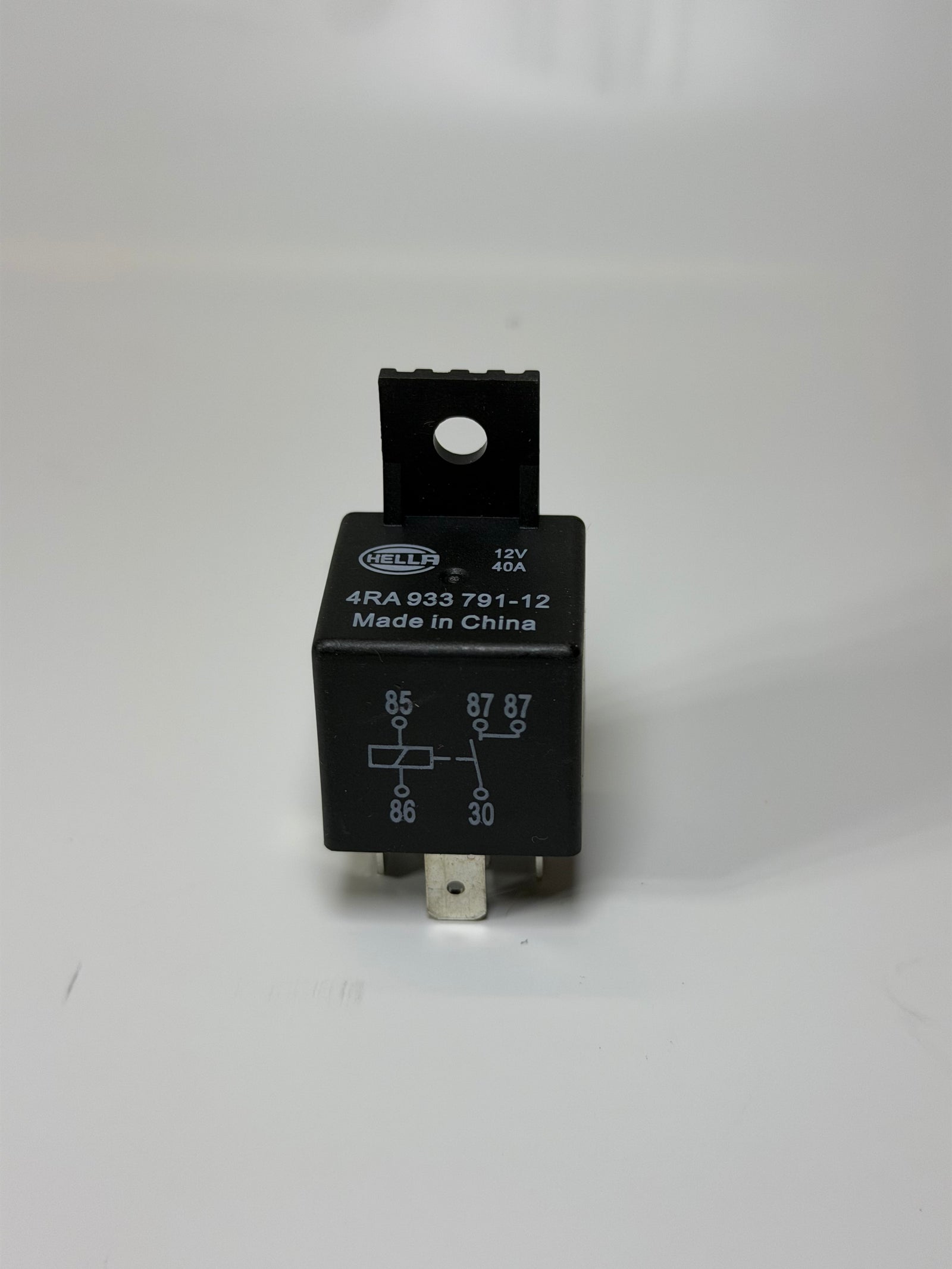

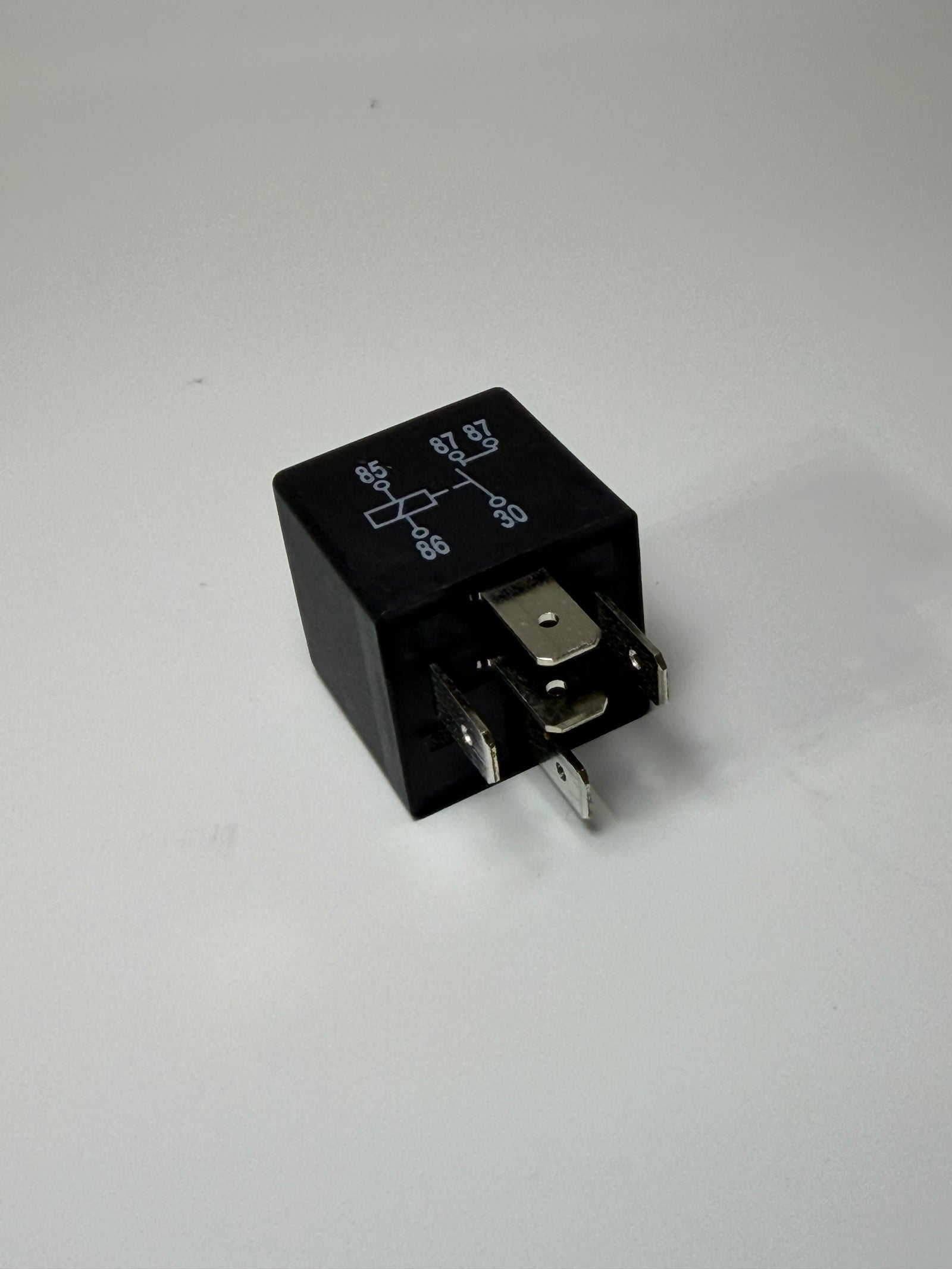

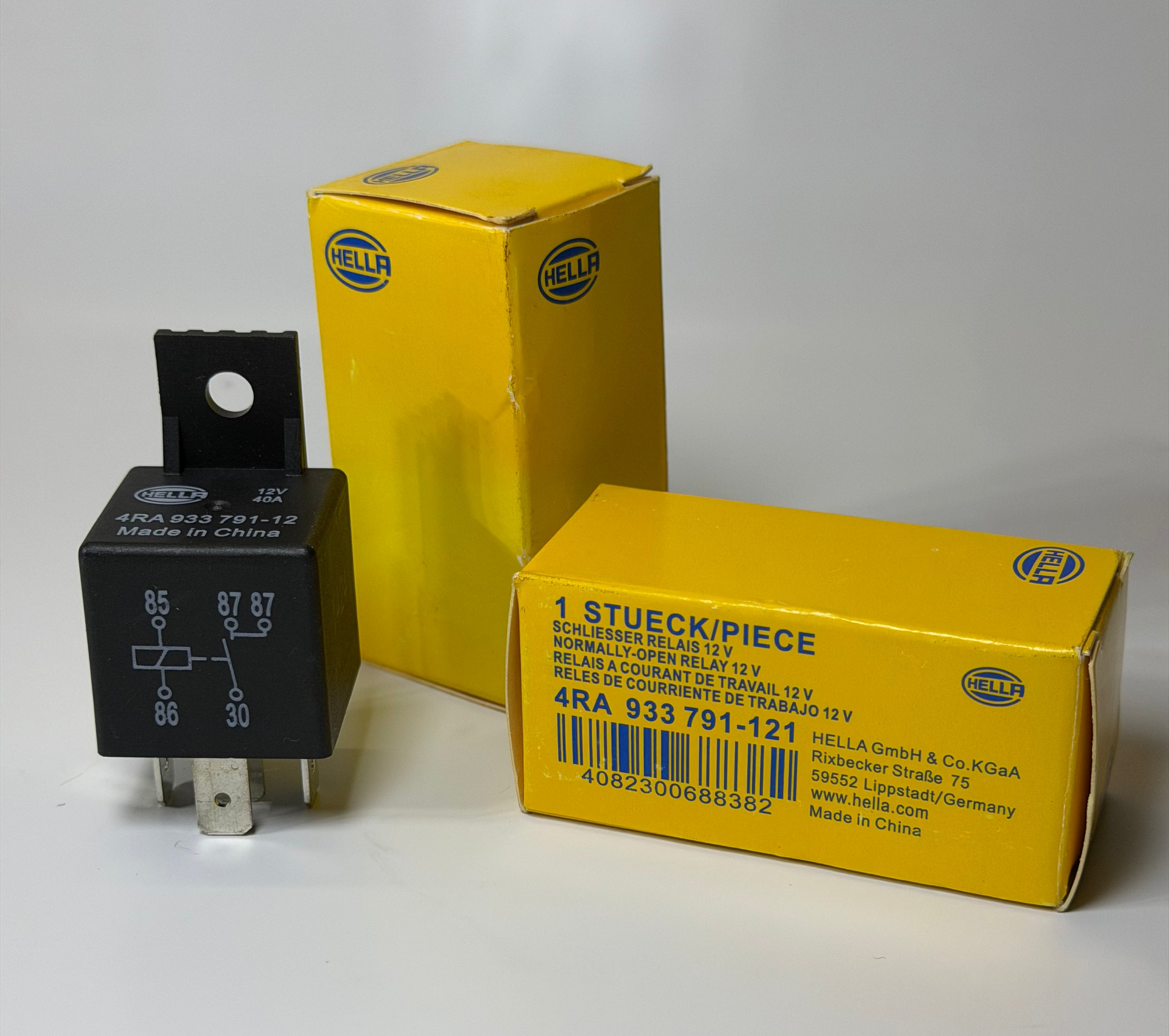

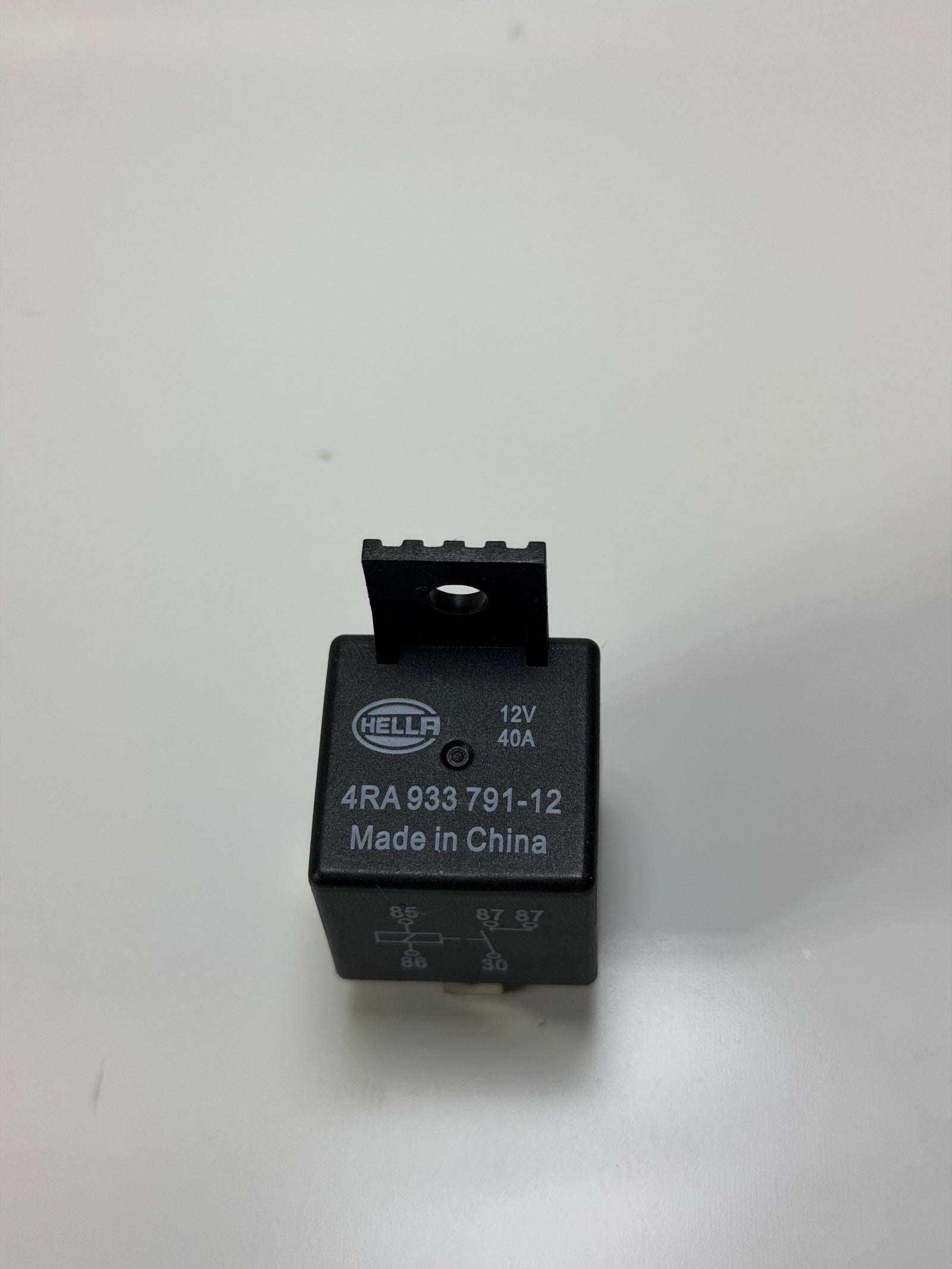

Hella 4RA 933 791-121 Normally-Open Relay — 12V Coil, 40A
- SKU
- P-HE-H-8580
$15.50
Price includes GST.
In stock
Warehouse pickup available
- Weight
- 0.7 kg
Specifications
| Manufacturer | HELLA |
|---|---|
| Product type | AUTO ELECTRICAL |
| SKU | P-HE-H-8580 |
| Weight | 0.7 kg |
Description
Hella 4RA 933 791-121 normally-open relay. The source records a 12V coil and 40A contact current rating.
Original specification table — mounting confirmation required
| Connector Type | Spade-type Connector |
|---|---|
| Contact Type | Normally Open |
| Current Rating | 40 Amps |
| Mounting Type | DIN Rail Mount |
| Operation Mode | Automatic |
| Wattage | 1.7 watts |
| Coil Resistance | 85 Ohms |
| Coil Voltage | 12 Volts |
| Contact Current Rating | 40 Amps |
| Minimum Switching Voltage | 12 Volts |
Additional source-tag references: 4RA933791121 and 4RA933791-12. Both strings are retained unchanged; confirm the full label reference before purchase.
The source table states DIN Rail Mount, while the original tags also describe a plug-in relay with spade connections. Confirm the actual mounting arrangement and whether any socket or rail adapter is supplied. The table's Minimum Switching Voltage entry is retained as recorded, not treated as a maximum contact voltage. No pin count, wiring diagram or load-specific switching capacity is inferred.
