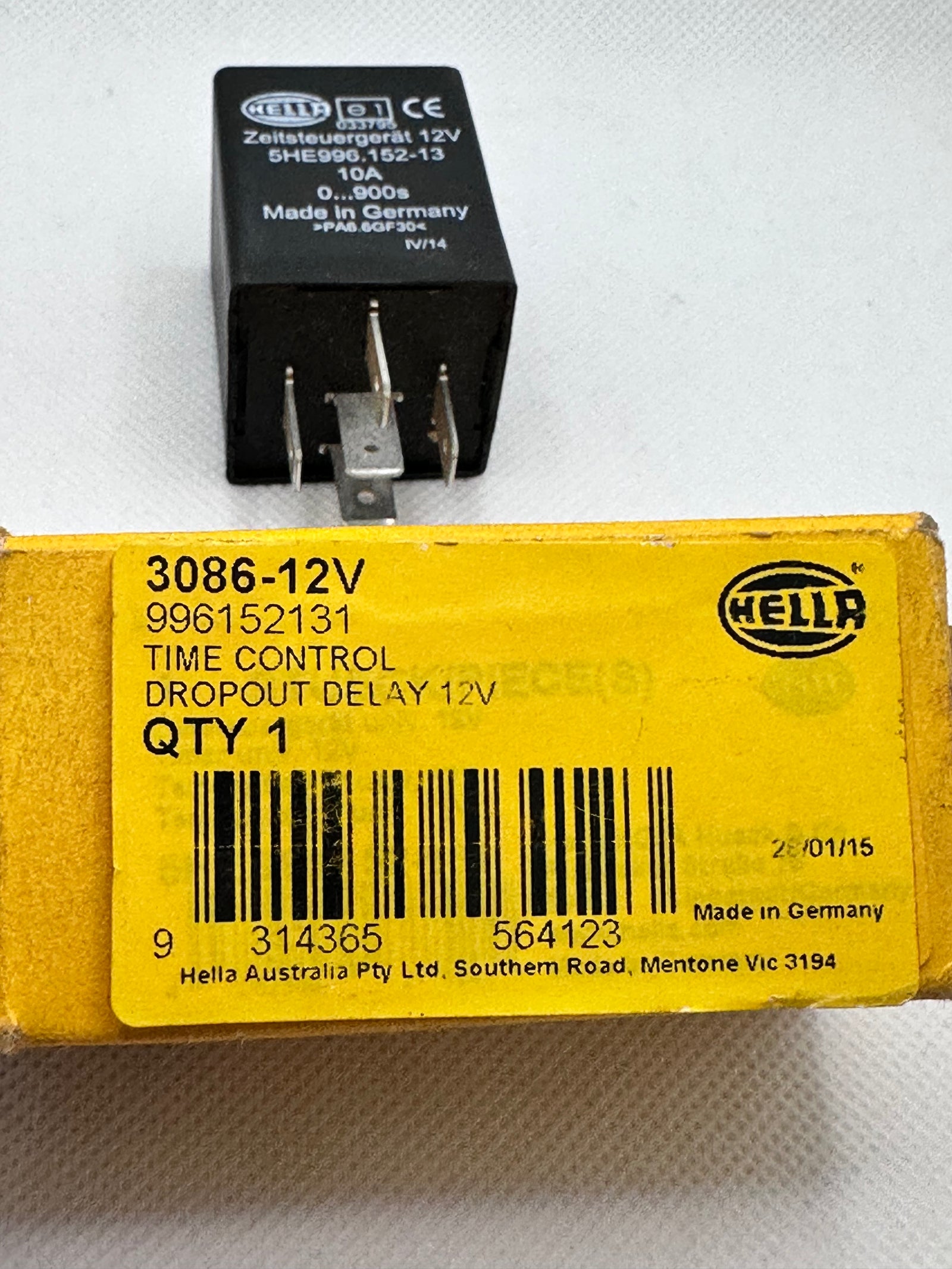

Hella 3086-12V 5 Pin Time Control Unit with Drop-Out Delay 20/10A 5HE 996 152-132

Voltage

12V

Function

Change-over

Bracket

Yes

Note

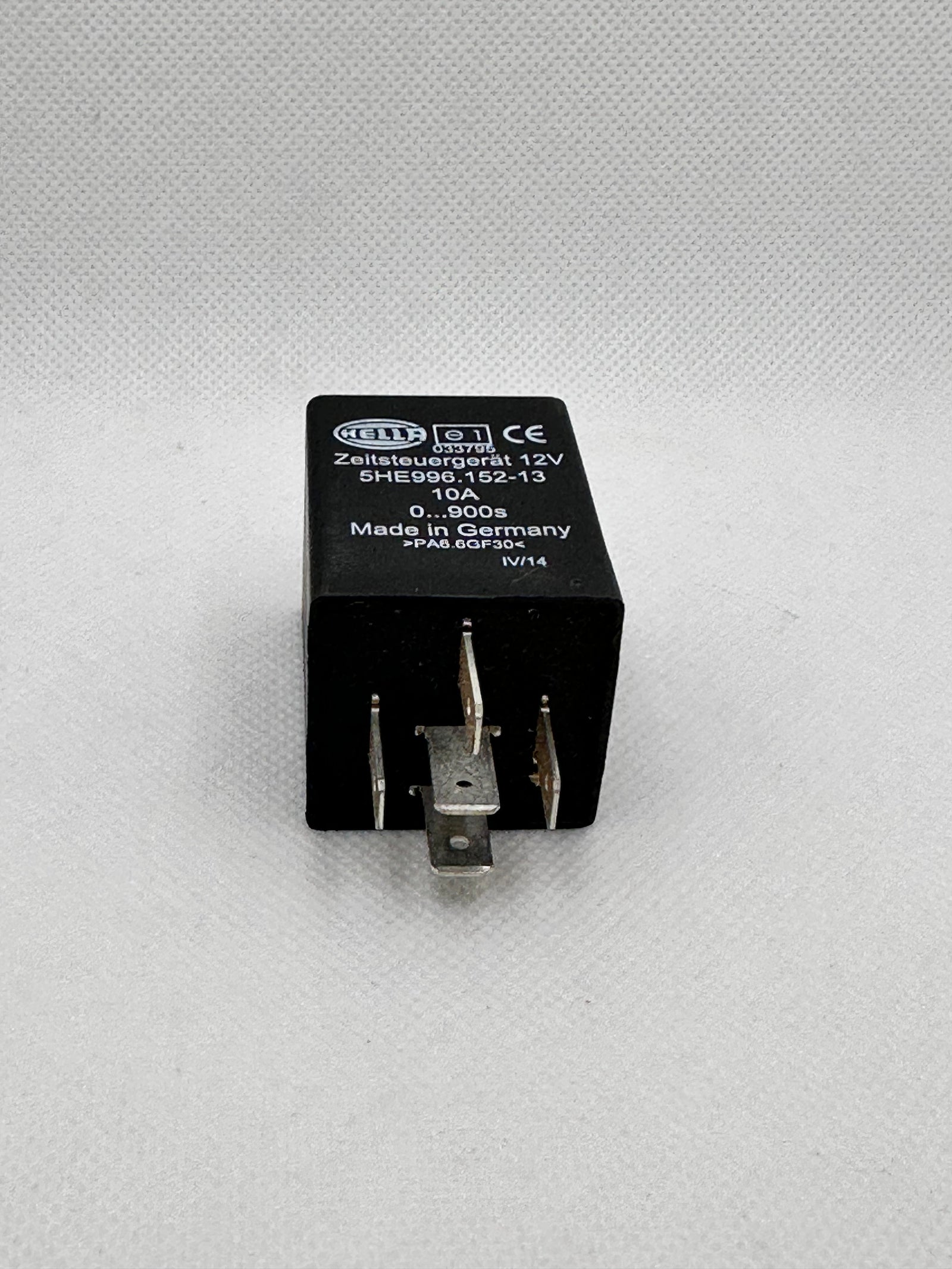

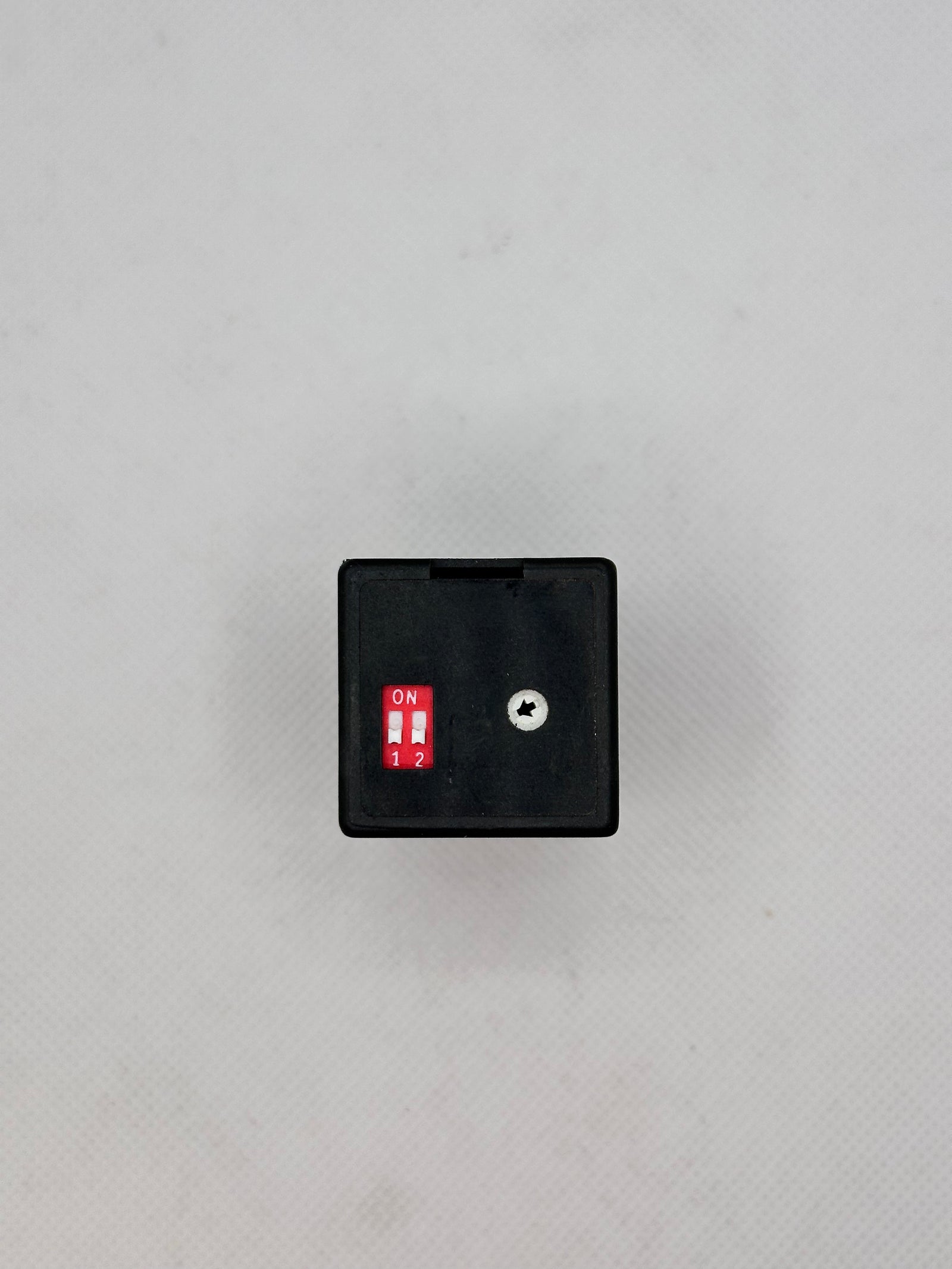

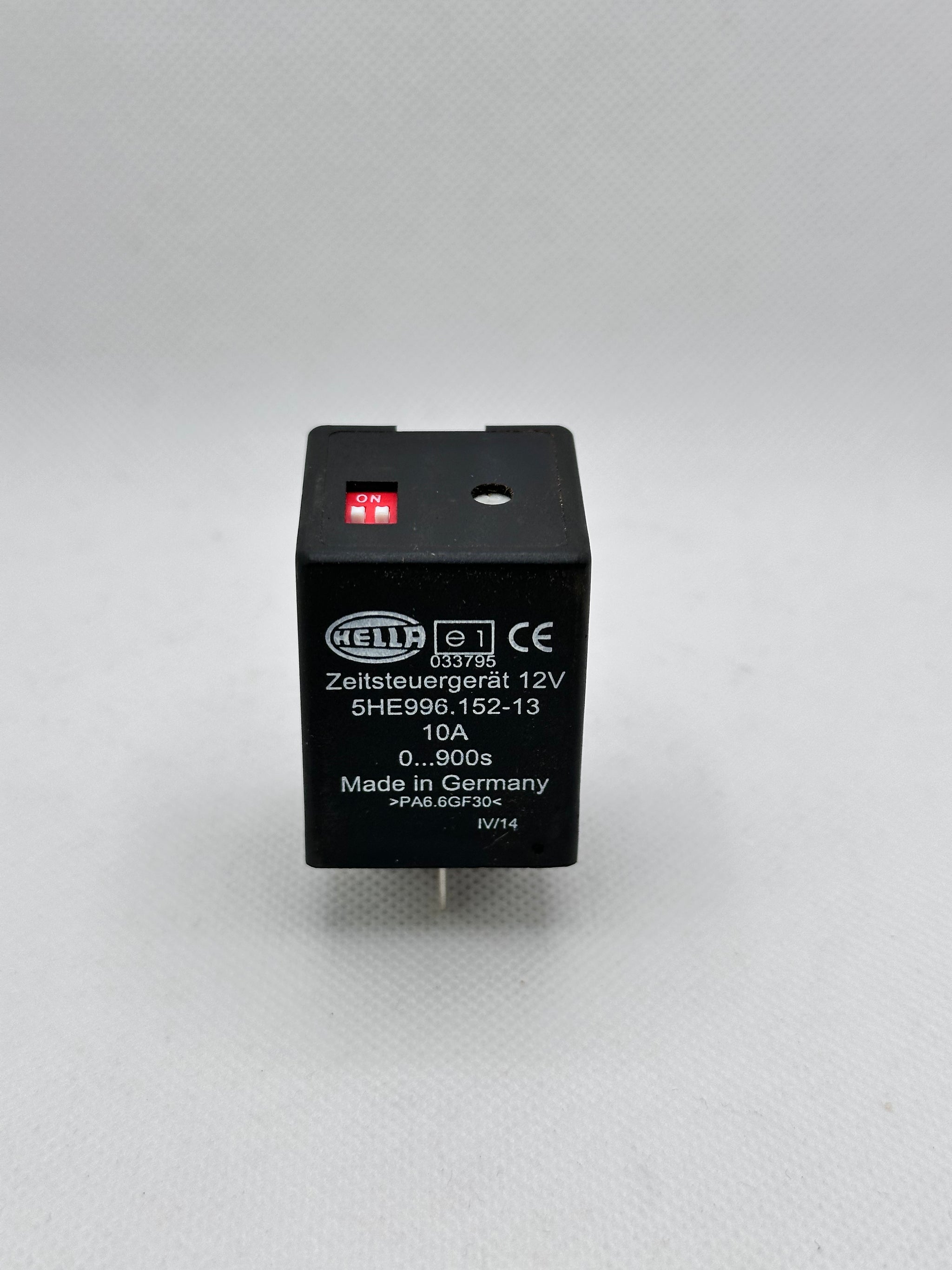

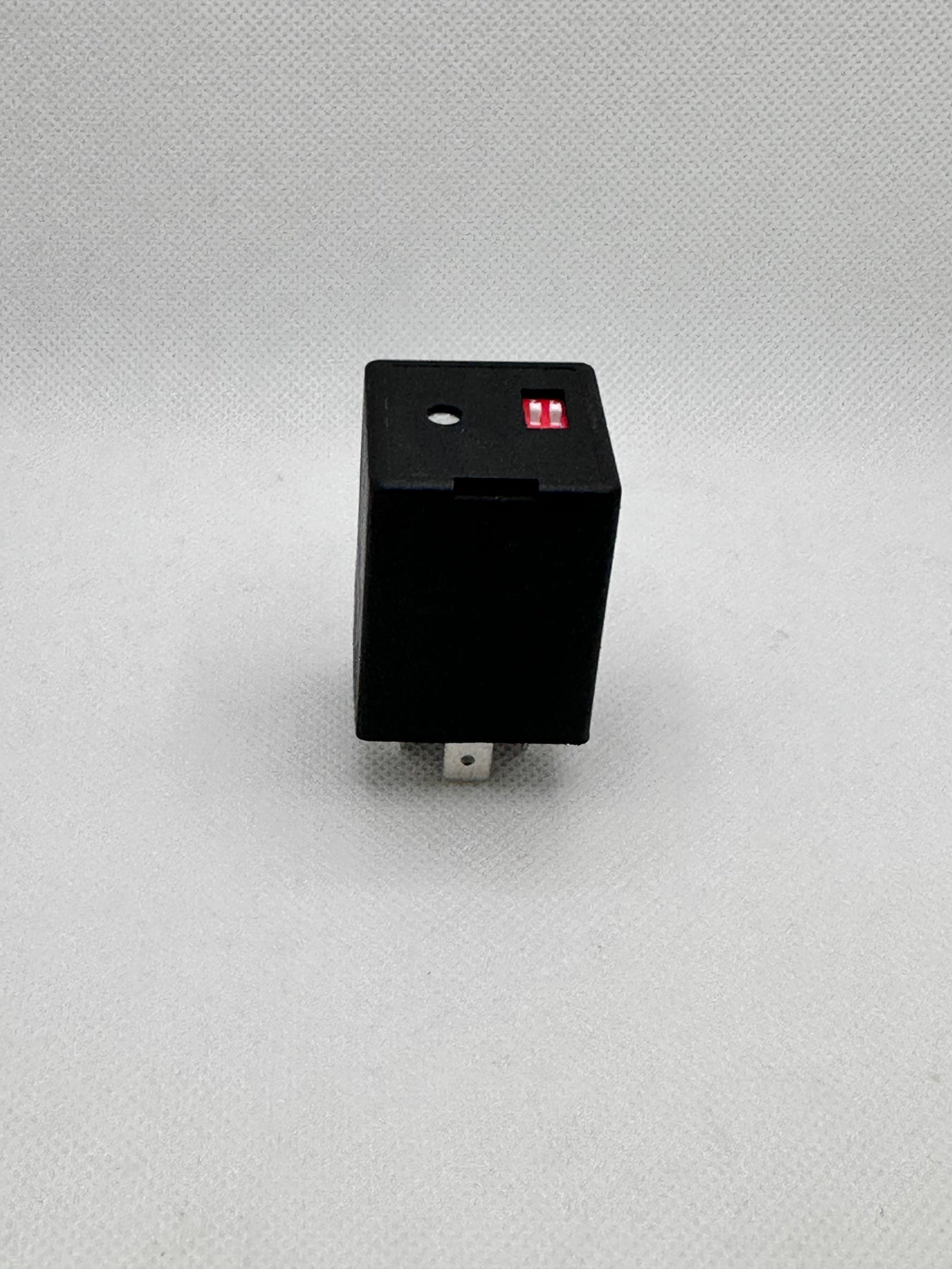

Relay with manually adjustable drop-out delay function, 0 – 900 seconds.

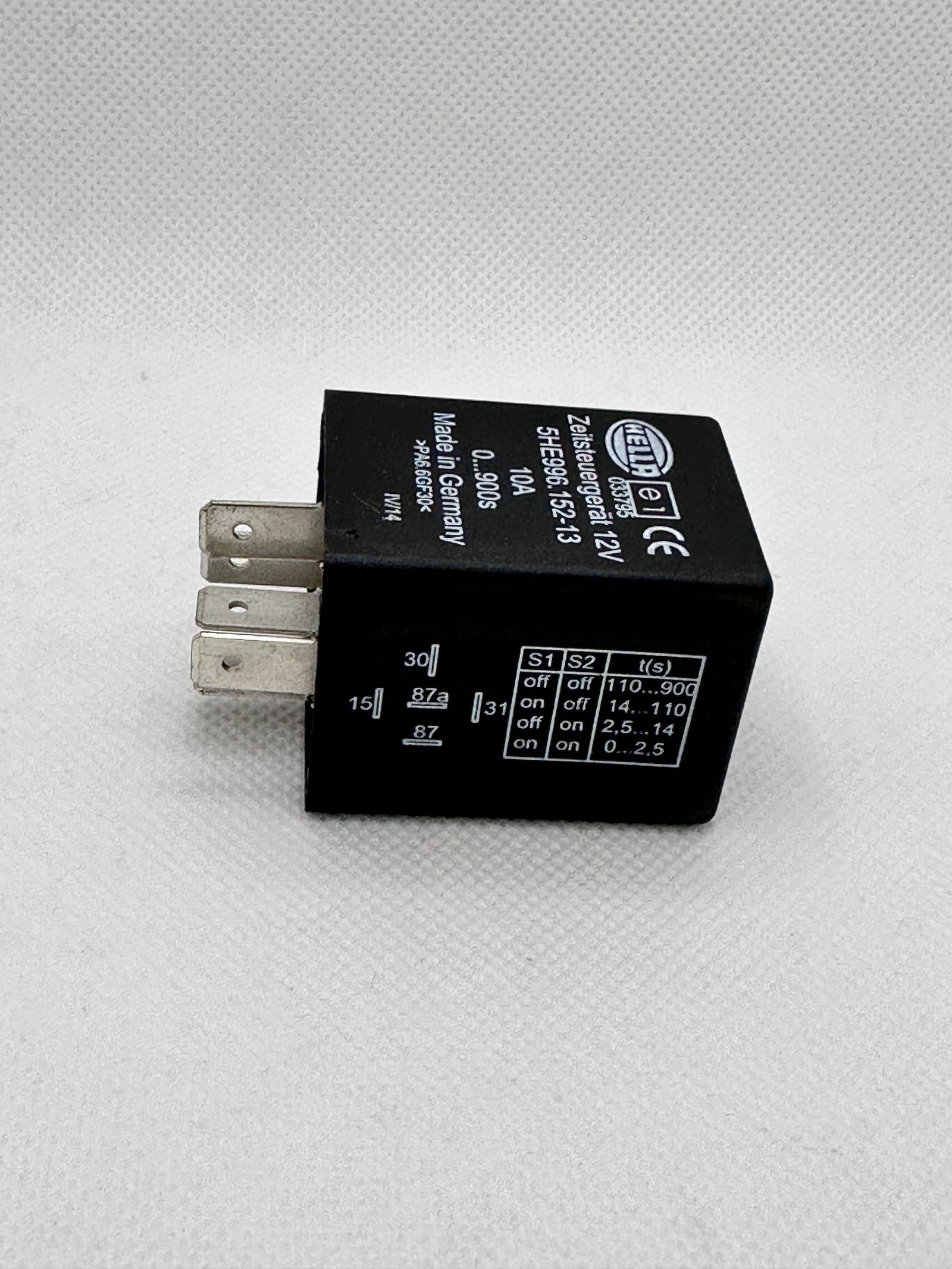

Applying +ve power to terminal 15 will close the n/o relay contacts.
Disconnecting +ve power from terminal 15 will then activate the timer feature, relay contacts 30 & 87 opening following the pre-adjusted time 0 – 900 seconds.
+ve to terminal 30 is required for timer operation, removing will cancel timer sequence and open contacts 30 & 87.
