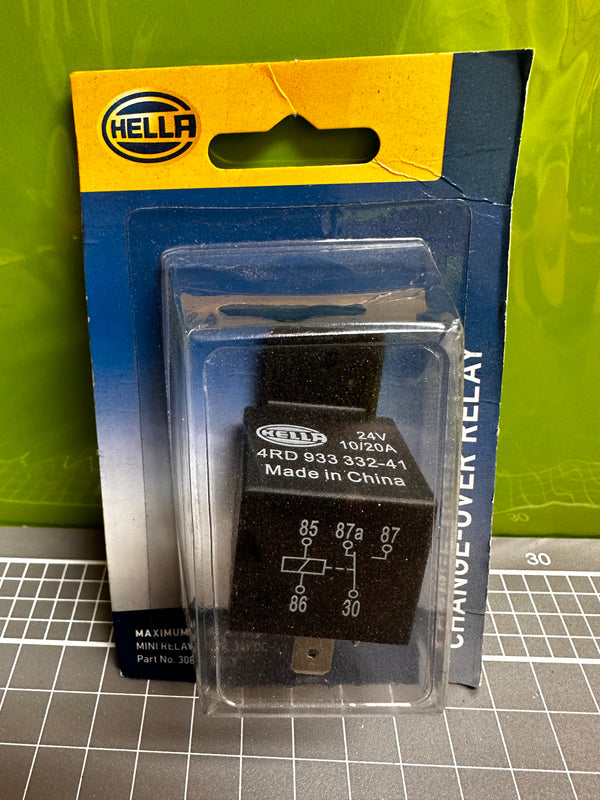

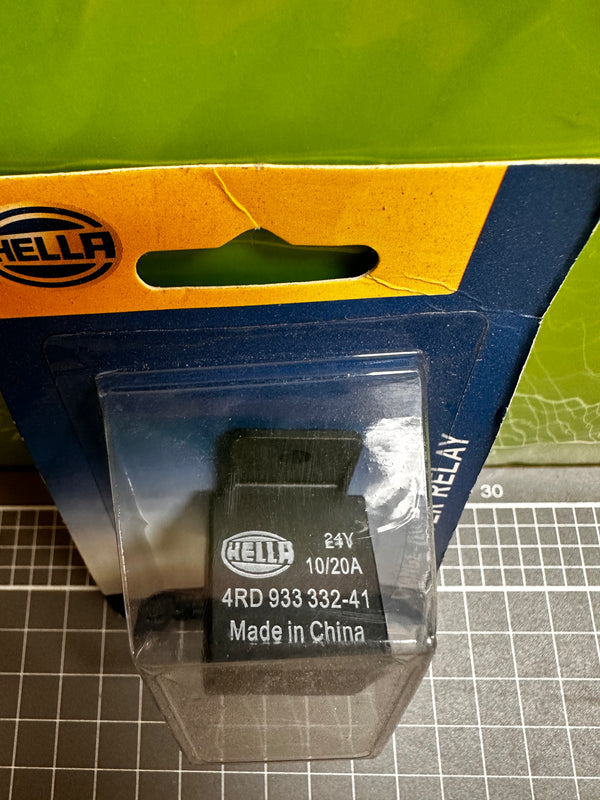

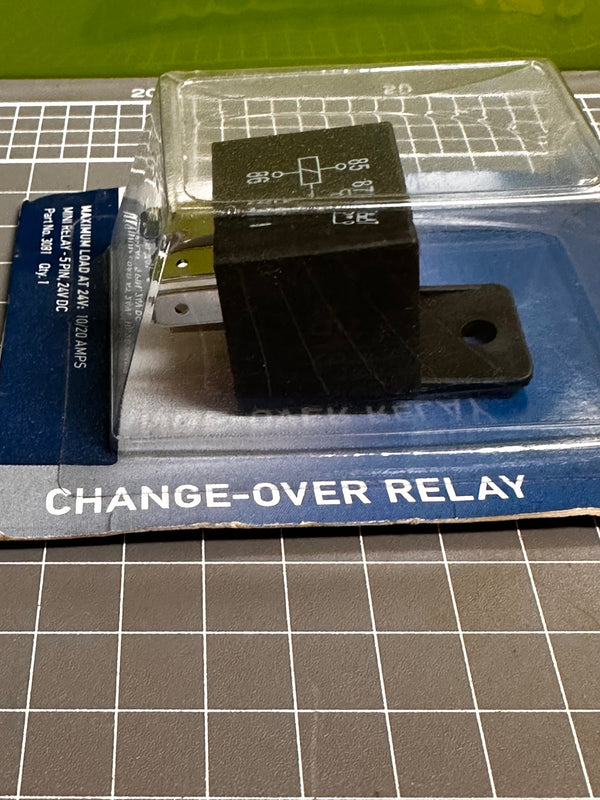

HELLA 3081 24V, 5 Pin Change Over Relay
HELLA 3081 24V, 5 Pin Change Over Relay
HELLA 3081 24V, 5 Pin Change Over Relay
HELLA 3081 24V, 5 Pin Change Over Relay
HELLA 3081 24V, 5 Pin Change Over Relay
HELLA 3081 24V, 5 Pin Change Over Relay

HELLA 3081 24V, 5 Pin Change Over Relay

HELLA SKU: P-HE-H-2192

$15.00

Tax included

Only 1 left!

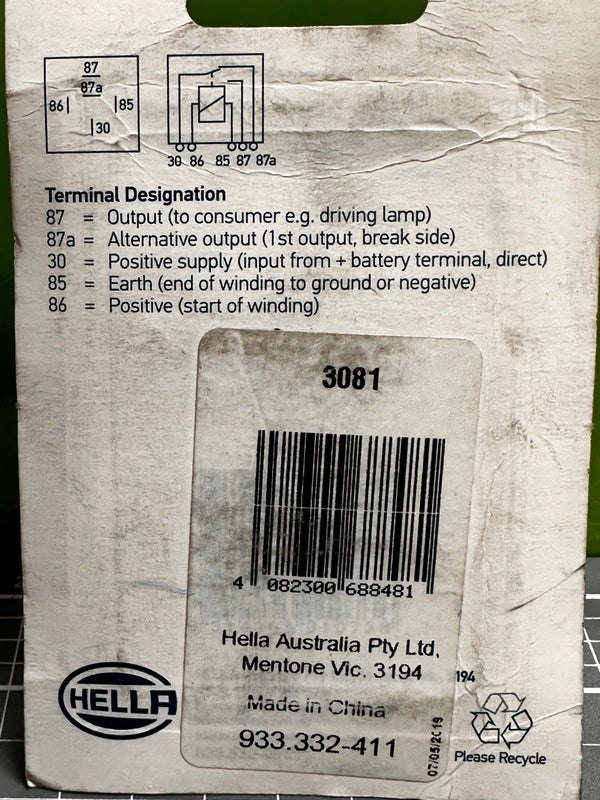

Pin Designations
Terminal Number Connect to
85/2 Earth (end of winding to ground or negative).
86/1 Positive.
87/5 Output (to consumer e.g. driving lamp).
87a/4 Alternative output (1st output, break side).
30/3 Positive supply (Input from + battery terminal, direct).

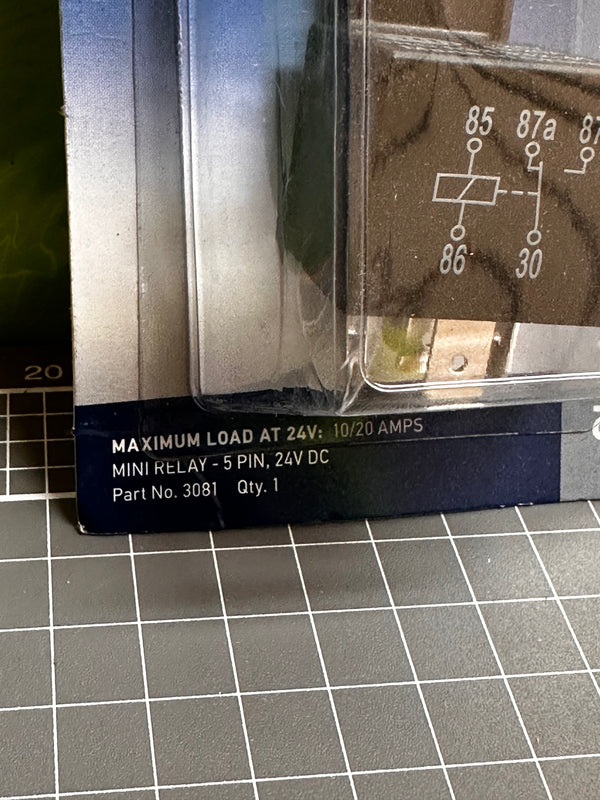

Maximum Load
Terminals Amperage
30-87 20A
30-87a 10A

Current Draw

70mA

Bracket

Yes
