HELLA 3027 Flasher Unit 3 pin, 12V High Capacity
HELLA 3027 Flasher Unit 3 pin, 12V High Capacity
HELLA 3027 Flasher Unit 3 pin, 12V High Capacity
HELLA 3027 Flasher Unit 3 pin, 12V High Capacity
HELLA 3027 Flasher Unit 3 pin, 12V High Capacity
HELLA 3027 Flasher Unit 3 pin, 12V High Capacity
HELLA 3027 Flasher Unit 3 pin, 12V High Capacity

HELLA 3027 Flasher Unit 3 pin, 12V High Capacity

HELLA SKU: P-HE-H-1973

$9.50

Tax included

Available Now!

Designed to take up to 210W loads. Reverse polarity protected, polycarbonate cover, silver contacts. Clear audible signal.



Voltage



12V DC

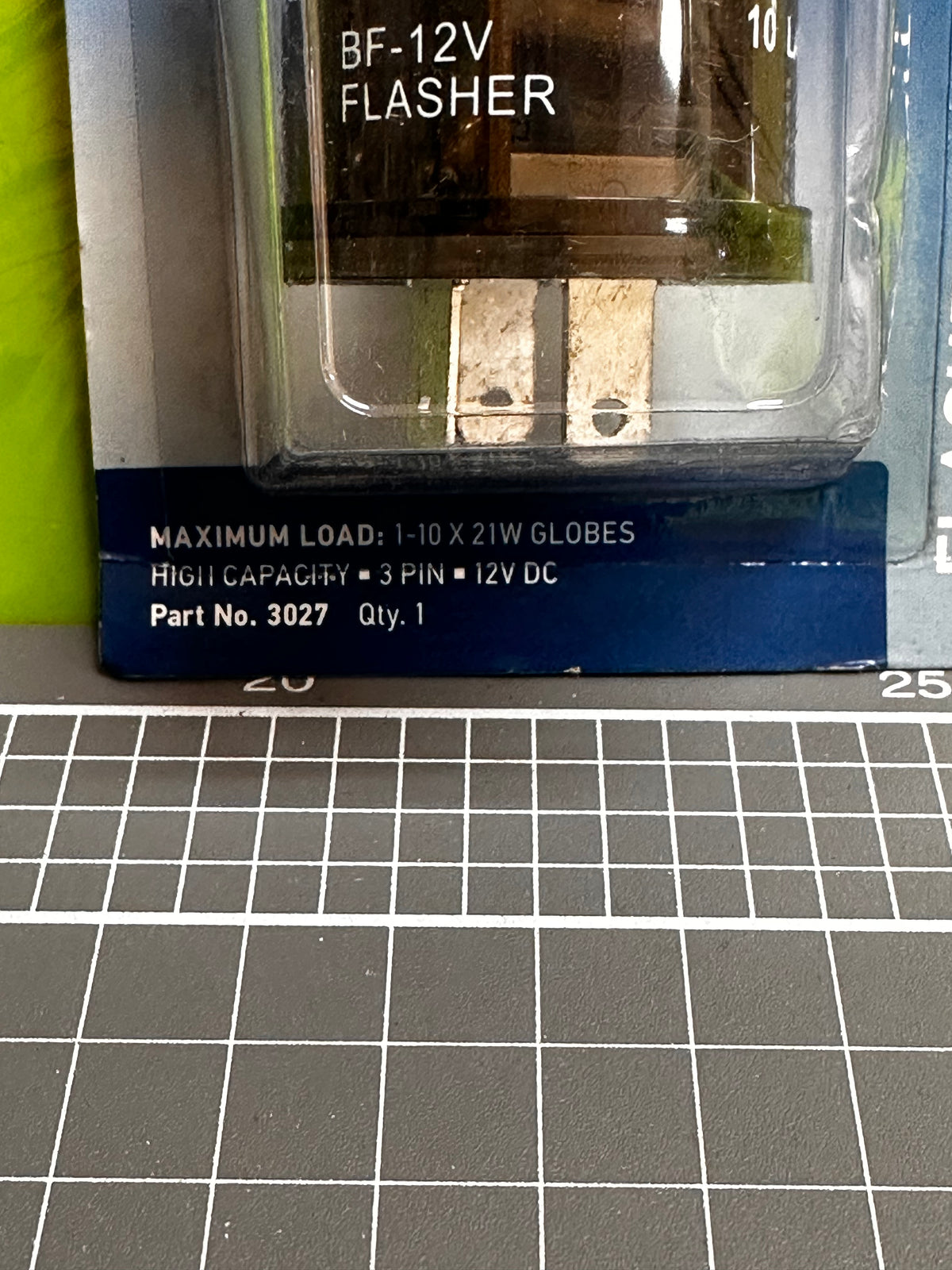

Maximum Load



1-10 x 21W

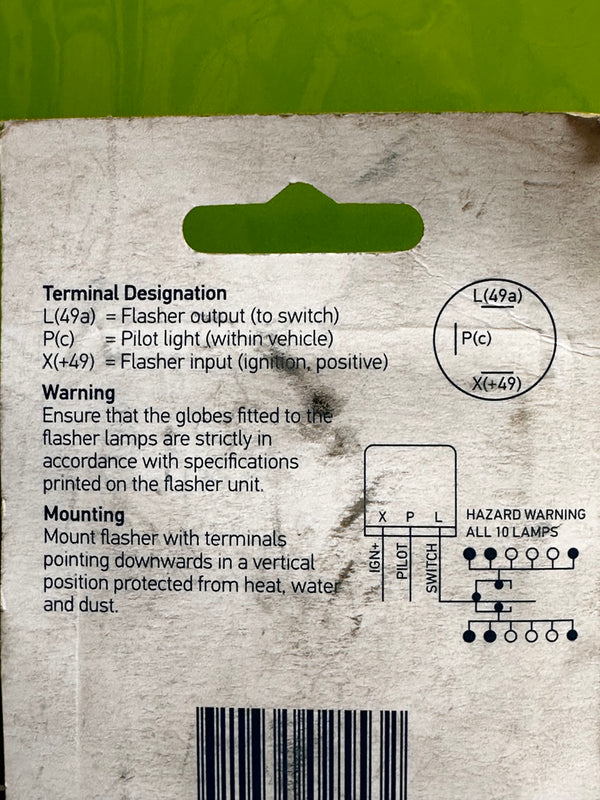

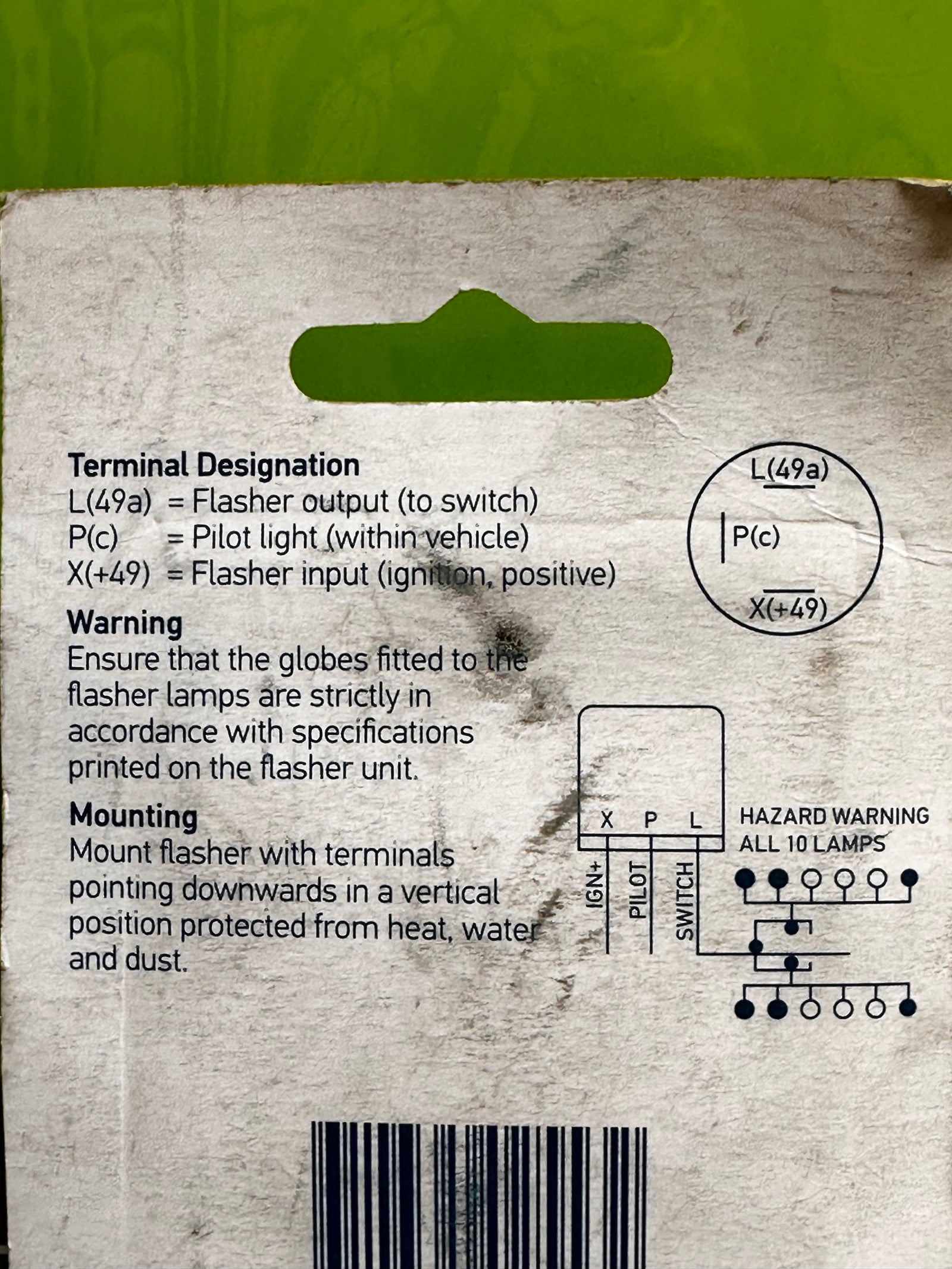

Pin Designations
Terminal Number Description
49/X Flasher input (+)
49a/L Flasher output (+) to lamps or indicator switch
C/C1/CP/P Vehicle pilot lamp output (+)
