HELLA

Hella 2XD 959 037-812 Green DuraLED Multi-Flash Lamp 9–33 V

SKU
P-HE-H-8579
$350.00 Price includes GST.
Low stock: 1 left Warehouse pickup available
Hella 2XD 959 037-812 Green DuraLED Multi-Flash Lamp 9–33 V

Ask about this part

Weight
2.0 kg

Specifications

Manufacturer HELLA
Product type AUTOMOTIVE & TRUCK PARTS
SKU P-HE-H-8579
Weight 2.0 kg

Description

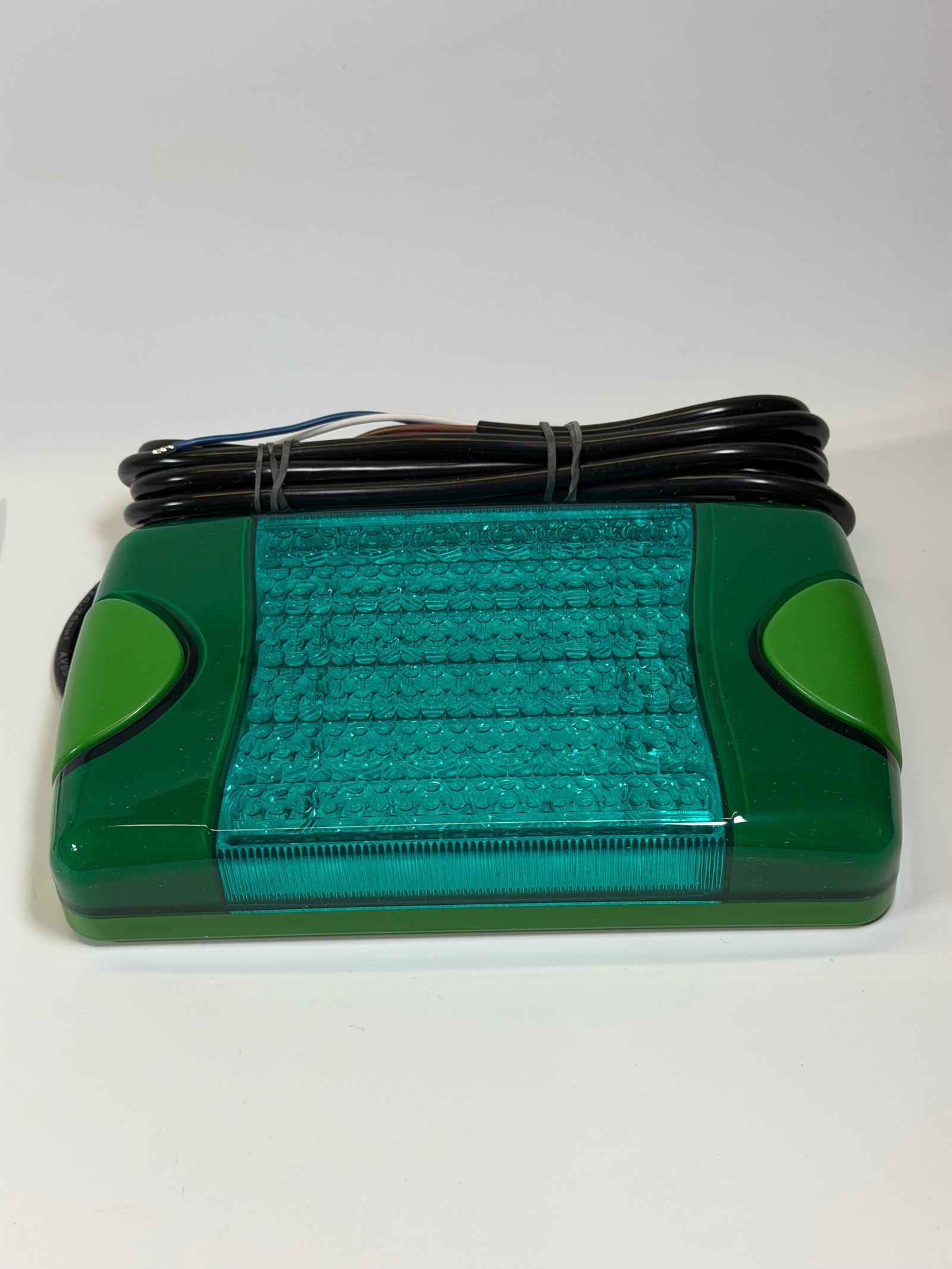

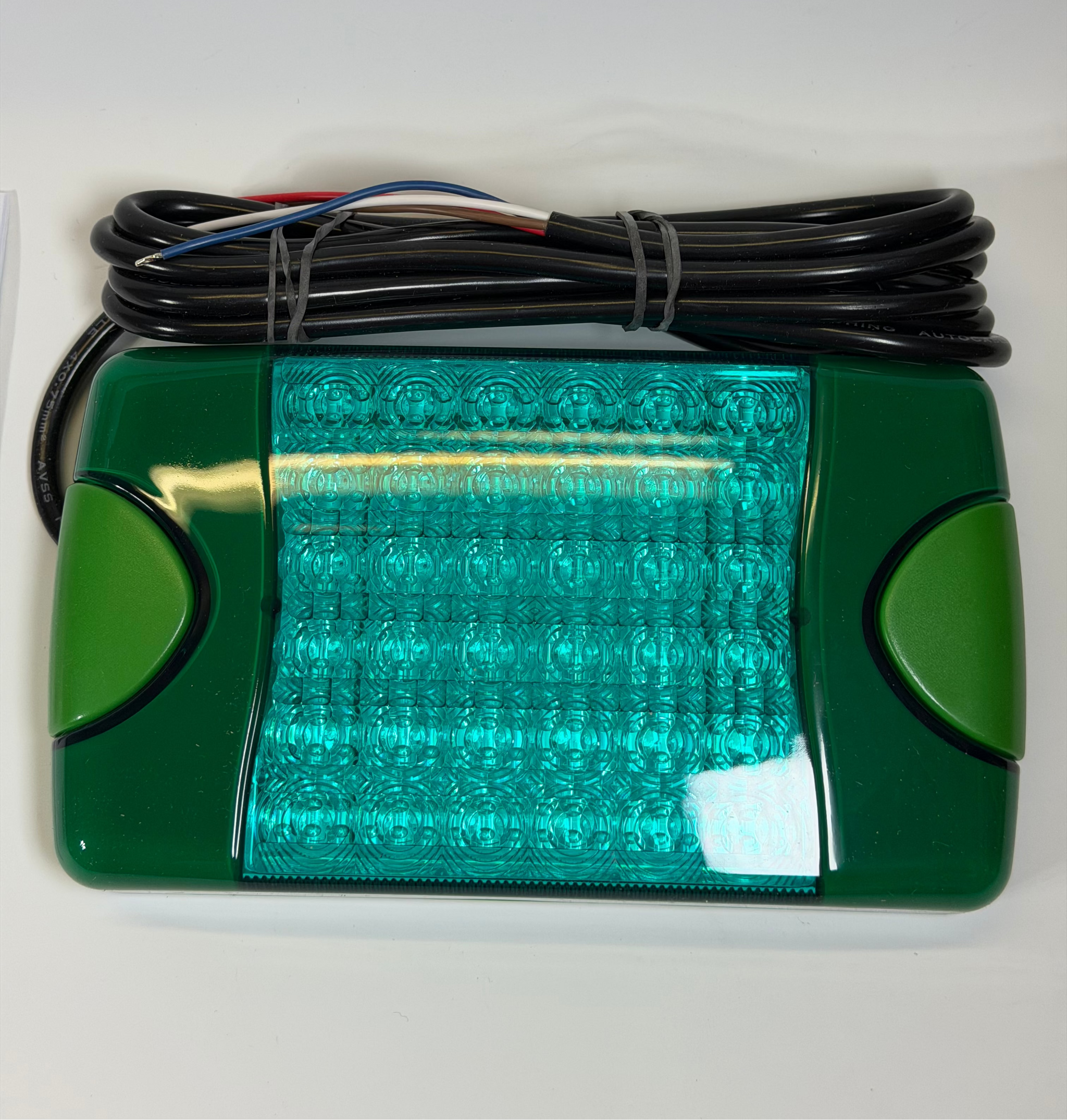

DuraLED® Multi-flash Signal Warning Lamp - Green

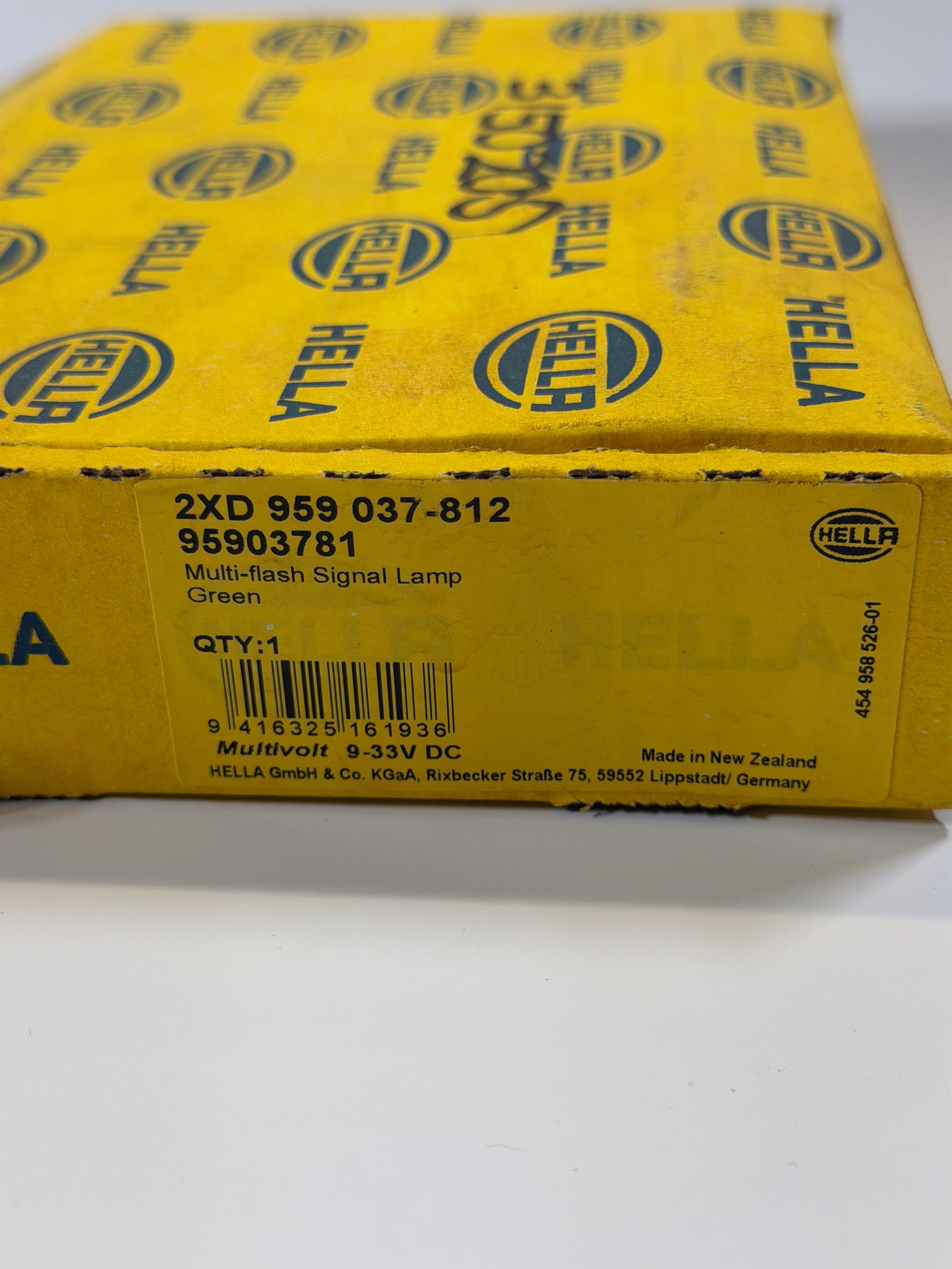

PART NO: 2XD 959 037-812
Legacy PN: 95903781

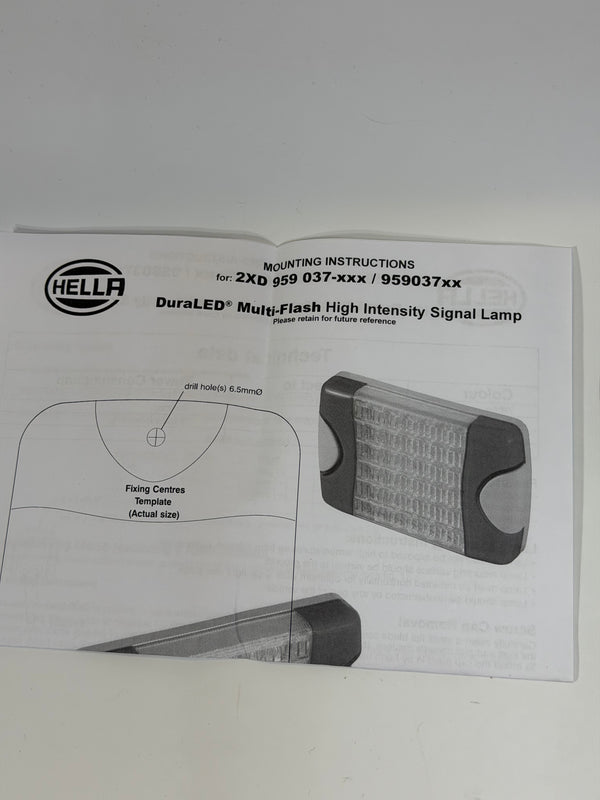

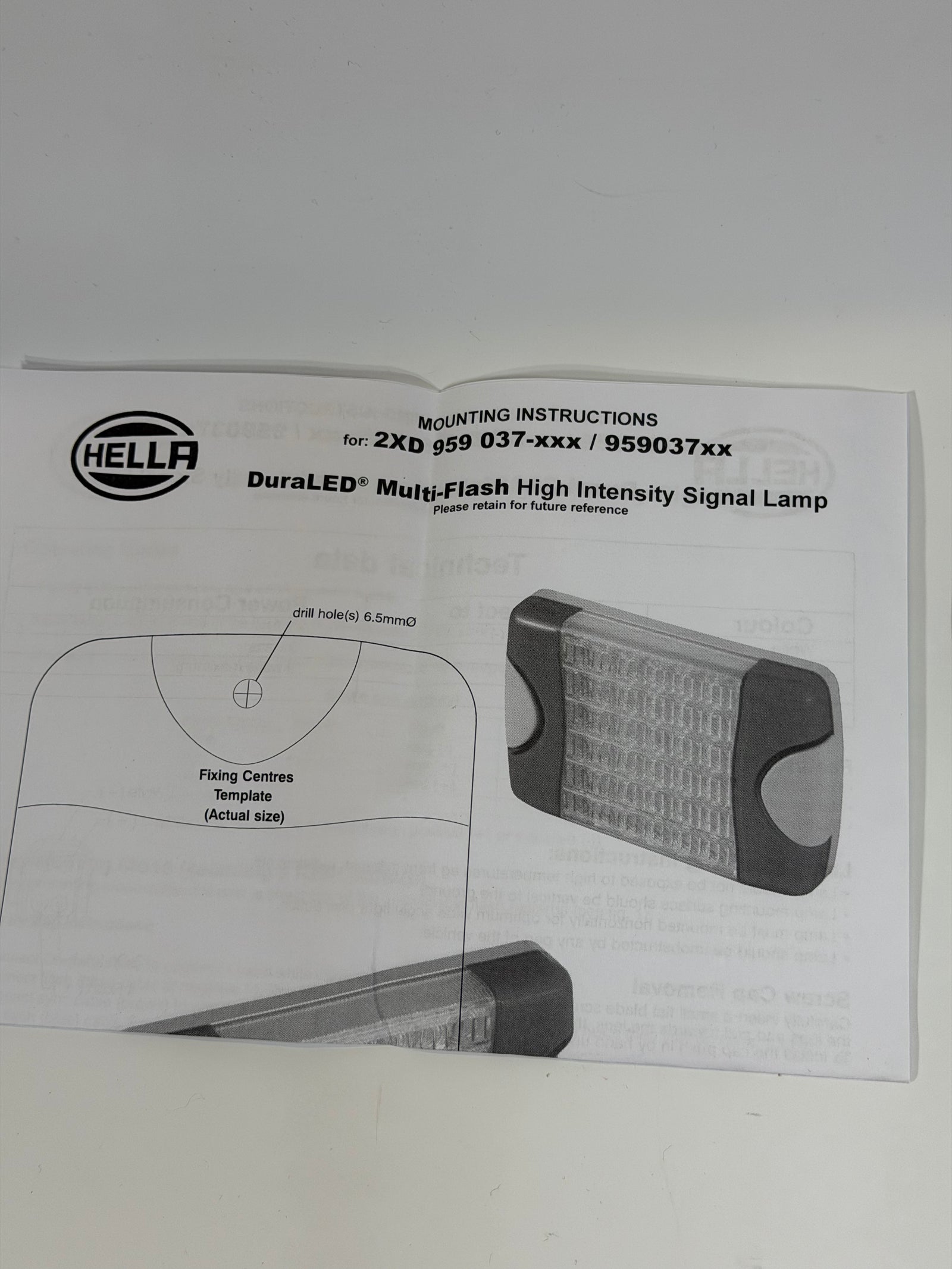

Mounting

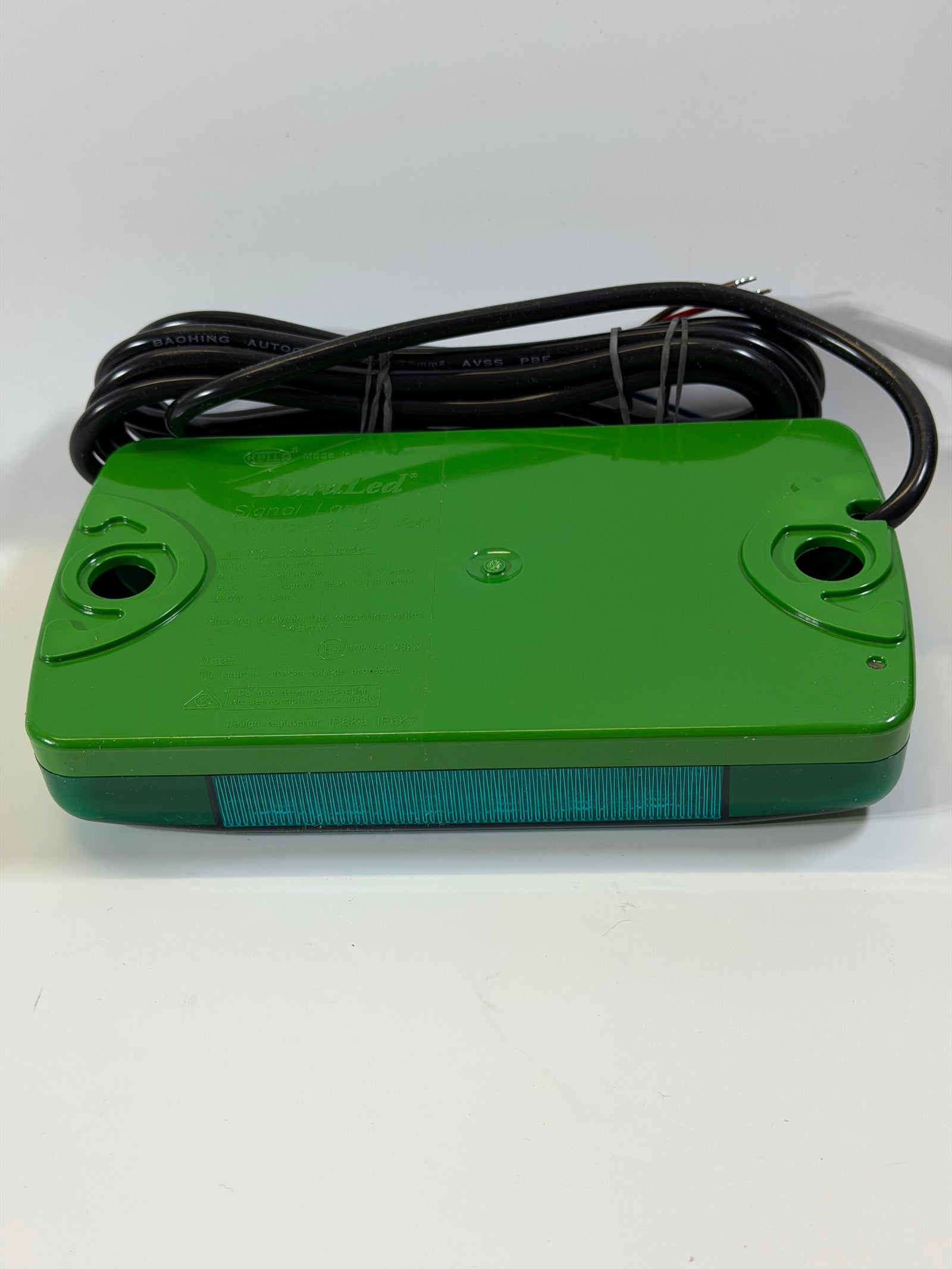

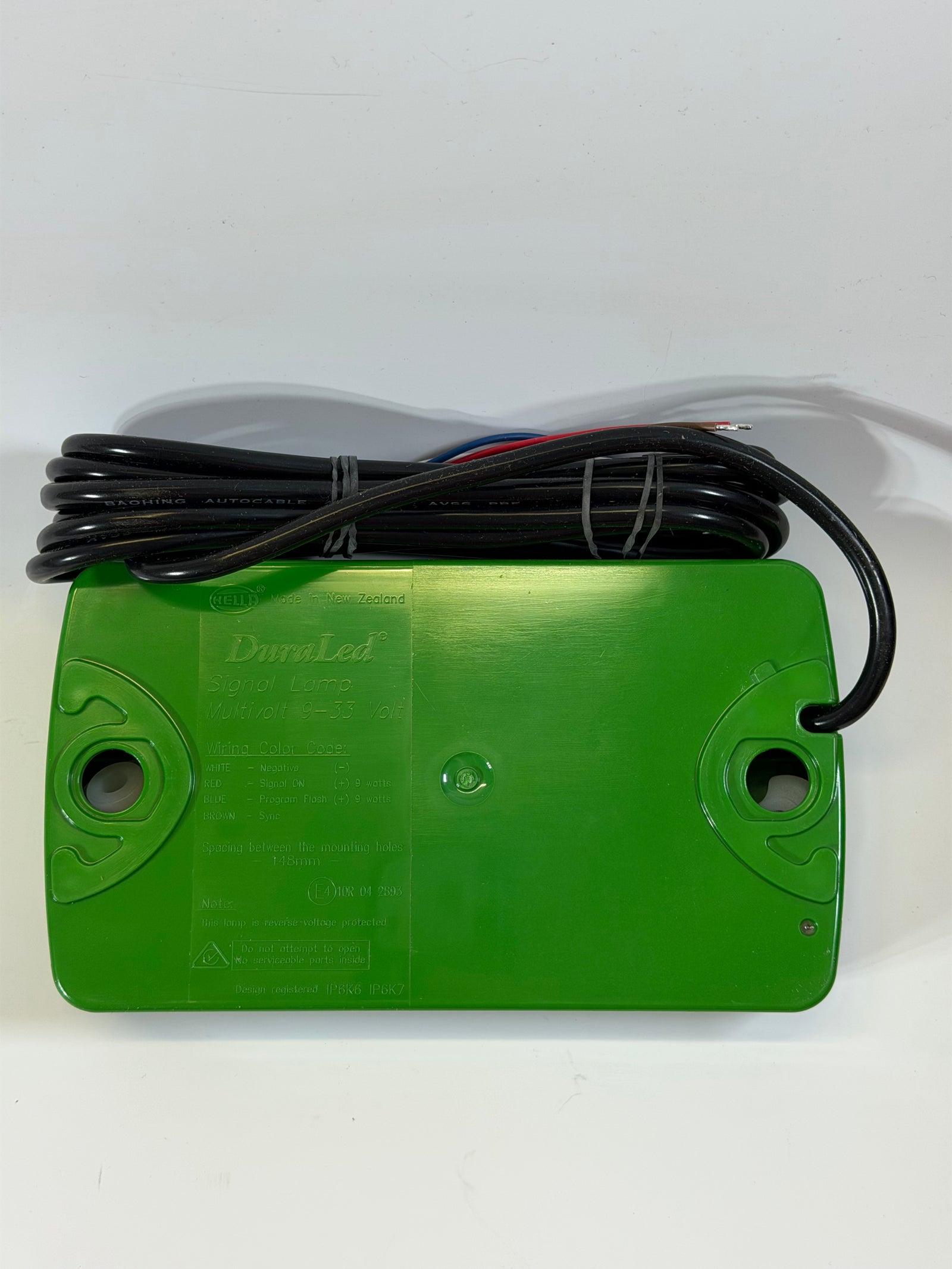

Two hole surface mount with mounting bushes supplied.

Voltage

Multivolt™ for optimum brightness at input voltages from 9 to 33 volts.

Power Consumption

9W continuous (less in flashing modes).

Protection
Reverse polarity and 5000 watt Transient Voltage Suppressor (TVS).
IP 6K6   (Protection against dust and high pressure water jets)
IP 6K7   (Protection against dust and temporary water immersion)

Cable Length

Pre-wired with 2.5m of sheathed multi-core cable.

Compliance
SAE J595 Class 1 compliance
on selected red and amber patterns.
Red flash patterns 1 to 6 and 9/10.
Amber flash patterns 1 to 6.		 EMC e4 03 1925

Flashing Options
Steady state Lamp operates as a continuous ON signal
Independent flash Lamp operates from an external flashing system
Flash state Lamp operates in the flash mode preselected by the user
Blitz state Lamp operates in a burst of quad flashes (pattern 4)

The blitz mode overrides the other operating modes and is triggered by switching the blue cable to negative (-).
