SCHNEIDER ELECTRIC

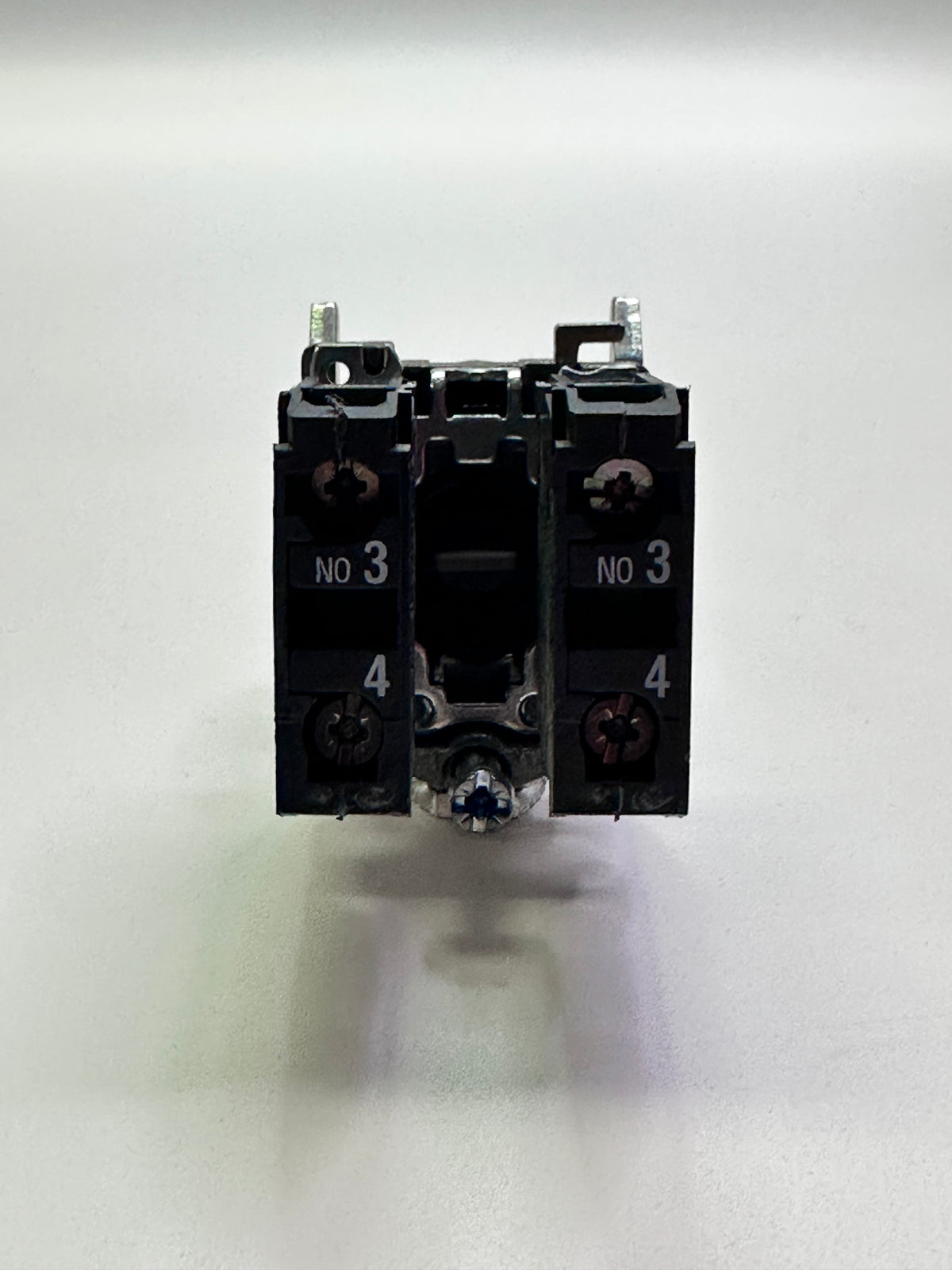

Harmony XD4PA22 Spring Return Joystick Controller 088741
- SKU
- P-HA-S-7306
$210.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 1.2 kg
Specifications
| Manufacturer | SCHNEIDER ELECTRIC |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-HA-S-7306 |
| Weight | 1.2 kg |
Description

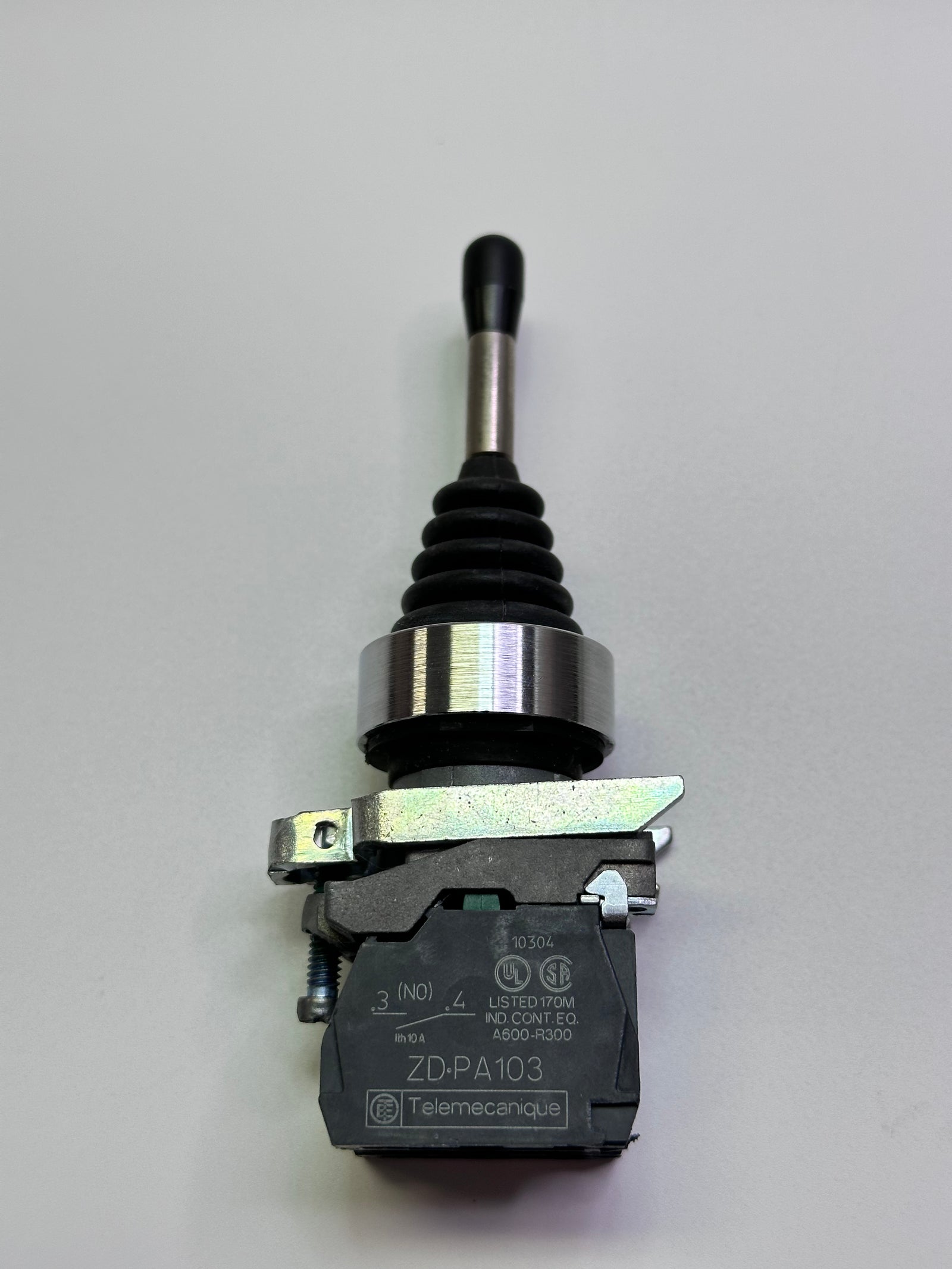

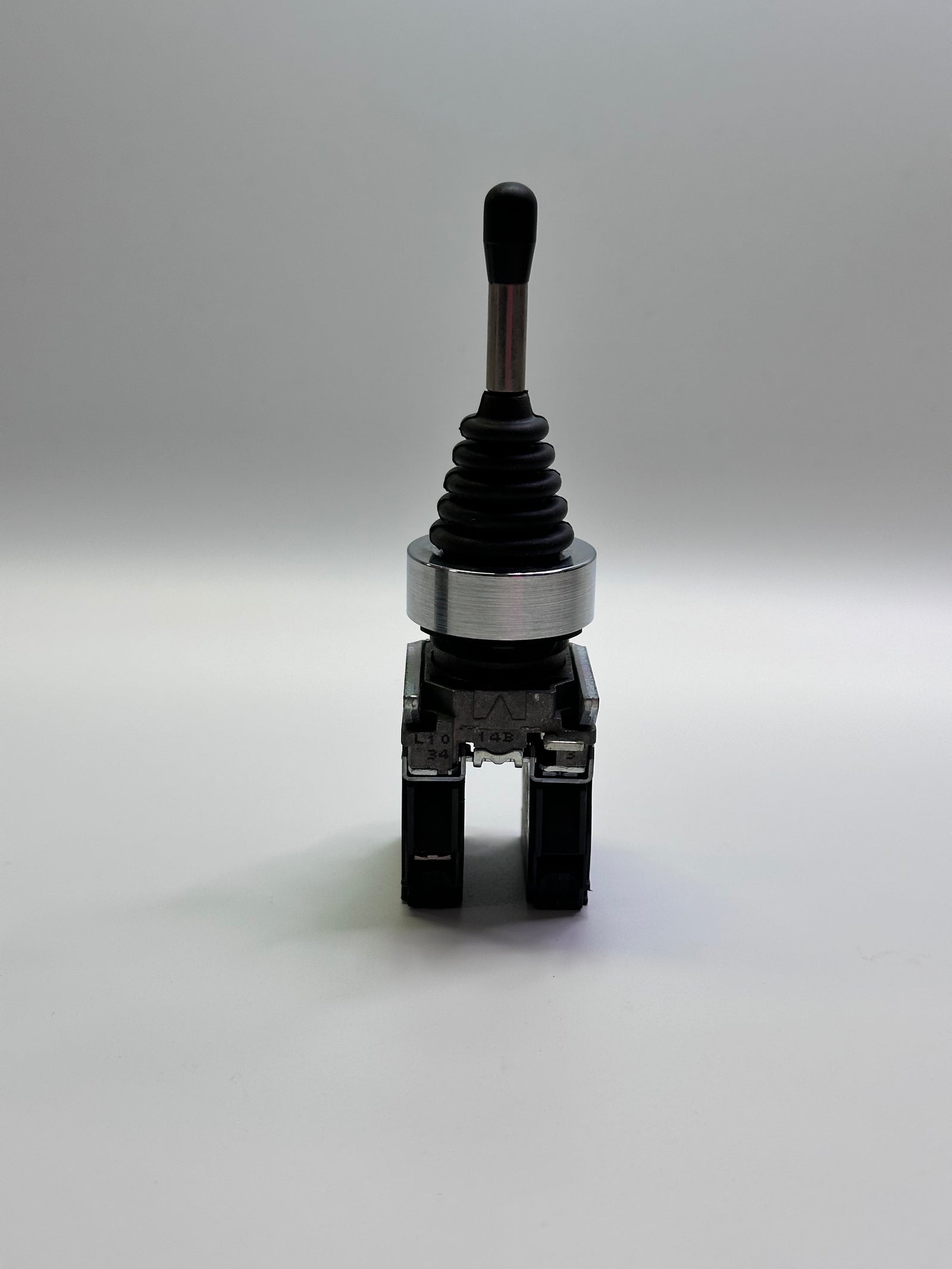

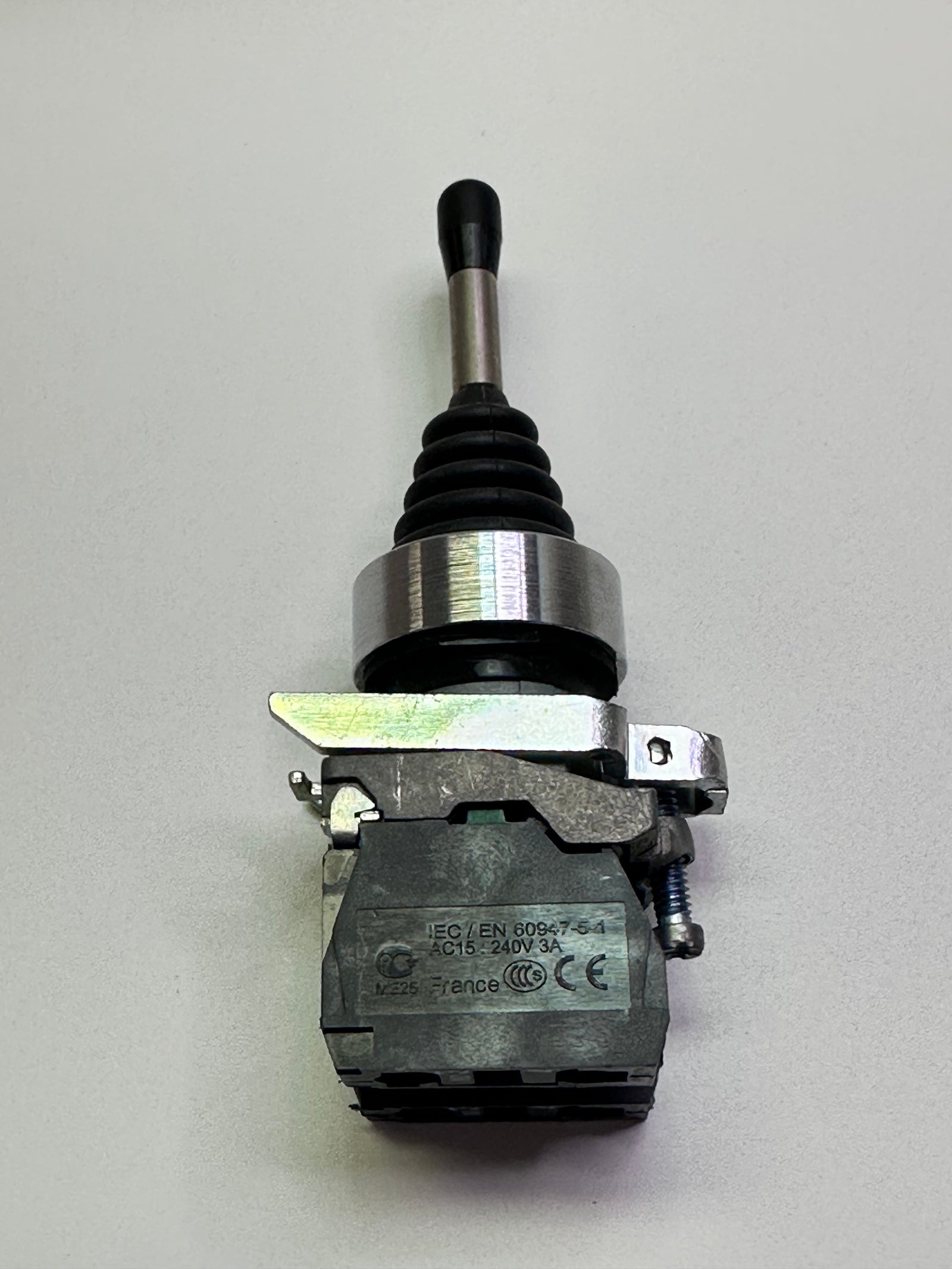

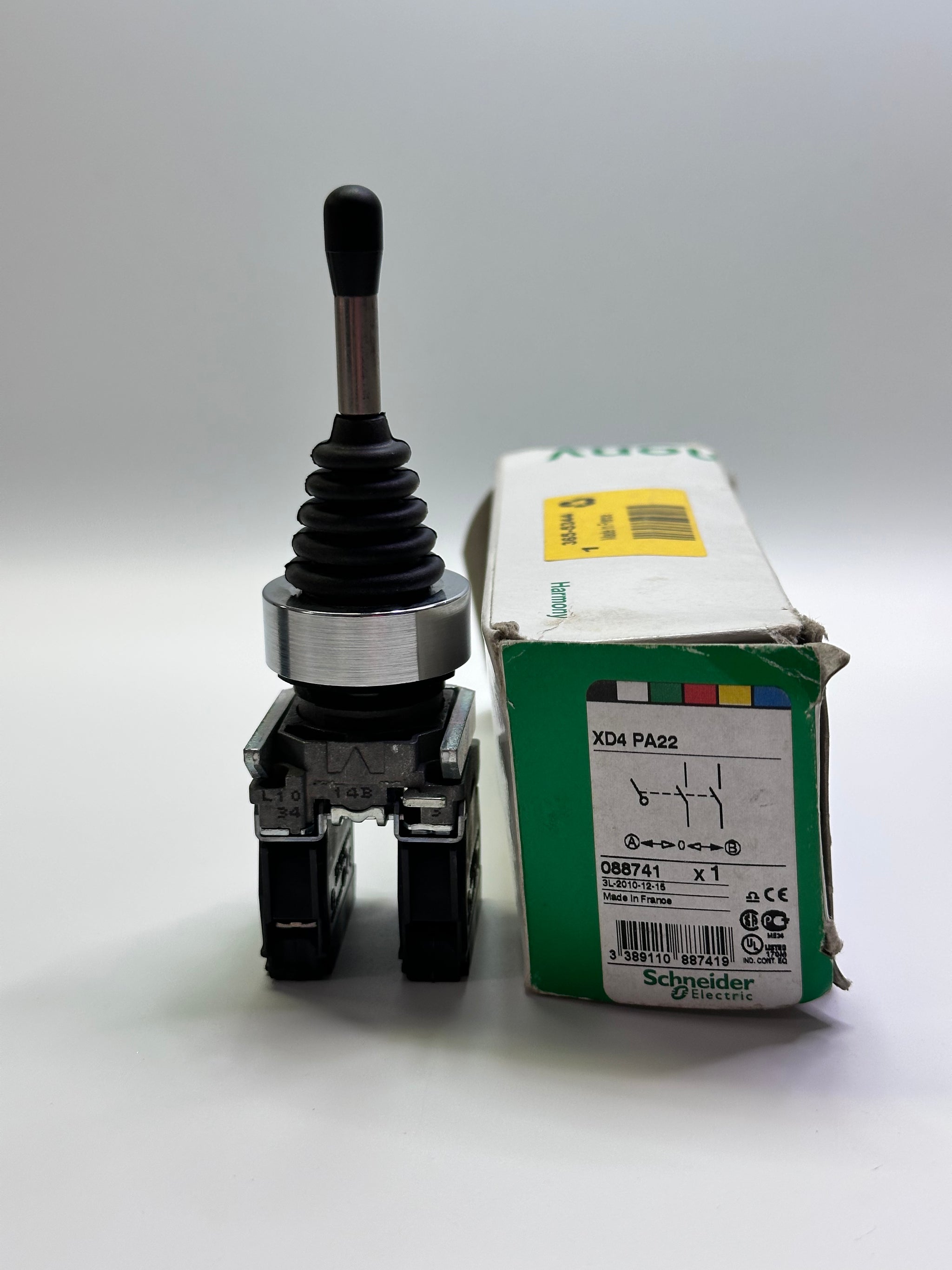

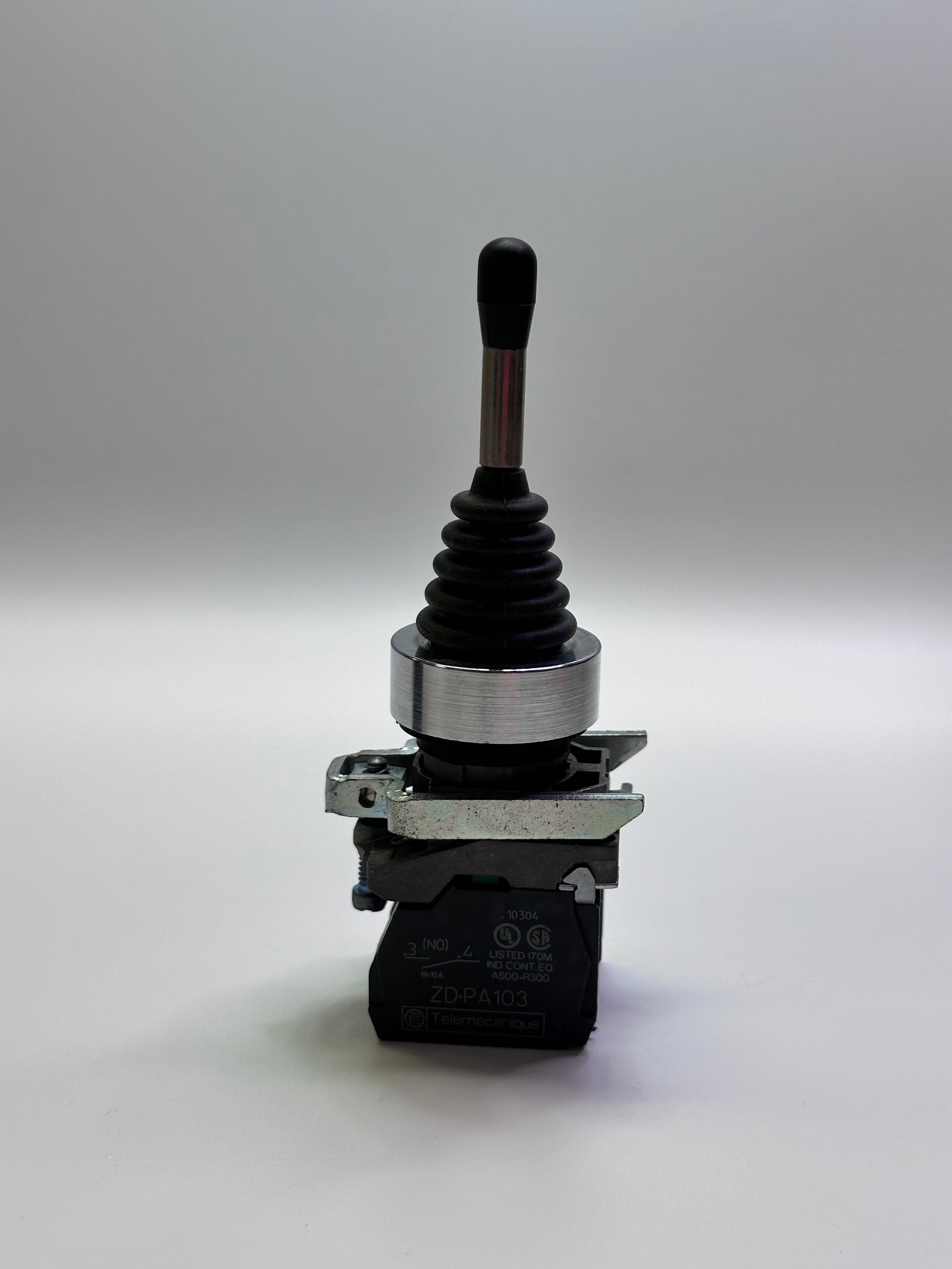

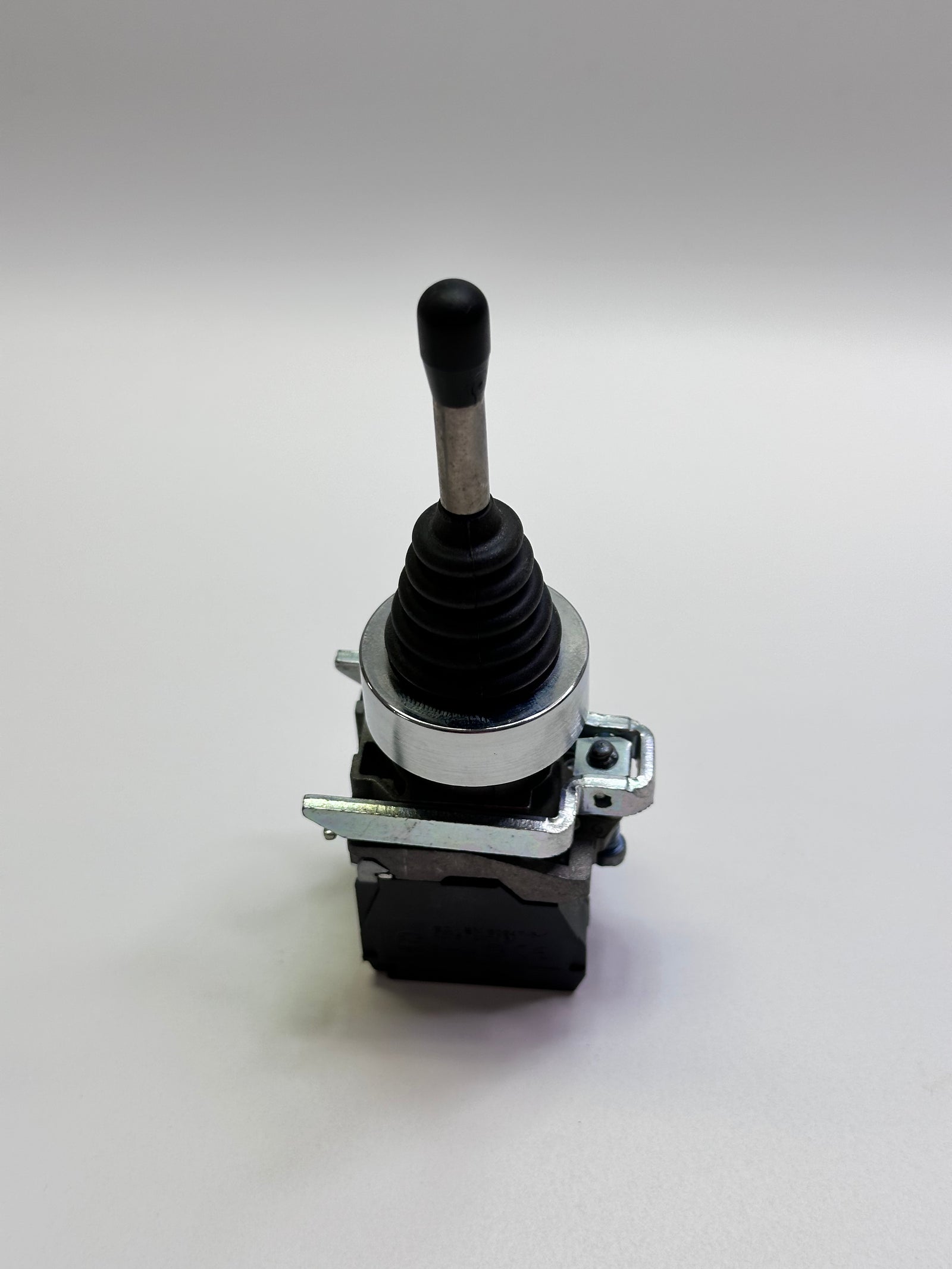

Schneider Electric Harmony XDA XD4PA22 joystick controller, recorded reference 088741.
- Spring return to zero; three positions, two directions.
- Long operating shaft: 54 mm.
- Mounting diameter: 22.5 mm.
- Chromium-plated metal bezel; Zamak fixing collar.

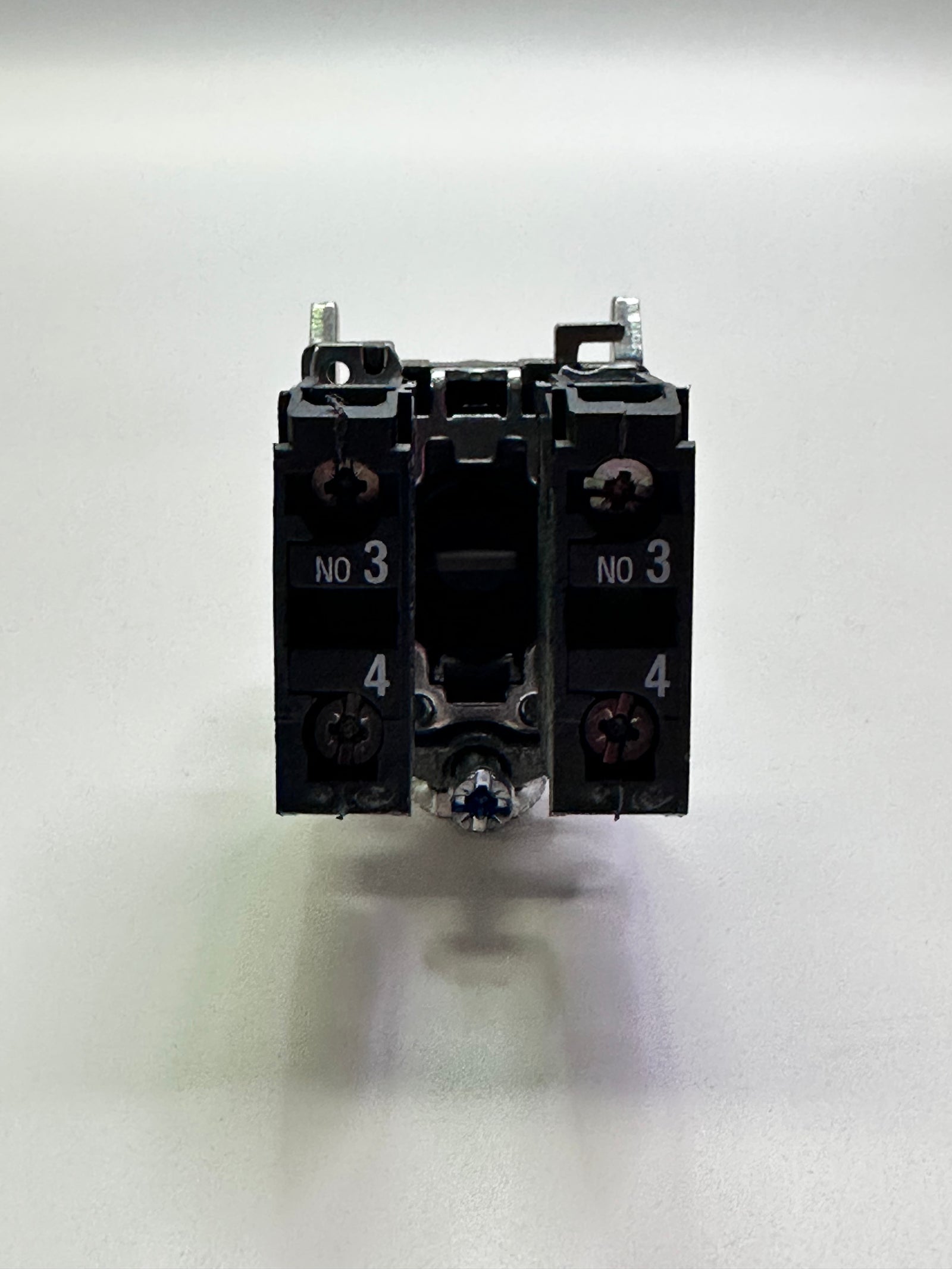

- Source contact composition: 1 NO, slow-break.
- Screw-clamp terminals: source maximum 2 × 1.5 mm² with cable end; minimum 1 × 0.22 mm² without cable end, referenced to IEC 60947-1.
- Source indivisible sales quantity: one.
Confirm the actual contact configuration and electrical ratings before ordering. Two directions do not establish two independent axes, and no current/voltage rating is confirmed by the source body.
