HANSFORD SENSORS

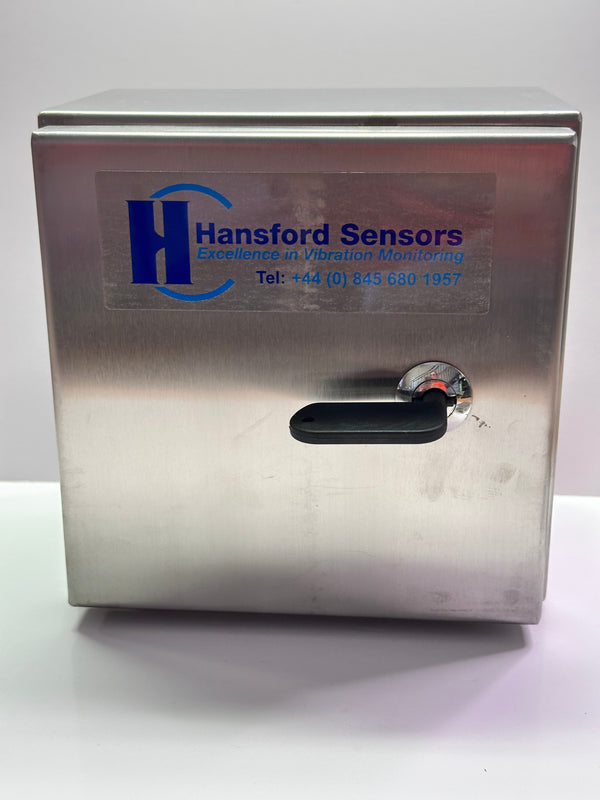

Hansford HS-SE Switching Enclosure / Accelermeter Switch HS-SE008-SR
- SKU
- P-HA-H-6782
$650.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 5.0 kg

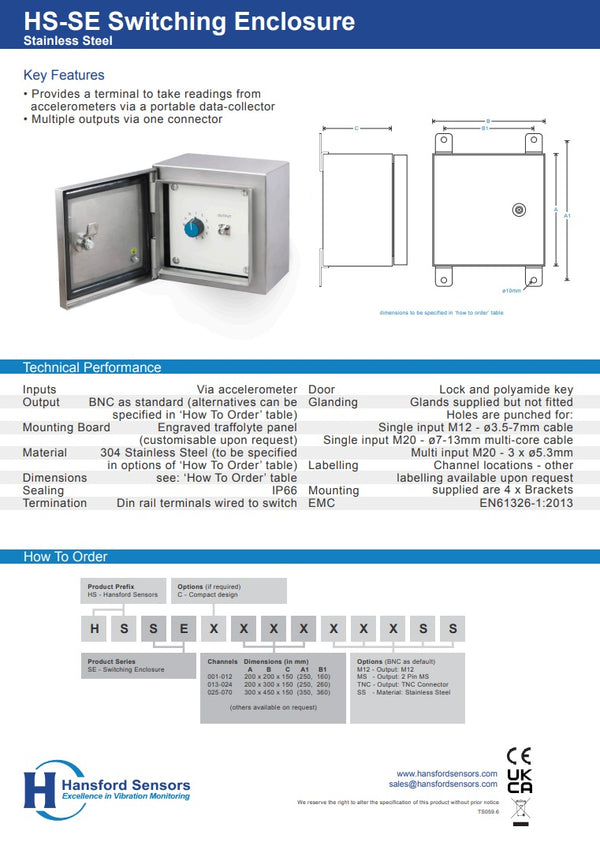

Specifications
| Manufacturer | HANSFORD SENSORS |
|---|---|
| Product type | Electrical |
| SKU | P-HA-H-6782 |
| Weight | 5.0 kg |
Description

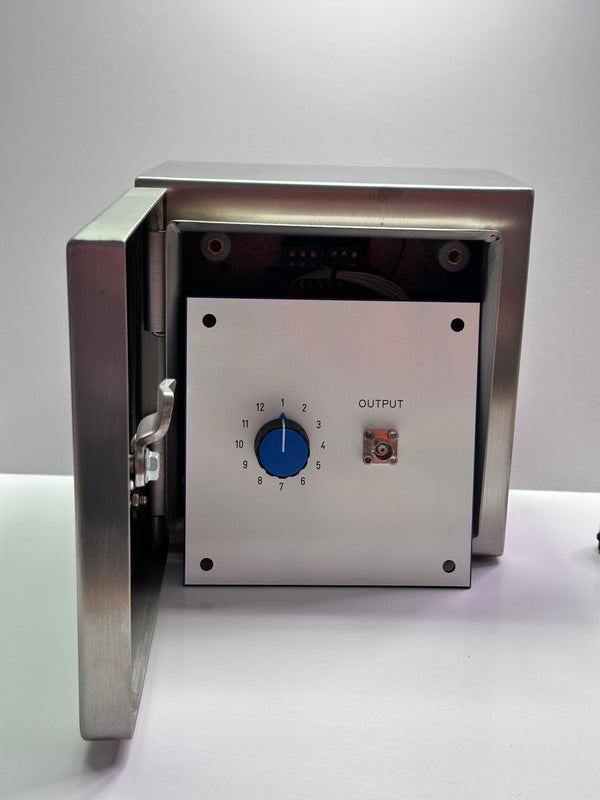

HS-SE008-SR, 12 Channel
- Provides a terminal to take readings from accelerometers via a portable data-collector

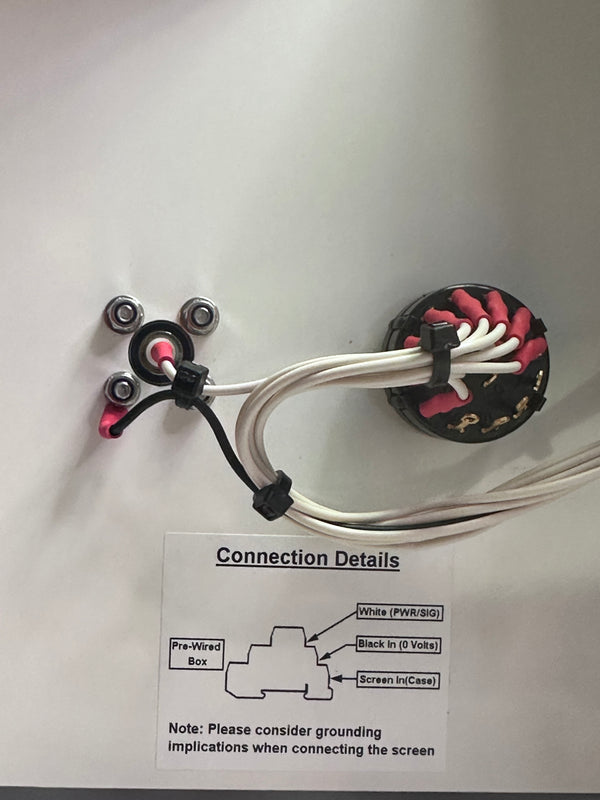

- Multiple outputs via one connector
| Feature |
Industrial, Multi Sensor |
|---|---|
| Inputs |
Via accelerometer |
| Output |
BNC as standard (alternatives can be specified in ‘How To Order’ table) |
| Mounting Board |
Engraved traffolyte panel (customisable upon request) |
| Material |

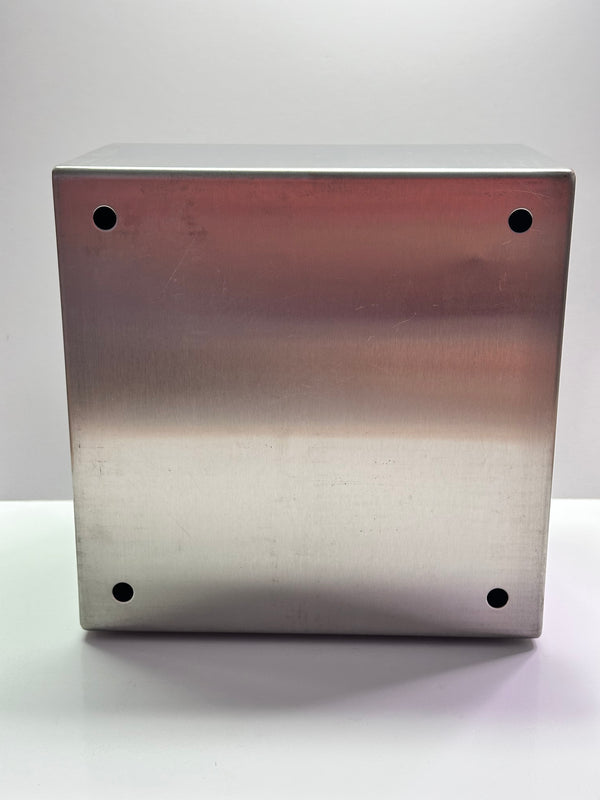

304 Stainless Steel (to be specified in options of ‘How To Order’ table) |
| Termination |

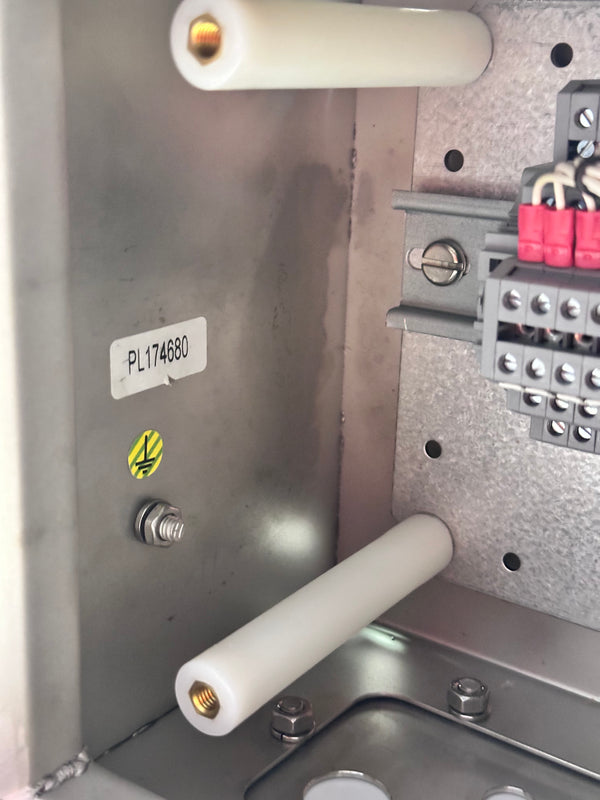

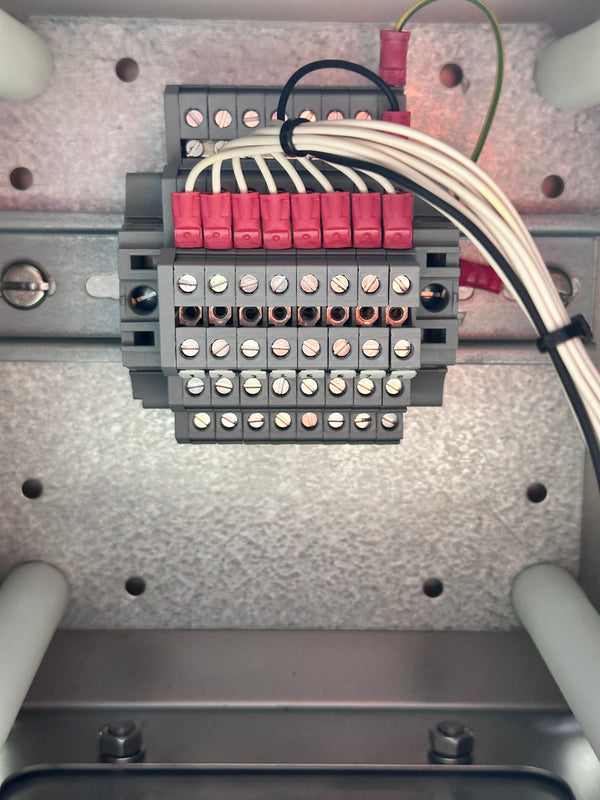

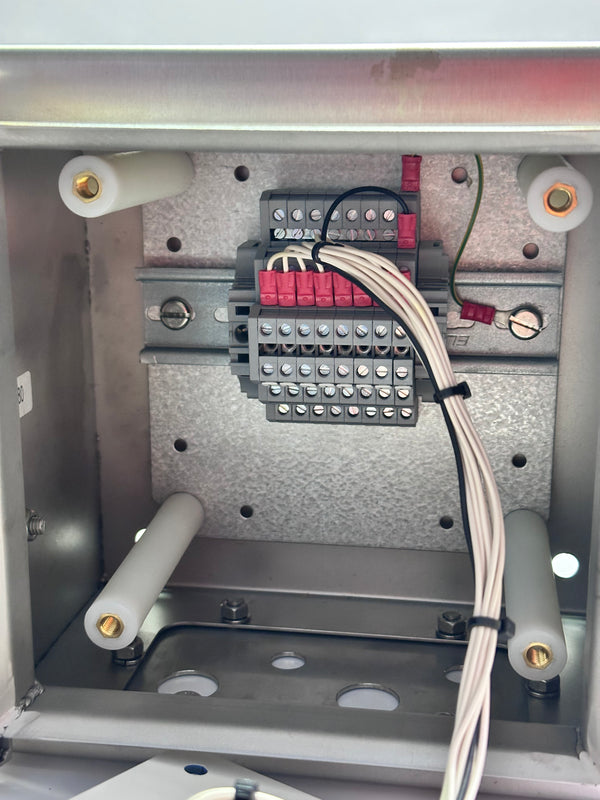

Din rail terminals wired to switch |
| Dimensions |
see: ‘How To Order’ table |
| Sealing |
IP66 |
| Door |

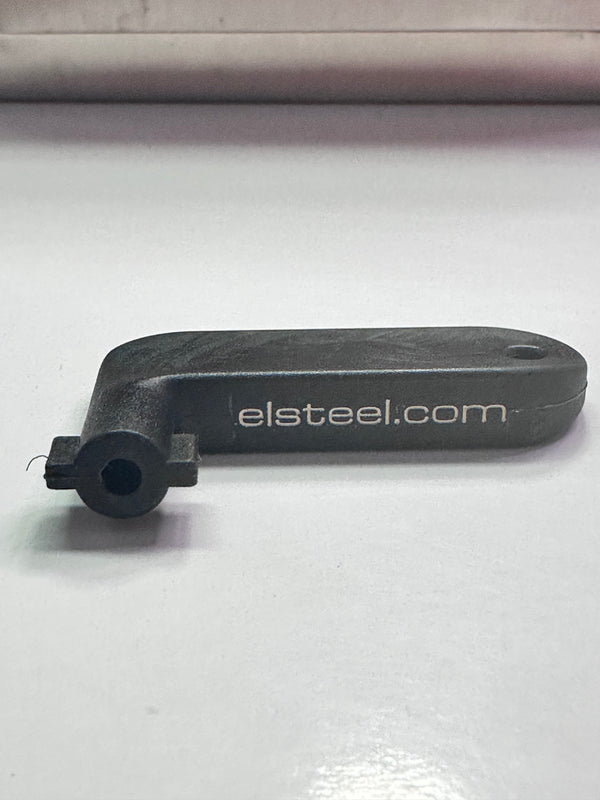

Lock and polyamide key |
| Glanding |

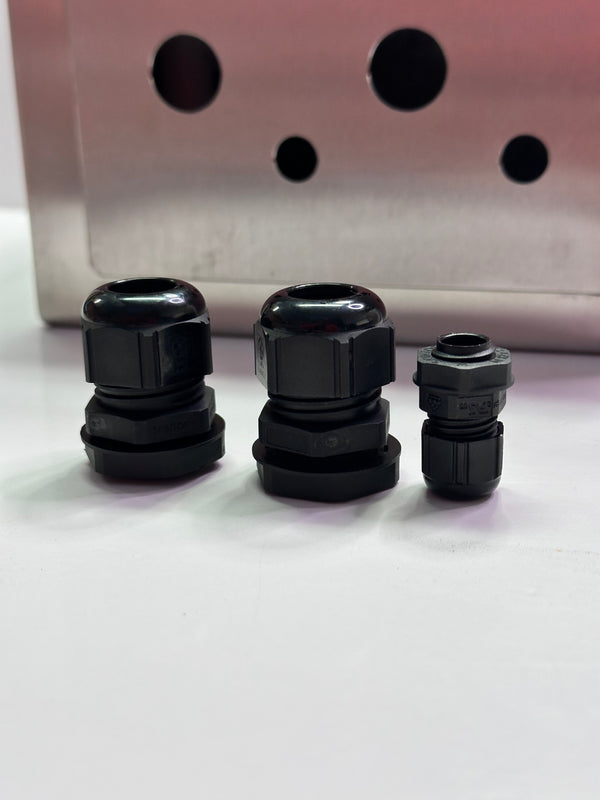

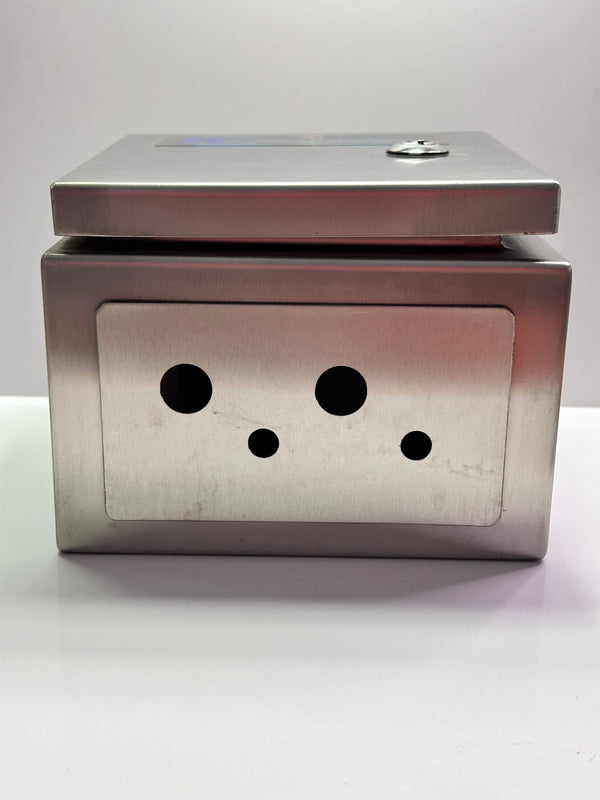

Glands supplied but not fitted, Holes are punched for:, Multi input M20 – 3 x ø5.3mm/ ø0.2in, Single input M12 – ø3.5-7mm/ ø0.1-0.3in cable, Single input M20 – ø7-13mm/ ø0.3-0.7in multi-core cable |
| Labelling |

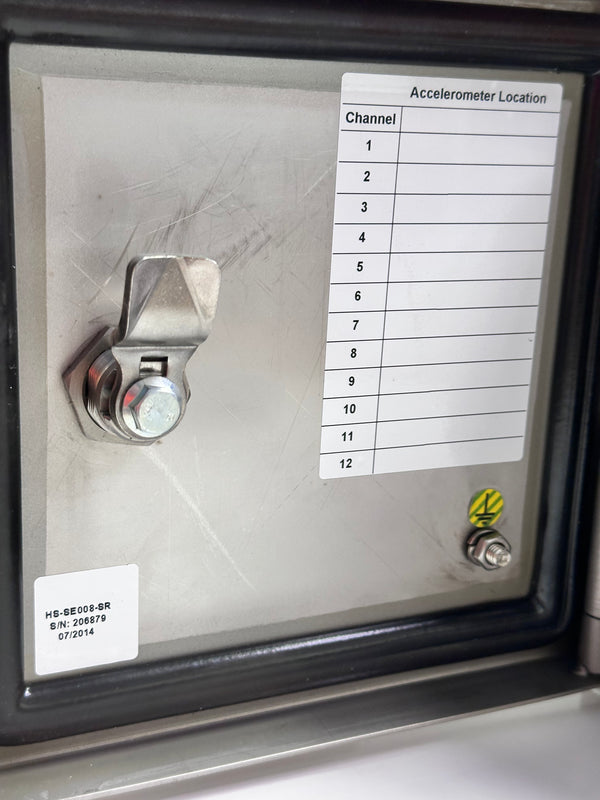

Channel locations – other labelling available upon request |
| Mounting |

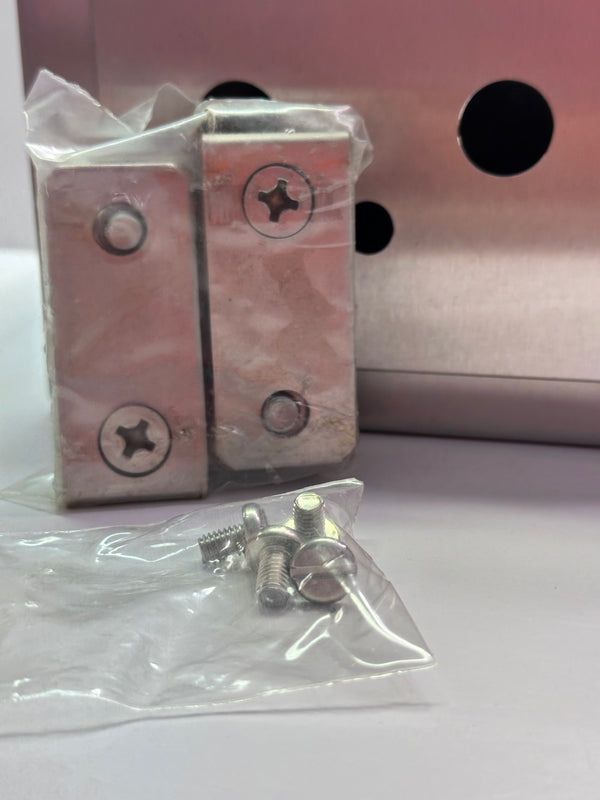

supplied are 4 x Brackets |
| EMC |
EN61326-1:2013 |
