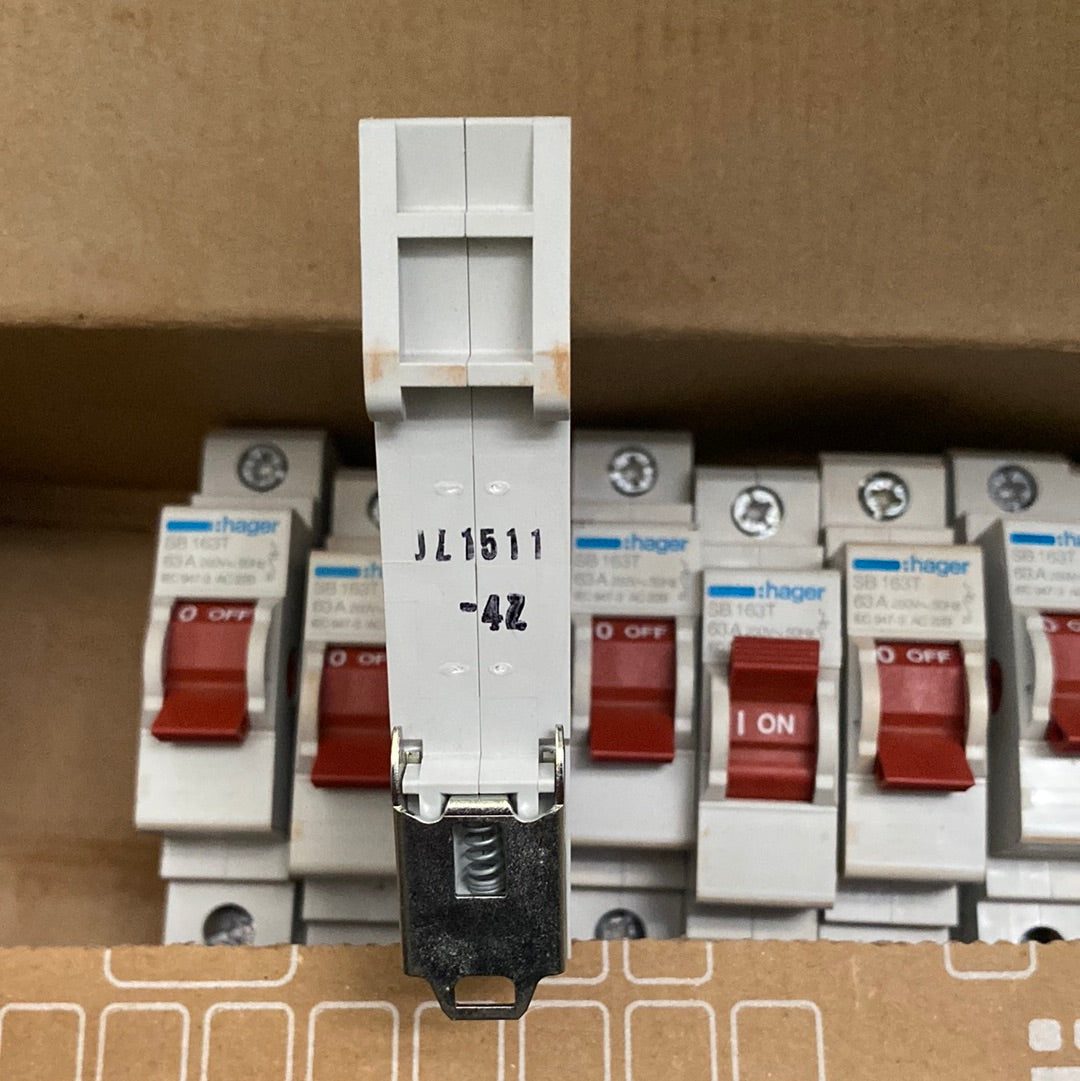

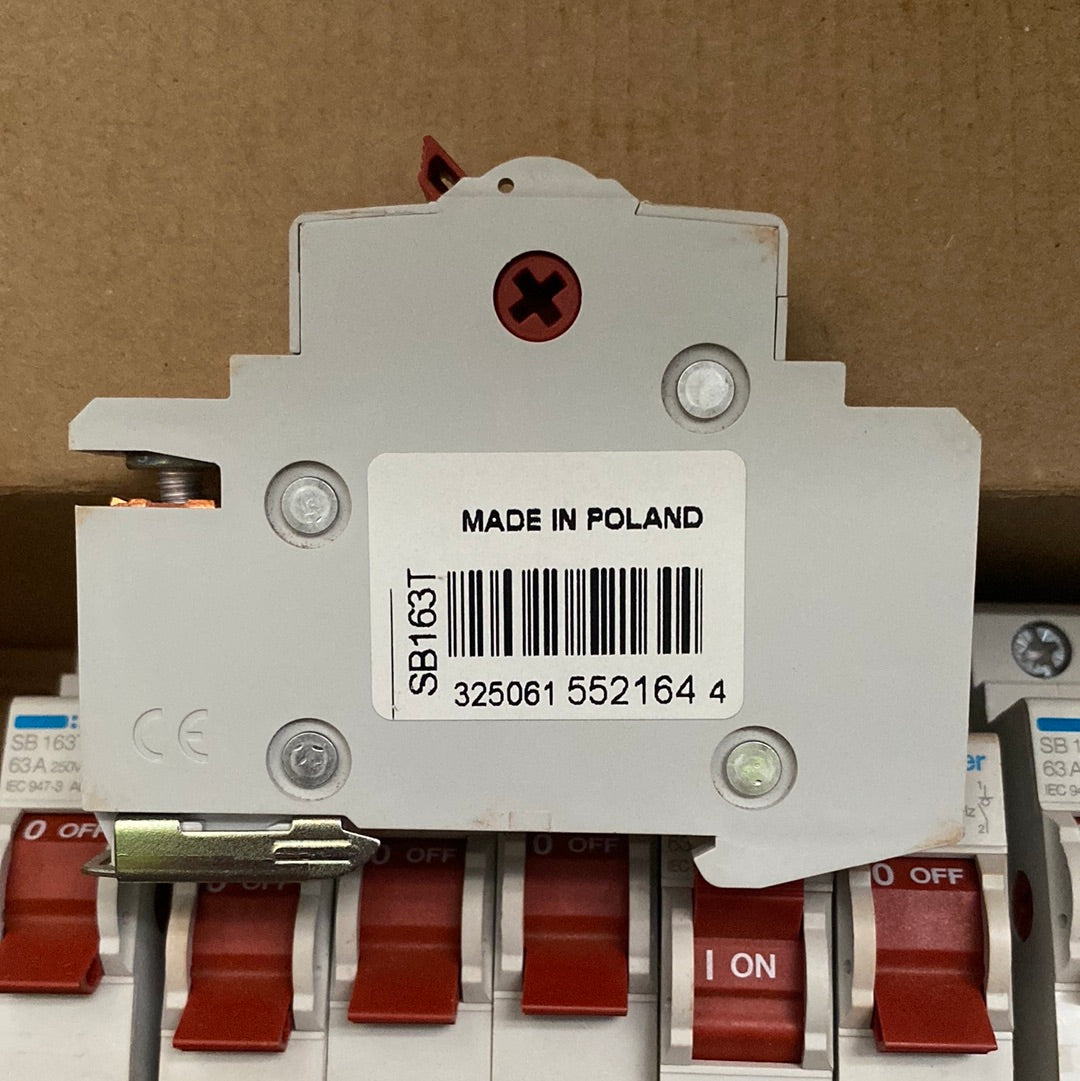

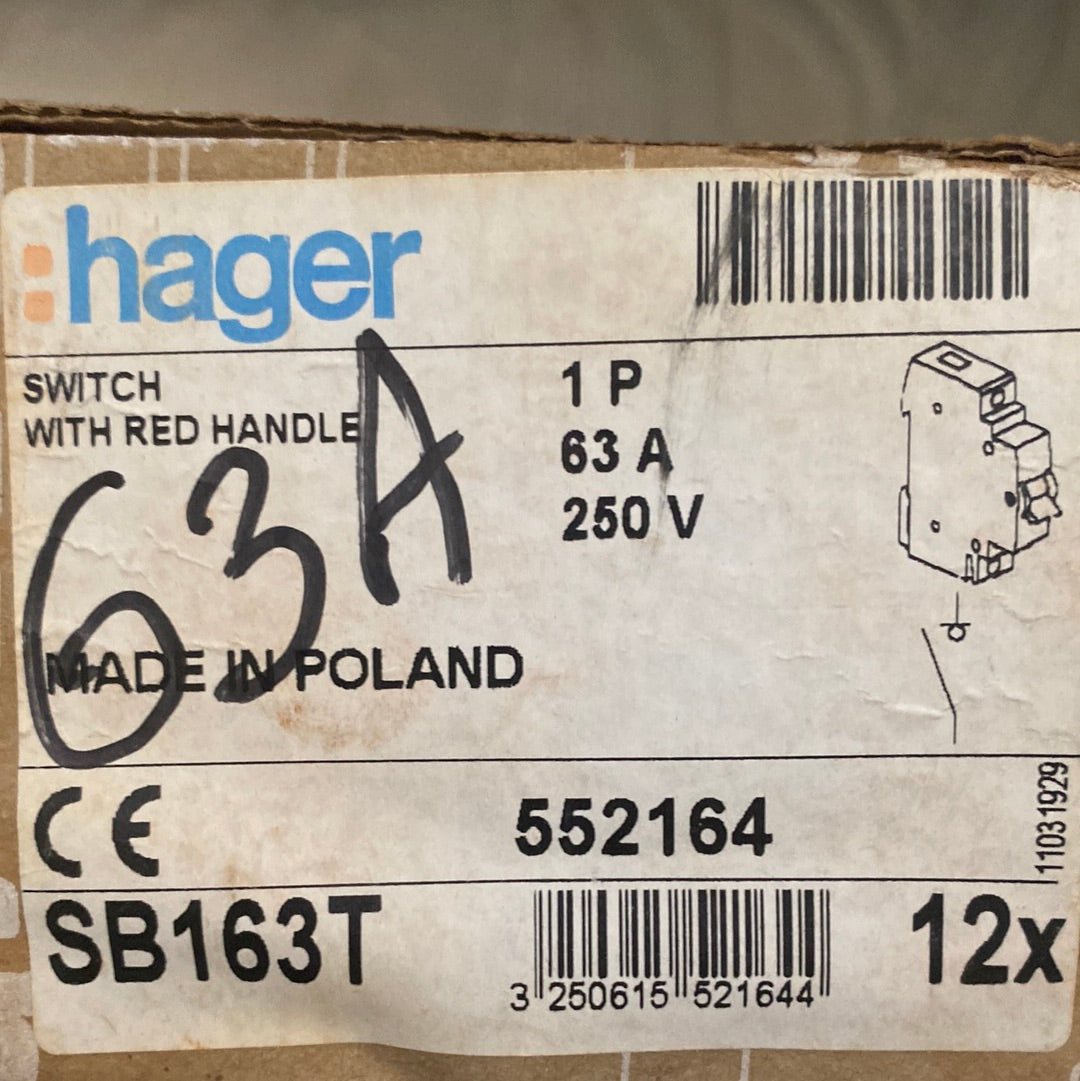

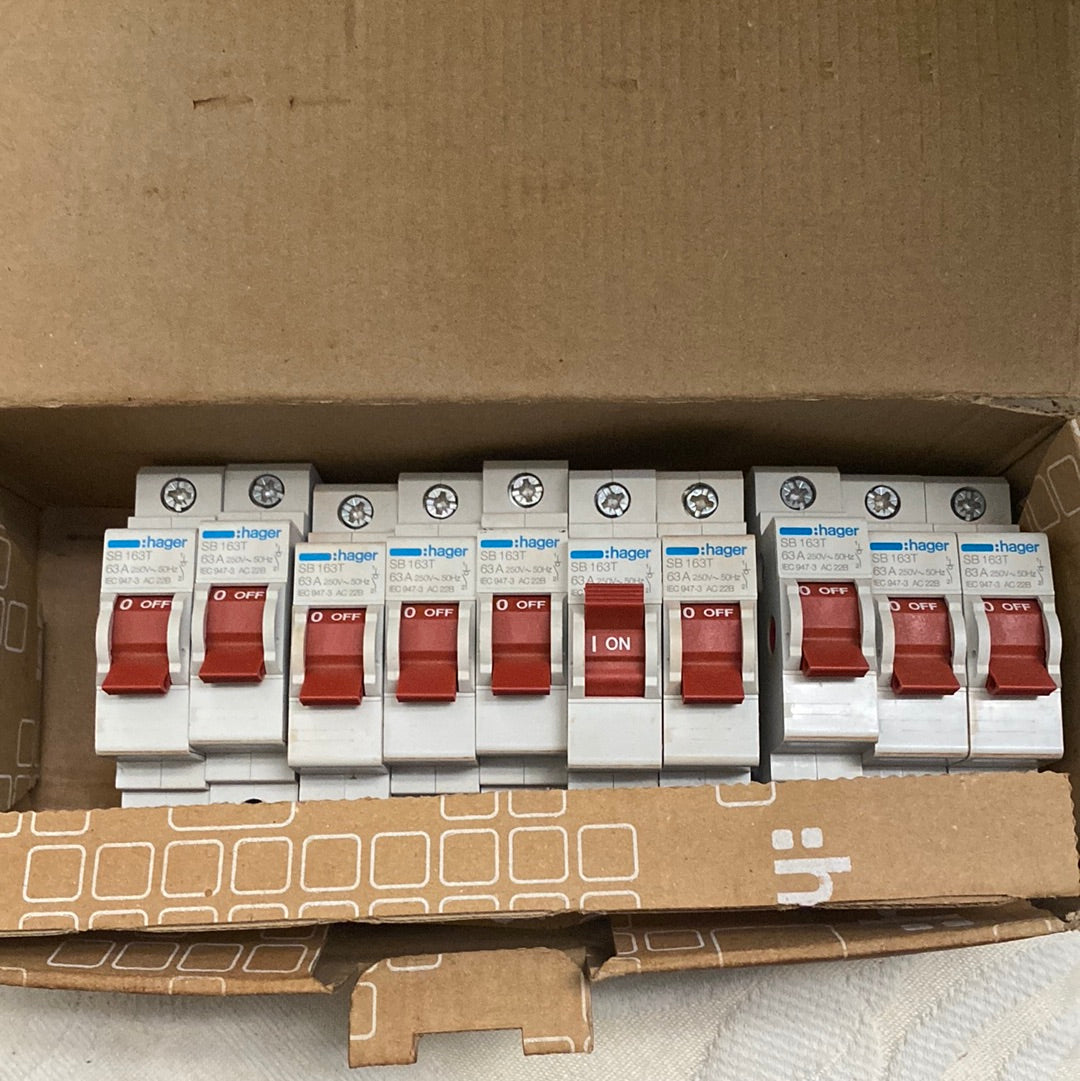

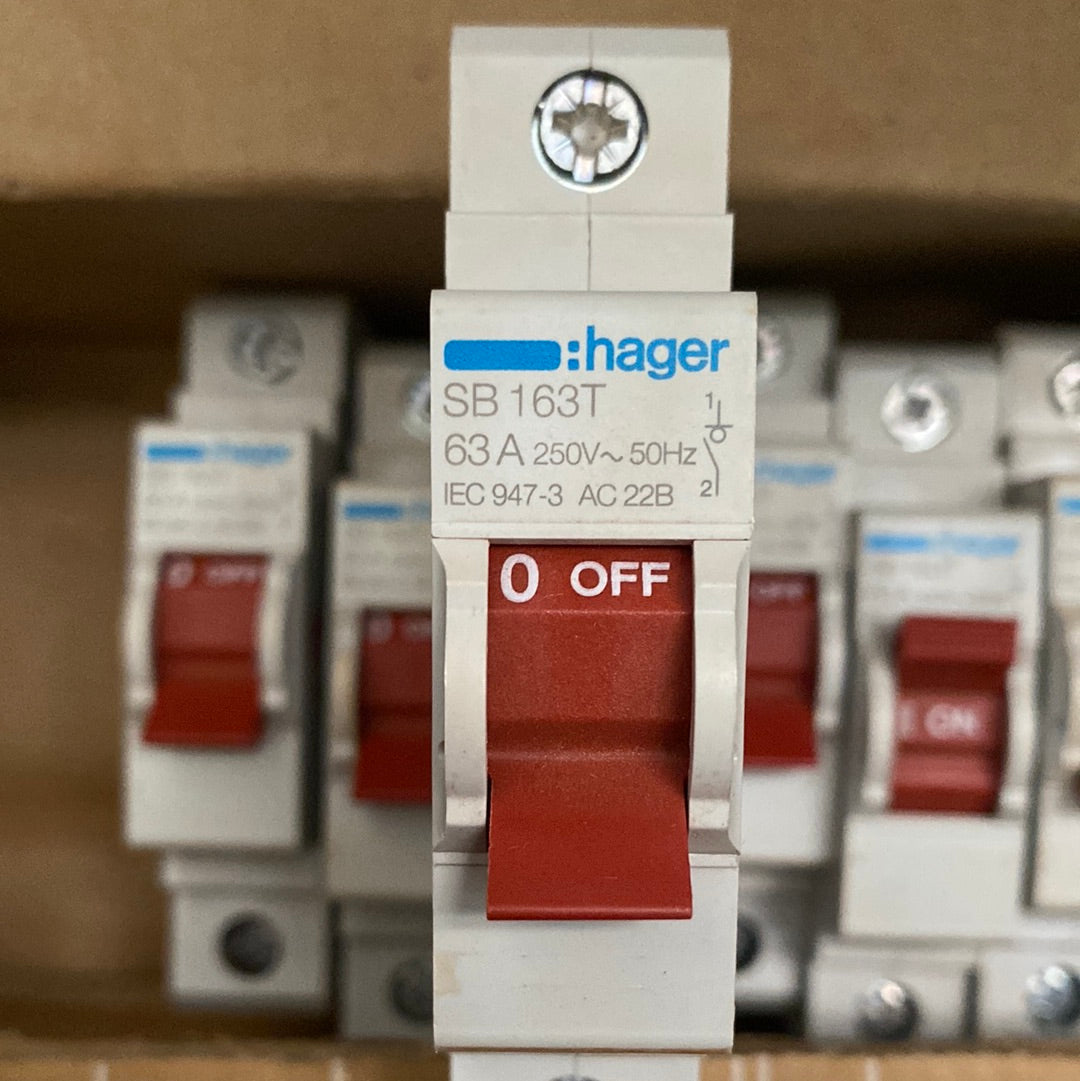

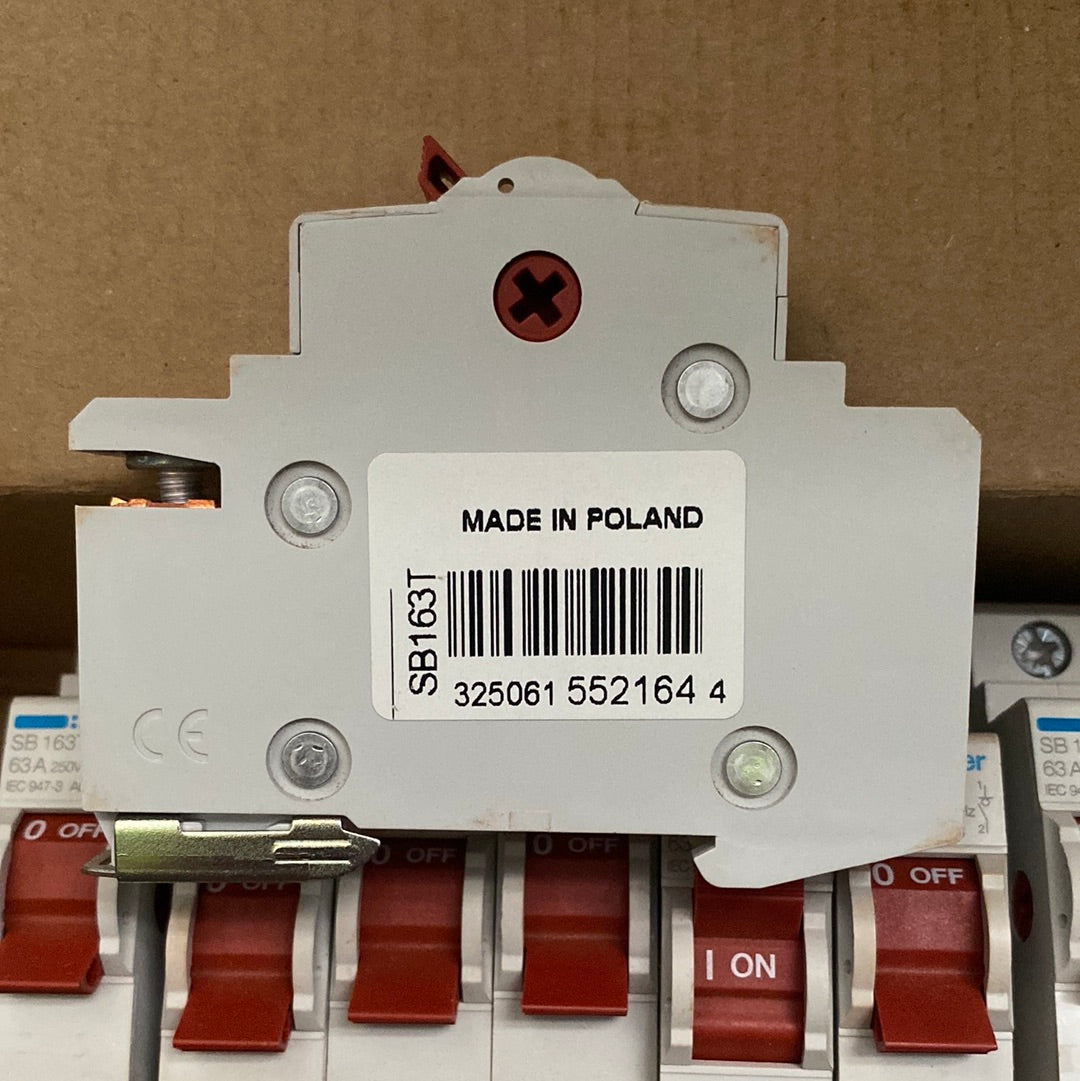

Hager SB 163T 63A Modular Switch with Red Toggle
Hager SB 163T 63A Modular Switch with Red Toggle
Hager SB 163T 63A Modular Switch with Red Toggle
Hager SB 163T 63A Modular Switch with Red Toggle
Hager SB 163T 63A Modular Switch with Red Toggle
Hager SB 163T 63A Modular Switch with Red Toggle

Hager SB 163T 63A Modular Switch with Red Toggle

HAGER SKU: P-HA-M-0585

$14.50

Tax included

Available Now!

Switch with Red Toggle

1Pole, 63A, 250V

Archi­tec­ture
  • Number of poles
    1
  • Neutral posi­tion
    Without neutral
  • Type of pole
    1P
Elec­tric current
  • Rated current
    63 A
  • Rated condi­tional short-­cir­cuit current Icc with gl-gG fuses
    0.94 kA
  • Accept­able current rating AC21 category A
    63 A
  • Accept­able current rating AC21 category B
    63 A
  • Accept­able current rating AC22 category A
    63 A
  • Accept­able current rating AC22 category B
    63 A
  • Rated short-­cir­cuit making capa­city Icm under 240 V AC according to IEC 60947-3
    1.33 kA
  • Rated short-­time with­stand current Icw 1s IEC 60947
    0.94 kA
Install­a­tion, mounting
  • Nominal tight­ening torque
    2.80 - 2.80 Nm
Voltage
  • Rated oper­a­tional voltage Ue
    230 - 230 V
  • Type voltage supply
    AC
  • Rated insu­la­tion voltage Ui
    440 V
  • Rated impulse with­stand voltage Uimp
    6,000 V
Capa­city
  • Number of modules
    1
Safety
  • Ingress Protec­tion (IP) class
    IP20
Frequency
  • Frequency
    50 - 60 Hz
Dimen­sions
  • Height
    83 mm
  • Width
    17.50 mm
  • Depth
    68 mm
Equip­ment
  • Number of NO contacts
    1
  • Number of NC contacts
    0
Use condi­tions
  • Oper­ating temper­ature
    -20 - 70 °C
  • Stor­age/trans­port temper­ature
    -40 - 80 °C
Connec­tion
  • Cross-sec­tion flex­ible conductor
    2.5 - 16 mm²
  • Cross-sec­tion rigid conductor
    2.5 - 25 mm²
Endur­ance
  • Number of mech­an­ical oper­a­tions
    60,000
  • Elec­trical durab­ility at nominal load in AC21 in oper­ating cycles
    5,000
  • Elec­trical durab­ility at nominal load in AC22 in oper­ating cycles
    5,000
Power
  • Total power loss under IN
    2.30 W
  • Power loss per pole at In
    2.30 W
Connectivity
  • Top connec­tion align­ment for modular devices
    Aligned terminal
