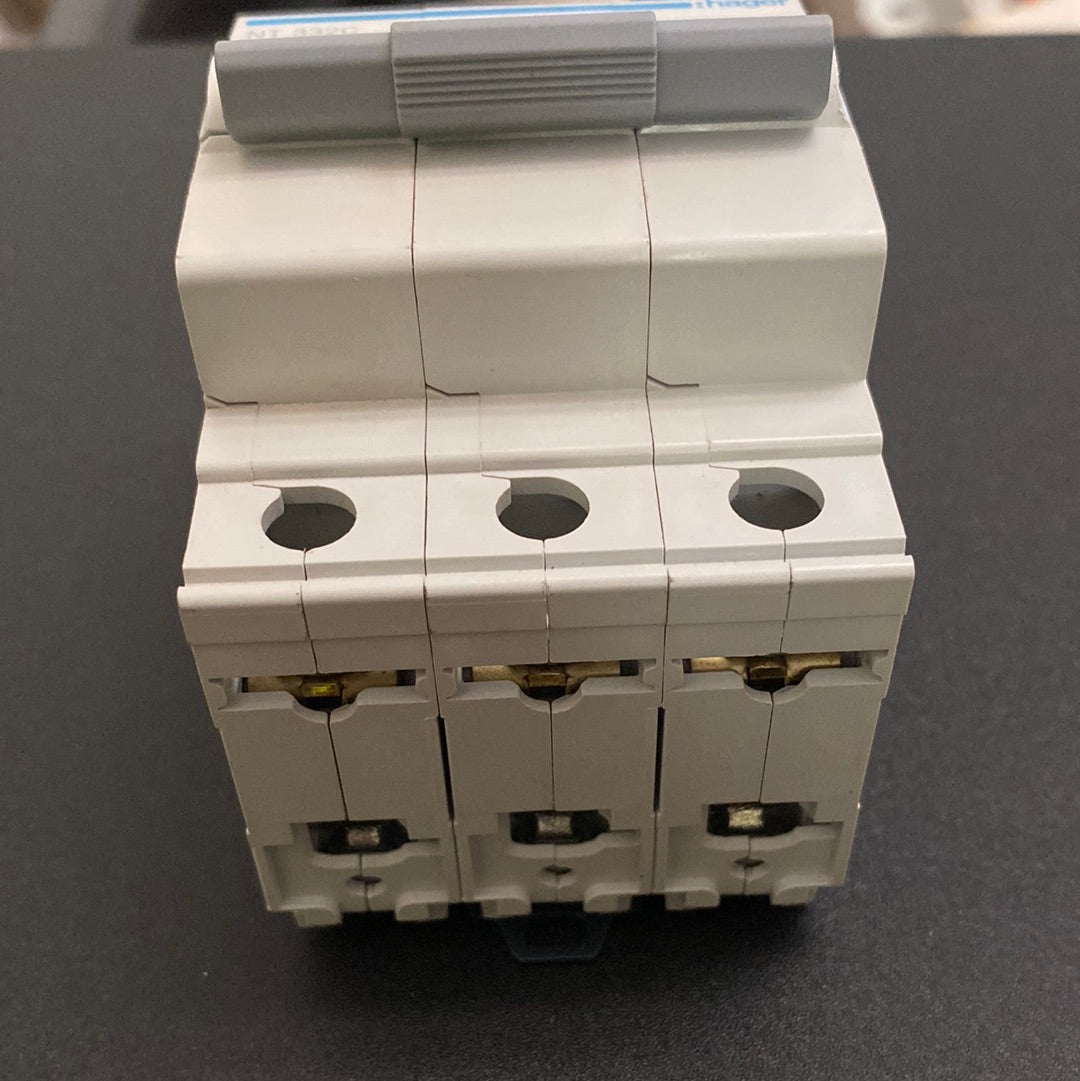

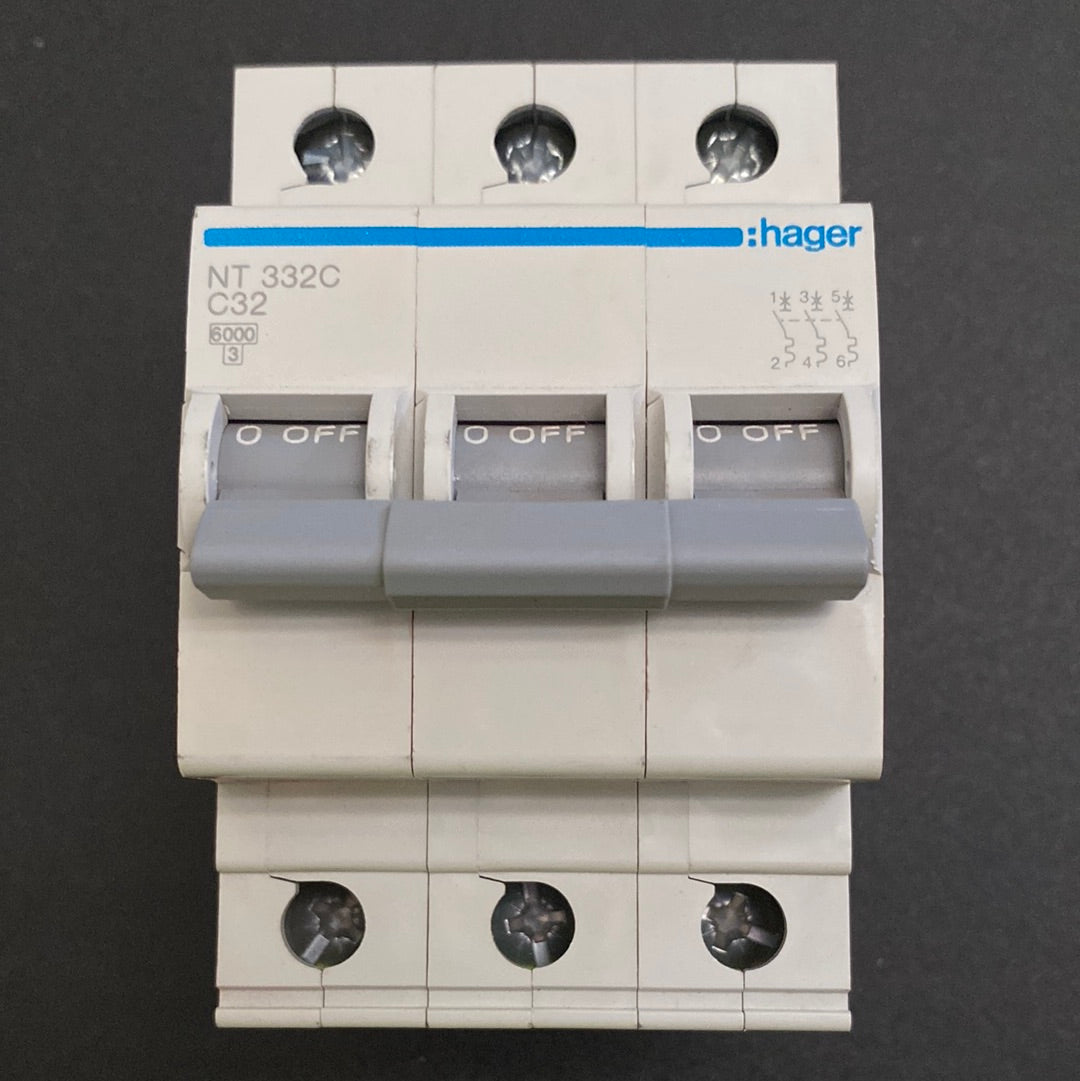

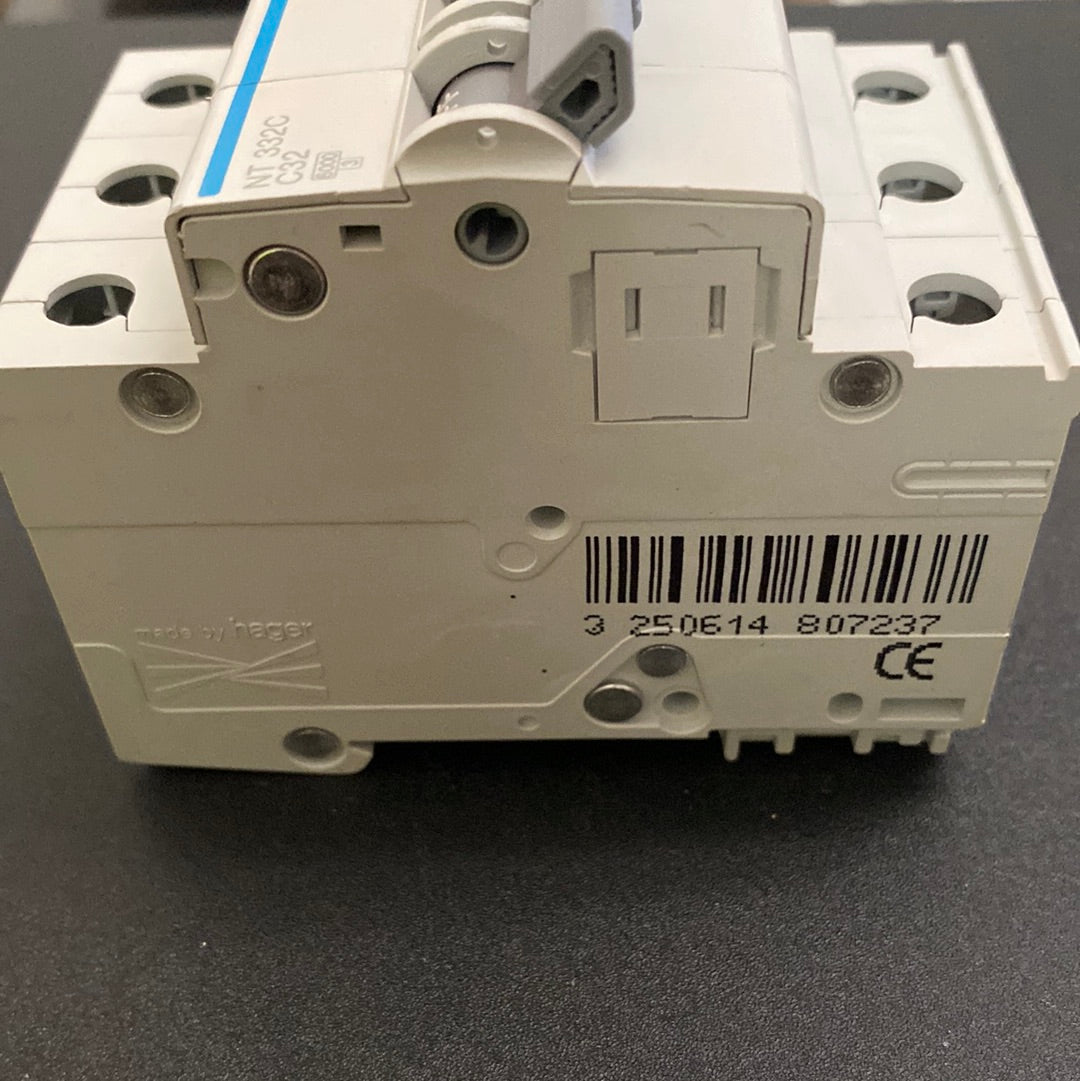

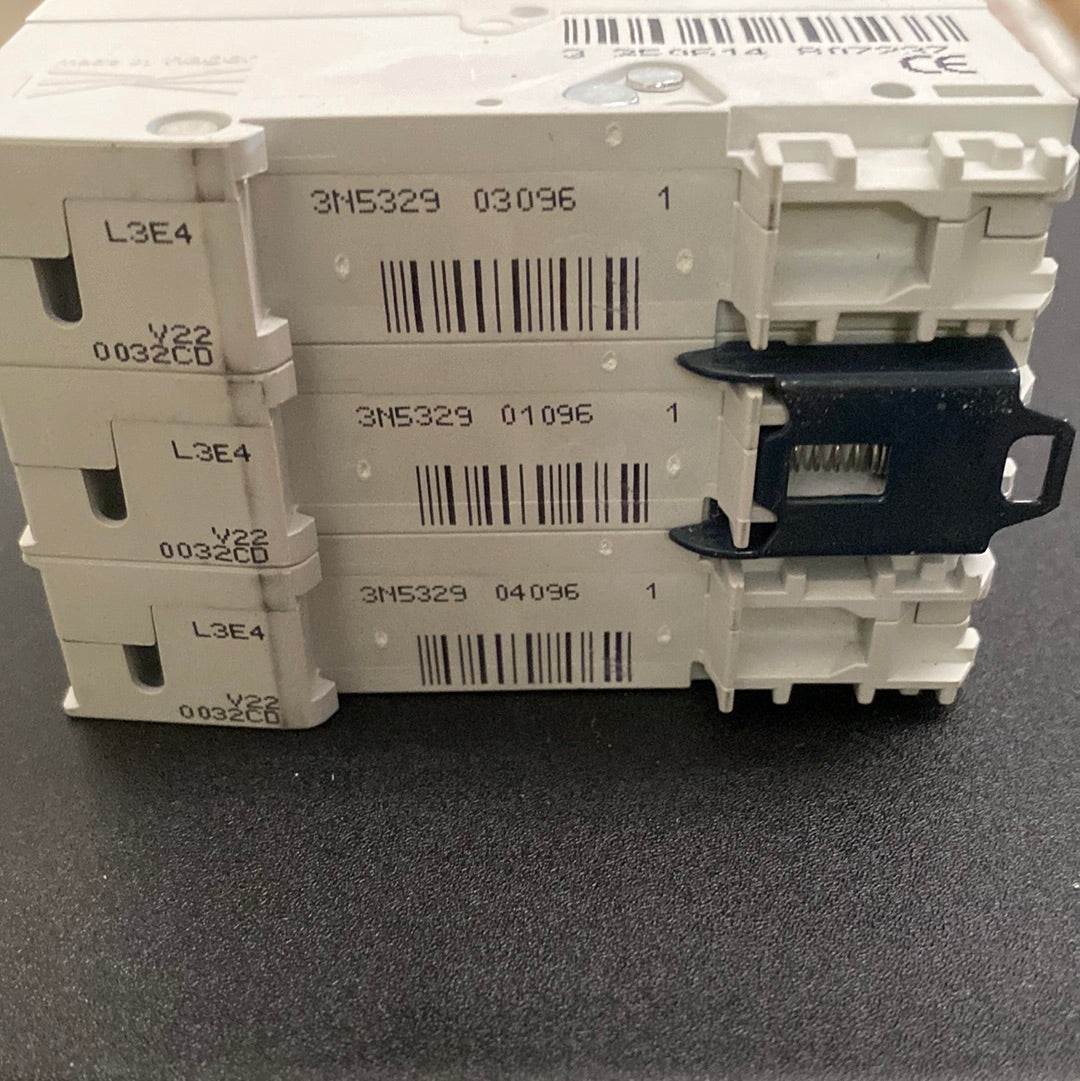

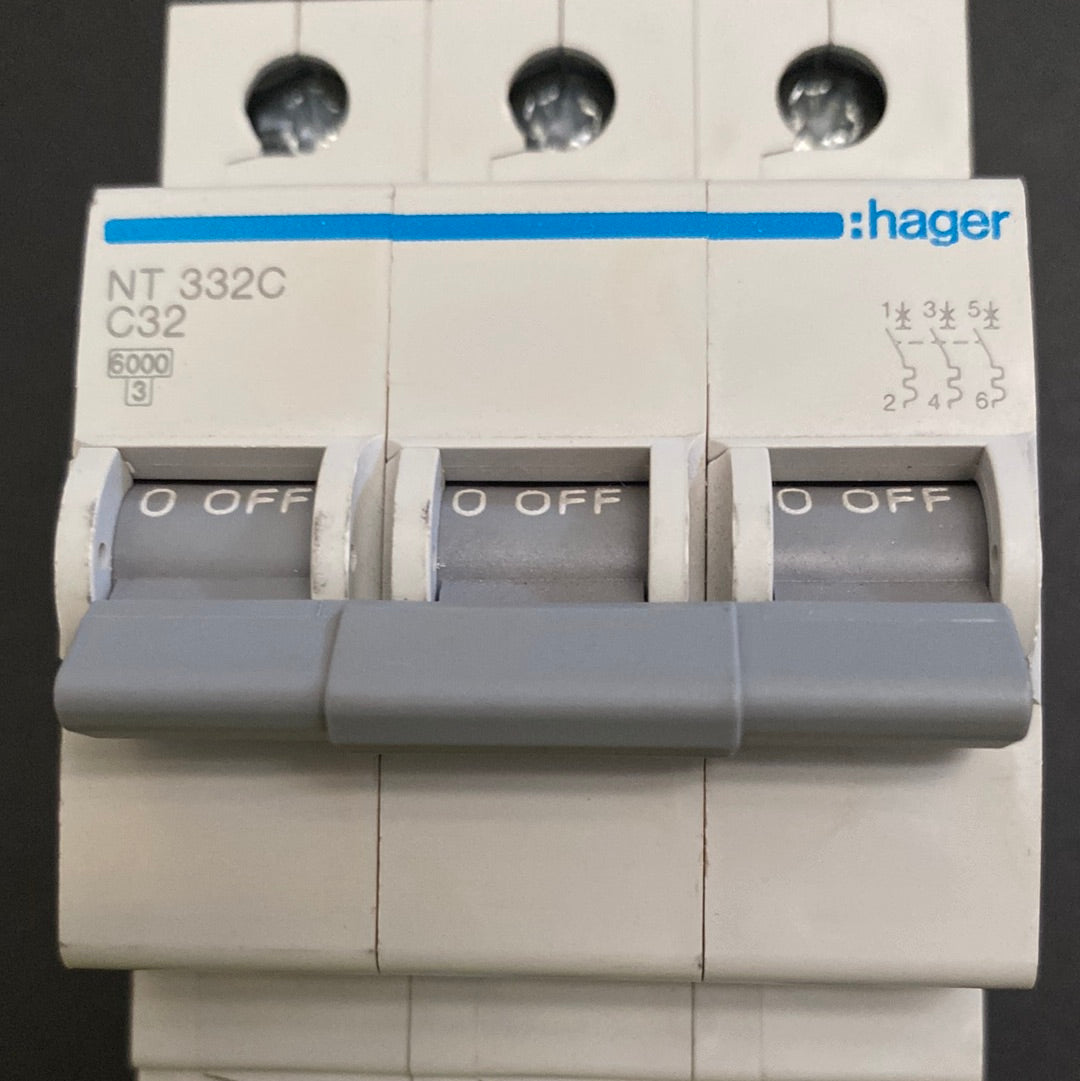

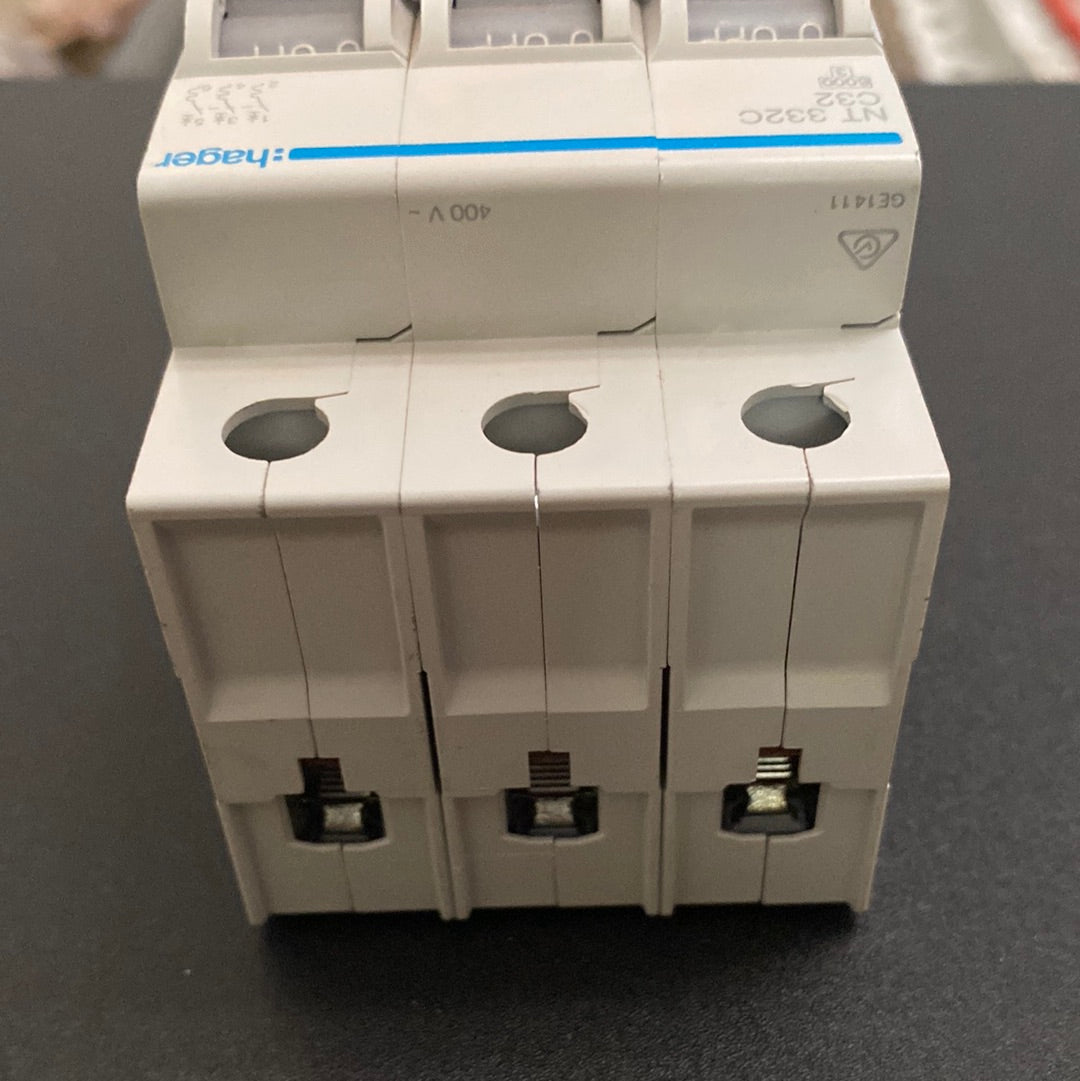

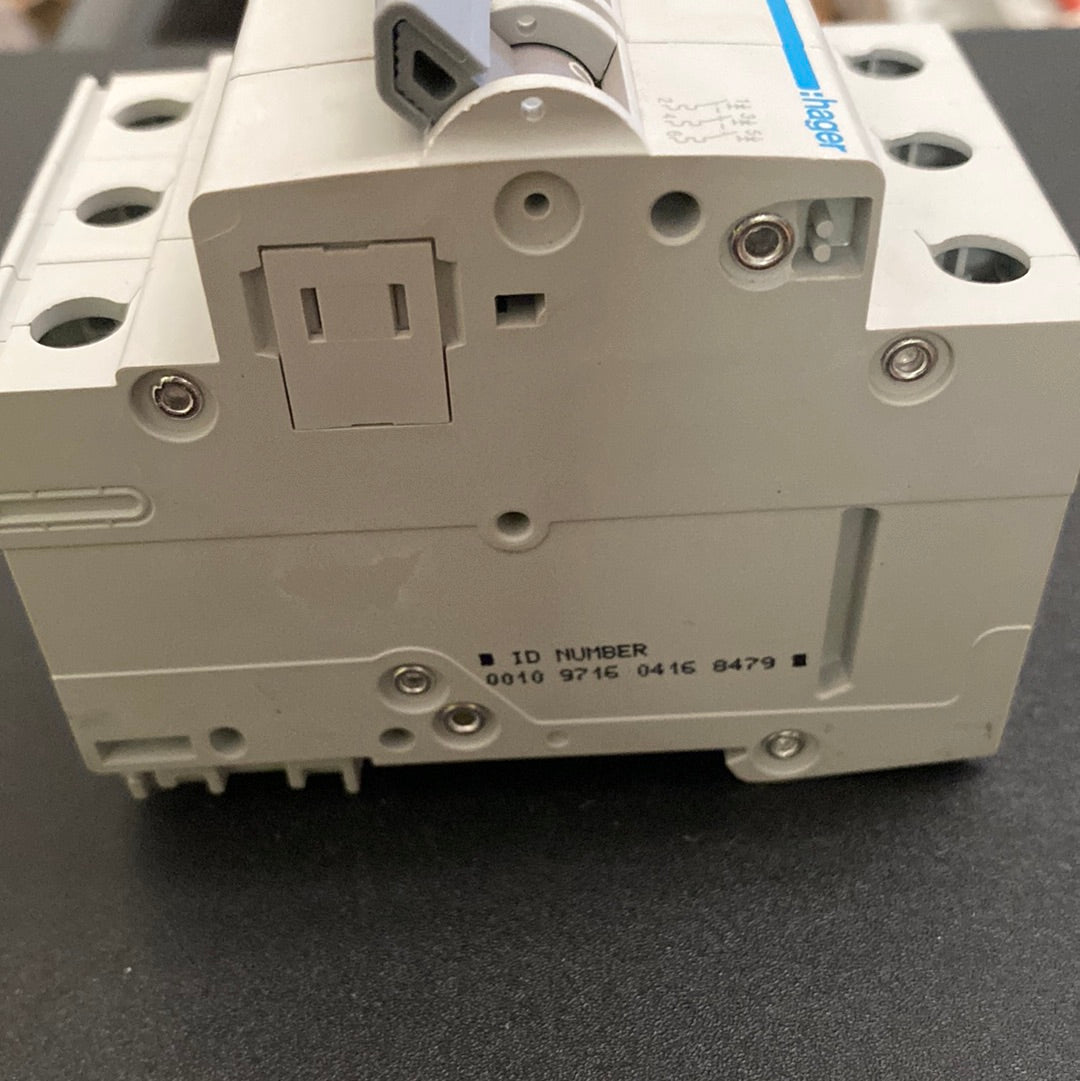

Hager NT332C MCB

HAGER SKU: P-HA-M-0599

$24.00

Tax included

Only 4 left!

3P, 32A, 6kA

  • 32 Amp
  • 3 Pole
  • 10kA
  • Curve C
  • Rated short circuit breaking capacity 10 kA
  • Frequency: 50/60 Hz
  • Rated insulation voltage: 500 V
  • Operating temperature: -25 to 60 °C
  • Electric endurance in number of cycles: 4000
  • Number of mechanical operations: 20000
  • Top and bottom screw terminals connection capacity with massive conductor: 1/35 mm²
  • Top and bottom screw terminals connection capacity with flexible cable: 1/25 mm²
  • Tightening torque: 2,8Nm
  • Height of installed product: 83 mm
  • Width of installed product: 52.5 mm
  • Depth of installed product: 70 mm
