HAGER

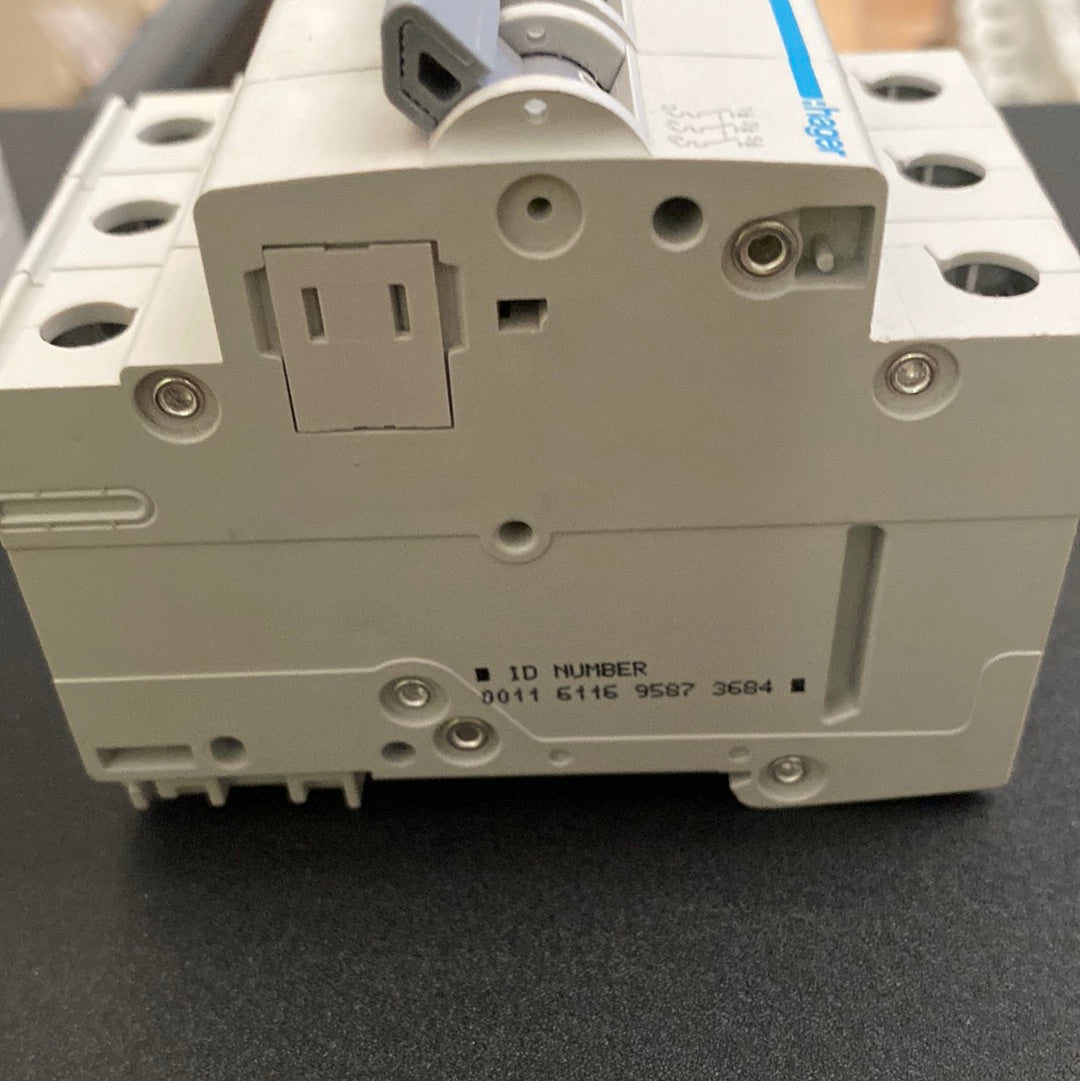

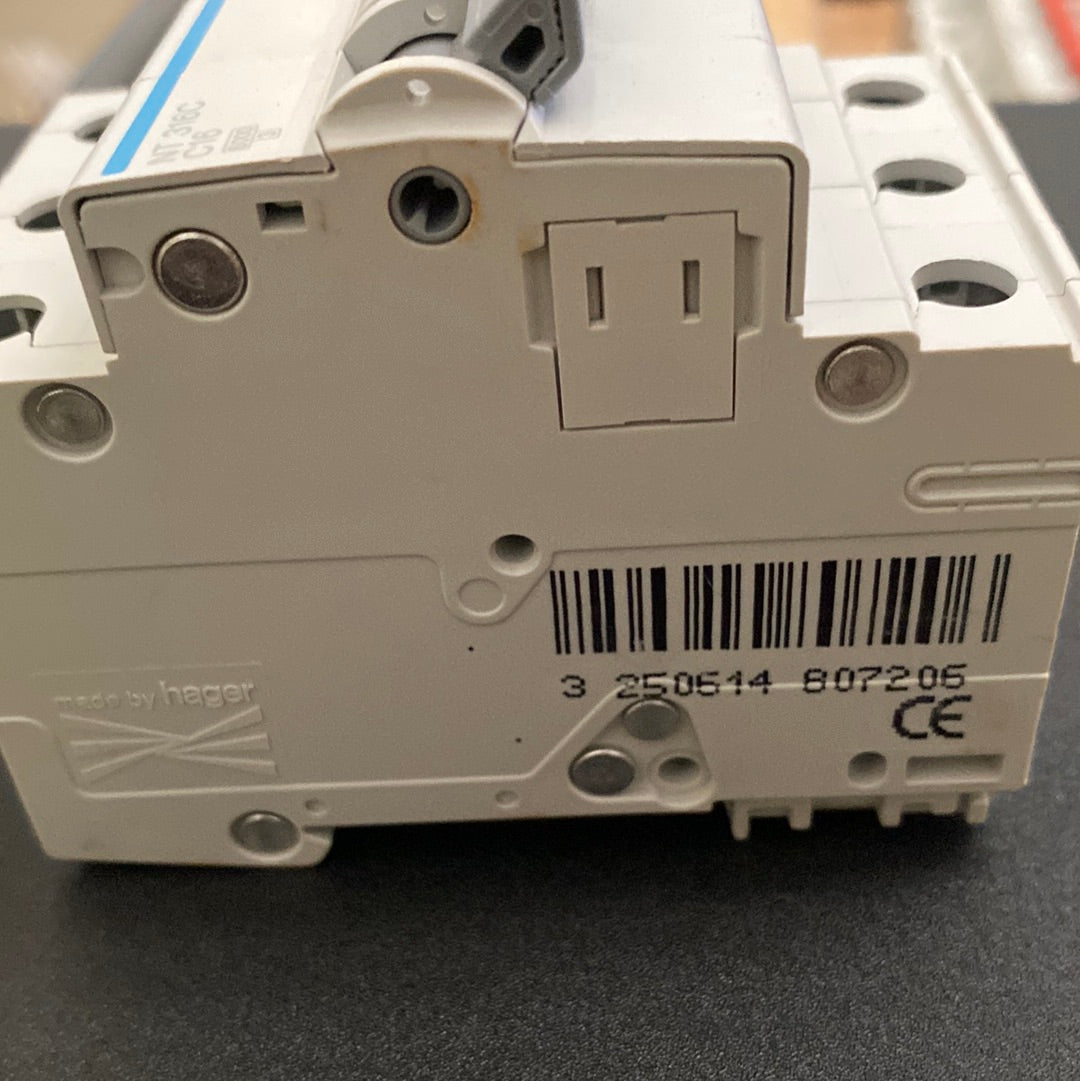

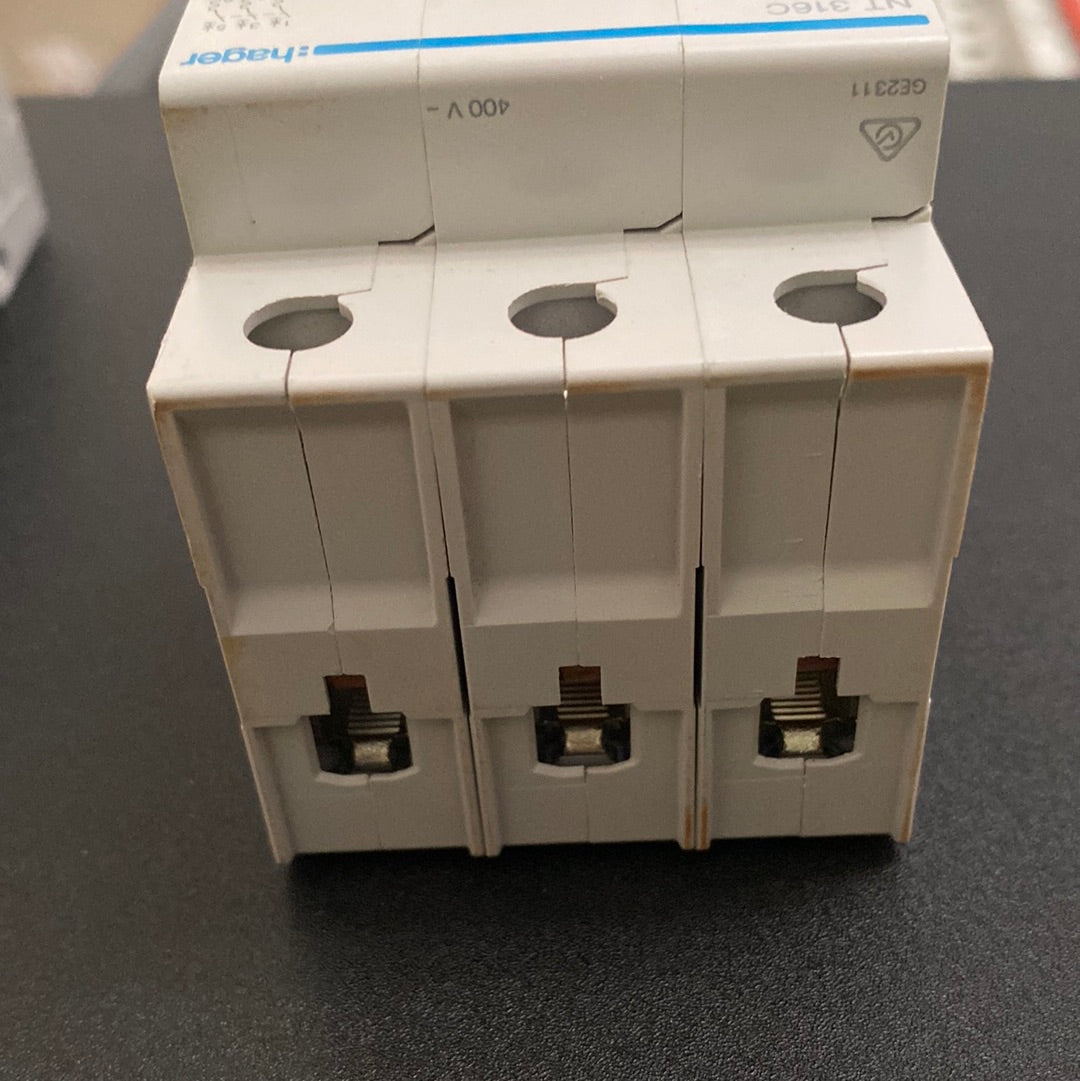

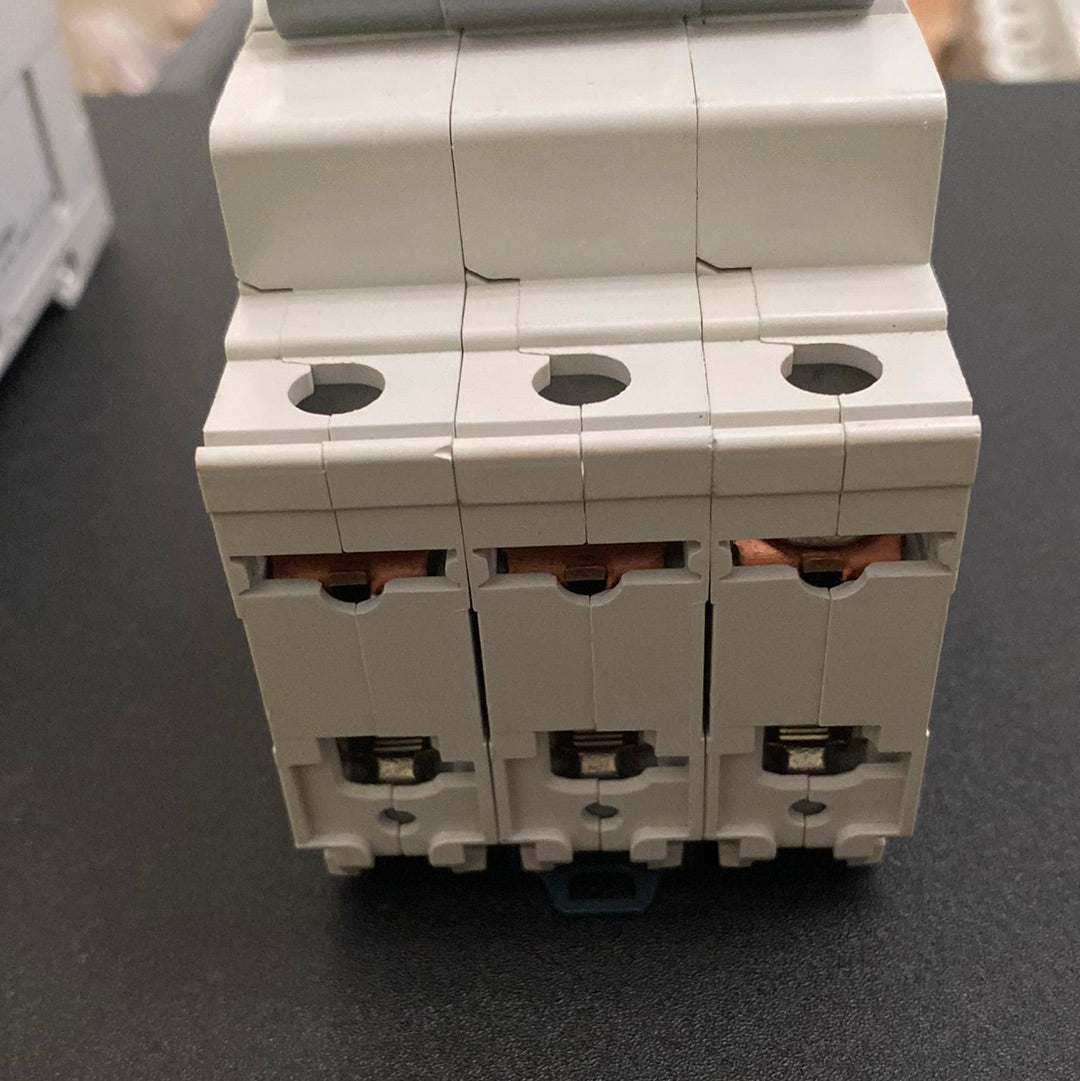

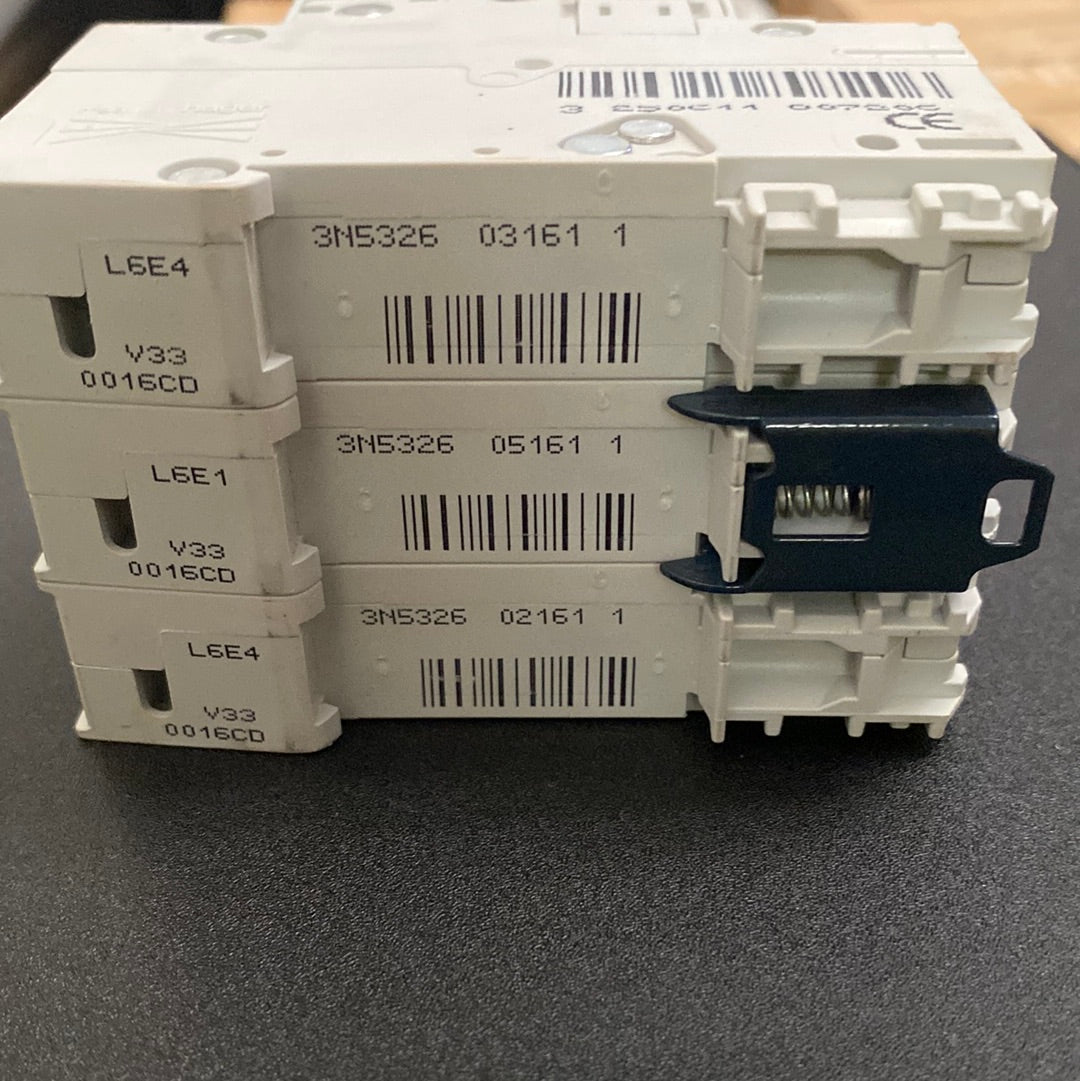

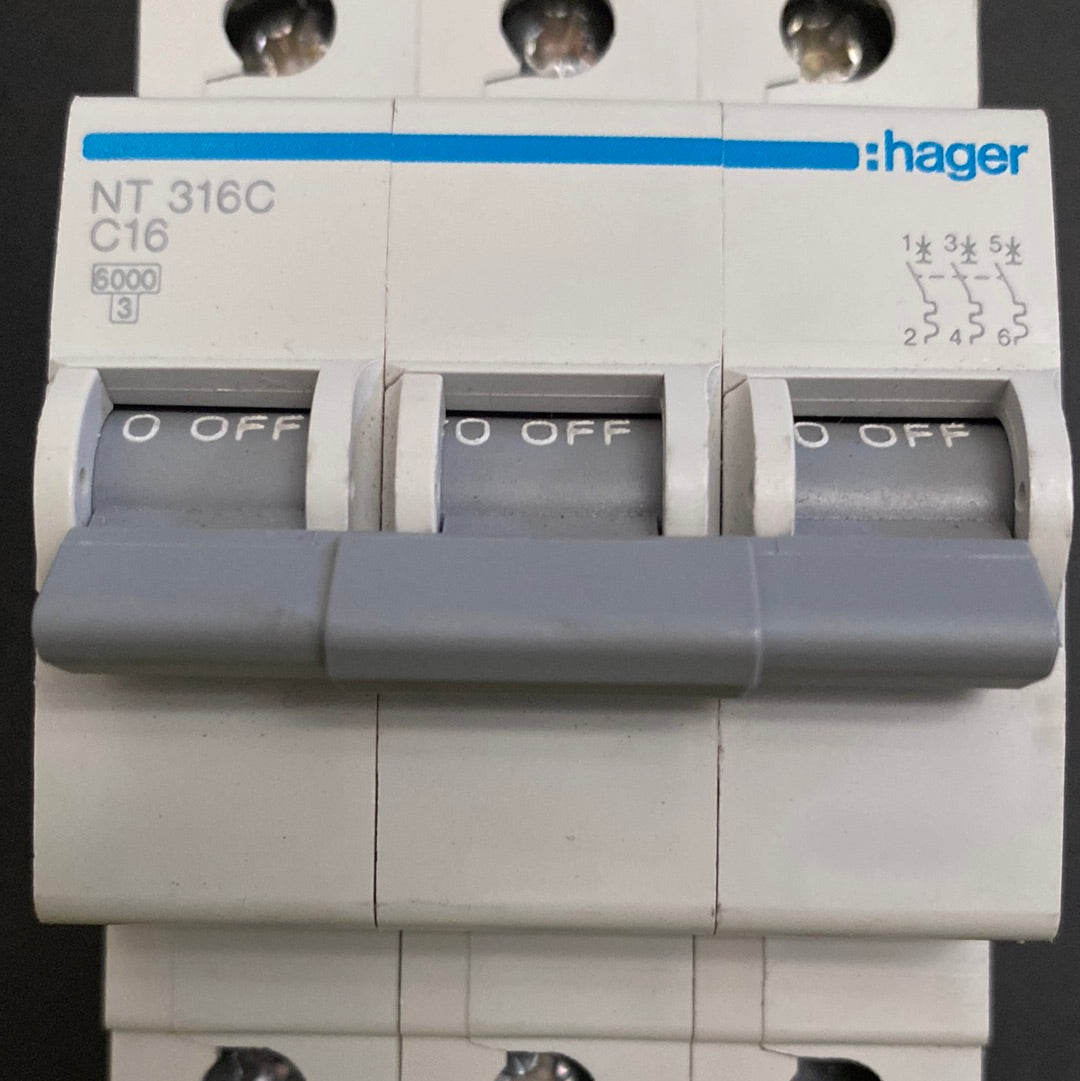

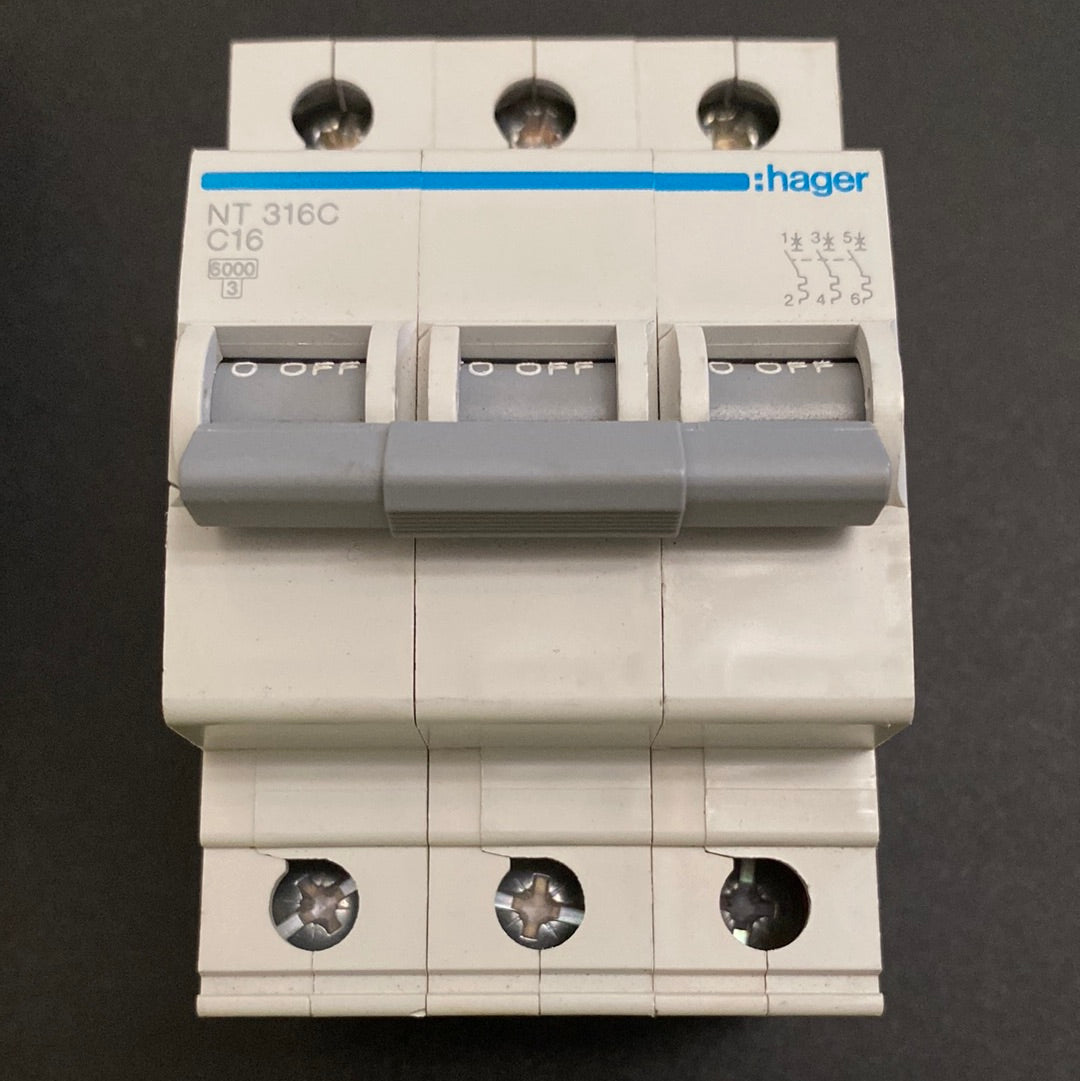

Hager NT316C / C16 3Pole Circuit Breaker
- SKU
- P-HA-M-0600
$35.00
Price includes GST.
Low stock: 2 left
Warehouse pickup available
- Weight
- 0.2 kg
Specifications
| Manufacturer | HAGER |
|---|---|
| Product type | Electrical |
| SKU | P-HA-M-0600 |
| Weight | 0.2 kg |
Description
- 16 Amp
- 3 Pole
- 10kA
- Curve C
- Rated short circuit breaking capacity 16 kA
- Frequency: 50/60 Hz
- Rated insulation voltage: 500 V
- Operating temperature: -25 to 60 °C
- Electric endurance in number of cycles: 4000
- Number of mechanical operations: 20000
- Top and bottom screw terminals connection capacity with massive conductor: 1/35 mm²
- Top and bottom screw terminals connection capacity with flexible cable: 1/25 mm²
- Tightening torque: 2,8Nm
- Height of installed product: 83 mm
- Width of installed product: 52.5 mm
- Depth of installed product: 70 mm
