Gunnebo DLP-M16 GRABiQ De-Centred Lifting Point
- SKU
- P-GU-G-8588
$70.00
Price includes GST.
In stock
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | GUNNEBO |
|---|---|
| Product type | INDUSTRIAL SUPPLIES |
| SKU | P-GU-G-8588 |
| Weight | 2.0 kg |
Description

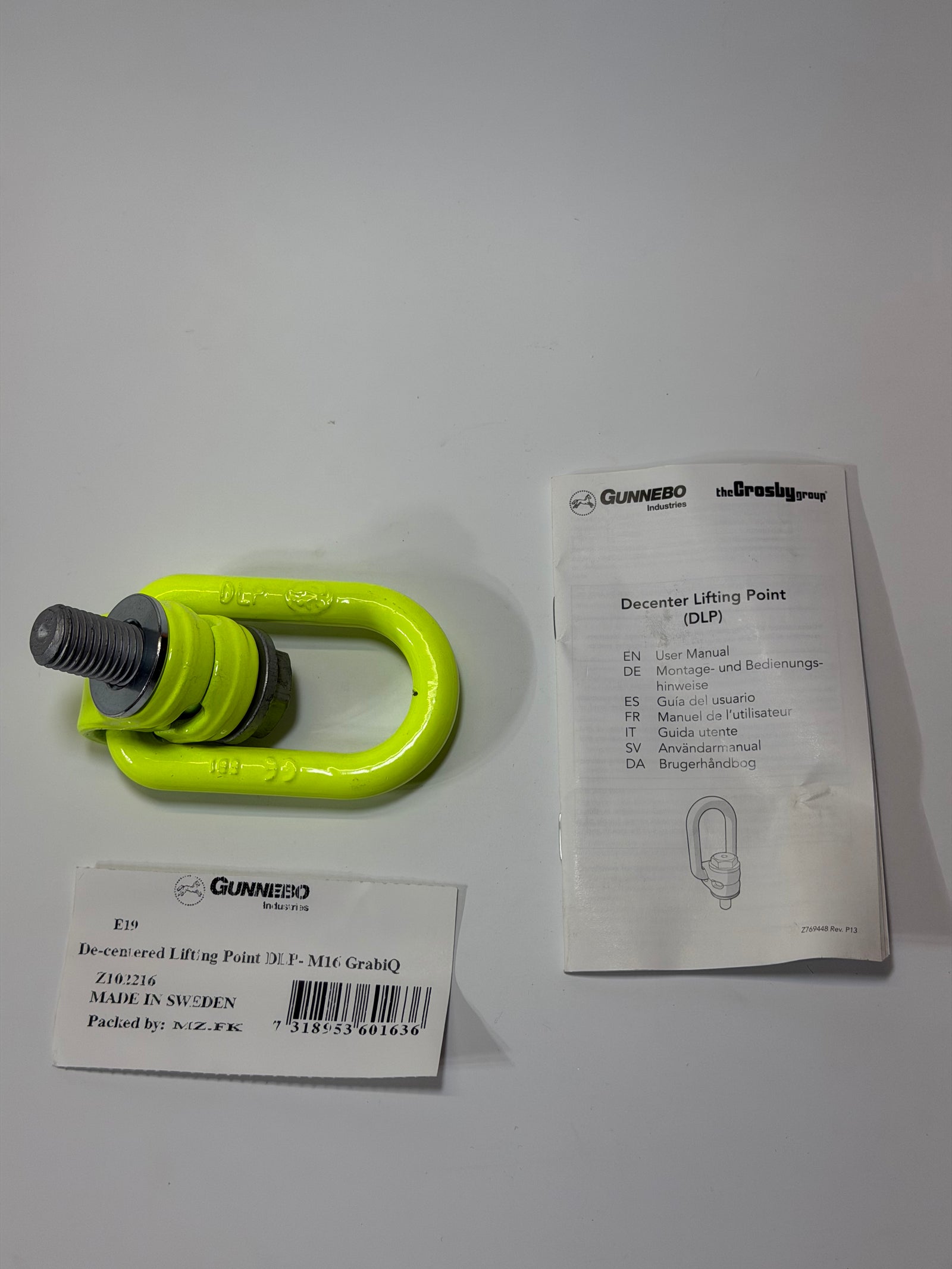

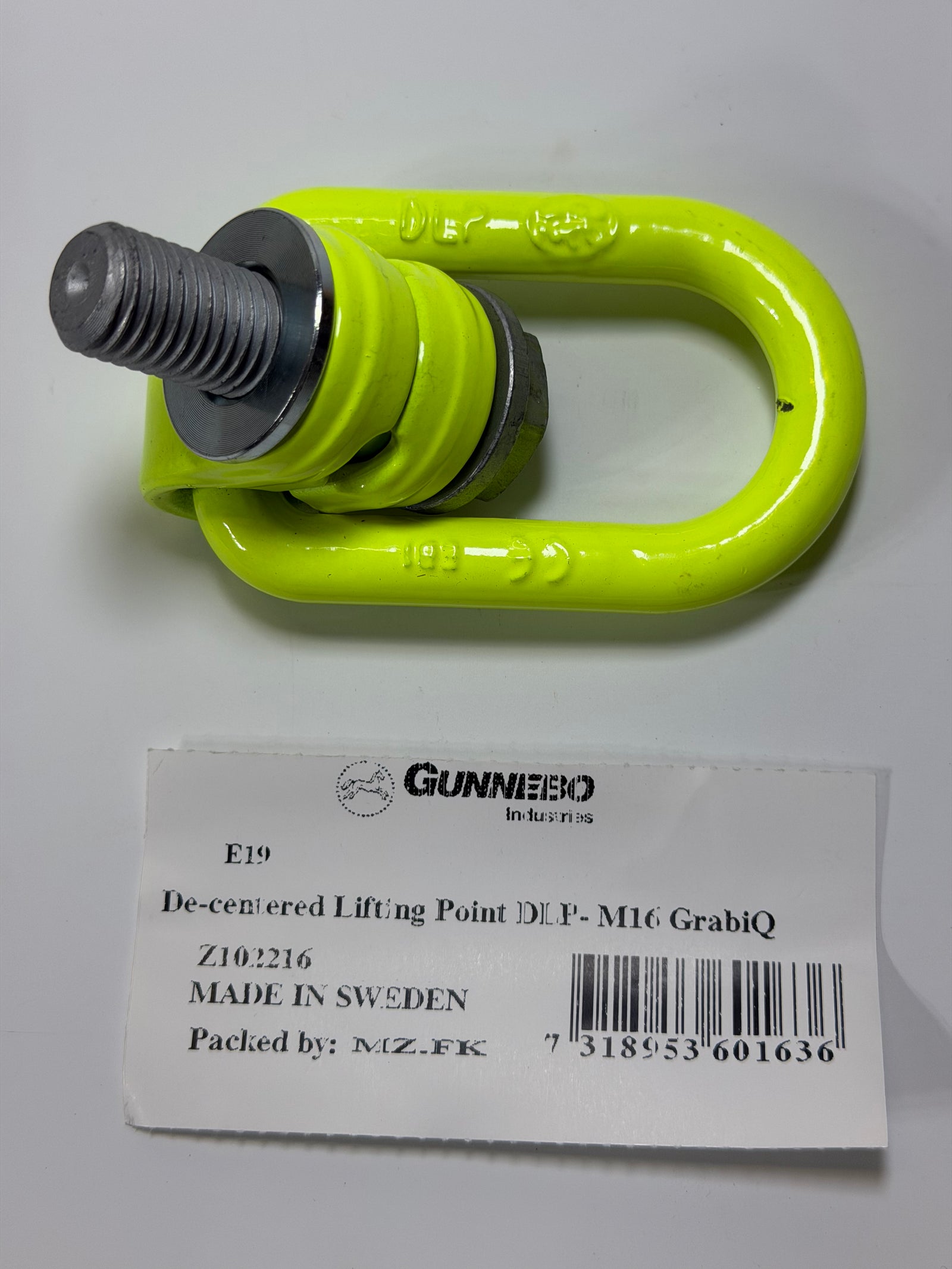

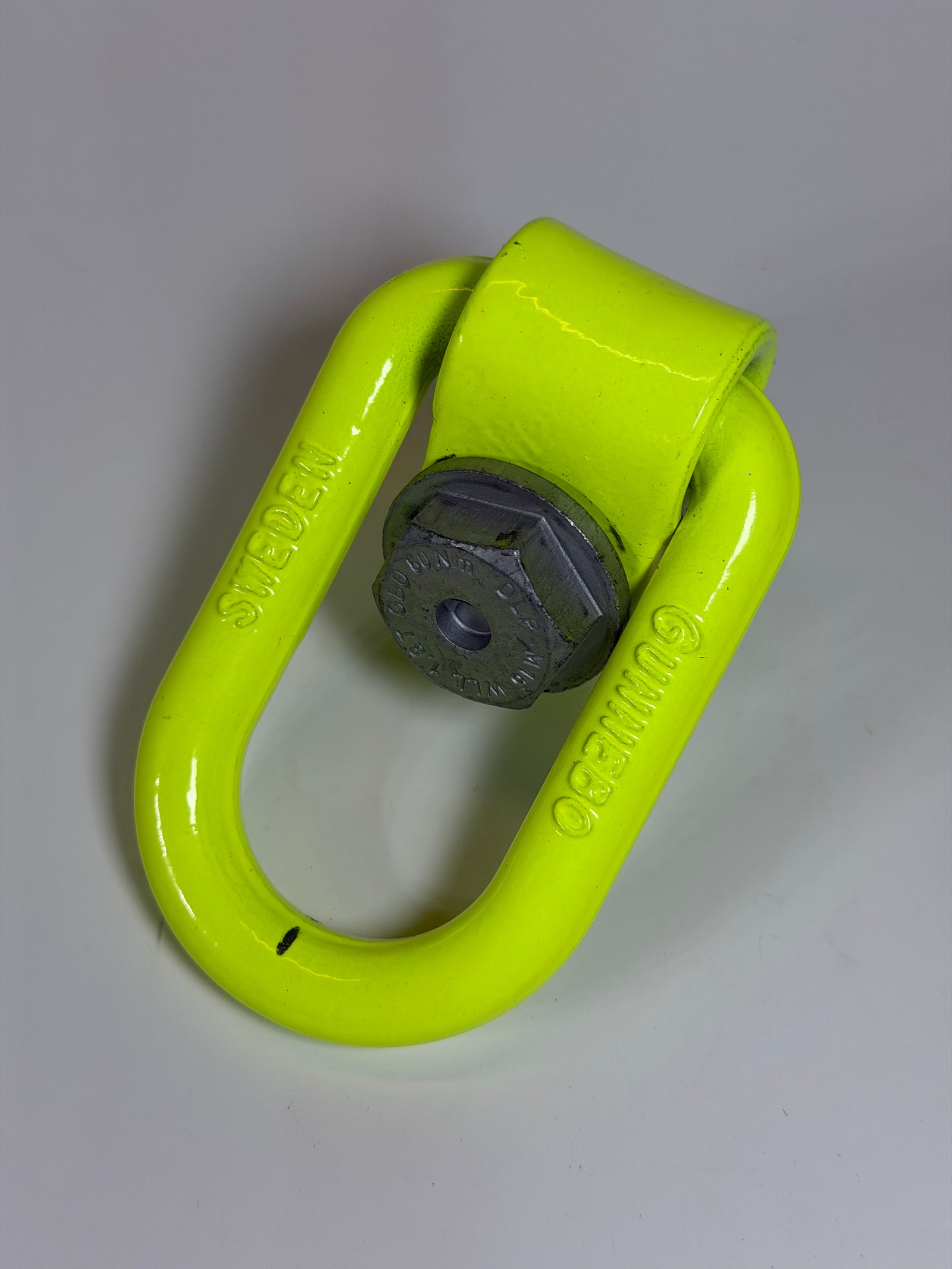

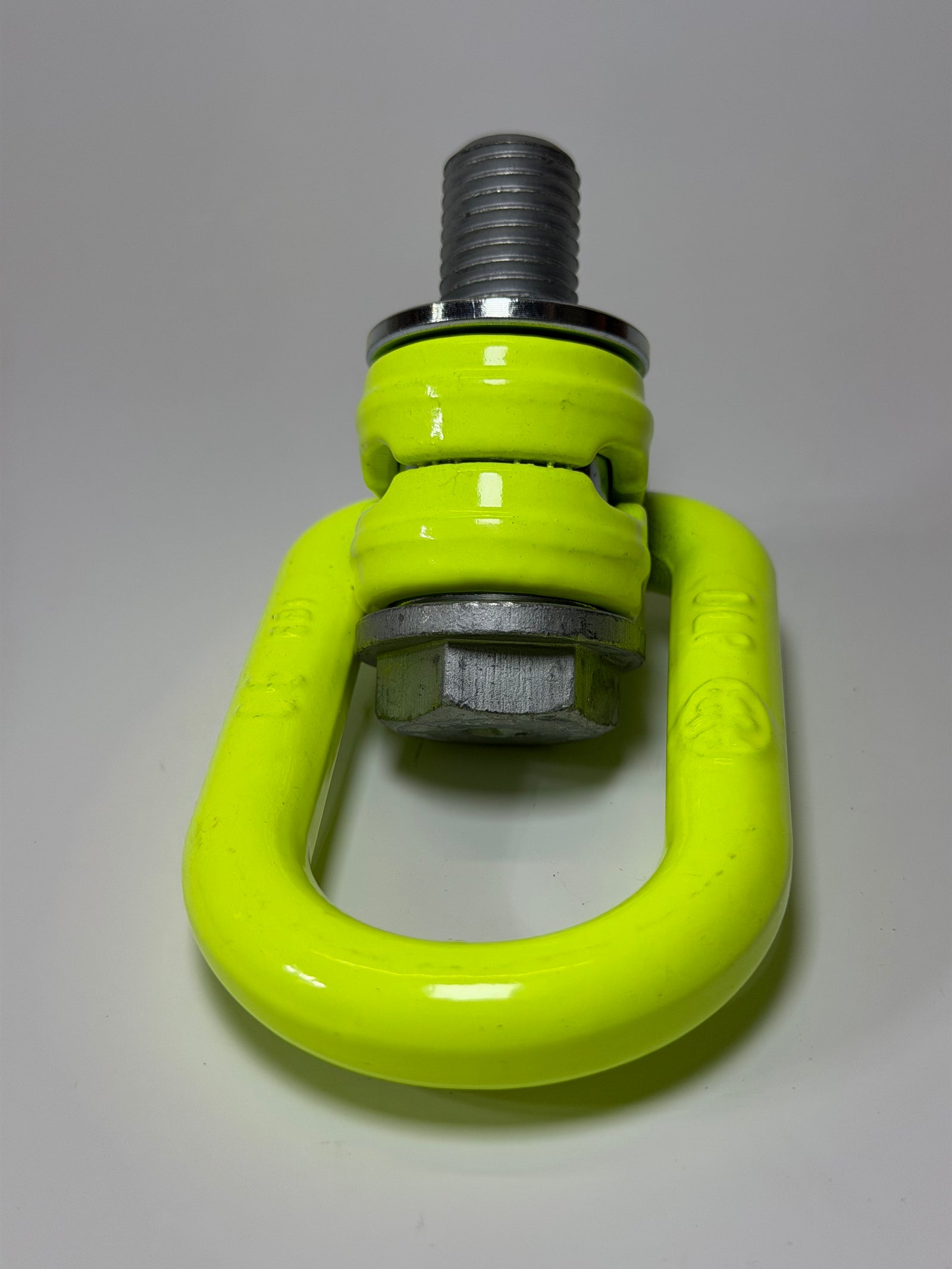

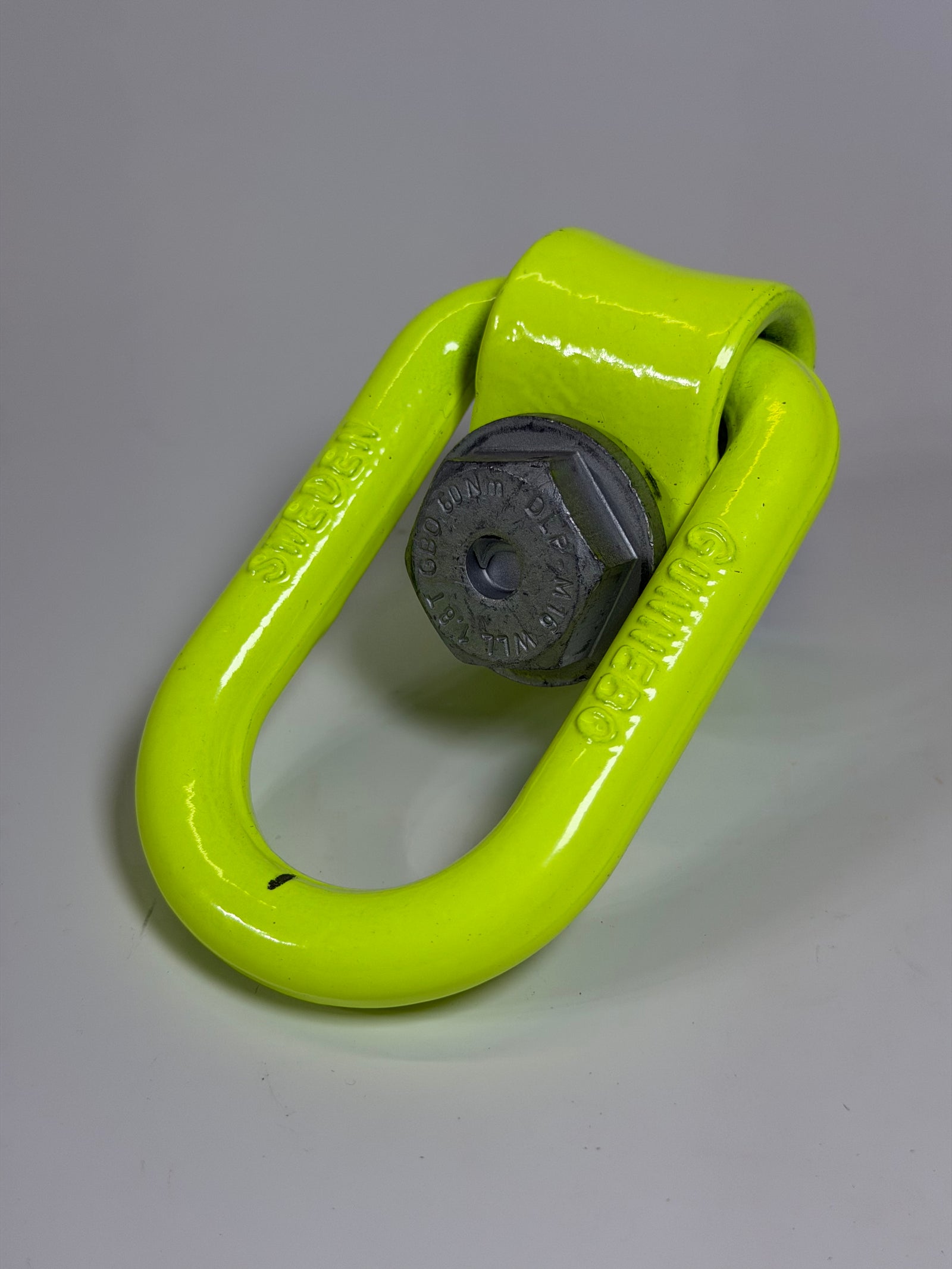

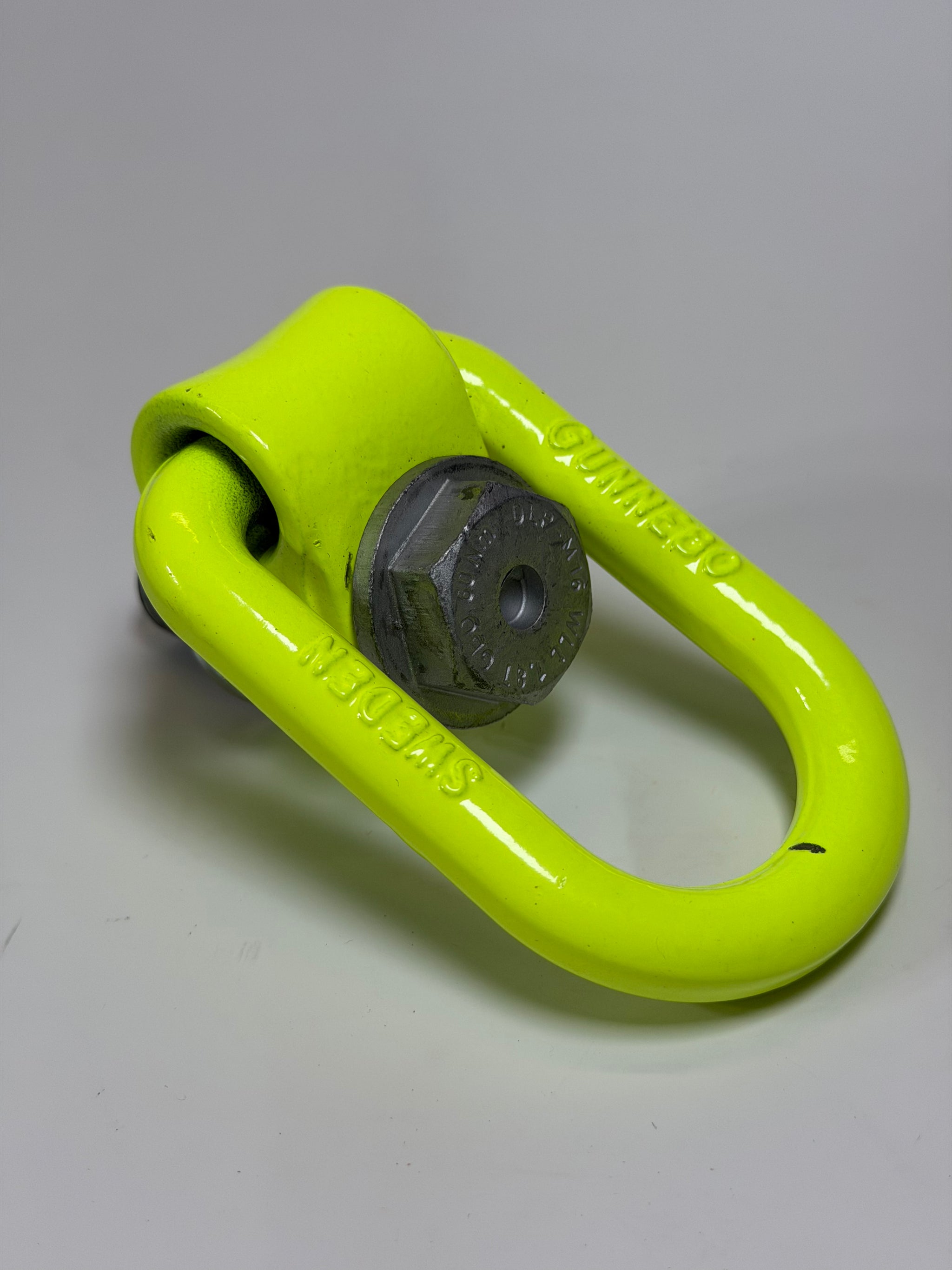

Gunnebo DLP-M16 GRABiQ de-centred lifting point / swivel ring. Stored references: 102216 and Z102216.
- Source-listed material grade: 100.
- Thread: metric coarse, M16; thread length 23 mm.
- Listed length: 91 mm.
- Eye inside diameter: 35 mm; outside diameter: 59 mm.
- Source-listed working load limit: 1.8T.
- Colour: green.

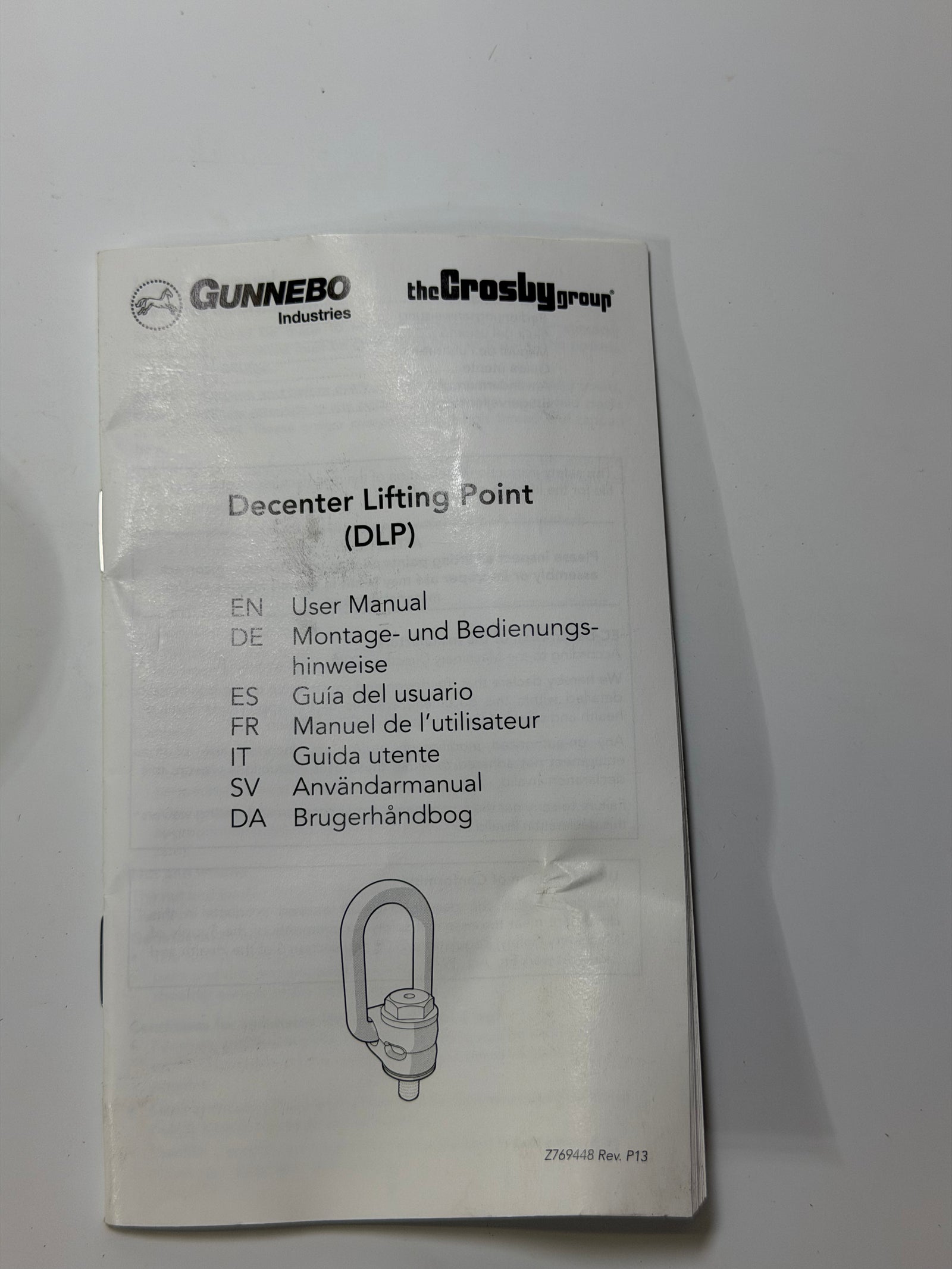

Confirm the actual markings, condition, installation requirements and load-direction limits against the applicable product documentation before use. The source WLL is not a current inspection certificate or an all-directions lifting guarantee.
