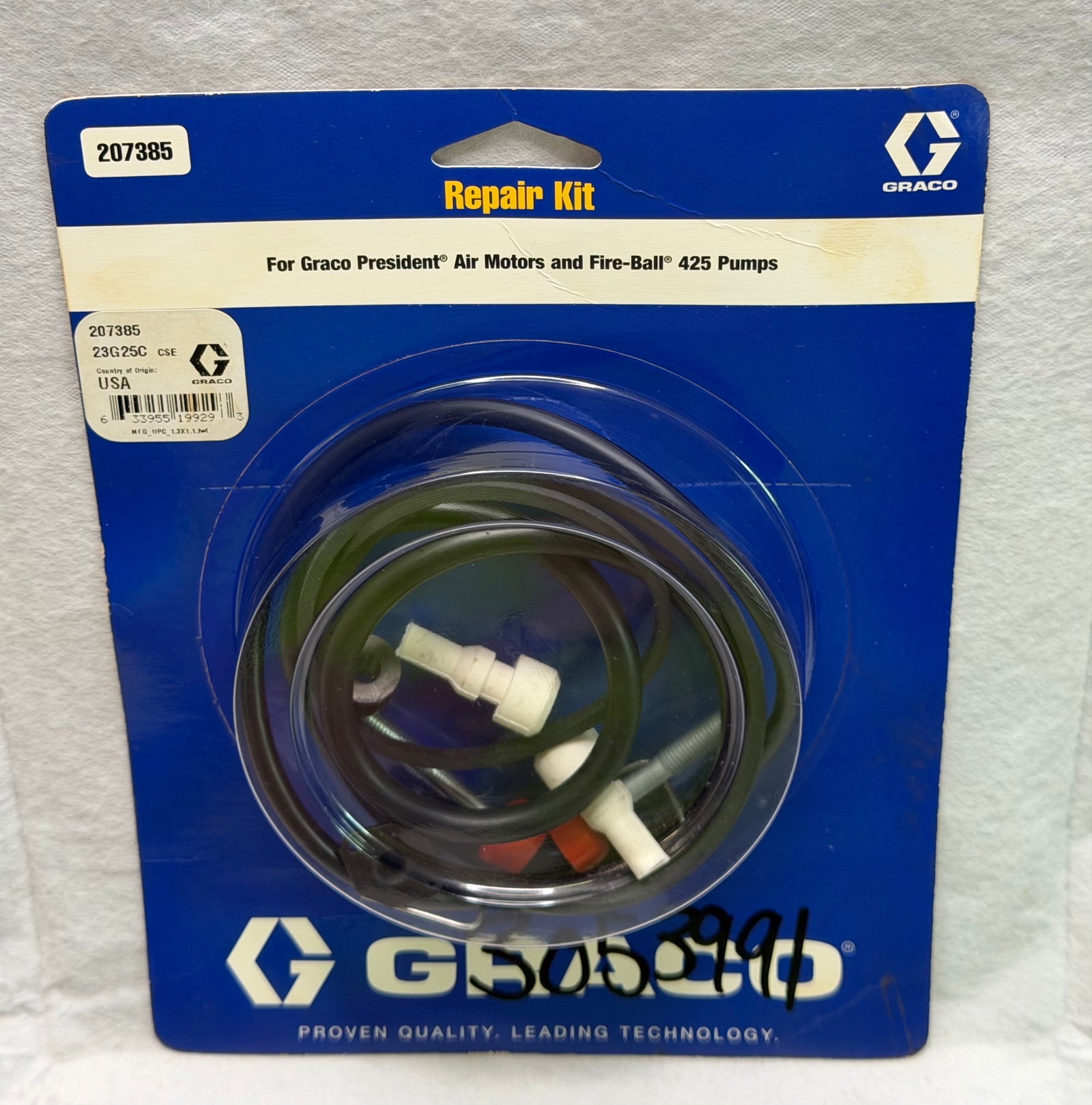

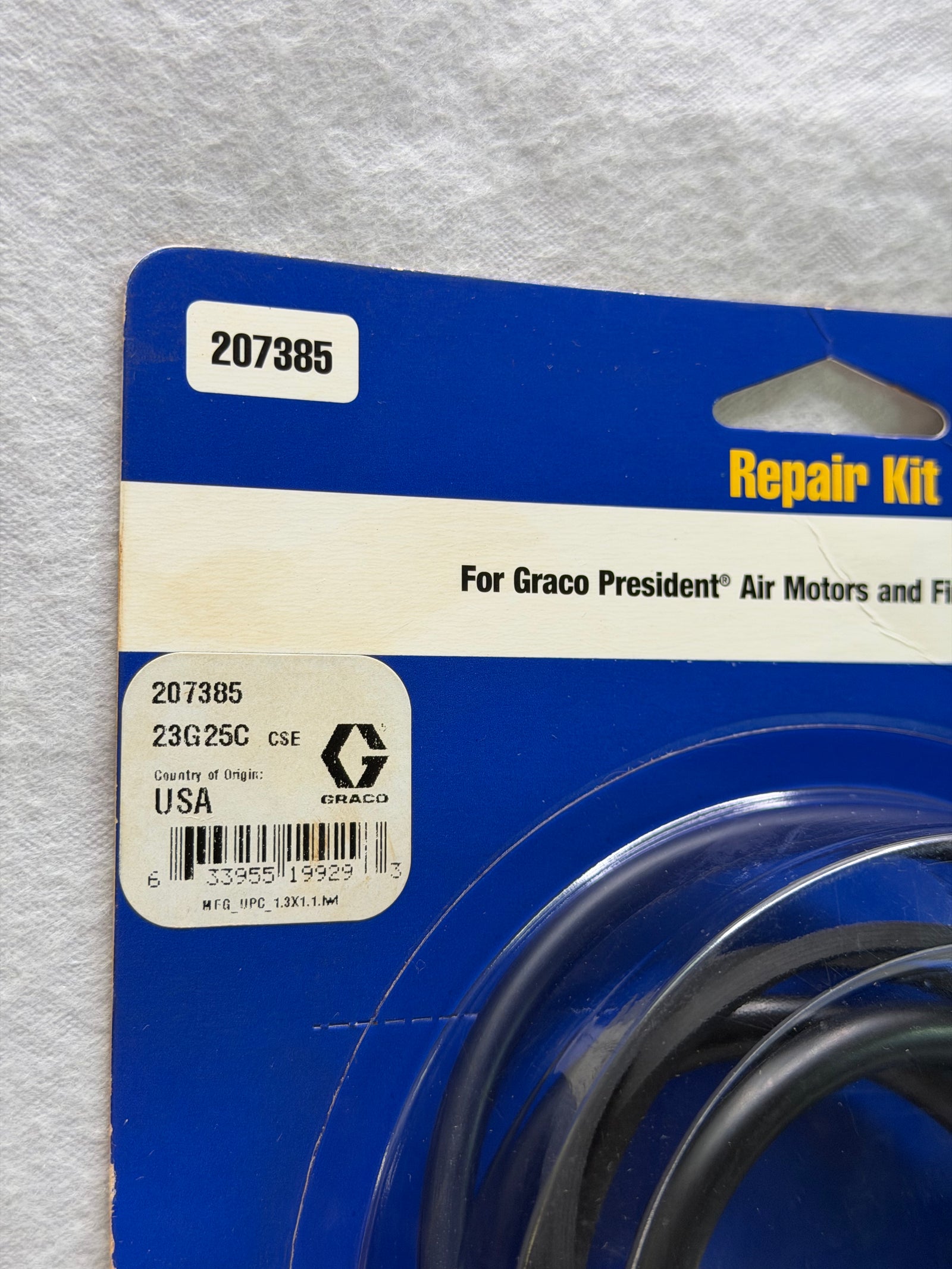

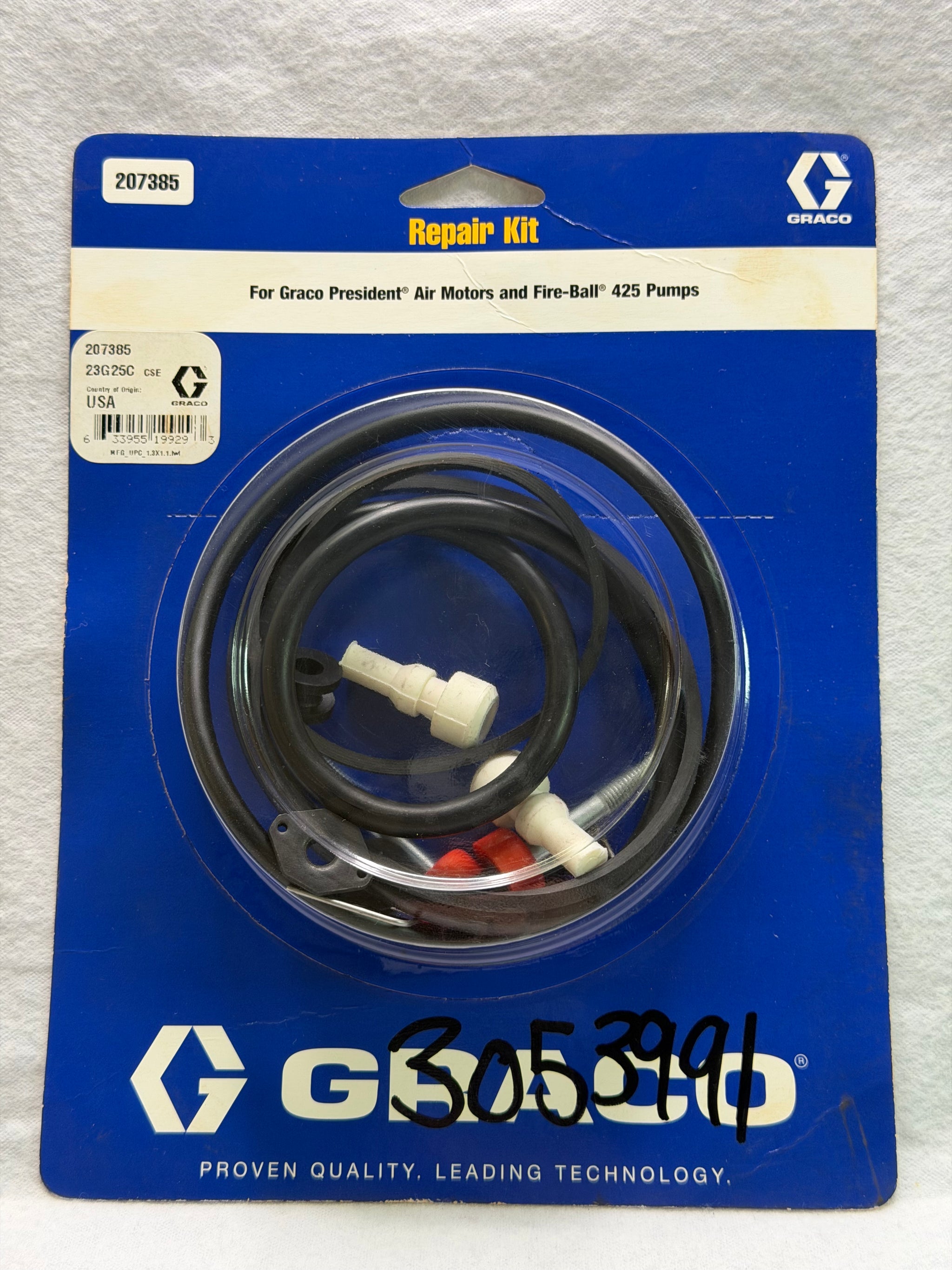

Graco 207385 Repair Kit — President Air Motors / Fire-Ball 425 Pumps
- SKU
- P-GR-G-7950
$140.00
Price includes GST.
Low stock: 5 left
Warehouse pickup available
- Weight
- 1.9 kg
Specifications
| Manufacturer | GRACO |
|---|---|
| Product type | PUMP PARTS |
| SKU | P-GR-G-7950 |
| Weight | 1.9 kg |
Description
Graco 207385 repair kit with recorded applications for President air motors and Fire-Ball 425 pumps.

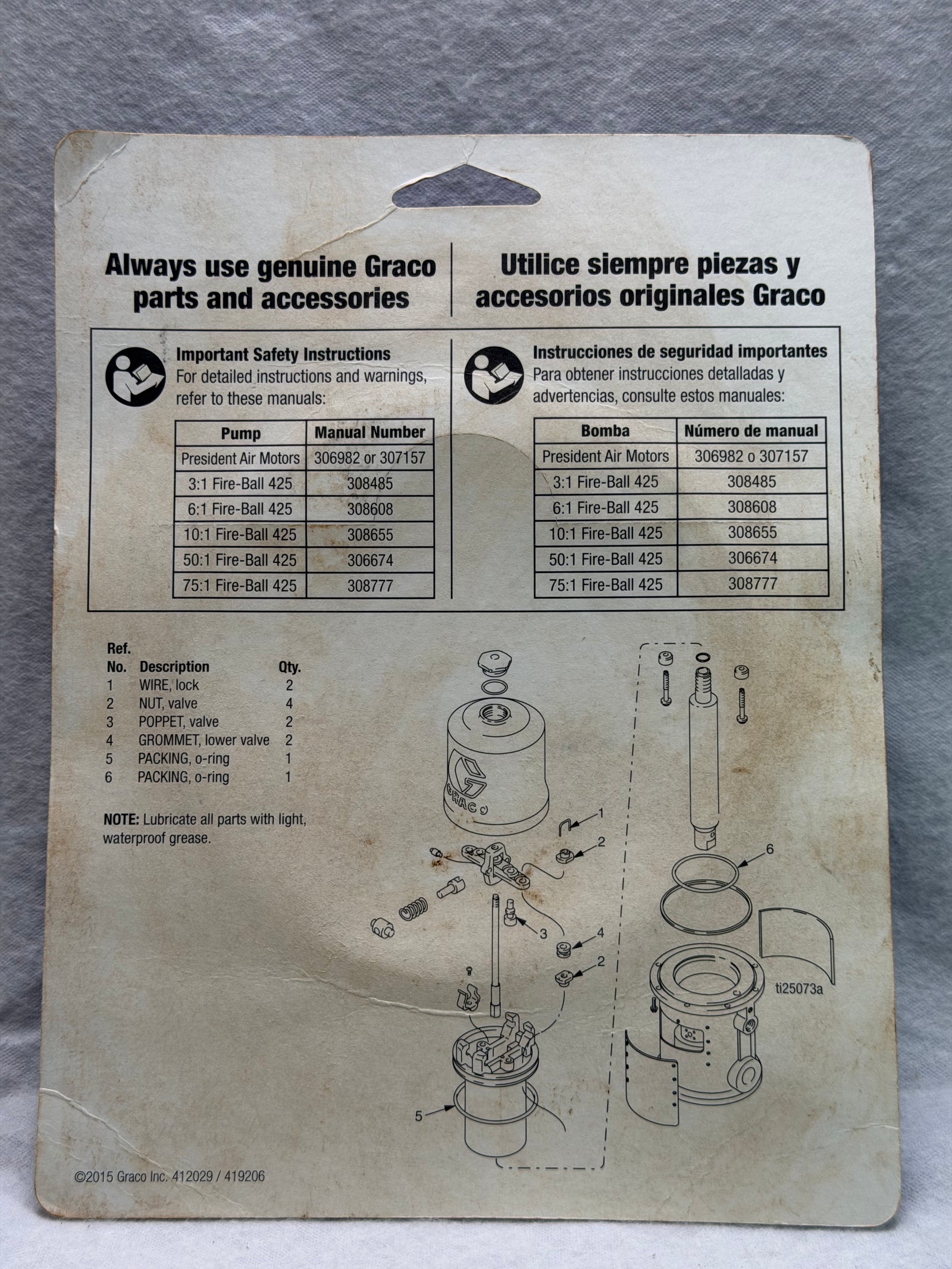

Original parts list and quantities
For President® Air Motors and Fire-ball® 425 Pumps.
Ref.
No. Part Description Qty
1 160618 Wire, lock 2
2 160261 Nut, valve 4
3 170709 Poppet, valve 2
4 158367 Grommet, lower valve 2
5 158378 Packing, o-ring 1
6 158379 Packing, o-ring 1
The source lists six component references with quantities: 160618 × 2; 160261 × 4; 170709 × 2; 158367 × 2; 158378 × 1; and 158379 × 1. These are the recorded kit contents, not a fresh stock count.
Match the pump or air-motor model and service parts list before ordering. This is a repair kit, not a complete pump, air motor or electrical assembly; operating pressure and flow ratings are not specified.
