GP:50 311BRF7GFCJG19 Model 311 Pressure Transducer with Red Cable
- SKU
- P-GP-G-5666
- Weight
- 1.5 kg
Specifications
| Manufacturer | GP:50 |
|---|---|
| Product type | SENSOR |
| SKU | P-GP-G-5666 |
| Weight | 1.5 kg |
Description

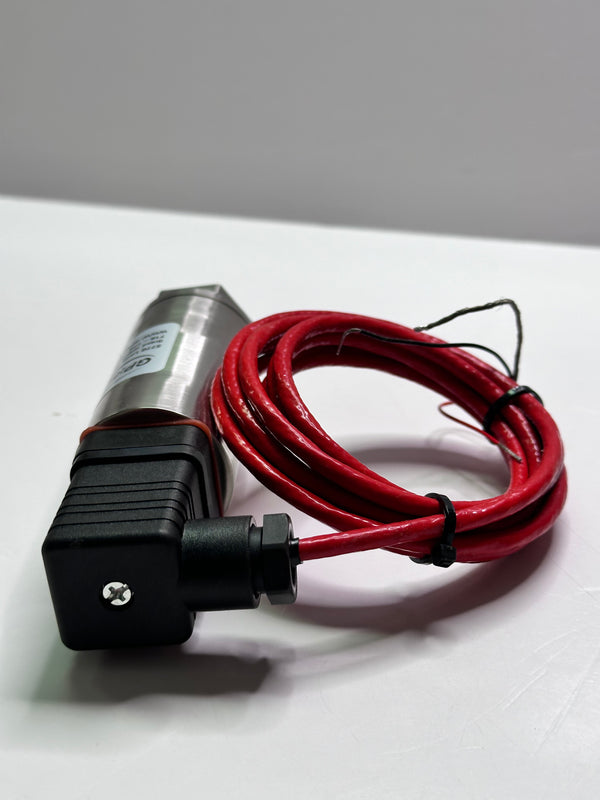

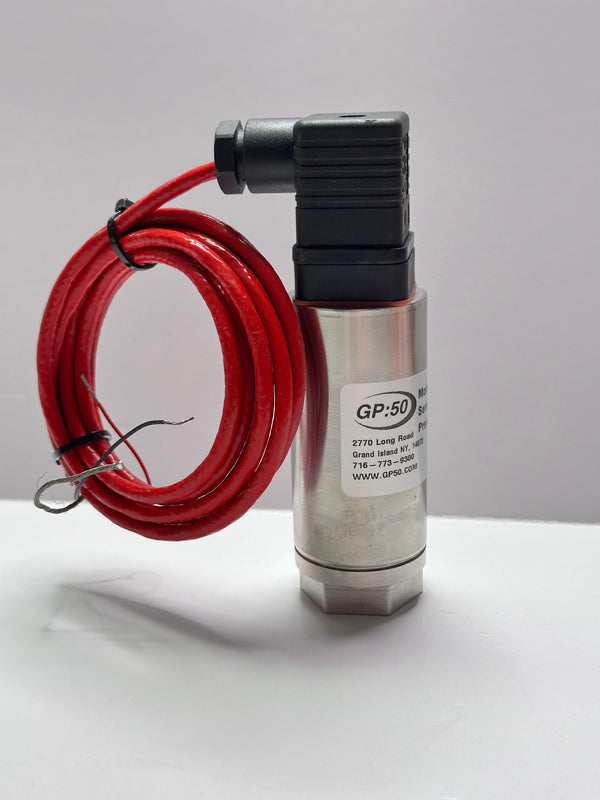

GP:50 Model 311 industrial pressure transducer, ordering code 311BRF7GFCJG19, supplied with a red cable. Recorded serial number: 111249.
The supplied record lists a 0–300 PSIG pressure range, a Model 311 output of 4–20 mA and excitation of 9.0–36 Vdc.
The specifications below include Model 111/211/311 family information, standard configurations and optional features. Confirm the exact unit configuration before ordering; optional proof-pressure ratings are not confirmed for this item.

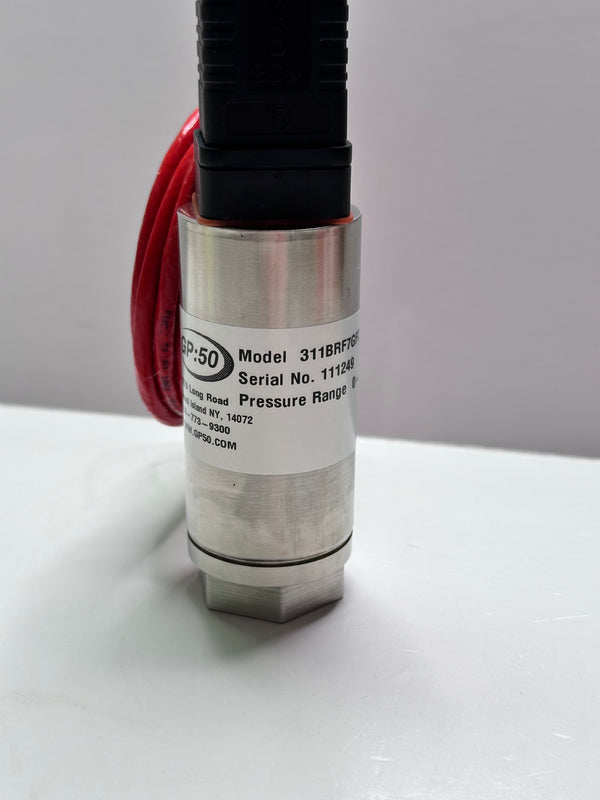

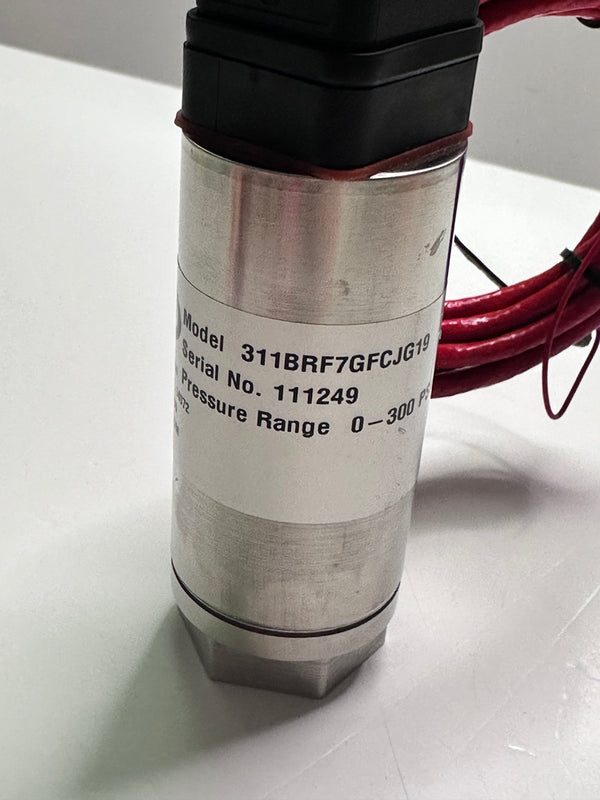

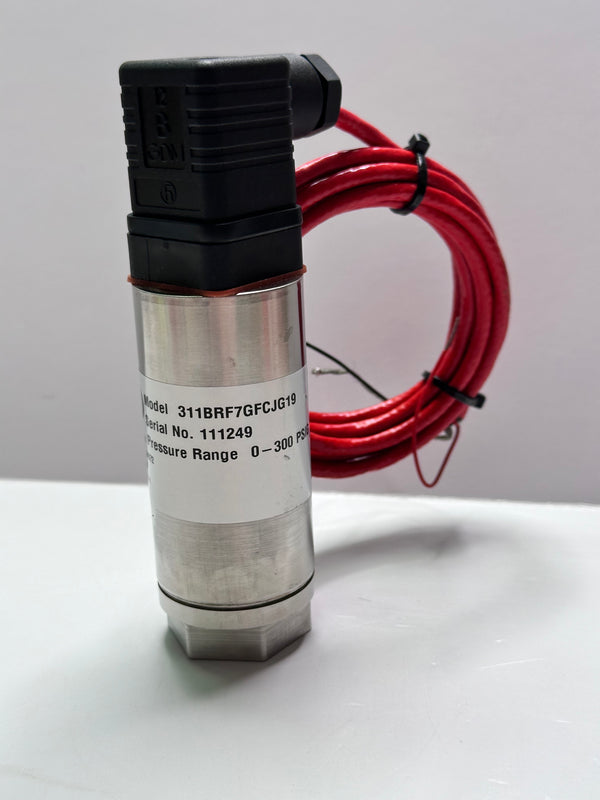

S/N: 111249
Pressure Range: 0-300 PSIG
Output Signal: (Model 311) 4-20 mA
Excitation Voltage: (Model 311) 9.0 to 36 Vdc
Bridge Resistance: Silicone Sensor: 3 to 5KΩ
Strain Gage: 5KΩ (350Ω Option)
(Some mV/V options are amplified, changes bridge
resistance, consult factory)
Circuit Protection: (Model 211/311): RFI, EMI & Reverse polarity
protected
Response Time: (211/311): <3 ms 10% to 90%
MECHANICAL

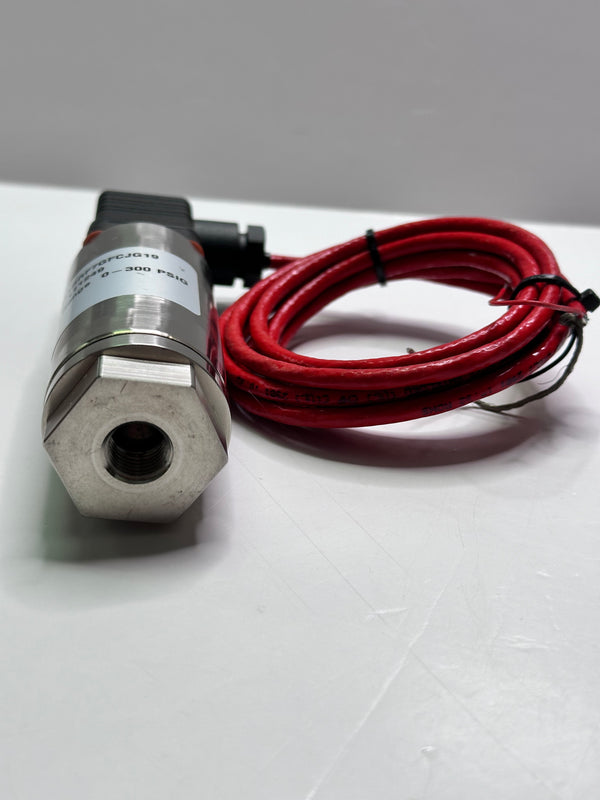

Process Connection: ¼” NPT (F) standard (options available)

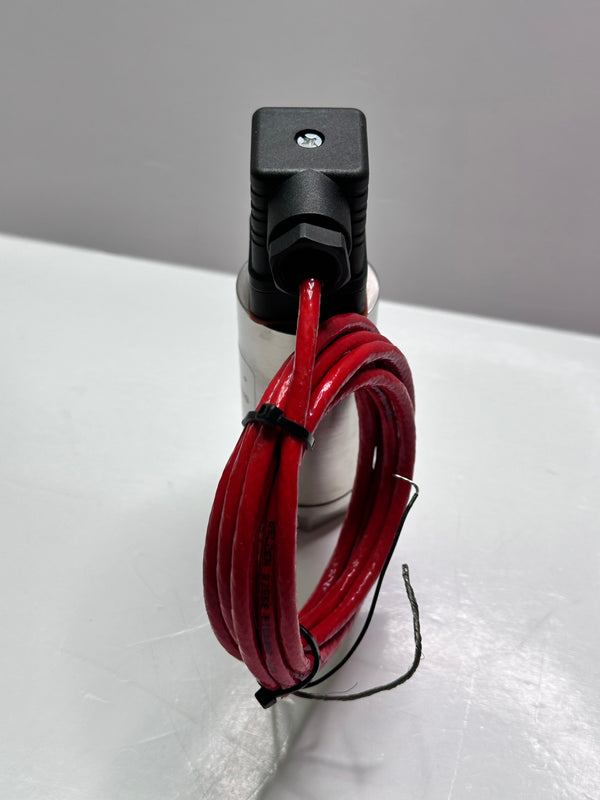

Electrical Connection: 36” long PVC Jacketed cable, 4-conductor
Proof Pressure: 2X FSO or 22.5K PSI (1,551 BAR)
(whichever is less)
Burst Pressure:
5X FSO or 23K PSI max. (1,586 BAR),
whichever is less, Vacuum 5X FSO in
gauge pressure
Approximate Weight: 10 oz. (0.3 kg) nominal
(options may increase weight)
Operating Range: -40 °F to +250 °F (-40 °C to +121 °C)
Compensated Range: 0 °F to +180 °F (-17.7 °C to +82 °C)
Storage Ambient: -65 °F to +250 °F (-53 °C to +121 °C)
Effect on Zero/Span: ±1.0% FSO/100 °F
Model 111/211/311 Industrial Grade Pressure Transducer from GP:50 strain gauge-based sensors are expressly designed to withstand the shock, vibration and pressure spikes common to most hydraulic and pneumatic control systems.
The highly rugged, all-welded stainless steel design of the Model 111/211/311 offers high corrosion resistance, making the sensors an ideal choice for demanding oil & gas, steelworks, rolling mills and process control applications. Units are further available with optional 10X proof pressure for extended worry-free service life within challenging environments.
