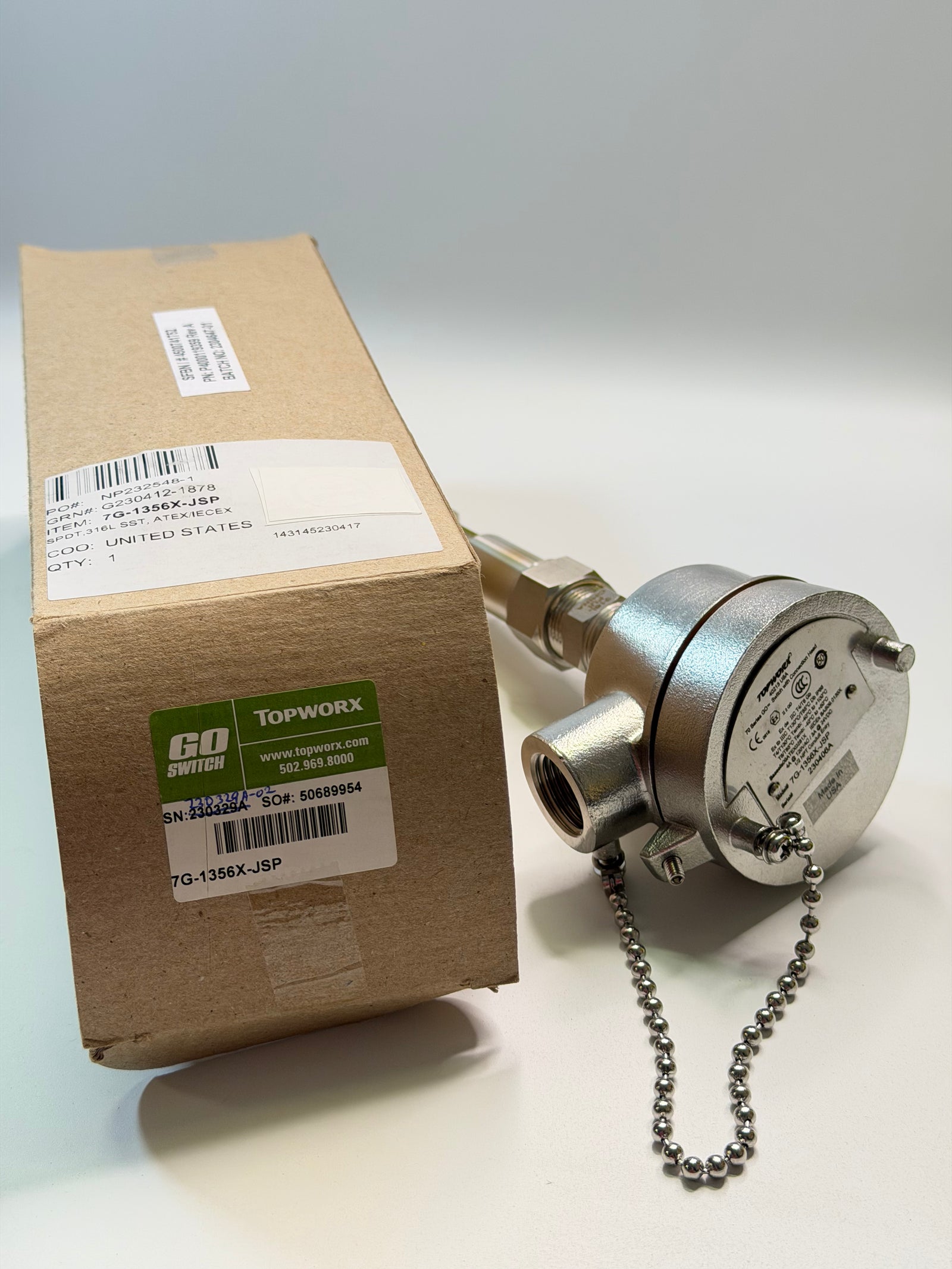

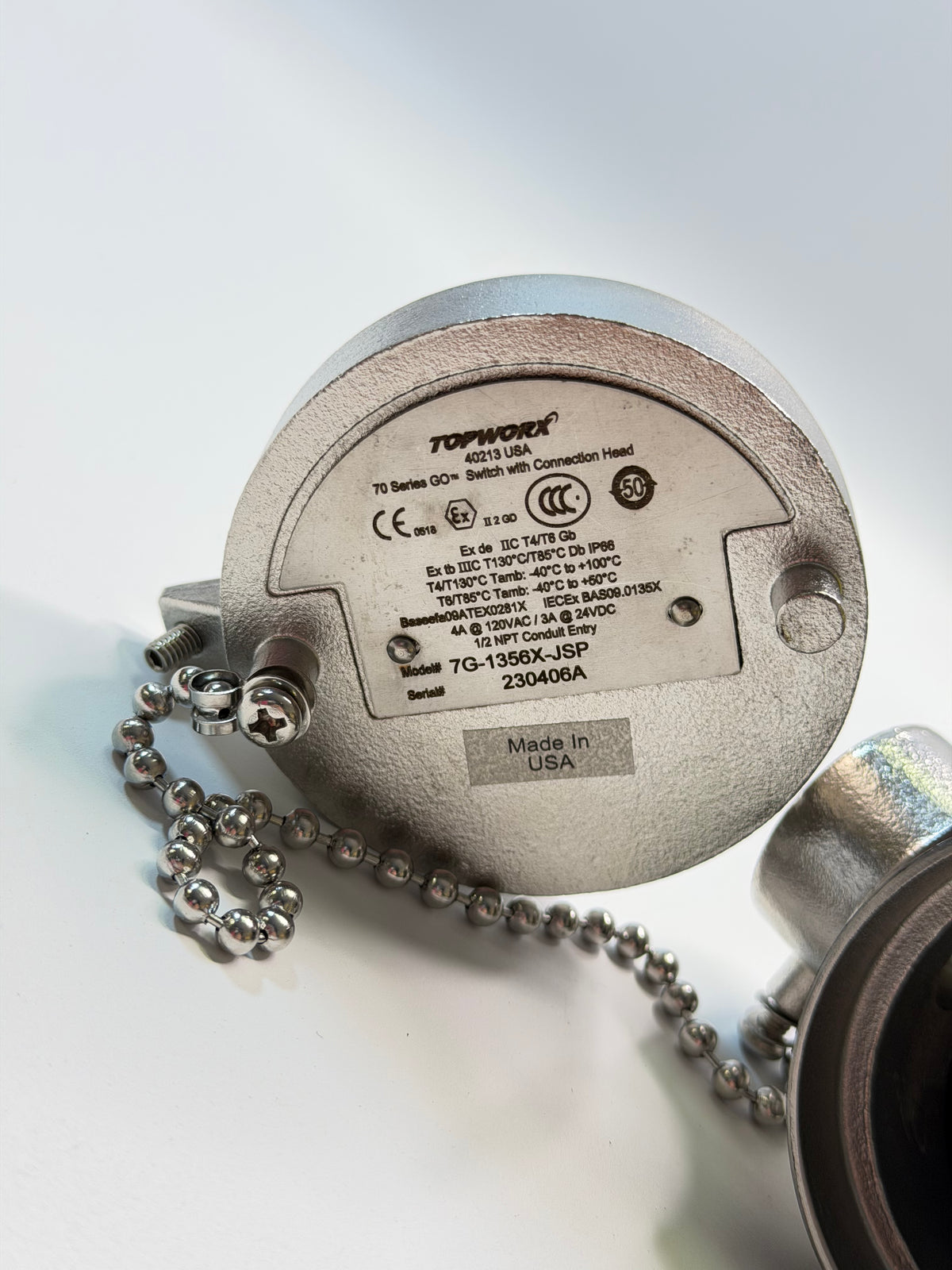

TopWorx GO Switch 7G-1356X-JSP Leverless Proximity Switch

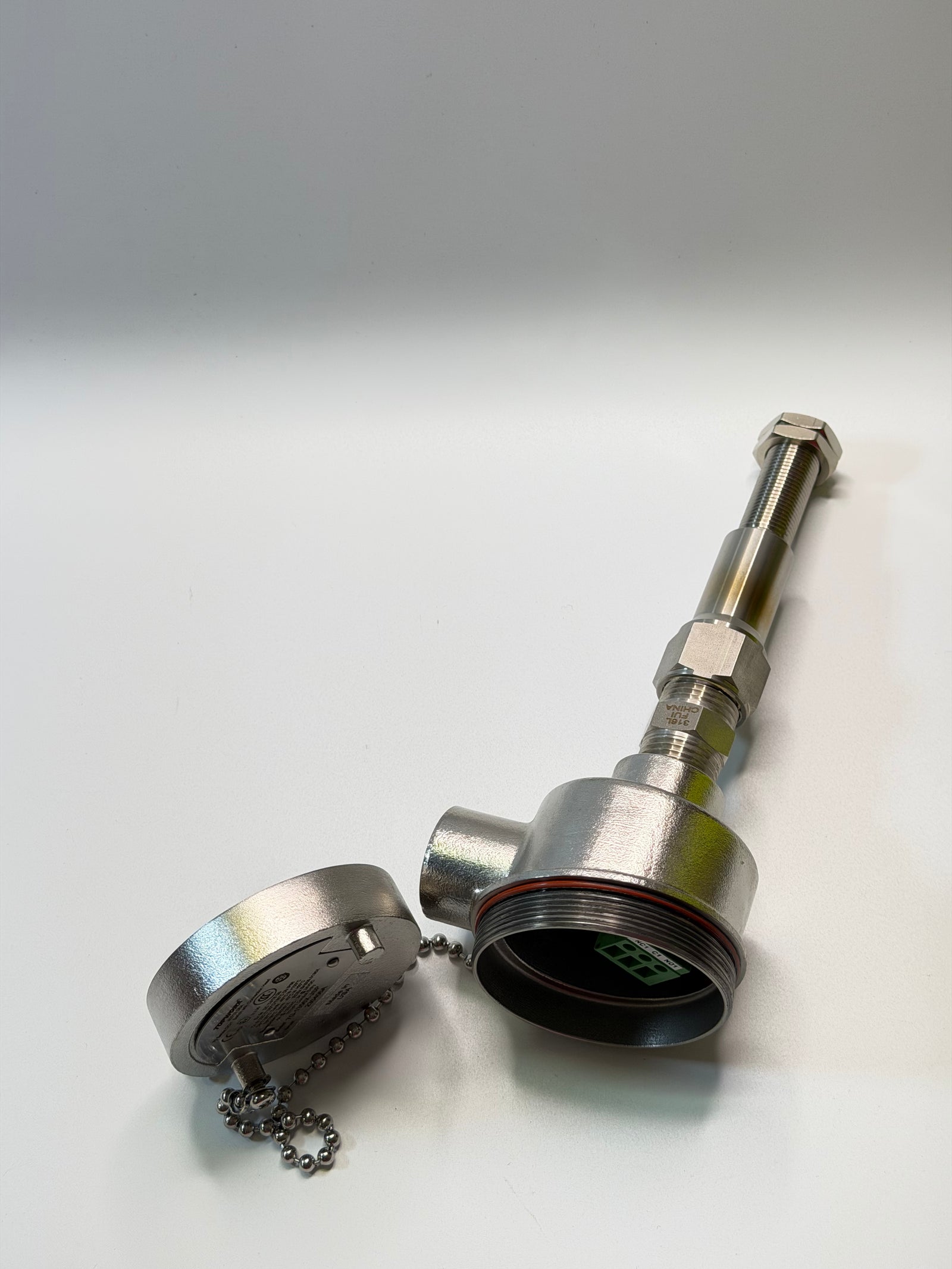

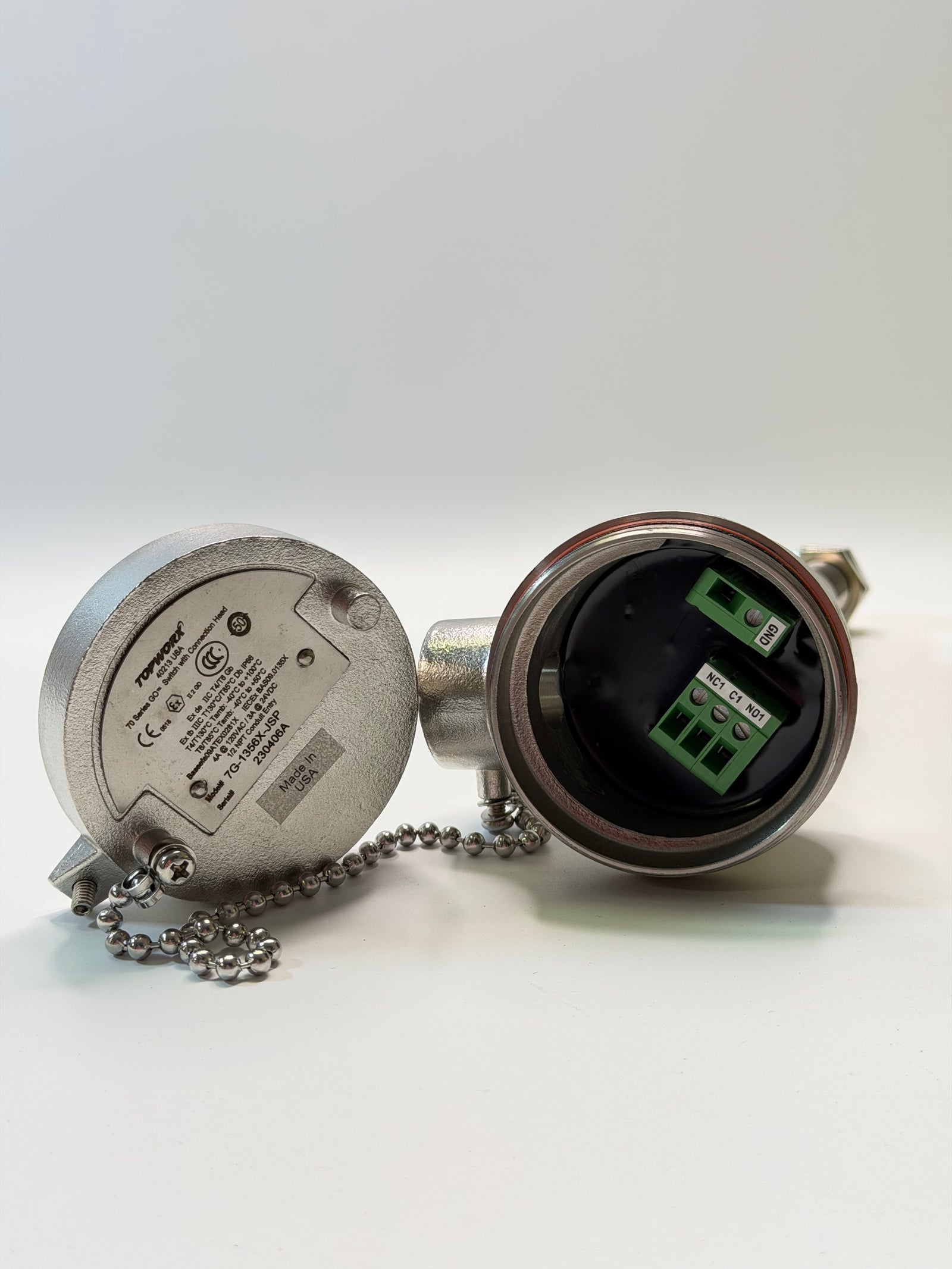

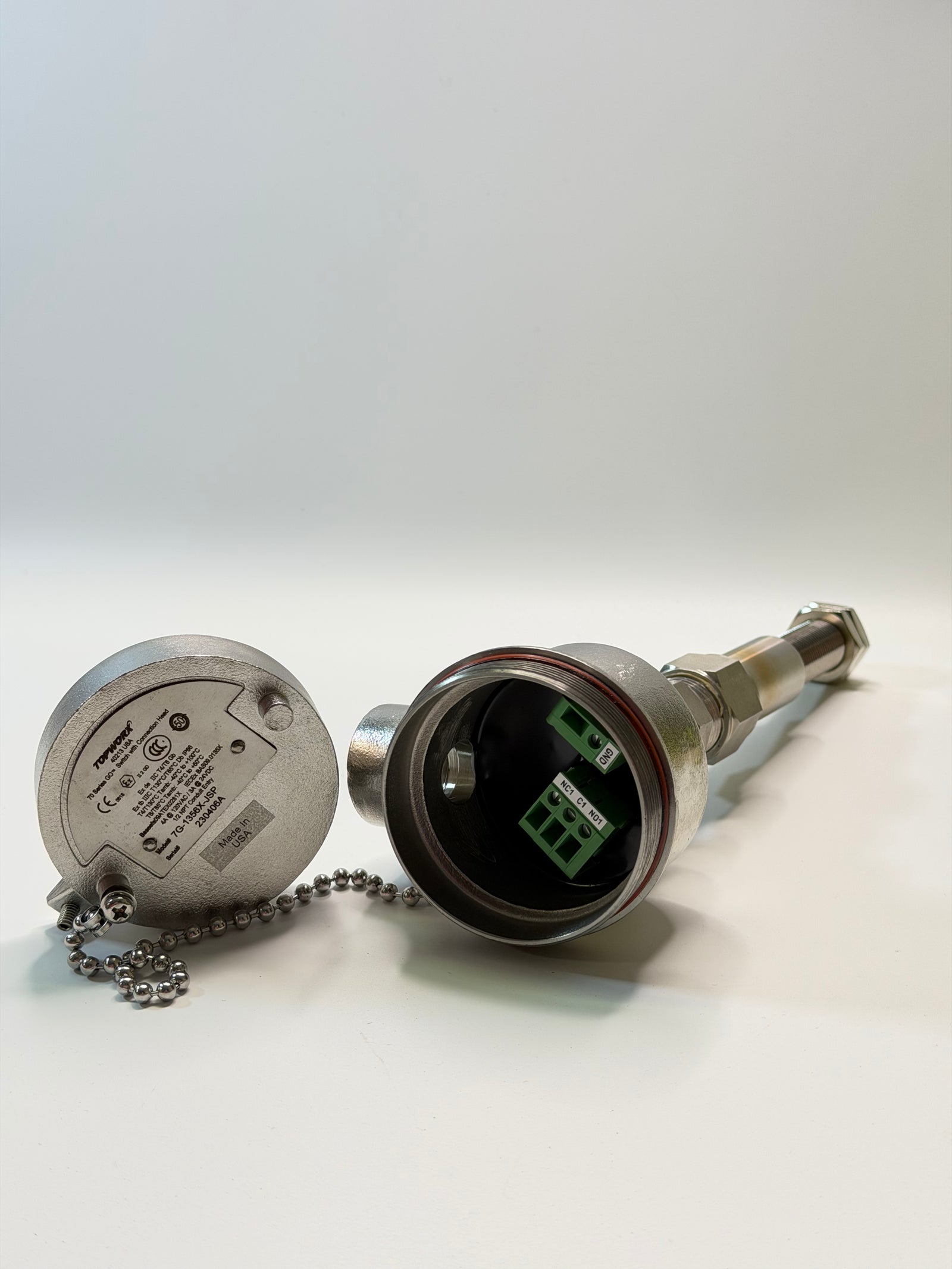

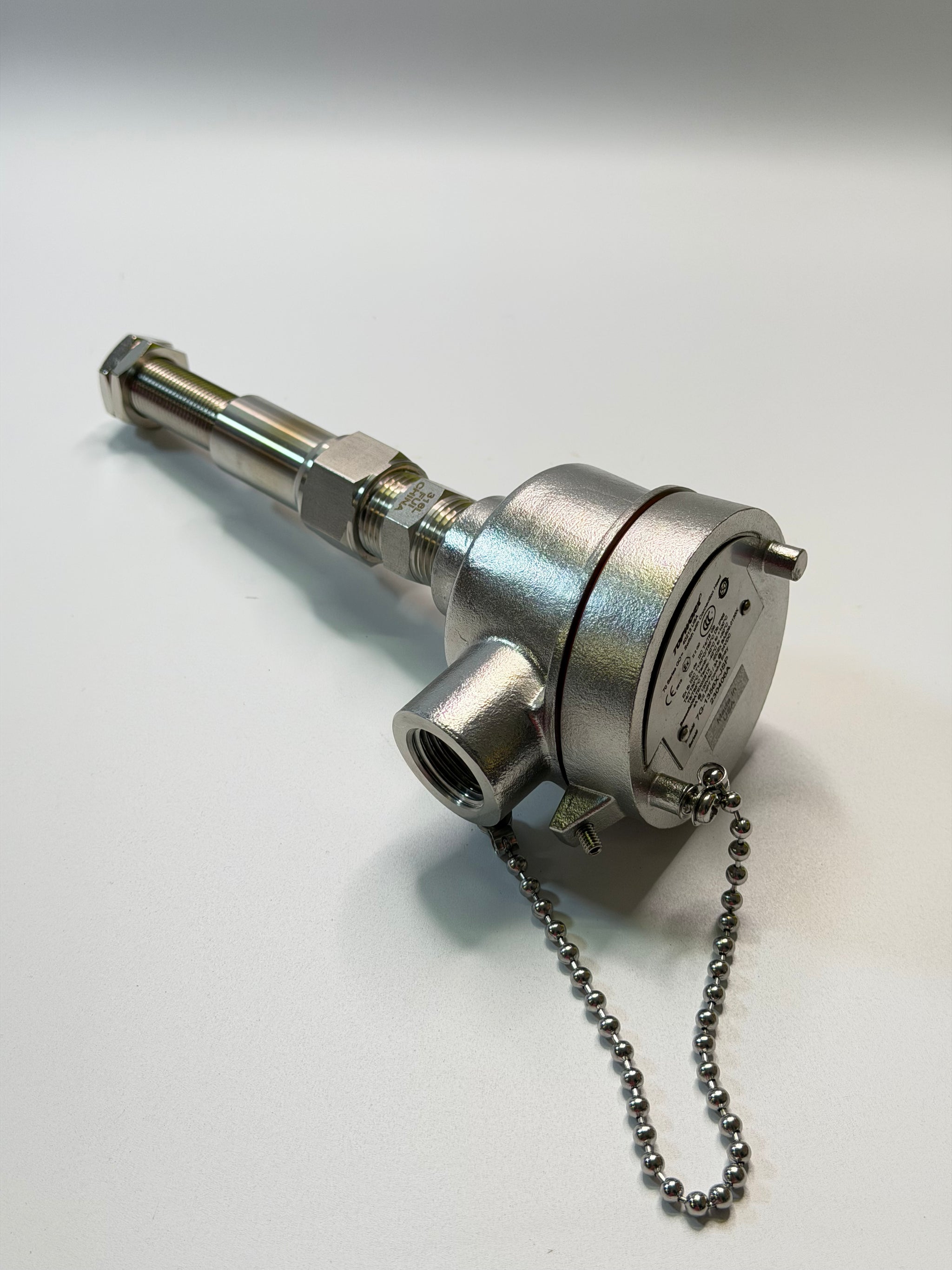

TopWorx GO Switch 7G-1356X-JSP leverless proximity/limit switch. The captured specification describes a side-entry wireable connection head, 316L stainless-steel body and SPCO/SPDT Form C palladium-silver contacts.

The recorded 4A maximum current is incomplete without its voltage/load conditions. Ferrous-target range (2.5mm) and magnet-assisted range (<12mm) are different conditions. The 2000psi / 138 bar entry applies to the sensing face, not an unrestricted enclosure or system pressure rating.

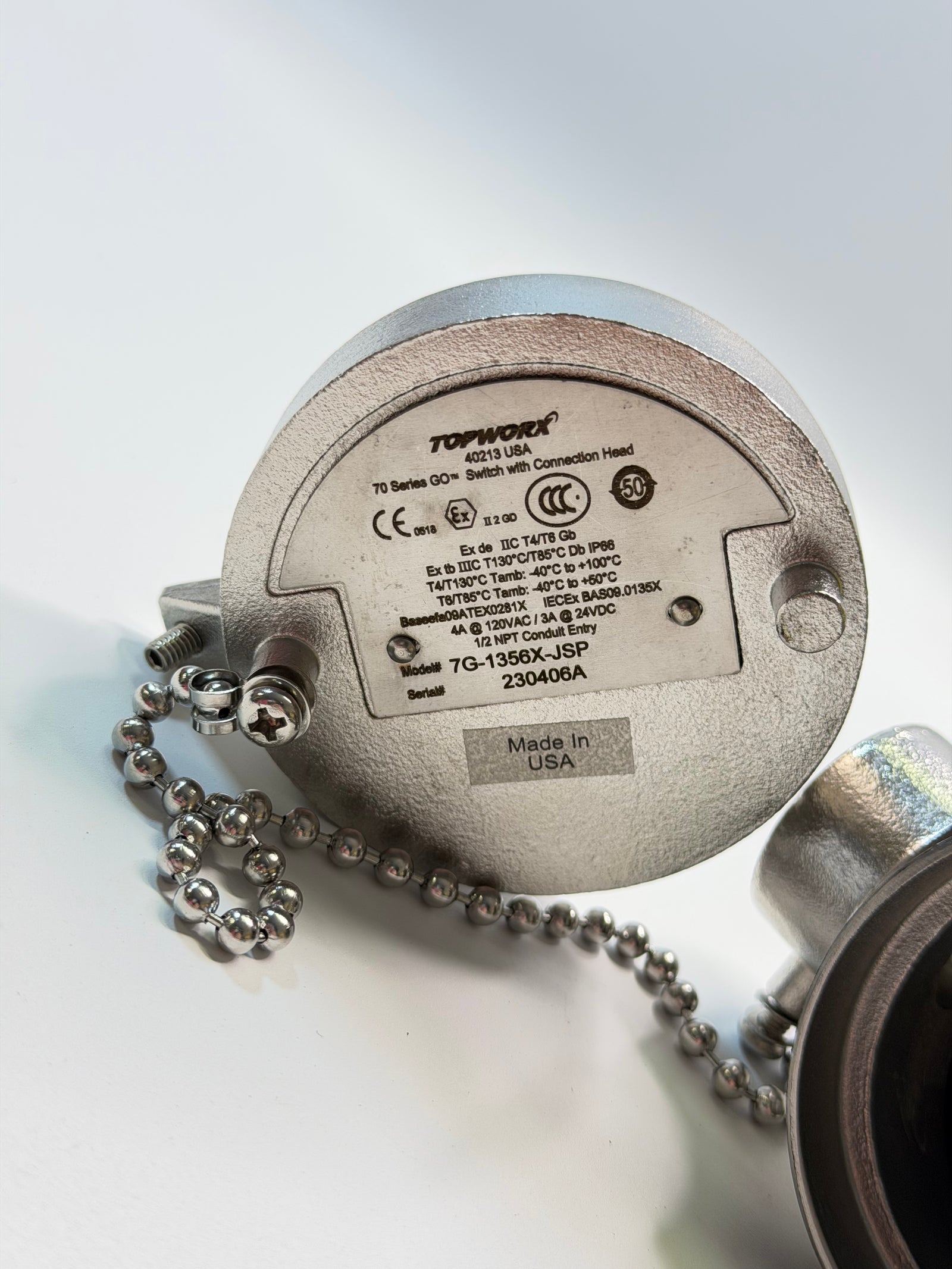

Certification check required: ATEX/IECEx/UKEx, gas/dust groups, temperature classes, IP/NEMA and SIL 2 / SC3 entries below are unverified records for this stock, not confirmation of hazardous-area or safety-system suitability. Confirm the exact suffix, markings, certificate conditions and supplied locknuts before use. The manufacturer’s 7G family page describes multiple configurations; its other ratings have not been applied to this item.

Recorded specification fields — certification requires verification

Body Shape

Field Wireable Connection Head - Side Entry

Body Material

316L Stainless Steel

Contact Arrangement

SPCO / SPDT (Form C)

Contact Material

Palladium-Silver

Mounting Thread

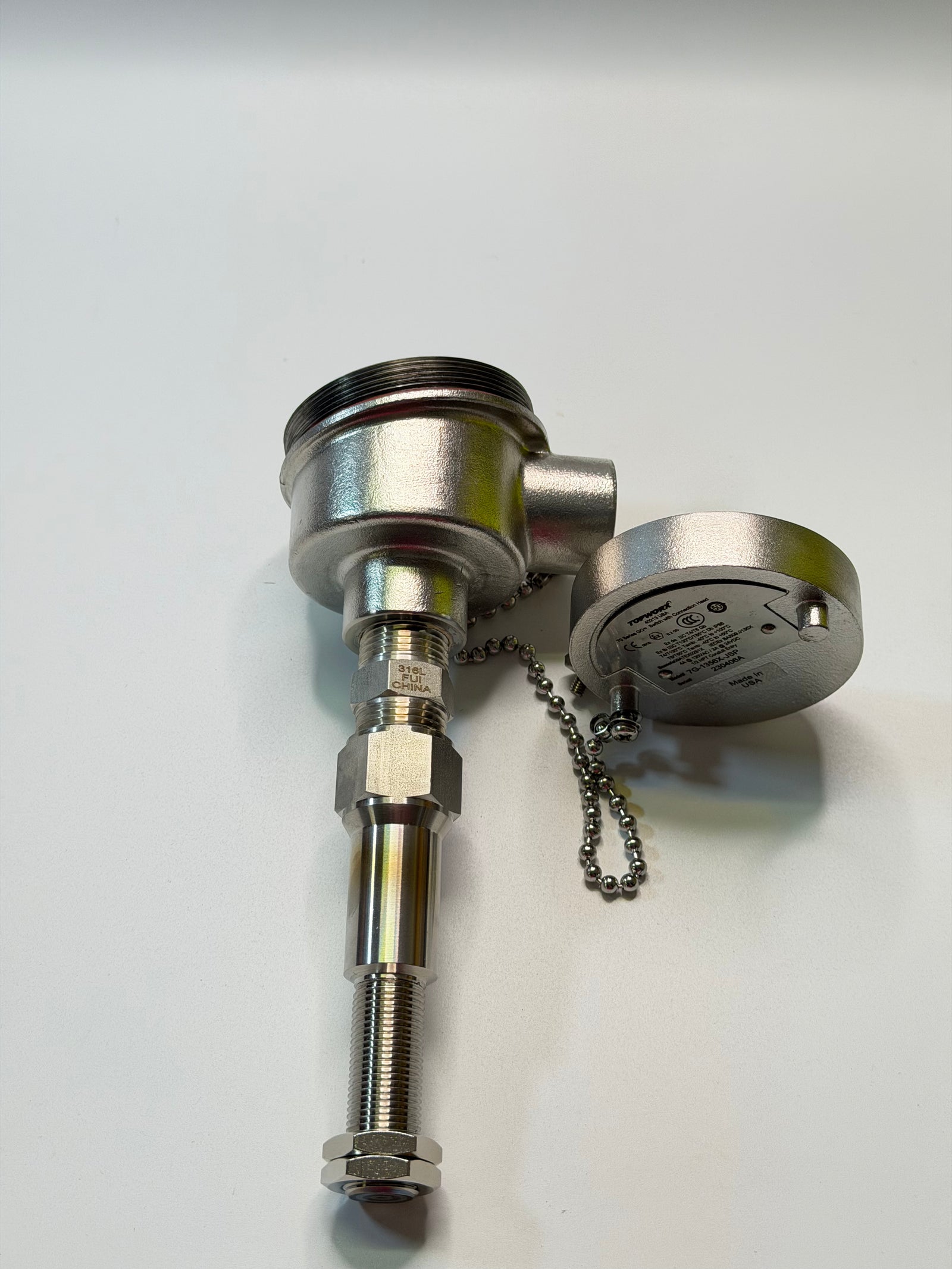

5/8"-18 UNF (47.75 mm / 1.88" long) c/w 2 x locknuts

Max Current

4A

Connection

Side Entry

Conduit Entry

1/2" NPT

Termination

Wireable Connection Head

Certification & Approvals

IECEx, ATEX, UKEx Ex d/db/tb

Hazardous Location

Zone 1, 2, 21 and 22

Gas Group

IIC

Dust Group

IIIC

Temperature Class (T Rating)

T4 / T6

Operating Temperature

-60°C to +120°C / -76°F to +248°F

Sensing Range with Magnet

<12mm (0.47")

Sensing Face Pressure Rating

2000psi / 138 bar

Environmental Protection

IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & 6P

Safety Rating

SIL 2 / SC3

Range (ferrous target)

2.5mm|0.10"

Repeatability

Approx. 0.05mm (0.002")

Response Time

8 ms

Differential / Hysteresis

< 0.51mm (0.020")
