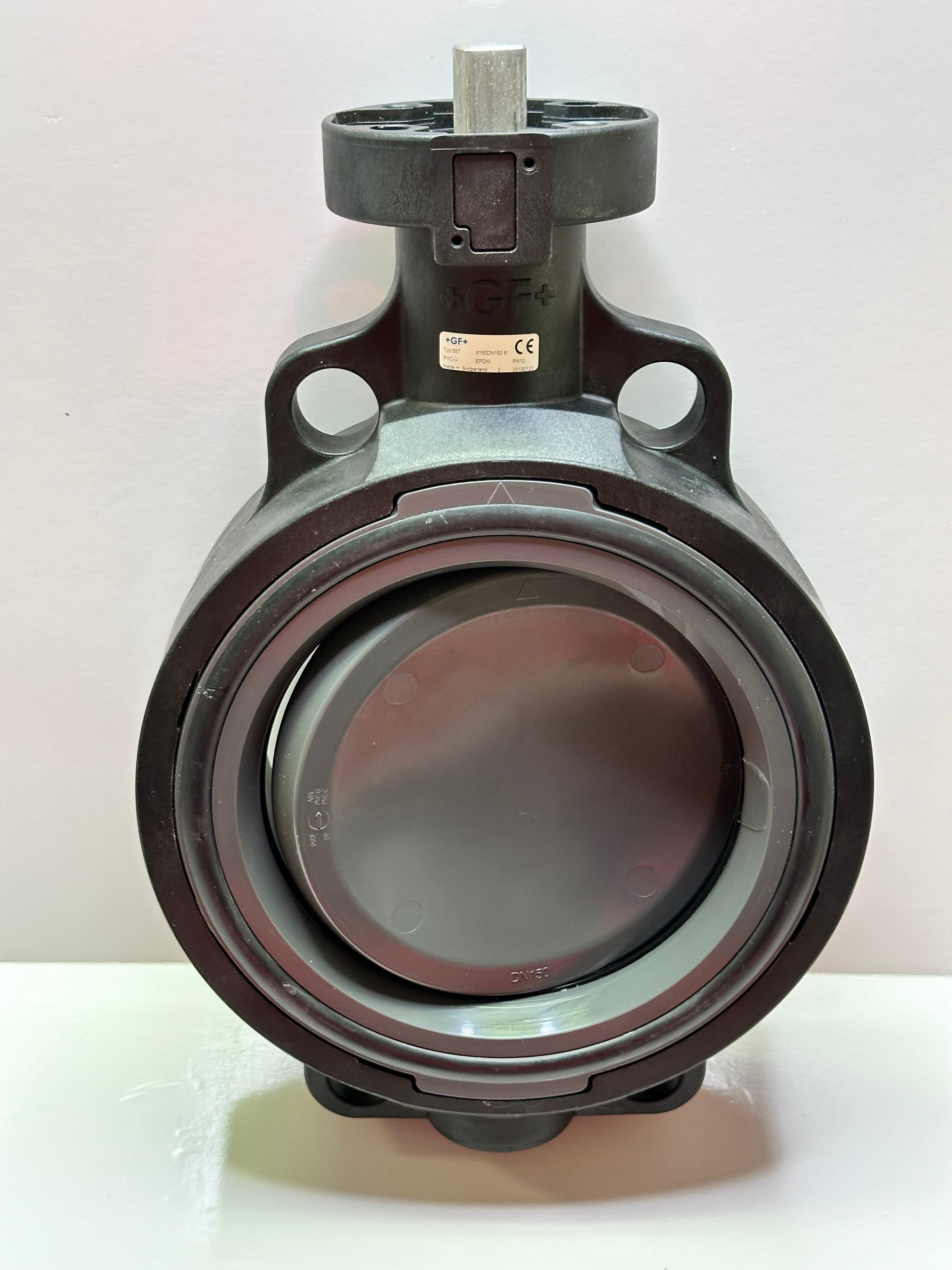

GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"
GF Type 567 PVC-U Butterfly Valve d160DN150 6"

GF Type 567 PVC-U Butterfly Valve d160DN150 6"

GEORG FISCHER +GF+ SKU: P-GF-G-5505

$395.00

Tax included

Only 2 left!

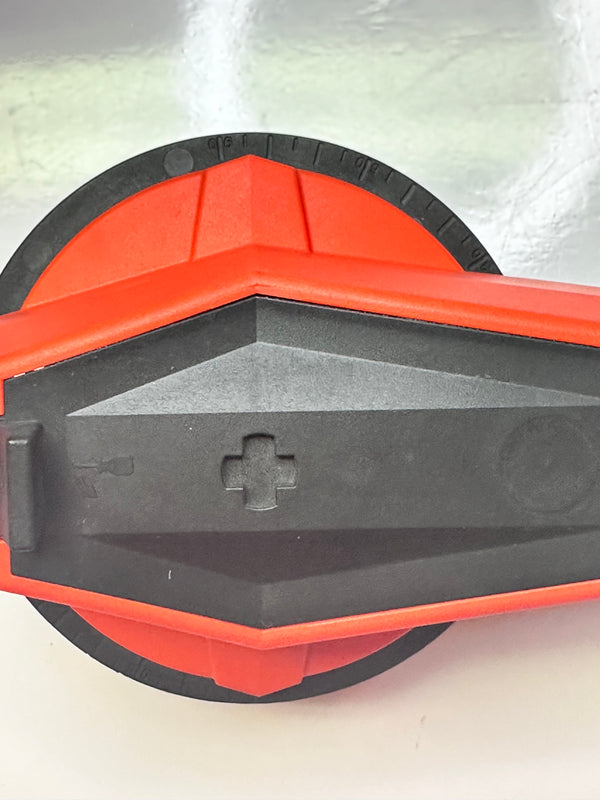

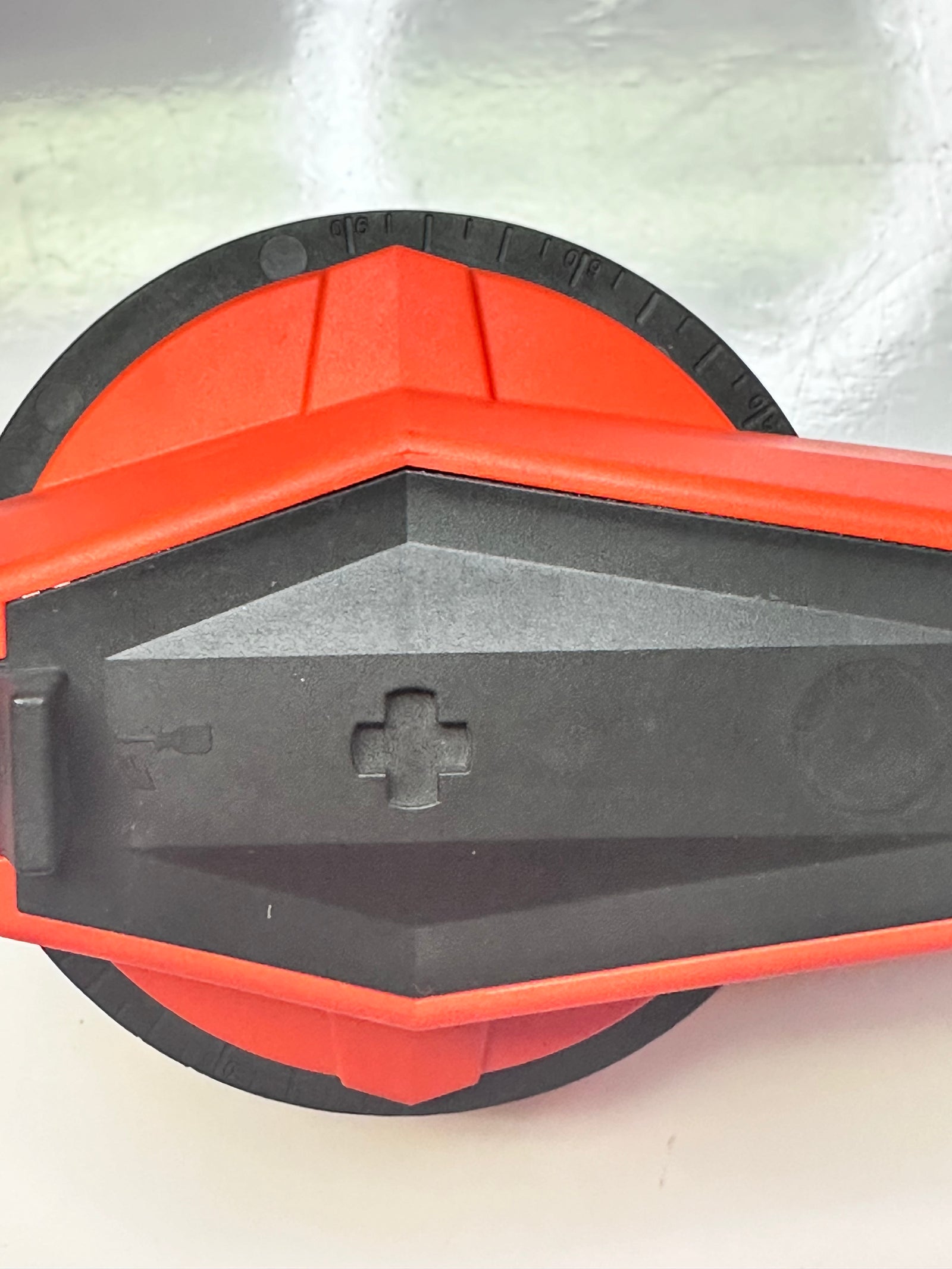

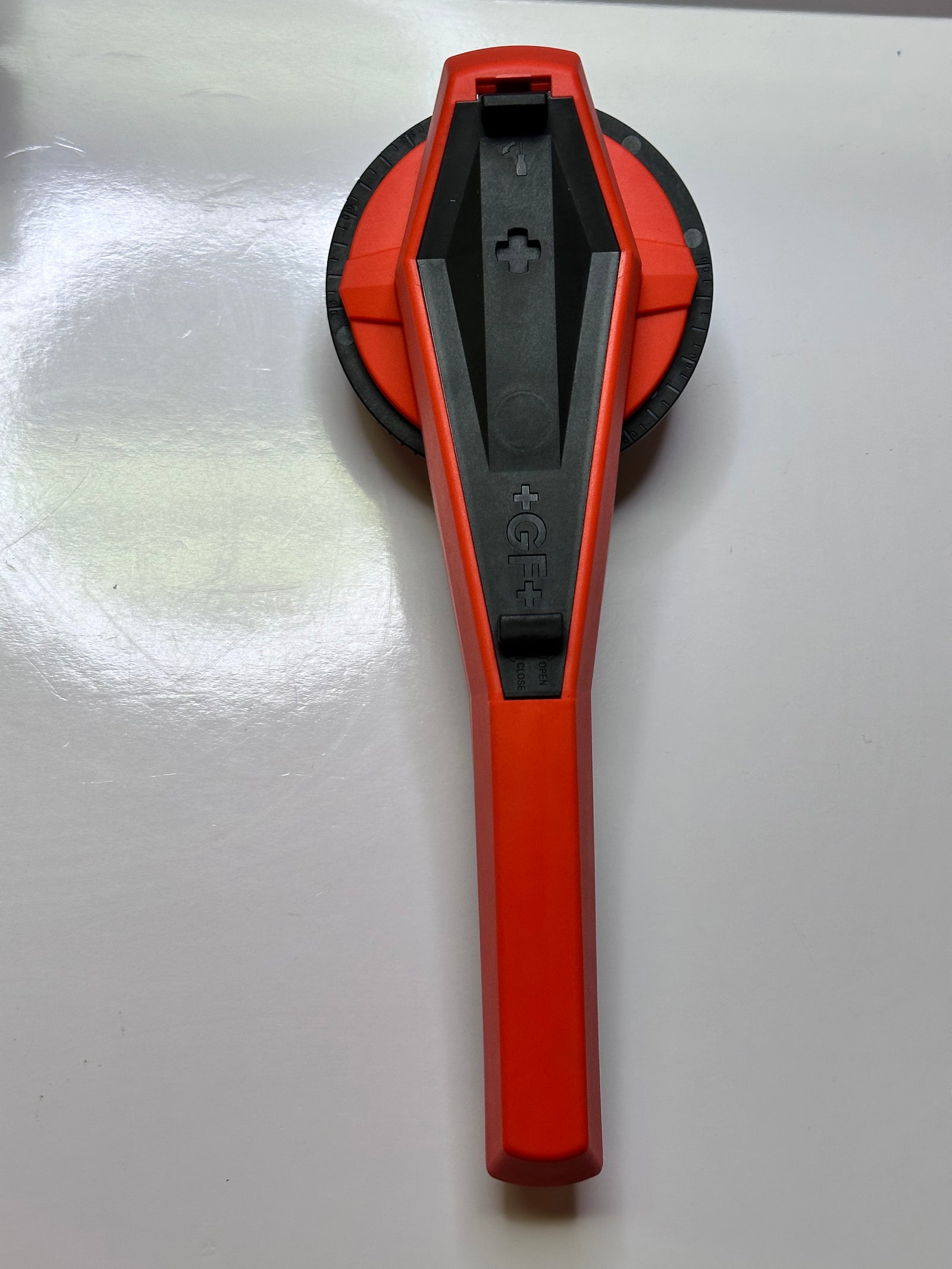

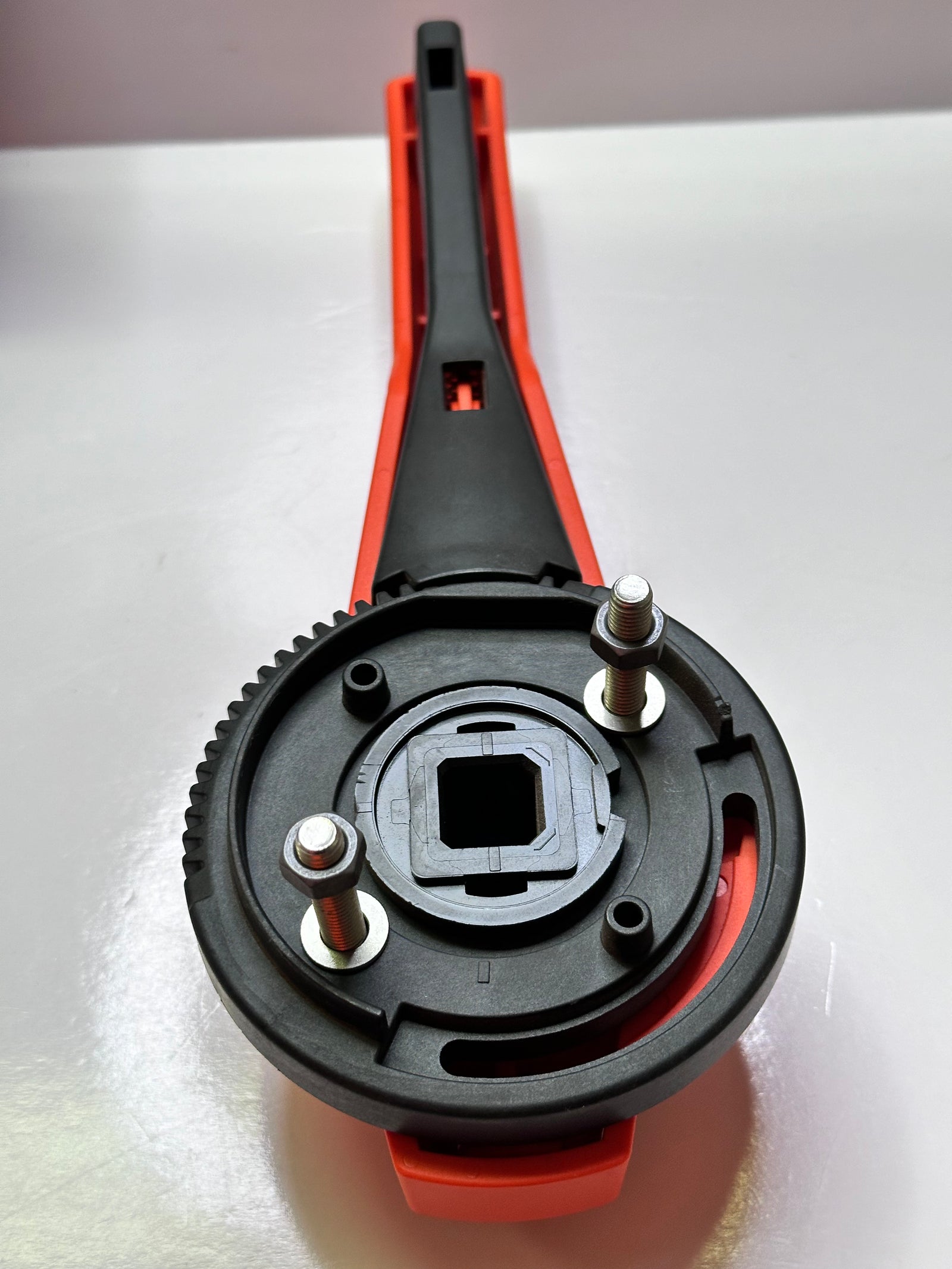

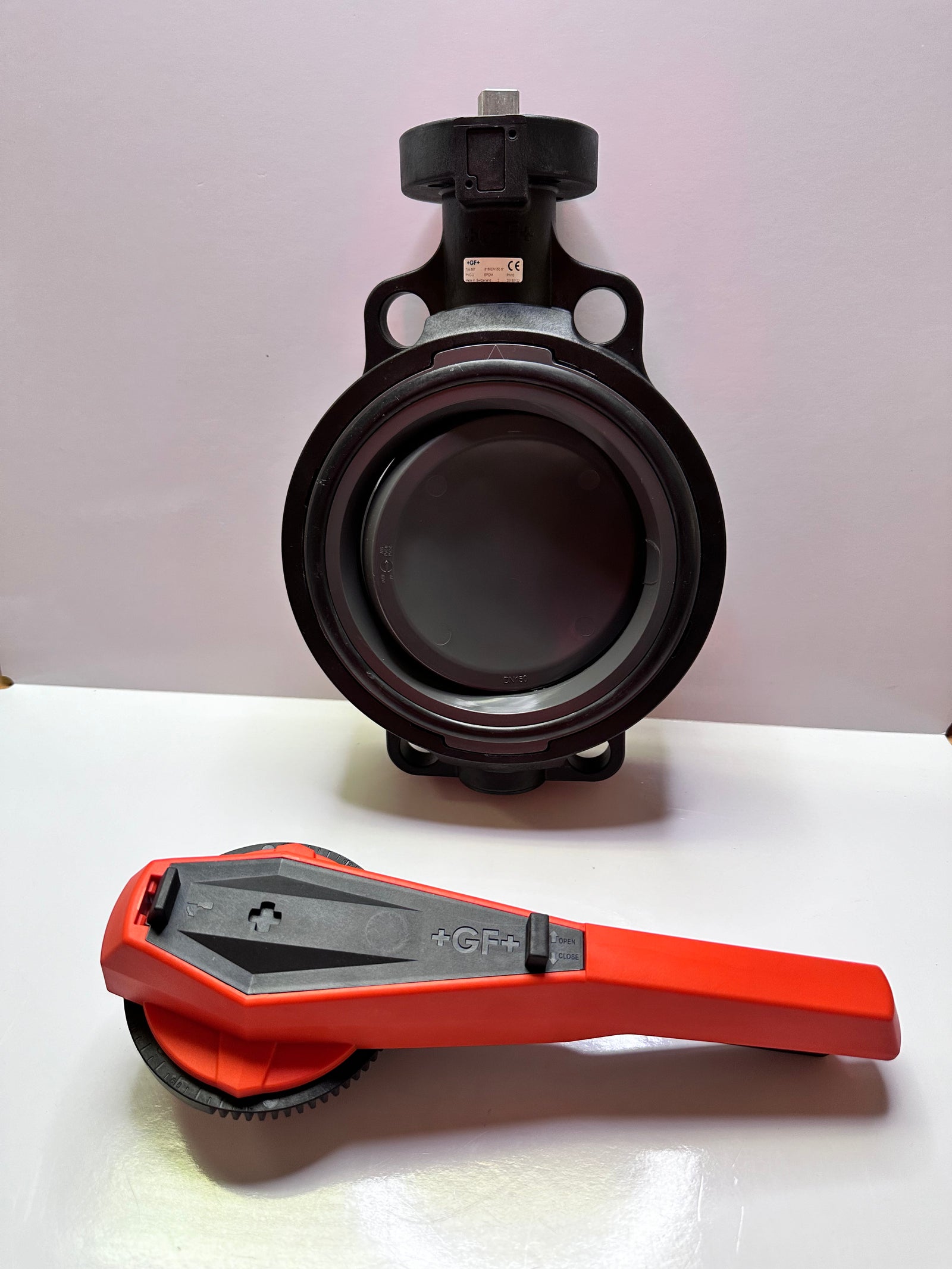

• Hand Lever with Ratchet Settings
• Adjustable In 5° Increments
• Lockable Handle
• Approximately half the weight of a comparable metal valve
• Double Shaft Seals On Both Sides
• Double Eccentric Operating Principle

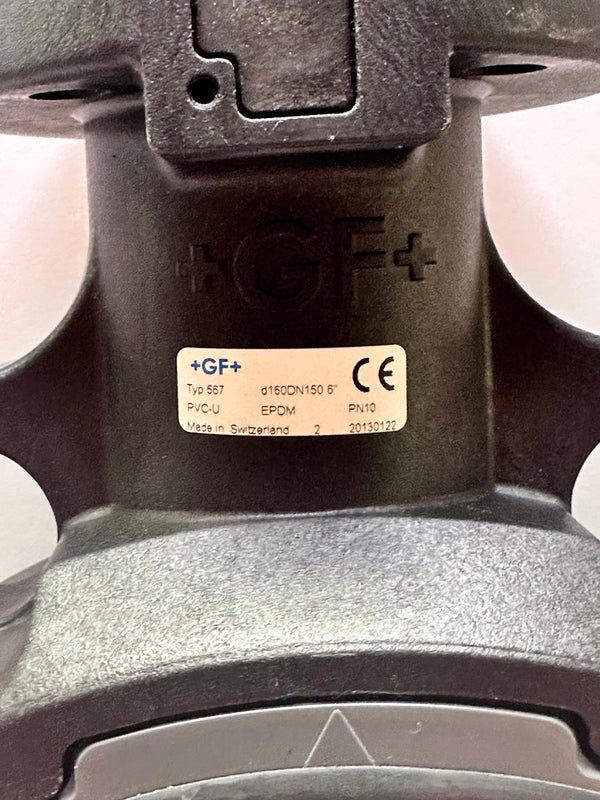

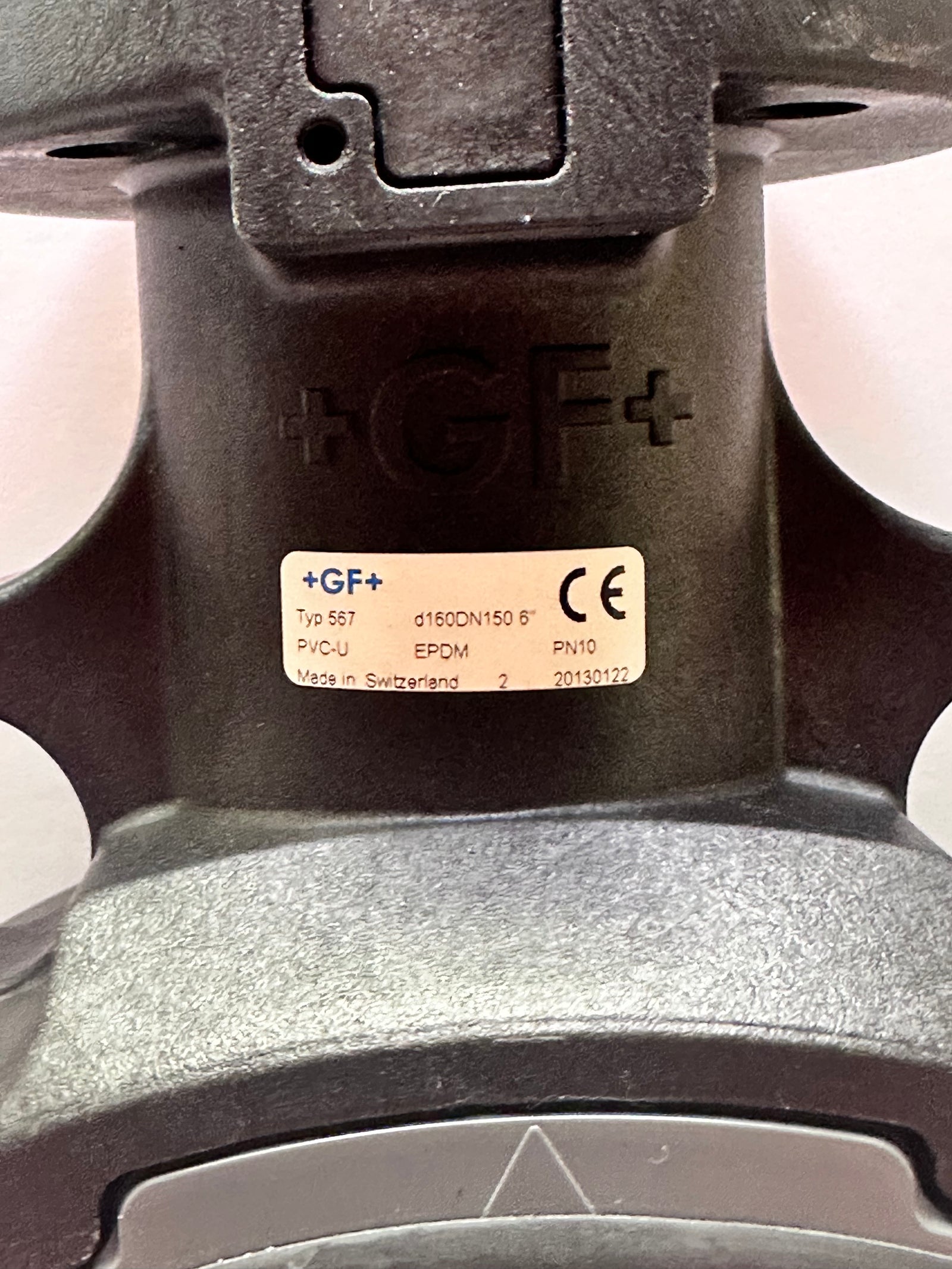

Material - Body: PVC-U (Grey)
Material - Lever: PPGF
Material - Seals: EPDM

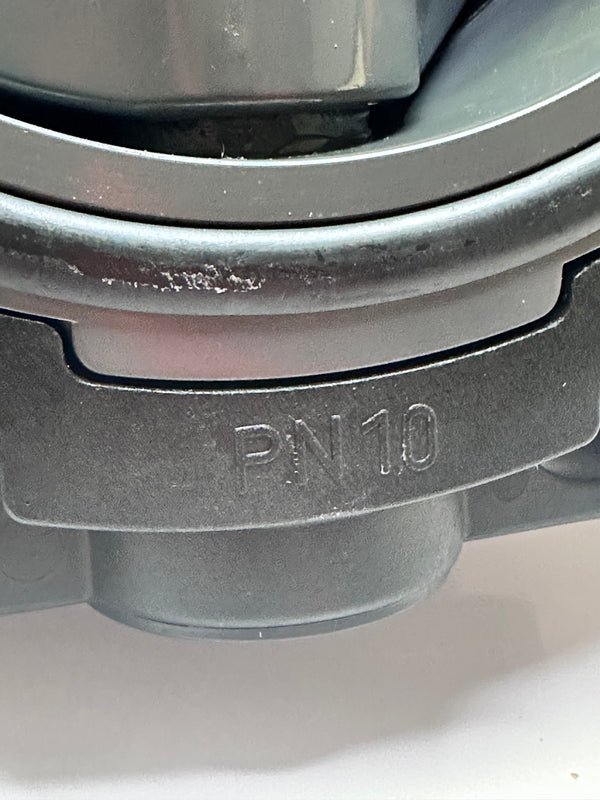

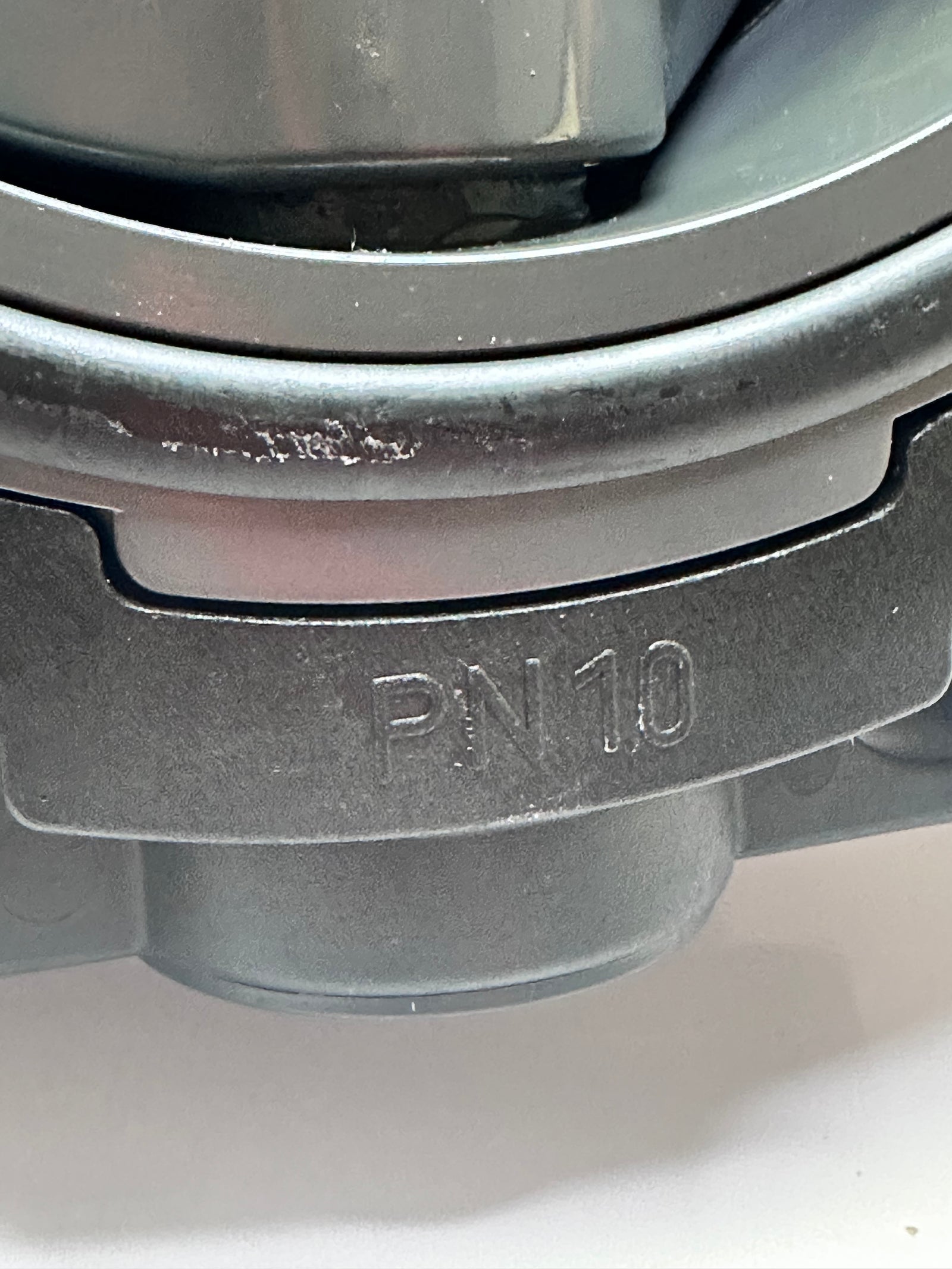

Pressure Rating: PN10 (1000 kPa)
Suits Flanges: ISO 7005 PN10, DIN 2501 PN10, ANSI/ASME B 16.5 Class 150, BS 1560, BS4504, JIS B 2220, EN 1092 PN10.

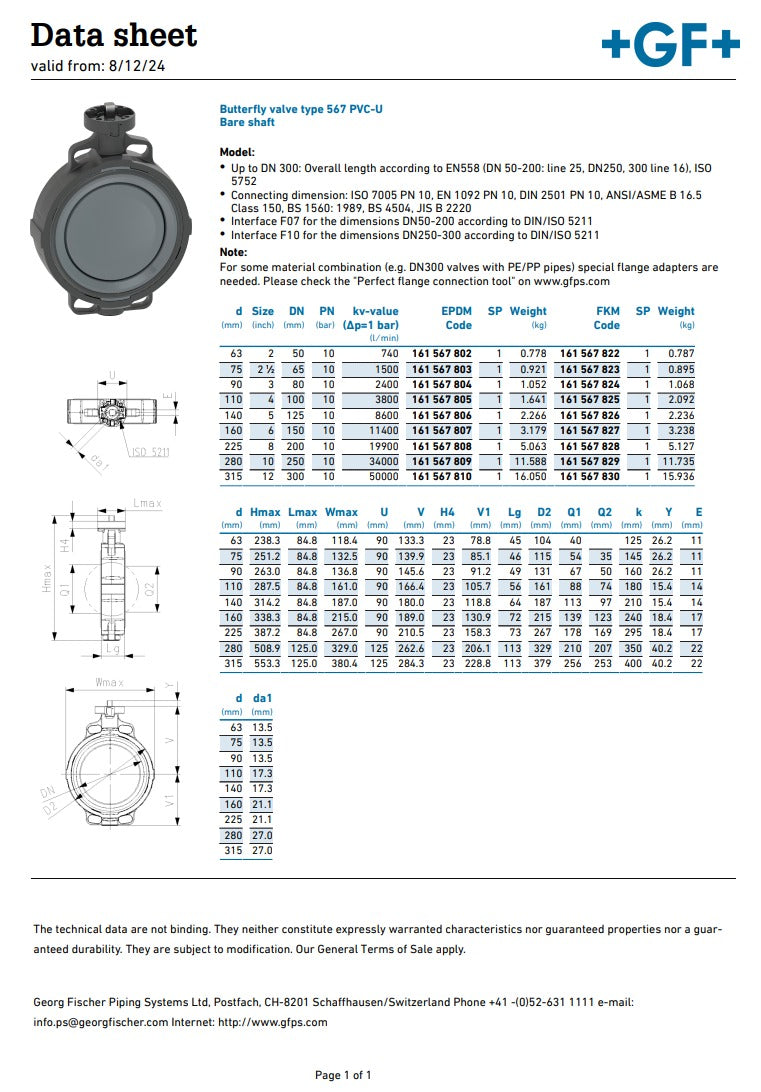

Dimension D: 24mm
Dimension D1 min: 241.2mm
Dimension D1 max: 241.3mm
Dimension d2: 215mm
Dimension H: 373mm
Dimension H1: 130mm
Dimension H2: 189mm
Dimension H3: 55mm
Dimension L: 72mm
Dimension L1: 106mm
Dimension L2: 255mm
Dimension Q1: 139mm
