GE

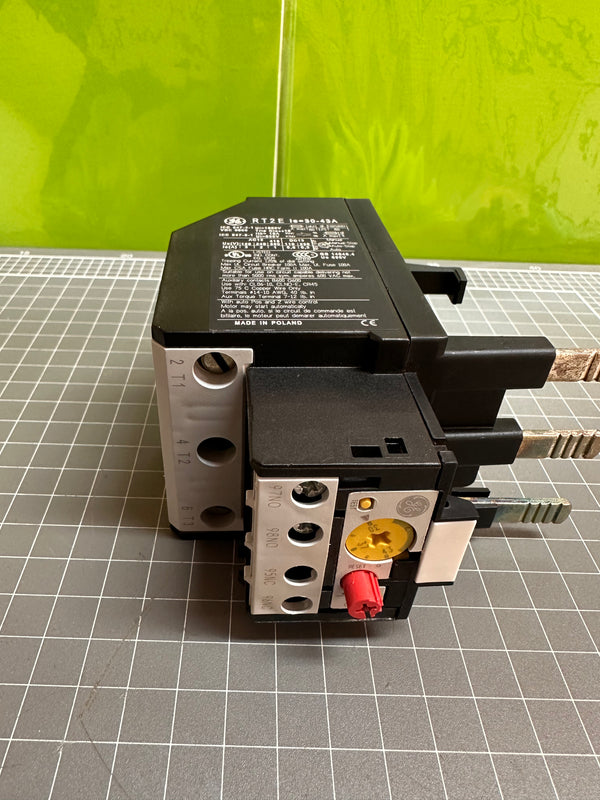

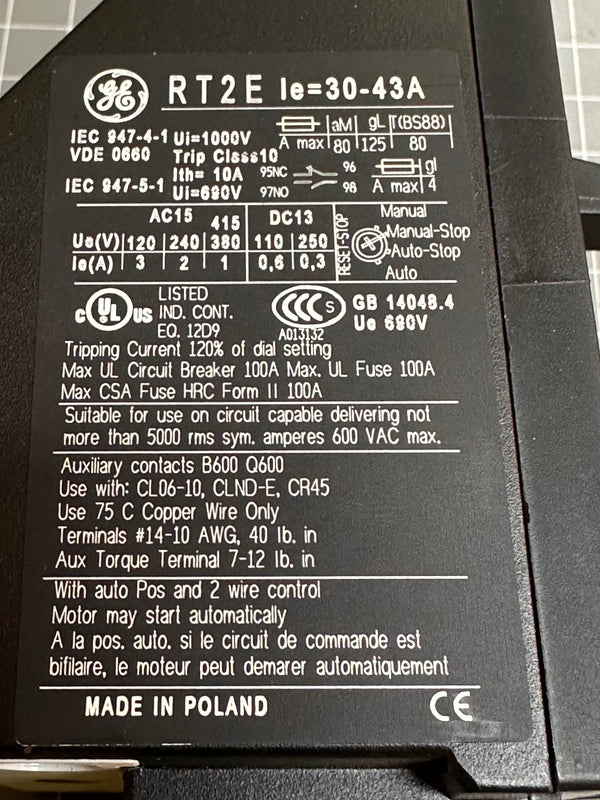

GE RT2E Thermal Overload Relay, Adjustable 30–43A
- SKU
- P-GE-G-2554
$95.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 2.0 kg
Specifications
| Manufacturer | GE |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-GE-G-2554 |
| Weight | 2.0 kg |
Description
GE RT2E thermal overload relay, adjustable from 30 to 43A, with manual or automatic reset.
Source-described features
- Original designation: MANUAL/AUTOMATIC W/WO STOP.
- Class 10 overload designation. The source says “trips in 10 seconds or less”; no test-current or test-condition details are supplied, so this is not a fixed trip-time guarantee at every load.

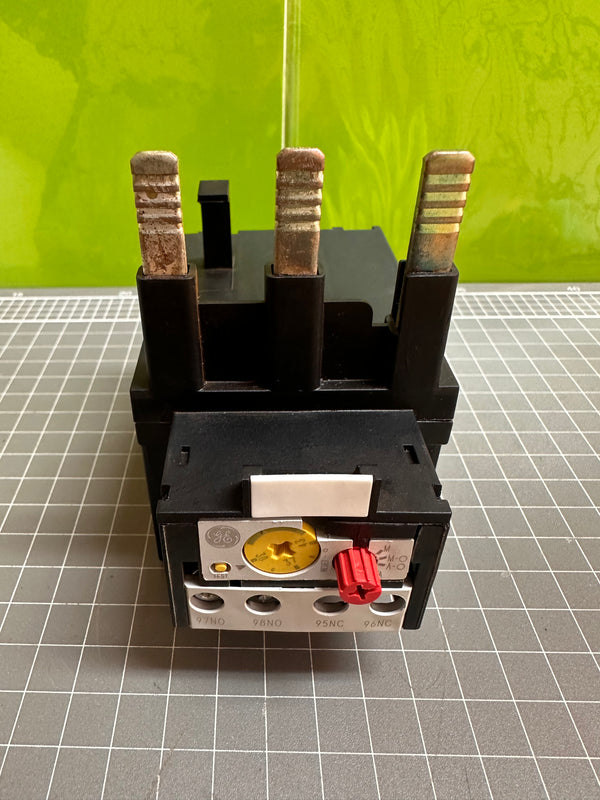

- One normally open and one normally closed auxiliary contact.
- Single-phase sensitivity, described as tripping when a phase is lost.
- Direct mounting to GE CL06, CL07, CL08, CL09 or CL10 3-pole contactors.

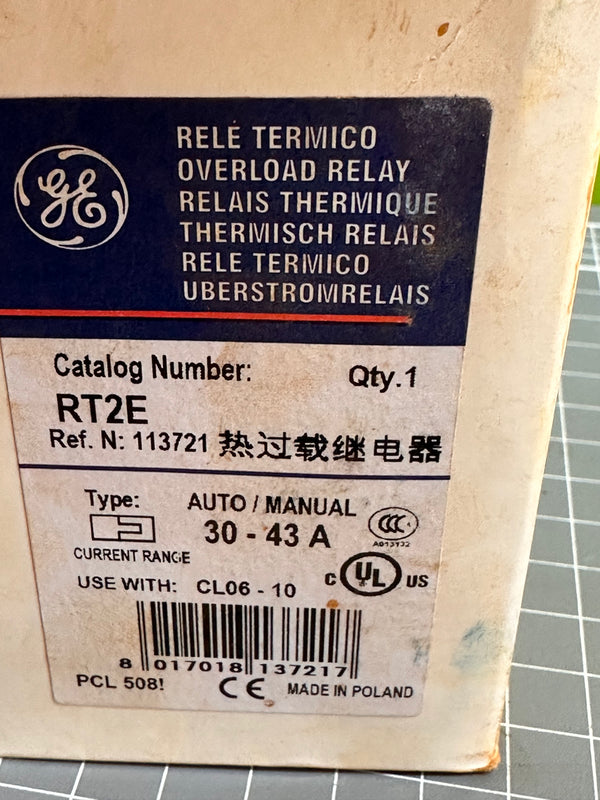

CL06-10 is also retained as an original catalogue tag. Confirm motor current, contactor compatibility and the required reset/stop configuration before ordering. The W/WO STOP wording does not identify which stop arrangement is supplied.
This is an overload relay, not a complete motor-protection system or an included contactor. Check the required protection and installation arrangement with a qualified installer.
