FLEETGUARD

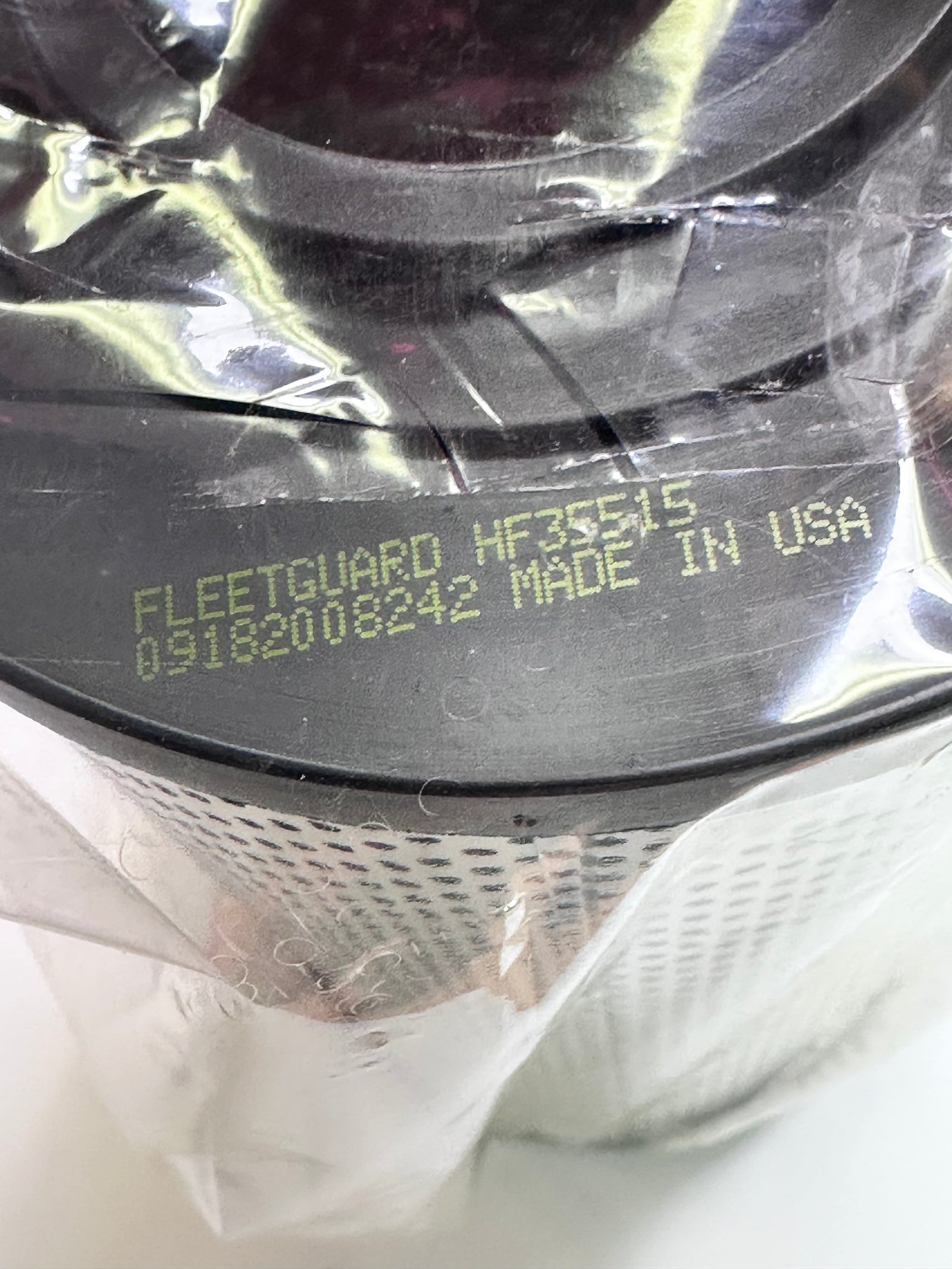

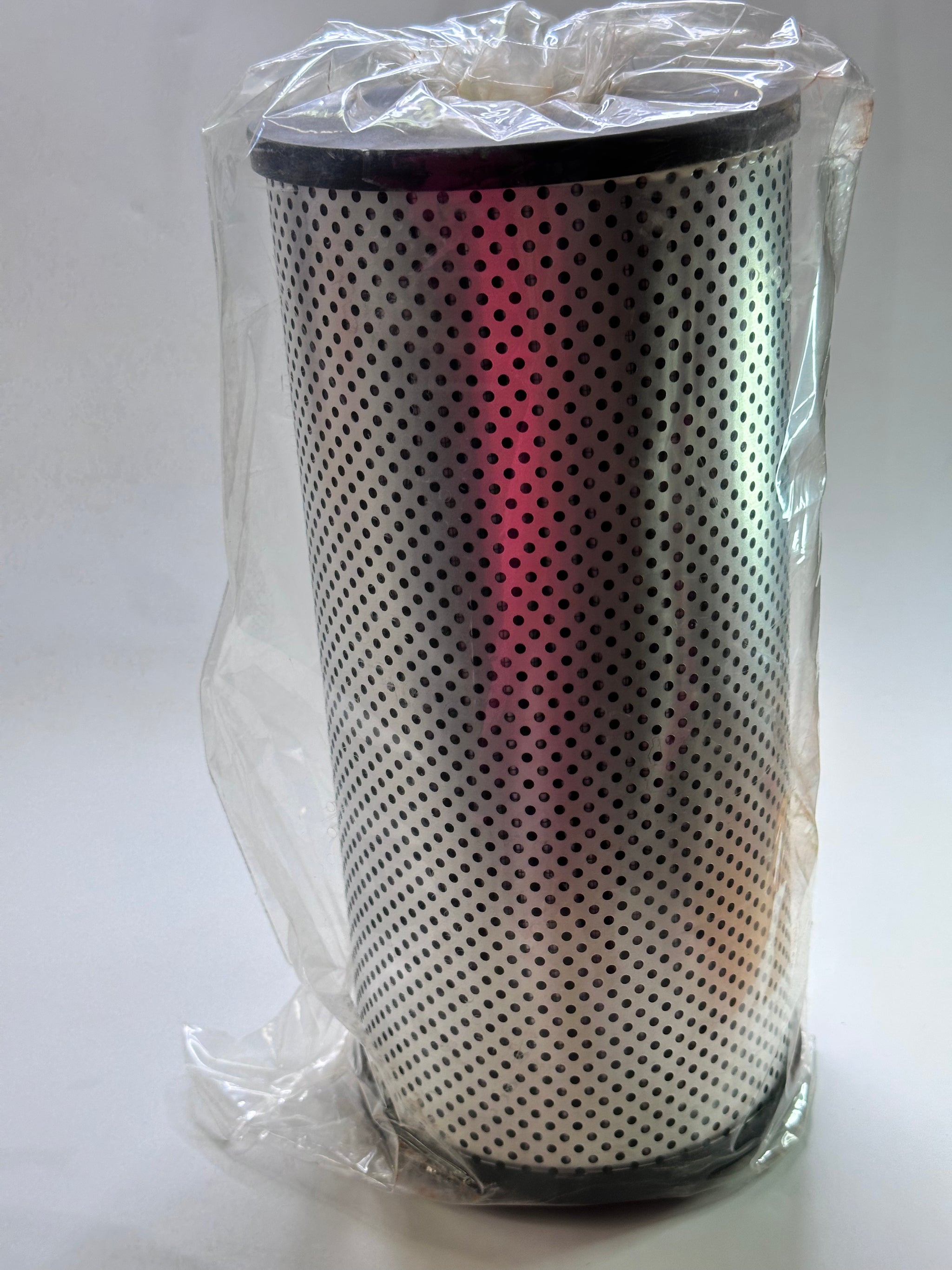

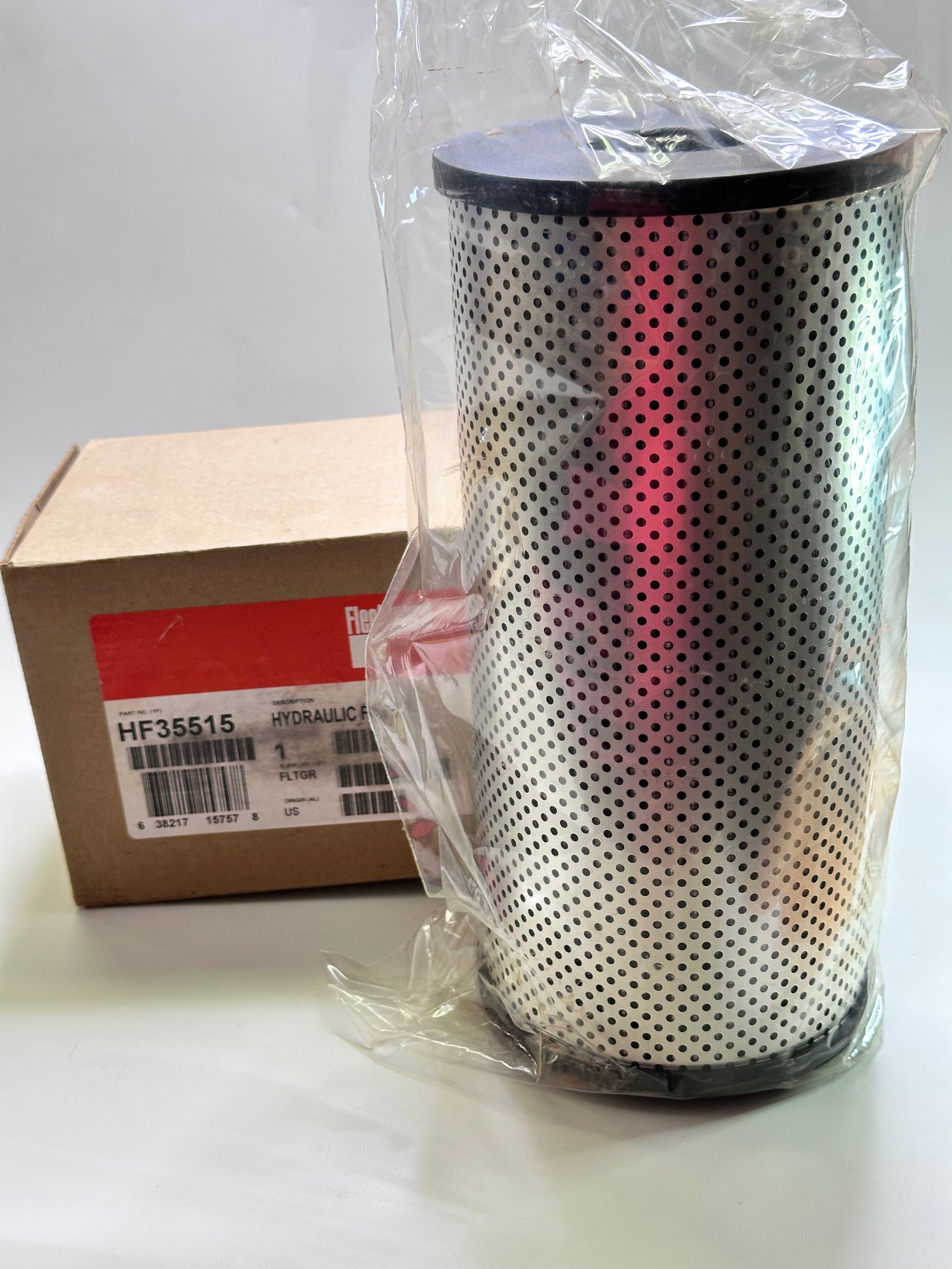

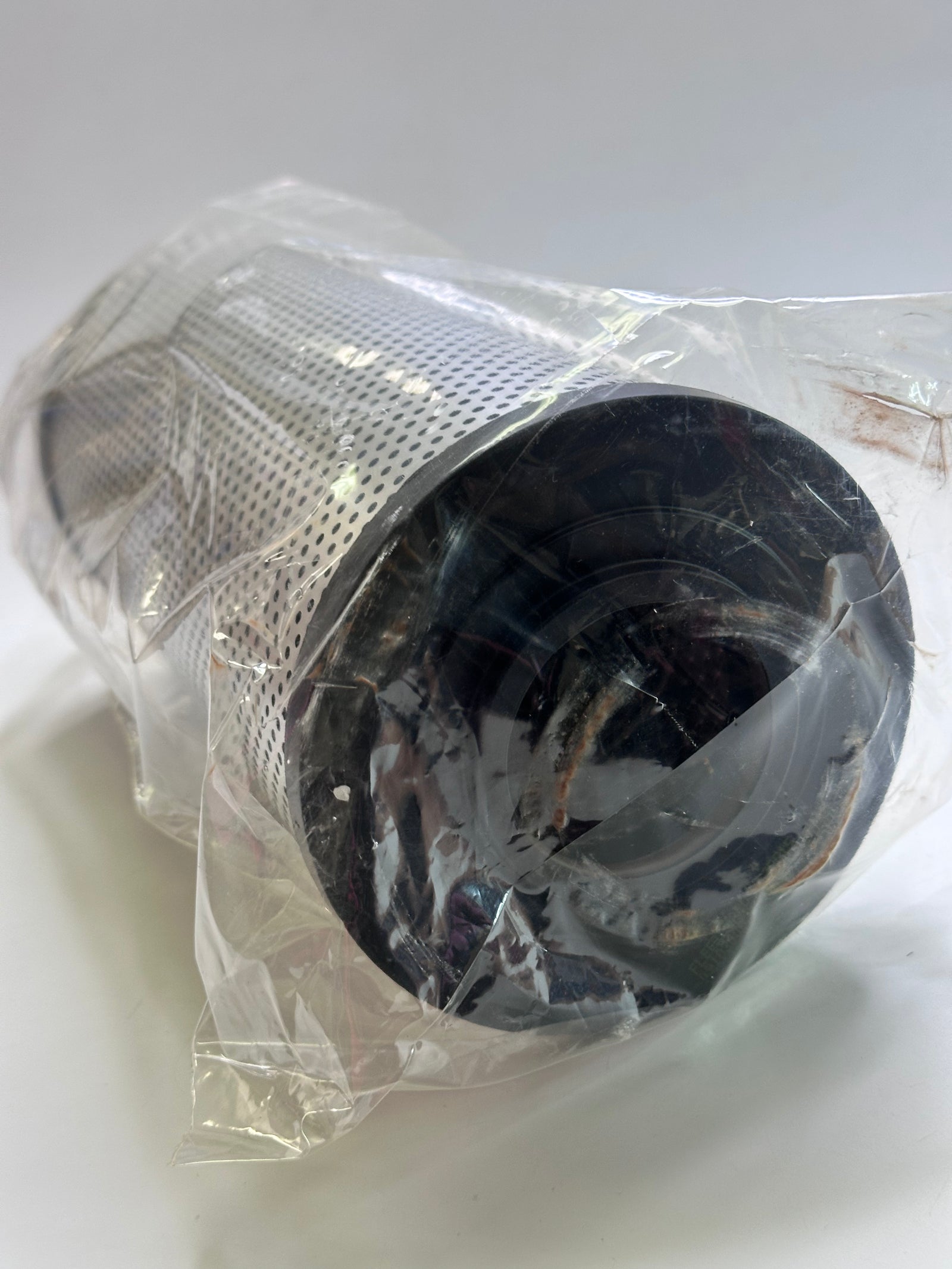

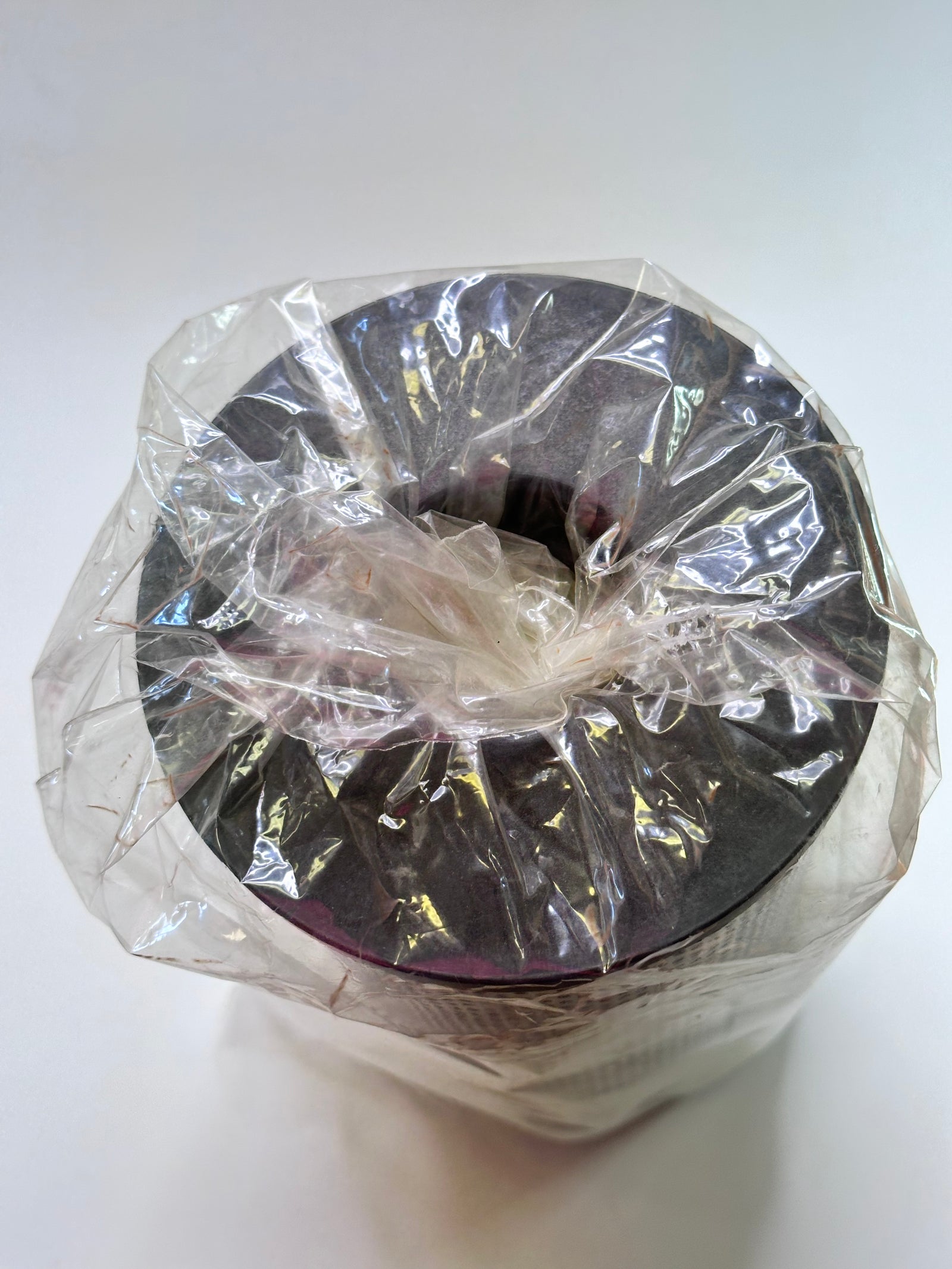

Fleetguard HF35515 Hydraulic Cartridge Filter
- SKU
- P-FL-F-7744
$95.00
Price includes GST.
Low stock: 1 left
Warehouse pickup available
- Weight
- 4.0 kg
Specifications
| Manufacturer | FLEETGUARD |
|---|---|
| Product type | FILTERS |
| SKU | P-FL-F-7744 |
| Weight | 4.0 kg |
Description
Fleetguard HF35515 hydraulic cartridge filter. Recorded Caterpillar fit/reference: 3283655; the original tags also record 328-3655.
Recorded specifications
| Style | Special Filter |
| Media | Glass Fiber |
| Efficiency 1 | 20µ @ β200 |
| Efficiency 2 | 22µ @ β1000 |
| Outer Diameter | 4 15/16" |
| Inner Diameter | 2 1/8" |
| Length | 10 1/2" |
| Δ Collapse Pressure | 145.0 psi |
| Seal Material | Viton |
| Temperature Range | -10 - +250°F |
Additional source-tag references
MFHSP80757, P573354, PT9429-MPG and SH66330V. Original Cummins and hydraulic/transmission tags do not identify a particular machine or confirm every replacement application.
Confirm the required cartridge, housing and hydraulic-system specification before purchase. The two filtration entries retain their different beta ratios: 20µ @ β200 and 22µ @ β1000. The 145.0 psi entry is differential collapse pressure, not a maximum system working-pressure rating. No application beyond the recorded references is inferred.
