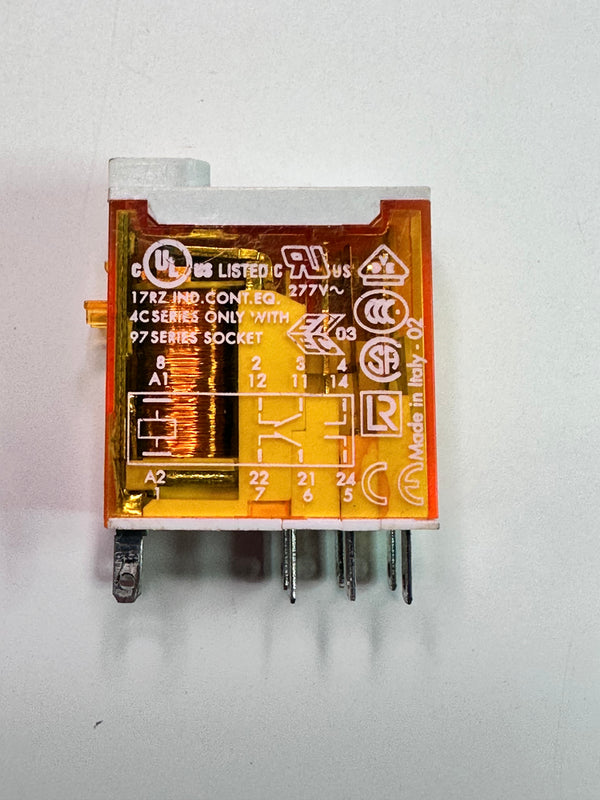

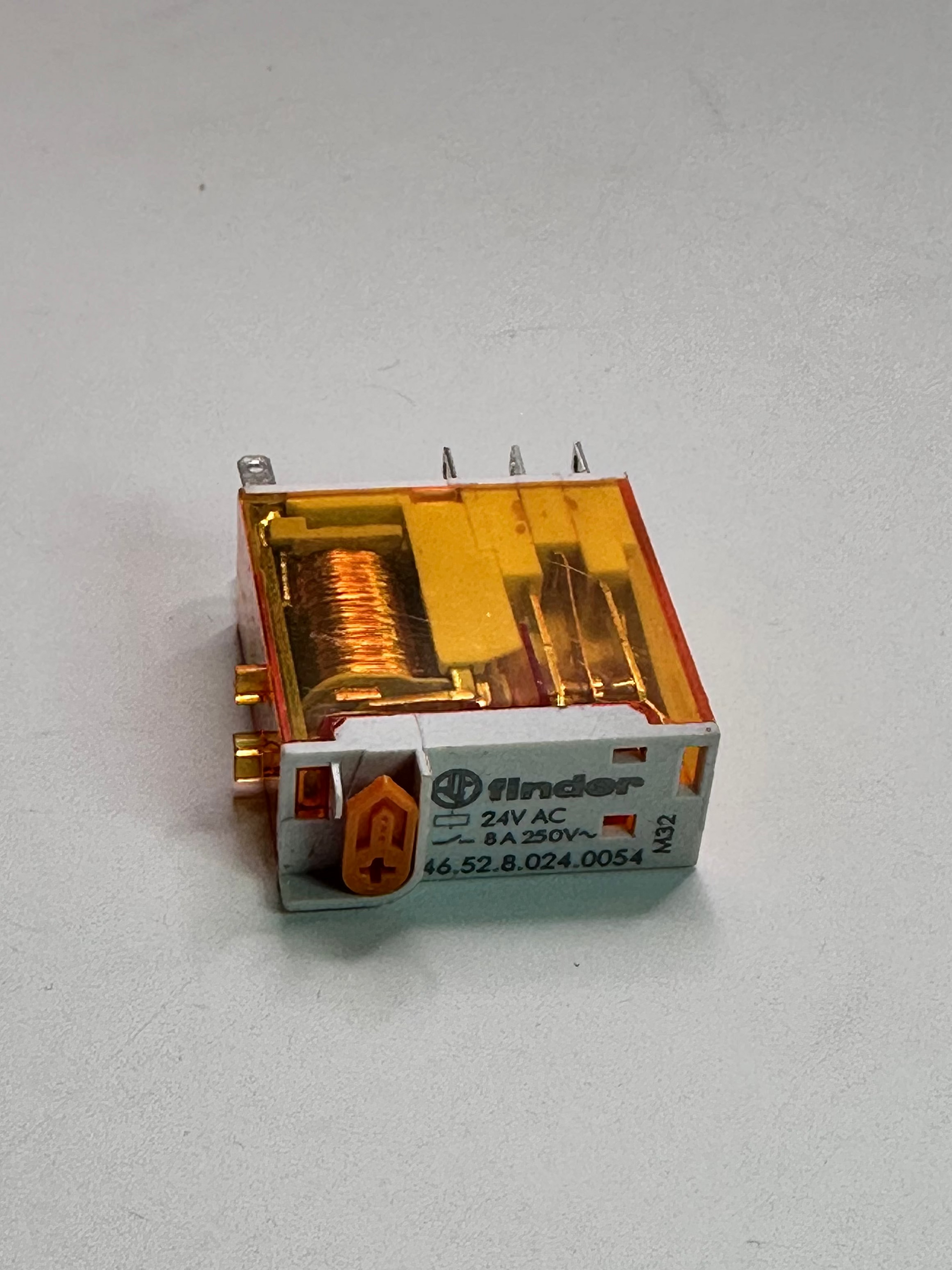

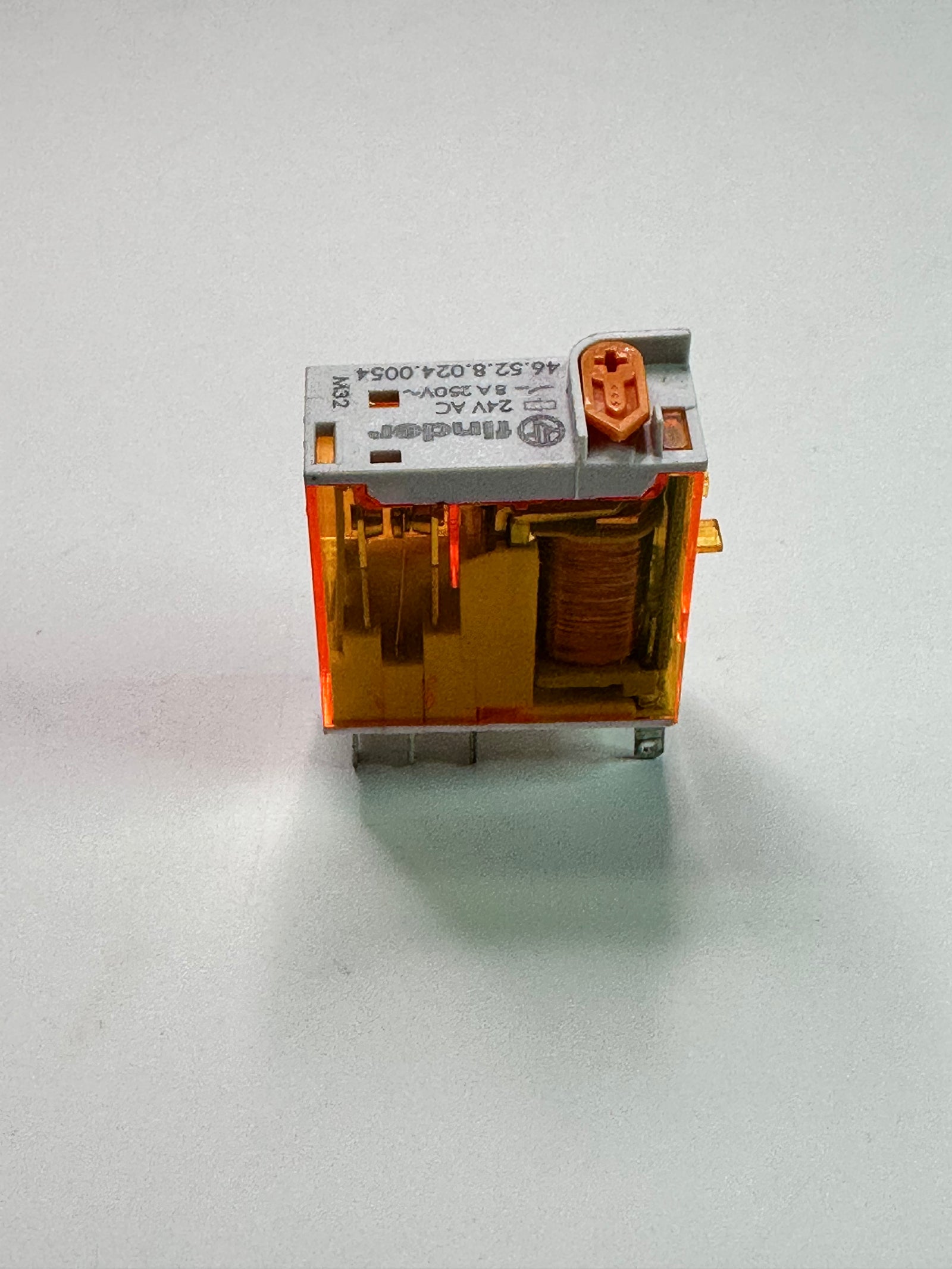

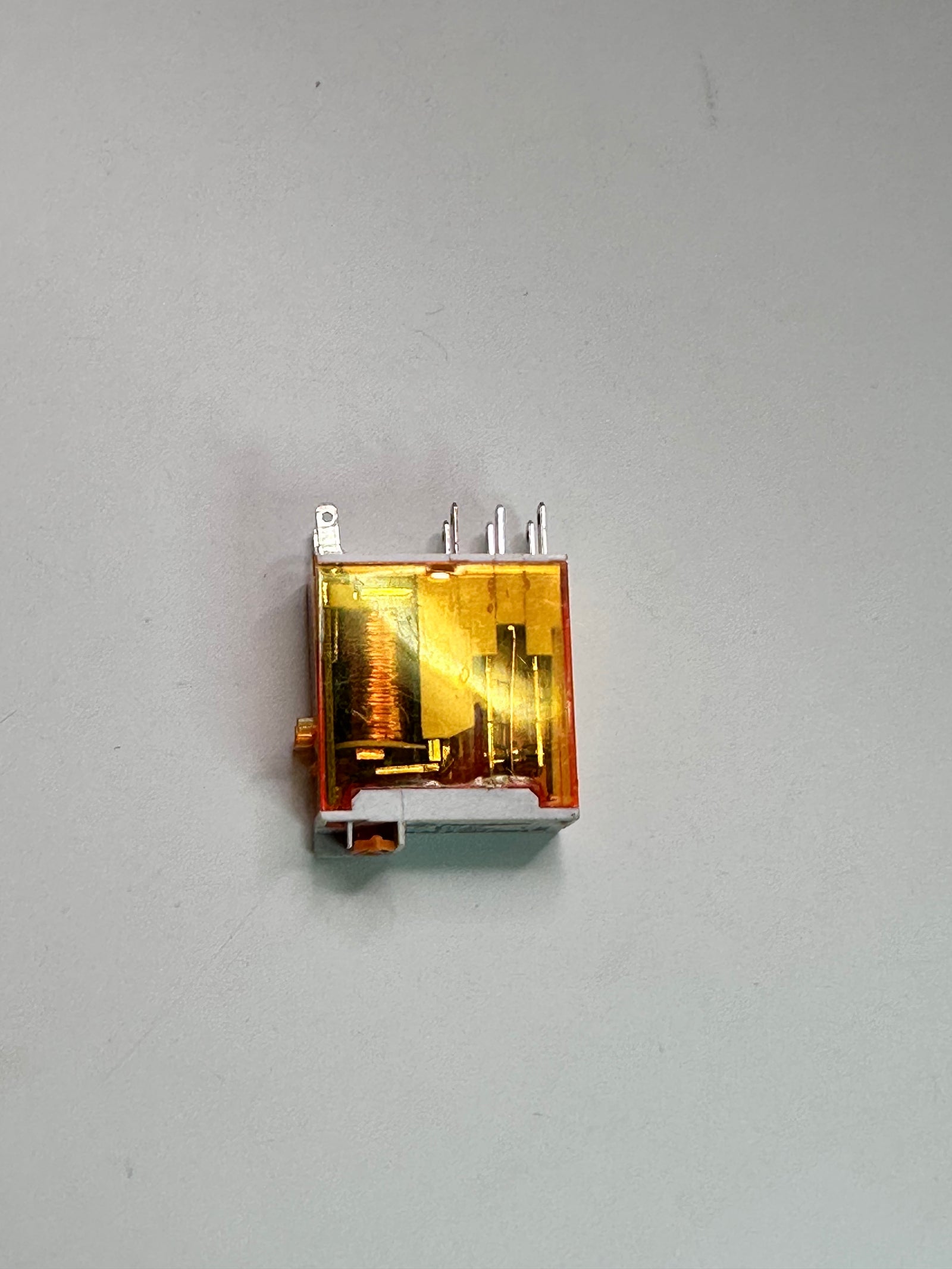

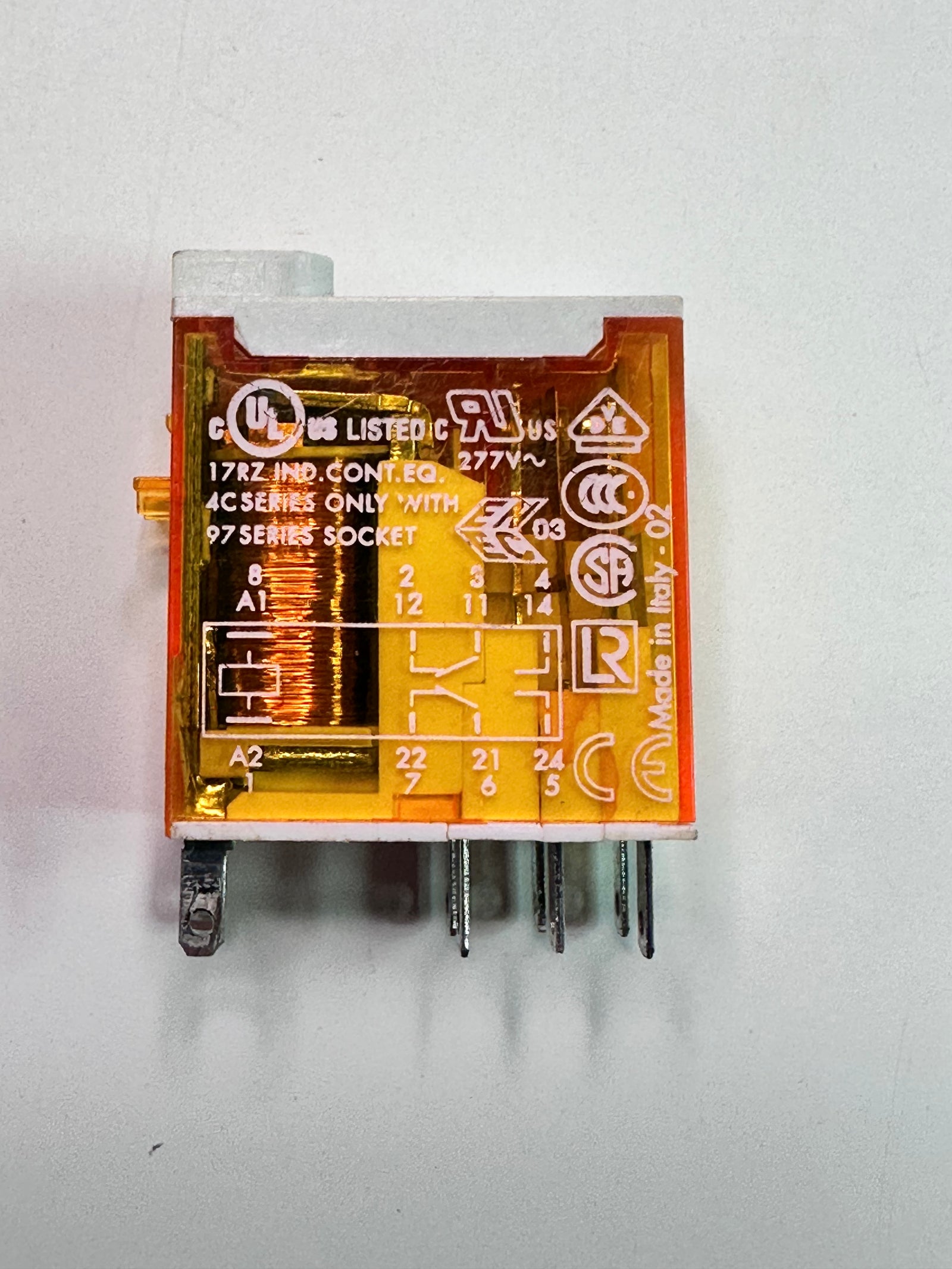

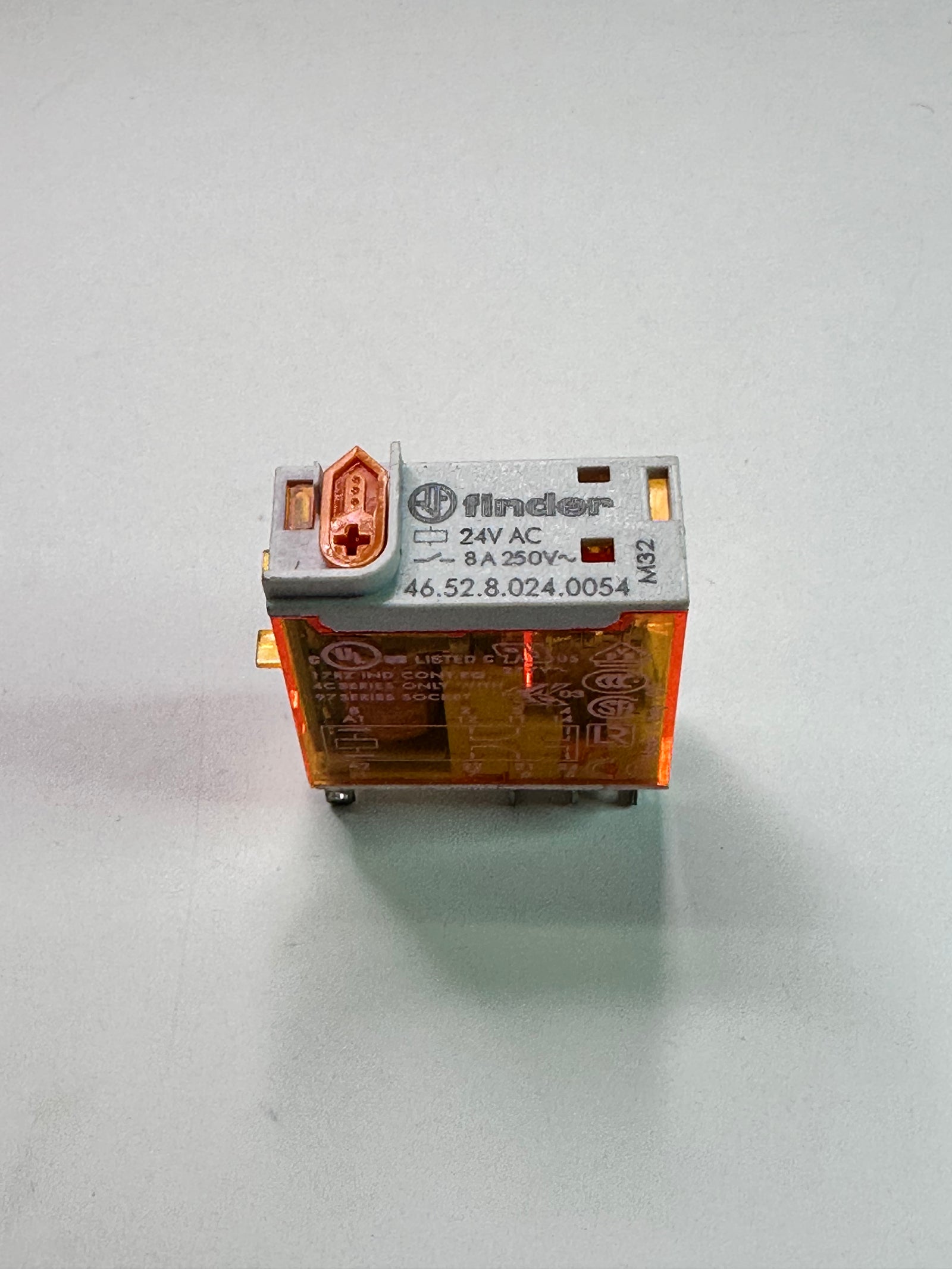

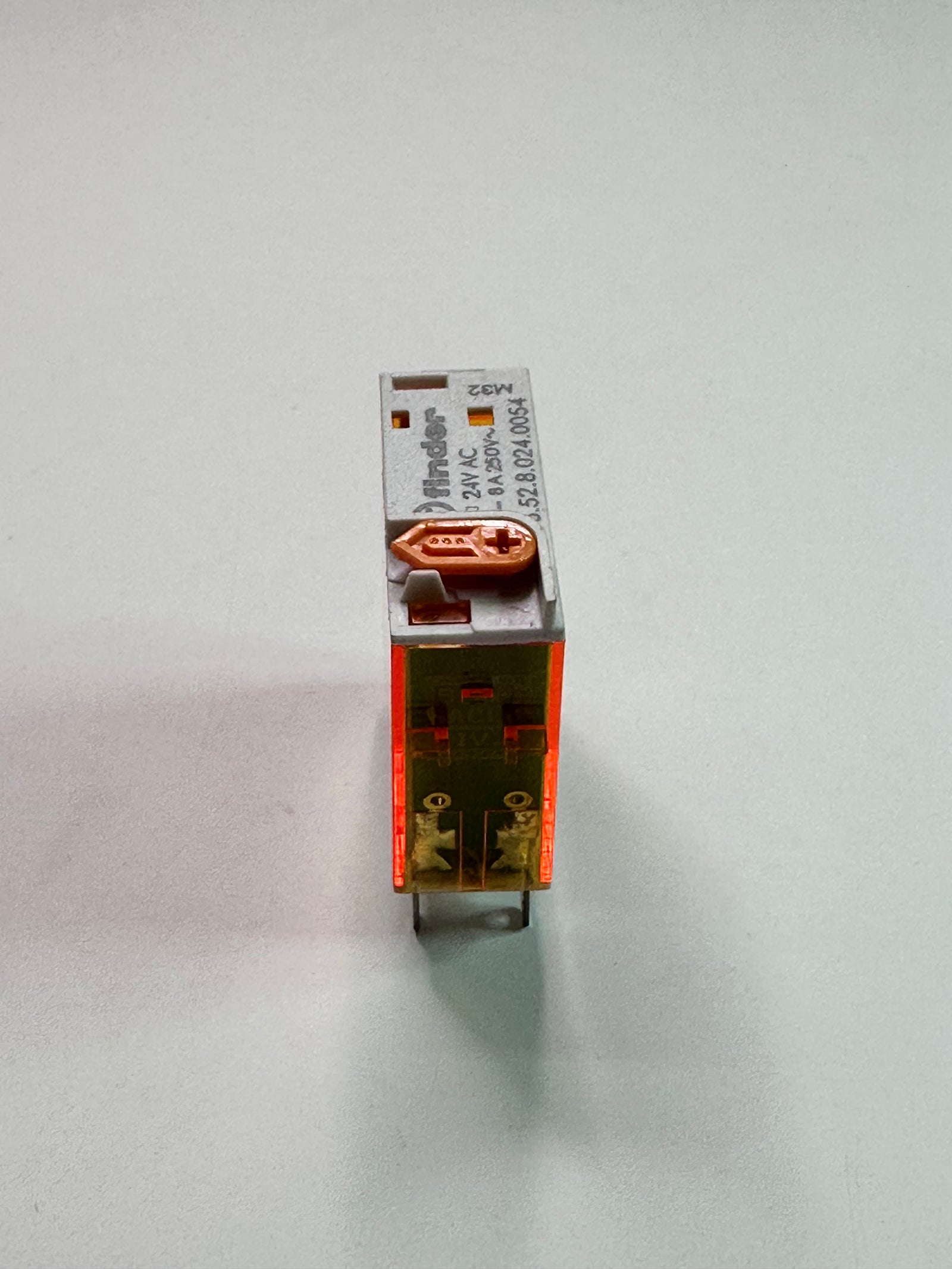

Finder 46.52.8.024.0054 24V AC DPDT Industrial Relay
- SKU
- P-FI-F-7829
$16.50
Price includes GST.
In stock
Warehouse pickup available
- Weight
- 0.3 kg
Specifications
| Manufacturer | FINDER |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-FI-F-7829 |
| Weight | 0.3 kg |
Description
Finder 46.52.8.024.0054 miniature industrial switching relay, 46 Series. Additional reference: 534-5342.
Control and construction
- 24 V AC control supply at 50 or 60 Hz; operating range 19.2–26.4 V.
- Monostable, polarity-free operation; LED indication.
- Two changeover contacts, DPDT; source contact-type entry: single contact.
- Plug-in electrical connection.
- Source “material of contact insert” entry: thermoplastic; contact alloy is not specified.
Source-listed switching ratings
- Nominal current: 8 A; nominal AC voltage: 250 V.
- Maximum rated operating voltage Ue AC: 440 V.
- AC-1 switching power: 2000 VA.
- AC-15 at 230 V: 350 VA.
- DC-1 at 30 V: 6 A; DC-1 at 110 V: 0.5 A.
- Electrical life at Un/In: 100,000 cycles.
Confirm the exact load duty and socket before installation. The ratings apply to their stated conditions, not every combination of voltage and current. A PCB-mount tag occurs in the source, but the detailed table specifies plug-in connection; a socket is not specified as included.
