FINDER

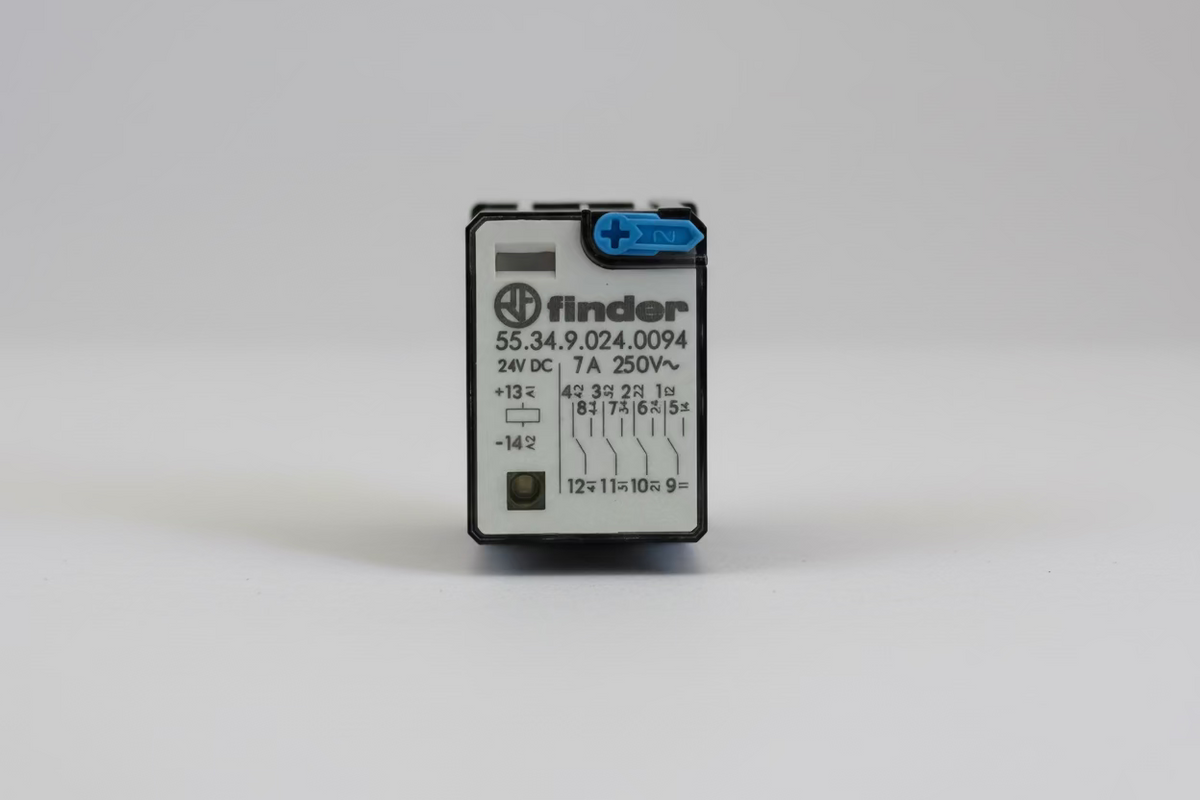

Finder 55.34.9.024.0094 24V DC 4PDT Plug-In Power Relay
- SKU
- P-FI-F-7939
$16.50
Price includes GST.
Low stock: 4 left
Warehouse pickup available
- Weight
- 1.0 kg
Specifications
| Manufacturer | FINDER |
|---|---|
| Product type | ELECTRICAL |
| SKU | P-FI-F-7939 |
| Weight | 1.0 kg |
Description
Finder 55.34.9.024.0094 electromagnetic plug-in general-purpose power relay, 55 Series / 55.34.
Listed specifications
- Coil: 24 V DC, 0.6 kΩ resistance, 40 mA current.
- Contacts: 4CO / 4PDT, cadmium-free AgNi.
- Maximum contact current: 7 A.
- Maximum switched voltage: 30 V DC or 250 V AC.
- Lockable test button, LED, diode and mechanical indicator.
- DC polarity: positive to pin A1/13.
- Socket mounting; compatible socket family: 94 Series.
- Operating temperature: −40 to +85°C.
The source mentions a European patent without a patent number; this is not a new validation of that claim. Confirm the exact relay and socket configuration, load rating and polarity before installation. The separate voltage/current maxima do not establish a simultaneous load rating. A socket is not specified as included.
