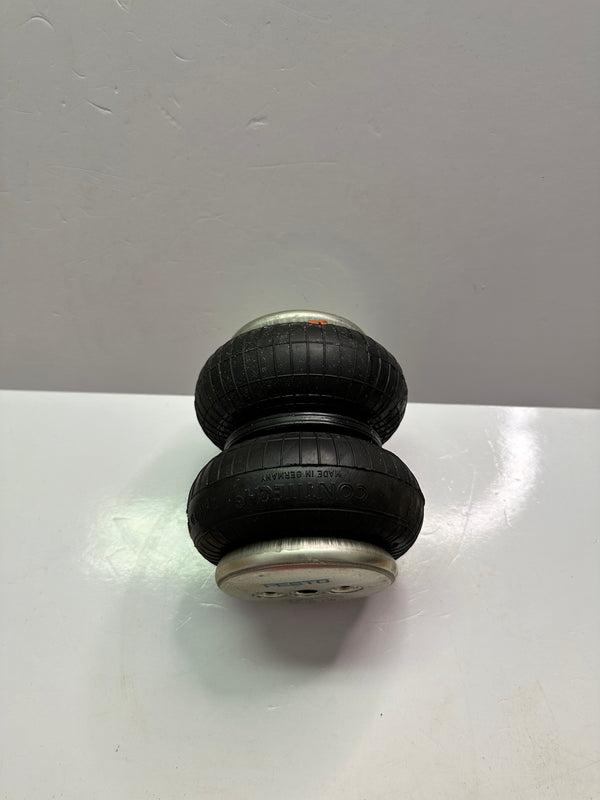

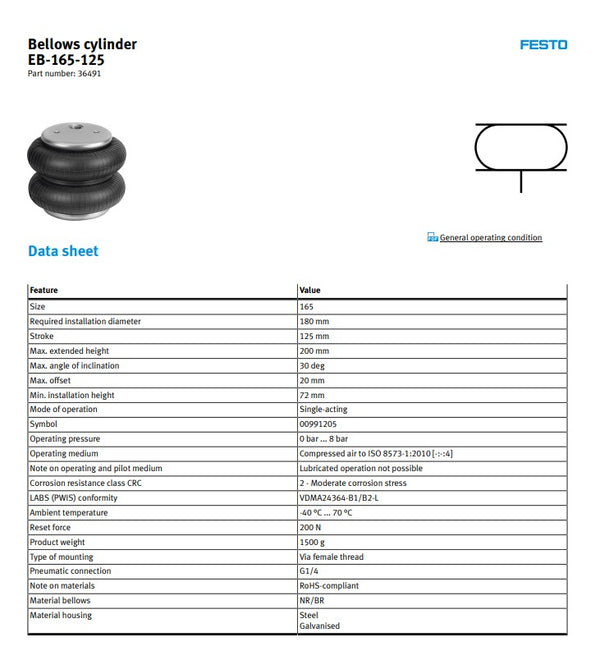

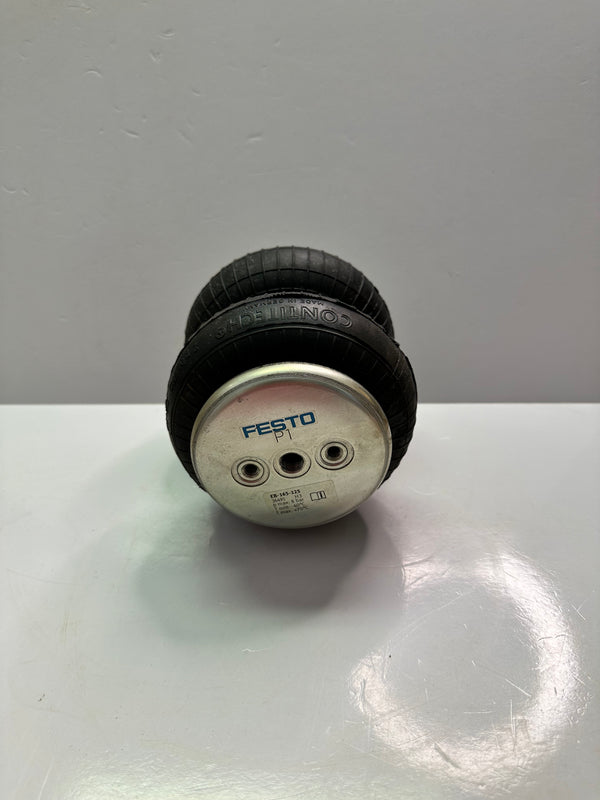

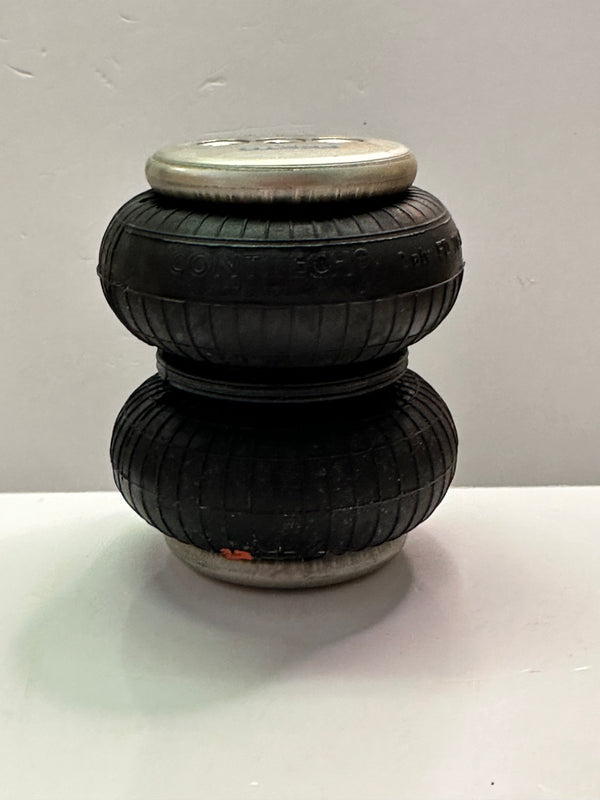

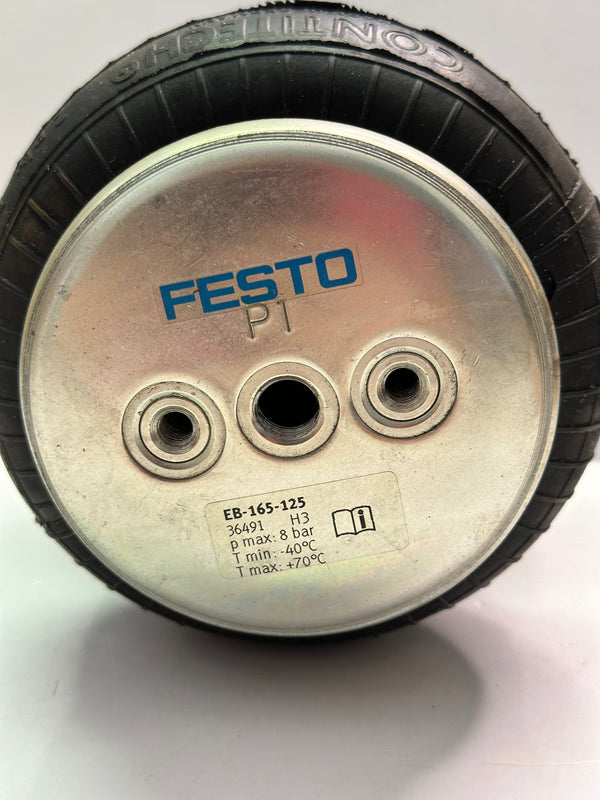

Single-acting bellows - size 165 - Festo (EB series)
Product series / family name
Bellows - Bellows - single-acting series
Sub-range name
EB series
Stroke length
125mm stroke (S125mm)
Functions
Single-acting bellows
Design
Cu-free
P.T.F.E.-free
size 165
operation with oil lubrication is not possible
Single-acting
30° inclination max
P.T.F.E.-free
size 165
operation with oil lubrication is not possible
Single-acting
30° inclination max
Pressure
0...+8bar (operating pressure)
Connection type
Female threaded internal connection
1/4" BSPP / G1/4" threaded pneumatic port
1/4" BSPP / G1/4" threaded pneumatic port
Mounting mode
internal threaded mount
Material
Galvanized steel housing
Ambient air temperature for operation
-40°C...+70 °C
Chemical resistance
CRC Class 2 - Moderate-corrosion stress
Force
200N resetting force
Order code / Manufacturer SKU
36491
Manufacturer product status
Commercialized
Equivalent to
EB165125
