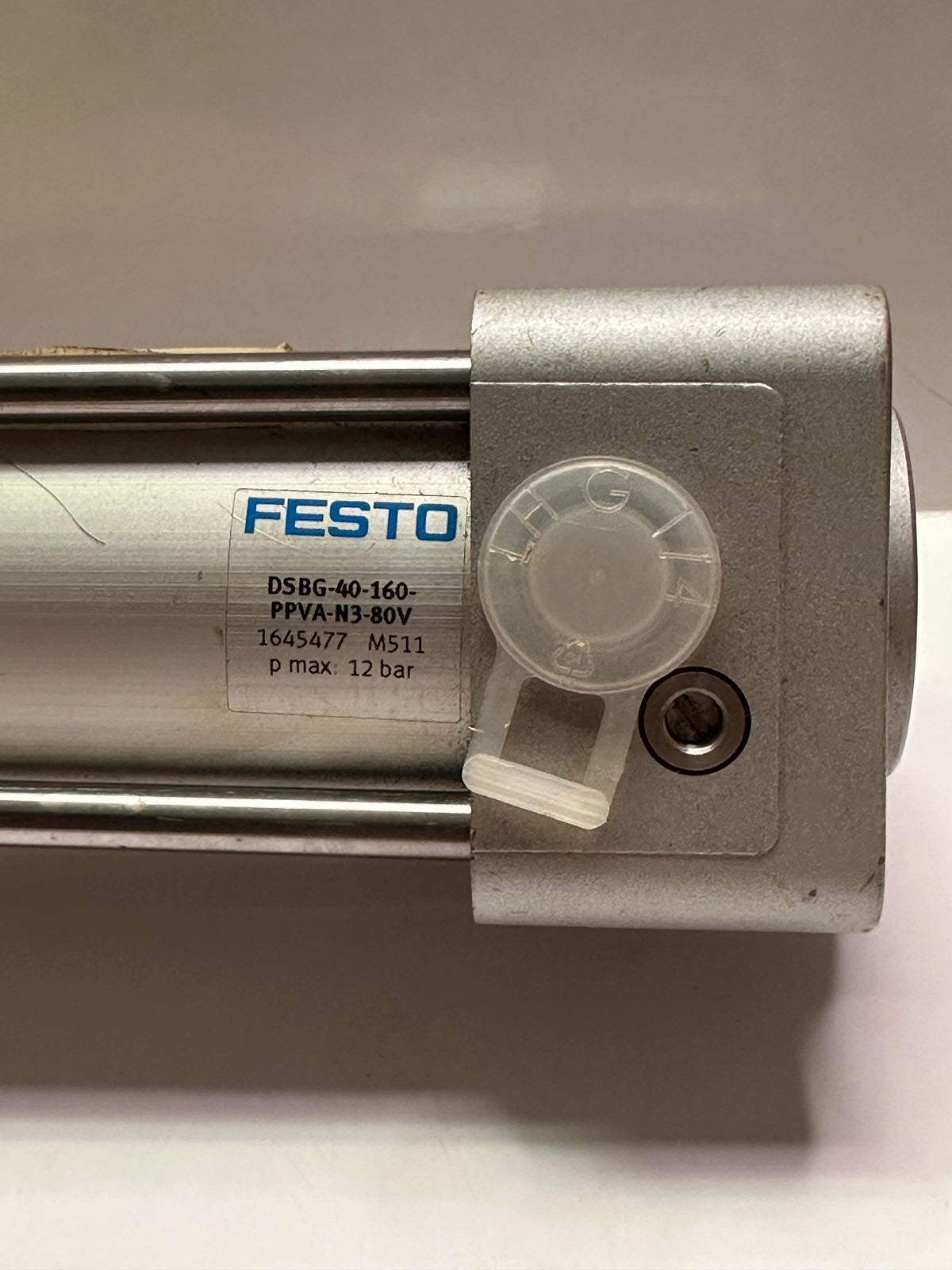

- Stroke 1 mm ... 2800 mm
- Piston diameter40 mm
- Piston rod thread M8 M12x1.25
- Torsional backlash at piston rod +/--0.6 deg ... 0.6 deg
- Based on standard ISO 15552
- Cushioning Elastic cushioning rings/plates at both ends Self-adjusting pneumatic end-position cushioning Pneumatic cushioning, adjustable at both ends
- Mounting position optional
- Conforms to standard ISO 15552
- Piston-rod end Male thread Female thread
- Design Piston Piston rod Tie rod Cylinder barrel
- Position detection Via proximity switch
- Symbol 00991217 00991218 00991235 00991237 00992970 00992971
- Variants For unlubricated operation Bellows on bearing cap Hard scraper Extended male piston rod thread Piston rod with female thread Extended piston rod Low friction for balancer applications Metal scraper with protection against rotation Uniform, slow movement Low friction Through piston rod Heat-resistant seals max. 120°C Temperature range 0 to 150°C Temperature range -40 to 80°C Piston rod at one end
- Operating pressure0.01 MPa ... 1.2 MPa
- Operating pressure0.1 bar ... 12 bar
- Mode of operation Double acting
- CE mark (see declaration of conformity) To EU Explosion Protection Directive (ATEX)
- CE marking (see declaration of conformity)To UK EX instructions
- Explosion protection Zone 1 (ATEX) Zone 1 (UKEX) Zone 2 (ATEX) Zone 21 (ATEX) Zone 21 (UKEX) Zone 22 (ATEX)
- ATEX category gas II 2G
- ATEX category dust II 2D
- Explosion ignition protection type for gas Ex h IIC T4 Gb
- Explosion ignition protection type for dust Ex h IIIC T120°C Db
- Explosion ambient temperature-20°C <= Ta <= +60°C
- Explosion protection certification outside the EUEPL Db (GB) EPL Gb (GB)
- Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC2 - Moderate corrosion stress 3 - high corrosion stress
- LABS (PWIS) conformity VDMA24364-B1/B2-L VDMA24364 zone III
- Ambient temperature -40 °C ... 150 °C
- Impact energy in end positions 0.7 J
- Cushioning length 20 mm
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 633 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 633 N ... 754 N
- Additional weight per piston rod extension of 10 mm16 g
- Additional weight per piston rod thread extension of 10 mm8 g
- Type of mounting Either: Via female thread with accessories
- Pneumatic connectionG1/4
- Note on materials Rohs-compliant
- Material cover Die-cast aluminum, coated
- Material piston seal FPM HNBR TPE-U(PU)
- Material piston Wrought aluminum alloy
- Material piston rod High-alloy stainless steel, hard chrome-plated High-alloy steel High-alloy stainless steel
- Material piston rod wiper FPM HNBR PE TPE-U(PU)
- Buffer seal material FPM TPE-U(PU)
- Cushioning piston material Wrought aluminum alloy POM
- Material cylinder barrel Smooth-anodized wrought aluminum alloy
- Material galvanized steel High-alloy stainless steel
- Material rod wiper Brass PTFE reinforced
- Material bearing Bronze Metal polymer compound POM
- Material collar nut Galvanized steel
- Material tie rod High-alloy steel High-alloy stainless steel
- Material swivel mounting Stainless-steel casting
- Material bellows NBR PA
