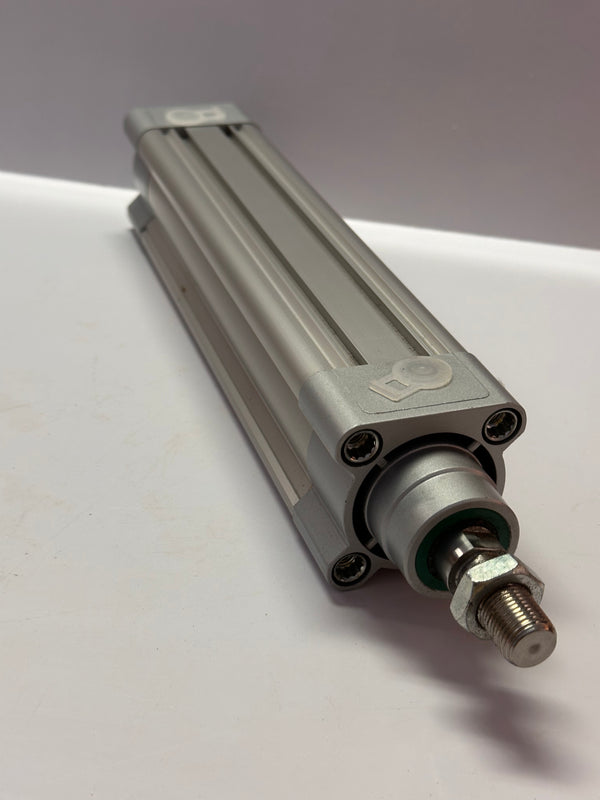

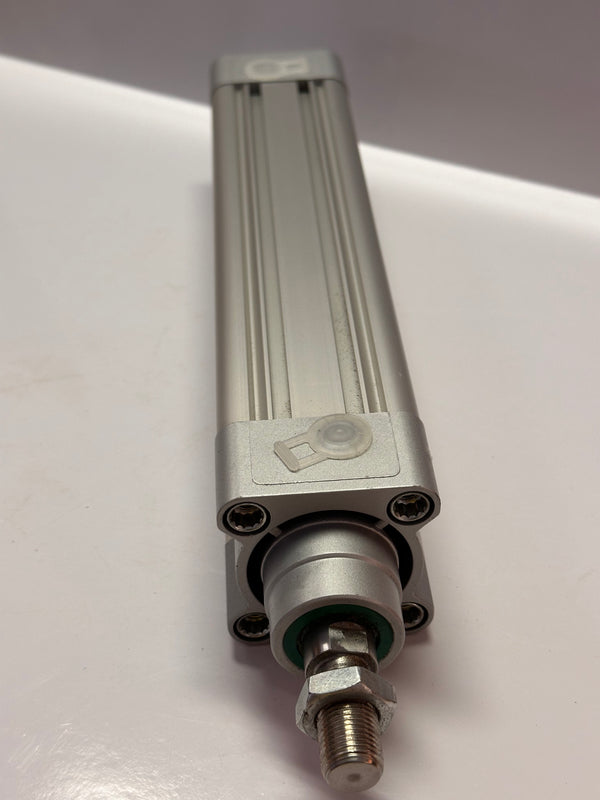

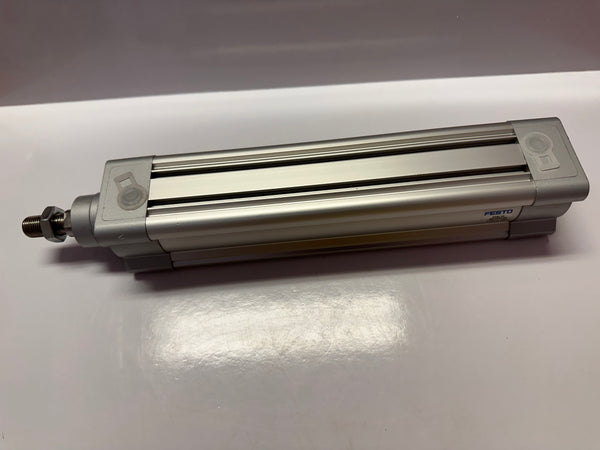

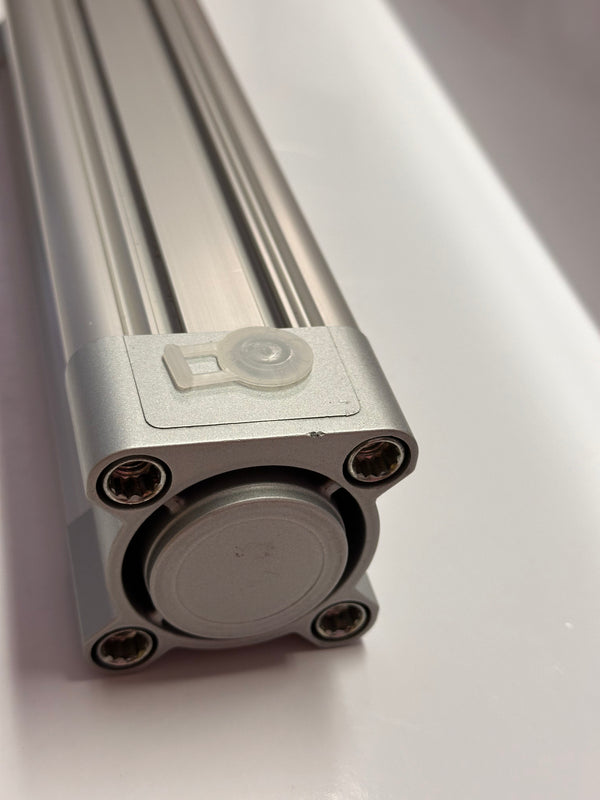

Festo DSBC-50-200-PPSA-N3 Pneumatic Cylinder — 50mm Bore, 200mm Stroke

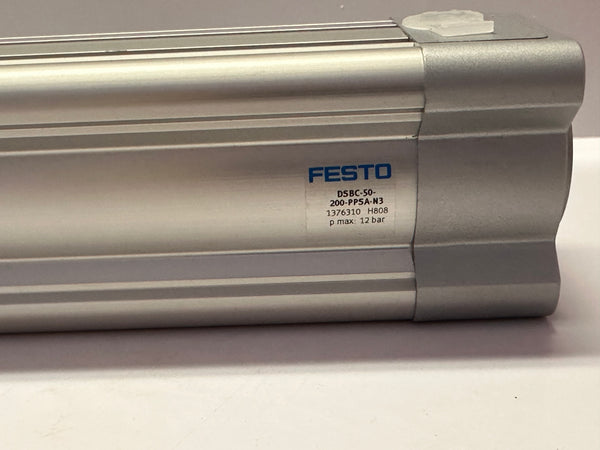

Festo DSBC-50-200-PPSA-N3 double-acting pneumatic piston-rod cylinder. Recorded part reference: 1376310.

Key source details

• Piston diameter: 50mm; stroke: 200mm
• Rod thread: M16x1.5; pneumatic connection: G1/4
• Self-adjusting pneumatic end-position cushioning
• Proximity-switch position detection is described; a switch is not confirmed as included

Original technical record

All source data below is retained, including the lubrication requirement and material details. Force figures are theoretical at the stated pressure, and zero-stroke weight/mass entries are not the measured weight of this 200mm-stroke unit. Standards, cleanroom and RoHS entries are source claims, not independently verified supplied-unit compliance. Confirm exact configuration and operating suitability before installation.

• Stroke 200 mm
• Piston diameter 50 mm
• Piston rod thread M16x1.5
• Cushioning Self-adjusting pneumatic end-position cushioning
• Mounting position optional
• Conforms to standard ISO 15552

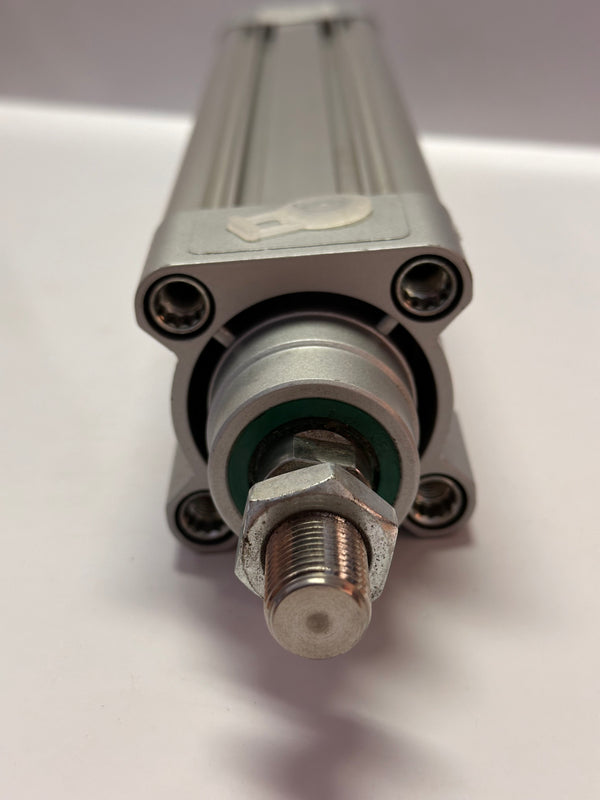

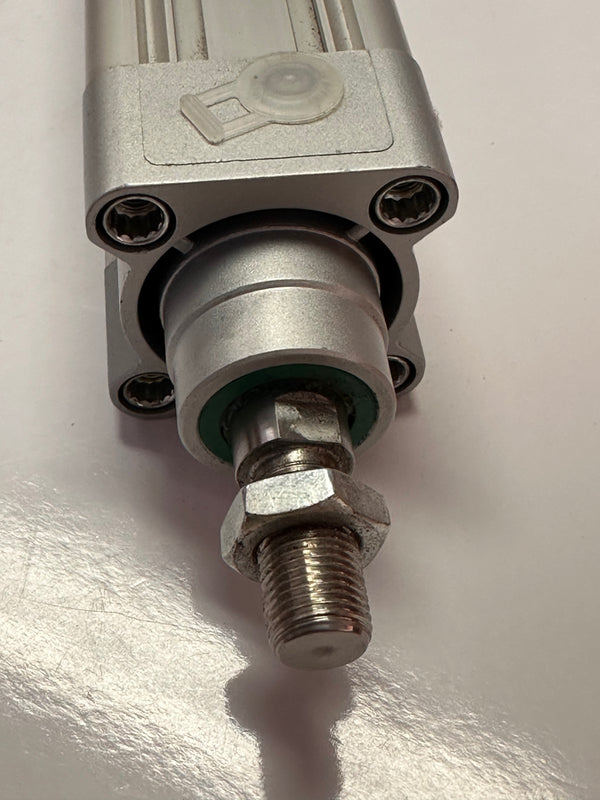

• Piston-rod end Male thread
• Design Piston rod Profile barrel
• Position detection Via proximity switch
• Symbol00992970
• Variants Piston rod at one end
• Operating pressure0.04 MPa ... 1.2 MPa
• Operating pressure0.4 bar ... 12 bar
• Mode of operation Double-acting
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC2 - Moderate corrosion stress
• LABS (PWIS) conformityVDMA24364-B1/B2-L
• Cleanroom class 6 according to ISO 14644-1
• Ambient temperature-20 °C ... 80 °C
• Impact energy in end positions1 J
• Cushioning length22 mm
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke990 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke1178 N
• Moving mass for 0 mm stroke365 g
• Additional moving mass per 10 mm stroke25 g
• Basic weight for 0 mm stroke1190 g
• Additional weight per 10 mm stroke56 g
• Type of mounting Either: Via female thread With accessories
• Pneumatic connectionG1/4
• Note on materials RoHS-compliant
• Material cover Die-cast aluminum, coated
• Material piston seal TPE-U(PU)
• Material piston Wrought aluminum alloy
• Material piston rod High-alloy steel
• Material piston rod wiper TPE-U(PU)
• Buffer seal material TPE-U(PU)
• Cushioning piston material POM
• Material cylinder barrel Smooth-anodized wrought aluminum alloy
• Material nut Galvanized steel
• Material bearing POM
• Material collar screws Galvanized steel
