Main function
Pneumatic linear actuator
Product series / family name

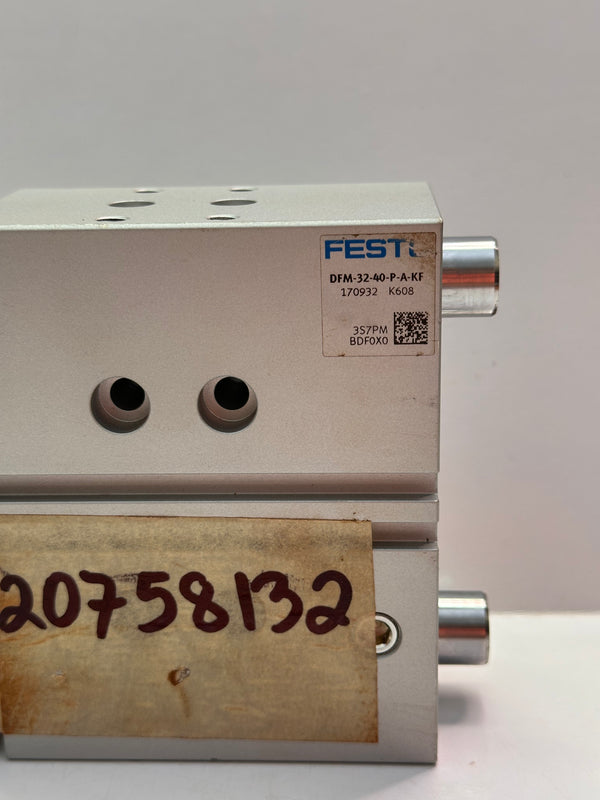

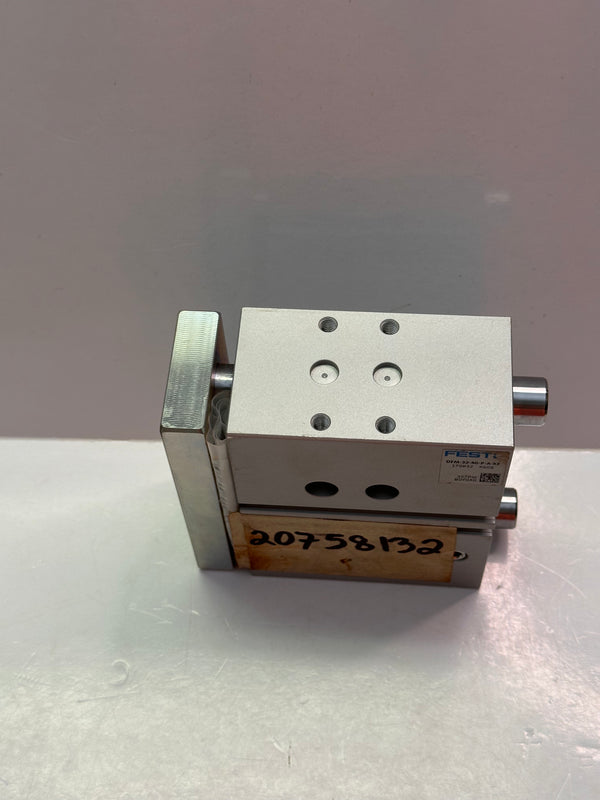

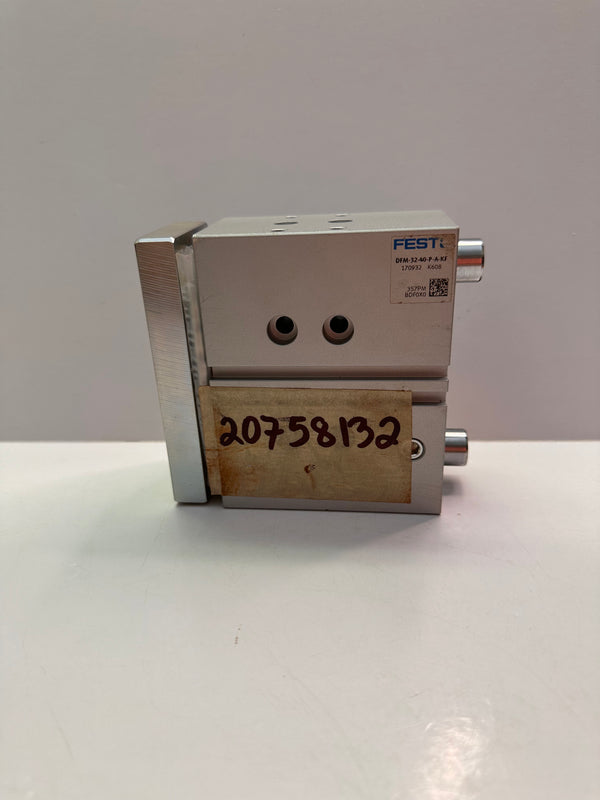

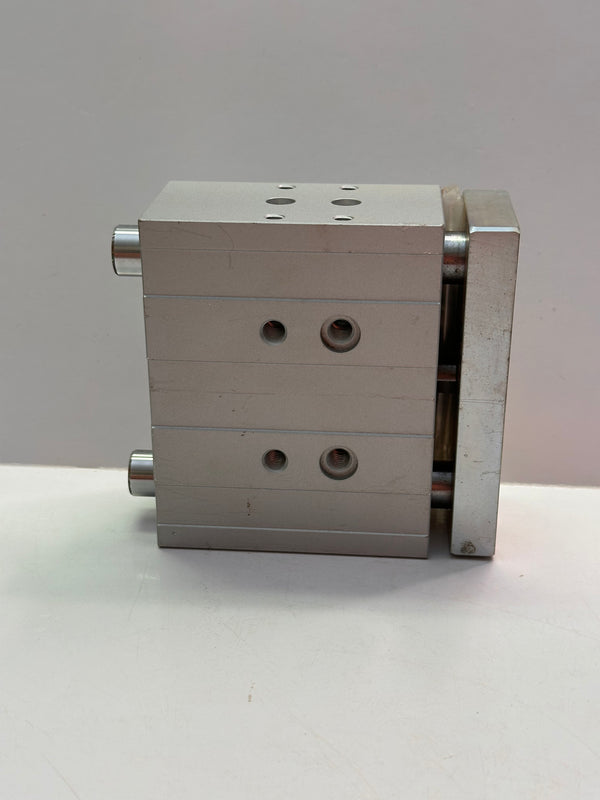

Cylinders - Guided drive - double-acting series
Sub-range name
DFM series
Bore size
32mm bore (B32mm)
Stroke length
40mm stroke (S40mm)
Functions
Guided double-acting single-ended pneumatic air linear actuator

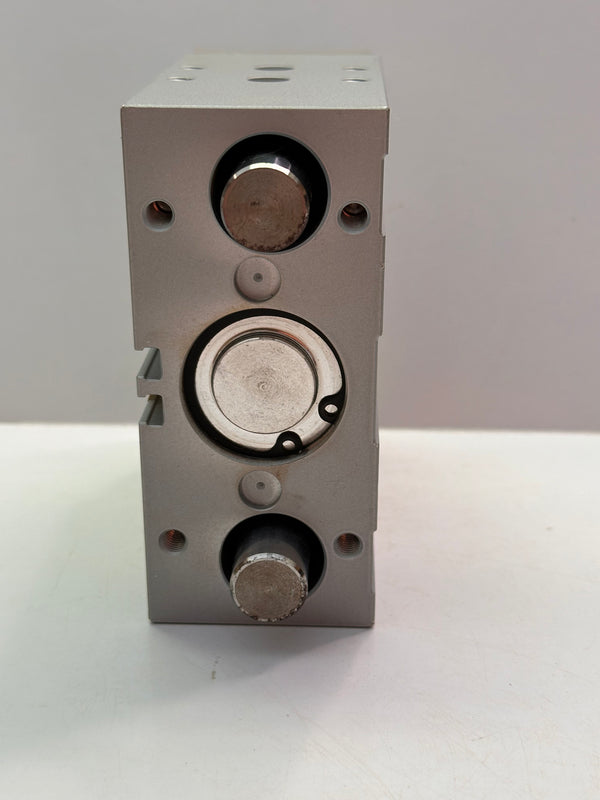

Design

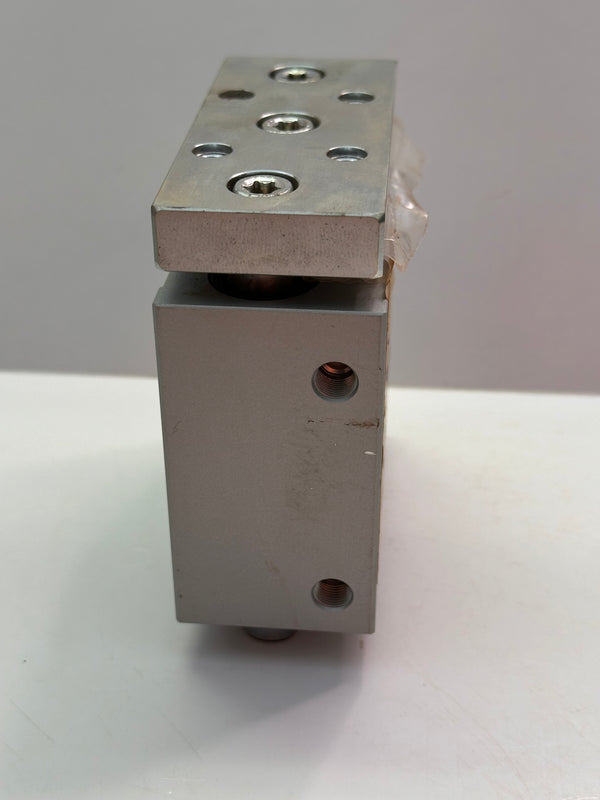

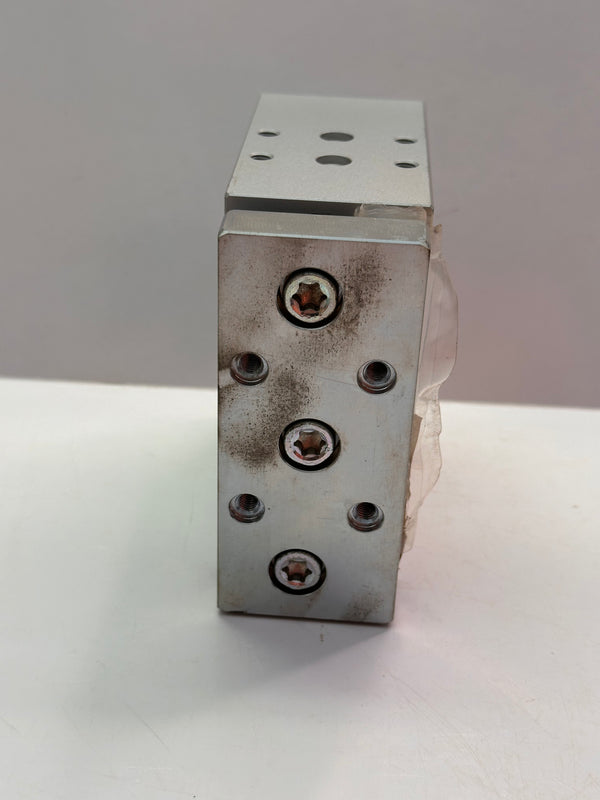

yoke plate
Cu-free
P.T.F.E.-free
recirculating ball bearing. guide
built-in magnet
elastic cushioning at both ends
operation with oil lubrication possible
position sensing via proximity sensor.
Double-acting
Compressed air as per ISO8573-1;2010 [7;4;4]
Cu-free
P.T.F.E.-free
recirculating ball bearing. guide
built-in magnet
elastic cushioning at both ends
operation with oil lubrication possible
position sensing via proximity sensor.
Double-acting
Compressed air as per ISO8573-1;2010 [7;4;4]
Pressure
+1.5...+10bar (operating pressure)
Torque
44.09Nm (max. on X axis)
18.66Nm (max. on Y axis)
18.66Nm (max. on Z axis)
18.66Nm (max. on Y axis)
18.66Nm (max. on Z axis)
Shape
rectangular
Connection type
1/8" BSPP / G1/8" threaded pneumatic port

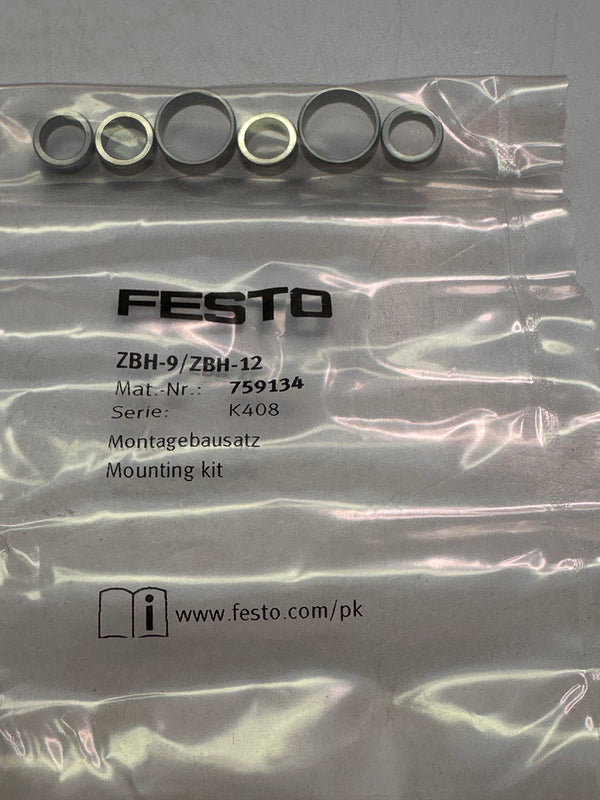

Mounting mode
through-hole mount
internal threaded mount
internal threaded mount
Material
Wrought Aluminum alloy housing
Polyurethane dynamic seals
Nitrile rubber (NBR) static seals
Hard chrome-plated tempered steel guide rod
Wrought Aluminum alloy cover
High-alloy stainless steel piston rod
Polyurethane dynamic seals
Nitrile rubber (NBR) static seals
Hard chrome-plated tempered steel guide rod
Wrought Aluminum alloy cover
High-alloy stainless steel piston rod
Ambient air temperature for operation
-5°C...+60 °C
Maximum radial load
1130 N
Chemical resistance
CRC Class 0 - No corrosion stress
