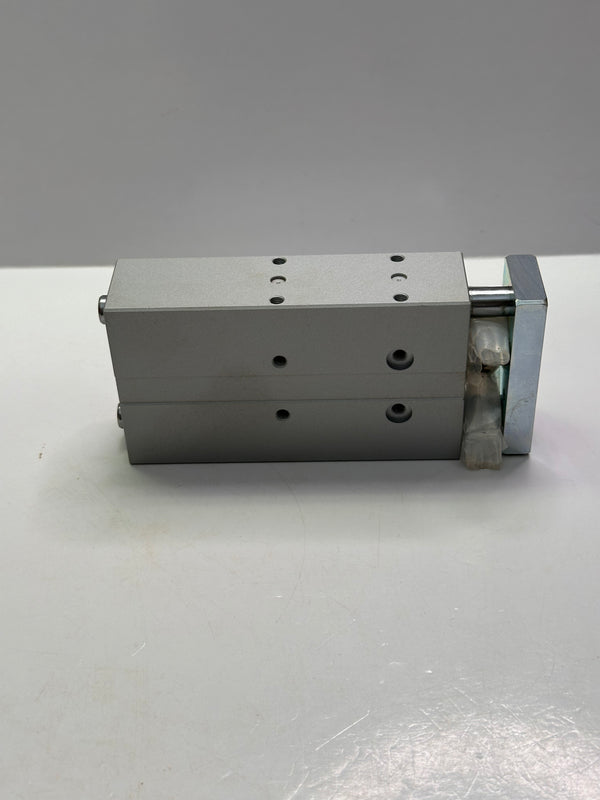

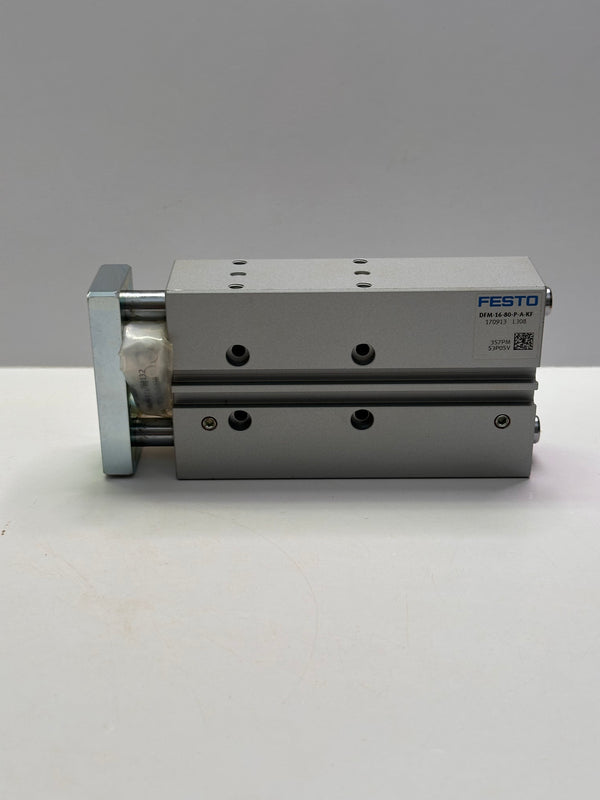

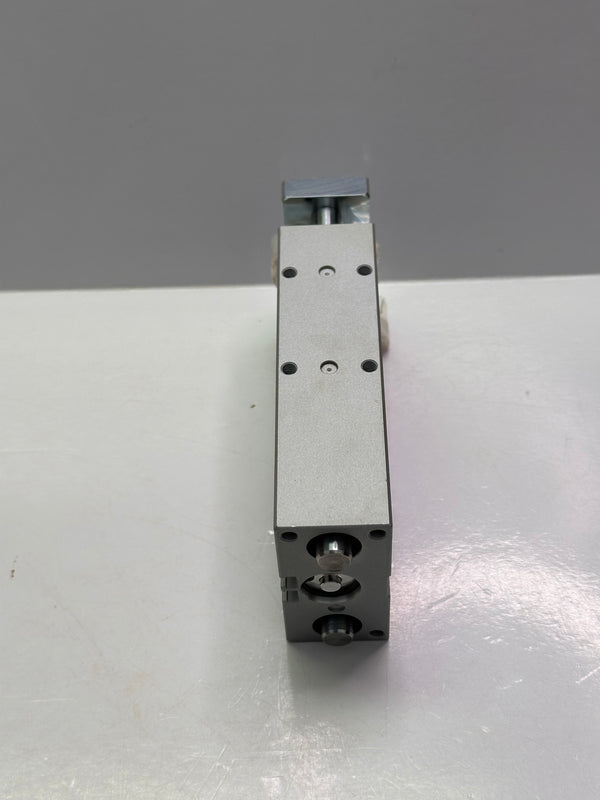

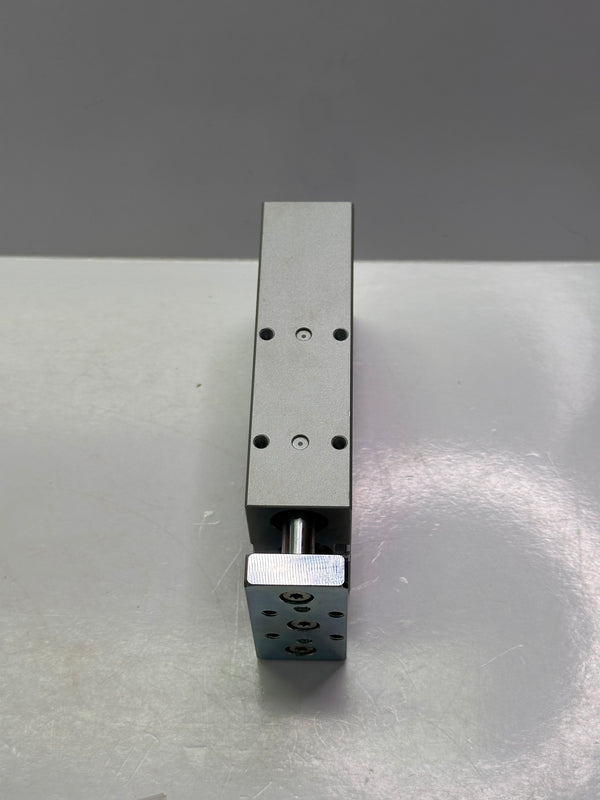

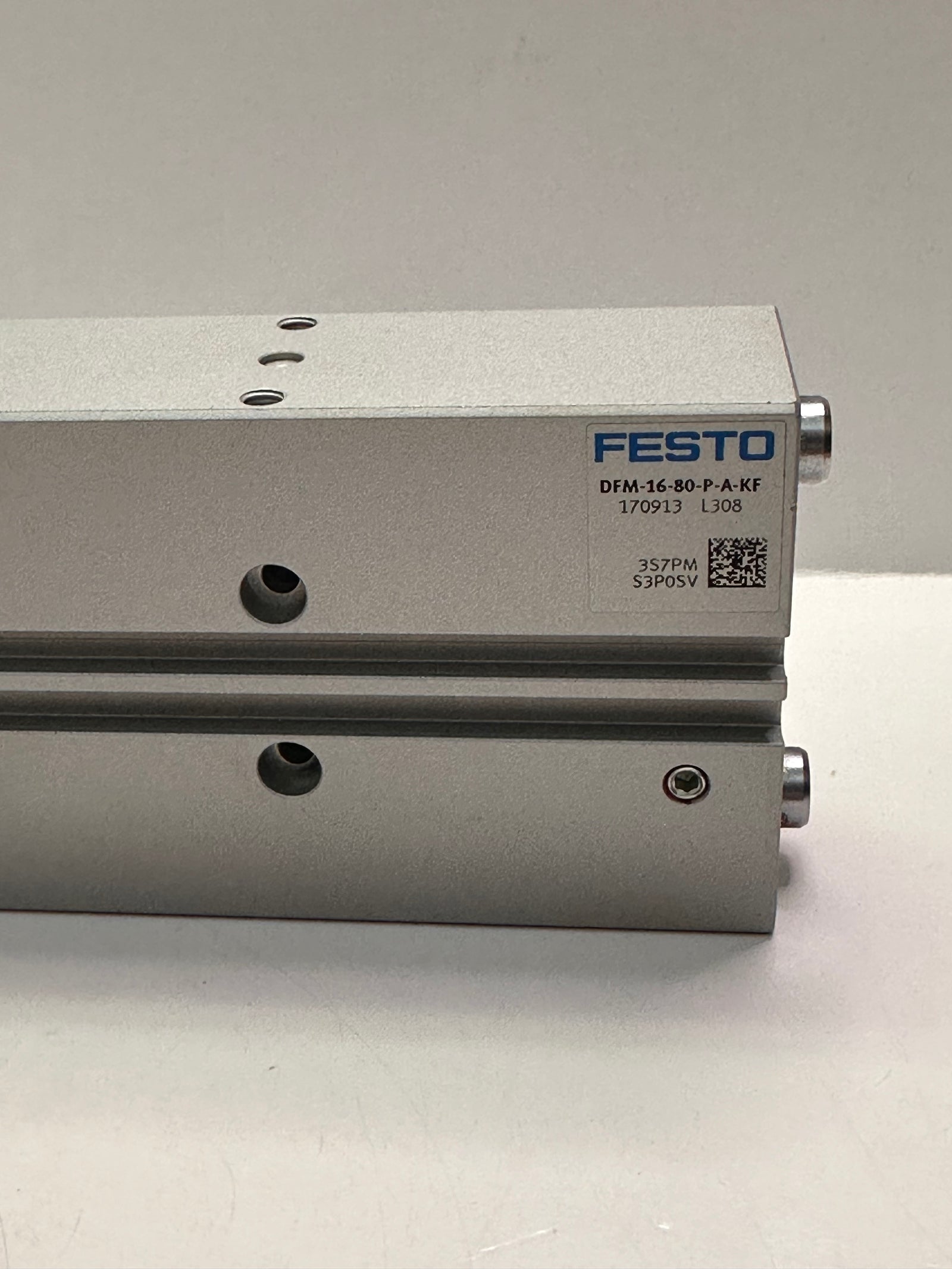

- Distance from center of gravity of load to yoke plate xs 50 mm
- Stroke 80 mm
- Piston diameter 16 mm

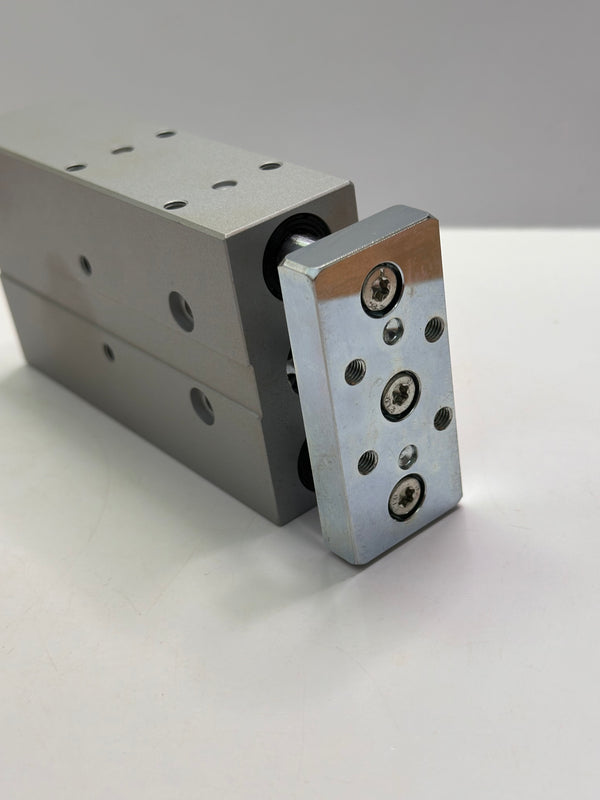

- Operating mode, drive unit Yoke
- Cushioning Elastic cushioning rings/plates at both ends
- Mounting position optional
- Guide Recirculating ball bearing guide
- Design Guidance
- Position detection Via proximity switch
- Symbol 00991737
- Operating pressure 0.2 MPa ... 1 MPa
- Operating pressure 2 bar ... 10 bar
- Max. speed 0.8 m/s
- Mode of operation Double acting
- Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
- Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
- Corrosion resistance class CRC0 - No corrosion stress
- LABS (PWIS) conformity VDMA24364-B1/B2-L
- Cleanroom class Class 7 according to ISO 14644-1
- Ambient temperature -5 °C ... 60 °C
- Impact energy in end positions 0.15 J
- Max. force Fy 778 N
- Max. force Fy static 830 N
- Max. force Fz 778 N
- Max. force Fz static 830 N
- Max. moment Mx17.9 Nm
- Max. torque Mx static 19.09 Nm
- Max. moment My 10.5 Nm
- Max. torque My static 11.2 Nm
- Max. moment Mz 10.5 Nm
- Max. torque Mz static 11.2 Nm
- Max. permissible torque load Mx as a function of stroke 2.03 Nm
- Max. effective load dependent upon stroke at defined distance xs 64 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 90 N
- Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 121 N
- Moving mass 359 g
- Product weight 872 g
- Centre of gravity of moving mass as a function of stroke 47.8 mm
- alternative connections See product drawing

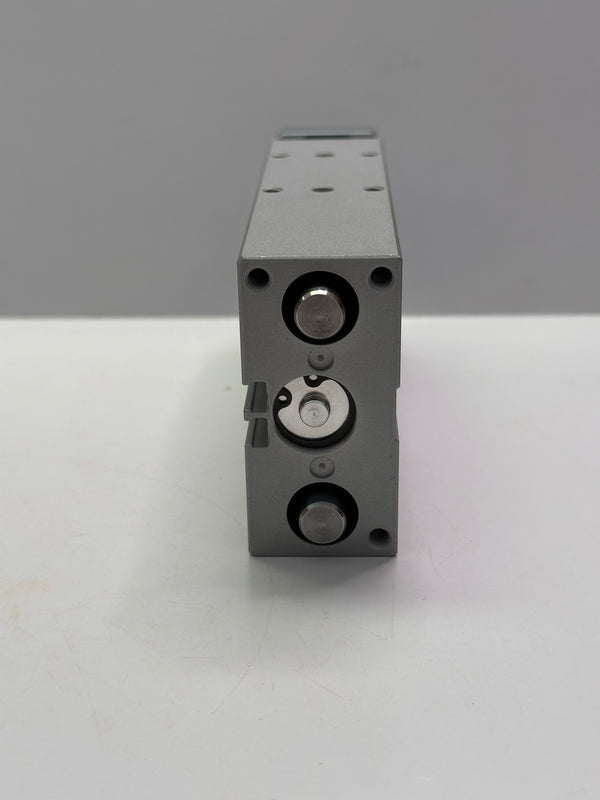

- Pneumatic connection M5
- Note on materials RoHS-compliant
- Material cover Wrought aluminum alloy
- Material seals NBR
- Material housing Wrought aluminum alloy
- Material piston rod High-alloy stainless steel
