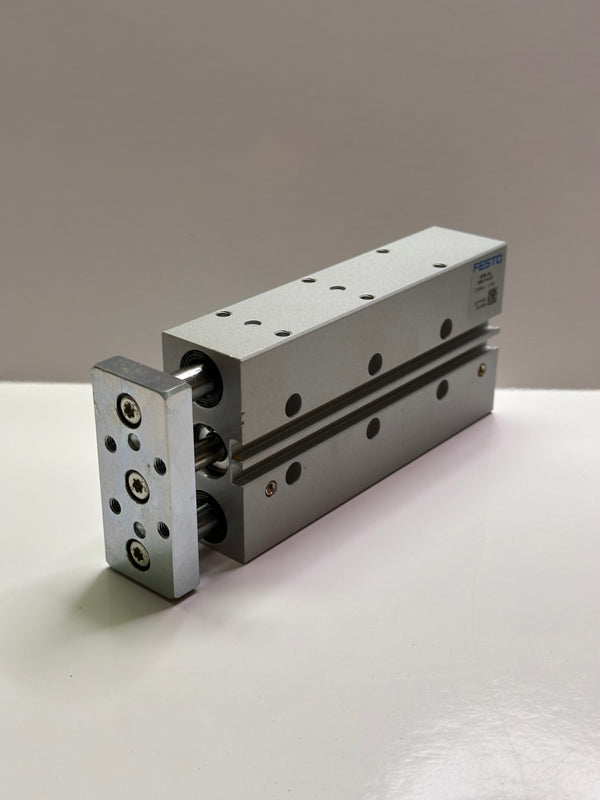

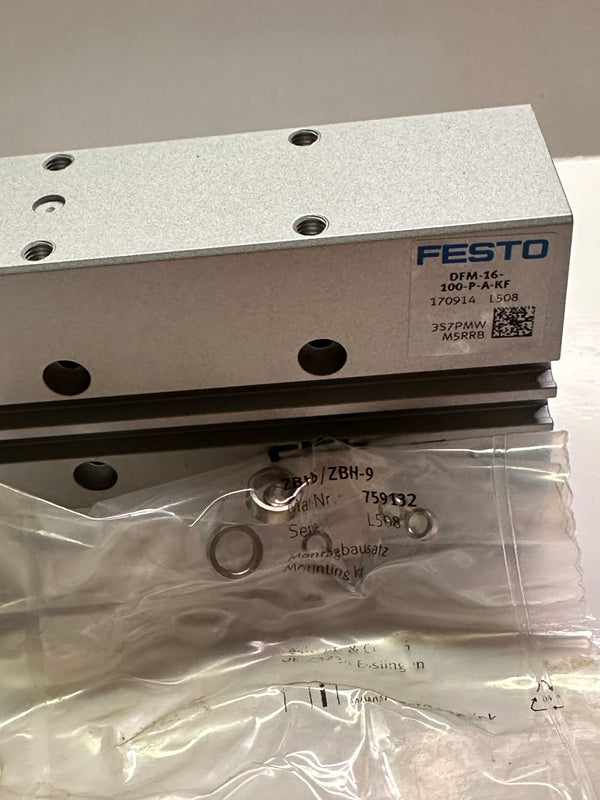

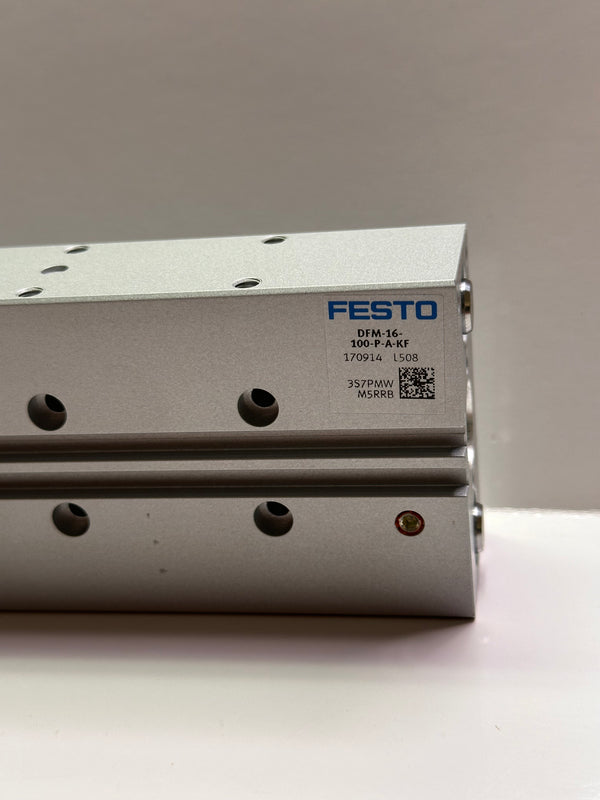

FESTO DFM-16-100-P-A-KF Double Acting Guided Drive/Cylinder 170914

Festo DFM-16-100-P-A-KF double-acting pneumatic guided drive/cylinder, reference 170914.

Recorded key specifications: 100 mm stroke, 16 mm piston diameter, recirculating-ball guide, M5 pneumatic connection and 2–10 bar operating pressure. Elastic cushioning is recorded at both ends; position detection is via proximity switch, not confirmation that a switch is supplied.

The full source specifications and load limits follow. Note the source requirement that once lubricated operation is used, lubricated operation must continue. Confirm exact operating conditions, load and installation requirements before use.

• Distance from center of gravity of load to yoke plate xs 50 mm
• Stroke 100 mm
• Piston diameter 16 mm
• Operating mode, drive unit Yoke
• Cushioning Elastic cushioning rings/plates at both ends
• Mounting position optional
• Guide Recirculating ball bearing guide
• Design Guidance
• Position detection Via proximity switch
• Symbol 00991737
• Operating pressure 0.2 MPa ... 1 MPa
• Operating pressure 2 bar ... 10 bar
• Max. speed 0.8 m/s
• Mode of operation Double acting
• Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
• Note on operating and pilot medium Lubricated operation possible (in which case lubricated operation will always be required)
• Corrosion resistance class CRC0 - No corrosion stress
• LABS (PWIS) conformity VDMA24364-B1/B2-L
• Cleanroom class Class 7 according to ISO 14644-1
• Ambient temperature -5 °C ... 60 °C
• Impact energy in end positions 0.15 J
• Max. force Fy 778 N
• Max. force Fy static 830 N
• Max. force Fz 778 N
• Max. force Fz static 830 N
• Max. moment Mx 17.9 Nm
• Max. torque Mx static 19.09 Nm
• Max. moment My 10.5 Nm
• Max. torque My static 11.2 Nm
• Max. moment Mz 10.5 Nm
• Max. torque Mz static 11.2 Nm
• Max. permissible torque load Mx as a function of stroke 1.77 Nm
• Max. effective load dependent upon stroke at defined distance xs 58 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 90 N
• Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke 121 N
• Moving mass 392 g
• Product weight 982 g
• Centre of gravity of moving mass as a function of stroke 56.5 mm
• alternative connections See product drawing
• Pneumatic connectionM5
• Note on materials RoHS-compliant
• Material cover Wrought aluminum alloy
• Material seals NBR
• Material housing Wrought aluminum alloy
• Material piston rod High-alloy stainless steel
